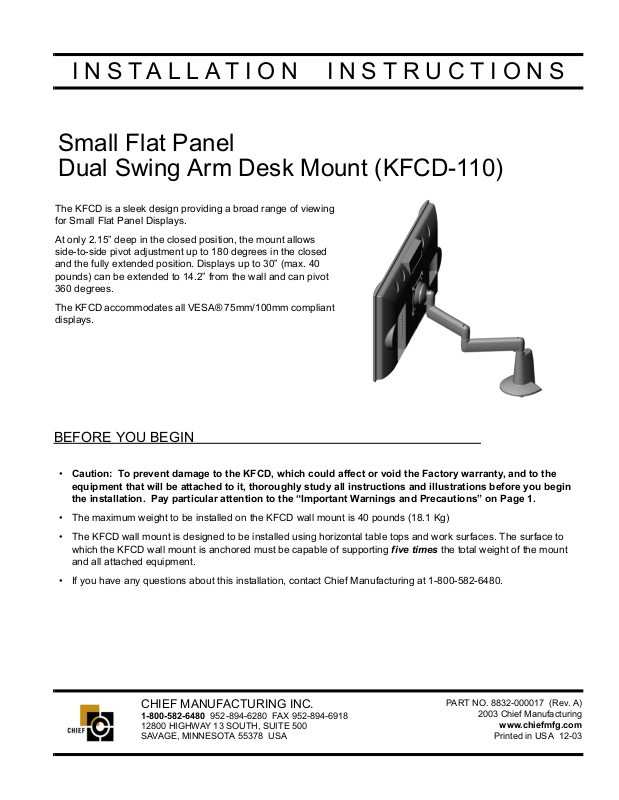

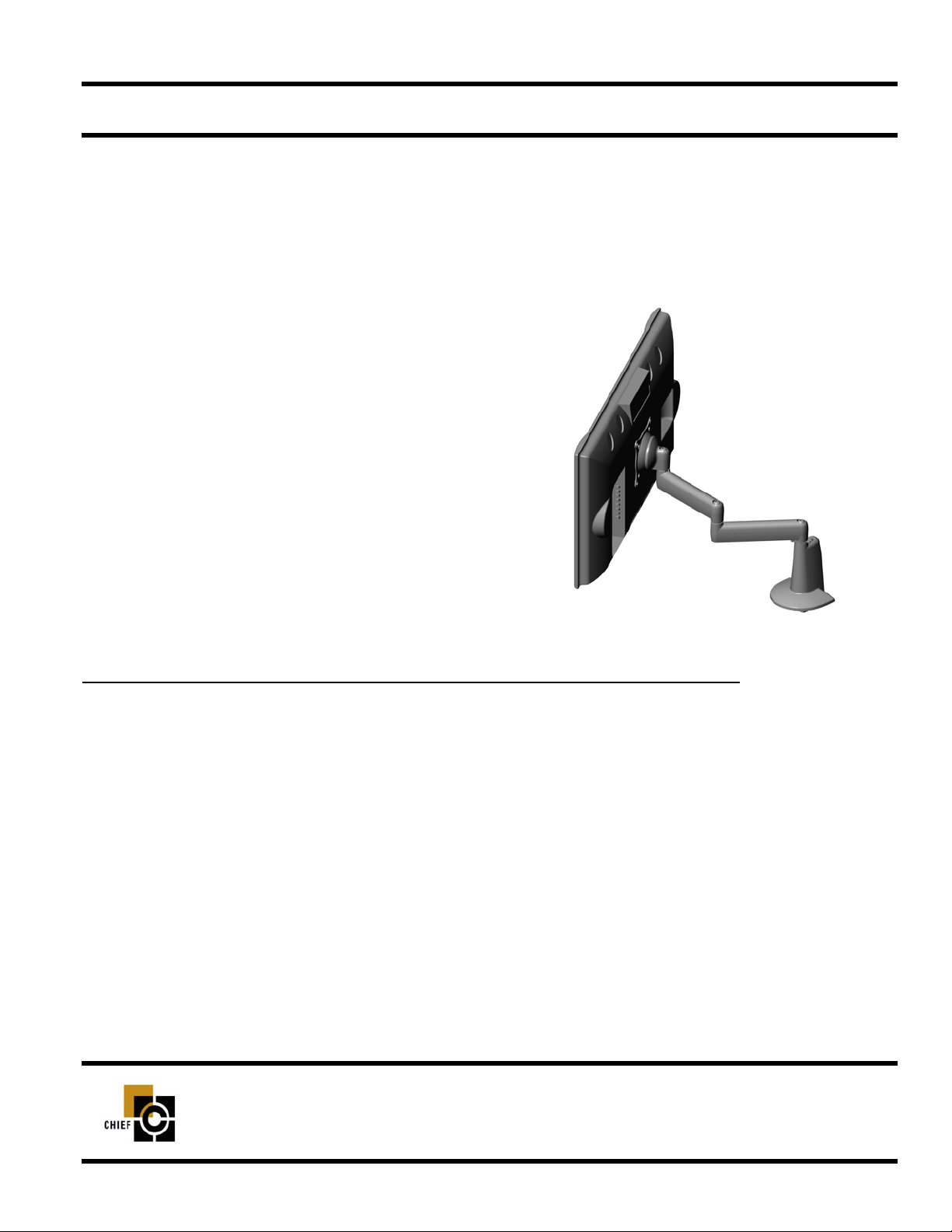

INSTALLATION INSTRUCTIONS
Small Flat Panel
Dual Swing Arm Desk Mount (KFCD-110)
The KFCD is a sleek design providing a broad range of viewing
for Small Flat Panel Displays.
At only 2.15” deep in the closed position, the mount allows
side-to-side pivot adjustment up to 180 degrees in the closed
and the fully extended position. Displays up to 30” (max. 40
pounds) can be extended to 14.2” from the wall and can pivot
360 degrees.
The KFCD accommodates all VESA® 75mm/100mm compliant
displays.
BEFORE YOU BEGIN
• Caution: To prevent damage to the KFCD, which could affect or void the Factory warranty, and to the
equipment that will be attached to it, thoroughly study all instructions and illustrations before you begin
the installation. Pay particular attention to the “Important Warnings and Precautions” on Page 1.
• The maximum weight to be installed on the KFCD wall mount is 40 pounds (18.1 Kg)
• The KFCD wall mount is designed to be installed using horizontal table tops and work surfaces. The surface to
which the KFCD wall mount is anchored must be capable of supporting five times the total weight of the mount
and all attached equipment.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
PART NO. 8832-000017 (Rev. A)
2003 Chief Manufacturing
www.chiefmfg.com
Printed in USA 12-03
Page 2
Installation Instructions KFCD
IMPORTANT WARNINGS AND PRECAUTIONS!
WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-
sponding instructions.
• WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can
support a redundant weight factor five times the total weight of the equipment: if not, reinforce the structure before installing the KFCD.
• WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.
• WARNING:The installer is responsible for verifying that the wall to which the KFCD is anchored will safely support
the combined load of all attached components or other equipment.
• WARNING:The weight of the display placed on the KFCD must not exceed 40 lbs. (18.1 kg), the maximum load capac-
ity of the KFCD.
• WARNING:Watch for pinch points. Do not put your fingers between movable parts.
• WARNING: Make sure the mount and brackets are correctly oriented.
• CAUTION: Check the unit for shipping damage before you begin the installation.
TOOLS REQUIRED FOR INSTALLATION
• Phillips Screwdriver
NOTE: Other tools may be required depending on the
mounting surface and method of installation.
CONTENTS
DRAWINGS ............................................................... 2
INSPECT THE UNIT BEFORE INSTALLING ............ 3
KFCD INSTALLATION ............................................... 3
Edge Clamp (Default) .......................................... 3
Grommet Clamp (2” or 3” Diameter Hole) ........... 3
Grommet Thru-Bolt (.375” - 3” Diameter Hole) ... 5
VESA Compliant Mounts ........................................... 6
Non-VESA Compliant Mounts .................................... 6
CABLE MANAGEMENT ............................................ 7
ADJUSTMENTS ........................................................ 7
Rotational Tilt, Pitch, and Roll Adjustment ........... 7
Lateral Tension Adjustment ................................. 7
Arm Tension Adjustment ..................................... 7
1
Page 3
Installation Instructions KFCD

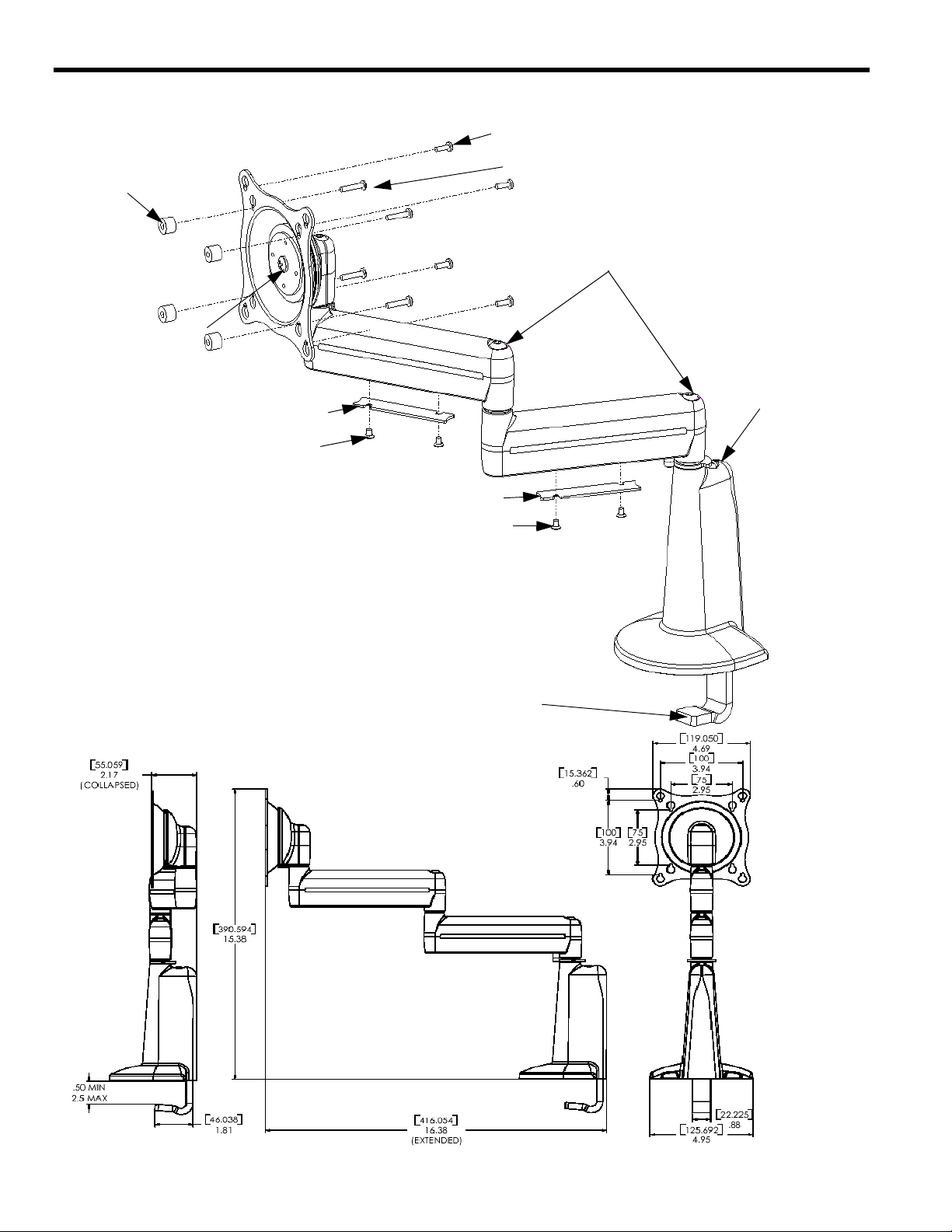

DRAWINGS
M4 X .7 X 12mm Phillips pan head screws
Spacers
(optional)
Phillips Panhead Screw
(Adjustment Screw)
Cover plate
Cover plate screws
M4 X .7 X 20mm Phillips pan head screws
(optional)
Arm Tension
Adj. Bolt
Clamp Bolt
Cover plate
Cover plate screws
Clamp
2
Page 4
Installation Instructions KFCD
INSPECT THE UNIT BEFORE INSTALLING
Clamp Bolt
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
1. Carefully inspect the KFCD for shipping damage. If any damage is apparent, call your carrier claims agent and do not continue with the installation until the carrier has reviewed the
damage.
NOTE: Read all instructions before starting installation.
2. Lay out components to ensure you have all the required parts
before proceeding (see KFCD drawing on page 2).
KFCD INSTALLATION
WARNING: It is the responsibility of the installer to verify that
the surface to which the KFCD is anchored will
safety support the combined load of all attached
components and equipment.
Install the KFCD as follows:
Clamp
Figure 1. Loosen Clamp
1. Determine the exact mounting location prior to installation,
considering the unit’s swing and extension radius.
WARNING: Improper installation can result in serious per-
sonal injury! Make sure that the structural members can support a redundant weight factor five
times the total weight of the equipment: if not,
reinforce the structure before installing the
KFCD.
Edge Clamp (Default)

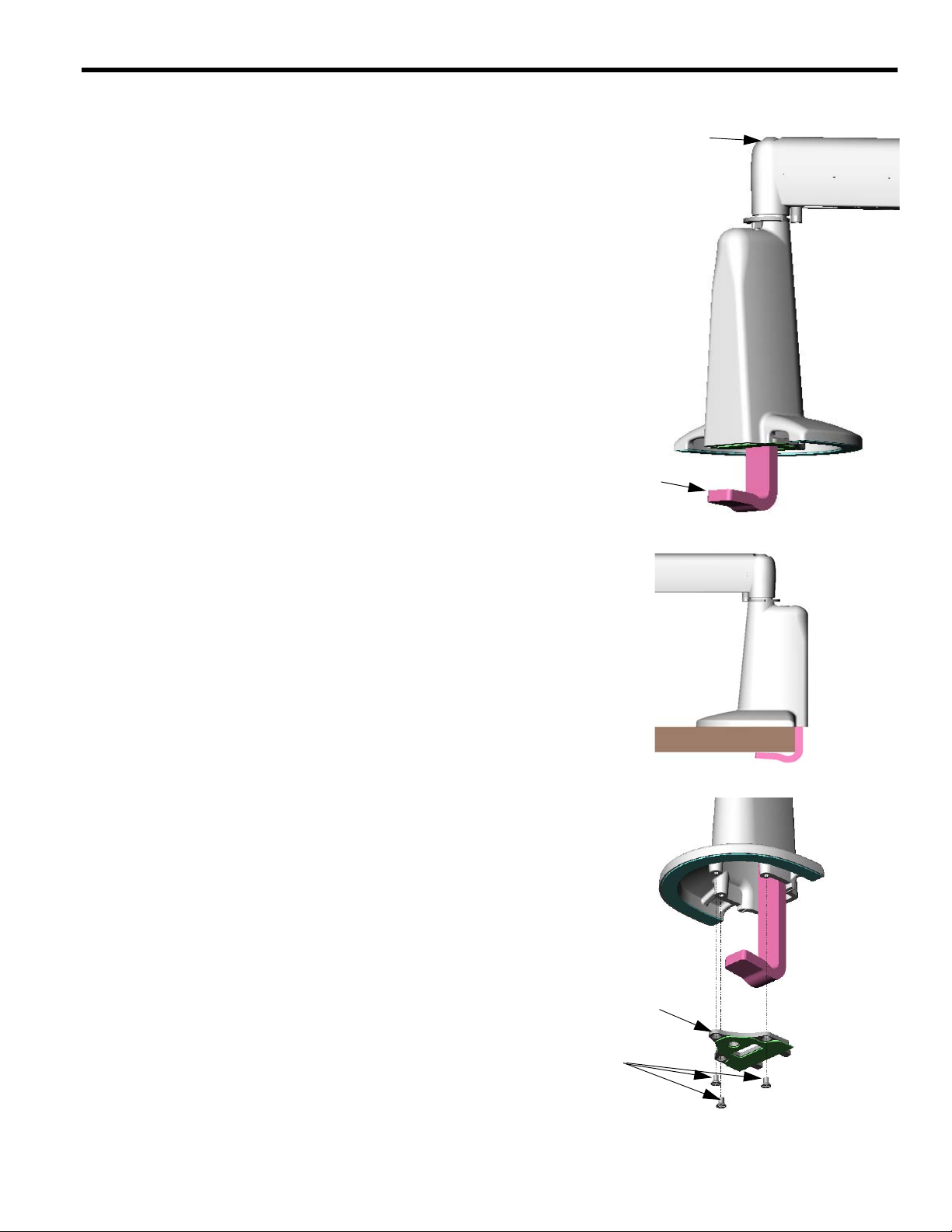

1. Using the 3/16” hex wrench (provided), loosen the clamp wide
enough to fit over the edge of your table top or work surface
(see Figure 1).
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
2. Slide the base over the edge of your table top or work surface
(see Figure 2).
3. Using the 3/16” hex wrench (provided), secure the KFCD by
tightening the clamp bolt.

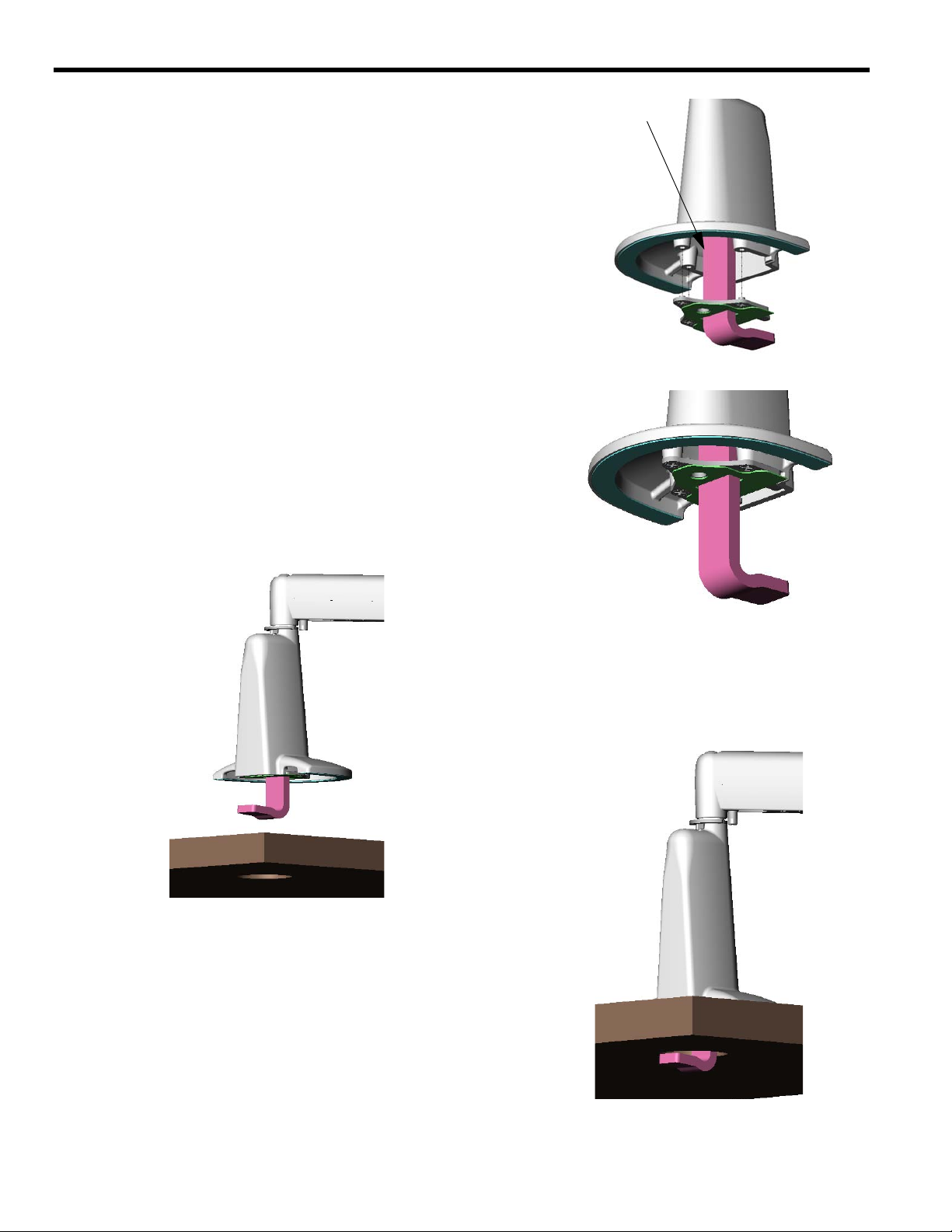

Grommet Clamp (2” - 3” Diameter Hole)
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
1. Remove three screws and the base bracket from the bottom of
the desk clamp (see Figure 3).
Figure 2. Slide Over Work Surface
Base Bracket
Screws
Figure 3. Remove Base Bracket
3
Page 5
Installation Instructions KFCD
2. Using the 3/16” hex wrench (provided), loosen the clamp bolt
and turn the clamp 180 degrees (see Figure 4).
3. Using three screws, secure the base bracket to the bottom of
the desk clamp (see Figure 5).
4. Using the 3/16” hex wrench (provided), loosen the clamp wide
enough to fit through the hole in your table top or work surface
(see Figure 6).
5. Install the unit, fitting the clamp through the 2” to 3” diameter
hole, and secure by tightening the clamp bolt (see Figure 1).
Rotate 180 degrees
Figure 4. Rotate Base Clamp
Figure 6. Install in 2” or 3” Diameter Hole
Figure 5. Secure Base Clamp
Figure 7. Secure in 2” to 3” Diameter Hole
4
Page 6
Installation Instructions KFCD

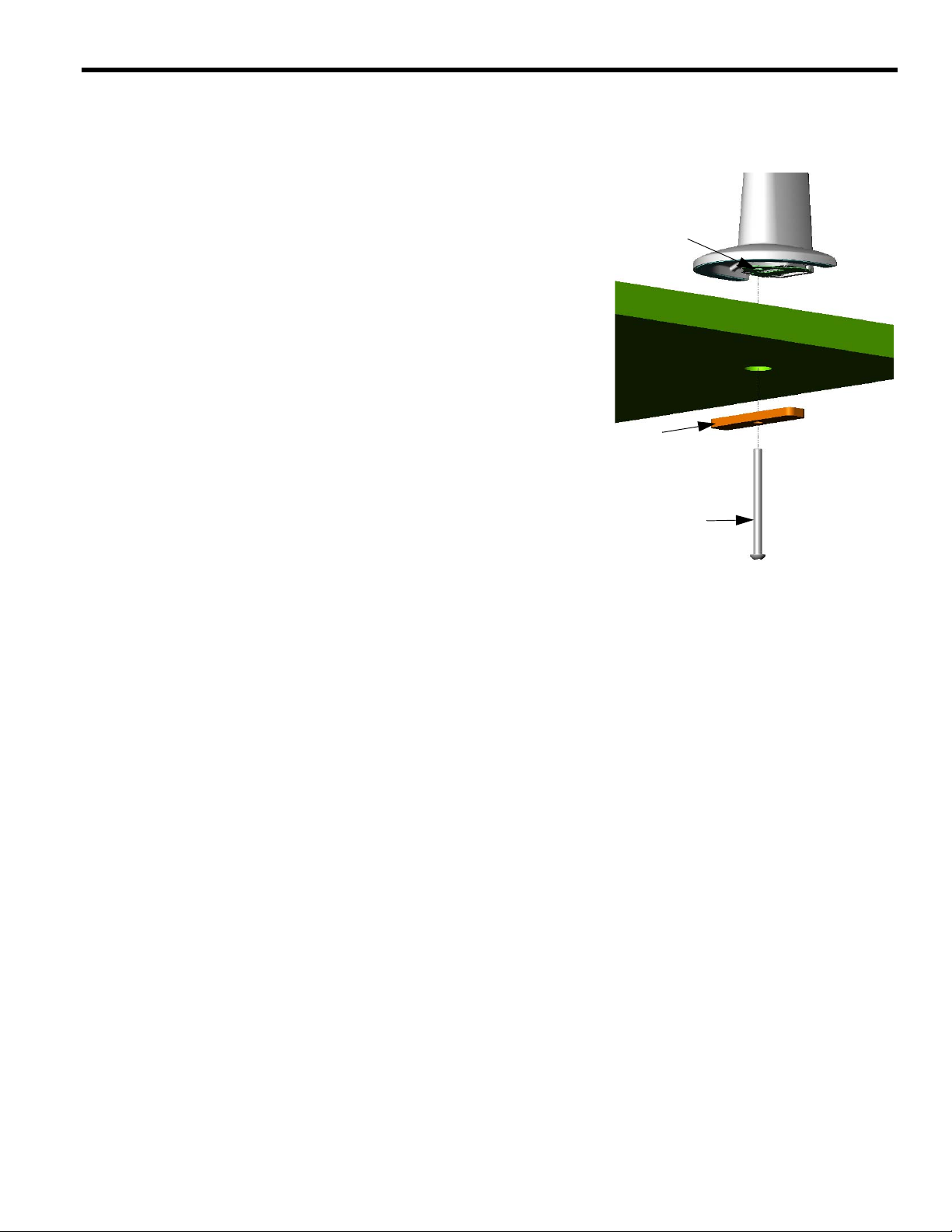

Grommet Thru-Bolt (.375” - 3” Diameter Hole)
WARNING: Watch for pinch points. Do not put your fingers
between movable parts.
1. Remove three screws and the base bracket from the bottom of
the desk clamp (see Figure 3).
2. Using the 3/16” hex wrench (provided), loosen the clamp bolt
and remove the clamp.
Tapped Hole
in
Base Plate
3. Rotate the base bracket 180 degrees and install the base bracket
on the clamp.
4. Slide the 5/16-18 x 4” button head cap screw through the hole
in the bar.
5. Secure the bar, with the 5/16-18 x 4” button head cap screw
under the work surface, to the tapped center hole of the base
bracket in the desk clamp (see Figure 8).
Bar
5/16-18 x 4”
Button Head
Cap Screw
Figure 8. Secure using Bar
5
Page 7
Installation Instructions KFCD
VESA Compliant Mounts
CAUTION: If your display uses a screw size other than M4 X
12mm or M4 X 20mm, DO NOT use the M4 X 12mm
or M4 X 20mm screws provided. Using the wrong
screws could result in damage to your display.
A. Start two M4 X .7 X 12mm Phillips pan head screws or
M4 X .7 X 20mm Phillips pan head screws and spacers
(provided) for recessed applications into the top two
mounting holes of your display.
B. Match the hole pattern on your display (75mm or 100mm)
with the hole pattern on the mount and hang the mount
from the two screws started in Step 2.
C. Install the remaining two M4 X .7 X 12mm Phillips pan
head screws or M4 X .7 X 20mm Phillips pan head screws
and spacers (provided) for recessed applications as necessary.
D. Secure your display to the mount by tightening the four
M4 X .7 X 12mm Phillips pan head screws or M4 X .7 X
20mm Phillips pan head screws.
WARNING: Make sure your cables do not run through a pinch
point.
E. Connect and secure power/audio/video cables, making
sure to leave sufficient slack to allow for movement of the
display.
Non-VESA Compliant
A. Contact Chief Manufacturing for custom interface brack-
ets.
Mounts
6
Page 8
Installation Instructions KFCD
CABLE MANAGEMENT
WARNING: Make sure your cables do not run through a pinch
point.
1. Route power/audio/video cables under each arm, allowing suf-
ficient slack in cables for extension and avoiding pinch points
2. Secure cables using cover plates and four screws (see “DRAW-
INGS” on page 2).
ADJUSTMENTS
CAUTION: Overtightening adjustment will cause excessive
wear.
Rotational Tilt, Pitch, and Roll Adjustment
1. If necessary, use a Phillips screwdriver to tighten or loosen the
Phillips pan head screw (see “DRAWINGS” on page 2).
2. Check for desired tension.
3. Repeat Steps 1 and 2 until desired tension is obtained.
Lateral Tension Adjustment
1. Using a 3/16” hex wrench (provided), slightly tighten or loosen
lateral tension adjustment bolt (see “DRAWINGS” on page 2).
2. Check for desired tension.
3. Repeat Steps 1 and 2 until desired tension is obtained.
Arm Tension Adjustment
1. Using a 3/16” hex wrench (provided), slightly tighten or loosen
arm tension adjustment bolt (see “DRAWINGS” on page 2).
2. Check for desired tension.
3. Repeat Steps 1 and 2 until desired tension is obtained.
7
