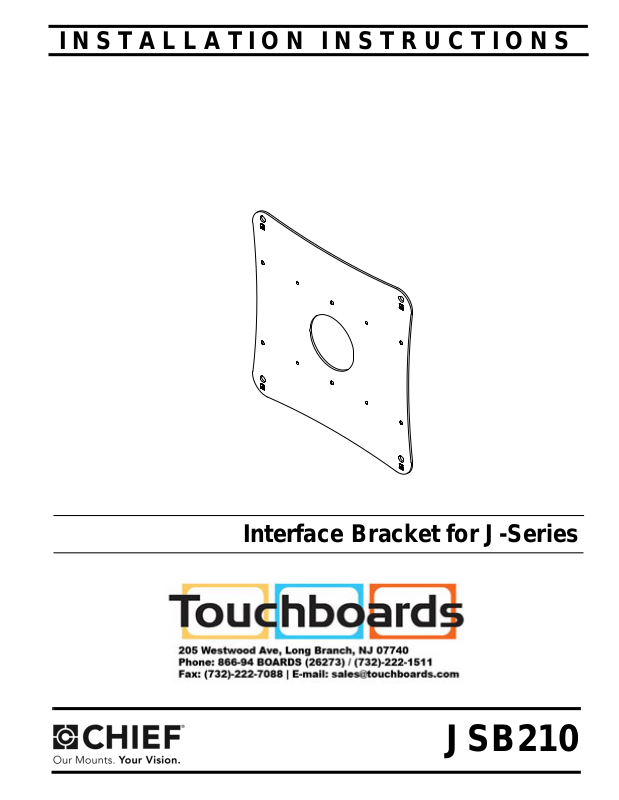

Page 1
INSTALLATION INSTRUCTIONS
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Interface Bracket for J-Series
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
JSB210
Page 2
JSB210 Installation Instructions
2.50
63.50
3.94
100
7.87
200
3.94
100
4X M4 X 0.7 TAPPED HOLE
9.00
228.60
9.00
228.60
7.87
200
7.87
200
ALL MEASUREMENTS ARE IN
THE FOLLOWING FORMAT:
[MILLIMETERS]
INCHES
DISCLAIMER
Milestone AV Technologies, Inc., and its affiliated corporations
and subsidiaries, intend to make this manual accurate and
complete. However, Milestone makes no claim that the
information contained herein covers all details, conditions or
variations, nor does it provide for every possible contingency in
connection with the installation or use of this product. The
information contained in this document is subject to change
without notice or obligation of any kind. Milestone makes no
representation of warranty, expressed or implied, regarding the
information contained herein. Milestone assumes no
responsibility for accuracy, completeness or sufficiency of the
information contained in this document.
Chief® and Centris™ are registered trademarks of Milestone
AV Technologies. All rights reserved.
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING:
serious injury or death if you do not follow the instructions.
A WARNING alerts you to the possibility of
CAUTION:
A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING:
Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING:
Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING:
Exceeding the weight capacity of the mount
can result in serious personal injury or damage to equipment!
It is the installer’s responsibility to make sure the combined
weight of the mount and all attached components does not
exceed 75 lbs (34 kg).
DIMENSIONS
2
Page 3
Installation Instructions JSB210
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
Open-Ended Wrench
Llave de boca
Gabelschlüssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
By Hand
A mano
Von Hand
Com a mão
A mano
Met de hand
À la main
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
Sicherheitsschlüssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité
LEGEND
3
Page 4
JSB210 Installation Instructions
#2
5/32"
(Provided)
3/16"
(Provided)
A (1)
B (4)
M4 x 8mm
C (4)
M4 x 12mm
D (6)
M4 x 16mm
E (4)
M4 x 20mm
F (4)
M5 x 20mm
G (4)
M5 x 30mm
H (4)
M5 x 45mm
J (6)
.194x.625x.125
K (4)
10-24
L (4)
M6 x 20mm
M (4)
M6 x 30mm
N (4)
M6 x 45mm
P (4)
.740x.250x.250
Q (1)
5/32"
R (1)
3/16"
BAG 1
BAG 2
BAG 3
TOOLS REQUIRED FOR INSTALLATION
PARTS
4
Page 5
Installation Instructions JSB210
2
(D) x 6
(J) x 6
3
(E through H,
L through N) x 4
(J or P) x 4
M4 screws placed
through square holes
M6 screws
placed through
round holes
x 4
2
(A)
INSTALLATION
WARNING:
MOUNT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! DO NOT substitute
hardware. Only use hardware provided or specified by
manufacturer.
1. Determine pattern of mounting holes in back of display.
WARNING:
DAMAGE TO EQUIPMENT OR TO MOUNT FALLING
CAUSING SERIOUS PERSONAL INJURY ! Use proper size
and length hardware depending on display .
IMPROPER INSTALLATION CAN LEAD TO
IMPROPER INSTALLATION CAN LEAD TO
200mm x 100mm Mounting Hole Pattern
2. Use six nylon spacers (J) and six flat head screws (D) to
attach JSB210 interface bracket to the display back.
(See Figure 1)
Figure 2
Figure 1
200mm x 200mm Mounting Hole Pattern
3. Use four nylon spacers (J or P) and four Phillips cap head
screws (E through H, L through N) to attach JSB210
interface bracket to the display back. (See Figure 2)
NOTE:
Phillips cap head screws should be placed through
either the square or round holes in the interface bracket
corners.
• Use M4 cap head screws through SQUARE
holes.
• Use M6 cap head screws through ROUND
holes.
CAUTION:
each screw carefully, but do NOT overtighten.
PREVENT EQUIPMENT DAMAMGE! Tighten
Attach Display to Mount
1. Start two Phillips pan head screws into top mounting holes
on interface bracket (A). (See Figure 3)
2. Align two screws in interface bracket (A) with upper
mounting holes in Centris cup and lower display until
screws are seated in lower area of teardrop mounting
holes. (See Figure 3)
Figure 3
5
Page 6
JSB210 Installation Instructions
3
(R) x 1
(C) x 4
x 4
3
3. Hold display so that display back is against Centris cup and
install two Phillips pan head machine screws through lower
mounting holes in Centris cup and into lower mounting
holes in interface bracket (A). (See Figure 4)
Figure 4
4. Complete installation of mount to display, following
instructions included with the mount.
6
Page 7
Installation Instructions JSB210
7
Page 8
JSB210 Installation Instructions
Chief Manufacturing, a division of
Milestone AV Technologies
8832-000251
©2008 Milestone AV Technologies
www.chiefmfg.com
06/08
USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378
P 800.582.6480 / 952.894.6280
F 877.894.6918 / 952.894.6918
Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands
P +31 (0)40 2668620
F +31 (0)40 2668615
Asia Pacific A Room 24F, Block D, Lily YinDu International Building
LuoGang, BuJi Town, Shenzhen, CHINA.
P +86-755-8996 92 26
F +86-755-8996 9217
