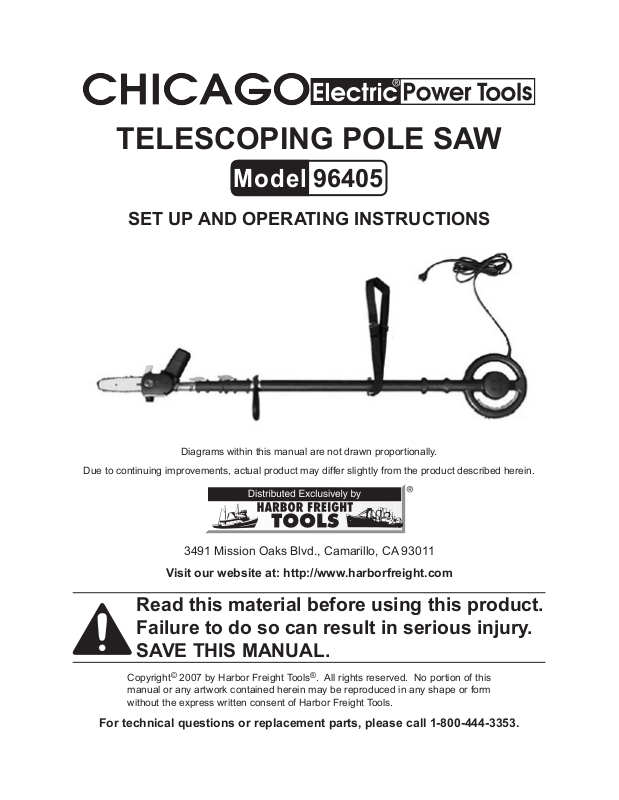

Chicago Electric 96405 User Manual
TELESCOPING POLE SAW
Model
96405
SET UP AND OPERATING INSTRUCTIONS
Diagrams within this manual are not drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
CONTENTS
IMPORTANT SAFETY INFORMATION ............................ 3
GENERAL SAFETY RULES ................................................. 3
Work Area ...................................................................................3
Electrical Safety .........................................................................4
Personal Safety ..........................................................................4
Tool Use and Care ......................................................................5
Service ........................................................................................6
SPECIFIC SAFETY RULES .................................................. 6
GROUNDING .................................................................... 7
Grounded Tools: Tools with Three Prong Plugs ....................7
Double Insulated Tools: Tools with Two Prong Plugs ............8
Extension Cords ........................................................................8
Symbology ..................................................................................9
SPECIFICATIONS ............................................................ 10
UNPACKING ....................................................................10
ASSEMBLY ......................................................................10
OPERATION..................................................................... 10
INSPECTION, MAINTENANCE, AND CLEANING .......... 11
Troubleshooting ........................................................................11
PARTS LIST .....................................................................12
ASSEMBLY DIAGRAM .................................................... 13
WARRANTY ..................................................................... 14
Page 2SKU 96405 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number
in the back of the manual near the assembly diagram (or month and year of purchase if
product has no number). Keep this manual and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY INFORMATION
In this manual, on the labeling, and all other information
provided with this product:
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION, used with the safety alert
symbol, indicates a hazardous situation
which, if not avoided, could result in minor
or moderate injury.
NOTICE is used to address practices not
related to personal injury.
CAUTION, without the safety alert symbol,
is used to address practices not related to
personal injury.
Page 3SKU 96405 For technical questions, please call 1-800-444-3353.
GENERAL SAFETY RULES
WARNING! Read all instructions
Failure to follow all instructions listed below may result in electric shock,
re, and/or serious injury. The term “power tool” in all of the warnings listed
below refers to your mains-operated (corded) power tool.
SAVE THESE INSTRUCTIONS
1.
2.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
a.
Do not operate power tools in explosive atmospheres, such as in the
b.
presence of ammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
c.
Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any
a.
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
b.
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
c.
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
d.
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of
electric shock.
3.
When operating a power tool outdoors, use an extension cord suitable for
e.
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating
a.
a power tool. Do not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment
b.
such as dust mask, non-skid safety shoes, heavy-duty work gloves,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Page 4SKU 96405 For technical questions, please call 1-800-444-3353.
Avoid accidental starting. Ensure the switch is in the “OFF” position before
c.
plugging in. Carrying power tools with your nger on the switch or plugging in
power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
d.
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This
e.
enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
f.
clothing and gloves away from moving parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
4.
Power tool use and care
Always plug this tool into a GFCI equipped 120V electrical outlet.
a.
Do not force the power tool. Use the correct power tool for your application.
b.
The correct power tool will do the job better and safer at the rate for which it
was designed.
Do not use the power tool if the switch does not turn it on and off. Do not use
c.
if the Safety Switch does not operate properly. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from
d.
the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow
e.
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained
users.
Maintain power tools. Check for misalignment or binding of moving parts,
f.
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
g.
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool in accordance with these instructions and in the manner
h.
intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
Page 5SKU 96405 For technical questions, please call 1-800-444-3353.
5.
Service
Have your power tool serviced by a qualied repair person using only
a.
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
SPECIFIC SAFETY RULES
1.
2.
3.
4.
5.
6.
7.
Only use the Pole Saw to cut wood. Never attempt to cut masonry, metal or any
other material with the Pole Saw.
Clear the work area before beginning a cutting project, and plan a path of retreat
to avoid falling branches.
Only use this tool while standing on a rm, level surface. Do not use this tool
while mounted on a ladder or standing on any unstable platform.
Do not stand directly underneath the branch being cut. Always cut at no more
than a 60° angle to the branch and extend the telescopic arm of the Pole Saw for
best possible clearance.
Be mindful of where the branch will fall. Do not use within 50’ of overhead power
lines or above anything that could be damaged by falling branches.
Use extreme caution when cutting branches. Branches under tension could
spring back and cause severe injury. Slender branches can catch in the chain
and whip back towards the operator.
Do not address the tip of the Pole Saw to the material being cut, as it can kick
back violently causing severe injury.
8.
9.
10.
11.
12.
13.
14.
Maintain labels and nameplates on the tool. These carry important safety
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
Avoid unintentional starting. Prepare to begin work before turning on the tool.
Do not lay the tool down until it has come to a complete stop. Moving parts can
grab the surface and pull the tool out of your control.
When using the Pole Saw, maintain a rm grip on the tool with both hands to
resist torque when cutting.
Do not leave the tool unattended when it is plugged into an electrical outlet. Turn
off the tool, and unplug it from its electrical outlet before leaving.
This product is not a toy. Keep it out of reach of children.
DANGER! People with pacemakers should not use chain saws. Chain saws
produce strong electromagnetic elds that can cause pacemaker interference or
Page 6SKU 96405 For technical questions, please call 1-800-444-3353.
