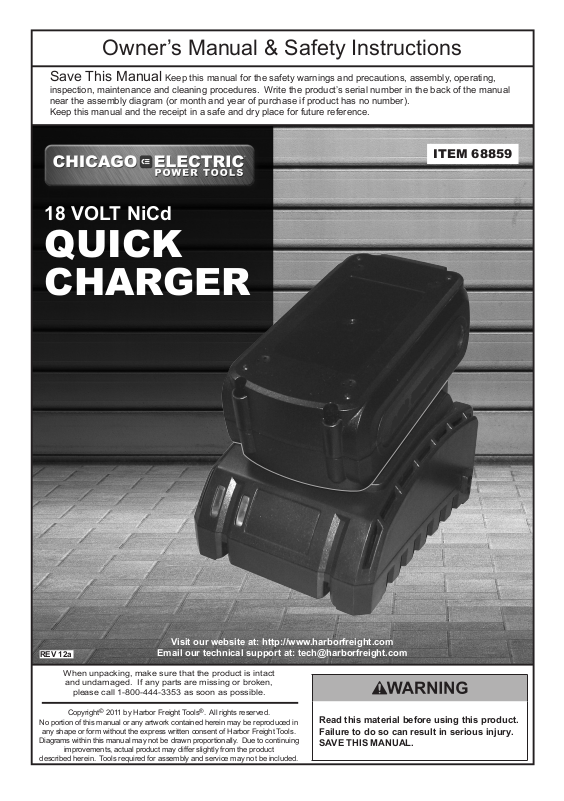

Chicago Electric 68859 User Manual

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

ITEM 68859

18 VOLT NiCd

QUICK CHARGER

Visit our website at: http://www.harborfreight.com

REV 12a

When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken,

please call 1-800-444-3353 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product

described herein. Tools required for assembly and service may not be included.

Email our technical support at: tech@harborfreight.com

Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.

Specifications

Charger

Battery Type

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

120V~, 60Hz. 50W Input

7.2-24VDC Output 1 Hour Charge Time

18V, 1500mAh, NiCd (SKU 68860, sold separately)

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INFORMATION

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

1. Use on dry, flat, fireproof surface only. The Charger gets hot during use. The Charger’s heat can build up to unsafe levels and create a

fire hazard if it does not receive adequate ventilation, due to an electrical fault, or if it is used in a hot environment.

Page 2 For technical questions, please call 1-800-444-3353. Item 68859

2. Do not place the Charger on a flammable surface. Do not obstruct any vents on the Charger. Especially avoid placing

the Charger on carpets and rugs; they are not only flammable, but they also obstruct vents under the Charger.

3. Place the Charger on a stable, solid, nonflammable surface (such as a stable metal workbench or concrete floor) at least 1 foot away from all flammable objects, such as drapes or walls.

4. Keep a fire extinguisher and a smoke detector in the charging area.

5. Charge only designated battery packs;

others may overheat, leak, or burst.

6. Follow charging instructions.

7. Do not insert damaged battery pack.

8. Frequently monitor the Charger

and battery pack during use.

9. Wear ANSI-approved safety goggles during use.

10. Use chargers only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

11. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery pack terminals

together may cause burns or a fire.

12. Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery

pack may cause irritation or burns.

13. Charging room temperature: 50° - 104° F

14. Do not expose chargers to rain or wet conditions. Water entering a Charger will increase the risk of electric shock. Charge indoors only.

15. Keep charging area clean and well lit. Cluttered or dark areas invite accidents.

16. Do not operate chargers in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Chargers create sparks which may ignite the dust or fumes.

17. Charger plugs must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock.

18. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the Charger. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

19. Store idle chargers out of the reach of children and do not allow persons unfamiliar with the Charger or these instructions to operate the Charger.

20. Maintain chargers. Check for breakage of parts and any other condition that may affect the Charger’s operation. If damaged, have the Charger repaired before use.

21. Have your Charger serviced only by a qualified repair person. This will ensure that the safety of the Charger is maintained.

22. Inspect before every use; do not use if parts are loose or damaged.

23. Use as intended only.

24. Unplug after use and before service, cleaning or storage.

25. Maintain labels and nameplates on the Charger. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

26. This product is not a toy. Keep it out of reach of children.

27. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.

28. WARNING: Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. (California Health & Safety Code

§ 25249.5, et seq.)

SAVE THESE INSTRUCTIONS.

Page 3For technical questions, please call 1-800-444-3353.Item 68859
