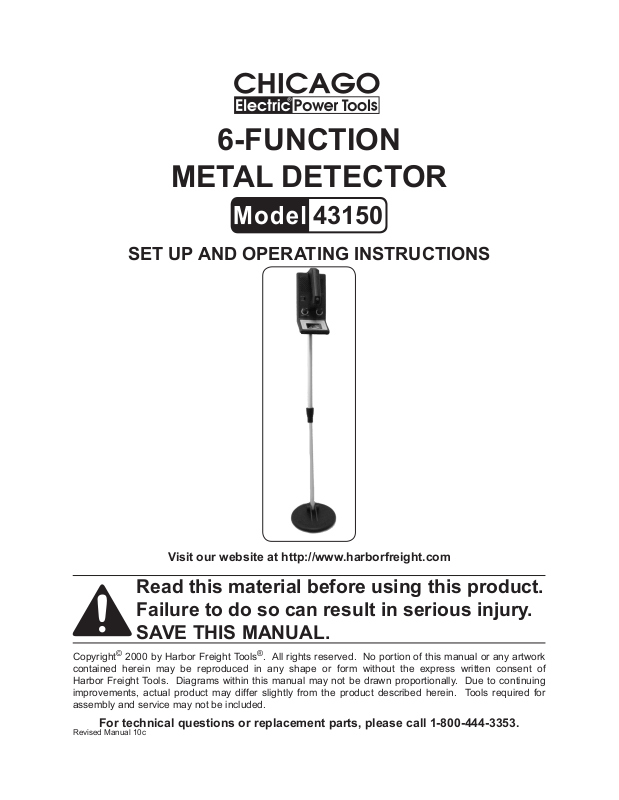

Chicago Electric 43150 User Manual

6-FUNCTION
METAL DETECTOR
43150
SET UP AND OPERATING INSTRUCTIONS
Visit our website at http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury. SAVE THIS MANUAL.
Copyright© 2000 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10c
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
IMPORTANT SAFETY
not avoided, could result in minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert symbol, is used to address practices not related to personal injury.
General Power Tool Safety
Warnings
INFORMATION
In this manual, on the labeling, and all other information provided with this product:
This is the safety alert
symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER indicates
a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION, used
with the safety alert symbol, indicates a hazardous situation which, if
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the
warnings refers to your battery-
operated (cordless) power tool.
Electrical safety1.
Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
Personal safety2.
Stay alert, watch what you are a. doing and use common sense when operating a power tool. Do not use a power tool while you
are tired or under the inuence
of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
Do not overreach. Keep proper b. footing and balance at all times.
Page 2For technical questions, please call 1-800-444-3353.SKU 43150
This enables better control of the
power tool in unexpected situations.
Power tool use and care3.
Do not use the power tool if the a. switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is
dangerous and must be repaired.
Remove the batteries from b. the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting
the power tool accidentally.
information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Handle Tool carefully at all times. 2. Dropping Tool can cause damage to circuit boards and housing, which can cause tool malfunction or failure.
Position batteries in proper polarity 3. and do not install batteries of different types, charge levels, or capacities together.
Wear ANSI-approved safety goggles 4. and heavy-duty work gloves when assembling and digging holes.
Store idle power tools out of c. the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power
tools are dangerous in the hands of
untrained users.
Maintain power tools. Check d. for misalignment or binding of parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
Service4.
Have your power tool serviced by a.
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Metal Detector Safety Warnings
Maintain labels and nameplates on 1. the tool. These carry important safety
Consult local regulations before 5. using detector, digging, or taking
any ndings. Obtain property owner’s permission before detecting on their property.
Only use and store in normal 6. temperature environments.
Extremes in temperature can shorten effectiveness of electronic devices and melt or damage plastic parts.
Avoid electrical shock. 7. Any metal detector may discover underground power lines, explosives or other items which when struck could cause personal injury. Do not use this product in areas where there might be underground electric lines or pipes buried at shallow depths. Never search in military zones where bombs or other explosives may be buried. Avoid striking any line known or suspected to be carrying electric power. Do not search any pipeline, particularly if it could contain a
ammable gas or liquid. In areas of
uncertain conditions, use reasonable caution before using the Tool. If there
Page 3For technical questions, please call 1-800-444-3353.SKU 43150
is any question about a condition being safe of unsafe, do not operate the Tool.
Keep the Metal Detector away from 8. any lights, TVs, computers, and moble telephones. These can all
cause electromagnetic interference.
Only the Search Coil (27) and 9. plastic section of the Lower Leg (26) are water proof. Do not
immerse the unit any further into water beyond the plastic section of the Lower Leg.
Keep the Tool clean. 10. Wipe the housing after each use. The search coil is washable and can be fully submerged. Never submerge the control housing. Protect the control housing from rain, blowing surf and heavy mist. Disassemble the Leg and wipe it clean after use in sandy areas.
WARNING:14. This product contains or, when used, produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. (California Health & Safety Code § 25249.5, et seq.)
The warnings, precautions, 15. and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
SAVE THESE
INSTRUCTIONS.
Use the right tool for the job11. .
There are certain applications for which this tool was designed. Do not modify this tool and do not use this tool for a purpose for which it was not intended.
This product is not a toy. 12. Keep it out of reach of children.
People with pacemakers should 13. consult their physician(s) before use. Electromagnetic elds in close
proximity to heart pacemaker could cause pacemaker interference or pacemaker failure. In addition, people with pacemakers should:
• Avoid operating alone.
• Properly maintain and inspect to
avoid electrical shock.
Page 4For technical questions, please call 1-800-444-3353.SKU 43150
