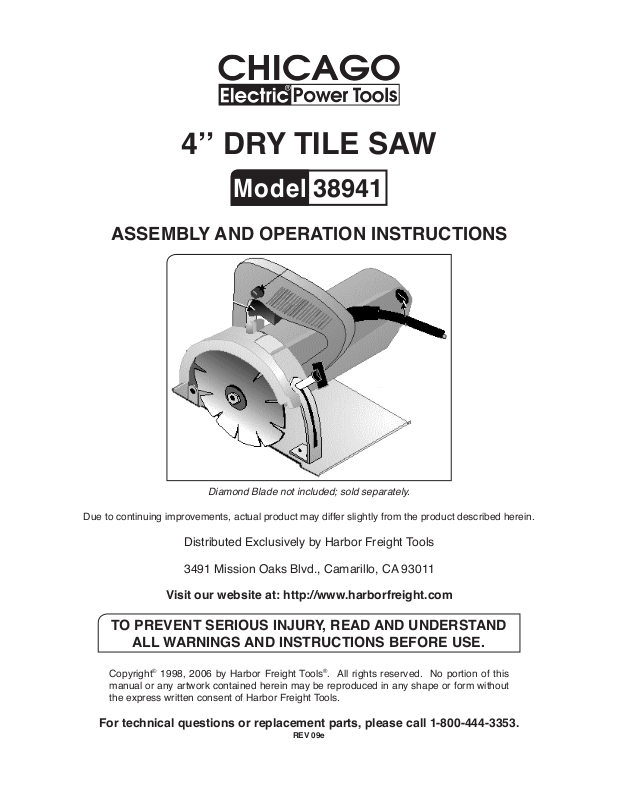

Chicago Electric 38941 User Manual
4’’ DRY TILE SAW
Model
38941
ASSEMBLY AND OPERATION INSTRUCTIONS
Diamond Blade not included; sold separately.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed Exclusively by Harbor Freight Tools
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright© 1998, 2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form without
the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
REV 09e
SPECIFICATIONS
Motor 110 V~, 3.2 A (No Load)
RPM 10,525
Cutting Capacity 1-3/8”
Blade (sold separately) 4” Diameter x 5/8” Arbor
Overall Dimensions 9” x 7” x 7-3/4”
Overall Weight 7.6 lb.
Motor is double insulated
The Tile Saw comes with an Arbor wrench and a T-Handle Wrench. A Blade is not included
with the Tile Saw and must be purchased separately. Recommended saw blade is item #34441
- 4” Diamond blade-Dry type. Saw blades are available at Harbor Freight Tools.
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your
invoice with this manual. Write the invoice number on the inside of the front cover. Write the
product’s serial number in the back of the manual near the assembly diagram, or write month
and year of purchase if product has no number. Keep this manual and invoice in a safe and dry
place for future reference.
#230373
Wet Cut Attachment
A Wet Cut Attachment (Item 38942) is also available through Harbor Freight Tools. This
attachment is not included with the Dry Tile Saw.
If you have purchased the Wet Cut Attachment (#38942) please see the assembly and
operating instructions for this attachment on page #8. Recommended blade when using the Wet
Cut attachment is item #34310 - 4” Diamond blade-Wet type (Continuous Rim Design).
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, re, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite ac-
cidents.
For technical questions, please call 1-800-444-3353.
REV 08/01; 09e
Page 2SKU 38941
2. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool. Distrac-
tions can cause you to lose control. Protect others in the work area from debris such as
chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
1. Double insulated tools are equipped with a polarized plug (one blade is wider than
the other). This plug will t in a polarized outlet only one way. If the plug does
not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied
electrician to install a polarized outlet. Do not change the plug in any way. Double
insulation eliminates the need for the three wire grounded power cord and grounded
power supply system.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock. Only use correct wet cut attachment for wet cutting.
4. Do not abuse the Power Cord. Never use the Power Cord to carry the tools or pull
the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or
moving parts. Replace damaged Power Cords immediately. Damaged Power Cords
increase the risk of electric shock.
5. When operating a power tool outside, use an outdoor extension cord marked “W-A”
or “W”. These extension cords are rated for outdoor use, and reduce the risk of electric
shock.
PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when operating a
power tool. Do not use a power tool while tired or under the inuence of drugs,
alcohol, or medication. A moment of inattention while operating power tools may result
in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
3. Avoid accidental starting. Be sure the Power Switch is off before plugging in. Car-
rying power tools with your nger on the Power Switch, or plugging in power tools with the
Power Switch on, invites accidents.
4. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a
key that is left attached to a rotating part of the power tool may result in personal injury.
For technical questions, please call 1-800-444-3353.
Page 3SKU 38941
5. Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the power tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, nonskid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions. Always wear
ANSI-approved safety goggles and a dust mask/respirator when using or performing
maintenance on this tool.
TOOL USE AND CARE
1. Use clamps (not included) or other practical ways to secure and support the work-
piece to a stable platform. Holding the work by hand or against your body is unstable
and may lead to loss of control.
2. Do not force the tool. Use the correct tool for your application. The correct tool will
do the job better and safer at the rate for which it is designed. Do not force the tool and
do not use the tool for a purpose for which it is not intended.
3. Do not use the power tool if the Power Switch does not turn it on or off. Any tool that
cannot be controlled with the Power Switch is dangerous and must be replaced.
4. Disconnect the Power Cord Plug from the power source before making any adjust-
ments, changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally. Always unplug the tool from its electrical
outlet before performing any inspection, maintenance, or cleaning procedures.
5. Store idle tools out of reach of children and other untrained persons. Tools are dan-
gerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
tools with a sharp cutting edge are less likely to bind and are easier to control. Do not use
a damaged tool. Tag damaged tools “Do not use” until repaired.
7. Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool’s operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used on an-
other tool.
SERVICE
1. Tool service must be performed only by qualied repair personnel. Service or main-
tenance performed by unqualied personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions
in the “Inspection, Maintenance, And Cleaning” section of this manual. Use of un-
authorized parts or failure to follow maintenance instructions may create a risk of electric
shock or injury.
For technical questions, please call 1-800-444-3353.
Page 4SKU 38941
