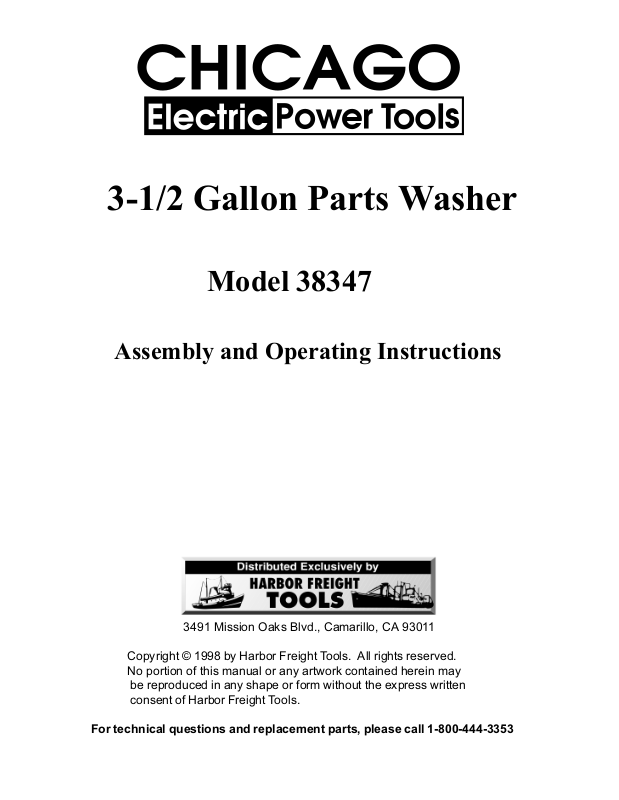

Chicago Electric 38347 User Manual
3-1/2 Gallon Parts Washer
Model 38347
Assembly and Operating Instructions
3491 Mission Oaks Blvd., Camarillo, CA 93011
Copyright © 1998 by Harbor Freight Tools. All rights reserved.
No portion of this manual or any artwork contained herein may
be reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Specifications
Pump: 1/2 GPM Output
Overall Dimensions: 18” x 13-1/2” x 9”
Flexible Spot: 13-3/4”
Motor: 110 Volt, Single Phase
Shipping Weight: 18 lbs.
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions, operating and
maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep the manual and invoice in a safe and dry place for future reference.
WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of
personal injury and damage to equipment.
Read all instructions before using this product.
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit
rust. Always lock up tools and keep out of reach of children.
5. Do not force tool. It will do the job better and more safely at the rate for which it was
intended. Do not use inappropriate attachments in an attempt to exceed the tool capacity.
6. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the
work of a larger industrial tool. Do not use a tool for a purpose for which it was not intended.
7. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving
parts. Protective, electrically non-conductive clothes and non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.
8. Use eye and ear protection. Always wear ANSI approved impact safety goggles. Wear a
full face shield if you are producing metal filings or wood chips. Wear an ANSI approved
dust mask or respirator when working around metal, wood, and chemical dusts and mists.
#38347 Page 2
9. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines.
10. Maintain tools with care. Keep tools sharp and clean for better and safer performance.
Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and, if damaged, have them repaired by an authorized technician. The handles must
be kept clean, dry, and free from oil and grease at all times.
11. Do not abuse the power cord. Do not yank compressor’s cord to disconnect it from the
receptacle. Do not carry tools by the cord.
12. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches are
removed from the tool or machine work surface before plugging it in.
13. Avoid unintentional starting. Be sure the switch is in the Off position when not in use
and before plugging in. Do not carry any tool with your finger on the trigger, whether it is
plugged in or not.
14. Stay alert. Watch what you are doing, use common sense. Do not operate any tool when
you are tired.
15. Check for damaged parts. Before using any tool, any part that appears damaged should
be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment and binding of moving parts; any broken parts or mounting
fixtures; and any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified technician. Do not use the
tool if any switch does not turn On and Off properly.
16. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.
17. Replacement parts and accessories. When servicing, use only identical replacement
parts. Use of any other parts will void the warranty. Only use accessories intended for use
with this tool. Approved accessories are available from Harbor Freight Tools.
18. Do not operate tool if under the influence of alcohol or drugs. Read warning labels
on prescriptions to determine if your judgment or reflexes are impaired while taking drugs.
If there is any doubt, do not operate the tool.
19. Drain compressor every day. Do not allow moisture to build up inside the compressor.
Do not allow compressor to sit pressurized for longer than one hour.
20. Make sure all equipment is rated to the appropriate capacity. Make sure that regulator
is set at least 10 PSI lower than the lowest rated piece of equipment you are using.
Unpacking
When unpacking, check to make sure that all parts are included (see the Parts List and Parts Diagram on
pages 6 and 7 ). If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover
of this manual as soon as possible.
