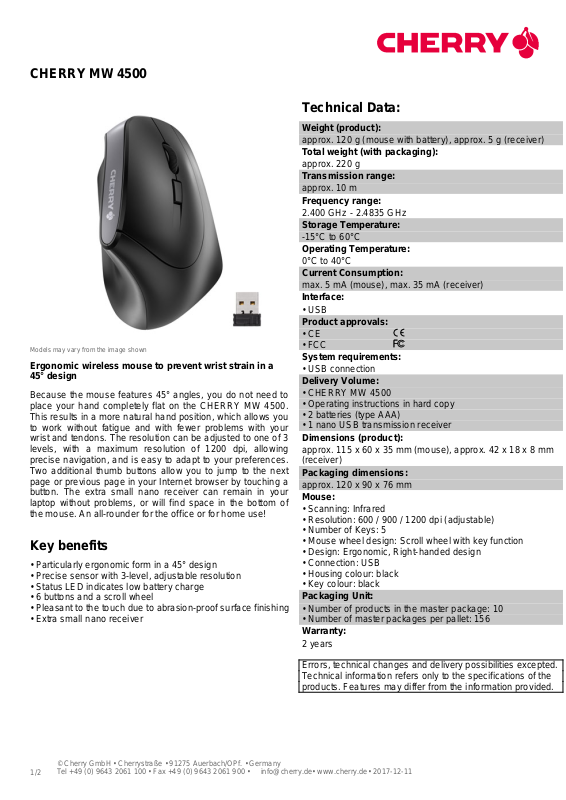

Cherry JW-4500 Product Data Sheet

CHERRY MW 4500

Models may vary from the image shown

Ergonomic wireless mouse to prevent wrist strain in a 45° design

Because the mouse features 45° angles, you do not need to place your hand completely flat on the CHERRY MW 4500. This results in a more natural hand position, which allows you to work without fatigue and with fewer problems with your wrist and tendons. The resolution can be adjusted to one of 3 levels, with a maximum resolution of 1200 dpi, allowing precise navigation, and is easy to adapt to your preferences. Two additional thumb buttons allow you to jump to the next page or previous page in your Internet browser by touching a button. The extra small nano receiver can remain in your laptop without problems, or will find space in the bottom of the mouse. An all-rounder for the office or for home use!

Key benefits

• Particularly ergonomic form in a 45° design

• Precise sensor with 3-level, adjustable resolution

• Status LED indicates low battery charge

• 6 buttons and a scroll wheel

• Pleasant to the touch due to abrasion-proof surface finishing

• Extra small nano receiver

Technical Data:

Weight (product):

approx. 120 g (mouse with battery), approx. 5 g (receiver)

Total weight (with packaging):

approx. 220 g

Transmission range:

approx. 10 m

Frequency range:

2.400 GHz - 2.4835 GHz

Storage Temperature:

-15°C to 60°C

Operating Temperature:

0°C to 40°C

Current Consumption:

max. 5 mA (mouse), max. 35 mA (receiver)

Interface:

• USB

Product approvals:

• CE

• FCC

System requirements:

• USB connection

Delivery Volume:

• CHERRY MW 4500

• Operating instructions in hard copy

• 2 batteries (type AAA)

• 1 nano USB transmission receiver

Dimensions (product):

approx. 115 x 60 x 35 mm (mouse), approx. 42 x 18 x 8 mm (receiver)

Packaging dimensions:

approx. 120 x 90 x 76 mm

Mouse:

• Scanning: Infrared

• Resolution: 600 / 900 / 1200 dpi (adjustable)

• Number of Keys: 5

• Mouse wheel design: Scroll wheel with key function

• Design: Ergonomic, Right-handed design

• Connection: USB

• Housing colour: black

• Key colour: black

Packaging Unit:

• Number of products in the master package: 10

• Number of master packages per pallet: 156

Warranty:

2 years Errors, technical changes and delivery possibilities excepted.

Technical information refers only to the specifications of the products. Features may differ from the information provided.

1/2

Models:

Product name Order number EAN code

1 CHERRY MW 4500 JW-4500 4025112088315
