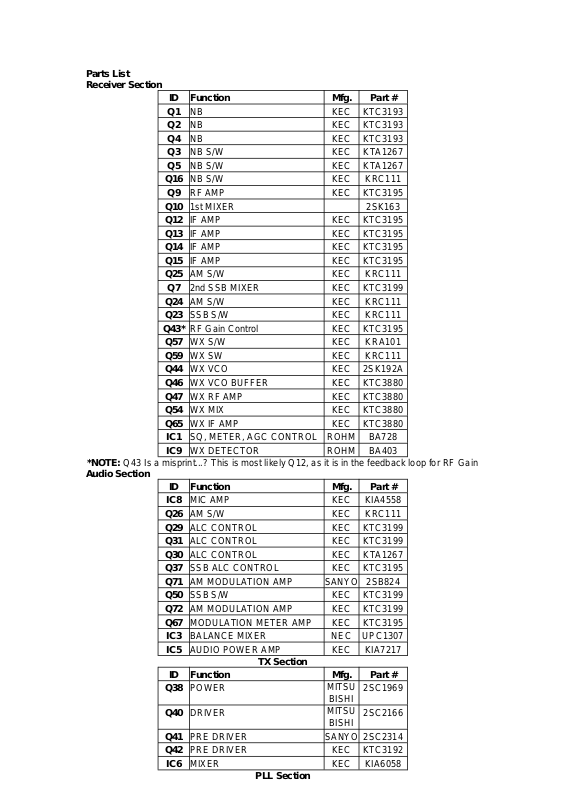

Cherokee CBS 1000 Parts List

Parts List Receiver Section

ID Function Mfg. Part #

Q1 NB KEC KTC3193 Q2 NB KEC KTC3193 Q4 NB KEC KTC3193 Q3 NB S/W KEC KTA1267 Q5 NB S/W KEC KTA1267

Q16 NB S/W KEC KRC111

Q9 RF AMP KEC KTC3195 Q10 1st MIXER 2SK163 Q12 IF AMP KEC KTC3195 Q13 IF AMP KEC KTC3195 Q14 IF AMP KEC KTC3195 Q15 IF AMP KEC KTC3195 Q25 AM S/W KEC KRC111

Q7 2nd SSB MIXER KEC KTC3199 Q24 AM S/W KEC KRC111 Q23 SSB S/W KEC KRC111

Q43* RF Gain Control KEC KTC3195

Q57 WX S/W KEC KRA101 Q59 WX SW KEC KRC111 Q44 WX VCO KEC 2SK192A Q46 WX VCO BUFFER KEC KTC3880 Q47 WX RF AMP KEC KTC3880 Q54 WX MIX KEC KTC3880 Q65 WX IF AMP KEC KTC3880

IC1 SQ, METER, AGC CONTROL ROHM BA728 IC9 WX DETECTOR ROHM BA403

*NOTE: Q43 Is a misprint...? This is most likely Q12, as it is in the feedback loop for RF Gain

Audio Section

ID Function Mfg. Part #

IC8 MIC AMP KEC KIA4558 Q26 AM S/W KEC KRC111 Q29 ALC CONTROL KEC KTC3199 Q31 ALC CONTROL KEC KTC3199 Q30 ALC CONTROL KEC KTA1267 Q37 SSB ALC CONTROL KEC KTC3195 Q71 AM MODULATION AMP SANYO 2SB824 Q50 SSB S/W KEC KTC3199 Q72 AM MODULATION AMP KEC KTC3199 Q67 MODULATION METER AMP KEC KTC3195

IC3 BALANCE MIXER NEC UPC1307

IC5 AUDIO POWER AMP KEC KIA7217

TX Section

ID Function Mfg. Part #

Q38 POWER

MITSU

2SC1969

BISHI

Q40 DRIVER

MITSU

2SC2166

BISHI

Q41 PRE DRIVER SANYO 2SC2314 Q42 PRE DRIVER KEC KTC3192

IC6 MIXER KEC KIA6058

PLL Section

ID Function Mfg. Part #

Q17 CHARGE PUMP KEC KTC3199 Q18 CHARGE PUMP KEC KTC3199 Q19 VCO AMP KEC KTC3195 Q20 4.5 MHz OSC KEC KTC3880 Q21 VCO OSC KEC KTC3195 Q22 VCO AMP KEC KTC3195 Q33 10.695 MHz OSC KEC KTC3195

IC201 CONTROL & PLL

HYUND

LC7232

IC202 AM? SSB S/W

MOTO

MC14066

ROLA

POWER SUPPLY SECTION

ID Function Mfg. Part #

Q35 TX S/W KEC KRC110 Q36 TX S/W KEC KTA200 Q68 CLARIFIER S/W KEC KTC3875 Q69 CLARIFIER S/W KEC KTC3875 Q74 AC/DC CONVERTER KEC KTB778 Q76 AC/DC CONVERTER KEC KTC1027 Q73 AC/DC CONVERTER KEC KTC200 Q74 AC/DC CONVERTER KEC KRC111

Q203 TX S/W KEC KRA101S Q204 HOLD S/W KEC KTA1504

IC4 8 VOLT REGULATOR

DAEW

78L08

IC5 5 VOLT REGULATOR KEC 78S05
