Checkline KXB User Manual

ELECTROMATIC
E Q U I P M E N T C O., I N C.
600 Oakland Ave., Cedarhurst, NY 11516–U.S.A. TEL: 516-295-4300 • FAX: 516-295-4399
CHECK•LINE
INSTRUMENTS
CHECK•LINE
®
BY ELECTROMATIC

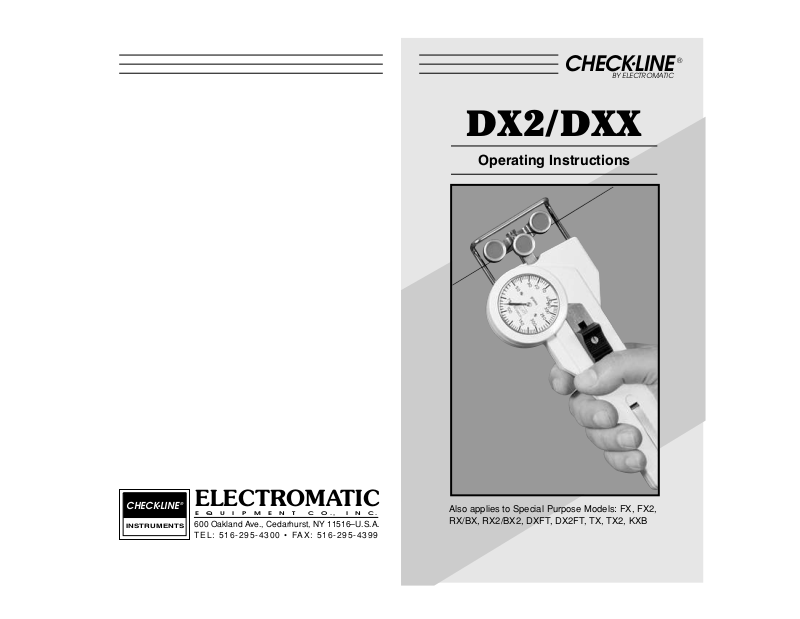

DX2/DXX
Operating Instructions
Also applies to Special Purpose Models: FX, FX2, RX/BX, RX2/BX2, DXFT, DX2FT, TX, TX2, KXB
12
1
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page
1.0 Overview & Operating Principle . . . . . . . . . . . . . . . 2
2.0 Operating Elements . . . . . . . . . . . . . . . . . . . . . . . . . 3

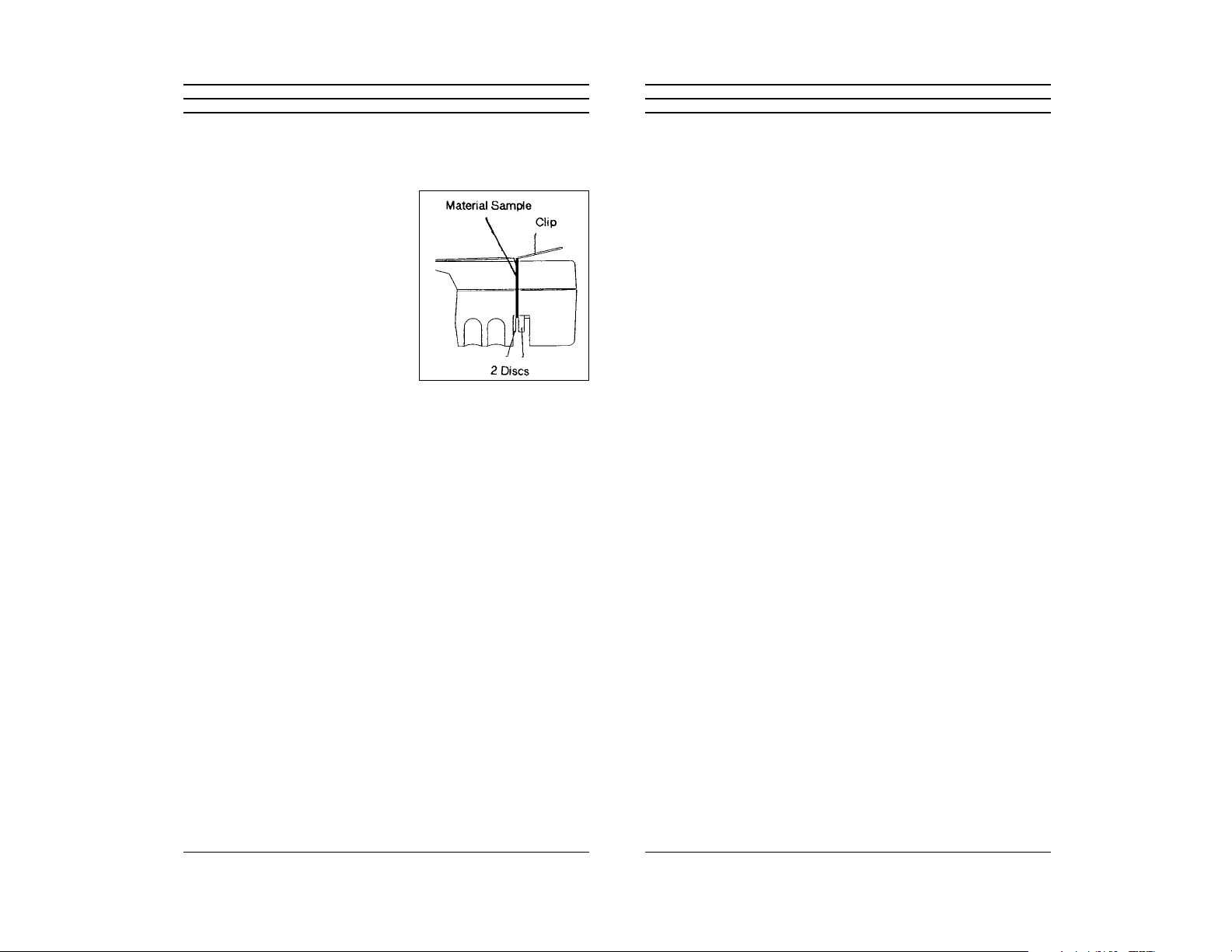

3.0 Thickness Compensation . . . . . . . . . . . . . . . . . . . . . 4
4.0 Quick Start Instructions . . . . . . . . . . . . . . . . . . . . . 5
5.0 Calibration Notes . . . . . . . . . . . . . . . . . . . . . . . . . 6

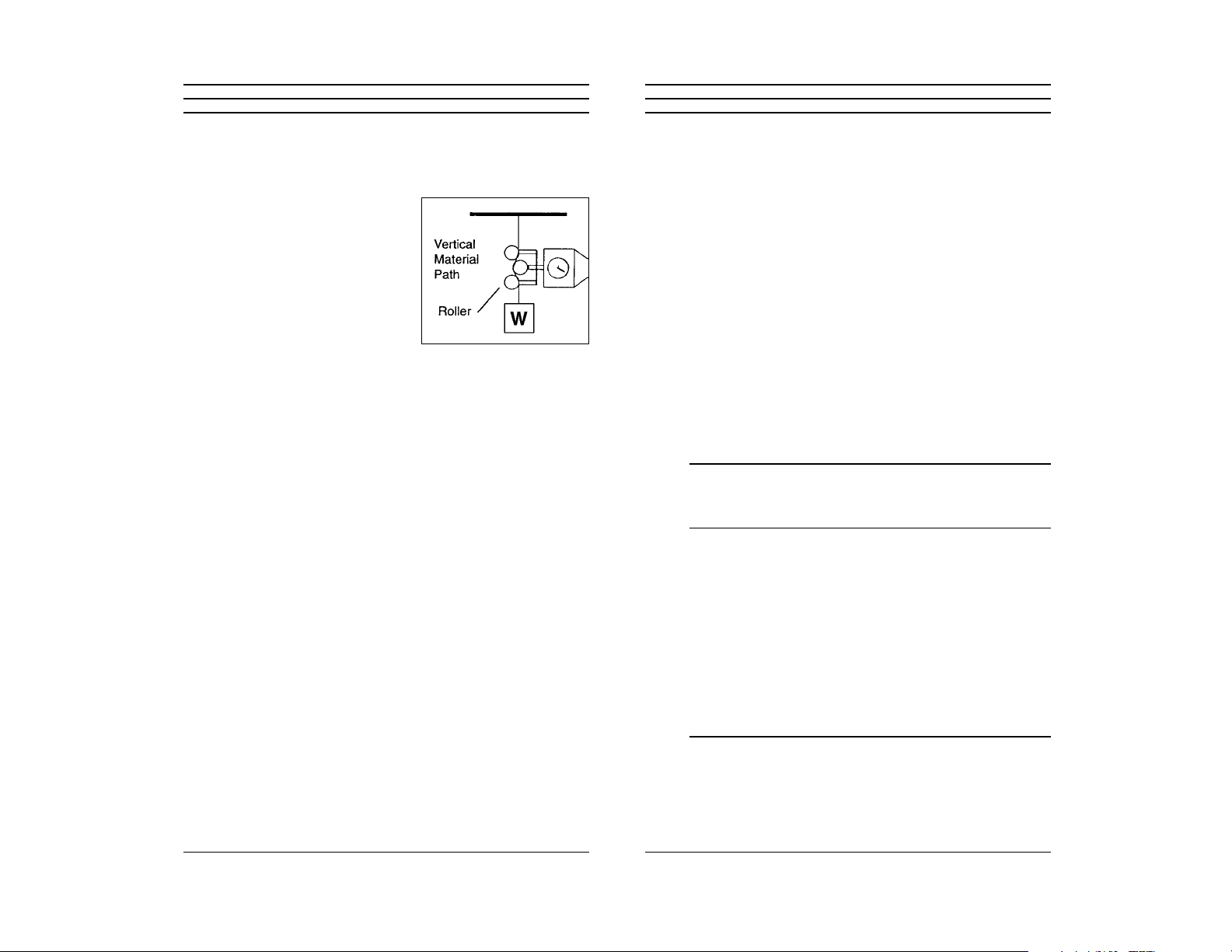

5.1 Calibration with “Standard” Filaments
5.2 Special Calibration
5.3 NIST Calibration
5.4 Calibration Verification Schedule
6.0 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.1 High-Speed Guide Rollers
6.2 Lever Assembly
6.3 Air Dashpot Damping
6.4 Memory Pointer
7.0 Model Data & Specifications . . . . . . . . . . . . . . . . . 12

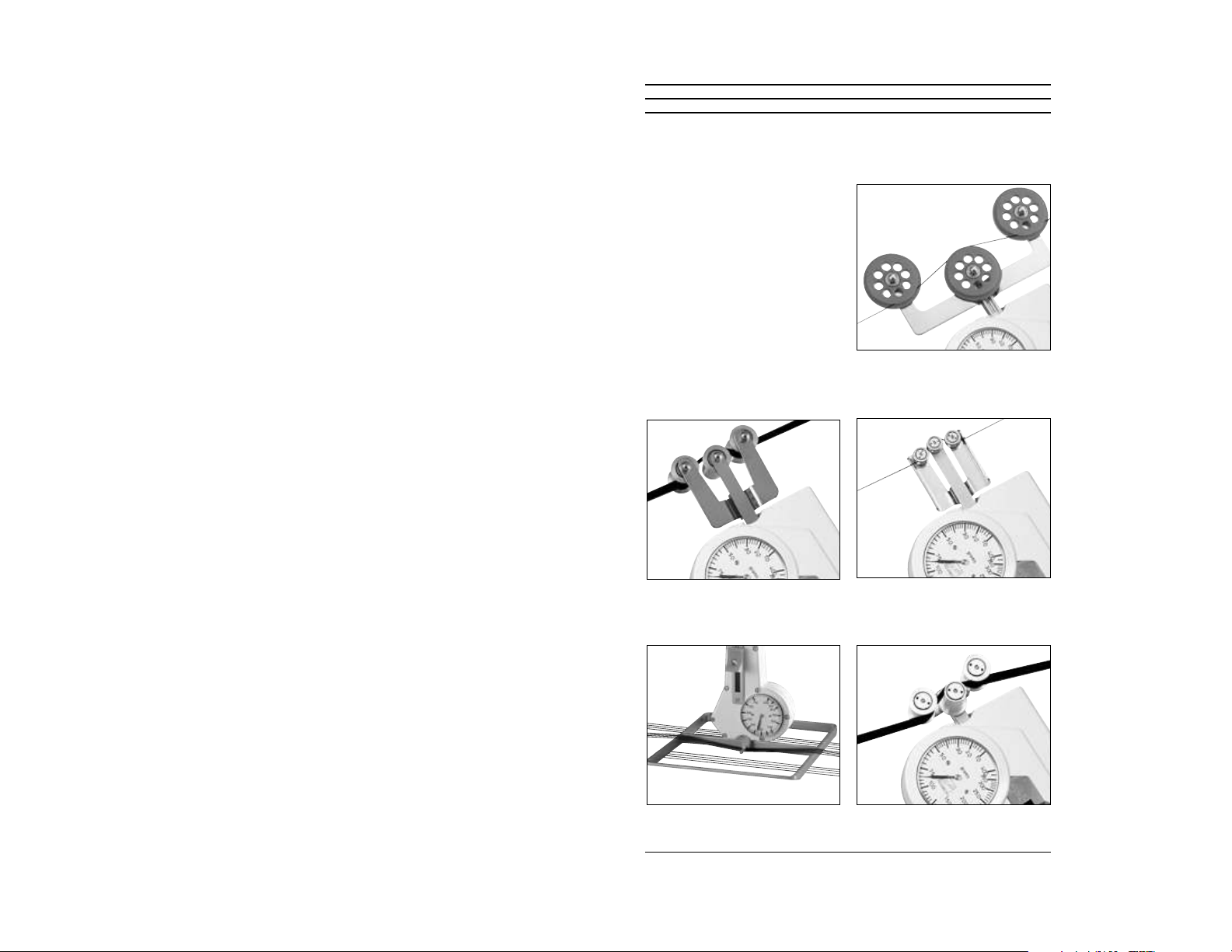

Appendix – DX2 Special-Purpose Models . . . . . . . 13
7.0 DX2 MODEL DATA & SPECIFICATIONS*
Accuracy** ± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale 41 mm
Maximum Speed
(standard) 2000 m/ min (optional) 3500 m/ min (optional) 5000 m/ min
Outer roller distance, c:c
DX2-5 to DX2-EX 38 mm DX2-200 to DX2-1K 100 mm DX2-2K 150 or 200 mm DXX-3K to DXX-5K 250 mm
Roller material
(standard) Hard-coated aluminum (optional) Hardened steel (ST)
Chromed steel (W) Ceramic (CE)
Plastic (PL)
Temperature limits 45–115 °F (8– 45 °C)
Humidity, maximum 85%
Housing material Die-cast aluminum
Dimensions 8.6 x 3.5 x 1.7 in.
(225 x 90 x 44 mm)
Weight
(up to DX2-1K) 1.1 lbs, (500 g) approx.
Weight (DX2-2K) 2.0 lbs, (900 g) approx.
* Except for minor differences in physical dimensions, above specifications also
apply to DXX instruments.
** Using factory standard materials and procedures. Special calibration using
customer sample is available.
Specifications subject to change without notice.
2
11
1.0 OVERVIEW & OPERATING PRINCIPLE

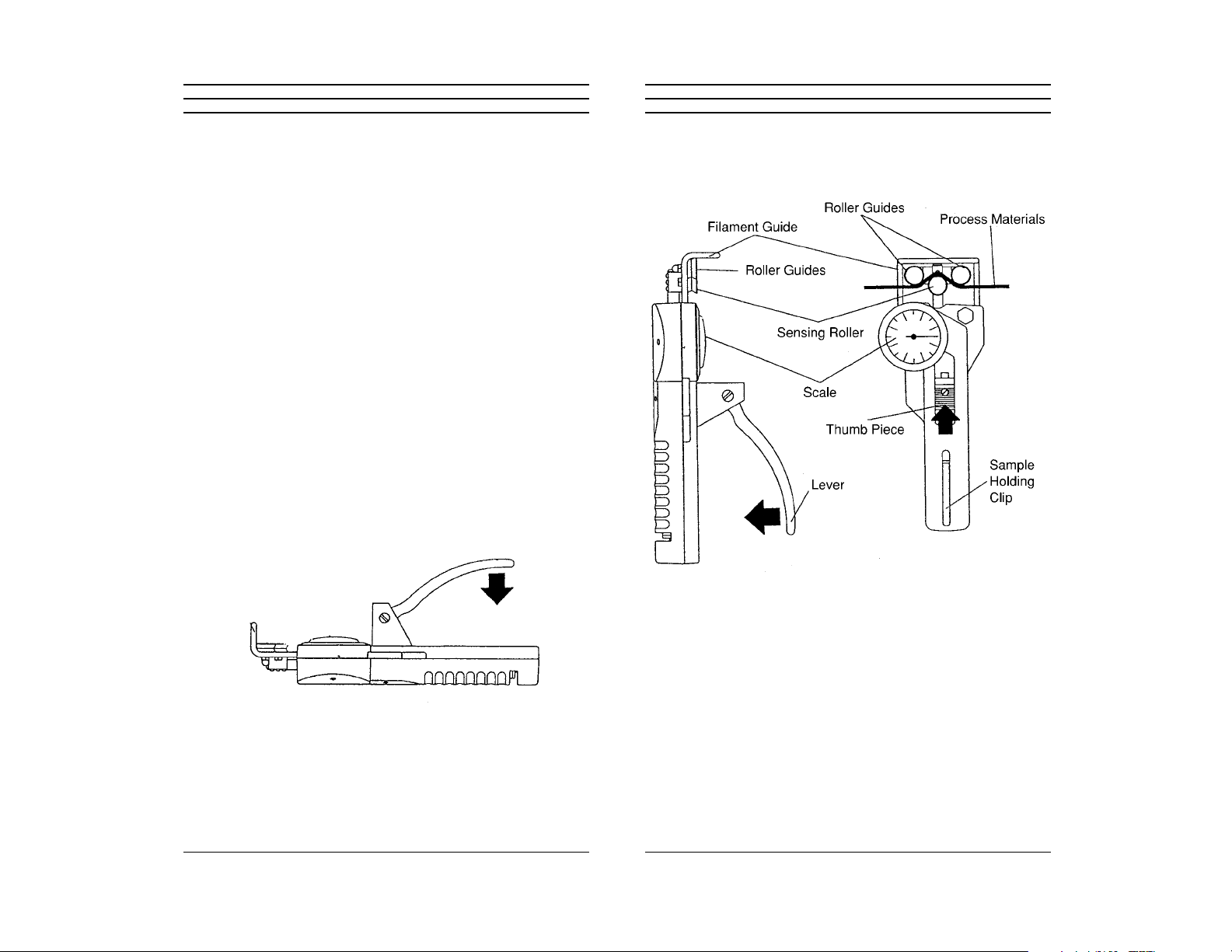

DX2 and DXX Tension Meters are hand-held, mechani­cal instruments which accurately measure the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, tapes, etc. They employ the 3-roller principle for ten­sion measurement where the outer two reference guide rollers remain fixed during measurement to establish a wrap angle over the middle sensing roller. The middle roller, acting against an internal calibrating spring, is displaced relative to the running line tension. This displacement is converted to a rotary motion to turn a pointer on a scale to give a reading in grams tension.
NOTES: 1) While illustrations show the Type DX2
Tension Meter, all references also apply to the Type DXX and Special­Purpose Tension Meters as well.
2) DX2 Special Purpose Types, including FX2, TX2, DX2F, RX2/BX2 and KXB, are shown in the Appendix at the end of these instructions. They all use the 3-roller principle for tension measure­ment except that head configurations and roller assemblies are different, having been designed for special applications, as noted in the Appendix.
6.3 Air Dashpot Damping
DX2 and DXX Tension Meters incorporate a moderate amount of movement damping to smooth out some high frequency tension fluctuation. However, where process fluctuations result in rapid pointer swings which make it difficult or near impossible to read the scale, an optionally-available Air Dashpot Damping mechanism can be provided to slow down the pointer swings to permit a reading. In setting up the mechanism, it is best to set the damping rate just to the point where a readable pointer results with minimal pointer swings. The amount of damping is set by turning the small slotted screw or hex-head screw of the damping assembly located near the guide-roller mounting bracket. The Air Dashpot must be installed at time of original manufacture. It cannot be added later.
CAUTION: Do not set damping rate too high as this will damage the movement.
6.4 Memory Pointer
The optional Memory Pointer assembly retains the highest reading obtained during a measuring period. Before using the instrument, rotate the knurled pointer knob clockwise until the “memory” pointer tab contacts the measuring pointer at zero. During operation and after instrument removal, the trailing “memory” pointer will hold the maximum reading until reset with the pointer knob.
