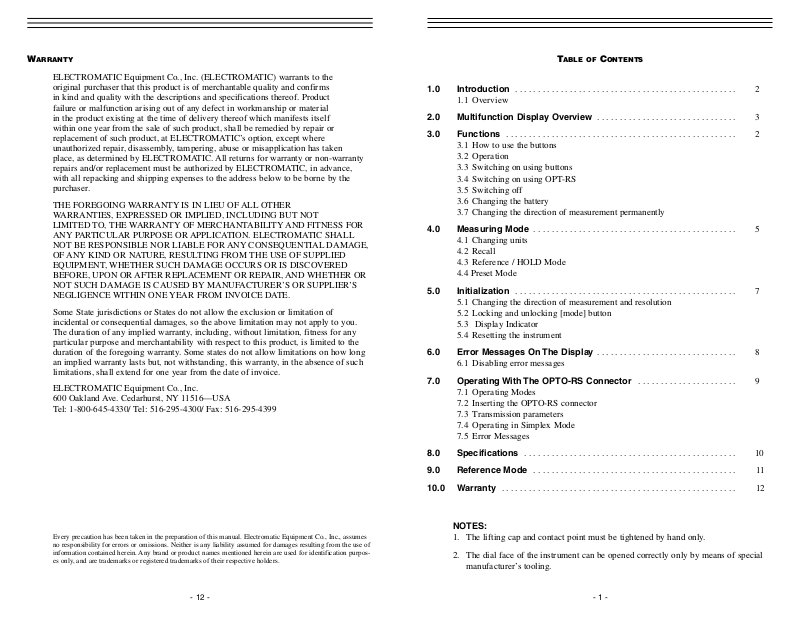

Checkline FD-50R User Manual

- 1 -- 12 -

WARRANTY

ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the
original purchaser that this product is of merchantable quality and confirms
in kind and quality with the descriptions and specifications thereof. Product
failure or malfunction arising out of any defect in workmanship or material
in the product existing at the time of delivery thereof which manifests itself
within one year from the sale of such product, shall be remedied by repair or
replacement of such product, at ELECTROMATIC’s option, except where
unauthorized repair, disassembly, tampering, abuse or misapplication has taken
place, as determined by ELECTROMATIC. All returns for warranty or non-warranty
repairs and/or replacement must be authorized by ELECTROMATIC, in advance,
with all repacking and shipping expenses to the address below to be borne by the
purchaser.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR
ANY PARTICULAR PURPOSE OR APPLICATION. ELECTROMATIC SHALL
NOT BE RESPONSIBLE NOR LIABLE FOR ANY CONSEQUENTIAL DAMAGE,
OF ANY KIND OR NATURE, RESULTING FROM THE USE OF SUPPLIED
EQUIPMENT, WHETHER SUCH DAMAGE OCCURS OR IS DISCOVERED
BEFORE, UPON OR AFTER REPLACEMENT OR REPAIR, AND WHETHER OR
NOT SUCH DAMAGE IS CAUSED BY MANUFACTURER’S OR SUPPLIER’S
NEGLIGENCE WITHIN ONE YEAR FROM INVOICE DATE.

Some State jurisdictions or States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not apply to you.
The duration of any implied warranty, including, without limitation, fitness for any
particular purpose and merchantability with respect to this product, is limited to the
duration of the foregoing warranty. Some states do not allow limitations on how long
an implied warranty lasts but, not withstanding, this warranty, in the absence of such
limitations, shall extend for one year from the date of invoice.

ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516—USA
Tel: [phone]/ Tel: [phone]/ Fax: [phone]

Every precaution has been taken in the preparation of this manual. Electromatic Equipment Co., Inc., assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of
information contained herein. Any brand or product names mentioned herein are used for identification purpos­es only, and are trademarks or registered trademarks of their respective holders.

TABLE OF CONTENTS

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

01 2

1.1 Overview

2.0 Multifunction Display Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01 3

3.0 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00 2

3.1 How to use the buttons

3.2 Operation

3.3 Switching on using buttons

3.4 Switching on using OPT-RS

3.5 Switching off

3.6 Changing the battery

3.7 Changing the direction of measurement permanently

4.0 Measuring Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00 5

4.1 Changing units

4.2 Recall

4.3 Reference / HOLD Mode

4.4 Preset Mode

5.0 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01 7

5.1 Changing the direction of measurement and resolution

5.2 Locking and unlocking [mode] button

5.3 Display Indicator

5.4 Resetting the instrument

6.0 Error Messages On The Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00 8

6.1 Disabling error messages

7.0 Operating With The OPTO-RS Connector . . . . . . . . . . . . . . . . . . . . . . 00 9

7.1 Operating Modes

7.2 Inserting the OPTO-RS connector

7.3 Transmission parameters

7.4 Operating in Simplex Mode

7.5 Error Messages

8.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9.0 Reference Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00011

10.0 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00012

NOTES:

1. The lifting cap and contact point must be tightened by hand only.

2. The dial face of the instrument can be opened correctly only by means of special
manufacturer’s tooling.

- 2 -

1.0 INTRODUCTION

The Electromatic dial gauge can be used as a replacement for mechanical dial gauges,
thanks to external dimensions conforming to the various standards for this type of
instrument. The functions of the Electromatic dial gauge are as follows:

• change units mm/inch

• change zero point for any probe position

• enter a reference value other than 0.000 mm (preset)

• possibility of measuring with two different references

• store measurement (display hold)

• transmission of measurement to a statistical processing system

The dial gauge has three operating modes, which are selected by pressing the [mode]
button for more than 1 second. The functions of each mode are activated by momen­tarily depressing (< 1 sec) the [set] or [mode] buttons.

The Electromatic dial gauge is equipped with an OPTO-RS compatible data output.

1.1 Overview

1. Lifting cap (M2.5 interchangeable)

2. 8 mm clamping shaft

3. Contact point (M2.5 interchangeable)

4. Rotating dial (270°)

5. Cover for OPTO-RS connector

6. Pull-out slide for battery replacement

7. Multifunctional LCD

8. [mode] button

9. [set] button (ON/OFF)

- 11 -

9.0 REFERENCE MODE

Measurement according
to reference I

Measurement according
to reference II

- 3 -

2.0 MULTIFUNCTIONAL DISPLAY

1. Active reference indicator (REFI or REFII)

2. Measured value

3. Battery life warning display

4. Indicating cursor for preset

5. Unit of measurement indicator

06. Locked mode indicator

07. Hold indicator

08. Display .0005/.00005 INCH

09. Preset indicator

10. Preset mode indicator

3.0 FUNCTIONS

3.1 How to use buttons

3.2 Operation

Press for less than 1 second to activate button function.

Press for more than 1 second to activate mode change.

- 10 -

8.0 SPECIFICATIONS

Measuring range 0-12.5 mm / .5"

0-25 mm / 1"

Resolution 0.001 mm / .00005" (0.01 mm / .0005")

Accuracy 5µm (.0002") / 10µm (.0004")

NOTE: The accuracy is guaranteed only when the dial

gauge is attached to the clamping shaft.

Repeatability 2µm or .0001" (+/-2s)

Max. probe travel speed 1.5 m/sec.

Number of measurements
per second

0.01 mm 8 measurements/sec.

0.001 mm 5 measurements/sec.

Measuring force 0.6 to 1.1 N for 0-25 mm (1")

0.7 to 0.95 N for 0-12.5 mm (.5")

Units of measurement metric/imperial (inch) (direct conversion)

Maximum preset ±2999.99 mm / ±89.9995 in.

Measuring system SYLVAC system (patented).

Display Digital LCD

sign (–), 6 digits (7 in.) height 8.5 mm,
(0.05 mil in inch), display of unit and operating mode.

Power 1 lithium battery 3 V, type CR2032, capacity 190 mAh.

Battery types Toshiba CR2032 / Maxell CR2032

Renata B/CR2032 / Sanyo CR2032
Ucar CR2032 / Panasonic CR2032
Rayovac CR2032 / Varta CR2032.

Power consumption 60 µA.

Battery life 1 year or > 3000 hours with normal use When “B” is

displayed, the remaining battery life is several hours.

Working temperature +5 to +40 °C.

Data output RS232 compatible format.

Interface RS232 interface cable, with optical coupling.

Construction aluminium case, polyamide rotating dial (270°),

hardened and ground stainless-steel measuring spindle

Clamping lower bushing diameter 8 h6 mm .

Contact point M 2.5 interchangeable.

Protection IP 51 (according to IEC 529).

Weight 130 g.

Accessories OPTO-RS232 connector, 2m cable, duplex connection

for PC-AT (Dsub 9p) External power supply
(+5.0Vdc to +12.0 Vdc), binder connector 719 (3p)

MODE

Mode

Mesure

References

Preset

> 1sec > 1sec

< 1sec < 1sec

mm inch Set

Ref I Ref II

-000.123

SET MODE SET

Off

Off

Incr. digit

0.1.2...9

On

On

Data out, h old

Digit = digit + 1

MODE0 MODE1

= 1sec

DIR RES

> 3 se c

(MODE 1, 2, 3)

RESET
