Models ES10 & ES20
User’s Guide
Force Test Stands Series
MODELS ES10 & ES20
User’s Guide
ES
Models ES10 & ES20
Thanks!
Thank you for purchasing a Mark-10 Series ES Force Measurement Test Stand. We are confident that you will get many years
of service from this product.
Series ES test stands can be used in any number of compression and tension testing applications. Both models ES10 and
ES20 are designed for testing up to 100 lb (500 N). To maintain
smooth mechanical functioning of your test stand, avoid repetitive overloads and shock loads.
We hope that this User’s Guide will provide a comprehensive
explanation of the test stands’ operation and sufficient detail on
their specifications. However, if you have any other questions or
concerns our engineering and technical support teams will be
eager to help you.
Thank you again for your purchase and happy testing!
TABLE OF CONTENTS
GENERAL...................................................................................2
Unpacking and setting up .....................................................2
List of included items ............................................................2
OPERATION ...............................................................................3
SPECIFICATIONS ......................................................................3
User’s Guide
FORCE GAUGES BY MARK-10
Capacities from 0.12 lb (0.5 N) to 1,000 lb (5000 N)
Force Gauges Series EG
•
Reversible aluminum housing for hand-held use or stand
mounting
•
Three units of measurement: lb, kg, N
•
Programmable initial status of units and mode of operation
•
Automatic peak memory
•
Push-button calibration
•
Battery or AC operation with programmable automatic shutoff
•
Permanent configuration memory
•
Optional RS-232, Mitutoyo and analog outputs
Force Gauges Series BG
•
RS-232, Mitutoyo and analog outputs
•
GCL – Gauge Control Language for full control of all functions
•
Automatic timed output on RS-232
•
Dual set points with outputs
•
General purpose I/O for external device control
•
Programmable analog and digital filters
•
Averaging mode for obtaining average force readings over
time
Force Gauges Series MG
•
Low cost and small size
•
Aluminum housing is reversible for hand-held use or test stand
mounting
•
Peak memory for tensile and compressive loads
•
Selectable units of measurement programmable auto shutoff
•
Push-button calibration
•
IPM - Intelligent Power Management system for reliable operation
(in addition to EG features)
DIMENSIONS..............................................................................4
OTHER TEST STANDS BY MARK-10.......................................5
FORCE GAUGES BY MARK-10 ................................................6
WARRANTY................................................................................6
1
WARRANTY
Mark-10 Corporation expressly warrants to its buyer for three (3) years from the dat e
of delivery that the goods sold are free from defects in workmanship and materials.
Mark-10 Corporation will, at its option, repair or replace or refund the purchase price
of goods found to be defective. This remedy shall be the buyer’s sole and exclusive
remedy. Any modification, abuse, exposure to corrosive environment or use other
than intended will void this warranty. This warranty is in lieu of all other warranties,
including implied warranties of merchantability and fitness for an intended purpose.
In no event shall Mark-10 Corporation be liable for any incidental and consequential
damages in connection with goods sold or any part thereof.
6
Models ES10 & ES20
OTHER TEST STANDS BY MARK-10
TSAH
TSTM
TST
User’s Guide
UNPACKING AND SETTING UP
1. Carefully unpack the stand and inspect for any damage. Inspect the contents to ensure that you have received a test
stand complete with all accessories – see “List of included
items” section.
2. Install the loading lever into the hub on the ES10 stand or
install the handwheel on the ES20 stand.
3. Place the stand on a firm, flat and level working surface free
from vibration to ensure accurate readings. If preferred, the
test stand can be secured to a work bench with two screws or
bolts through the two clearance holes in the base – see
TSA TSCH
“Operation” section for further details.
LIST OF INCLUDED ITEMS
Quantity Item
1 Force measurement stand, ES10 or ES20
TSTMH
TSTH
5
TSFH
TSF
ESM
ES30
TSC
TSB
1 User’s guide (this booklet)
4 Thumb screws for gauge mounting
1 Mounting hole drill template
Optional dial indicator kit ES001
The dial indicator kit, ES001, clamps onto the column of the
stand. The dial can be repositioned along the length of the
column.
It allows for 1.0” travel and provides a resolution of 0.001”.
2
Models ES10 & ES20
User’s Guide
OPERATION
The test stand can be mounted to a work bench using the clearance holes in the base – see drawing for hole location. The included mounting hole drill template can be used to locate holes
in work area.
All Mark-10 force gauges (except the Series CG) can be
mounted directly to the stand without adapters. Mount the gauge
using the thumb screws provided.
The loading lever on the ES10
can be adjusted to allow for ease
of operation. Reposition the lever
using one of the three tapped
holes located in the hub – refer to
the dimensional drawing on the
next page.
If the optional dial Indicator kit
(ES001) is purchased separately,
it can be easily installed using the
hardware provided.

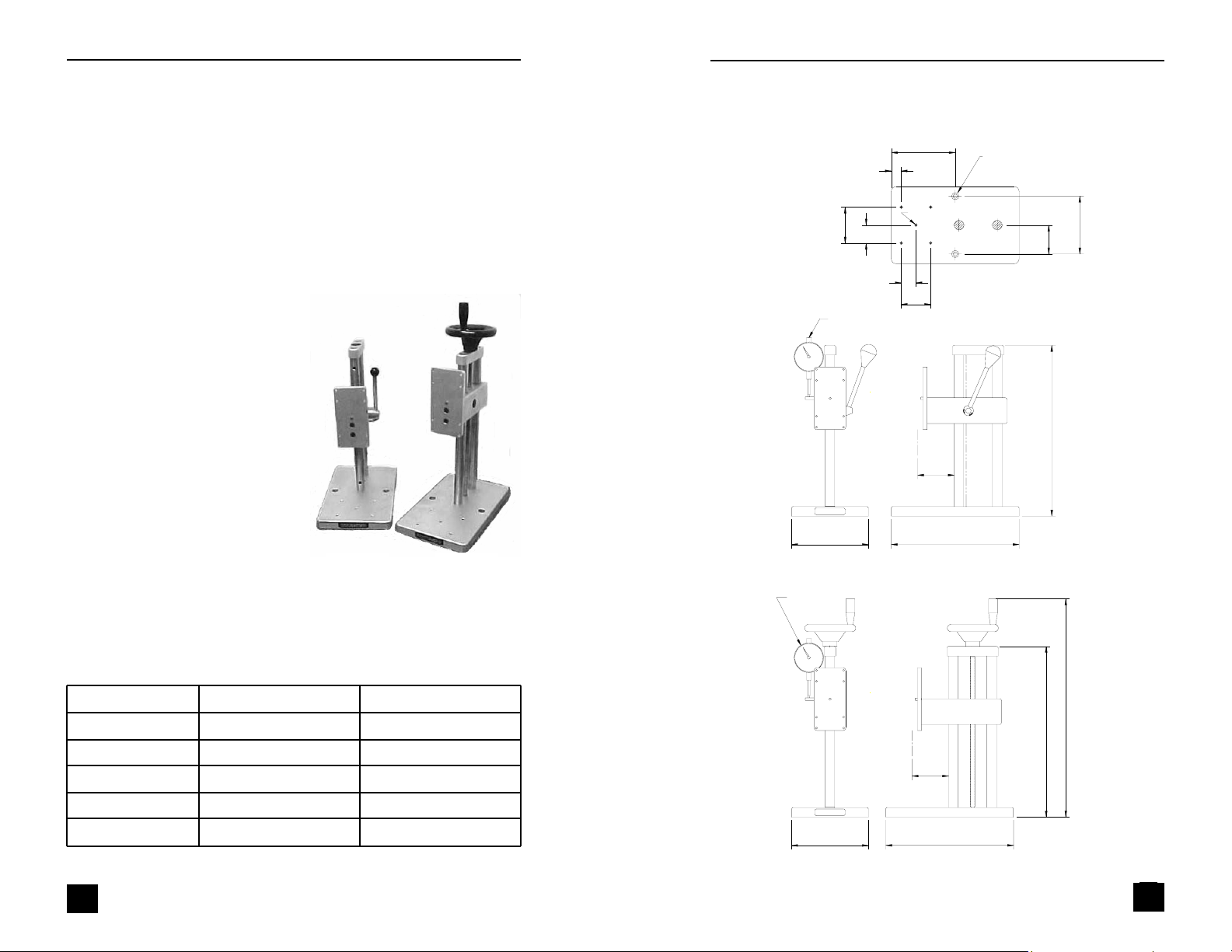

DIMENSIONS
In [mm]
0
0
.8
2
OPTIONAL
DIAL INDICATOR
6.00 [152.4]
0.78
[19.8]
]
2
.1
1
[7
5.0 [127]
#10-32 UNF X5
]
6
0
5
.
0
5
.4
[3
1
2.300
[58.42]
1.150
[29.21]
3.00
[76.2]
CLEARENCE HOLE
FOR 5/16 SCREW
X2
TOP VIEW
]
5
0
.1
5
7
.2
[5
2
BASE
]
8
.
7
3
[3
0
.3
3
1
]
.3
0
4
0
1
5
.
[1
4
ES10
10.00 [254.0]
ES10 ES20
SPECIFICATIONS
Load capacity 100 lbs [500 N] 100 lbs [500 N]
Maximum travel 9” [228.6 mm] 9” [228.6 mm]
Loading method Rack & pinion Hand wheel
Rate 1.050”/rev [26.7 mm] 0.083”/rev [2.1 mm]
Weight 10 lbs [4.5 kg] 10 lbs [4.5 kg]
3
ES10 ES20
OPTIONAL DIAL
INDICATOR
6.00 [152.4]
3.00
[76.2]
10.00 [254.0]
]
.8
7
3
[3
0
.3
3
1
]
.8
1
3
[4
0
.0
7
1
ES20
4
