Check-line DC**-3000PS series Operating Instructions Manual

© Checkline-Europe

-24-

15.0 WARRANTY

Checkline Europe (Checkline) warrants to the original purchaser that this product is
of merchantable quality and confirms in kind and quality with the descriptions and
specifications thereof. Product failure or malfunction arising out of any defect in
workmanship or material in the product existing at the time of delivery thereof which
manifests itself within one year from the sale of such product, shall be remedied by
repair or replacement of such product, at Checkline’s option, except where
unauthorized repair, disassembly, tampering, abuse or misapplication has taken
place, as determined by Checkline. All returns for warranty or non-warranty repairs
and/or replacement must be authorized byCheckline, in advance, with all repacking
and shipping expenses to the address below to be borne by the purchaser.

THE FOREGOING WARRANTYIS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
WARRANTYOF MERCHANTABILITYAND FITNESS FOR ANYPARTICULAR
PURPOSE OR APPLICATION. CHECKLINE SHALL NOT BE RESPONSIBLE NOR
LIABLE FOR ANYCONSEQUENTIAL DAMAGE, OF ANYKIND OR NATURE,
RESULTING FROM THE USE OF SUPPLIED EQUIPMENT, WHETHER SUCH
DAMAGE OCCURS OR IS DISCOVERED BEFORE, UPON OR AFTER
REPLACEMENT OR REPAIR, AND WHETHER OR NOT SUCH DAMAGE IS
CAUSED BYMANUFACTURER’S OR SUPPLIER’S NEGLIGENCE WITHIN ONE
YEAR FROM INVOICE DATE.

Some State jurisdictions or States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not apply to you.
The duration of any implied warranty, including, without limitation, fitness for any
particular purpose and merchantability with respect to this product, is limited to the
duration of the foregoing warranty. Some states do not allow limitations on how long
an implied warranty lasts but, not withstanding, this warranty, in the absence of such
limitations, shall extend for one year from the date of invoice.

CHECKLINE EUROPE
Dennenweg 225B, 7545 WE, Enschede
Tel: [phone] / Fax: [phone]

Every precaution has been taken in the preparation of this manual. Checkline-Europe assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from the use of information contained herein. Any brand or product names mentioned herein
are used for identification purposes only, and are trademarks or registered trademarks of their
respective holders.

© Checkline-Europe

-1-

TABLE OF CONTENTS

1.0 Introduction …………………………………………………………… 2

2.0 Overview …………………………………………………………… 3

2.1 Gauge

2.2 Using the Gauge

2.3 Display

2.4 Complete Kit

3.0 Basic Procedures …………………………………………………… 7

3.1 Power

3.2 Selecting Units of Measure

3.3 Backlight

3.4 Beeper

3.5 Manually Setting the Measure Mode (DCFN version only)

3.6 Total Reset to Factory Defaults

3.7 Battery Replacement

4.0 Calibration …………………………………………………………… 11

4.1 Measuring Using Default Calibration

4.2 One-Point Calibration (Zero)

4.3 Two-Point Calibration

4.4 Adding Zero Offset

5.0 Setting Audible Limit Alerts ………………………………….. 13

6.0 Managing Statistical and Single Values …………………………. 14

6.1 Selecting Statistics for display

6.2 Displaying / Printing Statistics

6.3 Displaying / Printing Single Values

6.4 Deleting Stored Values

7.0 Data Transfer …………………………………………………… 17

8.0 Error Messages …………………………………………………… 18

9.0 Specifications …………………………………………………… 19

10.0 Measuring Limits …………………………………………………… 20

11.0 Resolution Table …………………………………………………… 20

12.0 Protective Shell …………………………………………………… 21

13.0 Optional Accessories …………………………………………… 22

14.0 Diagram of Menu Structure ………………………………….. 23

15.0 Warranty …………………………………………………… 24

© Checkline-Europe

-2-

1.0 INTRODUCTION

Checkline’s 3000PS Series gauges provide precise, non-destructive digital coating
thickness measurement on steel and non-ferrous metals.

Three models are available:

DCF-3000PS: For testing non-magnetic coatings such as varnish, paint, enamel,

chrome, copper, zinc, etc., on steel and iron.

DCN-3000PS: For testing varnish, paint and anodizing on non-ferrous metals and

on austenitic stainless steels.

DCFN-3000PS: Combines the ferrous and non-ferrous testing capabilities of the

DCF-3000PS and DCN-3000PS.

3000PS Series gauges employ the same familiar menu technique that is used in
cellular telephones.

There are 4 main menu sections:

- Calibrations,

- Statistics,

- Limit Values and

- Options.

All gauge functions are accessed from one of these main sections. The steps
necessary to reach and activate a particular gauge function appear on the display in
clear, easily understood language - place probe on Cal foil, for example. A
confirming message appears on the display as each step is completed.

Chapter 13 provides a diagram of the menu structure.

It will be helpful to take a few minutes to study this chapter while practicing using the
UP, DOWN, OK and ESC keys to move through the menus selections. The 3000PS
Series gauges are very easy to use. A few minutes spent familiarizing yourself with
using the keys to move through the menus is all the training required.

© Checkline-Europe

-23-

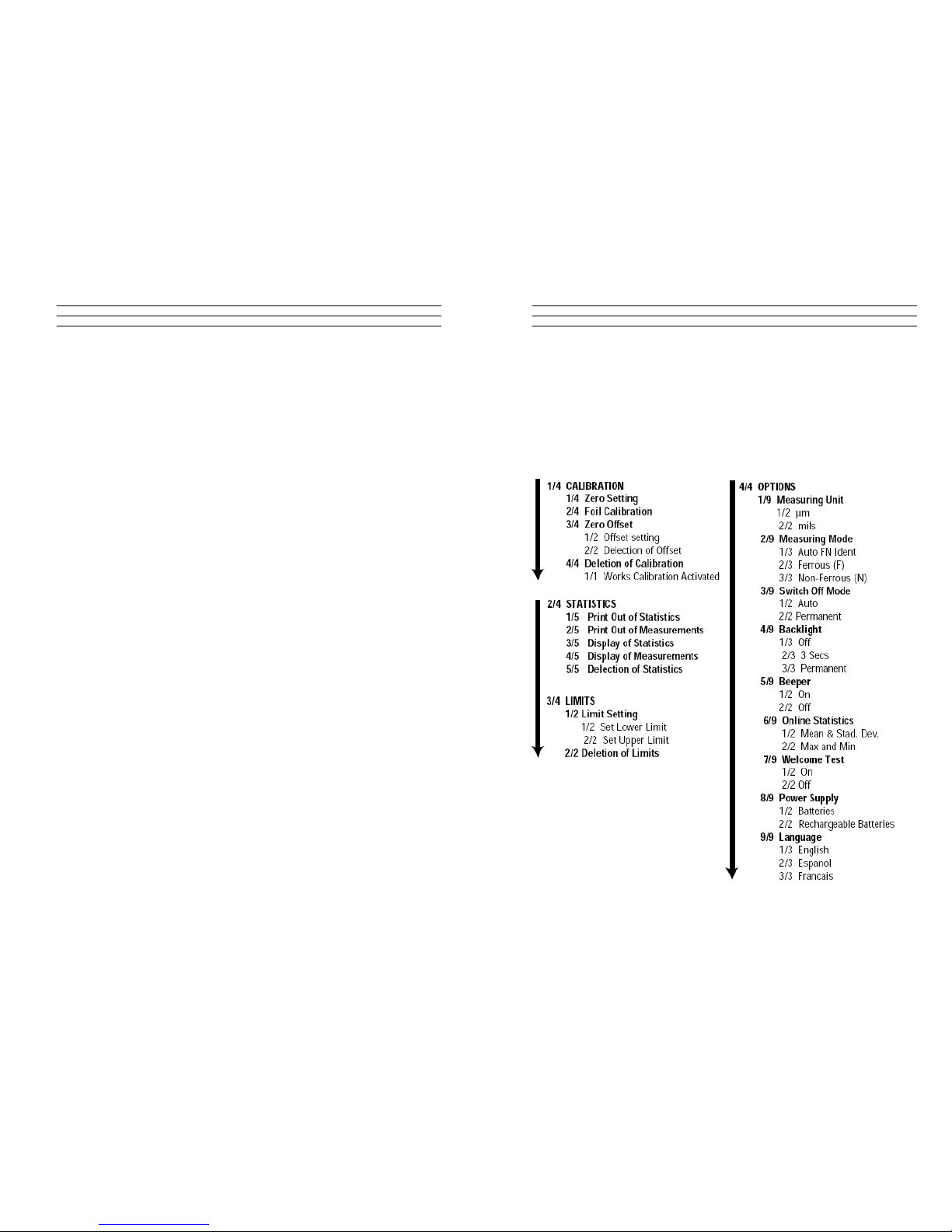

14.0 DIAGRAM OF MENU STRUCTURE

After turning on the instrument, press UP or DOWN repeatedly to move to the
desired main section (Calibration, for example). Next, press OK to access the
second level subsections within the main section. Press DOWN to scroll through the
second level subsections and OK to select one. Use the same technique of pressing
UP or DOWN and OK to access third level subsections; use ESC to move back to
the next higher level up to the - - - - screen, delete the last reading immediately after
taking it and interrupt a setting action.

© Checkline-Europe

-22-

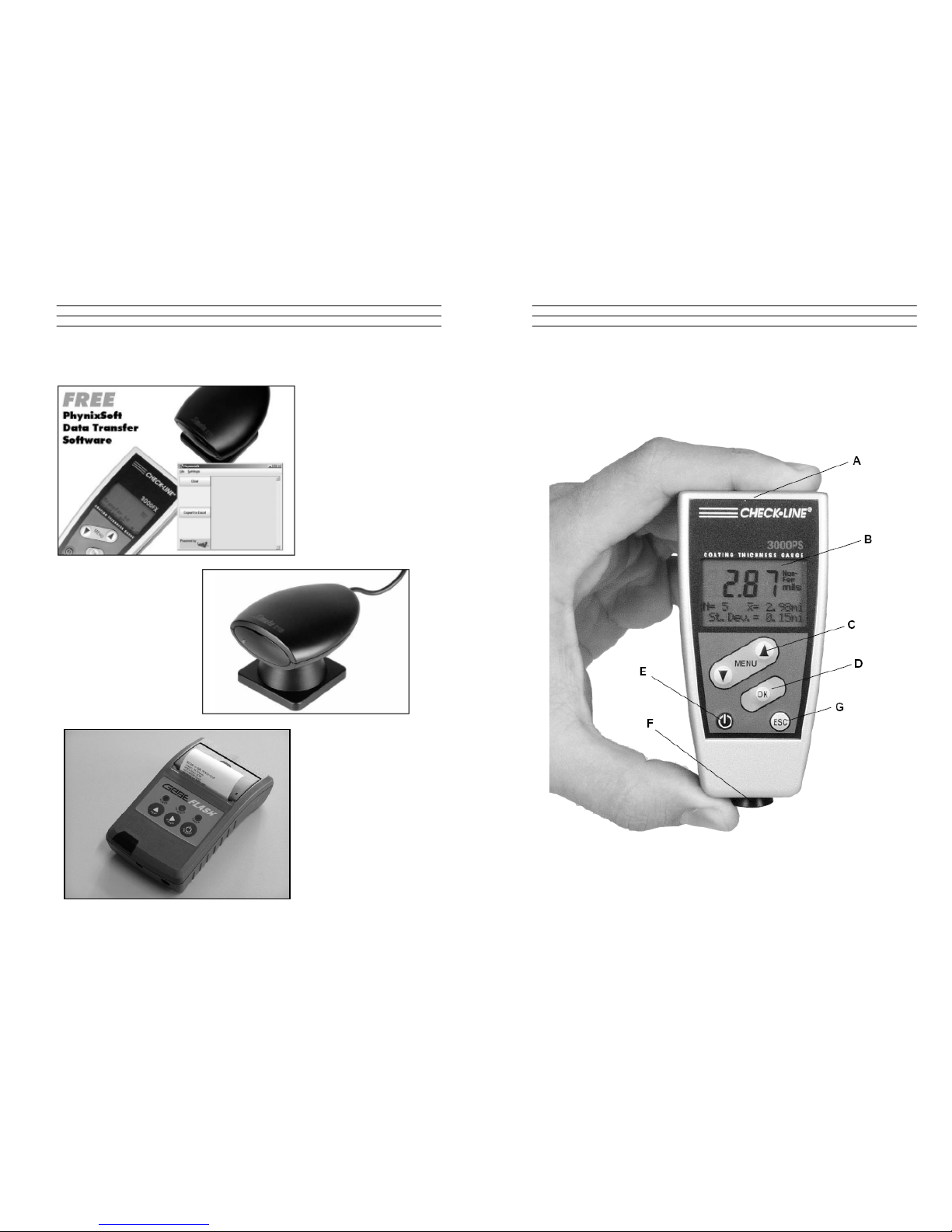

13.0 OPTIONAL ACCESSORIES 2.0 OVERVIEW

2.1 Gauge

Data Transfer Software

Infrared Adapter

Wireless Printer

© Checkline-Europe

-3-

© Checkline-Europe

-4-

A IR Sensor Transmits stored measurement data to a PC or printer 12.0 PROTECTIVE RUBBER SHELL
equipped with an infrared adapter

B LCD Screen Displays numerical data & operator prompts

The gauge is supplied with a durable rubber shell that provides an added measure
of physical and environmental protection in harsh applications.

C UP & DOWN Use to:

To put on the shell, follow the procedure outlined below:

1. Scroll through main menu

2. Set calibration

3. Set zero offset
4 Set limit alerts

1. Insert the carrying strap through the hole in
the back of the proctective shell.

D OK Key Use to:

1. Confirm menu selection

2. Complete setting an action

E Power Switch Turns the gauge on and off

2. Slide the bottom of the gauge into the bottom
of the rubber shell. Press firmly to be sure
the gauge is fully seated.

F Measurement Must be in contact with test sample for measurement

Sensor data to be recorded

G ESC Key Use to:

1. Move back to next higher menu level

2. Delete last reading (immediately after recording it)

3. Delete of statistics & stored readings

4. Exit calibration, zero offset and limit alert setting procedures

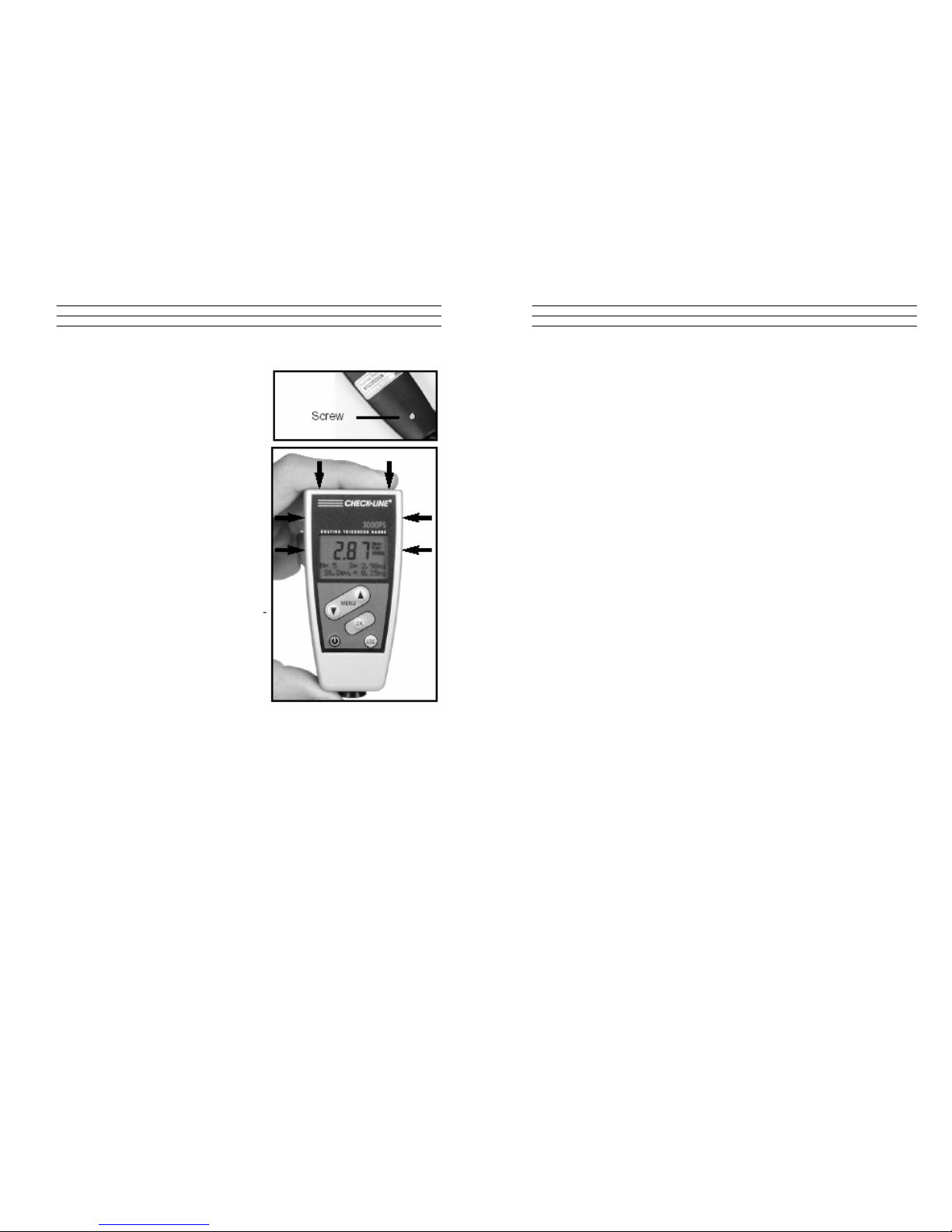

3. Place your thumbs on top corners of the
gauge. Use your forefingers to slip the top
corners of the shell over the top corners of
the gauge.

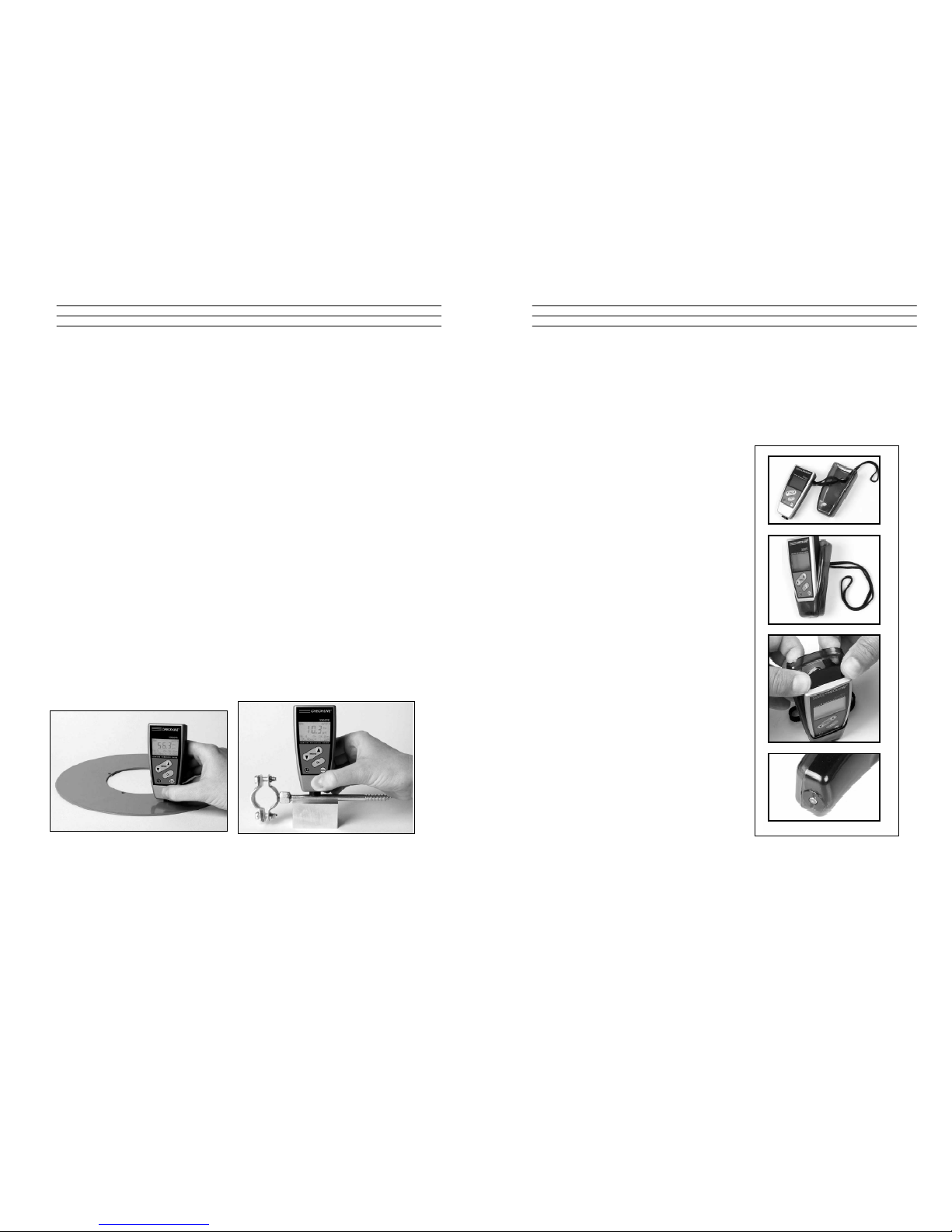

2.2 Using the Gauge

Measurement on flat areas Measurement on cylindrical areas

4. Check the bottom of the gauge to be sure
that the measurement sensor is unobstruted
and adjust the shell if needed.

© Checkline-Europe

-21-

© Checkline-Europe

-20-

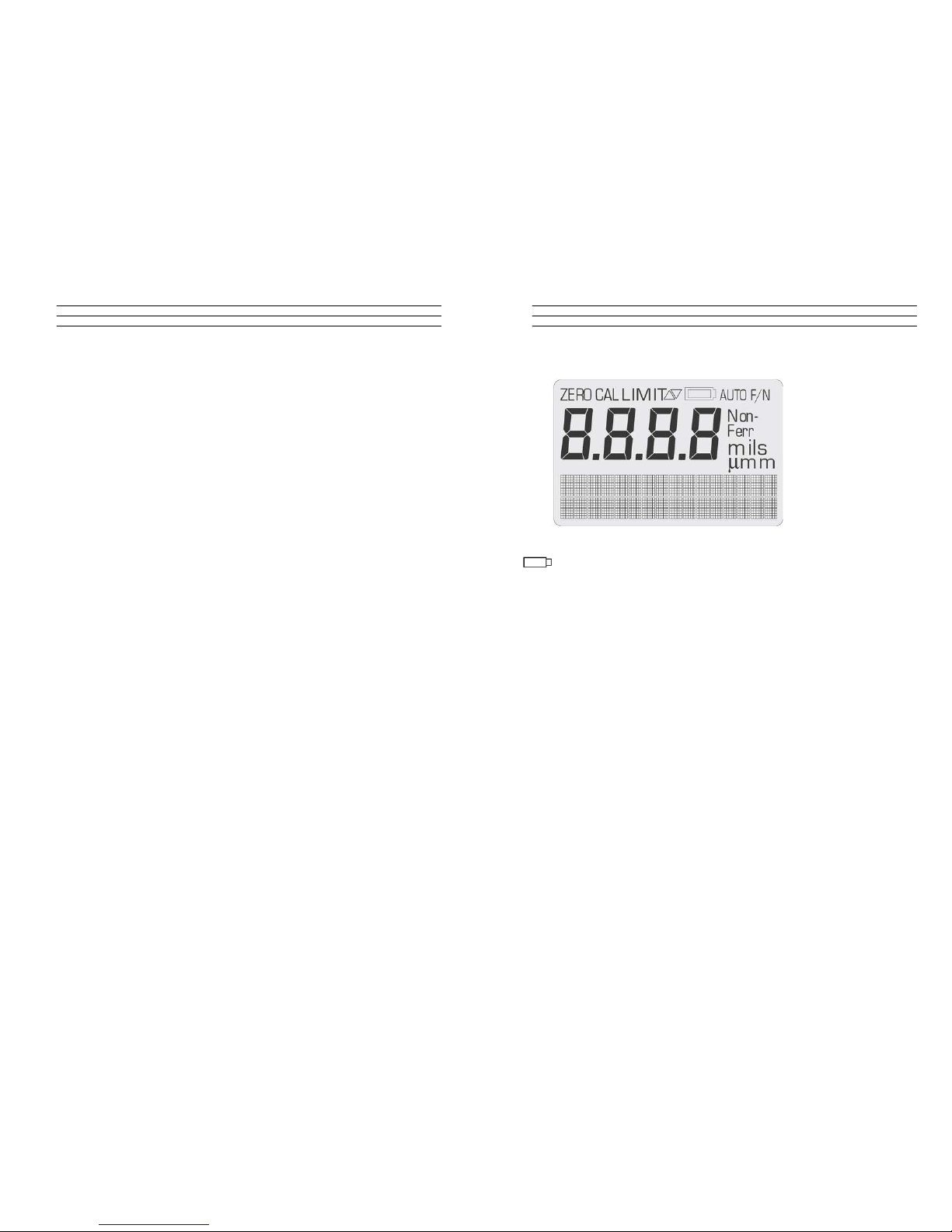

10.0 MEASURING LIMITS 2.3 Display

Minimum Radius for Convex Surfaces 3mm (0.12")

Minimum Radius for Concave Surfaces 5mm (0.2")

Minimum Headroom 100 mm (4")

Minimum Sample Diameter 5mm (0.2")

Minimum Substrate Thickness - F 0.5 mm (20 mils)

Minimum Substrate Thickness - NFe 50 μm (2 mils)

11.0 RESOLUTION TABLE

Microns (μm)

If this symbol flashes, the batteries have to be changed, see page 9.

000.0 – 999 μm 0.1 μm

-------- Appears if limit values are exceeded or not reached.

100.0 – 249.8 μm 0.2 μm

250.0 – 499.5 μm 0.5 μm

ZERO Appears when Zero calibration is complete.

500.0 – 999.0 μm 1.0 μm

If flashing: ZERO setting begun but not completed.

1,000 – 1500 μm 0.002 mm

CAL Appears when Foil calibration is complete.

If flashing: CAL setting begun but not completed.

Mils

LIMIT Appears if Limit values have been set.

00.00 – 9.99 mils 0.01 mils

If flashing: LIMIT setting begun but not completed.

10.00 – 24.98 mils 0.02 mils

25.00 – 49.95 mils 0.05 mils

AUTO FN Appears when automatic ferrous / non-ferrous

50.00 – 60 mils 0.1 mils

measuring mode is active.

Ferr Appears when ferrous measuring mode is active.

Non-Ferr Appears when non-ferrous measuring mode is active.

μm All measured values given in μm unit.

mils All measured values given in mils unit.

© Checkline-Europe

-5-

© Checkline-Europe

-6-

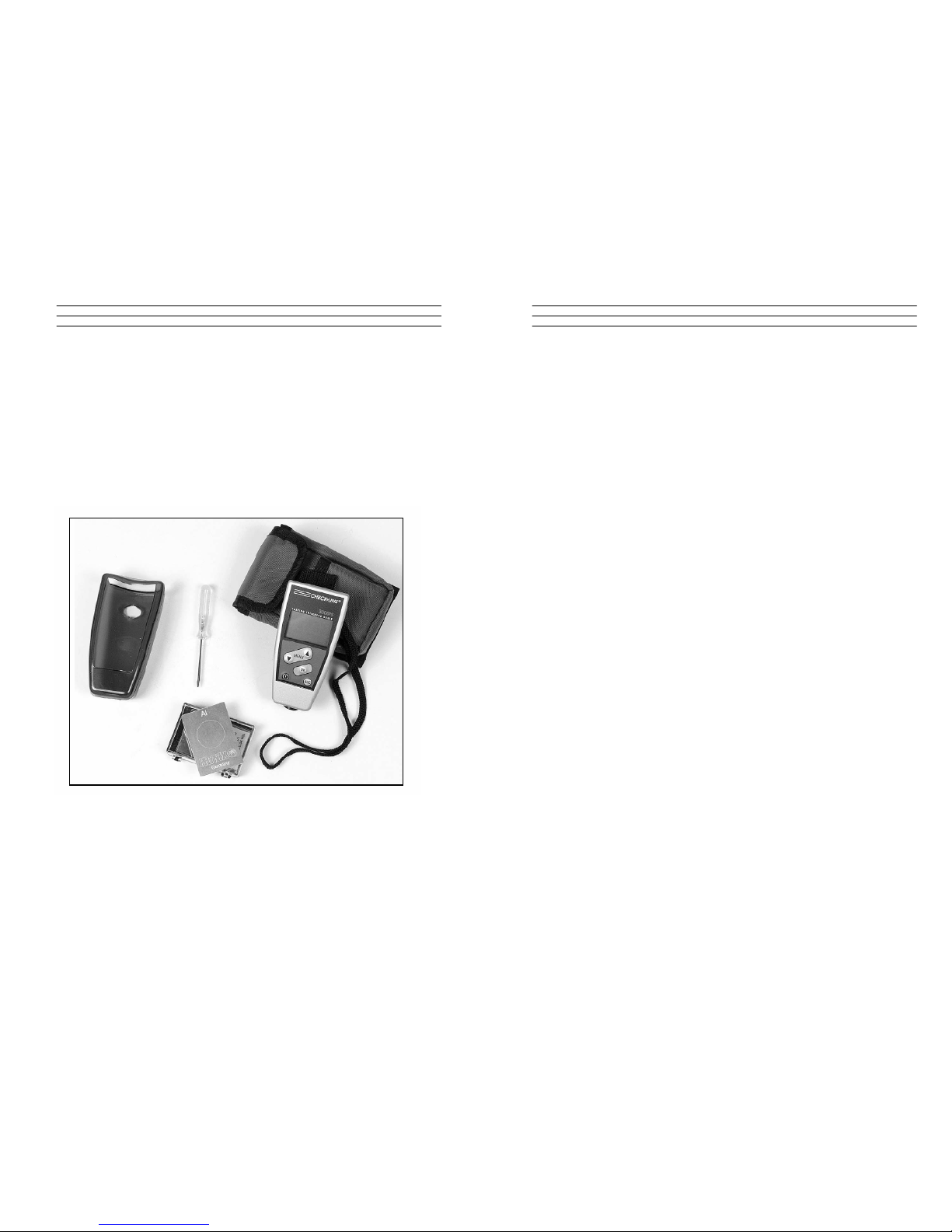

2.4 Complete Kit 9.0 SPECIFICATIONS

3000PS Series gauges are supplied as a complete kit, including:

Range 0 - 1500 μm (0 – 60.00 mils)

- Gauge
Accuracy ± (1μm / 0.04 mils + 1% of reading)

- Probe

- Zero calibration standards (Fe-stainless and/or Al)

Display Back-lit, 4-digit alphanumeric, digit height 10mm (0.4")

- Calibration foils (2),
Min. Measuring Area 5mm x 5mm (0.2" x 0.2")

- Batteries (2x AA)

- Operating manual

Min. Curv. Radius concave: 5mm (0.2"), convex: 3mm (0.12")

- Calibration certificate
Min. Substrate Thickness 0.5 mm (20 mils)

- Carrying case

Calibration Factory calibration, zero calibration, foil calibration,

Off-set function: addition or subtraction of a constant
value

Memory 80 readings

Statistics Program Number of readings, mean value, standard deviation,

maximum and minimum reading of max. 10,000
readings

Set Limits Adjustable selectable with acoustic alarm

Data Output Infrared IrDA standard
Operating Temp. 0 °C to 50 °C (32 °F to 122 °F)
Surface Temp. -15 °C to 60 °C (5 °F to 140 °F)
Storage Temp. -20 °C to +60 °C (-4 °F to 140 °F)

Power 2 AA - 1.5V
Dimensions 140mm x 562mm x 30mm (5.6" x 2.5" x 1.2")
Weight 200 g (7 oz) - gauge + probe

Protection Class IP 52 (proof against dust and dripping water)

Standards DIN, ISO, ASTM, BS

© Checkline-Europe

-19-

© Checkline-Europe

-18-

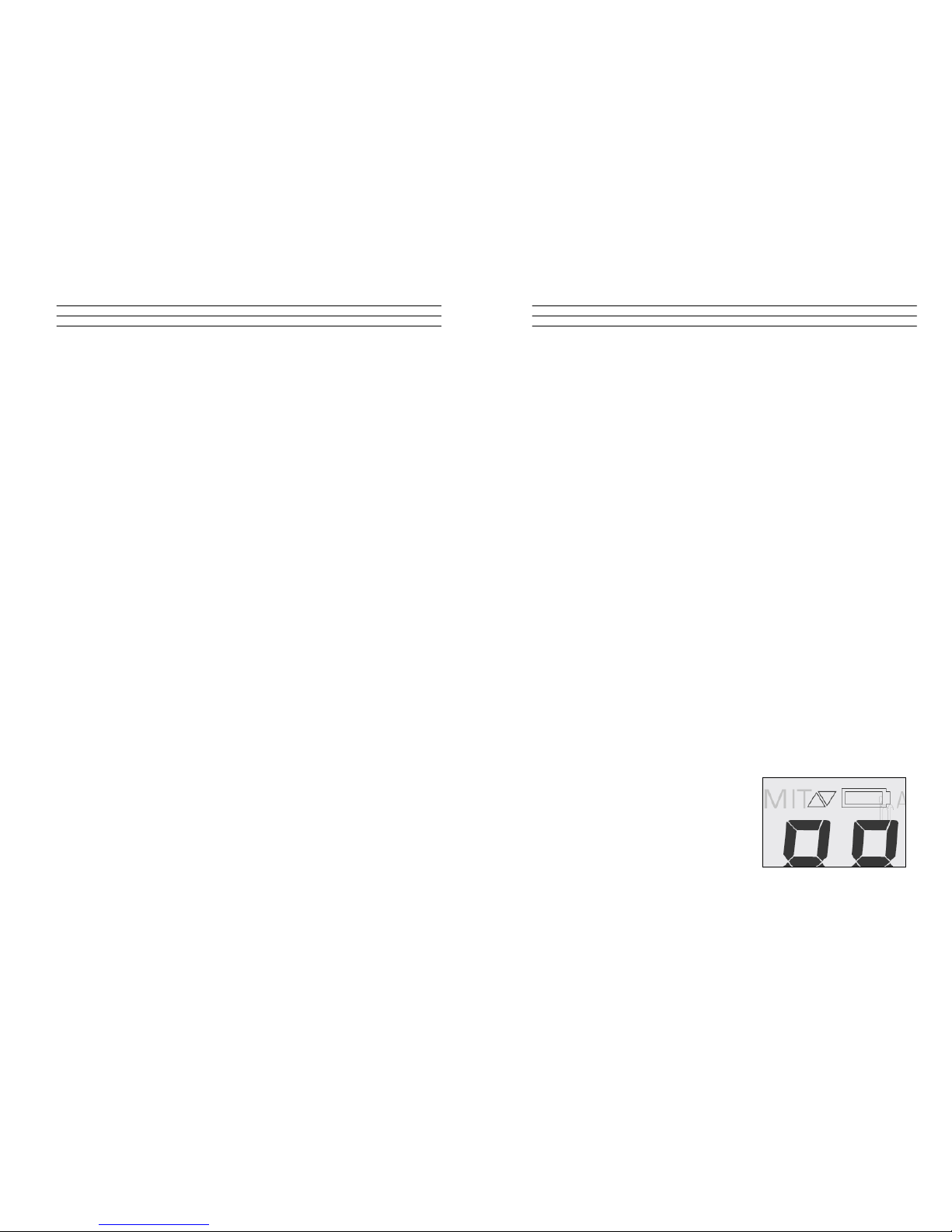

8.0 ERROR MESSAGES

Faults or malfunctions identified by the instrument are indicated by an error
message appearing on the display:

Batteries are empty:

Please insert new batteries.

Probe is too close to metal:

The probe was too close to the metal during switch-on. Hold the probe free in the
air and then switch the instrument on.

Magnetic interference fields:

Close to the probe are too strong magnetic interference fields (e.g. transformers,
PC-display screens).

Probe defective:

If this error message appears, please send the instrument to your supplier or to
the manufacturer for repair.

Other errors:

If the following errors appear on your instrument a total reset usually helps (p. 9):

• Instrument does not allow any further measurements

• Illogical display values

© Checkline-Europe

-7-

3.0 BASIC PROCEDURES

3.1 Turning Power ON and OFF

To turn the gauge on, press and hold the power switch (item H, page 3) for two
seconds, until the chime sounds. The start screen appears briefly, followed by - - - -.
The gauge is now ready to use.

To turn the gauge off, press and hold the power switch (item H, page 3) for two
seconds, until the chime sounds.

Auto Power Off / Permanent On modes

When in the automatic power-off mode, the gauge will automatically turn itself off
after 90 seconds of non-use. In the permanent on mode, the gauge will remain on
continuously, even during extended periods of non-use. To switch between modes:

1. Press the DOWN key repeatedly until Options shows on the display.

2. Press OK.

3. Press the DOWN key repeatedly until Switch Off Mode shows on the display.

4. Press OK.

5. Press the DOWN key to select either permanent on or auto switch off.

6. Press OK to confirm your selection.

NOTE: To cancel a selection and exit from the menu subsection press ESC.

3.2 Selecting Units of Measure (μm-metric or inch-mils)

1. Press DOWN repeatedly until display shows Options

2. Press OK. The display shows Measuring Unit

3. Press OK. The display shows μm unit

4. Press OK to confirm μm as unit of measurement OR

5. Press DOWN again. The display shows mils unit

6. Press OK to confirm mils as unit of measurement

The selected unit of measure (mils or μm) will appear on the display, followed by the
start screen - - - -.

© Checkline-Europe

-8-

3.3 Backlight

3000PS Series gauges equipped with a backlight function to improve the readability
of the display in certain lighting conditions. The operator can select permanent on,
3-second on (after each measurement) and off:

1. Press the DOWN key until Options shows on the display.

2. Press OK.

3. Press the DOWN key to scroll to the desired backlight state.

4. Press OK to confirm your selection.

The selected backlight state will appear on the display briefly, followed by the start
screen - - - -.

3.4 Beeper

To turn the audible signal on and off:

1. Press the DOWN key until Options shows on the display.

2. Press the OK key.

3. Press the DOWN key until Beeper shows on the display.

4. Press OK.

5. Press the DOWN key to select the on or off states.

6. Press OK to confirm your selection.

© Checkline-Europe

-17-

7.0 DATA TRANSFER

For data transfer from a 3000PS series gauge to a PC you must not use a possible
enclosed drive disc. For the infrared data transmission from the gauge to a printer or
to a PC, the following three requirements must be met:

1. The infrared adapter (accessory part) must be connected to the printer or PC.
The infrared window of the gauge and of the adapter must be parallel and face
each other at a distance of approximately 30cm to 50cm (12” to 20”) for the data
transmission.

2. The serial interface parameters of the PC and the printer must be set as follows:

Baud rate: 9600
Data bits: 8
Stop bit: 1
Parity: none
Handshake: none

3. A data transmission program must be installed for the data transmission to a
PC.

General information regarding the infrared data transfer using 3000PS

It is of special importance with reference to the infrared data transfer that the
transmitted light-induced pulses can be perfectly received and evaluated. The
infrared adapter receiving the light-induced pulses must therefore be protected from
any external interferences. For this reason, please observe the following:

• Do not expose the window of the infrared adapter to direct solar radiation.

• Do not operate any filament and halogen lamps in the immediate vicinity of the
adapter. The distance between adapter and lamp should be more than 1 meter.

• The infrared windows of the test instrument and of the adapter must be parallel
and facing each other at a distance of around 30 cm to 50 cm.

After pressing OK to start infrared data transmission, keep the gauge´s infrared
window pointed at the IR adapter as long as the green LED is lit.

© Checkline-Europe

-16-

To print statistical values: 3.5 Manually Setting Measurement Mode (DCFN only)

1. Press DOWN repeatedly until Statistics appears on display.

In some cases, especially with varnish applied to zinc on steel, it is advisable to
manually set the measuring mode—F mode (Ferrous) for measurements on
steel/iron, N mode (Non-Ferrous) for measurements on non-ferrous metals.

2. Press OK. Printout Of Statistics appears.

3. Point instrument with the IR transmitter (top end face) towards the IR adapter
installed on the printer. The distance should be approx. 12” to 20” (30cm to
50cm).

1. Press DOWN repeatedly until display shows Options.

2. Press OK. Measuring Unit appears on the display.

4. Press OK. The data are transmitted, and Printing... will briefly appear, followed
by the start screen with the four dashes - - - -.

3. Press DOWN repeatedly until Measuring Mode appears.

4. Press OK. Auto FN Identifications appears.
To continue measuring, press ESC repeatedly until the start screen with the four
dashes - - - - is displayed again.

5. Press DOWN repeatedly until either Ferrous (F) or Non-Ferrous (N) or Auto

FN appears on the display.

6. Press OK to confirm the measurement mode that you want to activate. The

display shows - - - - and either Auto FN or Ferr or Non-Ferr. See diagram of
dsiplay on page 5.

6.4 Deletion of statistical values and of single values

1. Press DOWN repeatedly until Statistics appears on display.

2. Press OK. Printout Of Statistics appears.

3.6 Total Reset To Factory Defaults

3. Press DOWN repeatedly until Deletion Of Statistics appears.
This procedure deletes all single and statistical values. It also deletes set calibration
values and optional items and resets the gauge to the factory default.

4. Press OK. The statistical values with the single values are deleted. Statistics

deleted will briefly appear on the display, then the start screen with the four
dashes - - - -.

1. Switch off the gauge

Quick deletion of statistics and stored readings

2. Press and hold the ESC key (item E, page 3). At the same time turn the power
back on.

1. Press ESC repeatedly until the start screen with the four dashes - - - - is again
displayed.

3. An acoustic signal will sound and all factory default settings are restored.

4. Release both keys and the gauge will restart with all factory default settings
restored.

2. Press ESC until Delete Statistic? appears on the display.

3. Press ESC again. Statistics Deleted will briefly appear, then the start screen
with the four dashes - - - -.

3.7 Battery Replacement

3000PS gauges use two AA alkaline or
rechargeable batteries. When battery power
becomes low the Battery Indicator will flash.
The gauge will continue to operate, but batteries
should be replaced as soon as possible When
battery power is depleted, the Battery Indicator
remains on continuously, indicating that less
than 60 seconds of power remain shut down.

© Checkline-Europe

-9-

© Checkline-Europe

-10-

Replacing batteries 6.2 Displaying and printing single values

1. Turn gauge over. Remove the screw on
the back using the screwdriver provided.

2. Carefully insert the blade of the
screwdriver at the points on the casing
seam indicated in the photo; apply gentle
pressure to loosen the upper section.

3. Use your fingers to gently pull the sections
of the casing apart.

4. Insert 2 new AA or rechargeable batteries,
matching the positive terminal with the +
on the case.

5. Carefully replace the cover, reinsert the
screw and tighten.

NOTE: Battery exchange should be

accomplished within 20 seconds to
preserve saved measurement data.

Using Rechargeable batteries

When using rechargeable batteries, the
battery symbol always flashes, because
rechargeable batteries provide a lower voltage
than non-rechargeable batteries. To eliminate
this situation:

To display single values:

1. Press DOWN repeatedly until Statistics appears on display.

2. Press OK. Printout of Statistics appears on the display.

3. Press DOWN until Display of Single Values appears.

To continue measuring, press ESC repeatedly until the start screen with the four
dashes - - - - is displayed.

To print single values:

1. Press DOWN repeatedly until Statistics appears on display.

2. Press OK. Printout Of Statistics appears.

3. Press DOWN repeatedly until Printout of Single Values appears.

4. Point instrument with the IR transmitter (top end edge) towards the IR adapter
installed on the printer. The distance should be approx. 12” to 20” (30cm to
50cm).

5. Press OK. The data are transmitted, and Printing... will briefly appear, followed
by the start screen with the four dashes - - - -.

To continue measuring, press ESC repeatedly until the start screen with the four
dashes - - - - is displayed again.

6.3 Display and print statistical values

1. Press DOWN repeatedly until Options appears on the display.

To display statistical values:

2. Press OK.

1. Press DOWN repeatedly until Statistics appears on display.

3. Press DOWN until Power Supply appears on the display.

2. Press OK. Printout Of Statistics appears.

4. Press OK.

3. Press DOWN repeatedly until Display Of Statistics appears.

5. Press DOWN until Rechargeable Batteries appears on the display.

4. Press OK repeatedly. Each time OK is pressed, a different statistical value will
be displayed in this order: N, x, s, and then N, Max, Min. At the conclusion,
Display of Statistics appears again and the sequence of statistics displayed
will repeat.

6. Press OK.

Supply with Rechargeable Batt appears briefly on the screen, followed by - - - - .
The procedure is complete.

To continue measuring, press ESC repeatedly until the start screen with the four
dashes - - - - is displayed.

© Checkline-Europe

-15-

© Checkline-Europe

-14-

6.0 MANAGING SINGLE AND STATISTICAL VALUES

The 3000PS gauge is provided with online
statistics. The statistical values are re­calculated and displayed in the two bottom
lines after every measurement. The
statistical values calculated by the 3000PS
gauges are:

N: Number of measured values

x: Average of measured values

s: Standard deviation

Max: Maximum single value of the measurement series

Min: Minimum single value of the measurement series

Note: The DCFN-3000PS can store a total of 80 readings combining the F-mode

N-mode, not 80 readings in each mode (160 total).

6.1 Selecting which statistical values will be displayed.

1. Press DOWN repeatedly until Options appears on the display.

2. Press OK.

3. Press DOWN until On-Line Statistics appears on the display.

4. Press OK.

5. Press DOWN to select either Maximum and Minimum or Mean and Std
Deviation for display.

6. Press OK to confirm your selection.

© Checkline-Europe

-11-

4.0 CALIBRATION

4.1 Measuring Using Factory (Works) Calibration

1. Press DOWN. Calibration appears on the display.

2. Press OK. Zero Setting appears on the display.

3. Press DOWN repeatedly until Delete Calibration appears.

4. Press OK. Works Calibration Activated appears briefly, then the start screen
with - - - -. You can now carry out the measurement.

4.2 One-point calibration (zero procedure)

This procedure requires an uncoated test object having similar dimensions and
material properties to those of the coated object to be measured.

1. Press DOWN. Calibration appears on the display.

2. Press OK. Zero Setting appears.

3. Place the Measuring Sensor (item G, page 3) on the test object at a right angle.
Press gently and hold until chime sounds, then lift up. Repeat several times.

4. Press OK. Zero has been set appears briefly on the display, followed by the
start screen with - - - -. You can now carry out the measurement.

4.3 Two-point calibration (using calibration foil)

As with Zero setting, this procedure requires an uncoated test object having similar
dimensions as the coated object that will be measured. Choose a calibration foil that
is closest to the expected coating layer thickness.

1. Carry out a zero procedure (see section 4.2).

2. Press DOWN. Calibration appears on the display.

3. Press OK. Zero Setting appears.

4. Press DOWN again. Foil Calibration appears.

5. Press OK. Place probe on foil. Standard appears.

6. Put the measurement foil on the uncoated test object and place the probe
repeatedly on the foil.

7. Press UP or DOWN until the displayed value agrees with the thickness value of
the calibration foil.

8. Press OK. Calibration has been set appears briefly, then the start screen with
four dashes - - - - appears. You can now carry out the measurement.

© Checkline-Europe

-12-

4.4 Zero Offset

In this menu item, a constant positive or negative value can be set. This value is
automatically added to the measured value or subtracted from the measured value
every time a measurement is carried out. The display then shows the addition or the
difference. Moreover, the zero offset setting is always indicated below in the display
as a reminder.

This measuring mode is useful when determining the upper coating layer of a multi­layer system. If the lower layer(s) is (are) known and show an adequately uniform
thickness, the coating thickness of this (these) layer(s) can be set as a negative
offset value. The display then only shows the thickness of the top layer.

When measuring coated rough metal surfaces, this mode can also be selected. In
this case, the roughness effect, which is determined on the basis of the uncoated
rough metal surface, is set as a negative offset value. The instrument will then
display the coating thickness above the peaks of the rough surface.

Setting Zero Offset Value

1. Press DOWN. Calibration appears on the display.

2. Press OK. Zero Setting appears on the display.

3. Press DOWN twice. Zero Offset appears on the display.

4. Press OK. Offsets appears on the display.

5. Press OK. Set Offset Value appears on the display.

6. Press UP or DOWN repeatedly until the required offset value appears on the
display.

7. Press OK. Offset Has Been Set appears on the display briefly, followed by the
start display with - - - -.

Deleting Zero Offset Value

1. Press DOWN. Calibration appears on the display.

2. Press OK. Zero Setting appears on the display.

3. Press DOWN twice. Zero Offset appears on the display.

4. Press OK. Setting of Offset appears on the display.

5. Press DOWN. Deletion of Offset appears on the display.

6. Press OK. Offset Deleted appears briefly, followed by the start display with the
four dashes - - - -.

© Checkline-Europe

-13-

5.0 SETTING AUDIBLE LIMIT ALERTS

To monitor your measured values, you can set an upper and a lower limit value.
This setting is useful during the measurement, for the evaluation of the measured
values later when displaying the single values or for the printout of measured values
If the limit value is exceeded or if it's not reached, an audio signal will sound, and a
warning note will appear on the display (_ or _).

Setting

1. Press DOWN repeatedly until Limits appears on the display.

2. Press OK. Limits Setting appears on the display.

3. Press OK again. Set Lower Limit appears.

4. Press UP or DOWN repeatedly until the desired lower limit value appears on the
display.

5. Press OK. Set Upper Limit appears on the display.

6. Press UP or DOWN repeatedly until the desired upper limit value appears on the
display.

7. Press OK. Limits have been set will appear briefly, then the start screen
with - - - -.

Deleting

1. Press DOWN repeatedly until Limits appears on the display.

2. Press OK. Limits Setting appears.

3. Press DOWN until Deletion of Limits appears.

4. Press OK. Limits Deleted appears briefly, followed by the start screen
with - - - -.

Checkline Europe Tel: [phone]
Dennenweg 225 B Fax: [phone]
NL-7545 WE Enschede Website: www.checkline-europe.com
The Netherlands Email: [e-mail]

Checkline Europe

DCXX-3000PS

COATING THICKNESS GAUGE

OPERATING INSTRUCTIONS
