Chauvin Arnoux C.A 6550, C.A 6555 User Manual

Download

Megohmmeters 10 kV and 15kV

GB - User’s manual

C.A 6550 C.A 6555

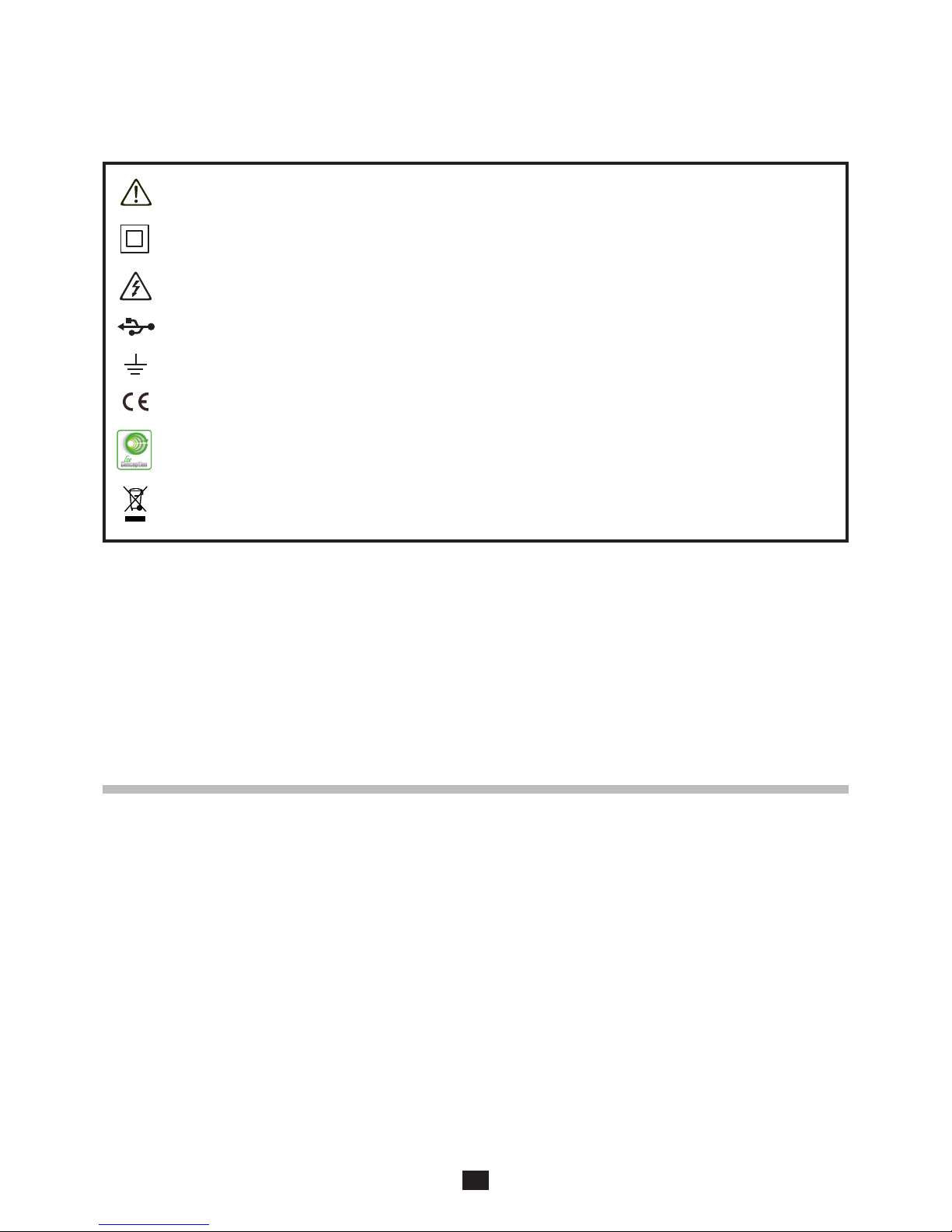

WARNING, risk of DANGER! The operator must refer to these instructions whenever this danger symbol appears.

Equipment protected by double insulation.

Caution! Risk of electric shock.

USB socket.

Earth.

The CE marking indicates conformity with European directives, in particular LVD and EMC.

Chauvin Arnoux has adopted an Eco-Design approach in order to design this appliance. Analysis of the complete lifecycle has enabled us to control and optimize the effects of the product on the environment. In particular this appliance exceeds regulation requirements with respect to recycling and reuse.

The rubbish bin with a line through it indicates that, in the European Union, the product must undergo selective disposal in compliance with Directive WEEE 2002/96/EC. This equipment must not be treated as household waste.

Thank you for purchasing a megohmmeter C.A 6550 or C.A 6555.

For best results from your instrument:

 read these operating instructions carefully,  comply with the precautions for use.

Deﬁnition of measurement categories:

 Measurement category IV corresponds to measurements taken at the source of low-voltage installations.

Example: power feeders, counters and protection devices.

 Measurement category III corresponds to measurements on building installations.

Example: distribution panel, circuit-breakers, machines or ﬁxed industrial devices.

 Measurement category II corresponds to measurements taken on circuits directly connected to low-voltage installations.

Example: power supply to electro-domestic devices and portable tools.

PRECAUTIONS FOR USE

This instrument and its accessories comply with safety standards IEC 61010-1, IEC 61010-031, and IEC 61010-2-30 for voltages of 1000V in category IV. Failure to observe the safety instructions may result in electric shock, ﬁre, explosion, and destruction of the instrument and of the installations.

 The operator and/or the responsible authority must carefully read and clearly understand the various precautions to be taken

in use. Sound knowledge and a keen awareness of electrical hazards are essential when using this instrument.

 If you use this instrument other than as speciﬁed, the protection it provides may be compromised, thereby endangering you.

 Do not use the instrument on networks of which the voltage or category exceeds those mentioned.

 Do not use the instrument if it seems to be damaged, incomplete, or poorly closed.

 Before each use, check the condition of the insulation on the leads, housing, and accessories. Any item of which the insulation

is deteriorated (even partially) must be set aside for repair or scrapping.

 Use only the leads and accessories supplied. Using leads (or accessories) of a lower voltage or category reduces the voltage

or category of the combined instrument + leads (or accessories) to that of the leads (or accessories).

 Use personal protection equipment systematically.

 Keep your hands away from the terminals of the instrument.

 When handling the leads, test probes, and crocodile clips, keep your ﬁngers behind the physical guard.

 As a safety measure, and to avoid interference, do not move and do not handle the leads during measurements.

CONTENTS

1. FIRST USE ................................................................................................................................................................................ 4

1.1. Delivery condition ........................................................................................................................................................... 4

1.2. Accessories .................................................................................................................................................................... 4

1.3. Replacement parts ......................................................................................................................................................... 5

1.4. Speciﬁcations label ........................................................................................................................................................ 6

1.5. Charging the batteries .................................................................................................................................................... 6

1.6. Adjusting the brightness and contrast ........................................................................................................................... 7

1.7. Choice of language ........................................................................................................................................................ 8

1.8. Choice of measurement cable compensation ................................................................................................................ 8

2. DESCRIPTION OF THE INSTRUMENT ................................................................................................................................... 9

2.1. Functions ...................................................................................................................................................................... 10

2.2. Display .......................................................................................................................................................................... 10

2.3. Keypad ......................................................................................................................................................................... 11

2.4. PC software .................................................................................................................................................................. 11

3. PROCEDURE ......................................................................................................................................................................... 12

3.1. Using the leads ............................................................................................................................................................. 12

3.2. AC/DC voltage measurement ....................................................................................................................................... 13

3.3. Insulation measurement ............................................................................................................................................... 13

3.4. Error indications ........................................................................................................................................................... 22

3.5. DAR (dielectric absorption ratio) and PI (polarization index) ........................................................................................ 22

3.6. DD (dielectric discharge index) ..................................................................................................................................... 24

3.7. Capacitance measurement .......................................................................................................................................... 26

3.8. Measurement of the residual current ............................................................................................................................ 26

4. COMPLEMENTARY FUNCTIONS ......................................................................................................................................... 27

4.1. TEMP key ..................................................................................................................................................................... 27

4.2. ALARM key ................................................................................................................................................................... 28

4.3. CONFIG key ................................................................................................................................................................. 28

4.4. DISPLAY key ...............................................................................................................................................................33

4.5. GRAPH key ................................................................................................................................................................... 33

4.6. FILTER key ................................................................................................................................................................... 34

4.7. HELP key ...................................................................................................................................................................... 35

5. CONFIGURATION (SET-UP) .................................................................................................................................................. 36

5.1. Restoring the initial conﬁguration ................................................................................................................................. 36

5.2. General parameters ...................................................................................................................................................... 37

5.3. Measurement parameters ............................................................................................................................................ 37

5.4. Adjustment of the test voltages .................................................................................................................................... 38

5.5. Adjustment of the alarm thresholds ............................................................................................................................. 39

6. MEMORY FUNCTION ............................................................................................................................................................ 40

6.1. Recording of the measurements .................................................................................................................................. 40

6.2. Reading recorded values .............................................................................................................................................. 42

6.3. Erasing the memory ..................................................................................................................................................... 44

6.4. List of coded errors ...................................................................................................................................................... 45

7. DATA TRANSFER SOFTWARE .............................................................................................................................................. 47

8. SPECIFICATIONS ...................................................................................................................................................................48

8.1. Reference conditions .................................................................................................................................................... 48

8.2. Characteristics per function ......................................................................................................................................... 48

8.3. Power supply ................................................................................................................................................................ 54

8.4. Environmental conditions ............................................................................................................................................. 55

8.5. Construction speciﬁcation ............................................................................................................................................ 55

8.6. Compliance with international standards ..................................................................................................................... 56

8.7. Variations in the domain of use .................................................................................................................................... 56

8.8. Intrinsic uncertainty and operating uncertainty ............................................................................................................ 56

9. MAINTENANCE ...................................................................................................................................................................... 57

9.1. Maintenance ................................................................................................................................................................. 57

9.2. Updating of the internal software ................................................................................................................................. 57

9.3. List of parameters ........................................................................................................................................................ 58

10. WARRANTY ......................................................................................................................................................................... 60

1. FIRST USE

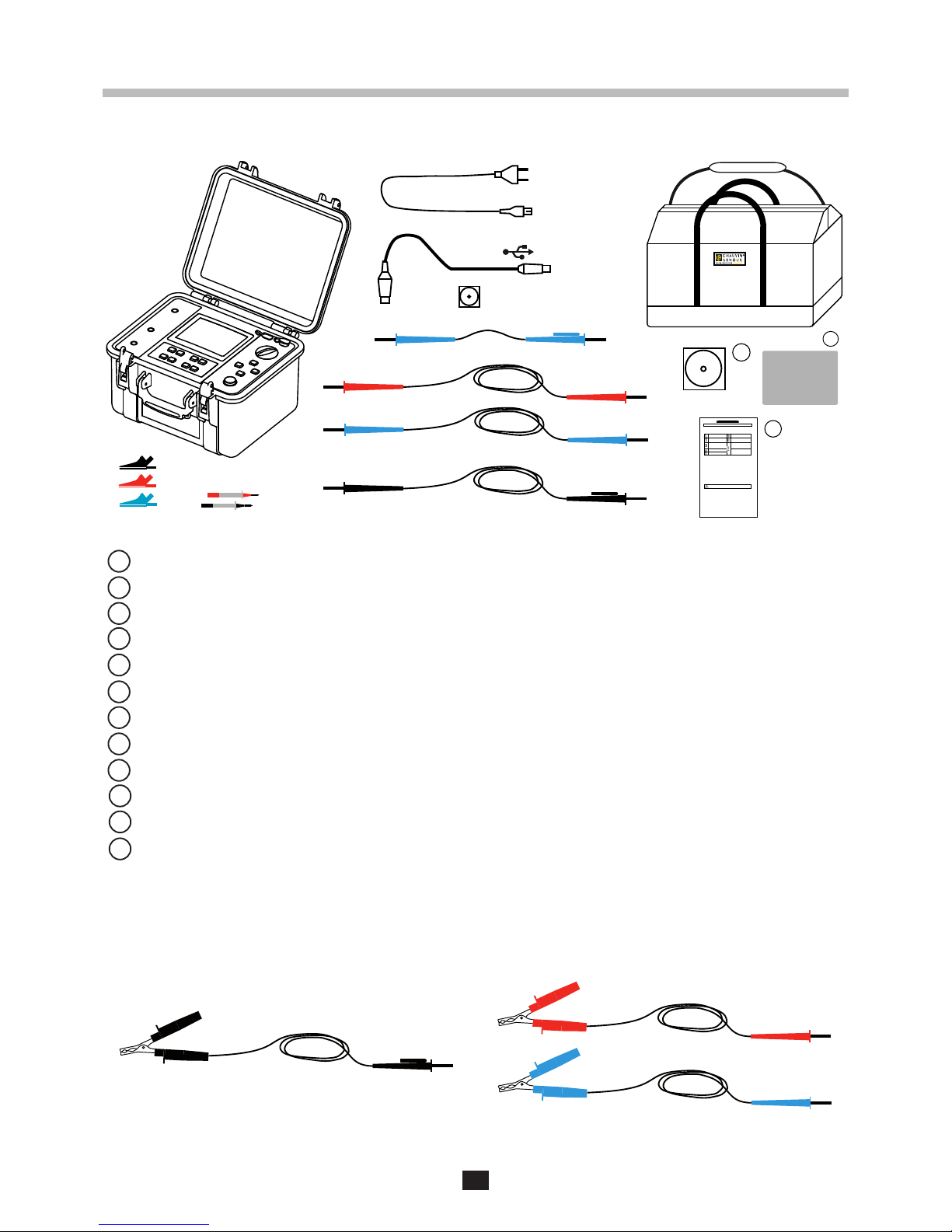

1.1. DELIVERY CONDITION

A C.A 6550 or a C.A 6555 with a screen protection ﬁlm and a rechargeable battery.

Three crocodile clips (red, black, and blue).

Two test probes (red and black).

One power cord 2 metres long for recharging the battery.

One data transfer software program and one optical-USB cord.

One safety lead (blue), 0.5m long, with two high-voltage plugs, one of them with a rear pick-up.

Two safety leads (red and blue), 3 metres long, with high-voltage plugs at both ends.

One shielded safety lead (black), 3m long, with two high-voltage plugs, one of them with a rear pick-up.

One carrying bag for the accessories.

One user manual on CD-ROM (one ﬁle per language).

One multilingual safety data sheet.

Speciﬁcations labels (one per language).

1.2. ACCESSORIES

 Set of 3 shielded safety leads (black, red, and blue), 3 metres long, with a high-voltage plug at one end (with rear pick-up on

the black lead) and a large crocodile clip at the other

➀

➃

➁

➂

➇

➈

➅

➄

➆

English

Safety data sheet Measuring Instrument in CAT II or CAT III or CAT IV (en)

For your safety and to avoid damage to property: Read what follows carefully and observe these precautions Read the other documents provided carefully, including any documents on the CD-ROM

Meanings of the principal symbols that may be present on your product:

CAUTION! Risk of Danger!

Refer to this safety datasheet and comply with the precautions for use.

CAUTION! Risk of electric shock! Refer to this safety datasheet, to the user manual and comply with the precautions for use.

Current clamp: Can be applied to or removed from non-insulated or bare conductors at dangerous voltages.

Current clamp: Do not apply to or remove from conductors at dangerous voltages.

The CE marking indicates compliance with the European "Low Voltage", "EMC", "WEEE", and "RoHS" directives.

In the European Union, this product is subject to selective collection in accordance with the European WEEE directive. Do not dispose of it as ordinary waste; contact the manufacturer for information about collection points.

Earth

Double insulation

Do not dispose of the batteries as ordinary waste; take them to a collection point.

Conditions of use

Temperature, Humidity: Comply with the values stated in the user manual. Altitude : 2 000 m Pollution degree : 2

Precautions for use

These safety instructions must be respected to assure the personal safety and the environment of use. If you do not comply with them, there is a risk of electric shock, explosion or re. If you use these instruments other than as specied or without observing the elementary safety rules, the protection they provide may be compromised, endangering you.  The safety of any system which may include these leads or accesso

ries is the responsibility of the

assembler of the system.

 Each time before use, always check that the insulation of the leads or accessories is in good

condition. Any element whose insulation is damaged (even partially) must be removed from use and scrapped. A change of color of the insulating material is an indication of deterioration.

 The steady-state voltages, currents, and measurement categories are marked on the instruments, on

the cords, and on the accessories. Comply with these values.

 Use specic individual safety protections w

hen hazardous live parts can be accessible in the

installation where the measure is performed

 Before using your instrument, check that it is in good working order (for example, by measuring a

known dangerous voltage).

 If the manual states how to replace the fuse(s) of your instrument, use only the recommended fuses.  Before replacing the batteries (rechargeable or not), disconnect the leads of your instrument.

The use of a measurement instrument, a lead or an accessory with a lower category or voltage downgrades the use of the assembly (instrument + lead + accessory) to the lowest category and/or operating voltage.

Using a measuring instrument in a category II or III or IV environment can be dangerous. In such measurement environments, the operators must be trained and/or accredited and/or informed of the safety measures to be taken.

Measurement categories:

CAT II: Measurement category II is for measurements performed on circuits directly connected to the

low voltage installation

Examples: measurements on household appliances and portable tools.

CAT III: Measurement category III is for measurement performed in the building installation

Examples: distribution boards,

circuit-breakers, machine or industrial equipment with permanent

connection to the xed installation.

CAT IV: Measurement category IV is for measurements performed at the source of the low-voltage installation.

Example: meters and measurements on primary overcurrent protection devices and ripple control units.

Cleaning

 Disconnect the leads or the test accessories  Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry

cloth or forced air. Do not use alcohol, solvents,

or hydrocarbons.

 Do not modify the leads or accessories. Any non-compliant repairs can cause risks of electric shock

or burns.

 Shielded safety lead (black), 8 metres long, with a high-voltage plug with rear pick-up at one end and a large crocodile clip

at the other

 Safety lead (red), 8 metres long, with a high-voltage plug at one end and a large crocodile clip at the other

 Safety lead (blue), 8 metres long, with a high-voltage plug at one end and a large crocodile clip at the other

 Shielded safety lead (black), 15 metres long, with a high-voltage plug with rear pick-up at one end and

 a large crocodile clip at the other

 Safety lead (red), 15 metres long, with a high-voltage plug at one end and a large crocodile clip at the other

 Safety lead (blue), 15 metres long, with a high-voltage plug at one end and a large crocodile clip at the other

 Thermocouple thermometer C.A. 861

 Thermo-hygrometer C.A.846

1.3. REPLACEMENT PARTS

 One carrying bag

 Set of 3 HV leads, 3 metres long (red, blue, and black with rear pick-up)

 Lead with rear pick-up (blue), 0.5 metre long

 Set of 2 test probes (red and black)

 Set of 3 crocodile clips

 Optical-USB cord

 European 2P mains cord

 Screen protection ﬁlm

For the accessories and spares, consult our web site:

www.chauvin-arnoux.com

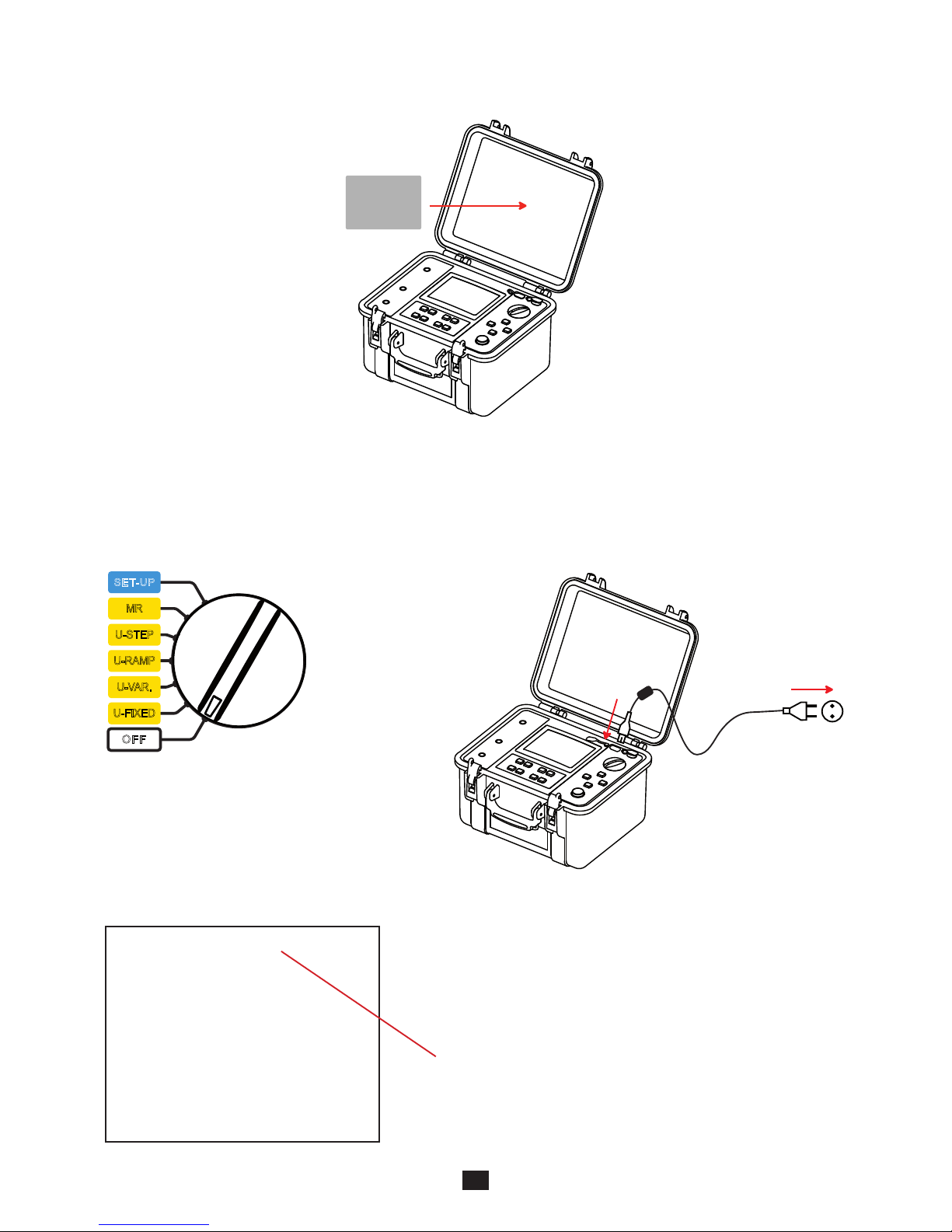

1.5. CHARGING THE BATTERIES

When using the instrument for the ﬁrst time, start by fully charging the batteries. Charging must be done at a temperature between 0 and 30°C.

> 90 Vac < 260 Vac 50 / 60 Hz

Set the switch to OFF. Connect the mains cord.

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

Battery 1

Battery 2

12.4 V

1953 mA

26.4°C

00:05:30

11.7V

13 mA

26.7°C

00:05:20

Charging

During the charging, the instrument displays the following information:

The percentage charge of each of the batteries, their voltages, their charging currents, their temperatures, and the charging times. To reduce the power to be supplied and make it possible to use the instrument during the charging, the batteries are charged alternately at 2A for 10 seconds. It is for this reason that the charging current keeps varying.

The text on the side indicates:

 Charging = battery being charged,  Full = battery fully charged,  Cold = battery too cold to be charged,  Hot = battery too hot to be charged,  Defect = battery faulty (must be replaced).

1.4. SPECIFICATIONS LABEL

Attach one of the 5 speciﬁcations labels, with your appropriate language, on the inside of the lid.



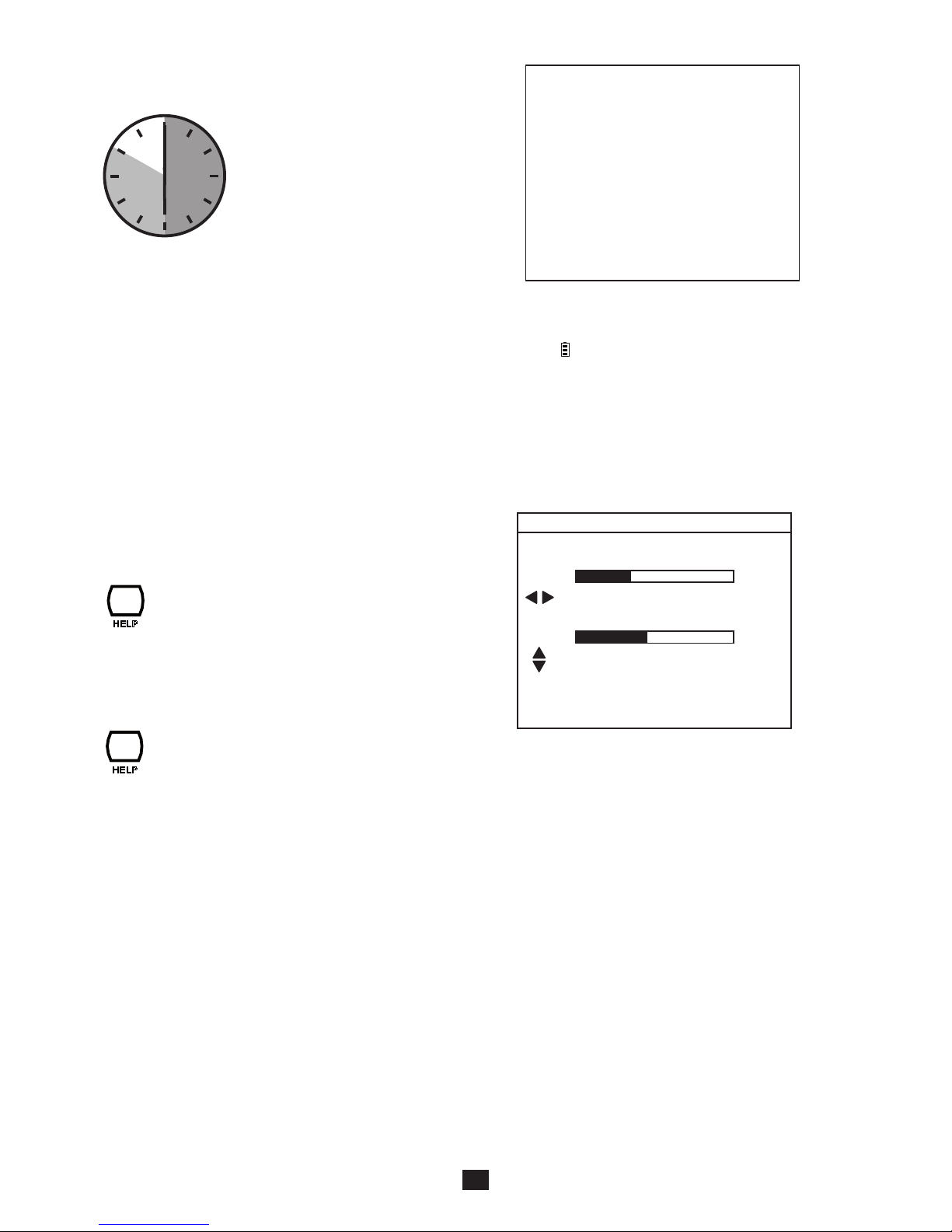

> 2s

HELP



HELP

Display Contrast

Backlight

CONTRAST & BACKLIGHT

Press the HELP key for more than two seconds.

Press the   keys to adjust the contrast. Press the  keys to adjust the brightness.

Press the HELP key to validate.

These adjustments are stored even after the instrument is switched off.

Charging time:

between 6 and 10 hours, depending on the initial charge condition.

Battery 1

Battery 2

Full

100%

11.4 V

15 mA

55.1°C

02:34:41

100%

11.4 V

15 mA

55.1°C

02:34:24

Following prolonged storage, the batteries may be completely discharged. In this case, the ﬁrst charge may take longer.

Charging when the instrument is in operation is also possible. In this case the symbol ﬂashes. The charging current then depends on the test voltage and on the resistance measured. If the power necessary for the measurement approaches 10W, the batteries are no longer charging.

1.6. ADJUSTING THE BRIGHTNESS AND CONTRAST

1.7. CHOICE OF LANGUAGE

This choice is available only if the version of the electronic boards allows it.

To enter the language selection menu, press the CONFIG key and hold it down while turning the switch to SET-UP.

The language selection menu displays all of the languages available. Use the  keys to choose your language and press the  key to conﬁrm or  to cancel.

Installing the new language may take up to 30 seconds. The device then reboots.

1.8. CHOICE OF MEASUREMENT CABLE COMPENSATION

This choice is possible only if the internal software version allows it (see update § 9.2) and only with the red lead delivered with the device (k22 marking at each end).

To enter the cable compensation selection menu, press the FILTER key and hold it down while turning the switch from OFF to SET-UP.

Use the  keys to select the compensation and press the  key to conﬁrm or  to exit.

After a few seconds, the device reboots.



CONFIG

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

English

Français Deutsch

Italiano Español Svenska

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP



FILTER

0 k Ω

44 k Ω

TEMP

ALARM

CONFIG

DISPLAY

MEM

HELP

FILTER

GRAPH

110-230V 50/60 Hz

80 VA max

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

1000V CAT III

600V CAT IV

( 2500V )

C.A 6555

15kV MEGOHMMETER

2. DESCRIPTION OF THE INSTRUMENT

Charging batteries.

Transfer of

data to a PC.

Rotary switch to select a

measurement function,

SET-UP, or memory read.

To start and

stop the

measurements.

START/STOP



Arrow keys for

browsing in the

graphic screen.

ALARM MEM CONFIG DISPLAY

Activation/deactivation

of the alarms.

Recording of the

measurements.

Conﬁguration of

the measurement

parameters.

Switches for next

screen.

TEMP HELP FILTER GRAPH

To refer the measured

resistance to the reference

temperature.

Help and backlight

key.

Smoothing of the

measurements.

Switch graph on/off

Connection terminals.

Graphic screen.

2.1. FUNCTIONS

C.A 6550 and C.A 6555 megohmmeters are high-end portable measuring instruments intended for the measurement of very high electrical insulation and resistance values, mounted in a rugged site housing with a cover; they have graphic screens and can operate on battery or mains power.

The C.A. 6550 makes insulation measurements at voltages up to 10,000V, the C.A. 6555 up to 15,000V.

Their main functions are:

 detection and measurement of input voltage, frequency, and current;  quantitative and qualitative insulation measurement:

 measurement at a ﬁxed test voltage of 500, 1,000, 2,500, 5,000, 10,000 or 15,000V

;

 measurement at an adjustable test voltage between 40 and 15,000V

;

 measurement with a voltage ramp in the ranges from 40 to 1,100V or from 500 to 15,000V;  measurement with a voltage in steps from 40 to 15,000V;  non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burning;  calculation of the DAR, PI, and DD (dielectric discharge index) quality ratios;  calculation of the measured resistance referred to a reference temperature.

 measurement of the capacitance of the circuit tested;  measurement of the residual current.

These megohmmeters contribute to the safety of electrical installations and equipment. Their operation is managed by microprocessors that acquire, process, display, and store the measurements.

They have many advantages, such as:

 digital ﬁltering of insulation measurements;  measurement of the voltage;  the programming of thresholds to trigger audible alarms;  the timer for measurement duration checks;  the programming of a limitation of the measurement current;  the plotting of the resistance, voltage, and current vs. time curves and the current vs. voltage curve: R(t), U(t), I(t), and I(U);  protection of the device by fuse, with detection of defective fuse;  operator safety thanks to the automatic discharging of the test voltage on the tested device at the end of the measurement;  automatic power save mode of the device to save battery power;  indication of battery charge condition;  large graphic display with backlight capability;  a memory to store the measurements, a real-time clock, and a USB interface;  data export to a PC (using the software provided).

2.2. DISPLAY

The display unit is a graphic display with a resolution of 320x240 pixels.

It has built-in back-lighting, which can be controlled by a long press on the key (see §1.6).

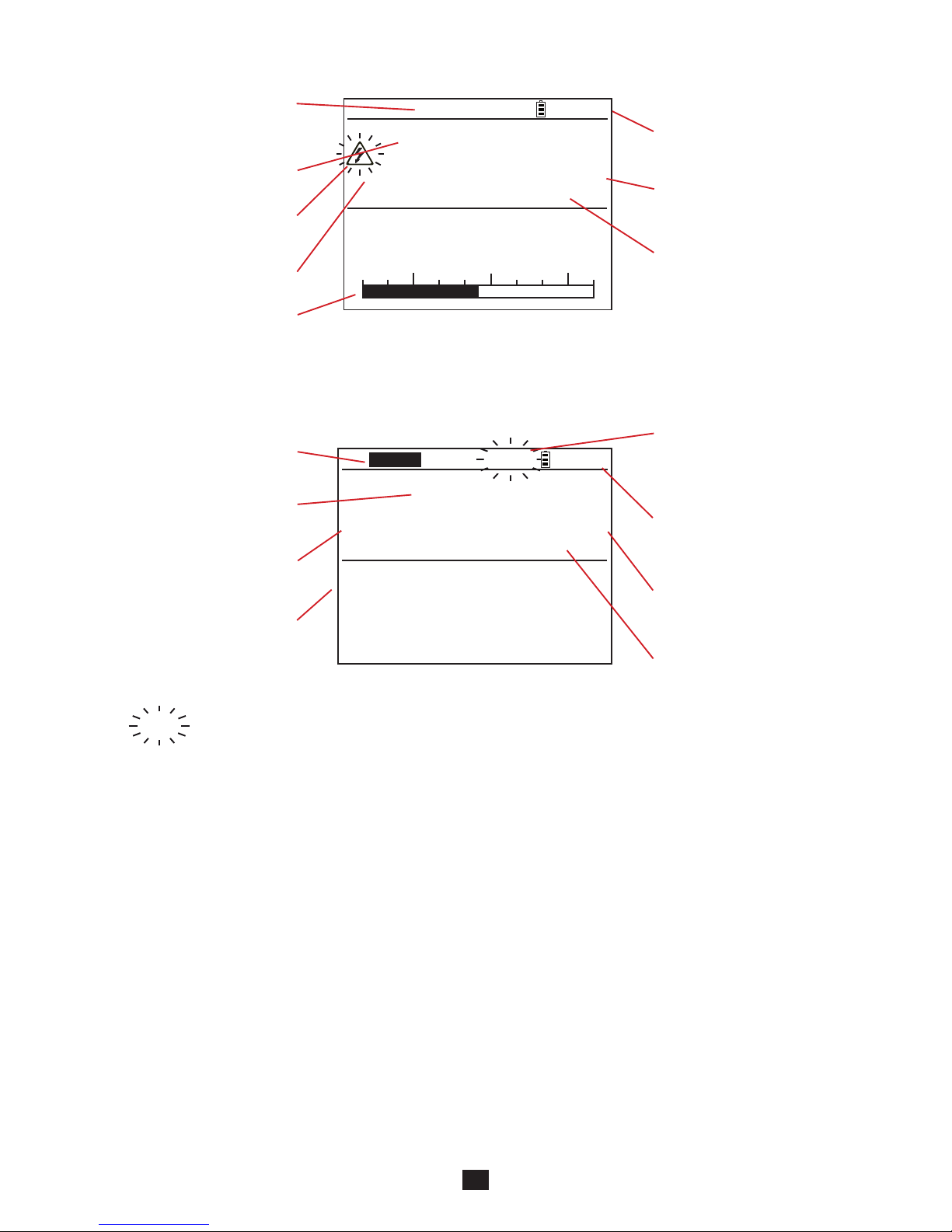

2.2.1. EXAMPLE OF DISPLAY BEFORE THE MEASUREMENT

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

-0.1 V DC

0.2 Hz

112 pA

Time 10:31

BURN

500 V 2500 V

ALARM

Test Run Time 00:02:00

The blinking value can be modiﬁed using the  keys.

Condition of the batteries.

Test with programmed duration.

The alarm is enabled.

Programmed duration of the test.

Value of the external voltage present on the terminals and its frequency.

Current flowing between the terminals.

Date and time.

Value of the next lower available test voltage.

Value of the next higher available test voltage.

Type of measurement function.

No stop at current limit.

100

kΩ

MΩ

GΩ

TΩ

303.3 MΩ

3.244 µA

Elapsed Time 00:00:48

DF 20s

984 V

ALARM

I-LIM

The measurement smoothing filtering is active, with a time constant of 20 seconds.

Value of the insulation resistance.

True value of the test voltage.

Current flowing between the terminals.

Elapsed time since the beginning of the measurement.

Value of the insulation resistance on the bargraph.

2.2.2. EXAMPLE OF DISPLAY DURING THE MEASUREMENT

2.2.3. EXAMPLE OF DISPLAY AFTER THE MEASUREMENT

995 MΩ

528 V

531 nA

Elapsed Time 00:01:12

DAR (30s/60s) PI (1.0m/10m) Capacitance

1.00

---

2 nF

RANGE

E-BRKALARM

Value of the insulation resistance.

True value of the test voltage at the end of the measurement.

The type of measurement is a non-destructive test.

Current at the end of the measurement.

Duration of the measurement.

Ancillary results.

The measurement of the

current range is ﬁxed.

The voltage generated is >70Vdc and therefore dangerous.

The

symbol indicates blinking.

If values are undetermined, they are represented by - - - -.

Insulation resistance below the alarm threshold.

Stop at current limit.

2.3. KEYPAD

If the audible signal has not been deactivated in SET-UP, the instrument conﬁrms each key press by an audible beep. A higherpitched beep indicates that, pressing the key is prohibited or will have no effect.

A long press (press maintained for more than two seconds) is conﬁrmed by a second audible beep.

2.4. PC SOFTWARE

This Pc software is used to:

 transfer data stored in the instrument,  print customised test protocols in accordance with user needs,  create Excel

spreadsheets,

 Set the instrument up and control it entirely via the USB link.

The recommended minimum conﬁguration is a PC running XP, Vista, or Windows 7.

15 kV max

When measuring:

 a voltage ≤1000V on mains,  insulation using a test voltage ≤5000V.

For an insulation measurement with a test voltage ≥5000V.

Measurements of voltages ≥1000V on mains must be made using the test probes only, with the user’s hands behind the guard on the lead.

Remark: The leads with large clips (automobile battery charger type) proposed as accessories cannot be used for mains voltage

measurements because their jaws are not insulated.

3. PROCEDURE

When they leave the factory, the C.A. 6550 and C.A. 6555 are conﬁgured so that they can be used without modifying the parameters. For most measurements, you simply choose the test voltage and press the START/STOP button.

If you want to modify parameters, most of them can be conﬁgured using the CONFIG key, and also in SET-UP.

The SET-UP function allows overall conﬁguration of the instrument independently of which measurement functions are chosen. The CONFIG key allows conﬁguration of the chosen measurement function before and during a measurement.

A conﬁguration modiﬁed in one of these two ways is updated for both (SET-UP or CONFIG key).

3.1. USING THE LEADS

Speciﬁc leads are supplied with the instrument. To use them, you must add test probes or crocodile clips (also supplied with the instrument).

These accessories have guards. For safety reasons, the user’s hands must always be behind the guard.

The positions the hands must not go beyond are indicated below:

3.2. AC/DC VOLTAGE MEASUREMENT

Turning the switch to any insulation measurement position (U-FIXED, U-VAR, U-RAMP, or U-STEP) sets the instrument to AC/ DC voltage measurement. The voltage between the input terminals is measured at all times and indicated as RMS value on the display unit: Input Voltage. Switching between AC and DC mode is automatic.

In the case of an AC signal, the instrument measures the frequency. It also measures the residual DC current between the terminals of the instrument. This measurement is used to evaluate its impact on the insulation measurement about to be made.

The insulation measurements cannot be started if there is an excessively high external voltage (>0.4 UN where UN is the test voltage, with a maximum of 1000 Vac) on the terminals.

FIXED VOLTAGE

500 V

Input voltage Frequency Input current Date 2011.05.23

230 V AC

50.0 Hz

24.6 nA

Time 10:31

-- V

1000 V

BURN

When the external voltage exceeds 25V, the blinking ( ) symbol is displayed alongside it.

The only errors possible in a voltage measurement are:

 The frequency is outside the measurement range (see §8.2.1)  The voltage is outside the measurement range (see §8.2.1).

3.3. INSULATION MEASUREMENT

The insulation measurement is made on an object that is not live.

This measurement varies greatly with the temperature and the relative humidity. It is therefore essential to measure them using a separate device (see §1.2) and to record them with the insulation value.

The ambient temperature and relative humidity can be entered in the instrument as parameters and stored with the measurement result (see §4.1).

The value of the test voltage is generally twice the voltage at which the object to be tested is used, unless a standard stipulates otherwise. For example, for a motor that operates on 230V mains, the test will be performed at 500V.

3.3.1. DESCRIPTION OF THE MEASUREMENT PRINCIPLE

The instrument generates a DC test voltage equal to the chosen nominal voltage UN between the + and - terminals. More precisely, the value of this voltage depends on the resistance to be measured (see the curves of §8.2.3). The instrument measures the voltage and the current between the two terminals and from them deduces R=V/I.

The instrument measures the external voltage present on the terminals. It can make the measurement if the peak voltage is less than 0.4 UN or 1000 Vac maximum. Above this value, it does not make the measurement.



DISPLAY

250

500

750

1000

100

231V

50Hz 12,4pA

BURN

Set the switch to U-FIXED

FIXED VOLTAGE

500 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz 24 pA

Time 10:31

-- V 1000 V

BURN

The following screen appears.

Use the  keys to select the test voltage: 500, 1 000, 2 500, 5 000, 10 000, or 15 000Vdc,

The device generates exactly the voltage selected if the resistance to be measured is indeed greater than RN = UN / 1mA. If the resistance measured is ≤ RN, the output voltage is less than UN. In this case, use the U-VAR function and adjust U so that the voltage displayed during the test is at the desired value (see §4.3.2).

3.3.3. WITH A VARIABLE VOLTAGE

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

3.3.2. WITH A FIXED VOLTAGE

Set the switch to U-VAR. The following screen appears.

There are already 3 preset voltages that can be modiﬁed in SET-UP (see §5). Use the  keys to select one of them: Adjustable Voltage 1: 50V Adjustable Voltage 2: 800V Adjustable Voltage 3: 7,000V

Otherwise, use the   keys to go to the voltage value, then use the  keys to adjust the value of the test voltage. The adjustment is in 10V steps up to 1,000V, then in 100V steps. Keep the keys pressed to speed up the adjustment.

ADJUSTABLE VOLTAGE 1

50 V

Input voltage Frequency Input current Date 2011.05.24

0.1 V AC

0.2 Hz 11 pA

Time 15:31

BURN

ADJUSTABLE VOLTAGE

750 V

Input voltage Frequency Input current Date 2011.05.24

0.1 V AC

0.2 Hz 11 pA

Time 15:31

BURN

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

3.3.4. WITH A VOLTAGE RAMP

This test is based on the principle that an ideal insulation produces the same resistance whatever the test voltage applied.

Any negative variation of the insulation resistance therefore means that the insulation is defective: the resistance of defective insulation decreases as the test voltage increases. This phenomenon is barely observable with low test voltages. At least 2,500V must therefore be applied.

Since the application of the voltage is gradual, it causes no premature ageing or deterioration of the device tested. Unlike the increase in steps, the gradual increase of the current means that the capacitive current is constant. A variation of the current therefore directly represents a variation of the insulation resistance.

Evaluating the result:

 a negative slope of the resistance versus test voltage curve exceeding 500ppm/V generally indicates the presence of

mildew or other deterioration.

 a larger negative slope, or a sudden drop, indicates the presence of localized physical damage (arcing, perforation of

the insulation, etc.).

The test with a voltage ramp is ideally suited for testing semiconductors (diodes, transistors, and thyristors). Take care in this case to choose a non-destructive type of test: Break at I-limit (see § 4.3.1) and a maximum output current less than or equal to 1 mA.

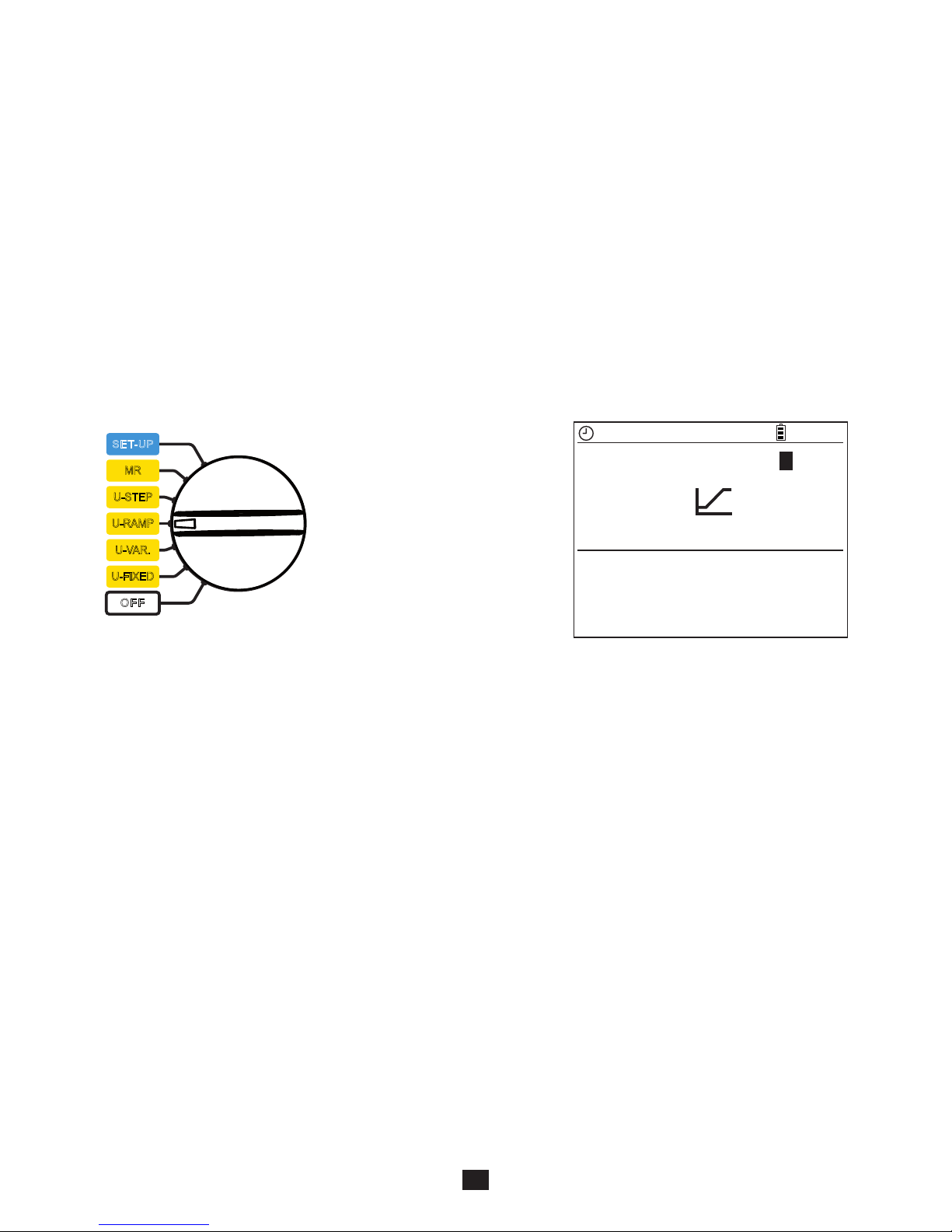

Set the switch to U-RAMP.

The following screen appears:

RAMP FUNCTION 1

Input voltage Frequency Input current Date 2011.05.24

-0.1 V DC

0.2 Hz

55.7 nA

Time 15:31

Min. 50 V

Max. 500 V

BURN

Test Run Time 00:03:00

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

Use the  keys to select a preset test voltage ramp: Ramp function 1: 50 to 500V Ramp function 2: 500 to 5,000V Ramp function 3: 1,000 to 10,000V

The voltages at the beginning and end of the ramp can be programmed with the CONFIG key (see §4.3). The duration of the test is the sum of the three durations speciﬁed: the duration of the initial plateau, the duration of the ramp, and the duration of the ﬁnal plateau.

3.3.5. WITH A STEPPED VOLTAGE

The preset stepped voltage tests have ten plateaus. The duration of each of the voltage plateaus is identical. At the end of each plateau, the capacitive current should be zero and only the measurement current remains.

Unlike the ramp test, the step test stresses the insulation and can cause a breakdown. A sudden increase of the current (or a sudden decrease of the insulation resistance) means that a breakdown point is near. It is then possible to discontinue the measurement by hand (by pressing the START/STOP button) or automatically (E-BRK or Break at I-Limit type of test; see §4.3.1).

A drop of 25% or more between the insulation resistance of one plateau and the next plateau is a sign of deterioration of the insulation.

Set the switch to U-STEP. The following screen appears.

STEP FUNCTION 1

Input voltage Frequency Input current Date 2011.05.24

1 V AC

50.0 Hz

24.6 nA

Time 15:31

BURN

Min. 50 V

Max. 500 V

Test Run Time 00:05:00

Use the  keys to choose the preset step type of test: Step function 1: 50 to 500V Step function 2: 500 to 5.000V Step function 3: 1.000 to 10.000V

The values of the voltages of each step, the number of steps, and the duration of each step can be programmed using the CONFIG key (see §4.3).

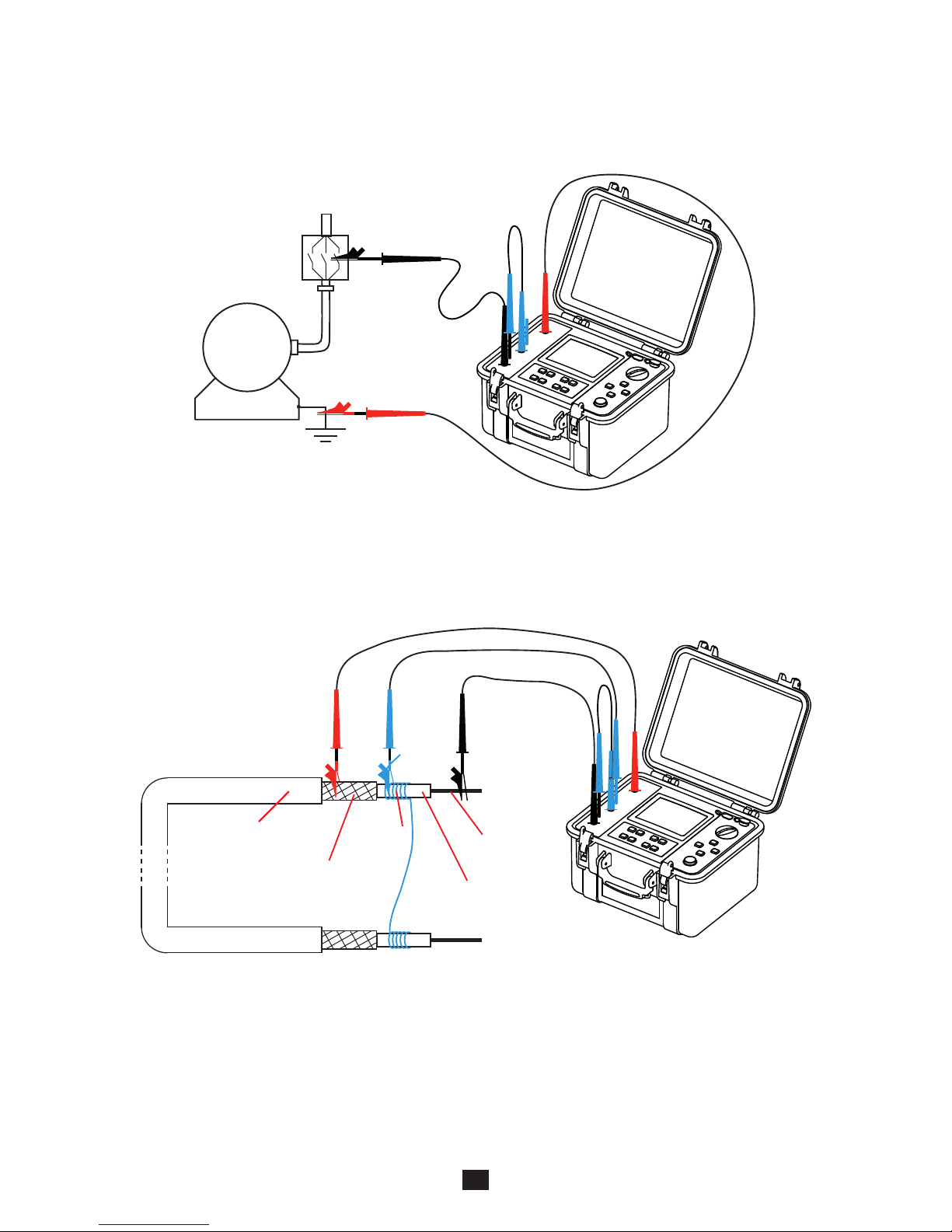

3.3.6. CONNECTION

Depending on the measurements to be made, there are three ways of connecting the instrument.

In all cases, disconnect the device to be tested from mains.

 Low insulation

Connect the red high-voltage lead between earth and the + terminal of the instrument. Connect the black high-voltage lead between one phase of the motor and the - terminal of the instrument.

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

 High insulation

For very high insulation values, connect the small blue high-voltage lead between the rear pick-up of the black lead and the G terminal of the instrument in order to avoid leakage current and capacitive current effects or to eliminate the inﬂuence of the surface leakage current.

This reduces the inﬂuence of the operator’s hands and gives a more stable measurement.

Braid

Outer insulation

Insulation

Core

Using the guard eliminates the inﬂuence of the surface leakage current. A conducting wire must be wrapped round the insulation.

 Cable

Connect the red high-voltage lead between the braid and the + terminal of the instrument. Connect the black high-voltage lead between the core and the - terminal of the instrument. Connect the blue high-voltage lead between the insulation and the G terminal of the instrument.

Wire surrounding the insulation



CONFIG



ALARM

If the U-FIXED or U-VAR. test voltages have been selected, it is possible to select a measurement conﬁguration by pressing the CONFIG key (see §4.3):

 Manual Stop  Manual Stop + DD  Timed Run  Timed Run + DD  DAR  PI

Then set the type of test, the maximum current, the current range, the ﬁltering of the measurement, and the value of the alarm threshold:

 Test Type  Maximum Output Current  I-range  Disturbance Level  Alarm



DISPLAY

To enable the alarm, press the ALARM key. An audible beep will sound if the result of the measurement is below the programmed threshold.

3.3.7. BEFORE THE MEASUREMENT

It is possible to conﬁgure the measurement using the CONFIG key

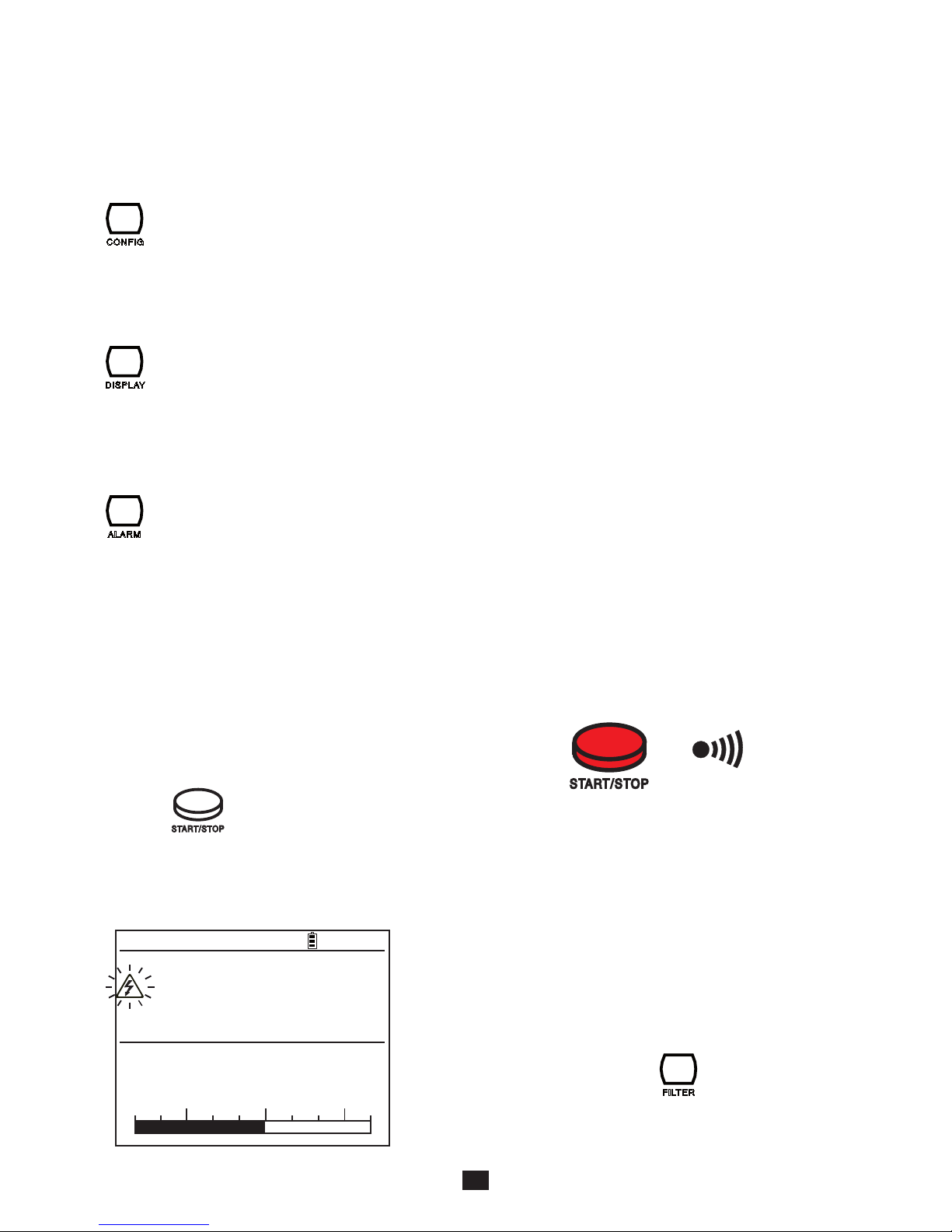

Press the START/STOP button to start the measurement.

START/STOP



The instrument generates the high voltage. To indicate that the measurement is in progress, the instrument emits an audible beep every ten seconds (if the buzzer is switched on) and the START/ STOP button lights red.

START/STOP

3.3.8. DURING THE MEASUREMENT

At the end of a few seconds, the measurement is displayed in digital form and in analog form on a bargraph.

If the measurement is unstable, it is possible to apply a digital ﬁlter in addition by pressing the FILTER key (see §4.6).



FILTER

If the test voltage generated is >5000V, the START/STOP button blinks.

100

kΩ

MΩ

GΩ

TΩ

995 MΩ

528 V

531 nA

Elapsed Time 00:00:23

Set: 500 V

E-BRK

Remark: the DISPLAY key is used to change between different screens of the same menu. While re-entering a menu, the last

used screen is shown.

It is possible to view the available numerical values by pressing the DISPLAY key.



DISPLAY

995 MΩ

528 V

531 nA

Elapsed Time 00:01:12

DAR (30s/60s) PI (1.0m/10m) Capacitance

1.00

---

E-BRK

Set: 500 V

In the case of a step test voltage (10 steps at most) or ramp test voltage (3 steps), the progress of the steps is indicated.

Step 2 of 10.

Voltage of the second step.

Remaining measurement time.

5.03 GΩ

209.4 nA

Remaining Time 00:01:25

E-BRK

Step 2/10

100

kΩ

MΩ

GΩ

TΩ

1030 V



GRAPH



CONFIG

MΩ

501 V

946 MΩ 00:02:32

950

925

900

850

510

500

490

480

470

0 1:00 2:00 3:00 4:00

875

BURN

You can view the graphical representation of the measurement results by pressing the GRAPH key. For more details, refer to § 4.5.

For U-VAR and U-FIXED it is also possible to change measurement parameters during the measurement by pressing the CONFIG key. It is possible to ﬁx the current measurement range, to add an analogue ﬁlter, or to change the test voltage if in the variable test voltage mode U-VAR. For more details, refer to § 4.3.

In the case of a ramp measurement, the resistance displayed is always greater than the true resistance because of the permanent capacitive current due to the permanent variation of the voltage. The value displayed will be exact only at the end of the test, during the voltage plateau.

When the instrument is conﬁgured for a manual stop, once the measurement obtained is stable, press the START/ STOP button again to stop the measurement. In the other cases (programmed duration: Timed Run, Timed Run + DD, DAR, PI, U-RAMP, or U-STEP), the measurement stops automatically at the end of the test.

START/STOP



At the end of the measurement, the instrument switches back to voltage measurement, but usually the result of the insulation resistance measurement remains displayed. To display the voltage, press the DISPLAY key. In case of an external voltage>25V is present, the instrument automatically switches to the screen with the test description screen and input voltage indication.

995 MΩ

528 V

531 nA

Elapsed Time 00:01:12

DAR (30s/60s) PI (1.0m/10m) Capacitance

1.00

---

E-BRKALARM

Value of the insulation resistance.

Value of the test voltage at the end of the measurement.

Type of test.

The alarm is enabled and the insulation resistance is below the alarm threshold.

Duration of the measurement.

Ancillary results.

Current at the end of the measurement.



DISPLAY

250

500

750

1000

100

381V

E-BRK

995 MΩ

502 V

503 nA

Elapsed Time 00:01:20

DAR (30s/60s) PI (1.0m/10m) Capacitance

1.00

---

<1 nF

E-BRK

3.3.9. AFTER THE MEASUREMENT

Once the measurement has been stopped, the instrument discharges the device being tested in a few seconds. For your safety, therefore, wait a little before disconnecting the leads. Normally, this happens rapidly and the user is unaware of it. But if the load is highly capacitive, the discharging time is longer. In this case, for as long as the voltage exceeds 25V, the instrument so indicates on the display.

The DISPLAY key is used to look up all information available after the measurement. This information depends on the type of measurement chosen (see §4.4).

In the case of a ramp or step measurement, the measurement result is displayed as follows:

5.03 GΩ

516 V

98.7 nA

Elapsed Time 00:01:08

∆R ∆V ∆R/(R*∆V) (ppm/V)

Capacitance

47.9 MΩ

53.3 V 9

< 1 nF

E-BRK

Test with programmed duration.

Value of the insulation resistance.

Value of the test voltage at the end of the measurement.

Current at the end of the measurement.

Duration of the measurement.

Voltage coefﬁcient in ppm/V.

Capacitance of the device tested.

∆R: difference of insulation resistance between the resistance at the highest test voltage and the resistance at the lowest test voltage.

∆V: difference between the highest test voltage and the lowest test voltage.

Record the measurement and compare it to earlier measurements in order to assess the evolution of its value. Also record the temperature and the ambient relative humidity.

If, at equivalent temperature and humidity, the insulation resistance has fallen signiﬁcantly, the insulation is deteriorated and maintenance must be carried out on the device tested.

The result remains displayed until another measurement is made, the switch is turned, or the measurement conﬁguration is changed.



MEM



HELP

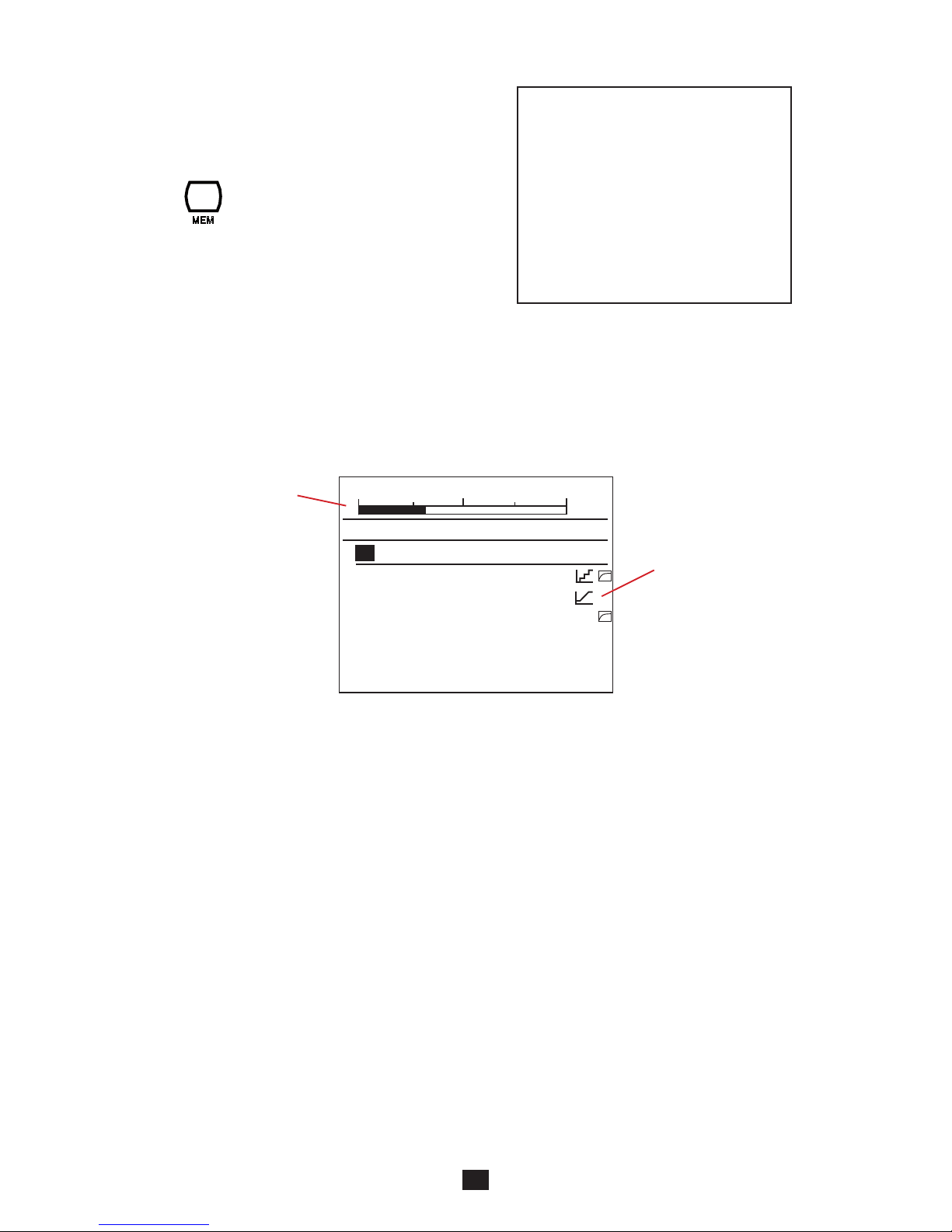

Pressing the MEM key opens the recording menu (see §6.1).

At any time, you can press the HELP key for a reminder of the functions of the keys.



GRAPH



TEMP

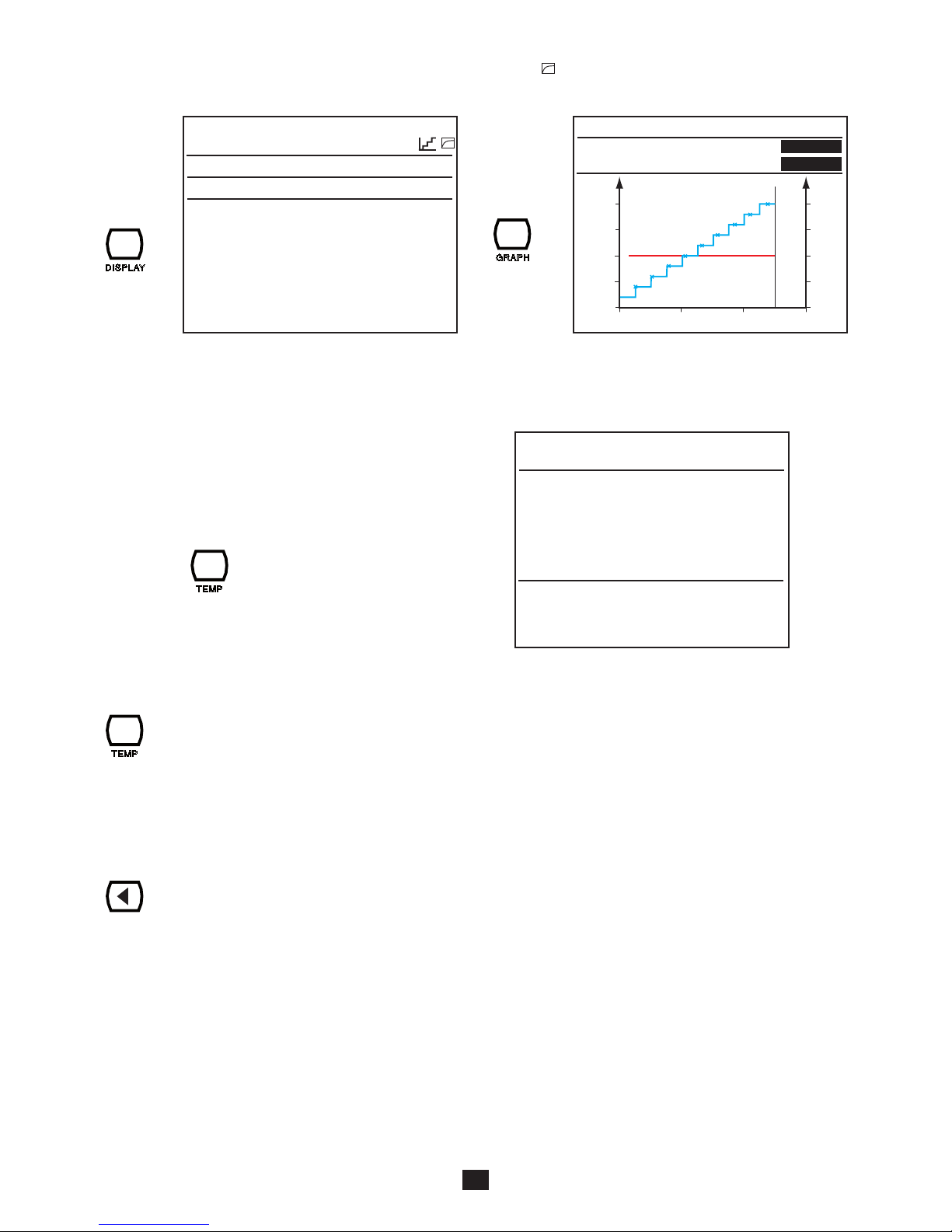

Pressing the GRAPH key displays the graphical representation of the measurement results (see §4.5).

In U-FIXED and U-VAR modes pressing the TEMP key opens the temperature menu (see §4.1).

3.4. ERROR INDICATIONS

The most common error in the case of an insulation measurement is the presence of a voltage on the terminals.

The instrument can make the measurement if the peak value of this voltage is less than 0.4UN or 1000 Vac maximum. Above this value, it is necessary to eliminate the voltage and repeat the measurement.

If an external voltage appears on the terminals during the measurement, and its peak value is greater than 1.1UN, the measurement is broken off and the error is indicated.

3.5. DAR (DIELECTRIC ABSORPTION RATIO) AND PI (POLARIZATION INDEX)

In the U-VAR and U-FIXED functions, in addition to the quantitative value of the insulation resistance, it is very useful to calculate the quality ratios of the insulation (the DAR and the PI) because they can eliminate the inﬂuence of certain parameters likely to invalidate the “absolute” insulation measurement. They also serve to predict the evolution of insulation quality over time.

The main parameters inﬂuencing the measurement results are:

 temperature and relative humidity, with which insulation resistance varies according to a quasi-exponential law.  the disturbance currents (capacitive charging current, dielectric absorption current) created by the application of the test

voltage. Even if they gradually fade, they perturb the measurement at the start, for a more or less long time depending on whether the insulation is sound or degraded.

These ratios therefore complete the “absolute” insulation value and reliably reﬂect the condition, good or bad, of the insulation.

In addition, long-term observation of the evolution of these ratios is a way to monitor the ageing of the insulation. For example, that of a revolving machine or of a long cable.

The values of DAR and PI are calculated as follows:

DAR = R 1 min/R 30s (2 values to be determined during a 1-min measurement) PI = R 10 min/R 1 min (2 values to be determined during a 10-min measurement)

The time of 1 and 10 minutes for the calculation of the PI and the times of 30 seconds and 1 minute for the calculation of the DAR can be modiﬁed in the CONFIG menu or in SET-UP (see § 5), to adapt to particular applications.

3.5.1. MEASUREMENT

There are several ways of measuring the DAR and the PI:

 In manual conﬁguration

START/STOP



Press the START/STOP button.

Wait one minute for the DAR or ten minutes for the PI (if the default values are used).

100

kΩ

MΩ

GΩ

TΩ

499 MΩ

502 V

978 nA

Elapsed Time 00:10:08

BURN

Set: 500 V

START/STOP



Press the START/STOP button again to stop the measurement.

502 MΩ

502 V

978 nA

Elapsed Time 00:10:10

DAR (30s/60s) PI (1.0m/10m) Capacitance

2.64

1.05

320 nF

BURN

 In automatic conﬁguration (preferable)



CONFIG

Press the CONFIG key.

CONFIG

Total Run Time ---

Manual Stop

Manual Stop + DD Timed Run (m:s) 2:00 Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10

Use the keys to select DAR or PI.

CONFIG

Total Run Time 00:10:00

Manual Stop Manual Stop + DD Timed Run (m:s) 2:00 Timed Run + DD DAR (s/s) 30/60

PI (m/m) 1.0/10

CONFIG

Total Run Time 00:01:00

Manual Stop Manual Stop + DD Timed Run (m:s) 2:00 Timed Run + DD

DAR (s/s) 30/60

PI (m/m) 1.0/10

Press CONFIG to exit from the conﬁguration menu. DAR or PI is displayed in the top left corner of the display unit to indicate the conﬁguration chosen.



CONFIG

Press the START/STOP button to start the measurement. It stops automatically and the values of DAR and PI are displayed.

START/STOP



3.5.2. INTERPRETATION OF THE RESULTS

DAR PI Condition of insulation

DAR < 1,25

PI < 1

Poor or even dangerous

1 ≤ PI < 2

1,25 ≤ DAR < 1,6 2 ≤ PI < 4 Good

1,6 ≤ DAR 4 ≤ PI Excellent

A capacitance in parallel to the insulation resistance extends the settling times of the measurements. This can affect or even inhibit the measurement of DAR or PI (depending on the time set for recording the ﬁrst resistance value). The table below indicates the typical values of the capacitances in parallel with the insulation resistance, making it possible to measure the DAR and the PI without changing their preset durations.

100 kW 1 MW 10 MW 100 MW 1 GW 10 GW 100 GW

500 V 10 µF 10 µF 10 µF 6 µF 4 µF 2 µF 1 µF

1,000 V 5 µF 5 µF 5 µF 3 µF 2 µF 1 µF 0.5 µF

2,500 V 2 µF 2 µF 2 µF 1.2 µF 1 µF 0.5 µF 0.2 µF

5,000 V 1 µF 1 µF 1 µF 0.6 µF 0.4 µF 0.3 µF 0.1 µF

10,000 V 0.5 µF 0.5 µF 0.5 µF 0.3 µF 0.2 µF 0.1 µF 0 µF

15,000 V 0.3 µF 0.3 µF 0.3 µF 0.2 µF 0.1 µF 0.1 µF 0 µF

3.6. DD (DIELECTRIC DISCHARGE INDEX)

In the case of multilayer insulation, if one of the layers is defective but the resistance of all the others is high, neither the quantitative insulation measurement nor the calculation of the PI and DAR quality ratios will reveal the problem.

This makes it judicious to perform a dielectric discharge test, from which the DD term can be calculated. This test measures the dielectric absorption of heterogeneous or multilayer insulation and disregards parallel-surface leakage currents.

The dielectric discharge test is especially well suited to measuring the insulation of revolving machines and more generally for measuring the insulation on heterogeneous or multi-layer insulating materials containing organic substances.

It involves applying a test voltage for long enough to electrically “charge” the insulation to be measured (typically, a voltage of 500 V is applied for 30 minutes). At the end of the measurement, the instrument induces rapid discharging, during which the capacitance of the insulation is measured, then, one minute later, it measures the residual current ﬂowing in the insulation.

The DD term is then calculated as follows: DD = current measured after 1 minute (mA)/[test voltage (V) x measured capacitance (F)]

3.6.1. MEASUREMENT

Press the CONFIG key.



CONFIG

Total Run Time ---

Manual Stop

Manual Stop + DD Timed Run (m:s) 2:00 Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10



CONFIG

START/STOP



Press the START/STOP button to start the measurement.

To set the duration of the measurement, place the cursor on Timed Run (m:s). Then use the   and  keys to set the minutes and seconds. The minimum setting is 0:01, but the setting should not be less than 30 seconds because acquiring a stable resistance result takes some time.

CONFIG

Total Run Time 00:02:00

Manual Stop Manual Stop + DD

Timed Run (m:s) 2:00

Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10

Once the duration has been set, move the cursor back to Timed Run + DD.

Press CONFIG to exit from the conﬁguration menu. DD or DD is displayed in the top left corner of the display unit to indicate the conﬁguration chosen.

In the Manual Stop + DD conﬁguration, wait until the elapsed time is the desired test time, then press the START/STOP button to stop the measurement.

In the Timed Run + DD conﬁguration (indicated by the symbol), the measurement stops automatically.

START/STOP

In both cases, it is necessary to wait one minute after the measurement is stopped (countdown on the display unit) for the instrument to display the result. During this time, the START/STOP button is lit but the instrument does not emit an audible signal.

Use the keys to select Manual Stop + DD or Timed Run + DD (manual or automatic measurement).

CONFIG

Total Run Time ---

Manual Stop

Manual Stop + DD

Timed Run (m:s) 2:00 Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10

CONFIG

Total Run Time 00:03:00

Manual Stop Manual Stop + DD Timed Run (m:s) 2:00

Timed Run + DD

DAR (s/s) 30/60 PI (m/m) 1.0/10

The result is then displayed.

234.5 MΩ

507 V

224.6 pA

Elapsed Time 00:02:00 DAR (30s/60s) PI (1.0m/10m) Capacitance DD current

1.42

- - -

2 nF

11 pA

2.55

BURNDD

3.6.2. INTERPRETATION OF THE RESULT

Value of DD Quality insulation

7 < DD Very poor

4 < DD < 7 poor

2 < DD < 4 Borderline

DD < 2 Good

3.7. CAPACITANCE MEASUREMENT

The capacitance measurement is made automatically after the insulation measurement, and is displayed after the measurement has been stopped and the device tested has been discharged.

3.8. MEASUREMENT OF THE RESIDUAL CURRENT

The measurement of the residual current ﬂowing in the device tested is made automatically as soon as the connection to the device tested is made, then during and after the insulation measurement.

4. COMPLEMENTARY FUNCTIONS

4.1. TEMP KEY

This function is accessible only when the measurement is over and only for U-VAR and U-FIXED. It is used to refer the measurement result to a temperature other than the one at which the measurement was made.

This is because the temperature causes the resistance to vary according to a quasi exponential law. To a rough approximation, raising the temperature by 10°C halves the insulation resistance; conversely, lowering the temperature by 10°C doubles the insulation resistance.

Referring the measurements to a single temperature makes it easier to compare them and gives a better idea of the evolution of the insulation resistance. And this is true whatever the temperature at the time of the measurement.

Similarly, measuring the humidity improves the correlation between the various measurements made on a given device.

Procedure:

 Make a measurement in U-FIXED or U-VAR mode.

 Press the TEMP key.

TEMPERATURE Air Temperature Humidity Probe Temperature Rc Reference Temperature ∆T for R/2

--- °C

--- %

--- °C

R measured Rc at --- °C

5.00 GΩ

--- kΩ

TEMPERATURE Air Temperature Humidity Probe Temperature Rc Reference Temperature ∆T for R/2

23 °C

40% 23 °C 40 °C 10 °C

R measured Rc at 40 °C

5.00 GΩ

1.529 GΩ



TEMP

 Use the   and  keys to enter the various parameters:

 Air Temperature: the ambient temperature (optional)  Humidity: the ambient relative humidity (optional)  Probe Temperature: the temperature of the device tested.  Rc Reference Temperature: the temperature to which the measured resistance will be referred.  ∆T for R/2: the temperature variation, known or estimated, sufﬁcient to halve the insulation resistance.

To facilitate the programming, the instrument proposes default values.

 The instrument then displays the insulation resistance referred to the reference temperature.

If coefﬁcient ∆T for R/2 is not known, it can be calculated from a minimum of 3 measurements made on the same device at different temperatures.

Detail concerning the calculation performed:

The insulation resistance varies with the measurement temperature. This dependence can be approximated by an exponential function: Rc = Kt * R

where Rc: insulation resistance referred to 40°C.

Rt: insulation resistance measured at temperature T. Kt: coefﬁcient deﬁned as follows: Kt = (1/2) ^ ((40 - T)/∆T)

where ∆T: temperature difference at which the insulation resistance is halved.

4.2. ALARM KEY



ALARM

Press the ALARM key to enable the alarm deﬁned using the CONFIG key (see 4.3) or in SET-UP (see §5). The ALARM symbol is then displayed.

If the measurement is less than the alarm threshold, the instrument so indicates by the blinking of the ALARM symbol on the display unit and the emission of an audible signal.

Press the ALARM key again to disable the alarm; the ALARM symbol disappears from the display unit.

4.3. CONFIG KEY

4.3.1. BEFORE THE MEASUREMENT

If the U-FIXED or U-VAR. test voltages have been chosen, there are two conﬁguration screens. There is only one for the U-RAMP and U-STEP test voltages.

Press the CONFIG key (press CONFIG key again to exit):

CONFIG

Total Run Time ---

Manual Stop

Manual Stop + DD Timed Run (m:s) 2:00 Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10



CONFIG



CONFIG

 Manual Stop: manual stop of the measurement.  Manual Stop + DD: manual stop of the measurement and calculation of the DD.  Timed Run (m:s): automatic stop of the measurement at the end of the programmed duration.  Timed Run + DD: automatic stop of the measurement at the end of the programmed duration and calculation of the DD.  DAR: automatic stop of the measurement at the end of one minute (or of the programmed time, if different).  PI: automatic stop of the measurement at the end of 10 minutes (or of the programmed time, if different).

It is always possible to stop a measurement during a test with programmed duration, by pressing the START/STOP button.

The  keys are used to select the measurement conﬁguration. All the changes are immediately valid.



CONFIG

Press the DISPLAY key to see the second conﬁguration screen.



DISPLAY

Test Type Courant de sortie max. I-Range Disturbance Level Alarm

CONFIG

Burning

1.0 mA Auto

Low

< 2.5 M

Ω

The  keys are used to select and modify a parameter. The chosen configuration is immediately valid.

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz 24 pA

Time 10:31

E-BRK

500 V 2500 V

The second conﬁguration screen depends on the setting of the switch. The U-RAMP and U-STEP settings do not use the ﬁrst page of the conﬁguration screen, only the second.

The second conﬁguration screen is used to choose:

 The type of test (Test Type)

Nondestructive test (Early break)

The measurement will be stopped at the ﬁrst breakdown current peak detected. This type of test is used for non-destructive tests. The current is limited to 0.2 mA. The E-BRK symbol is displayed.

CONFIG

Total Run Time 00:02:00

Manual Stop Manual Stop + DD

Timed Run (m:s) 2:00

Timed Run + DD DAR (s/s) 30/60 PI (m/m) 1.0/10

To do this, use the   and  keys.

The test will last the time programmed. However, if, during the measurement, the rotary switch is turned or the START/STOP button is pressed, the measurement will be broken off.

When you select Timed Run (test with programmed duration) or Timed Run + DD, you can set the duration of the measurement (m:s).

Stoppage of the test at a preset current (Break at I-limit)

The measurement will be stopped when the current reaches the maximum value (Maximum Output Current) deﬁned by the user (see below). This type of test is useful for testing varistors or other types of voltage limiter. The I-LIM symbol is displayed.

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz

24.6 nA

Time 10:31

I-LIM

500 V 2500 V

Burning

The measurement is not stopped, whatever the value of the current. Depending on the application, this type of test can be used to determine the position of insulation faults when there is Burning: appearance of an electric arc during the test or burn spot after the test. The BURN symbol is displayed.

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz

24.6 nA

Time 10:31

BURN

500 V 2500 V

 The maximum current (Maximum Output Current)

This is the current not to be exceeded during the test. Use the  keys to set it to between 0.2 and 5mA for the Burning and Break at I-limit test types. For the Early break test type, this value is ﬁxed at 0.2 mA.

 The current range (I-range)

This function is used to make measurements more rapidly when their order of magnitude is already known. Use the  keys to set its value to Auto or to a ﬁxed value. Then choose the current range:

Current < 300 nA 60 nA < I < 50 µA 10 µA < I < 6 mA Auto

Current range

300 nA 50 µA 7 mA Auto

For example for UN = 10,000 V :

Current range 300 nA 50 µA 7 mA

Resistance

R > 30 GW 200 MW < R < 16,6 GW 10 MW* < R < 1 GW

* : 10MW because Imax = 1 mA at 10,000 V.

The ﬁxed current range remains active until the instrument is switched off.

 Perturbation of the signal (Disturbance Level)

Use the  keys to set its value, from Low to High. The DH symbol is then displayed.

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz

24.6 nA

Time 10:31

ALARM

BURN

500 V 2500 V

The RANGE symbol is displayed.

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz

24.6 nA

Time 10:31

RANGE

BURN

500 V 2500 V

FIXED VOLTAGE

1000 V

Input voltage Frequency Input current Date 2011.05.23

10 V AC

50.0 Hz

24.6 nA

Time 10:31

500 V 2500 V

Setting to High is recommended when you make measurements in the presence of strong electromagnetic ﬁelds at the network frequency (for example near high-voltage lines).

 In the U-FIXED and U-VAR modes: the alarm threshold

Use the  keys to set the alarm threshold. The alarm threshold can also be set in SET-UP (see §5.5) The ALARM symbol is displayed and the device emits an audible signal if the alarm is active.

 In the U-RAMP mode: the programming of the ramp (Set Ramp Function).

Use the  keys to go to Set Ramp Function; the instrument displays the voltage ramp values programming screen. This programming can also be done in SET-UP (see §5.4).

 In the U-STEP mode: the programming of the step (Set Step Function).

Use the  keys to go to Set Step Function; the instrument displays the voltage step values programming screen. This programming can also be done in SET-UP (see §5.4).

4.3.2. DURING THE MEASUREMENT

During the measurement, in the U-VAR and U-Fixed modes only, the CONFIG key is used to choose the current range: automatic (default) or ﬁxed. For more details, refer to the previous section.

Once the measurement has started, press the CONFIG key. Press CONFIG key again to exit from the menu.



CONFIG

502 MΩ

502 V

978 nA

Elapsed Time 00:00:12

Set 500V

I-Range Disturbance Level

Auto

Low

BURN

CONFIG

The following screen appears (in U-FIXED mode):

Use the   and  keys to modify the measurement current range:



CONFIG

The changes are recorded directly after being entered. If the range is ﬁxed, the RANGE symbol is displayed. The change of parameters remains active until the instrument is switched off.

During the measurement, it is also possible to activate and deactivate the analogue ﬁlter of the measurement (Disturbance Level). For more details, refer to the previous section. In the case of a variable test voltage, the voltage set is also displayed and can be modiﬁed during the measurement.

502 MΩ

2305 V

4.61 µA

Elapsed Time 00:00:12

BURN

Set 2300V

I-Range Disturbance Level

7mA

Low

RANGE

CONFIG

4.4. DISPLAY KEY

This key is used to browse through the various accessible screens.

4.5. GRAPH KEY



GRAPH

MΩ

GRAPH

508 V 508 V

3.018 GΩ

00:01:00 00:01:00

3050

3000

2950

2900

2850

510

500

490

480

470

0 1:00 2:00 3:00 4:00

During the measurement and at the end of each measurement, pressing the GRAPH key displays a graphical presentation of the measurement results. The ﬁrst screen shows the insulation resistance versus time R(t) and the voltage versus time U(t).

Insulation resistance axis.

Time axis.

Curve R(t).

Minimum and maximum values of the voltage and the resistance and time at the location of the cursor.

Test voltage axis.

Curve U(t), identiﬁed by x’s.

This curve is plotted using samples recorded during the measurement.

During a measurement: There is no cursor, each new result of a measurement is automatically added to the curve and the values are visible on a line above the graphic zone.

After a measurement: The time shown at top right in the screen blinks; this indicates that the cursor mode is active. The   keys can be used to move the cursor to a different time along the curve. Above the graphic zone, the minimum and maximum values at the cursor position are visible on two lines. If the time period is 4 minutes (the smallest possible), these lines are the same and represent one sample. Depending on the range of the left-hand vertical scale, it may be possible to shift the vertical scale and the corresponding curve using the  keys.

In the case of a measurement in U-RAMP or U-STEP mode, this gives:

GΩ

GRAPH

497 V 497 V

5.045 GΩ

00:01:30 00:01:30

10.0

7.5

5.0

2.5

1000

750

500

250

0 1:00 2:00 3:00 4:00

GΩ

GRAPH

263 V 263 V

3.096 GΩ

00:00:35 00:00:35

10.0

7.5

5.0

2.5

1000

750

500

250

0 2:00 4:00 6:00

If the interval of the scale of an axis is big enough it is possible to zoom.



CONFIG

Press the CONFIG key. The time indication in the upper right of the screen stops blinking, indicating that the zoom mode is active. The   keys are used to modify the time scale of the graph. The  keys are used to modify the resistance scale of the graph.



DISPLAY



DISPLAY

GRAPH

2.985 GΩ

167.8 nA

00:02:00 00:02:00

170

165

160

155

150

0 1:00 2:00 3:00 4:00

GRAPH

700

600

500

400

300

0 1 2 3 4kV

Press the DISPLAY key to view the current vs. time curve.

Curve I(t).

The minimum and maximum values of the current and resistance at the position of the cursor.

Time axis.

Press the DISPLAY key again to view the current vs. voltage curve (not available for U-STEP).

This curve is useful primarily in the case of a measurement in U-RAMP mode. There is no cursor and it is not possible to zoom on this curve.

4.6. FILTER KEY

The FILTER key can be used to activate and deactivate a digital ﬁlter for the insulation measurements. This ﬁlter affects the displayed values of resistance, voltage and current and the recorded data of the resistance, but not the recorded data of voltage and current. The recorded data of voltage and current remain raw (unﬁltered).

Axis of the current.

100

kΩ

MΩ

GΩ

TΩ

303.3 MΩ

3.244 µA

Elapsed Time 00:00:48

984 V

ALARM

I-LIM

This function is useful in case of high instability of the insulation values displayed, but it is also possible to estimate the measurement on the bargraph.



FILTER

Successive presses on the FILTER key modify or remove the ﬁlter:

 no ﬁlter,  DF 10: time constant 10 seconds,  DF 20: time constant 20 seconds,  DF 40: time constant 40 seconds,  DF: automatic ﬁlter, adapts the ﬁlter time to the resistance result changes.

The standard setting at power on is automatic ﬁlter (DF).

When using a ﬁlter it can take a long time (up to several minutes) to recover from an overload resistance value (e.g. >2 TW). If you encounter an overload it is best to switch the ﬁlter off until a good resistance result is reached again.

DF 20s

100

kΩ

MΩ

GΩ

TΩ

303.3 MΩ

3.244 µA

Elapsed Time 00:00:48

984 V

ALARM

I-LIM

Selecting digital ﬁltering is recommended for measurements of ﬂuctuating high insulation resistance values. Such ﬂuctuations may be due to hand effects, ﬂuctuating capacitances in the device tested, insulation that varies because of conducting dust, an ionizing and polarizing effect of this dust, etc., or again to the presence of an AC voltage superposed on the measurement.

The FILTER key is active before and during the measurement.

4.7. HELP KEY



HELP



> 2s

HELP

A short press on the HELP key opens the help function, in which the actions of the keys are explained.

This operation changes with the context. Below, an example in U-FIXED mode:

A long press on the HELP key lets you set the contrast of the display unit and the backlighting (see §1.6)

Help

DISPLAY: next page

GRAPH: graph R(t)+U(t), I(t), I(U)

CONFIG: configuration menu

FILTER: 3 digital filters DF, off ALARM: alarm on/off MEM: store data record menu

TEMP: temperature menu

, : select test voltage

- lower - higher

The ﬁlter is calculated as follows: RN = R

N-1

+ (R - R

N-1

)/N

If N is set to 20, the time constant of this ﬁlter will be approximately 20 seconds.

5. CONFIGURATION (SET-UP)

This function is used to change the conﬁguration of the instrument by directly accessing the parameters to be modiﬁed.

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

Set the switch to SET-UP.

General Settings Set Default Parameter Buzzer Power Down Baud rate Date Time Temperature Unit

38400

2011-05-25

9:41

Celsius

100213

1.0/1.0

Instrument Number Firmware

To select and modify a parameter, use the , ,  and  arrow keys.

As soon as a parameter is modiﬁed, it is recorded.

SET-UP

! WARNING !

O.K.

CANCEL

All parameters

will be reset !

If you accept by choosing OK, the following data will be modiﬁed:

 The audible level of the buzzer returns to 1.

 The automatic switching off of the instrument will be deactivated.

 The data rate will be 38400 bauds.

 The duration of the measurements with programmed duration will be 2 minutes.

 The sampling duration will be “Min.” = minimum (about 1 second).

 The DAR will be 30/60 and the PI 1/10.

 The type of test will be Burning.

 The maximum output current will be 5mA.

 The maximum output voltage will be 10kV (15kV for the C.A. 6555).

 The adjustable test voltages will be 50, 800 and 7000V.

 The ramp and step test voltages return to their original values, as do all alarm thresholds.

 The backlight will be switched off.

5.1. RESTORING THE INITIAL CONFIGURATION

To return to the initial conﬁguration, choose Set Default Parameter. The instrument requests conﬁrmation.

The following screen appears.



DISPLAY

Press the DISPLAY key to see the following screen:

Test Timing Timed Run (m:s) DAR (s/s) PI (m/m)

2:00

30/60

1.0/10

Timed Run: to set the measurement duration (in minutes:seconds) for measurements with programmed duration.

The adjustment range is from 0:01 to 99:59, in 1-second steps.

DAR: to set the time at which the measurements must be recorded to calculate the DAR (see §3.5). This can be used in special applications.

The ﬁrst time can be set from 10 to 90 seconds in 5-second steps. The second time can be set from 15 to 180 seconds in 5-second steps.

PI: to set the time at which the measurements must be recorded to calculate the PI (see §3.5). This can be used in special applications.

The ﬁrst time can be set from 0.5 to 30 minutes in 0.5- then 1-minute steps. The second time can be set from 0.5 to 90 minutes in 0.5-, 1-, and 5-minute steps.

5.2. GENERAL PARAMETERS

Buzzer: to set the audible level of beeps: 1, 2, 3, or Off (no sound).

Power down: automatic switching off of the instrument: On (power off at the end of 5 minutes), Off (no power off).

Baud rate: to set the data rate on the serial interface to 9600, 19200, 38400 or 57600 bauds.

Date: to set the date in yyyy-mm-dd format.

Time: to set the time in hh:mm format.

Temperature unit: to choose the unit of temperature: Celsius or Fahrenheit.

Instrument Number: indicates the number of the instrument. This line is informative and cannot be modiﬁed.

Firmware: indicates the two version numbers of the ﬁrmware in the instrument. This line is informative and cannot be modiﬁed.

5.3. MEASUREMENT PARAMETERS



DISPLAY

Press the DISPLAY key to see the following screen:

Test Parameters Test Type Maximum Output Current Maximum Output Voltage Adjustable Voltage 1 Adjustable Voltage 2 Adjustable Voltage 3

Burning

5.0 mA

15000 V

50 V

800 V

7000 V

Test Type: to choose the type of test: Burning, Early-Break, or Break at I-Limit (see § 4.3.1).

Maximum Output Current: to set the maximum output current, from 0.2 to 5mA for the Burning and Break at I-limit test types;

it is ﬁxed at 0.2 mA for the Early break test type.

Maximum Output Voltage: to set the maximum output voltage. This can be useful to prevent handling errors. It make it possible to entrust the instrument to less experienced users, for particular applications (telephony, aviation, etc.) in which it is important not to exceed some maximum test voltage.

For example, if the maximum voltage is set to 750V, the measurement will be made at 500V for the 500V ﬁxed voltage, and at a maximum of 750V for all the other ﬁxed voltages.

The adjustment range is from 40 to 10,000V (15,000 V for the C.A 6555).

5.4. ADJUSTMENT OF THE TEST VOLTAGES

Always on the third SET-UP screen.

Adjustable Voltage 1, 2, and 3: to set the values of the 3 adjustable test voltages.

The adjustment range is from 40 to 15000V.



DISPLAY



DISPLAY

Press the DISPLAY key to see the following screen.

Step & Ramp Functions Set Step Function 1 Set Step Function 2 Set Step Function 3 Set Ramp Function 1 Set Ramp Function 2 Set Ramp Function 3

Set Step Function 1, 2, and 3: in the case of a measurement with a stepped voltage, used to set the voltages and the durations of the steps.

Pressing the  key opens the following screen:

Step Voltage Duration (m:s)

Step Function 1

1 2 3 4 5

50 V 100 V 150 V 200 V 250 V

0:30 0:30 0:30 0:30 0:30 5:00

Total Run Time (m:s)

Step & Ramp Functions

Step Voltage Duration (m:s)

Step Function 1

6 7 8 9 10

300 V 350 V 400 V 450 V 500 V

0:30 0:30 0:30 0:30 0:30 5:00

Total Run Time (m:s)

Step & Ramp Functions

Press the DISPLAY key to see the next screen.

You can then set the voltage and duration of each of the 10 steps. The total duration of the measurement (Total Run Time) is calculated by the instrument.

The adjustment range of the voltages is from 40 to 15,000V. If a voltage is set to zero, the voltage displayed is --V. The duration of the steps ranges from 00:01 to 99:59 and 0. If a duration is set to 0, the time displayed is -:- -. The setting should not be less than 30 seconds, because acquiring a stable resistance result takes some time. If either a step voltage or a step duration is set to zero, the step as a whole will be set to zero and will be skipped during the test.

Press the  to exit the menu and return to the main SET-UP menu.

Set Ramp Function 1, 2, and 3: in the case of a measurement with a ramped voltage, used to set the starting voltage, the slope of the ramp, and the ﬁnal voltage.

Pressing the  key opens the following screen:

You can then set the voltage and duration of the starting plateau and of the ﬁnal plateau, along with the duration of the ramp. The total duration of the measurement (Total Run Time) is calculated by the instrument. The voltages can be adjusted in two ranges: between 40 and 1,100V or between 500 and 15000V. The duration of the steps can range from 00:10 (Start 0:30, Ramp 0:10, End 0:10) to 99:59.

Press the  to exit the menu and return to the main SET-UP menu.

5.5. ADJUSTMENT OF THE ALARM THRESHOLDS

Step Voltage Duration (m:s)

Ramp Function 1:

Start Ramp End

50 V

500 V

0:30 2:00 0:30

3:00

Total Run Time (m:s)

Step & Ramp Functions

∆V/∆t

5V/s

Press the DISPLAY key to see the following screen.



DISPLAY

Alarm Settings 500 V 1000 V 2500 V 5000 V 10000 V 15000 V Adjustable Voltage 1 Adjustable Voltage 2 Adjustable Voltage 3

< 500 kΩ < 1.0 MΩ < 2.5 MΩ < 5.0 MΩ < 10 MΩ < 15 MΩ

< 50 kΩ

< 100 kΩ

< 250 kΩ

These are the alarm thresholds below which the audible alarm is triggered. There is one for each ﬁxed or adjustable voltage, and all of them can be modiﬁed. The adjustment of the number is independent of the adjustment of the units.

For a test voltage of 500V, the alarm threshold is adjustable from 10kW to 2.0TW. For a test voltage of 1,000V, the alarm threshold is adjustable from 10kW to 4.0TW. For a test voltage of 2,500V, the alarm threshold is adjustable from 10kW to 10TW. For a test voltage of 5,000V, the alarm threshold is adjustable from 10kW to 16TW. For a test voltage of 10,000V, the alarm threshold is adjustable from 10kW to 25TW. For a test voltage of 15,000V, the alarm threshold is adjustable from 10kW to 30TW.

For the adjustable test voltages, the alarm threshold depends on the voltage.

A further press on the DISPLAY key is used to return to the ﬁrst SET-UP screen.

6. MEMORY FUNCTION

6.1. RECORDING OF THE MEASUREMENTS

It is possible to record each insulation measurement once it is over. It is not possible to record the voltage measurements.

These measurements are recorded at addresses identiﬁed by an object number (OBJ) and a test number (TEST).

An object can contain 99 tests. An object can therefore represent a machine or an installation on which a certain number of measurements will be made.

At the end of the measurement, press the MEM key.



MEM



MEM

100%

Obj. Test

01 01

Date Time Fct.

2011-05-26 09:04 500V

MEMORY

The instrument proposes recording the result at the ﬁrst available location in memory. It is possible to modify the numbers proposed using the   and  keys.

Press the MEM key again to confirm the location of the record.

Obj. Test

01 01

Date Time Fct.

2011-05-26 09:04 500V

Store Samples Sample Time (m:s)

Yes

Min.

100%

MEMORY

The instrument then asks you if you want to Store Samples with the measurement.

If you do this, you can then display the curve of the measurement by a single press on the GRAPH key (see §4.5) If this is not useful, set Store Samples to Off. If you set Store Samples to Yes, you can set the Sample Time using the   and  keys.

 The default sampling time is the minimum, meaning that all samples acquired during the measurement are recorded.

 The sampling time can be set to Auto (automatic), in which case the instrument itself determines the samples necessary for

the plotting of the curve while using the least possible space in memory. If the measurement does not vary, it will take only one value, giving a perfectly ﬂat curve.

This value is recommended to optimize memory use.

 The sampling time can also be programmed, between 1 and 25 seconds.

 The longer the measurement, the longer the sampling time can be. For example, on a measurement lasting 10 minutes,

the sampling time can be 10 seconds, giving 60 points for the curve, which is sufﬁcient.

 Again, the more stable the measurement, the longer the sampling time can be. And the more unstable the measurement,

the shorter the sampling time must be in order to correctly display variations of the insulation resistance.

The measurement is recorded with all its supporting information: the date, the time, the measurement mode, the duration of the measurement, the measurement conﬁguration, the test voltage, the insulation resistance, the capacitance, the residual current, and possibly the DAR, the PI, the DD, the resistance referred to the reference temperature, etc.

To exit without recording, press the  key. You then return to the last measurement.

For each new record, the instrument proposes the ﬁrst free memory location that follows the last record. It is also possible to record a measurement at a memory location that has already been used.

100%

Obj. Test Date Time Fct.

2011-05-28 2011-05-27 2011-05-27 2011-05-26 2011-05-26

09:04 10:43 10:38 15:04 14:56

2550V

1000V

500V

MEMORY

03 01

02 02 02 01 01 02 01 01

The bargraph indicates the quantity of memory used (in black), the quantity of memory available (in white).

The type of measurement and the availability of samples are indicated.

The number of measurements that can be recorded depends on the number of samples stored for each measurement.

The instrument can store 256 measurements. This number decreases if many samples are stored.

Press the MEM key one last time to record the measurement.



MEM

The instrument conﬁrms the storage.

U-STEP

U-RAMP

U-VAR.

U-FIX

OFF

SET-UP

Set the switch to MR.

Obj. Test Date Time Fct.

09:04 10:43 10:38 15:04 14:56

03 01 02 02 02 01 01 02 01 01

2011-05-28 2011-05-27 2011-05-27 2011-05-26 2011-05-26

2550V

1000V

500V

Press the DISPLAY key to see the rest of the recorded information (depends on the currently function).

Obj. Test Date Time Fct.

2011-05-27

10:43

02 02

Resistance Voltage Current Elapsed time

Sample time (m:s)

5.05 GΩ 965 V

190.6 nA 00:01:40

Min



DISPLAY



DISPLAY

Obj. Test Date Time Fct.

2011-05-27 10:43

02 02

∆R ∆V ∆R/(R+∆V) (ppm/V)

Capacitance

--- TΩ

--- V

---

<1nF

Obj. Test Date Time Fct.

2011-05-27

10:43

02 02

Step Voltage Duration (m:s)

Step Function

1 2 3 4 5

100 V 200 V 300 V 400 V 500 V

0:30 0:30 0:30 0:30 0:30

67 01 .. 08

Object Tests

 : select Object  : show list at Object

CONFIG : clear all data record

Object

The instrument shows an overview of the object number usage and the object number of the last used record, along with the lowest and highest test numbers it contains.

The instrument then displays the list of records around the object chosen.

To see details of a measurement, place the cursor on the object and the test chosen using the  keys, then press the  key.



6.2. READING RECORDED VALUES

Choose the object number using the  keys, then press the  key.



DISPLAY

Step Voltage Duration (m:s)

Step Function

6 7 8 9

600 V 700 V 800 V 900 V

1000 V

0:30 0:30 0:30 0:30 0:30

Obj. Test Date Time Fct.

2011-05-27

10:43

02 02



GRAPH

GΩ

MEMORY

500 V 500 V

5.02 GΩ

00:04:59 00:04:59

10.0

7.5

5.0

2.5

1000

750

500

250

2:00 4:00 6:00

When the symbol indicates that the samples have been recorded, you can press the GRAPH key to view the curve.

Press the TEMP key to exit from the temperature menu.



TEMP

Press the GRAPH key to exit from the curve. In the case of a U-FIXED or U-VAR measurement, you can press the TEMP key to view the information concerning the temperature.

The instrument can display only the information recorded with the measurement.

Obj. Test Date Time Fct.

2011-05-27 10:43 2500V

05 02

Air Temperature Humidity Probe Temperature Rc Reference Temperature ∆T for R/2

23 °C

40% 23 °C 40 °C 10 °C

R measured Rc at 40 °C

5.00 GΩ

1.529 GΩ



TEMP

Press  key to return to the list of recorded measurement.

Select OK to conﬁrm or CANCEL to cancel. The instrument then returns to the memory read entry screen.

Obj. Test Date Time Fct.

09:04 10:43 10:38 15:04 14:56

03 01 02 02 02 01 01 02 01 01

2011-05-28 2011-05-27 2011-05-27 2011-05-26 2011-05-26

2550V

1000V

500V



CONFIG

Use the keys to select the record to be erased in the list of records in memory.

Press the CONFIG key. The instrument requests conﬁrmation of the deletion.

MEMORY

! WARNING !

O.K. CANCEL

Selected data set

will be cleared !

67 01 .. 08

Object Tests

 : select Object  : show list at Object

CONFIG : clear all data record

Object

6.3.1. ERASING ONE RECORD

6.3. ERASING THE MEMORY

Set the switch to MR.

U-STEP

U-RAMP

U-VAR.

U-FIX

OFF

SET-UP

Press the CONFIG key.

The instrument requests conﬁrmation of the deletion. Select OK to conﬁrm or CANCEL to cancel.

67 01 .. 08

Object Tests

 : select Object  : show list at Object

CONFIG : clear all data record

Object



CONFIG

MEMORY

! WARNING !

O.K. CANCEL

All data sets

will be cleared !

6.3.2. ERASING ALL RECORDS

The instrument in this case completely reformats the memory, which takes a few minutes. During this time, it displays WAIT.

The instrument then returns to the memory read entry screen. But since there is no longer any record, it displays:

No data records!

6.4. LIST OF CODED ERRORS

If an anomaly is detected when the instrument is started up or in operation, the display indicates an error code. The format of this error code is a two-digit number. This number identiﬁes the anomaly and states what to do to put the instrument back into service.

There are three types of error messages:

 Informative error messages:

The message appears for approximately 1 second. Depending on the error the functionality of the device may be reduced. A repair is needed if the error recurs.

Errors 04, 06, 07, 20, 21, 23, 30, 31, 32 (see also the second type of error), 40, 41, 42 Error 06 is preceded by an automatic reset. Errors 04 and 07 are followed by error 06. Error 20 indicates that a memory operation has failed. Error 21 indicates that the settings have been automatically reset to default settings. Error 23 indicates that the battery management is not available and no battery charging is possible. Error 30 indicates that a resistance measurement has been stopped unexpectedly; check if there are any disturbances. Errors 31, 32 (see also the second type of error) and 40 indicate that no measurement is possible.

 Recoverable error messages:

The message disappears if the rotary switch position is changed. Depending on the error the functionality of the device may be reduced. A repair is needed if the error recurs.

Errors 22, 32 (see also the ﬁrst type of error) Error 32 (see also the ﬁrst type of error)) indicates that no measurement is possible.

 Fatal error messages:

No operation is possible. Power off the device and power it back on. A repair is needed if the error recurs.

Errors 01, 08, 09

In addition to error messages there are other indications for errors:

 If the device shows a cross on the screen when powered on and after a few seconds additionally a horizontal bar on the top

of the screen, this indicates that language data is needed. Use the PC program from our web site (see §9.2) to upload language data.

 If instead of information on the help screen just the headline “HELP” and below the number 98 or 99 is shown, this indicates

that language data for help is needed. Use the PC program from our web site (see §9.2) to upload language data.

7. DATA TRANSFER SOFTWARE

DataView®, the data transfer software supplied with the instrument, can be used to export the measurements and to present them in the form of a report.

Start by installing the software using the CD supplied with the instrument.

Set the switch to any position other than OFF. The data rate must be 38,400 bauds for the instrument (see §5.2) and for the PC.

Then connect the instrument to the PC using the optical-USB cord supplied with the instrument, after removing the cover that protects the port in the instrument.

When in communication with a PC, the instrument displays REMOTE and no longer reacts to the user’s commands. The keys and the rotary switch are inactive, except for stopping the instrument (OFF setting). To use the data transfer software, refer to the on-line help.

REMOTE

ADJUSTABLE VOLTAGE 1

50 V

Input voltage Frequency Input current Date 2011.05.24

0.1 V AC

0.2 Hz 11 pA

Time 15:31

U-STEP

U-RAMP

U-VAR.

U-FIXED

OFF

SET-UP

Once the data transfer is over, you can disconnect the instrument, then disconnect the cord. The instrument then resumes its normal operation.

8. SPECIFICATIONS

8.1. REFERENCE CONDITIONS

Inﬂuence quantities Reference values

Temperature 23 ± 3°C

Relative humidity 45 to 55% RH

Supply voltage 9 to 12V

Frequency range DC and 15.3 … 65Hz

Capacitance in parallel on resistance 0µF

Electric ﬁeld null

Magnetic ﬁeld <40A/m

The intrinsic uncertainty is the error speciﬁed for the reference conditions.

The operating uncertainty includes the intrinsic uncertainty plus variations of the quantities of inﬂuence (supply voltage,

temperature, interference, etc.) as deﬁned in standard IEC-61557.

8.2. CHARACTERISTICS PER FUNCTION

8.2.1. VOLTAGE

 Characteristics

Measurement range 1.0 … 99.9V 100 … 999V 1000 … 2500V 2501 … 4000V

Resolution 0.1V 1V 2V 2V

Intrinsic uncertainty ±(1% +5 pt) ±(1% +1 pt)

Frequency range DC or 15 … 500 Hz DC

 Input impedance: 3MW

8.2.2. CURRENT

Speciﬁed measurement range (DC)

0.000 … 0.399 nA 0.400 … 3.999 nA 4.00 … 39.99 nA 40.0 … 399.9 nA 400 nA … 3.999 µA

Resolution 1 pA 1 pA 10 pA 100 pA 1 nA

Intrinsic uncertainty

±(15% + 10 pt) ±10% ±5%

Speciﬁed measurement range (DC)

4.00 … 39.99 µA 40.0 … 399.9 µA

400 µA … 3.999 mA

4.00 …9.999 mA

Resolution 10 nA 100 nA 1 µA 10 µA

Intrinsic uncertainty

±5%

8.2.3. INSULATION RESISTANCE

 Method: Voltage-current measurement per IEC-61557-2 from 300 to 10,000V and per DIN VDE 0413 Part 1/09.80).

 Nominal output voltage: 500, 1000, 2,500, 5000, 10000, and 15000Vdc for the C.A. 6555

or adjustable from 40 to 10,000Vdc and 15,000Vdc for the C.A. 6555 Intrinsic uncertainty ±1% adjustable from 40 to 1,000V

in 10-V steps

adjustable from 1000 to 15,000Vdc in 100-V steps

 Maximum current: ≤1mAdc from 40 to 999V

5 to 0.2mAdc from 1000 to 15000V. The user can adjust this current.

 Maximum acceptable peak AC voltage on the terminals during measurement: 0,4 UN or 1000 Vac maximum.

 Short-circuit current: ≤5mA

±5%. This current can be limited in SET-UP (parameter: Maximum output current), to between

0.2 and 5mA. It can also be limited by the maximum output power, which is 10W.

 Maximum output current as a function of the test voltage

UN (V) 50 100 200 300 1100 1200 1300 5000 10000 15000

I (mA) 0.22 0.46 0.93 1.07 1.07 5 5 2 1 0.5 P (W) ≤ 1 10

If the current is limited in SET-UP, the values mentioned above that exceed the limit will be lowered.

 Fixed test voltage

Test voltage (V) 500 - 1000 - 2500 - 5000 - 10000 – 15000

Speciﬁed measurement range

10 … 999 kW

1.000 … 3.999 MW

4.00 … 39.99 MW 40.0 … 399.9 MW 400 … 3.999 GW 4.00 … 39.99 GW

Resolution 1 kW 10 kW 100 kW 1 MW 10 MW

Intrinsic uncertainty ±(5% + 3 pt)

Operating error ±(10% + 6 pt)

Test voltage (V)

500 - 1000 - 2500 - 5000

10000 – 15000

≥1000 ≥2500 ≥5000

Speciﬁed measurement range

40.0 … 399.9 GW

400 … 999 GW

1.000 … 1.999 TW

2.000 … 3.999 TW 4.00 … 10.00 TW 4.00 … 15.00 TW

Resolution 100 MW 1 GW 1 GW 10 GW 10 GW

Intrinsic uncertainty ±(15% + 10 pt) ±(20% + 10 pt)

Operating error ±(20% + 15 pt) ±(30% + 15 pt)

Test voltage (V) ≥10000 15000 (C.A.6555 only)

Speciﬁed measurement range

4.00 … 25.00 TW 4.00 … 29.00 TW

Resolution 10 GW 10 GW

Intrinsic uncertainty ±(20% + 10 pt) ±(20% + 10 pt)

Operating error ±(30% + 15 pt)

 Variable test voltage

Minimum resistance measured = 10kW Maximum resistance measured = to be interpolated from the values in the tables of ﬁxed test voltages above. The intrinsic uncertainty depends on the test voltage and on the resistance measured. It can be interpolated from the tables of ﬁxed test voltages.

 Measurement of the DC voltage during the insulation test

Input impedance: 3MW up to 1,600V and 300MW thereafter.

Specified measurement range (V)

40.0 … 99.9 100 … 1500 1600 … 5100 5100 … 16000

Resolution 0.1V 1V 1-2V 2-4V

Intrinsic uncertainty ±1%

 Measurement of the DC voltage during the discharging stage of the insulation test

Specified measurement range (Vdc)

25 … 16000V

Resolution 0.2% Un

Intrinsic uncertainty ±(5% ± 3 pt)

 Typical discharge time of a capacitive element to reach 25V

Test voltage

50V 100V 250V 500V 1000V 2500V

Discharge time (C at µF) 0.25 s x C 0.5 s x C 1 s x C 2 s x C 4 s x C 7 s x C

Test voltage

5000V 10000 V 15000V

Discharge time (C at µF) 14 s x C 27 s x C 57 s x C

 Typical curves of evolution of the test voltages on the terminals of the instrument as a function of the resistance.

500V range

100

200

300

400

500

600

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E

+06

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T

1000V range

200

400

600

800

1000

1200

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E+06 1,E+07

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T 10 T

2500V range

500

1000

1500

2000

2500

3000

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E+06 1,E+07

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T 10 T

5000V range

1000

2000

3000

4000

5000

6000

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E+06 1,E+07

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T 10 T

10000V range

2000

4000

6000

8000

10000

12000

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E+06 1,E+07

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T 10 T

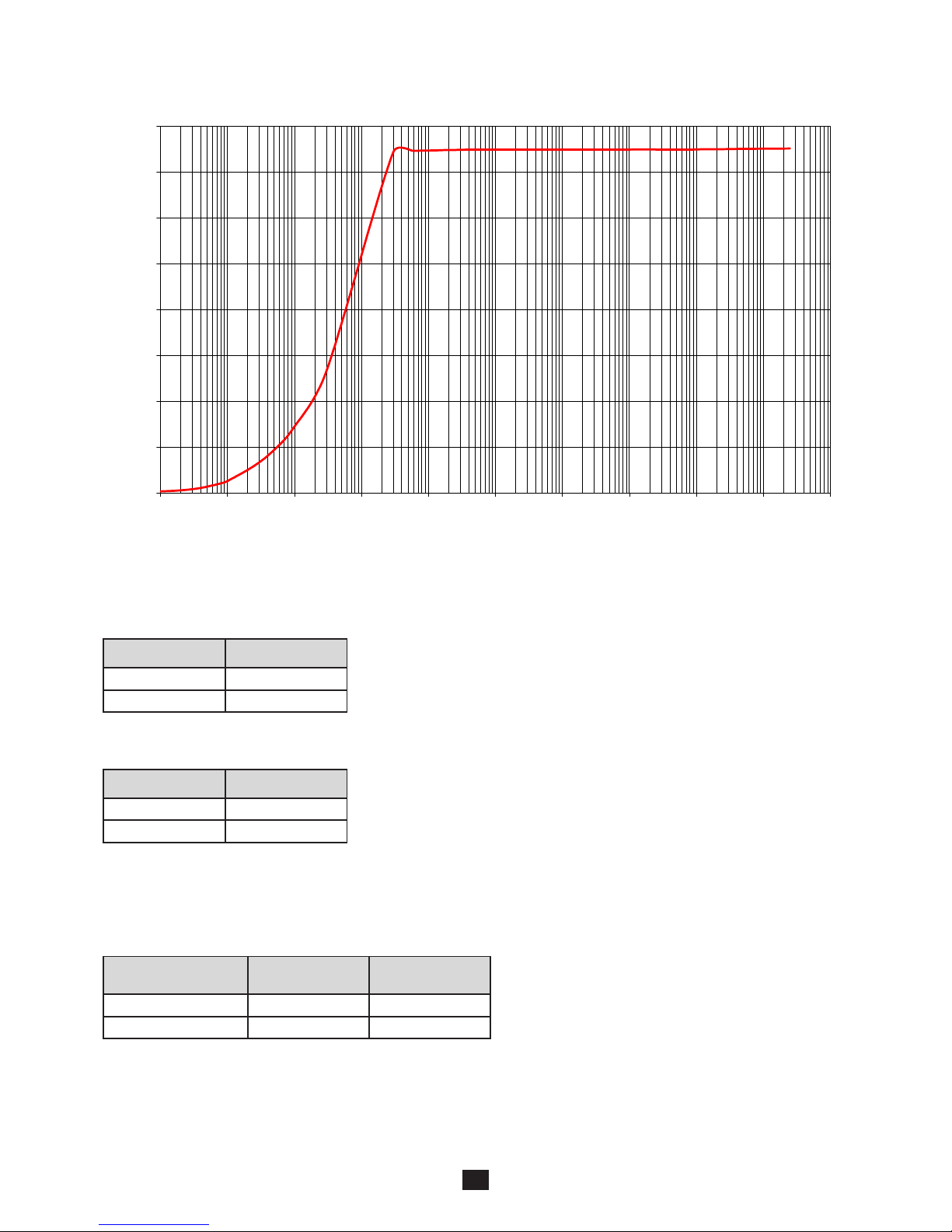

15000V range

2000

4000

6000

8000

10000

12000

14000

16000

1,E-02 1,E-01 1,E+00 1,E+01 1,E+02 1,E+03 1,E+04 1,E+05 1,E+06 1,E+07 1,E+08

10 k 100 k 1 M 10 M 100 M 1 G 10 G 100 G 1 T 10 T 100 T

8.2.4. DAR, PI, AND DD

 Calculation of the DAR and PI terms

Speciﬁed range 0.02 … 50.00

Resolution 0.01

Intrinsic uncertainty ± (5% + 1 pt)

 Calculation of the DD term

Speciﬁed range 0.02 … 50.00

Resolution 0.01

Intrinsic uncertainty ±( 10% + 1 pt)

8.2.5. CAPACITANCE

Capacitance measurement

This measurement is made following the discharging of the element tested, after each measurement

Speciﬁed measurement range

0.005 … 9.999µF 10.00 … 49.99µF

Resolution 1 nF 10 nF

Intrinsic uncertainty * ± (10% + 1 pt) ± 10%

*: this uncertainty is speciﬁed only for a test voltage ≥500V.

8.3. POWER SUPPLY

Power supply to the instrument is from two rechargeable 9.6V, 4Ah NiMH battery packs.

Charging is carried out by connecting the instrument to mains, at a voltage of 90 to 260V and a frequency of 50-60Hz, with an ambient temperature of 0 to 30°C.

8.3.1. NIMH TECHNOLOGY

The NiMH technology has many advantages, such as:

 long life between charges with limited bulk and weight,  the possibility of recharging your battery rapidly,  a very small memory effect: you can recharge your battery even if it is not fully discharged, without reducing its capacity,  protection of the environment through the absence of polluting materials such as lead and cadmium.

The NiMH technology allows a limited number of charging/discharging cycles that depends on the conditions of use and the charging conditions. Under optimum conditions, this number of cycles is 200.

8.3.2. BATTERY CHARGING

The built-in charger manages the charging current, the battery voltage, and the internal temperature of the battery simultaneously. This optimizes the charging, while ensuring a long battery life.

The day before you use your device, check its charge condition. If the battery level indicator shows less than three bars, charge the device overnight (see §1.5).

The charging time varies between 6h and 10h. A half-hour charge restores 10% of the capacity of the battery, enough to make a few measurements.

It is possible to recharge the batteries while making insulation measurements, provided that the voltages used are not too high and the measured resistances are high enough. In this case, the recharging time will exceed 6 hours. If the power necessary for the measurement approaches 10 W, the batteries are no longer charging.

In order to extend the life of your battery:

 Charge your device only between 10 and 30°C.  Observe the conditions of use and storage stated in this data sheet.

A new battery becomes fully effective only after several complete charging/discharging cycles. This will not however prevent you from using your device when it has been charged for the ﬁrst time. However, we recommend making the ﬁrst charge a full charge (at least 10 hours). If the instrument indicates that charging is over, do not hesitate to disconnect the charger for a few seconds, then reconnect it to top up the charge.

The battery in your instrument, like any rechargeable battery, is subject to signiﬁcant residual discharging, even when the instrument is off. If your device has not been used for several weeks, it is probable that the battery will be partially discharged, even if it had been fully recharged just before going into storage. In this case, before using it again, you should fully recharge the battery (at least 10 hours).

The longer your battery is stored, the more it is discharged. After three months’ storage of the battery without periodic recharging, the battery is probably fully discharged.

Possible consequences are:

 Failure of the instrument to switch on, as long as the mains cord is not connected.  A loss of the instrument’s date and time (it reverts to 1 January 2010).

8.3.3. OPTIMIZE BATTERY CHARGING

During charging, the temperature of the battery rises substantially, especially towards the end. A safety device, built into the battery, checks constantly that the battery temperature does not exceed an acceptable maximum. If this maximum is exceeded, the charger switches off automatically, even if charging is not complete.

Above 30°C, it is not possible to charge the battery fully because the charging will cause overheating.

8.3.4. LIFE BETWEEN CHARGES

The mean battery life depends on the measurement and on how the device is used.

Test voltage (V) 500 1 000 2 500 5 000 10 000 15 000 Voltmeter

Battery life (h) 15 12 2 2 2 2 25

How long your device can operate when the battery is fully charged depends on several factors:

 The consumption of the device, which depends on the measurements you make,  The capacity of the battery. It is greatest when the battery is new, and declines as the battery ages.

Here are a few ways to extend battery life between charges,:

 Use the back-lighting only when it is strictly necessary,  Set the brightness of the back-lighting to the lowest level at which you can still read the display unit,  Program an automatic switching off time (see SET-UP, § 5.2),  During insulation measurements made in MANUAL mode, with high test voltages, stop the measurement by pressing the

START/STOP button as soon as the needed measurement time is over.

8.3.5. “DEFECT” MESSAGE

When a battery is deeply discharged or its storage temperature is low, the charger may execute a reactivation stage prior to charging. That means that the charger applies a slow charge until the battery reaches either a minimum temperature threshold or a minimum charge voltage threshold.

If the battery is in good condition, this reactivation stage ends after about 45 mins and the charger switches over to fast charging.

However, if the maximum time allowed for the reactivation stage is exceeded or the internal resistance of a battery at the end of its life is high, the instrument declares the battery defective in the form of a message (Defect) on the screen of the measuring instrument.

The instrument must then be sent in for repair.

8.4. ENVIRONMENTAL CONDITIONS

 Range of use

The relative humidity can signiﬁcantly affect insulation. Take care not to make an insulation resistance measurement if the temperature is below the dew point. 0 to 45°C, 0 to 90%RH

 Speciﬁed domain of use

0 to 35°C, 0 to 75%RH

 Storage (without the batteries)

-40 to 70°C, 10 to 90%RH

 Altitude: <2000 m

 Degree of pollution: 2

8.5. CONSTRUCTION SPECIFICATION

 Overall dimensions of the instrument (LxWxH): 340 x 300 x 200mm  Weight: approximately 6.2kg

8.6. COMPLIANCE WITH INTERNATIONAL STANDARDS

 Electrical safety per: IEC-61010-1, IEC-61557 parts 1 and 2 (up to 10 kV) or VDE 0413.

 Double insulation  Degree of pollution: 2  Voltage measurement category: 1.000V Cat. IV.  Maximum voltage with respect to earth: 1,000Vrms Cat IV.  Maximum voltage between guard terminal G and the - terminal: 30Vrms.

8.6.1. ELECTROMAGNETIC COMPATIBILITY

Emissions and immunity in an industrial environment per IEC-61326-1.

8.6.2. MECHANICAL PROTECTIONS

 IP 65 according to IEC-60529 with the housing closed and IP 54 with the housing open.  IK 04 according to IEC-50102.

8.7. VARIATIONS IN THE DOMAIN OF USE

Inﬂuence quantity

Range of inﬂuence

Quantity inﬂuenced

(1)

Inﬂuence

Typical Maximum

Battery voltage

9 … 12V

< 1 pt < 1 pt

2 pt 3 pt

Temperature -10 … +55°C

MW - GW

U >7.5 kV and R < 10 TW

±0.15%/10°C

±0.2%/10°C ±1.5%/10°C

±(0,3%/10°C + 1 pt)

±(1%/10°C + 2 pt) ±(3%/10°C + 2 pt)

Humidity

10 … 75%RH

with t ≤ 35 °C

MW (10 kW … 40 GW) MW (40 GW … 10 TW)

U > 7.5 kV and 3 TW < R < 10 TW

±0.2% ±0.2% ±0.3%

±(15% + 5 pt)

±(1% + 2 pt)

±(1% + 5 pt) ±(15% + 5 pt) ±(30% + 5 pt)

Frequency 15 … 500 Hz V ±3% ±(0.5% + 1 pt)

AC voltage superimposed on test voltage

0 … 20%Un MW ±0.1%/%Un ±(0.5%/%Un + 5 pt)

(1): The DAR, PI and DD terms and the capacitance and leakage current measurements are included in the quantity “MW”.

8.8. INTRINSIC UNCERTAINTY AND OPERATING UNCERTAINTY

C.A 6550 and C.A 6555 megohmmeters comply with standard IEC-61557, which requires that the operating uncertainty, called B, be less than 30%.

In insulation measurements, B = ± ( |A| + 1,15 √ E1² + E2² + E3² )

with A = intrinsic uncertainty E1 = inﬂuence of the reference position ±90°. E2 = inﬂuence of the supply voltage within the limits indicated by the manufacturer. E3 = inﬂuence of the temperature between 0 and 35°C.

9. MAINTENANCE

The instrument contains no parts that can be replaced by personnel who have not been specially trained and

accredited. Any unauthorized repair or replacement of a part by an “equivalent” may gravely impair safety..

9.1. MAINTENANCE

9.1.1. CLEANING

Disconnect the unit completely and turn the rotary switch to OFF.

Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry cloth or forced air. Do not use alcohol, solvents, or hydrocarbons.

9.1.2. REPLACING THE BATTERIES

The batteries can be replaced only by competent, accredited personnel.

Warning : Back up all your stored data before sending the instrument in for repair.

When the repaired instrument is returned:

 Erase the memory completely (see §6.3.2) to be able to use the MEM/MR functions again.  If necessary, reset the date and time of the instrument (see § 5).  Fully recharge the battery.

9.1.3. REPLACING THE FUSE

If the GUARD FUSE message appears on the display unit, the guard terminal fuse must be replaced.

The fuse can be replaced only by competent, accredited personnel.

9.1.4. STORAGE

If the instrument has not been used over a prolonged period (more than two months) fully charge the battery before use.

9.2. UPDATING OF THE INTERNAL SOFTWARE

With a view to providing, at all times, the best possible service in terms of performance and technical upgrades, Chauvin Arnoux invites you to update the embedded software of the device by downloading the new version, available free of charge on our web site.

Our site:

www.chauvin-arnoux.com

Click on “Support”, then “Access the download area”, then enter the name of the instrument “C.A 6550 and C.A 6555”.

Connect the device to your PC using the USB cord provided.

The update of the embedded software depends on its compatibility with the hardware version of the instrument. This version is indicated in SET-UP (see §5).

Attention: updating the embedded software may reset the conﬁguration and cause the loss of the stored data. As a precaution,

save the stored data to a PC before updating the embedded software.

9.3. LIST OF PARAMETERS

Menu / screen Setting Range Default Reset to default by

Set-up Buzzer Off, 1, 2, 3 1 user

Set-up Power Down Off, On Off user

Set-up Baud Rate 9600, 19200, 38400,

57600

38400 user

Set-up Temperature Unit Celsius, Fahrenheit Celsius user

Set-up, Conﬁg Timed Run (m:s) 0:01 ... 99:59 2:00 user

Set-up, Conﬁg DAR (s/s) 10/15 ... 90/180 30/60 user

Set-up, Conﬁg PI (m/m) 0.5/1.0 ... 30/90 1.0/10 user

Set-up, Conﬁg Test Type Burn-in, Early-Break,

Break at I-limit

Burn-in user

Set-up, Conﬁg Maximum Output

Current (if not EarlyBreak)

0.2mA ... 5mA 5mA user

Set-up, Conﬁg Maximum Output

Current (if Early-Break)

0.2mA 0.2mA

Set-up Maximum Output

Voltage

40V ... 15000V C.A 6550: 10000 V

C.A 6555: 15000 V

user

Set-up Adjustable Voltage 1 40V ... 15000V 50V user

Set-up Adjustable Voltage 2 40V ... 15000V 800V user

Set-up Adjustable Voltage 3 40V ... 15000V 7000V user

Set-up, Conﬁg Step Function 1 -

Voltages

40V ... 15000V 50V, 100V, 150V, 200V,

250V, 300V, 350V, 400V, 450V, 500V

user

Set-up, Conﬁg Step Function 1 -

Durations (m:s)

0:00 ... 99:59 (sum of all 10 steps )

all 0:30 (sum is 5:00) user

Set-up, Conﬁg Step Function 2 -

Voltages

40V ... 15000V 500V, 1000V, 1500V,

2000V, 2500V, 3000V, 3500V, 4000V, 4500V, 5000V

user

Set-up, Conﬁg Step Function 2 -

Durations (m:s)

0:00 ... 99:59 (sum of all 10 steps )

all 0:30 (sum is 5:00) user

Set-up, Conﬁg Step Function 3 -

Voltages

40V ... 15000V 1000V, 2000V, 3000V,

4000V, 5000V, 6000V, 7000V, 8000V, 9000V, 10000V

user

Set-up, Conﬁg Step Function 3 -

Durations (m:s)

0:00 ... 99:59 (sum of all 10 steps )

all 0:30 (sum is 5:00) user

Set-up, Conﬁg Ramp Function 1 -

Voltages

40V ... 15000V 50V, 500V user

Set-up, Conﬁg Ramp Function 1 -

Start Step Duration (m:s)

0:30 ... 99:39 (sum of all 3 steps )

0:30 user

Set-up, Conﬁg Ramp Function 1 -

Ramp Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

2:00 user

Set-up, Conﬁg Ramp Function 1 - End

Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

0:30 user

Set-up, Conﬁg Ramp Function 2 -

Voltages

40V ... 15000V 500V, 5000V user

Set-up, Conﬁg Ramp Function 2 -

Start Step Duration (m:s)

0:30 ... 99:39 (sum of all 3 steps )

0:30 user

Menu / screen Setting Range Default Reset to default by

Set-up, Conﬁg Ramp Function 2 -

Ramp Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

2:00 user

Set-up, Conﬁg Ramp Function 2 - End

Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

0:30 user

Set-up, Conﬁg Ramp Function 3 -

Voltages

40V ... 15000V 1000V, 10000V user

Set-up, Conﬁg Ramp Function 3 -

Start Step Duration (m:s)

0:30 ... 99:39 (sum of all 3 steps )

0:30 user

Set-up, Conﬁg Ramp Function 3 -

Ramp Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

2:00 user

Set-up, Conﬁg Ramp Function 3 - End

Step Duration (m:s)

0:10 ... 99:19 (sum of all 3 steps )

0:30 user

Set-up, Conﬁg Alarm 500V 10 kW à 2 TW 500 kW user Set-up, Conﬁg Alarm 1000V 10 kW à 4 TW 1 MW user Set-up, Conﬁg Alarm 2500V 10 kW à 10 TW 2,5 MW user Set-up, Conﬁg Alarm 5000V 10 kW à 16 TW 5 MW user Set-up, Conﬁg Alarm 10000V 10 kW à 25 TW 10 MW user Set-up, Conﬁg Alarm 15000V 10 kW à 30 TW 15 MW user

Set-up, Conﬁg Alarm Adjustable

Voltage 1

10 kW ... depending on voltage

50 kW user

Set-up, Conﬁg Alarm Adjustable

Voltage 2

10 kW ... depending on voltage

800 kW user

Set-up, Conﬁg Alarm Adjustable

Voltage 3

10 kW ... depending on voltage

7 MW user

Conﬁg Measurement Mode Manual Stop

Manual Stop + DD Timed Run Timed Run + DD DAR PI

Manual Stop user

Conﬁg I-Range Auto, 300nA, 50µA,

7mA

Auto power off

Conﬁg Disturbance Level Low, High Low power off

Temperature Ambient Temperature -15°C ... 75°C or 6°F ...

167°F

23 user

Temperature Humidity 0% ... 100% 40 user

Temperature Probe Temperature -15°C ... 75°C or 6°F ...

167°F

23 user

Temperature Rc Reference

Temperature

-15°C ... 75°C or 6°F ... 167°F

40 user

Temperature ∆T for R/2 -15°C ... 75°C or 6°F ...

167°F

10 user

Contrast & Backlight Display Contrast 0 ... 25 10 user

Contrast & Backlight Backlight 0 ... 5 0 user

Memory Store Samples No, Yes Ye s user

Memory Sample Time (m:s) Auto, Min., 0:01 ... 0:25 Min. user

Measurement Filter Auto, Off, 10s, 20s, 40s Auto power off

Measurement Alarm Off, On Off entering function, other

than U-FIX or U-VAR

10. WARRANTY

Except as otherwise stated, our warranty is valid for twelve months starting from the date on which the equipment was sold. Extract from our General Conditions of Sale provided on request.

The warranty does not apply in the following cases:

 Inappropriate use of the equipment or use with incompatible equipment;

 Modiﬁcations made to the equipment without the explicit permission of the manufacturer’s technical staff;

 Work done on the device by a person not approved by the manufacturer;

 Adaptation to a particular application not anticipated in the deﬁnition of the equipment or not indicated in the user’s manual;

 Damage caused by shocks, falls, or ﬂoods.

FRANCE Chauvin Arnoux Group

190, rue Championnet 75876 PARIS Cedex 18 Tél : +33 1 44 85 44 85 Fax : +33 1 46 27 73 89 info@chauvin-arnoux.com www.chauvin-arnoux.com

INTERNATIONAL Chauvin Arnoux Group

Tél : +33 1 44 85 44 38 Fax : +33 1 46 27 95 69

Our international contacts

www.chauvin-arnoux.com/contacts

Chauvin Arnoux C.A 6550, C.A 6555 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
