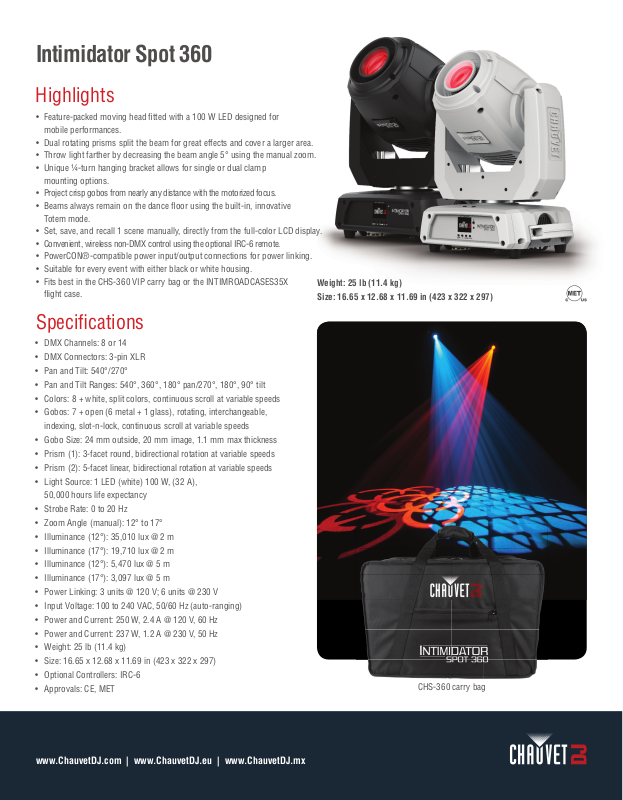

Chauvet DJ INTIMSPOT360 Data Sheet

Intimidator Spot 360

Highlights

• Feature-packed moving head fi tted with a 100 W LED designed for
mobile performances.

• Dual rotating prisms split the beam for great effects and cover a larger area.

• Throw light farther by decreasing the beam angle 5° using the manual zoom.

• Unique ¼-turn hanging bracket allows for single or dual clamp
mounting options.

• Project crisp gobos from nearly any distance with the motorized focus.

• Beams always remain on the dance fl oor using the built-in, innovative
Totem mode.

• Set, save, and recall 1 scene manually, directly from the full-color LCD display.

• Convenient, wireless non-DMX control using the optional IRC-6 remote.

• PowerCON®-compatible power input/output connections for power linking.

• Suitable for every event with either black or white housing.

• Fits best in the CHS-360 VIP carry bag or the INTIMROADCASES35X
fl ight case.

Specifi cations

• DMX Channels: 8 or 14

• DMX Connectors: 3-pin XLR

• Pan and Tilt: 540°/270°

• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

• Colors: 8 + white, split colors, continuous scroll at variable speeds

• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable,

indexing, slot-n-lock, continuous scroll at variable speeds

• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness

• Prism (1): 3-facet round, bidirectional rotation at variable speeds

• Prism (2): 5-facet linear, bidirectional rotation at variable speeds

• Light Source: 1 LED (white) 100 W, (32 A),

50,000 hours life expectancy

• Strobe Rate: 0 to 20 Hz

• Zoom Angle (manual): 12° to 17°

• Illuminance (12°): 35,010 lux @ 2 m

• Illuminance (17°): 19,710 lux @ 2 m

• Illuminance (12°): 5,470 lux @ 5 m

• Illuminance (17°): 3,097 lux @ 5 m

• Power Linking: 3 units @ 120 V; 6 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 250 W, 2.4 A @ 120 V, 60 Hz

• Power and Current: 237 W, 1.2 A @ 230 V, 50 Hz

• Weight: 25 lb (11.4 kg)

• Size: 16.65 x 12.68 x 11.69 in (423 x 322 x 297)

• Optional Controllers: IRC-6

• Approvals: CE, MET

Weight: 25 lb (11.4 kg)
Size: 16.65 x 12.68 x 11.69 in (423 x 322 x 297)

CHS-360 carry bag
