Before You Begin
1. Before You Begin
What Is Included
• Hurricane Bubble Haze LT
• FC-W Wireless Remote
• Quick Reference Guide
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate a claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
Symbols
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to the
product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
1
Hurricane Bubble Haze LT User Manual Rev. 1
Before You Begin
Safety Notes
These Safety Notes include important information about installation, use, and maintenance of the
Hurricane Bubble Haze LT.
■ ALWAYS:
♦ Connect to a grounded circuit.
♦ Connect to operating voltages as specified on the product's spec sticker.
♦ Disconnect from its power source during periods of inactivity.
♦ Heed all restrictions and warnings on the spec sticker.
♦ Mount in a location with at least 20 in (50 cm) of ventilation.
♦ Use Chauvet fluids.
♦ Drain the tank before transporting or storing the product.
♦ Keep the machine level.
♦ Clean the machine after every use.
♦ Clean around the product during and after use, as surfaces may become slippery.
■ In the event of a serious operating problem, stop using immediately.
■ All fog/haze machines may set off smoke detectors.
■ DO NOT:
♦ Open this product or attempt any repairs. It contains no user-serviceable parts.
♦ Use if the power cord is crimped or damaged.
♦ Disconnect by pulling on the power cord.
♦ Allow flammable materials close to the product when it is operating.
♦ Touch the housing when it is on.
♦ Block any ventilation holes/slots in the housing.
♦ Connect to a dimmer or rheostat.
♦ Carry the product by its power cord.
♦ Operate in temperatures higher than 104°F (40°C).
♦ Expose to environments that exceed the Ingress Protection (IP) rating.
♦ Expose to rain or moisture.
♦ Use outdoors.
♦ Submerge.
♦ Set this product on a flammable surface.
♦ Touch the output nozzle. It may be hot for several hours after use.
♦ Drink the fluid.
♦ Add perfume, alcohol, gasoline or any other chemical to the fluid.
♦ Use for space-heating purposes.
♦ Obstruct the bubble wands or leave machine unattended.
♦ Overfill.
Keep this User Manual for future use. If the product is sold to someone else, be sure that
they also receive this document.
Hurricane Bubble Haze LT User Manual Rev. 1
2
Before You Begin
FCC Statement of Compliance
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
3
Hurricane Bubble Haze LT User Manual Rev. 1
Introduction
LED
indicator
Carry
handle
Haze fluid
reservoir
Nozzle
Control
knob
Blower
fan
Feet for surface
mounting (x4)
Fixed
power cable
Bubble fluid
reservoir
13.5 in
345 mm
11 i n
280 mm
9.4 in
240 mm
2. Introduction
Product Overview
Product Dimensions
Hurricane Bubble Haze LT User Manual Rev. 1
4
Setup
3. Setup
AC Power
The Hurricane Bubble Haze LT has a fixed voltage power supply, and it can work with an input voltage
range of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Hurricane Bubble Haze LT must be mounted on a stable, level surface. Do NOT tilt this product.
Placement
• Before deciding on a location for the product, always make sure there is easy access to the product
for maintenance and programming.
• Make sure that the structure can support the weight before mounting the product (see the Te ch n ic a l
Specifications).
• When mounting the product on the floor, make sure that the product and cables are away from
people and vehicles.
Do NOT tilt this product. Always mount the Hurricane Bubble Haze LT on a level surface.
5
Hurricane Bubble Haze LT User Manual Rev. 1
Operation
4. Operation
Control Panel Operation
To access the control panel functions, turn the control knob to one of 5 positions. Please refer to the
Product Overview
Knob Position Name Function
0OffStop output
1 Bubbles Bubbles only mode
2HazeHaze only mode
3 Bubbles & Haze Bubble haze mode
4 Wireless Remote Control with the included FC-W wireless remote
Standalone Configuration
To operate the Hurricane Bubble Haze LT with the control knob, turn the knob to one of the following
positions:
• Off: turns both bubble and haze output off.
• Bubbles: turns bubble output on without haze output.
• Haze: turns haze output on without bubble output.
• Bubbles & Haze: turns both bubble and haze output on.
FC-W Wireless Remote Configuration
To operate the Hurricane Bubble Haze LT with this included FC-W wireless remote:
1. Turn the control knob to the Wireless Remote position.
2. On the FC-W wireless remote, press:
• <1> to turn on bubble output without haze output.
• <2> to turn on haze output without bubble output.
• <3> to turn on both bubble and haze output.
• <4> to turn off both bubble and haze output.
to see the knob location on the control panel.
LED Indicator
The LED indicator next to the control knob will turn red while the product is heating up, and blue when the
product is ready to output haze.
Hurricane Bubble Haze LT User Manual Rev. 1
6
5. Maintenance
To clean the bubble mechanism:
1. Unscrew the cap from the bubble fluid reservoir.
2. Place the in hose in a container of clean water.
3. Place the out hose where it can safely drain.
4. Run the product in Bubbles mode for 2 minutes.
5. Thoroughly rinse the bubble fluid reservoir.
6. Restore the hoses and cap to the bubble fluid reservoir.
7. It is now safe to store the Hurricane Bubble Haze LT.

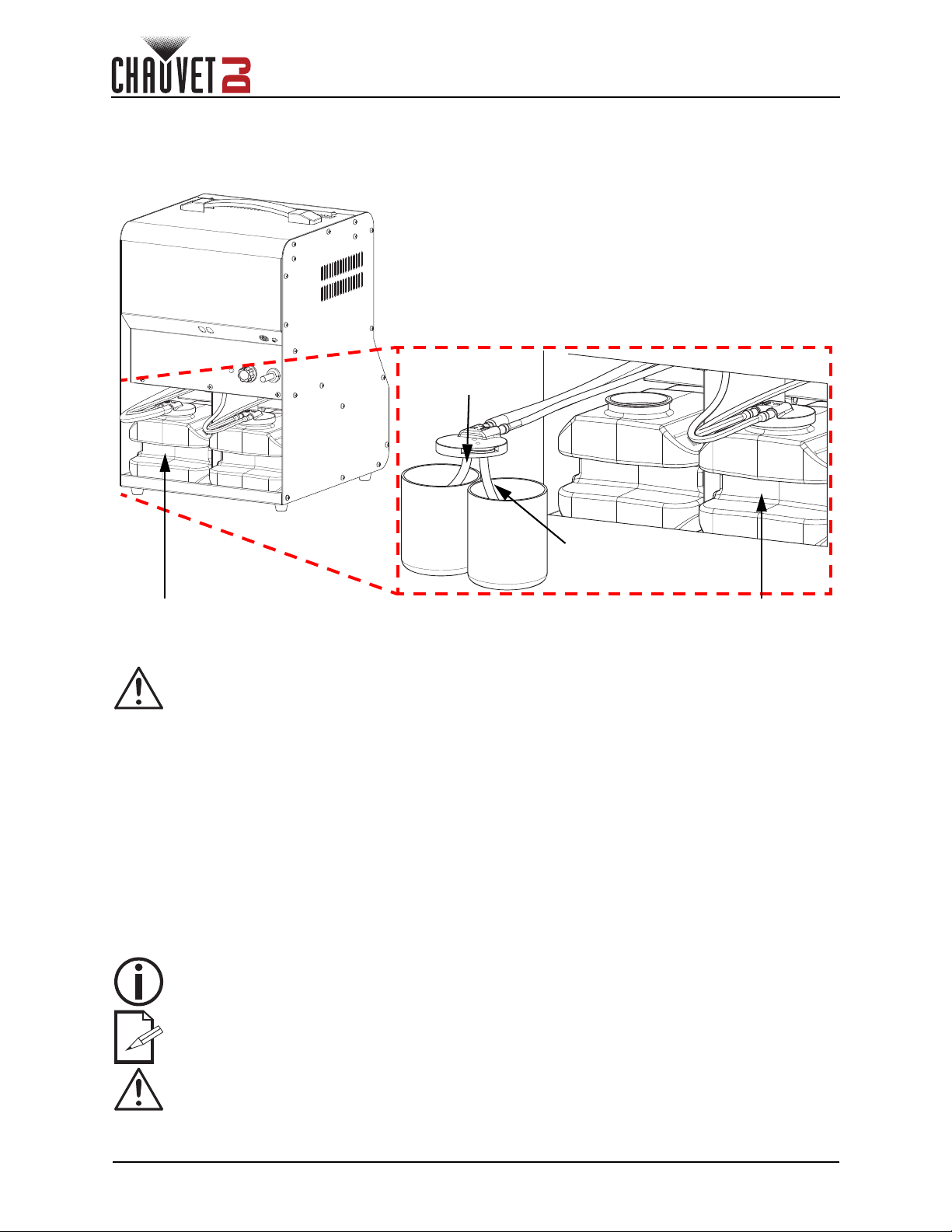

In hose
(place in clean water)
Out hose
(drains used fluid)
Haze fluid reservoir
(clean with Fog Machine Cleaner Fluid)
Bubble fluid reservoir
(rinse with clean water)
Clean
water
Drainage
Bubble Machine Maintenance
Maintenance
Perform bubble machine maintenance after every use.
Haze Machine Maintenance
Do not allow the haze machine to become clogged. After every 40 hours of continuous operation, use
Chauvet Fog Cleaner Quart (FCQ) through the system to prevent the accumulation of particulate matter in
the heating element.
The recommended cleaning procedure is as follows.
1. Unplug the product from power.
2. Empty all haze fluid from the machine.
3. Add cleaning solution to the haze fluid reservoir.
4. Connect the product to power and allow it to warm up.
5. Run the unit in a well-ventilated area until the reservoir is almost empty. Do not allow the pump to
run dry.
6. Refill with haze fluid to continue using the haze machine. Run the machine briefly to clear any
remaining cleaning solution from the pump and heater.
Do NOT operate the machine without fluid at any time.
Fog Cleaner Quart (FCQ) was specifically developed by Chauvet to clean the
Hurricane Bubble Haze LT. Use FCQ regularly, no longer than 90 days between cleanings,
to increase the life of the product.
Do not spin the blower fan using compressed air because it could damage the product.
7
Hurricane Bubble Haze LT User Manual Rev. 1
Maintenance
Storage
Before storing the haze machine, run FCQ through the system as described in the cleaning procedure
above; however, only follow steps 1 through 5. Do not refill the tank with haze fluid if storing the
Hurricane Bubble Haze LT. Cleaning the system prior to storage will help prevent any particles from
condensing inside the pump or heater while not in use.
Before storing the product, follow the instructions under Bubble Machine Maintenance
Test-run the Hurricane Bubble Haze LT on a monthly basis to achieve the best
performance.
.
Powering Off the Product for Transport
After following the instructions under Bubble Machine Maintenance, follow these instructions to prevent
leaks. This will allow the pump to entirely clear the haze fluid line and heater of haze fluid before
unplugging the product.
To prevent spills or leaks before, during, or after transport, Chauvet recommends the
following steps for the Hurricane Bubble Haze LT:
1. Set the control knob to the Off position.
2. Wait 30–45 seconds.
3. When there is no more haze fluid in the output line, unplug the product from power.
Hurricane Bubble Haze LT User Manual Rev. 1
8
Technical Specifications
6. Technical Specifications
Dimensions and Weight
Length Width Height Weight
9.4 in (240 mm) 11 in (280mm) 13.5 in (345 mm) 17 lb (7.7 kg)
Note: Dimensions in inches are rounded.
Power
Power Supply Type Range Voltage Selection
Model-specific
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 554 W 554 W
Operating Current 4.6 A 2.3 A
Power I/O U.S./Worldwide UK/Europe
Power input connector Fixed Fixed
Power cable plug Edison (U.S.) Local Plug
Operation
Heat-Up Time Tank Capacity
2 min 0.21 gal (0.8 l) each 6 ml/min 22 ml/min 4,500 cfm
Thermal
Maximum External Temperature Cooling System
104 °F (40 °C) Convection
Ordering
Product Name Item Code UPC Number
Hurricane Bubble Haze LT (120V) 05072190 781462225384
Hurricane Bubble Haze LT (230V) 05072200 781462225483
120 VAC, 60 Hz
or 230 VAC, 50 Hz
Haze Fluid
Consumption
Bubble Fluid
Consumption
Fixed
Haze Output
9
Hurricane Bubble Haze LT User Manual Rev. 1
Contact Us
Contact Us
Chauvet World Headquarters
Chauvet U.K.
Chauvet Benelux
Chauvet France
Chauvet Germany
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B Email: servicio@chauvet.com.mx
Lerma, Edo. de México, CP 52000
General Information Technical Support
Address: 3360 Davie Rd. Voice: (844) 393-7575
Davie, FL 33314 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetdj.com
Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu
Little Oak Drive, Sherwood Park
Nottinghamshire, NG15 0EB Website: www.chauvetdj.eu
UK
Voice: + 44 (0) 17 7 3 511115
Fax : + 44 (0) 1 7 7 3 511110
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: +32 9 388 93 97
Address: 3, Rue Ampère Email: FRtech@chauvetlighting.fr
91380 Chilly-Mazarin
France Website: www.chauvetdj.eu
Voice: +33 1 78 85 33 59
Address: Bruno-Bürgel-Str. 11 Email: DEtech@chauvetlighting.de
28759 Bremen
Germany Website: www.chauvetdj.eu
Voice: +49 421 62 60 20
(Entrance by Calle 2)
Zona Industrial Lerma Website: www.chauvetdj.mx
Voice: +52 (728) 690-2010
Warranty & Returns
For warranty terms and conditions and return information, please visit our website.
For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg,
France, and Germany: www.chauvetlighting.eu/warranty-registration
.
Hurricane Bubble Haze LT User Manual Rev. 1
.
10
Loading...
