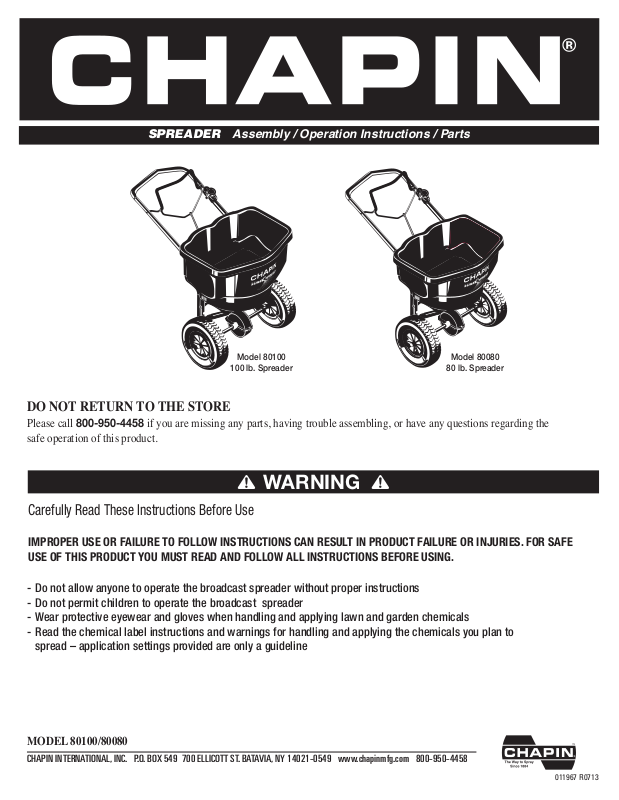

SPREADER Assembly / Operation Instructions / Parts
Model 80100 |
Model 80080 |
100 lb. Spreader |
80 lb. Spreader |
DO NOT RETURN TO THE STORE
Please call 800-950-4458 if you are missing any parts, having trouble assembling, or have any questions regarding the safe operation of this product.
WARNING
Carefully Read These Instructions Before Use
IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.
-Do not allow anyone to operate the broadcast spreader without proper instructions
-Do not permit children to operate the broadcast spreader
-Wear protective eyewear and gloves when handling and applying lawn and garden chemicals
-Read the chemical label instructions and warnings for handling and applying the chemicals you plan to spread – application settings provided are only a guideline
MODEL 80100/80080
CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
011967 R0713
ASSEMBLY INSTRUCTIONS
Approximate assembly time is 5-10 minutes
Suggested Tools:
Wrench and/or Ratchet Set
• Remove bottom bolt from each side of |
Bolts |
|
|
|
|
|
|
||
|
|
|
|
|
handle (below triangle shaped thumb |
Handle |
|
|
|
|
|
|||
screws) |
|
|
|
|
• Loosen thumb screws and flip up handle |
|
|
|
|
• Replace bolts below thumb screws |
|
|
|
|
and tighten down |
|
|
|
|
• Tighten thumb screws completely |
|
|
|
|
*Note: If spring detaches from bail assembly, simply re-attach (see Figure A).
Thumb
Screws
Figure A
GENERAL OPERATING INSTRUCTIONS
•Be sure gate control is in the closed position (do not hold bail down when filling)
•Determine appropriate setting for material being used by reading the suggested setting on the material’s bag AND/OR by referencing the application chart on your spreader’s control panel (Charts provided are only guidelines. Be sure to read the instructions on the bag/box of the material you’re spreading to identify accurate setting needed)
•Set the dial to the desired setting Important Note: Do not adjust dial while holding bail down and gate is open. This will alter the accuracy of gate settings and cause parts to break.
•To begin spreading, start walking (about 3 mph pace) and pull the bail system down to open gate
•To stop spreading simply let go of the bail and the gate will close
EDGE CONTROL OPERATING INSTRUCTIONS
•Edge control functions to cut off the spreading of materials on the left side only – use this feature when spreading along flower beds, sidewalks, driveways, and any area where you want to keep unwanted materials from landing
•To use edge control, move red lever (located on handle) to the “ON” position – this can be done while walking or standing still
•To stop the blockage of material simply move lever to the “OFF” position
STORAGE AND MAINTENANCE
•When finished spreading empty hopper of any remaining material
•Thoroughly wash spreader and allow to dry before storing
•To fold down handle:
-Simply remove the bottom two bolts on the handle
-Loosen two thumb screws and fold down handle
-Replace two bottom bolts
-Tighten thumb screws completely
CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
5
4
10
7
6
9
8
1
3 |
2 |
Replacement Parts
Ref.# |
Qty |
Part No. |
Description |
|
|
|
|
1 |
1 |
6-9008 |
Hopper Base Assembly |
2 |
1 |
6-9010 |
Gear Box Assembly |
|
|
|
|
3 |
1 |
6-9009 |
Drive Shaft w/2 bearings |
|
|
|
|
4 |
1 |
6-9018 |
Edge Control Assembly |
5 |
1 |
6-9019 |
Bail Assembly w/2 bearings |
|
|
|
|
6 |
1 |
6-9013 |
Cotter Pin |
7 |
1 |
6-9014 |
Impeller |
|
|
|
|
8 |
1 |
6-9020 |
Wheels w/hardware & instructions |
|
|
|
|
9 |
1 |
6-9021 |
Thumb Nuts |
|
|
|
|
10 |
1 |
6-9022 |
Hardware Bag |
|
|
|
|
CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
APPLICATION CHART
All Season Residential &
Professional General Application
Guidelines
Weed Control |
10-12 |
Fertilizer |
12-16 |
Grass Seed - Overseeding |
16-20 |
Grass Seed - New Lawn |
21-27 |
Salt & Ice-Melt |
28-30 |
All Season Residential & Professional Push Spreader Application Conversion Chart
Scotts |
2 |
2.5 |
3 |
3.25 |
3.5 |
4 |
4.75 |
5 |
5.5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
Chapin |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
Sample Spread Pattern
|
SHUT OFF HERE |
SHUT OFF HERE |
|
|
|
START |
RESTART |
RESTART |
RESTART RESTART
CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
