PDP TELEVISION
SERVICE MANUAL
Chassis NO. PS08
Model No. PT4216
Please read this manual carefully before service.
1
CONTENTS
Part :PS08 Chassis Features and Circuit block diagram..………..............................3 Part :Introduction on main components functions of PT4216 ...……………………7

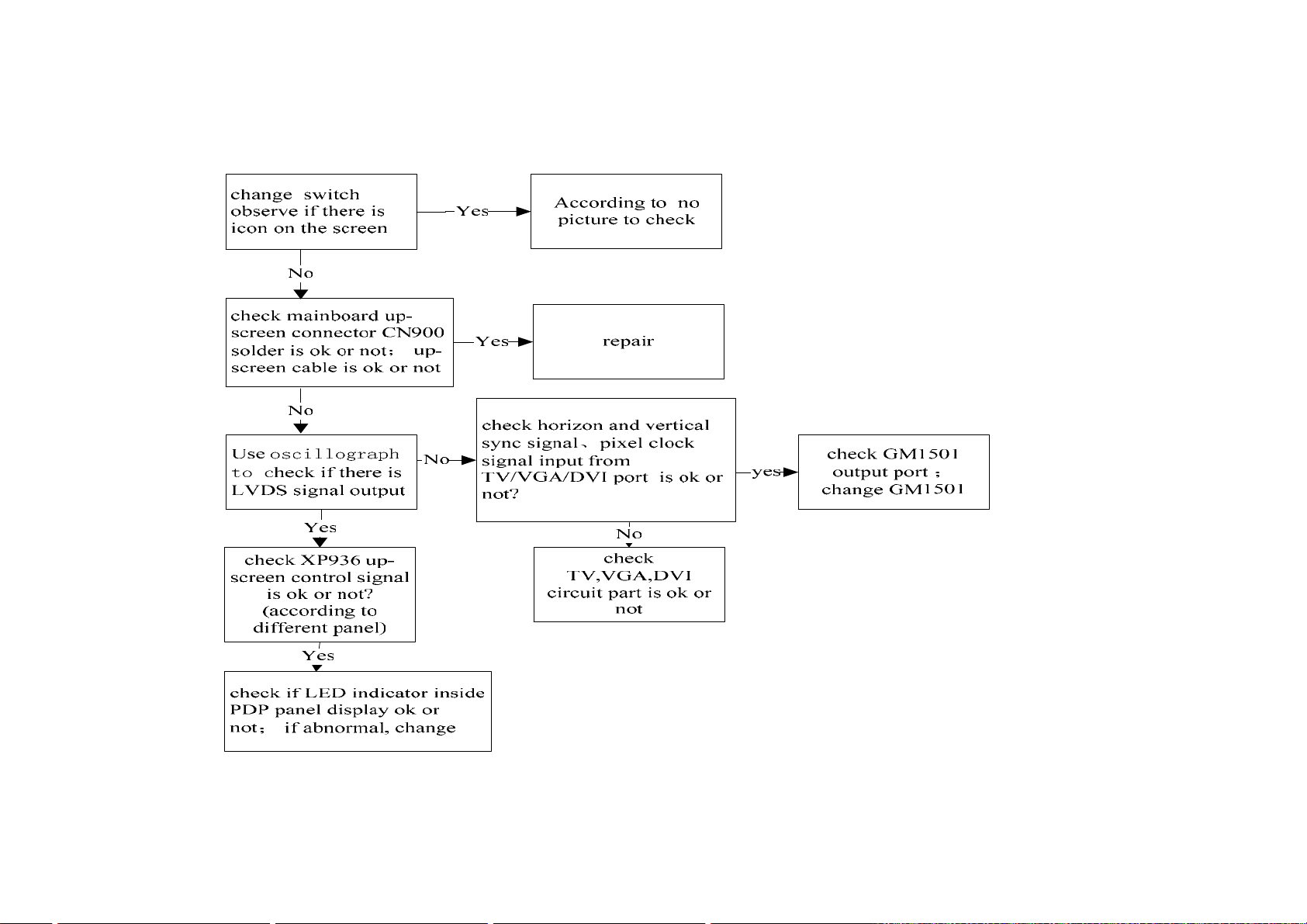

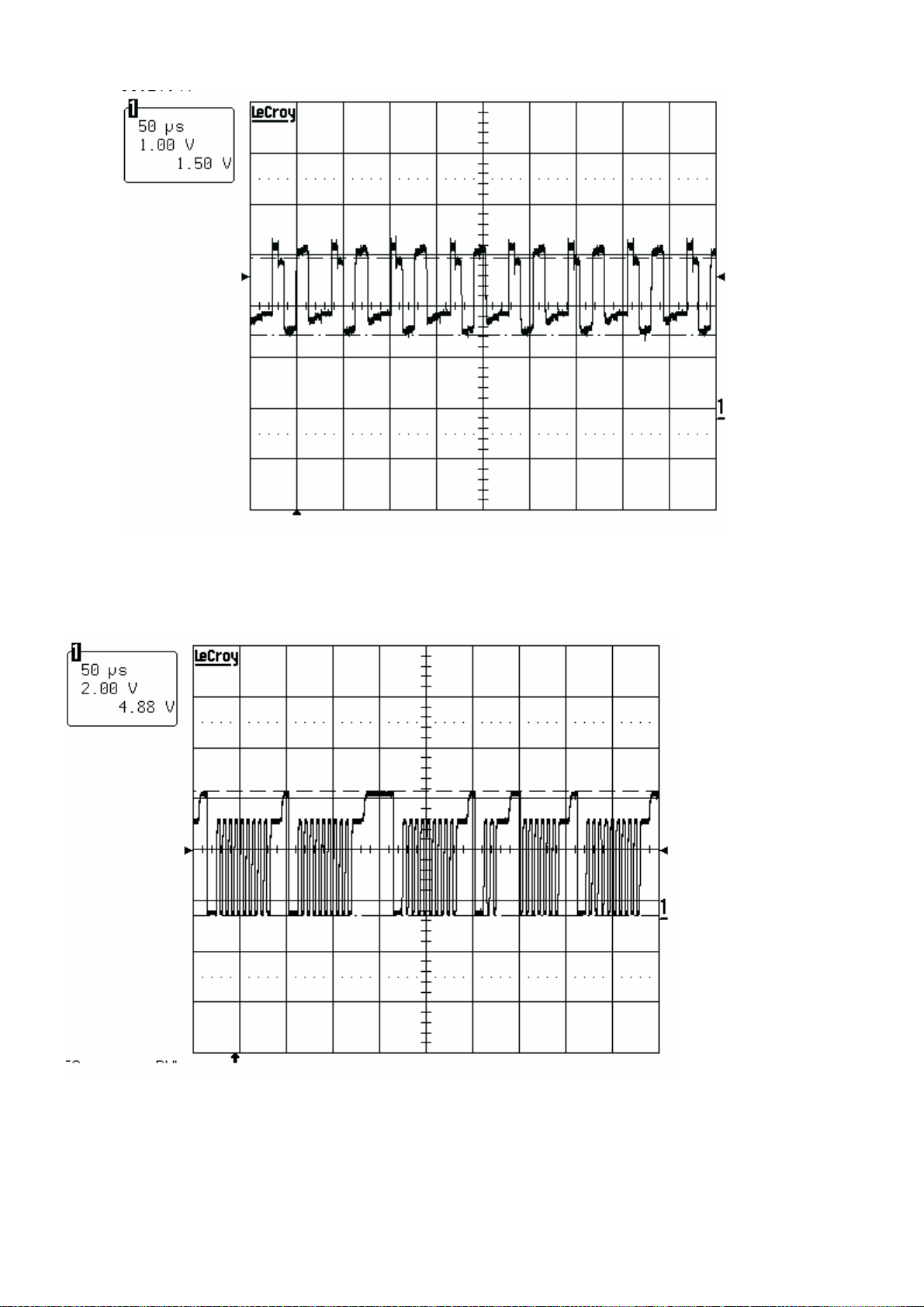

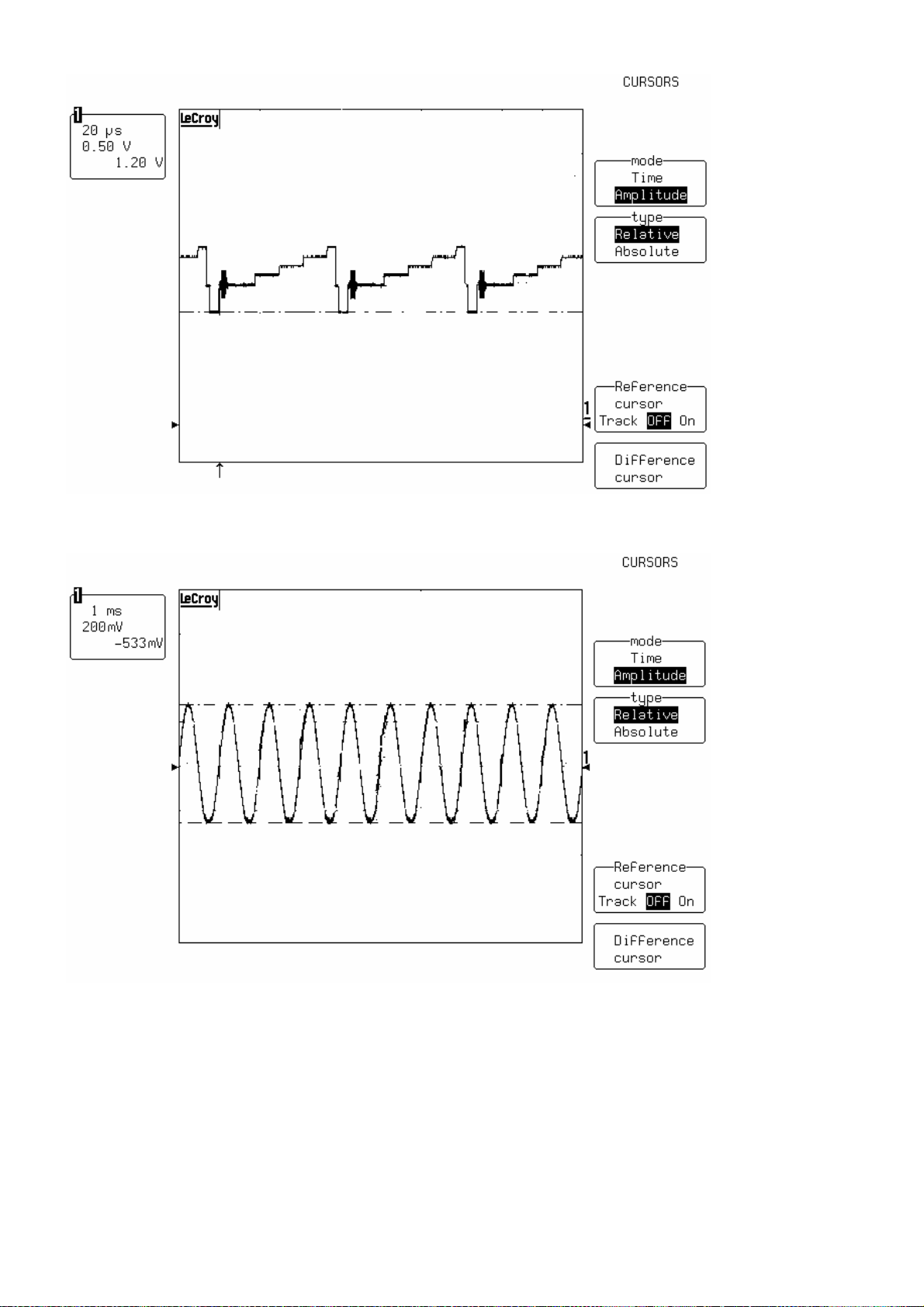

Part :Analysis on Signal Process Flow of PT4216 and key point test data ………..24 Part :Typical troubleshooting process flowchart of PT4216……..............................33 Part : Spare part list…………………………………………………………………...39
Part :Factory mode setup and attention…………………………………………40

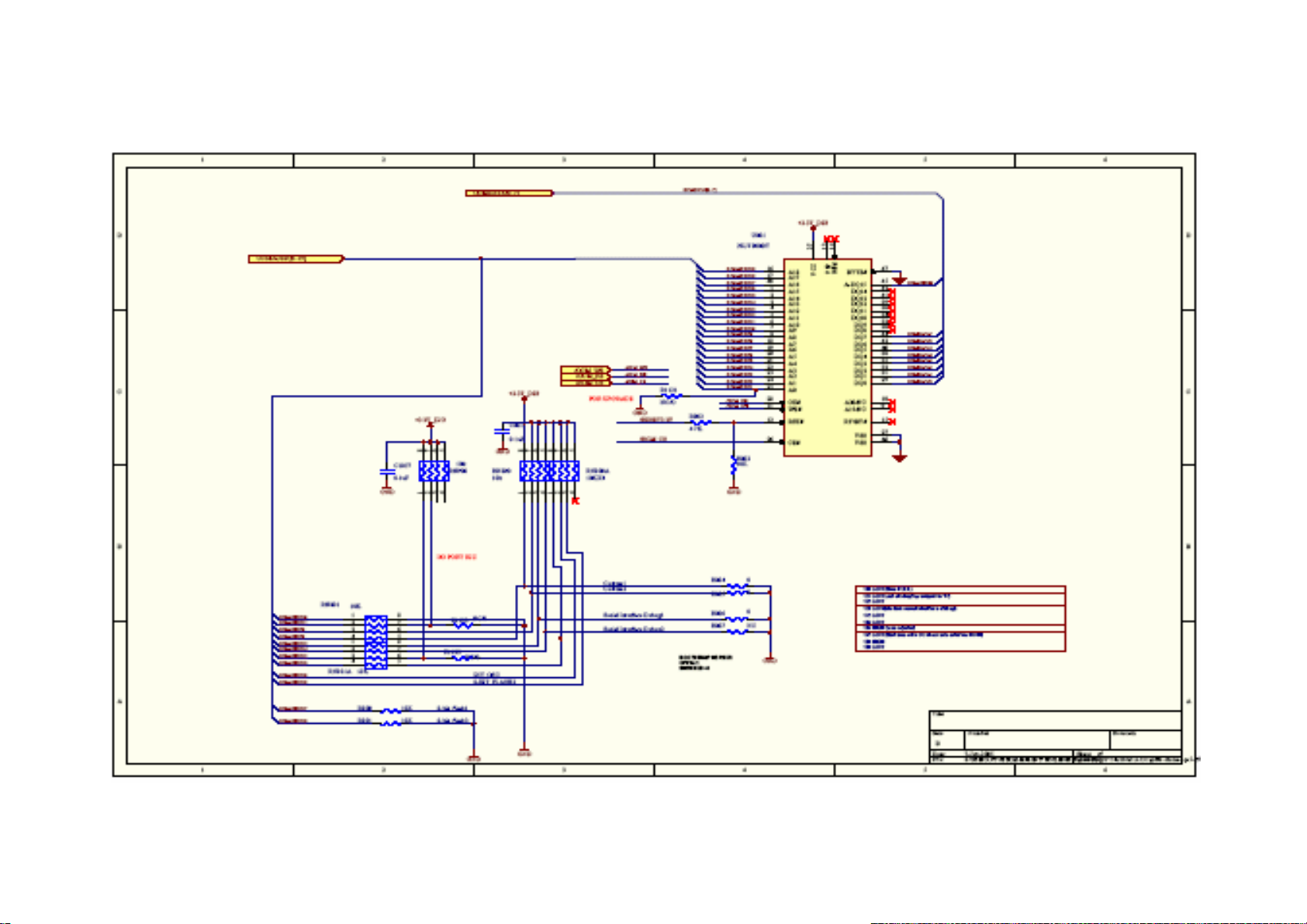

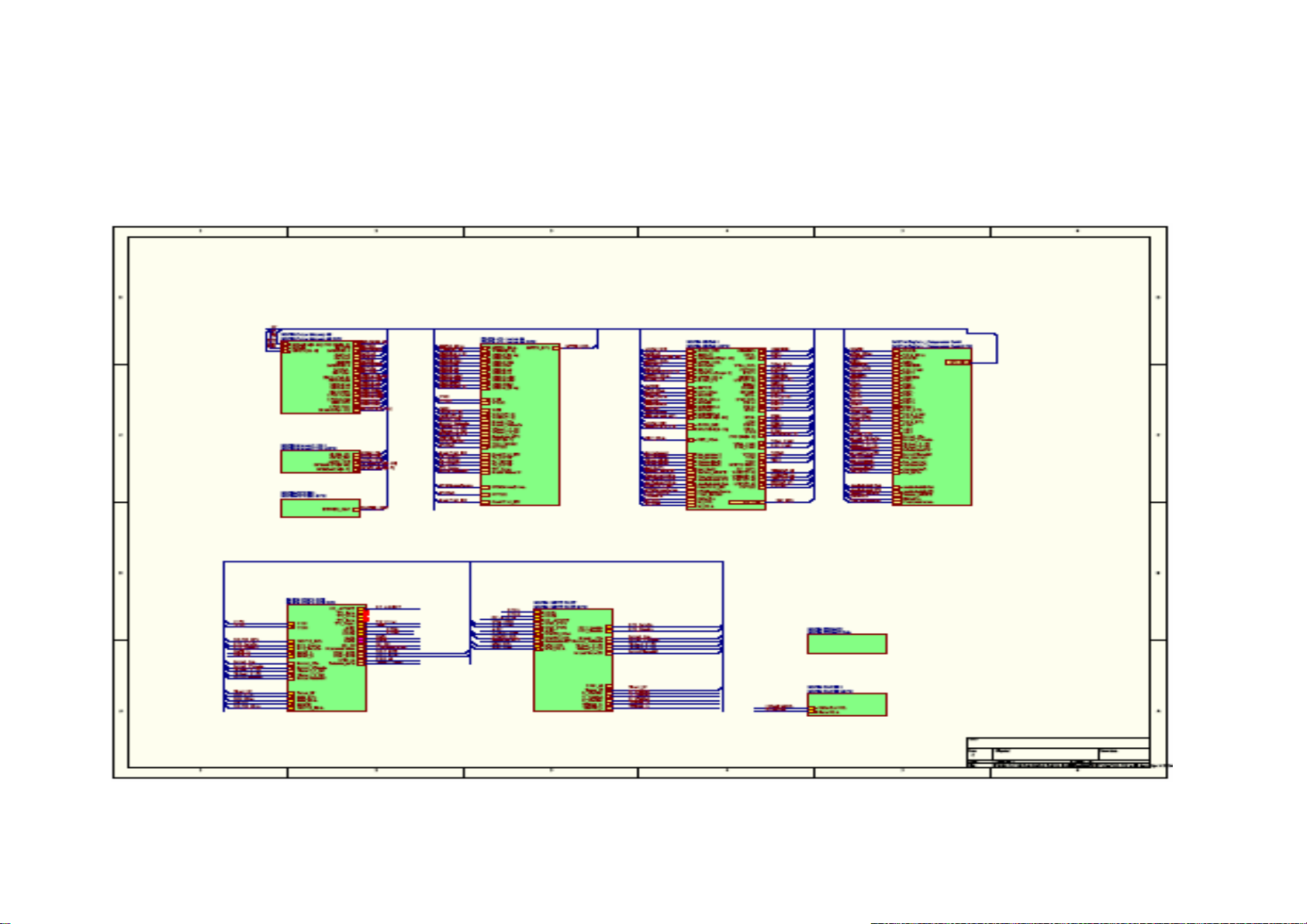

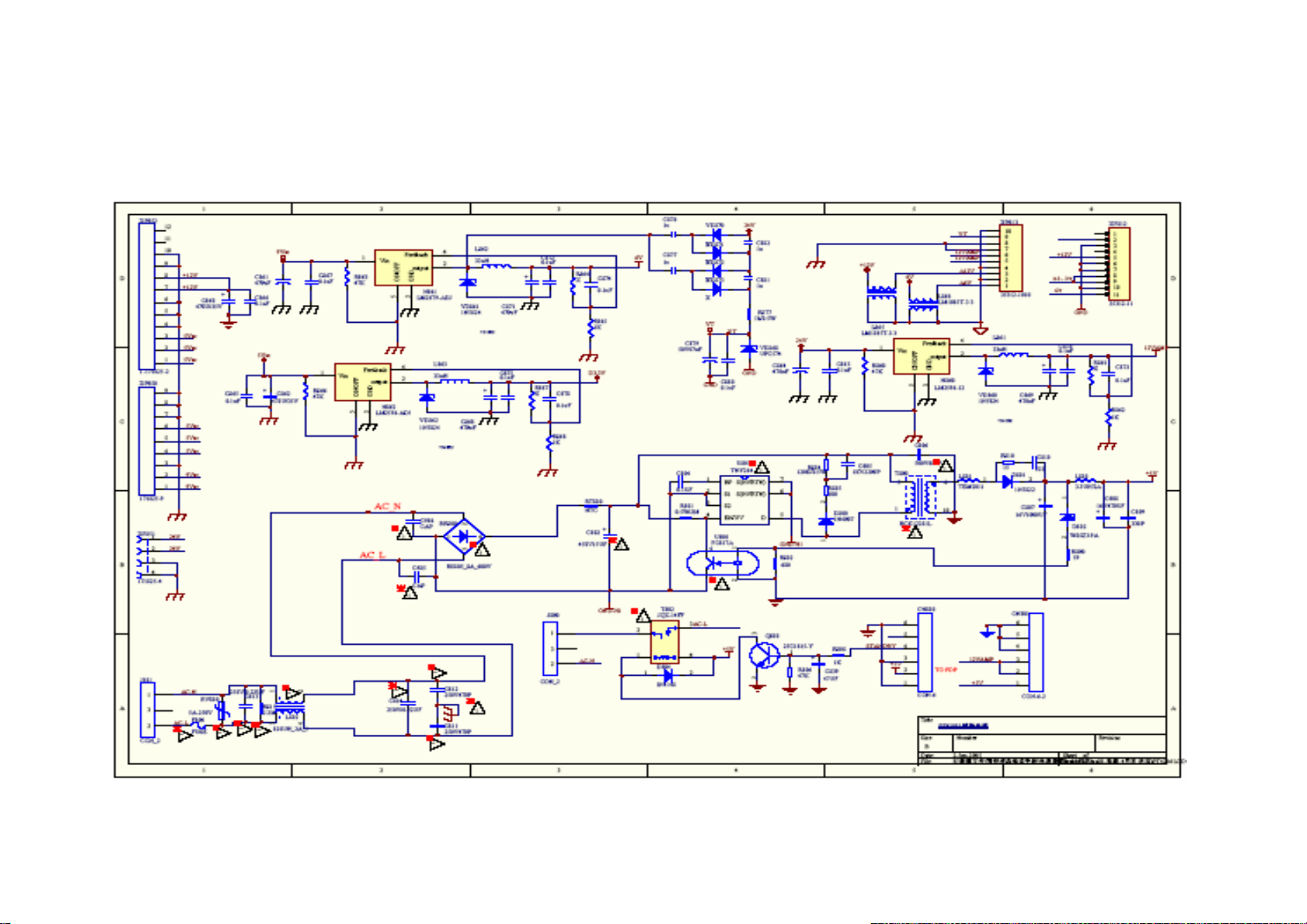

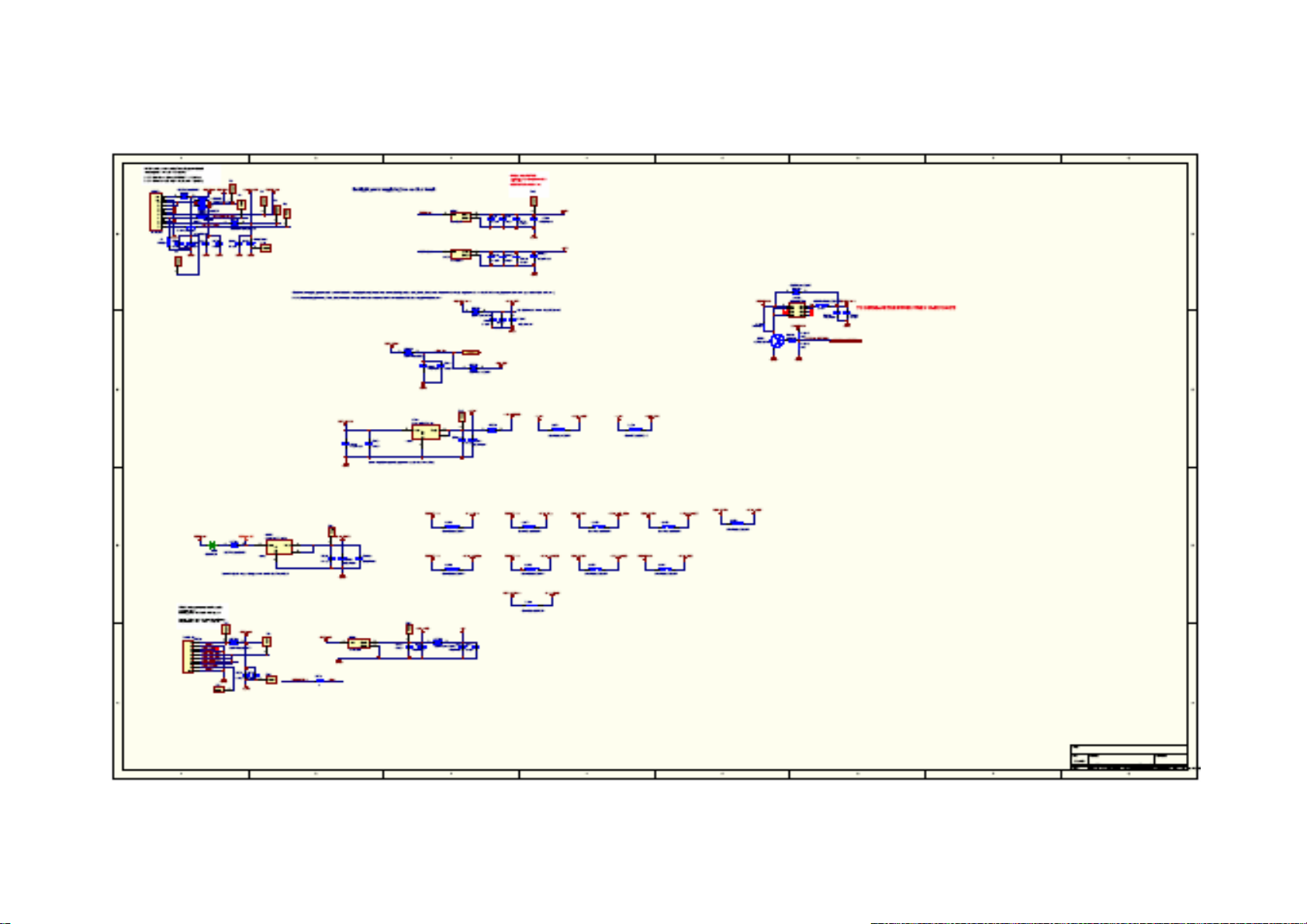

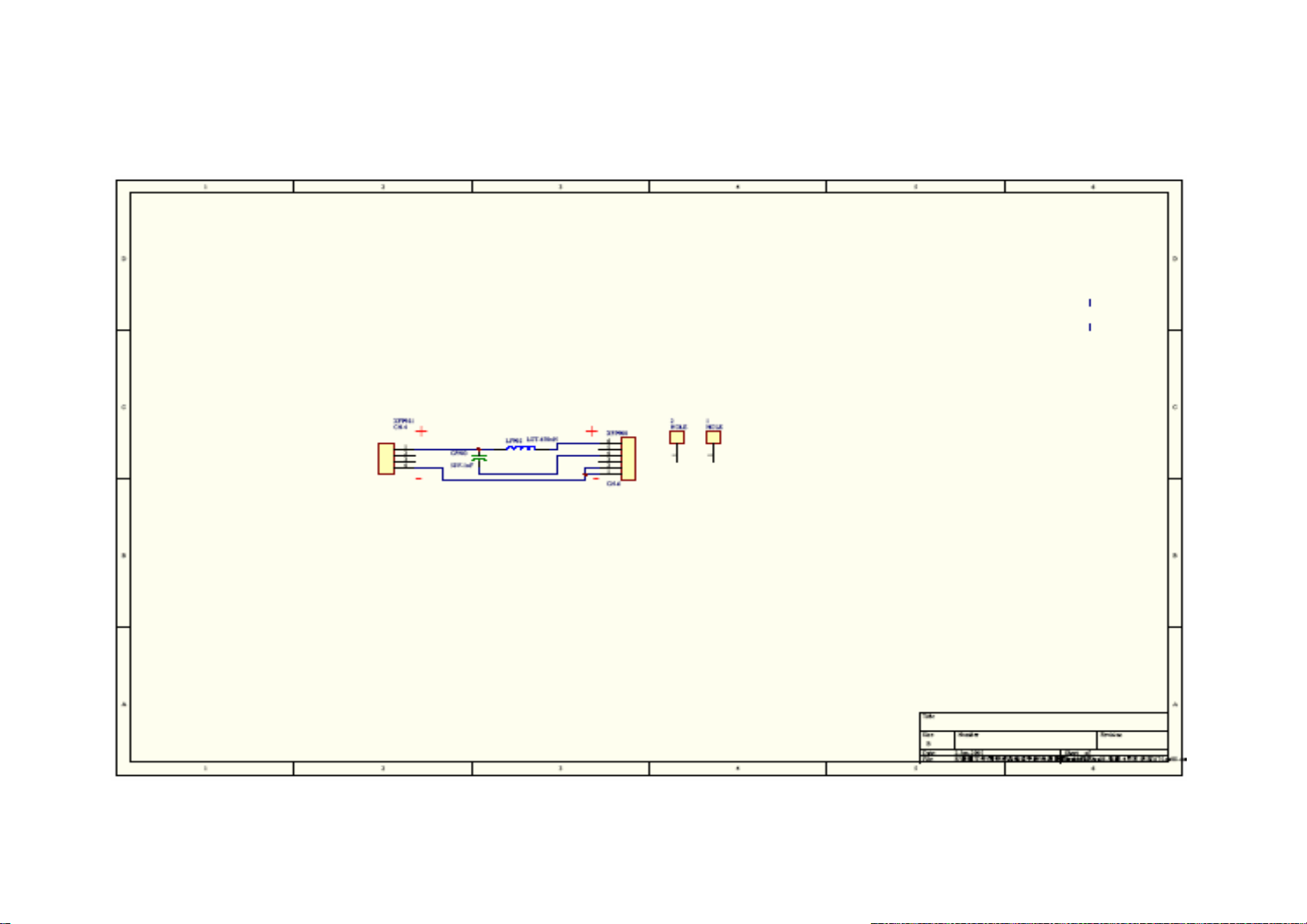

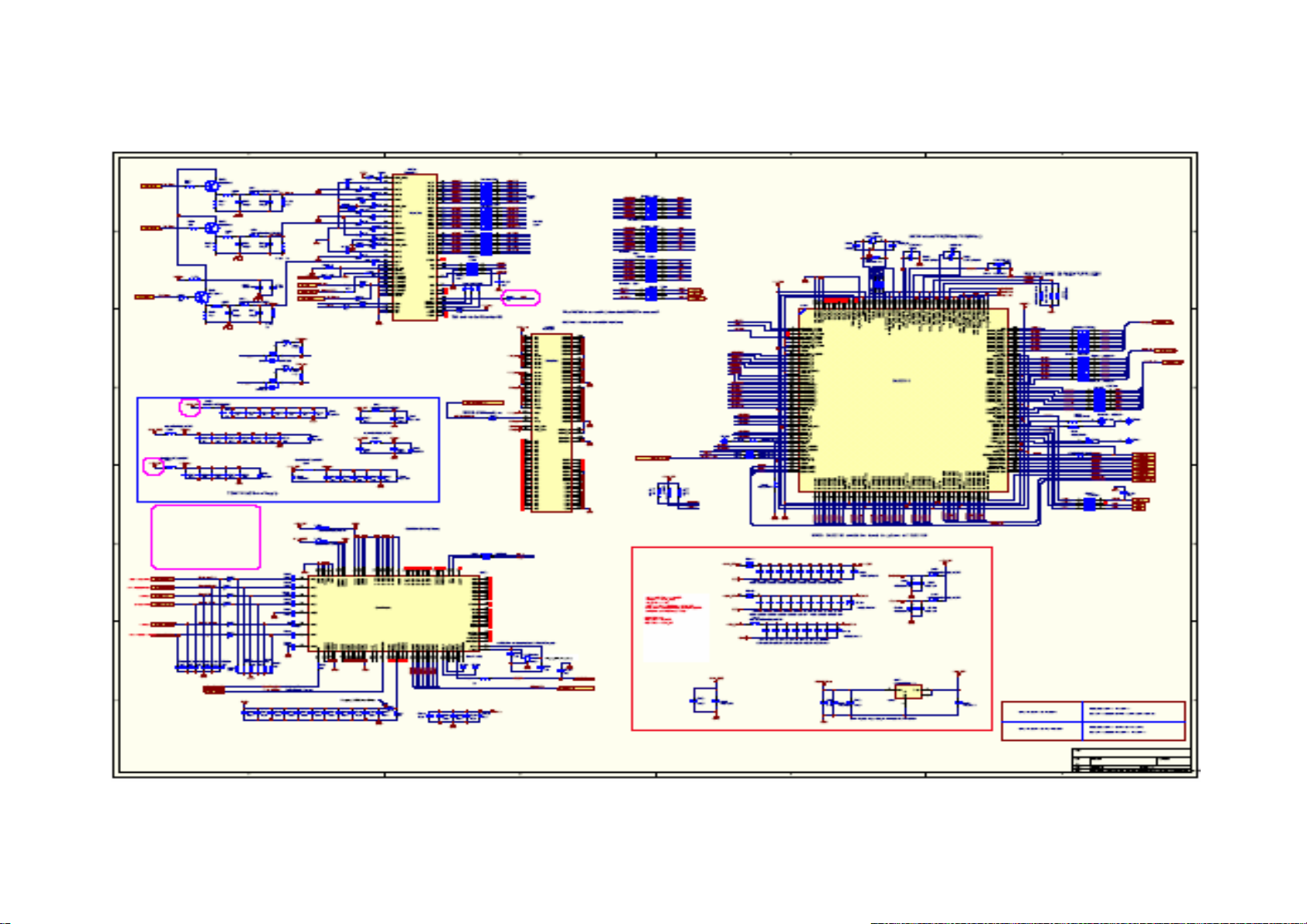

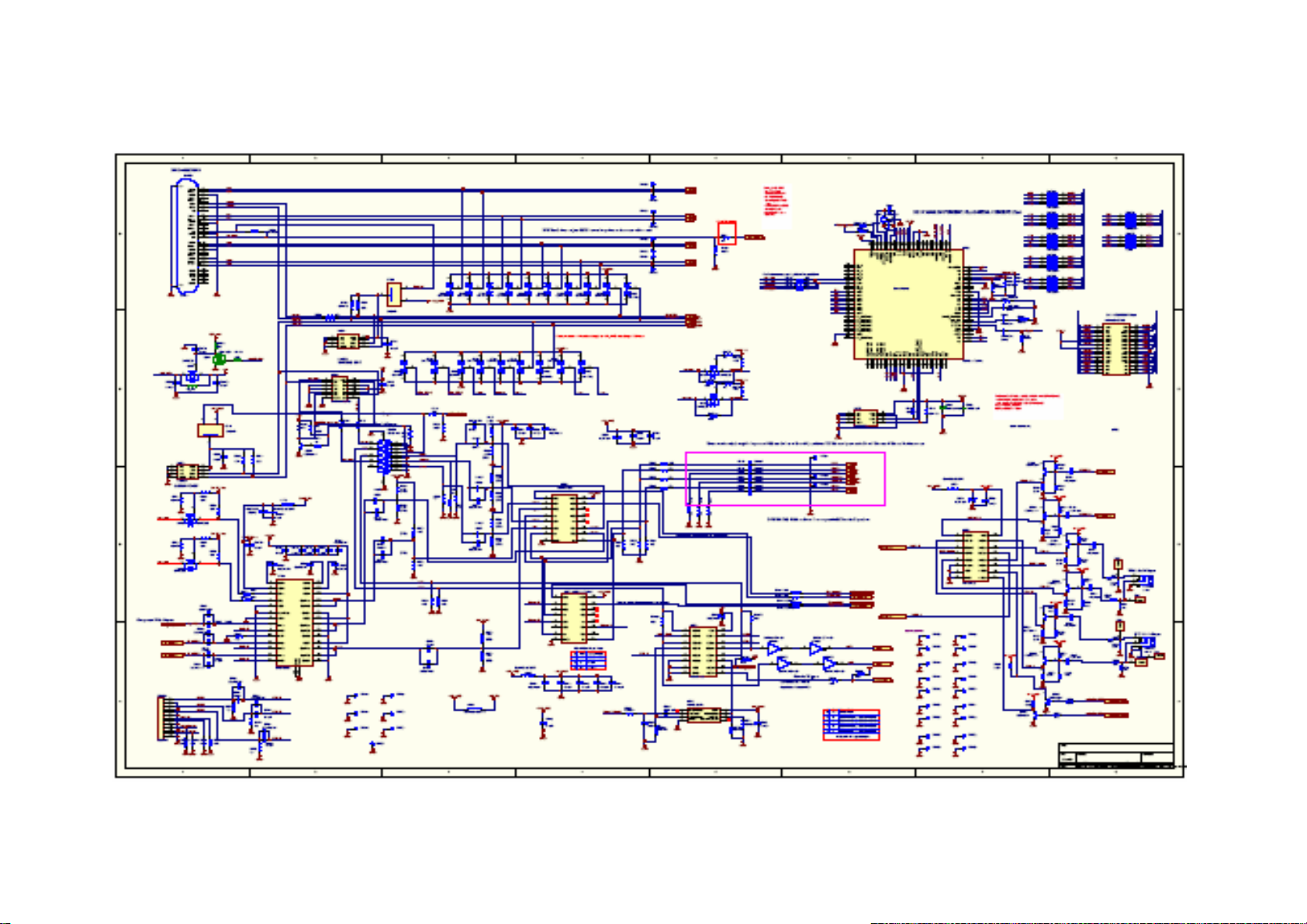

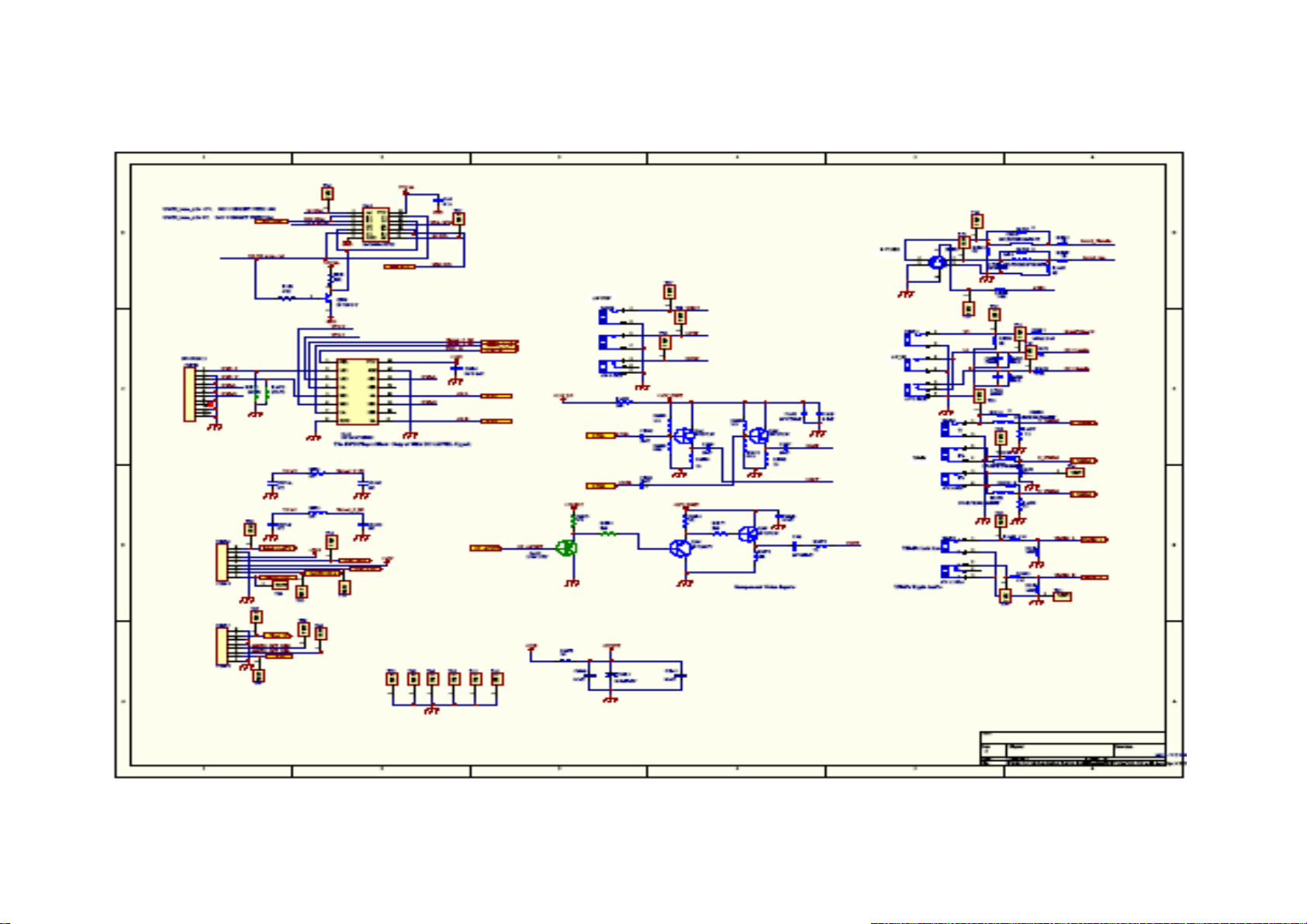

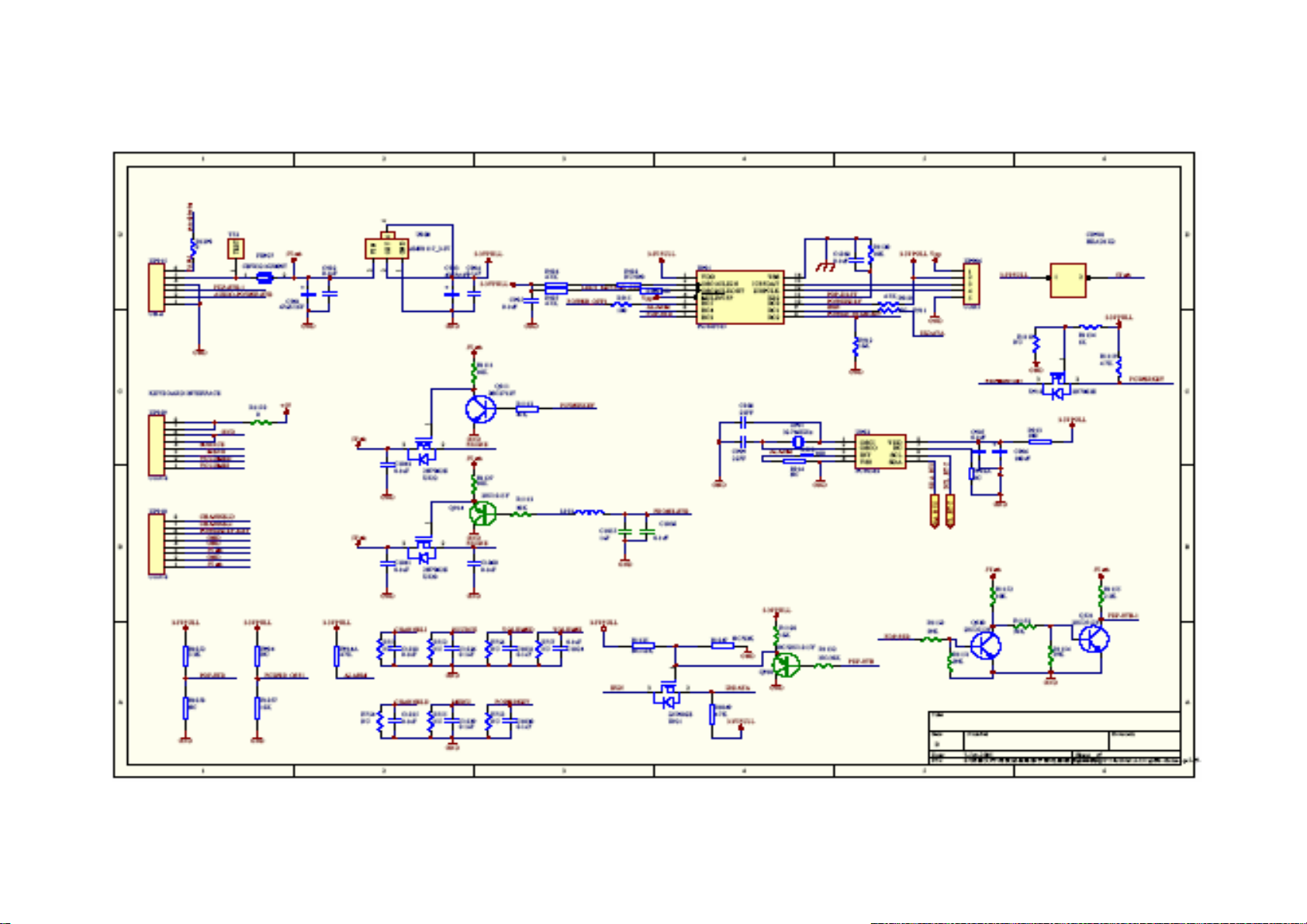

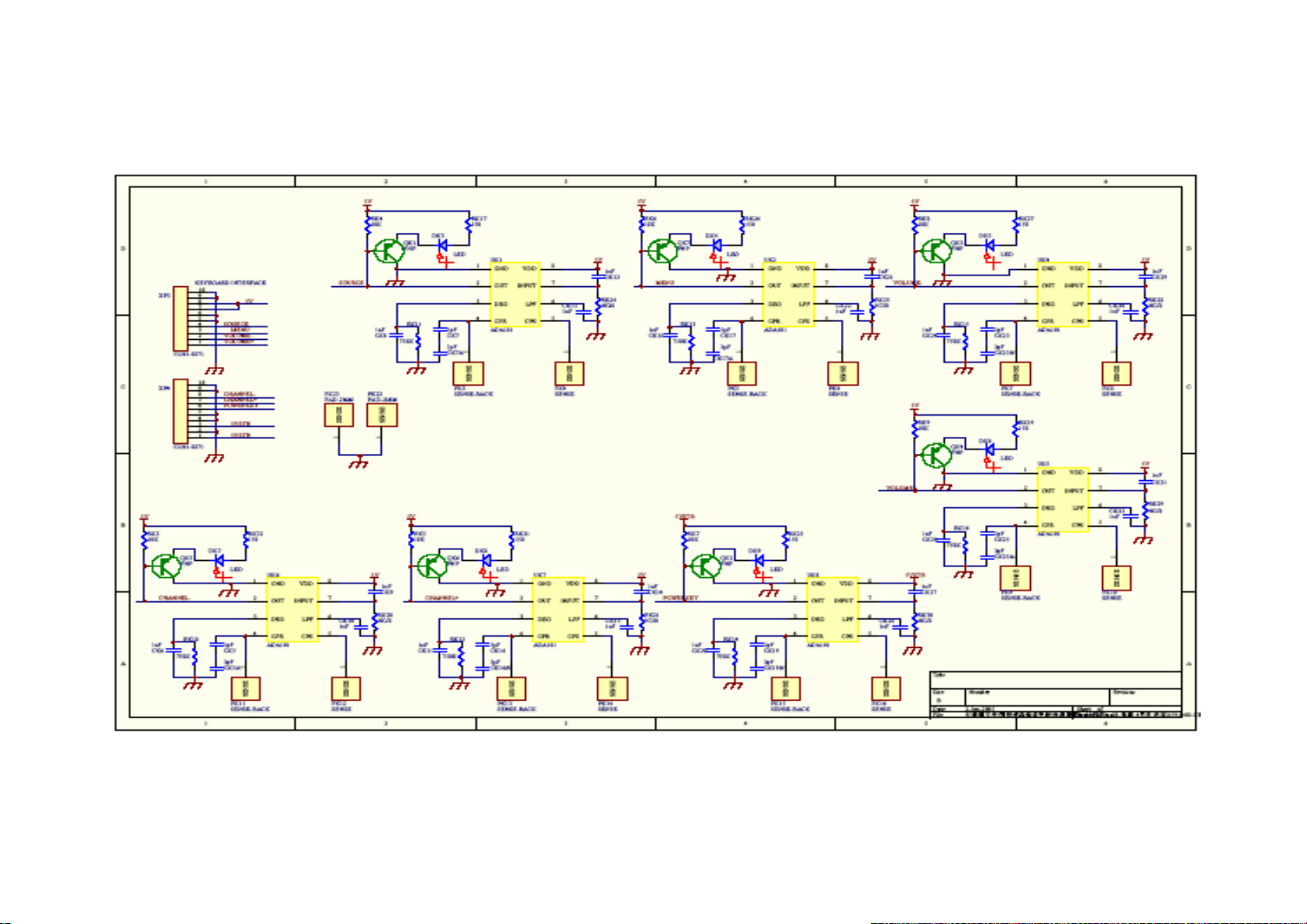

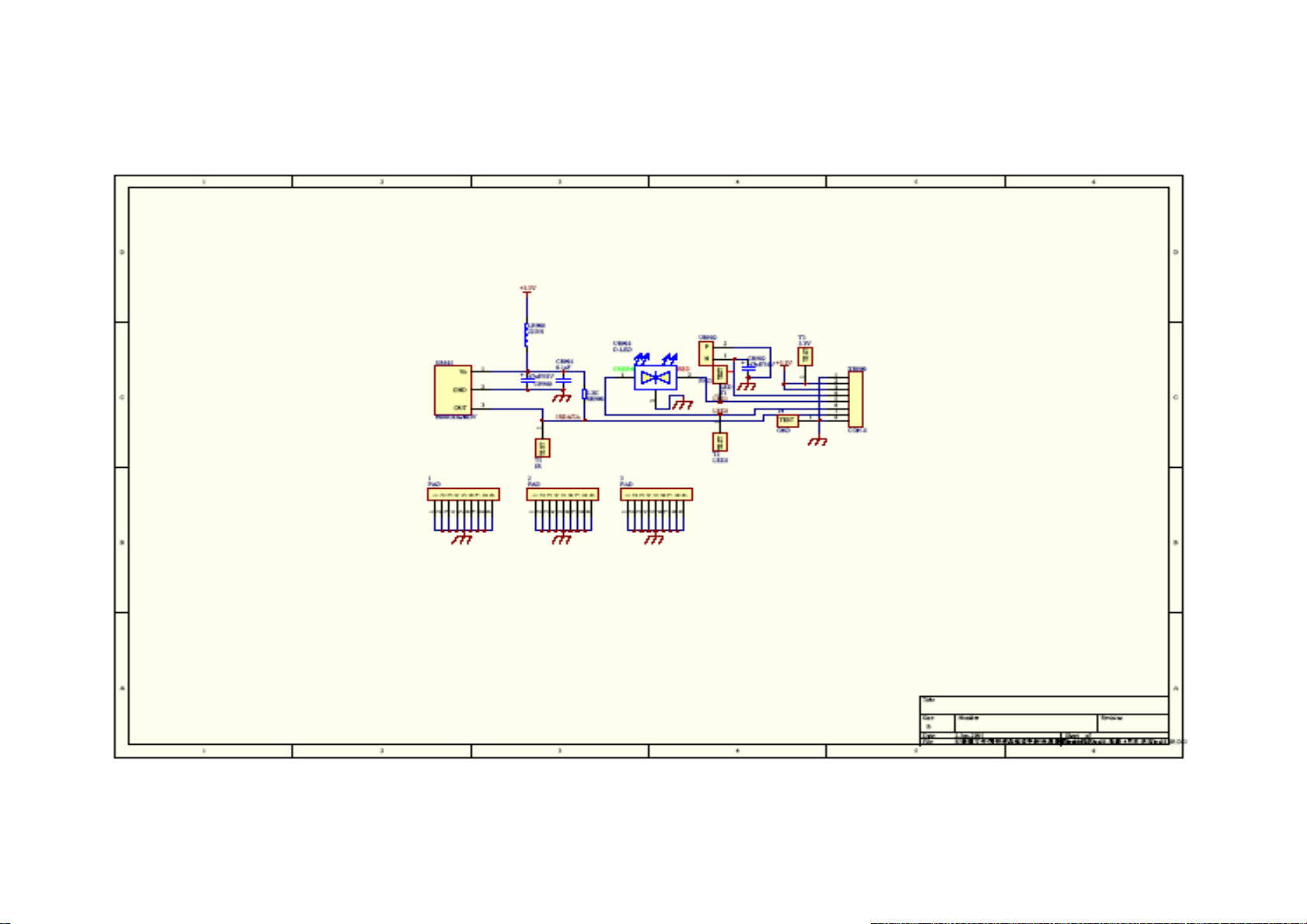

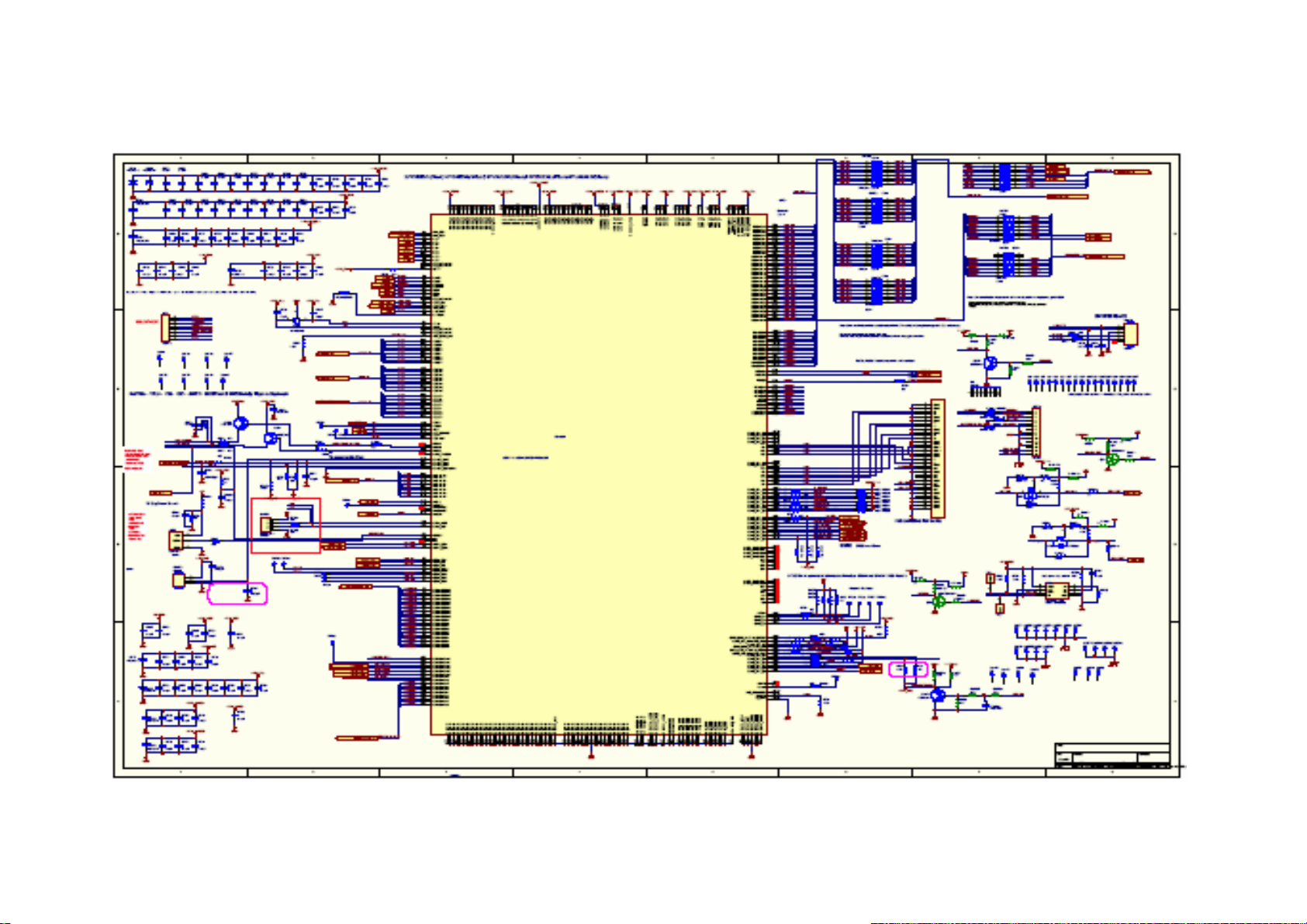

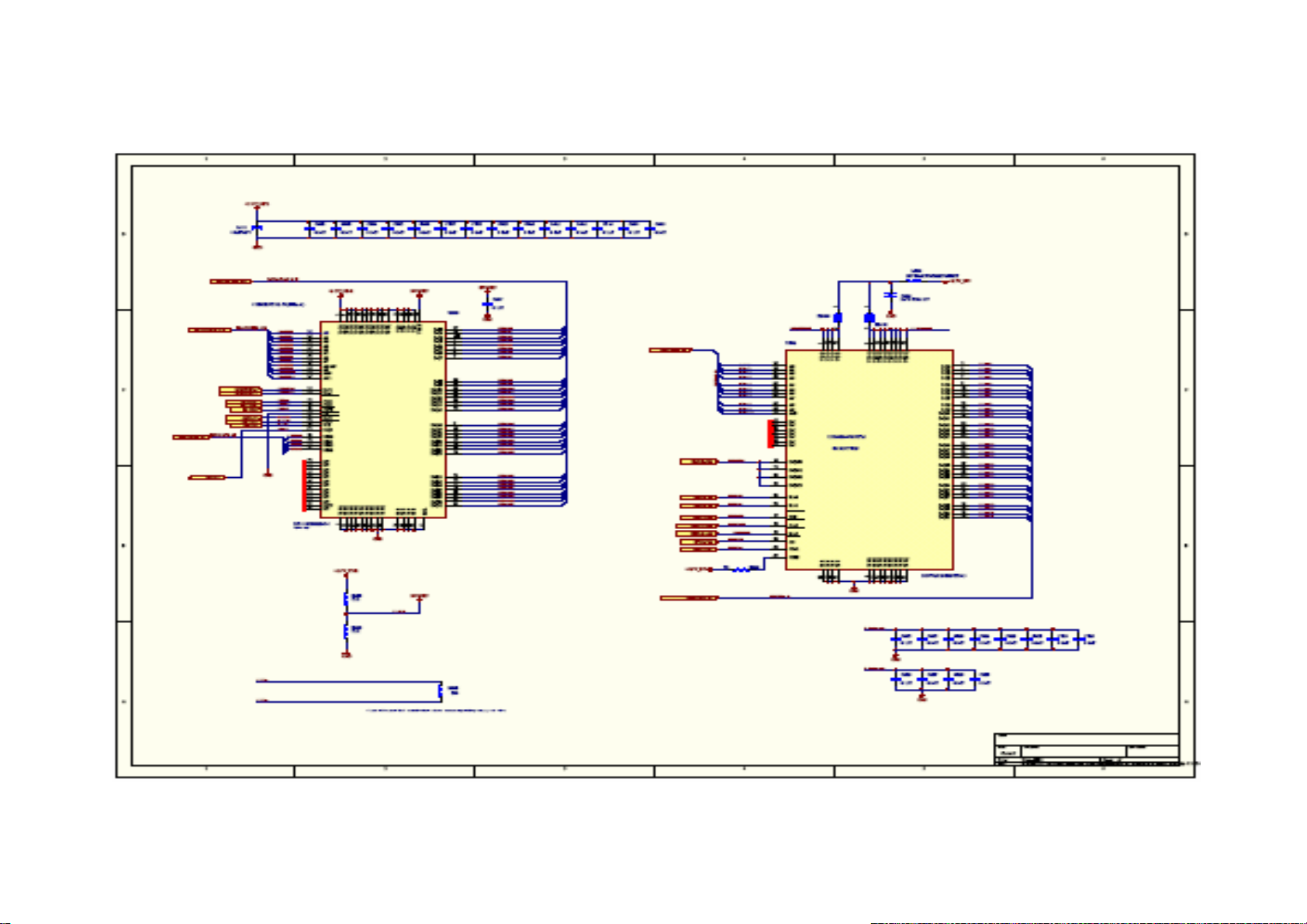

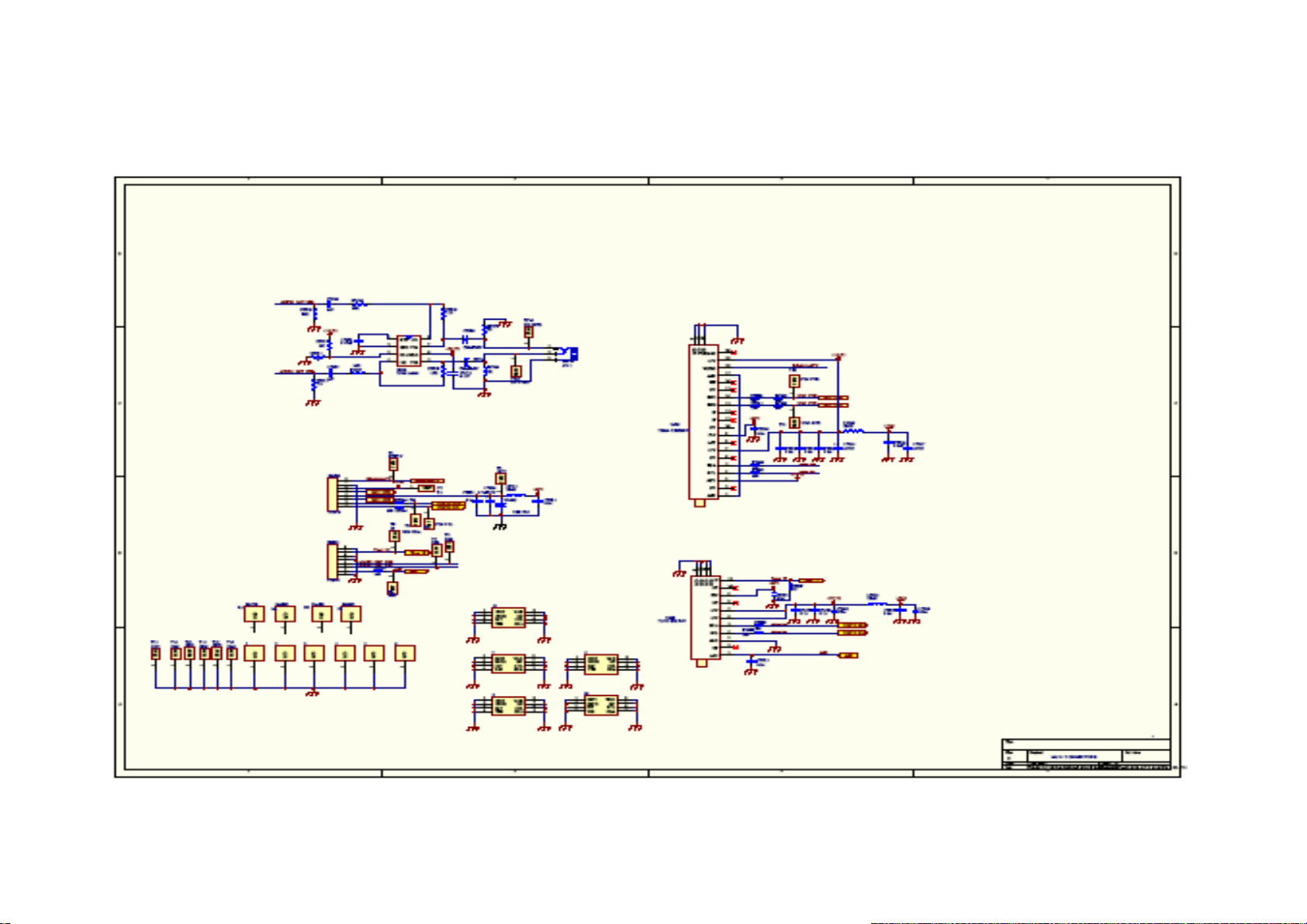

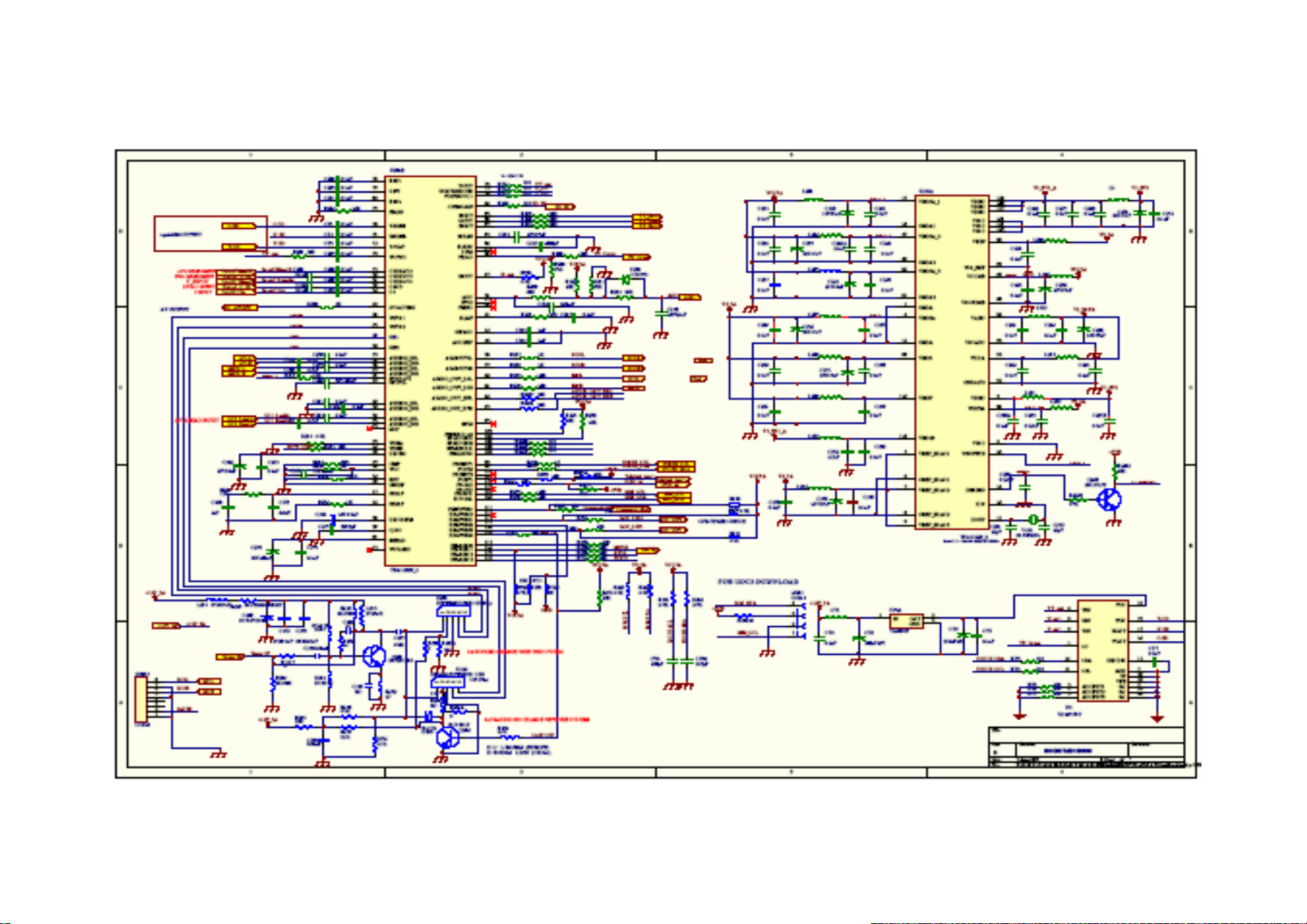

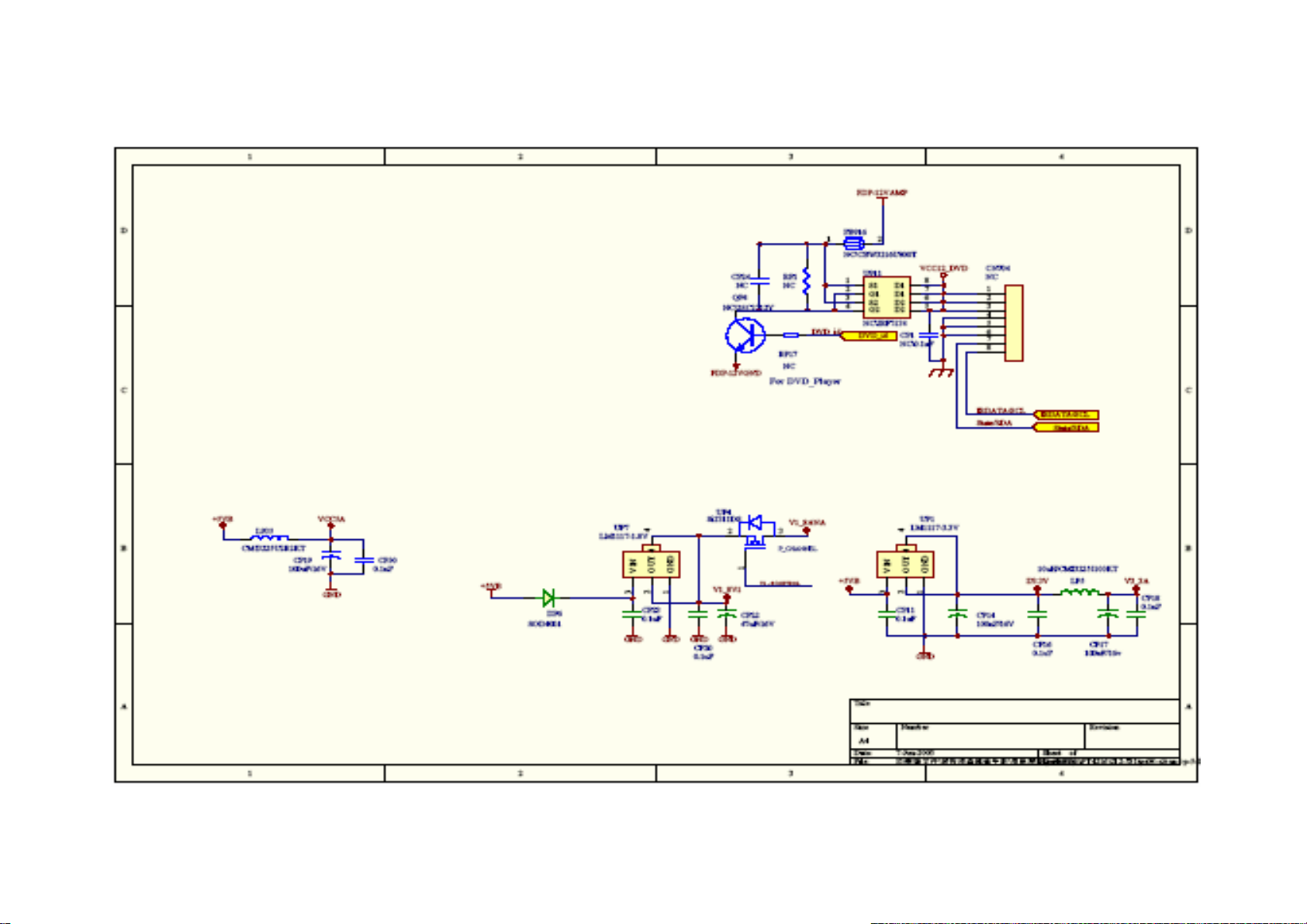

Annex: 1 Circuit schematic diagram of PT4216……………………………………41

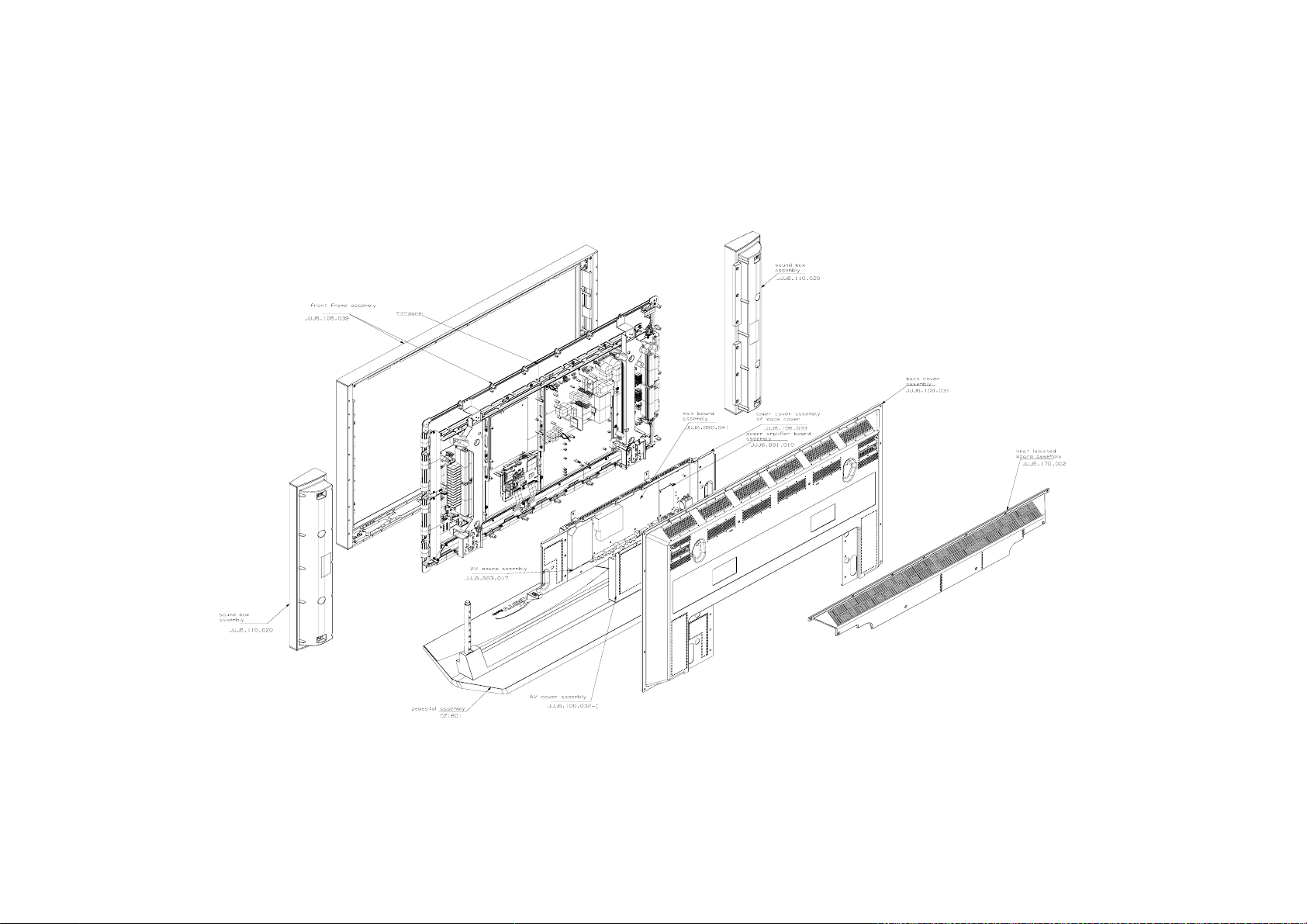

2 Final Assembly diagram of PT4216……....................................................60

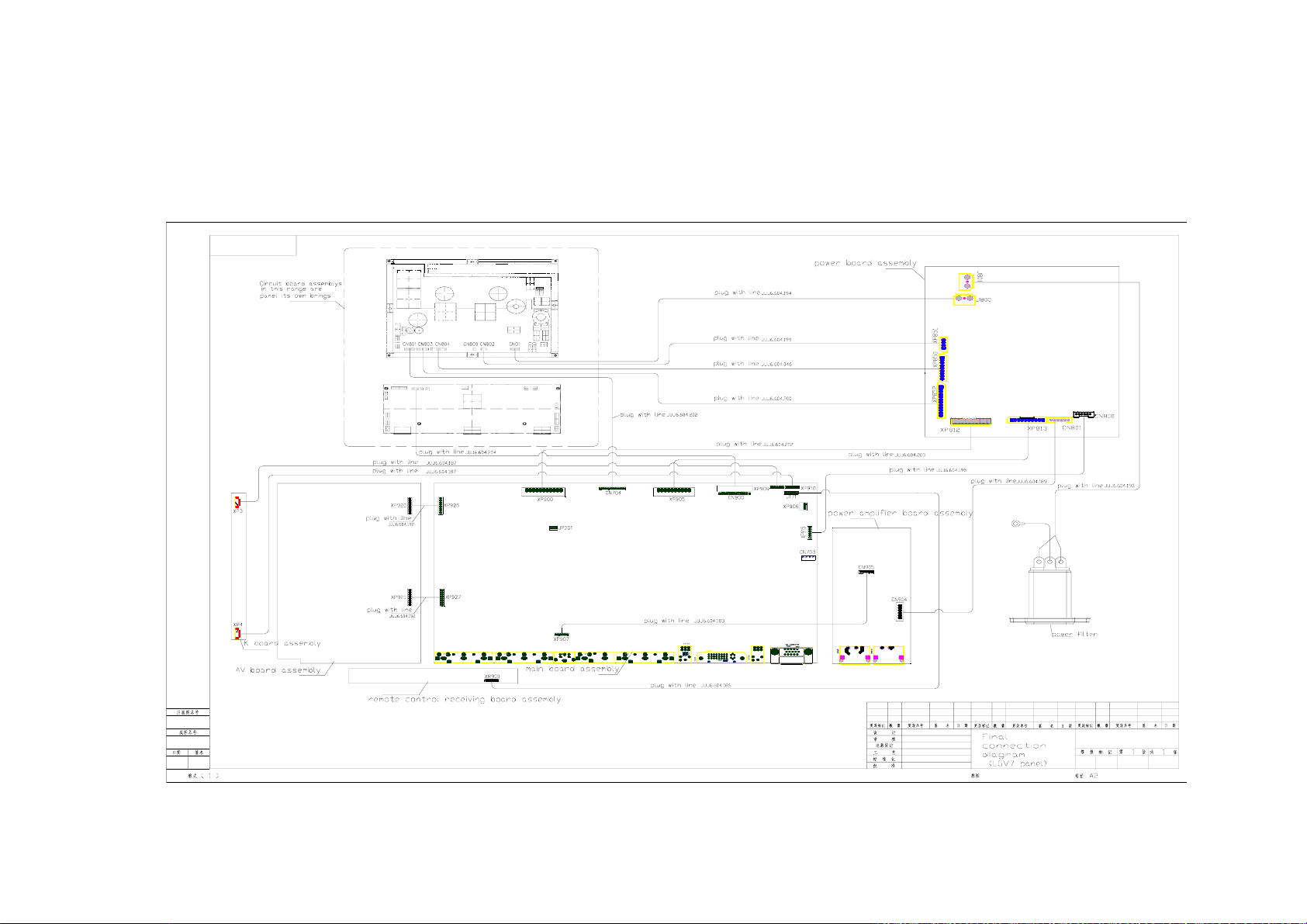

3 Final Wire Connection diagram of PT4216………………………………61
2
Part :PS08 Chassis Features and Circuit block diagram
1 PT4216/PT4218 Panel Datas
PT4216/ PT4218 and PT5016 are all belong to PS08 chassis. The used panel parameter is below:
PDP Panel Resolution |
× |
× |
480 |
|
852 3(RGB) |
|
|
Colors |
16,777,216 |
|
|
Dot Pitch |
1.095mm(H)×1.110mm(V) |
||
Brightness |
High brightness |
|
|
Contrast |
High contrast |
|
|
Lifespan of Panel |
20000 Hours |
|
|
Viewing Angle |
U/D 160 / L/R 160 |
||
Valid display area |
933mm H×533mm(V) |
Remarks: Brightness and contrast may vary because of different panels being used. PT4216 mainly uses LG PDP42V7 panel model or Panasonic MD42M7 MD42M8 panel model .
2 Main Features
zRadio Frequency input; support CATV Capable to receive the full CATV programs.
zPIP function
zDVI digital RGB input
zVGA analog RGB input
zHigh definition YPbPr input
zAV input
Capable to receive NTSC/PAL/SECAM AV signal. Convenient to watch VCR,DVR,DVD programs. Make you into perfect AV world.
zAV audio and video output
Capable to output one way video, left and right audio signal each one.
zY/C component video input
S-video input, convenient to connect Y/C video input from DVD output.
z236 programs preset
In TV condition, capable to save 236 programs. Ready for future rich programs.
zMulti format
Capable to receive NTSC/PAL/SECAM TV signal. Capable to receive D/K,I,B/G,M audio format TV signal.
zOn/off on time
Set PDP TV on or off at preset time.
zBlue background mute noise
In TV, AV (S-Video), YCbCr, and YPbPr modes, screen displays gentle blue background if there is no signal input and into mute condition.
zAuto Off if no signal input
In TV mode, the PDP TV will automatically power off within 15 minutes and enter into standby condition.
zChinese/English menu
Ordinary and graphical user interface makes the menu operation more convenient and intuitionistic
zPower Energy Saving Mode (power management mode)
In PC mode, the PDD TV will automatically power off within 30 seconds and enter into the Power Energy Saving Mode if there is no signal input. It will automatically exit from the Power Energy Saving Mode and work again when it received a valid signal or press any button on the panel/remote control.
zPlug and Play
It is no need to equip any installation software when the product is used as computer terminal display equipment. It
3
is real plug and play.
zLittle weight, small dimension, low power consumption
3 CBU Content

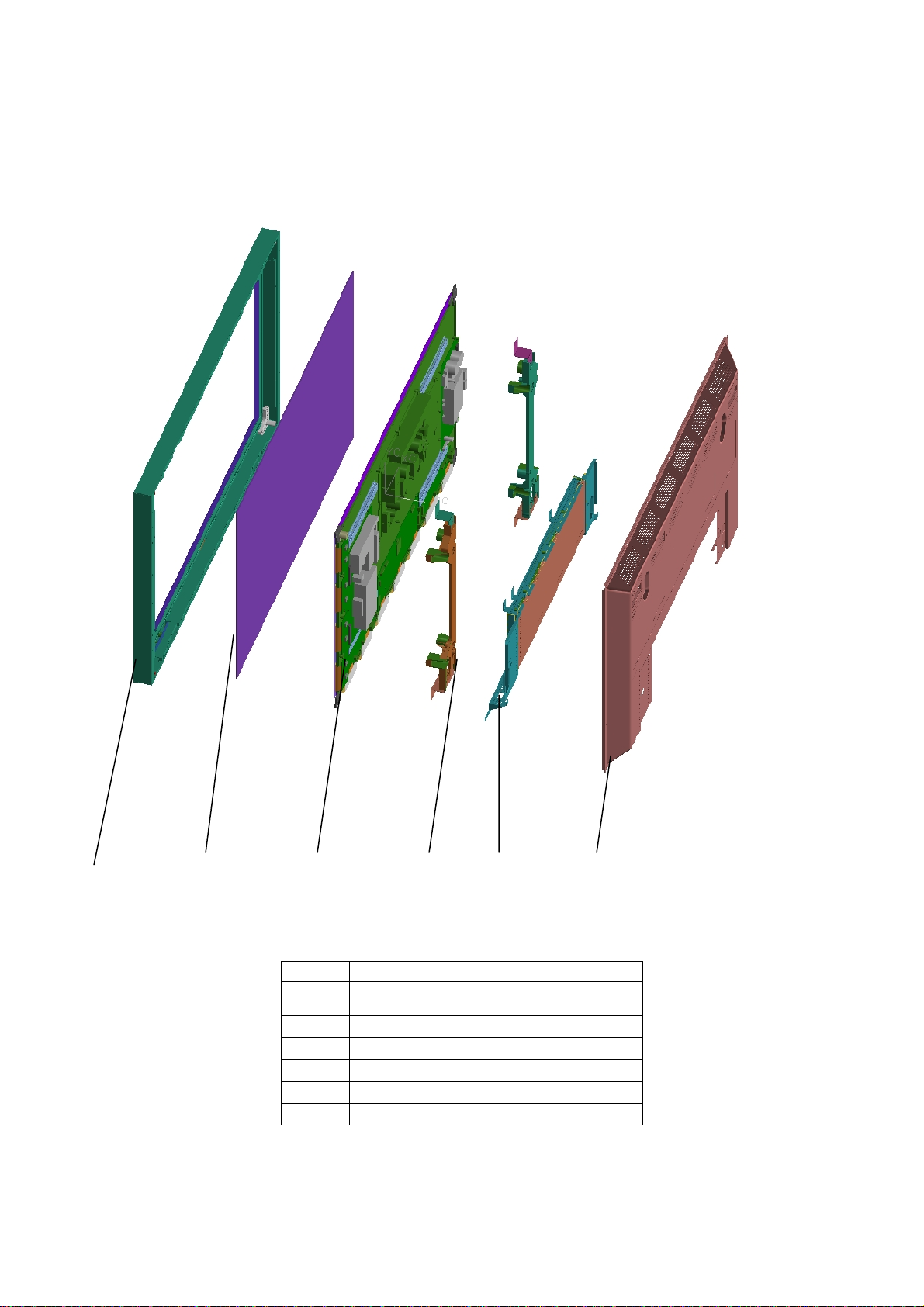

3.1 PDP Inside Drawing:
1 |
2 |
3 |
4 |
5 |
6 |
No. |
Name |
|
Front Cabinet |
|
|
|
Filter Glass |
|
PDP Panel Module |
|
Shelve Bar |
|
Down Cover Module etc. |
|
Back Cabinet |
4
Remarks: This drawing is for references only, please see the main assembly diagram and wire-connecting diagram for details.

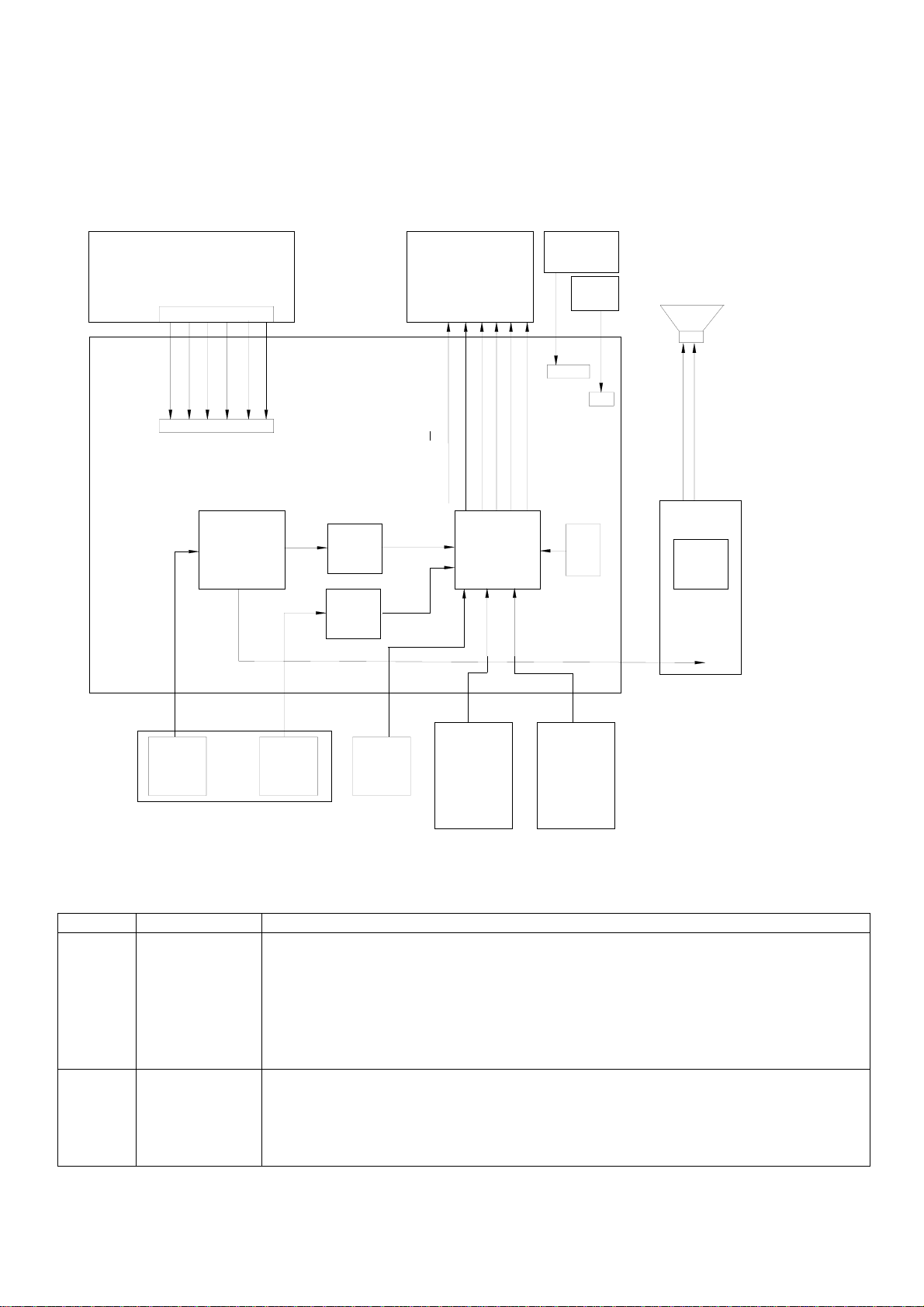

3.2 Circuit block diagram
PS08 chassis PDPD TV is mainly composed of regulator circuit RF circuit video processor circuit Power Amplify circuit Analog Video circuit System Control circuit and Key Control circuit, block diagram of unit circuit is below:
Power Board |
|
Panel |
k Panel |
|
|
|
|
|
|
|
|
|
|
|
|
IR |
Speaker |
|
|
|
|
Panel |
|
+6V +5VS +12V +32V +3.3V |
+12VAU |
|
L V D S |
|
|
|
|
|
|
|
|
|
|
Signal |
|
|
|
Main Board |
|
Control |
|
|
|
|
|
|
|
|
|
UOCIII AnalogRGB |
TDA8759 24bit RGB |
GM1601 |
FLASH |
TA2024 |
|
|
CVBS |
SAA7115 ITU-R656 |
|
|
|
|
|
|
|
|
|
IF |
Audio |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
audio amplify board |
Main |
Sub- |
HDTV |
DVI |
PC |
|
Tuner |
Tuner |
|
|||
AV Board |
|
|
|
|
3.3PCB assembly introduction
It is mainly composed of AV Board Remote Control Receiving board K Board power board power amplifier board and Main Board. Herein introduct function of each PCB module
Number |
Parts |
|
Description |
1 |
Main |
Board |
It is the core of signal processing for PDP TV, which takes responsibility of transforming |
|
assembly |
|
outer signal into the uniform digital signal identified by PDP display with control of |
|
|
|
System circuit. TV, AV and S-video signals input from AV Board are decoded by |
|
|
|
UOCIII to output RGB signal ,A/D converted by TDA8759,output 24bit RGB digital |
|
|
|
signal, then it is processed by GM1601/GM1501 to accomplish format convert, produce |
|
|
|
LVDS signal displayed on the screen. In addition, signals input from VGA DVI |
|
|
|
would directly enter into GM1501 to process format convert and on screen display. |
2 |
AV |
Board |
It is mainly composed of two tuners (main and sub tuners) earphone output and some |
|
assembly |
|
peripheral processing circuit. The main tuner demodulates RF signal to IF signal, and |
|
|
|
the sub tuner produces CVBS signal, all signals are sent to the main board to do |
|
|
|
corresponding process after transfer .Earphone jack can connect earphone output directly, |
|
|
|
and output volume can be adjusted. |
5
3Remote Control Receiving assembly
4Built-in Power Board
assembly
5K Board module
6Power amplifier board assembly
7Screen assembly
8Transfer board assembly(only used LG panel)
It is composed of one indicator lamp, buzzer and one remote control receiving head, which enable Users operate the TV conveniently and know its current working status simply with a remote control box. Indicator lamp indicates unit on/off status and buzz prompts validity of key operation.
It can transform AC 220V into multiple DC power, including +12VAU(audio power amplifier) +12V +A6V +D6V +D3.3V +34V and +5VS standby power supply .
It consists of 7 inductive buttons by which users can operate the TV freely.

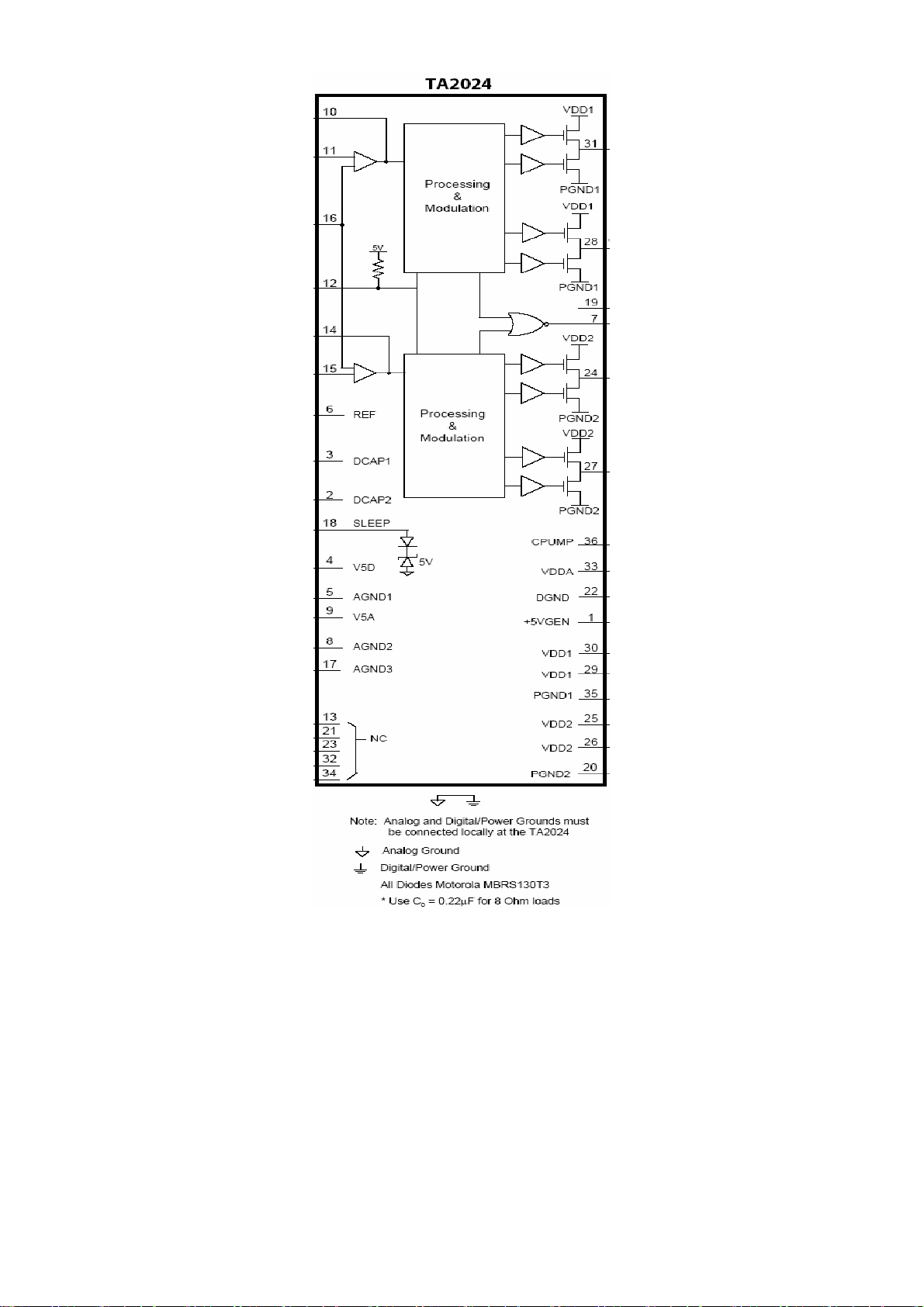

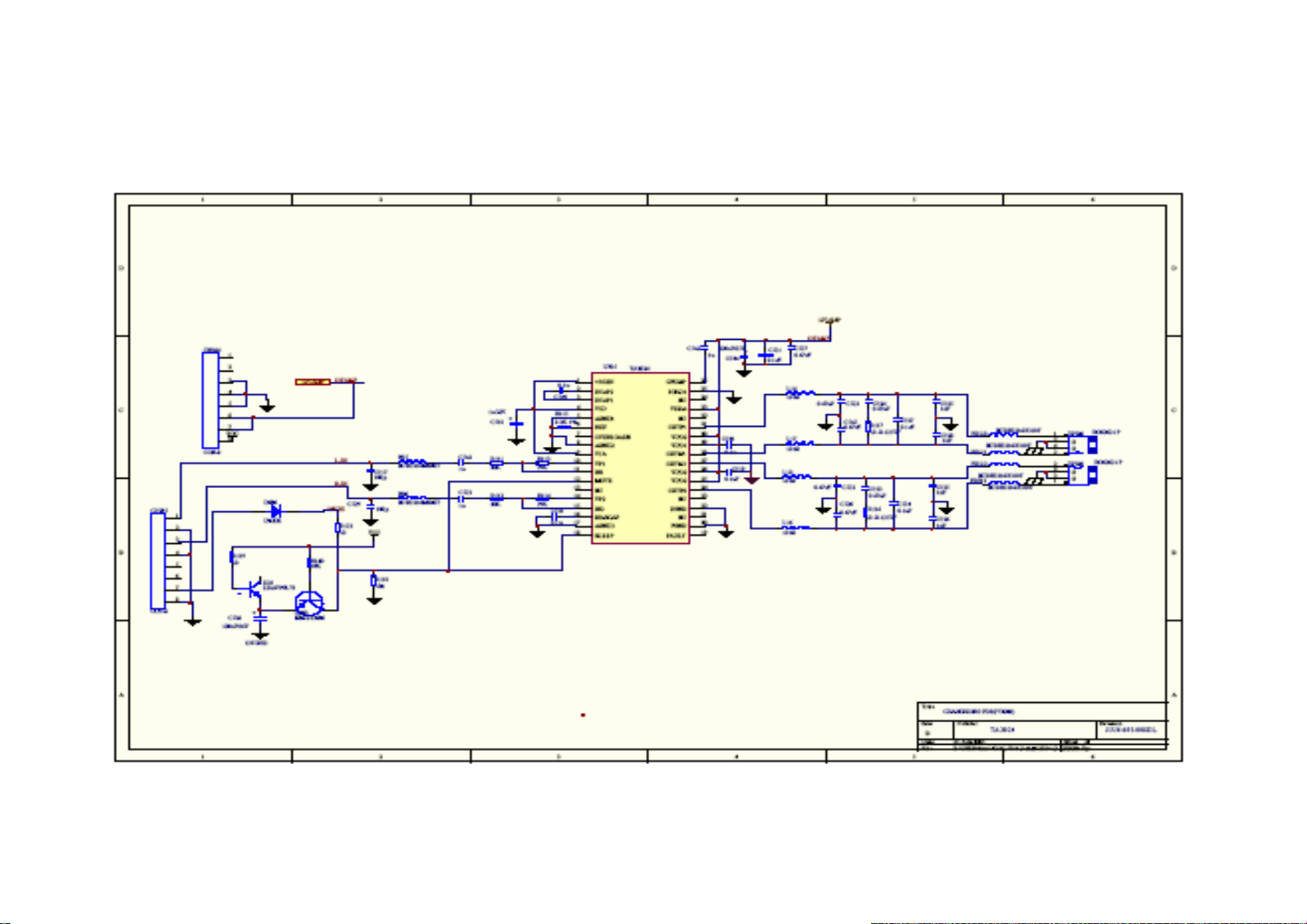

Audio adopts two channel T-class digital audio power amplifier IC. Left and right channel output 2X5W.
PDP panel is used to display image signal processed by main board.
Transform each kind of DC voltage from panel(+9V +12V 24V) into each kind of DC voltage used by main board +3.3 +D6V A6V +34V +12V +12VAU .
6
Part :Introduction on main components functions of PT4216
1 PT4216 main components and function
NO. |
NAME |
TYPE |
Function |
|
|
|
|
AV board |
assembly |
|
|
1 |
UT921 |
TMI4-C22P2RW |
Output sub-picture CVBS signal |
2 |
UT920 |
TAD5-C2IP1RW |
Output sound and video IF signal |
Main board |
assembly |
|
|
3 |
U901 |
PIC16F505 |
Standby control CPU |
4 |
U302 U303 |
24LC21A T/SN |
EEPROM |
5 |
U701 |
24LC32A T/SN |
buffer |
6 |
U306,U307,UA3 |
FSAV330QSCX |
Select switch |
7 |
K201 |
K7262N |
SAW filter |
8 |
K202 |
K9352N |
SAW filter |
9 |
U801 |
AM29LV800DT-70EC |
Flash save unit control program |
10 |
U700 |
GM1501-BD |
Video processor |
11 |
U201 |
TDA15063H-N1B06557 |
Video and audio decoder |
12 |
U402 |
SAA7115HL/V1 |
Sub-channel video decoder |
13 |
U305 |
SM5302AS-G-ET |
High definition signal filter |
14 |
U400 |
TDA8759HV/8/C1 |
Video signal A/D converter |
15 |
U5 |
TDA9178T/N1 |
Video signal picture quality improvement |
16 |
U600 |
MT46V2M32LG-4 |
Frame buffer |
|
|
|
|
2 PDP TV PT4216 main components function introduction
2.1 Main tuner(TAD5-C2IP1RW) |
|
||
Pin number |
|
Pin definition |
Pin function description |
1 |
|
AGC |
Auto gain control |
2 |
|
UT |
Not connect |
3 |
|
ADD |
Ground |
4 |
|
SCL |
IIC bus(clock) |
5 |
|
SDA |
IIC bus(data) |
6 |
|
NC |
Not connect |
7 |
|
+5V |
Power |
8 |
|
NC |
Not connect |
9 |
|
30V |
Form 0~30V tune voltage |
10 |
|
NC |
Not connect |
11 |
|
IF |
Output IF TV signal |
|
|
|
|
2.2 Sub tuner(TMI4-C22P2RW): |
|
|
|
Pin number |
|
Pin definition |
Pin function description |
1 |
|
AGC |
Auto gain control |
2 |
|
NC |
Not connect |
3 |
|
ADD |
Ground |
4 |
|
SCL |
IIC bus(clock) |
5 |
|
SDA |
IIC bus(data) |
6 |
|
NC |
Not connect |
7 |
|
+5V |
Power |
8 |
|
NC |
Not connect |
9 |
|
33V |
Form 0~33V tune voltage |
10 |
|
NC |
Not connect |
11 |
|
IF |
IF signal output(not connect) |
7
12 |
IF |
IF signal output(not connect) |
13 |
SW0 |
Band control |
14 |
SW1 |
Band control |
15 |
NC |
Not connect |
16 |
SIF |
Not connect |
17 |
AGC |
Auto gain control |
18 |
VEDIO |
CVBS signal output |
19 |
+5V |
Power |
20 |
AUDIO |
Not connect |

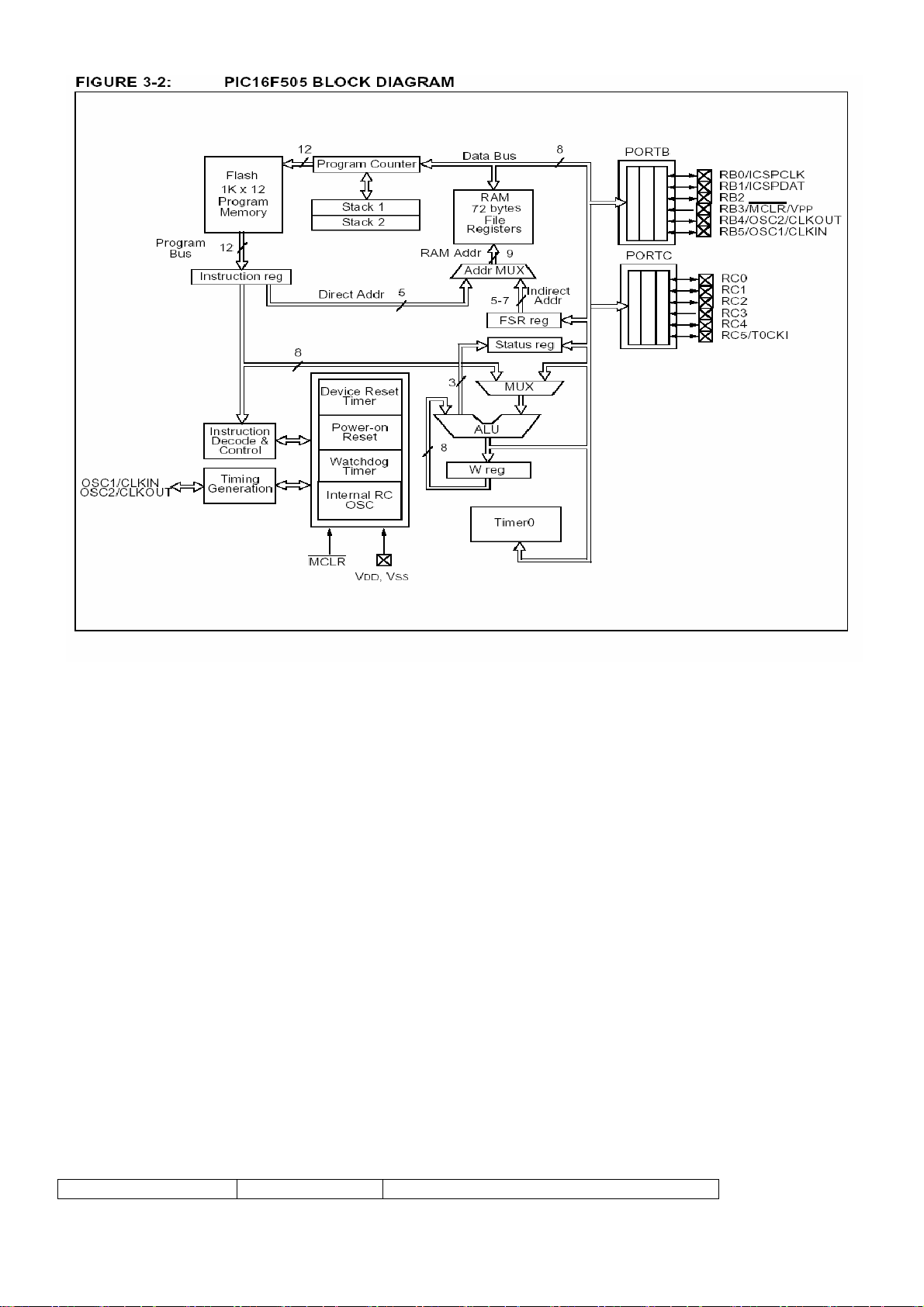

2.3 Standby control CPU PIC16F505
Pin number |
Pin definition |
Pin function description |
1 |
VDD +3.3V |
Power |
2 |
RB5/OSC1/CLCKIN |
NC |
|
|
|
3 |
RB4/OSC2/CLCKOUT |
LED1 KEYPAD STB output, standby indicator lamp control |
|
|
|
4 |
RB3/MCLP/VPP |
Input voltage (+5V)when programming or reset input(+5V) |
|
|
|
5 |
RC5 |
I/O port: POWER OFF1 input, from GM1501 output, inform |
|
|
PIC16F505 to do off operation. |
6 |
RC4 |
I/O port: ALARM input, turn on on time enable control. |
|
|
|
7 |
RC3 |
I/O port: PDP-STB output, standby/on control |
8 |
RC2 |
I/O port: POWER-STANDBY output,GM1501 to inform |
|
|
executing off operation by key button. |
9 |
RC1 |
I/O port: IRIN remote instruction input |
|
|
|
10 |
RC0 |
I/O port: POWERKEY input, connect to on/off key of k board |
|
|
directly. |
11 |
RB2 |
I/O port: connect +3.3V |
12 |
RB1/ICSPCLK |
programming use |
13 |
RB0/ICSPDAT |
programming use |
14 |
VSS |
Ground |
8

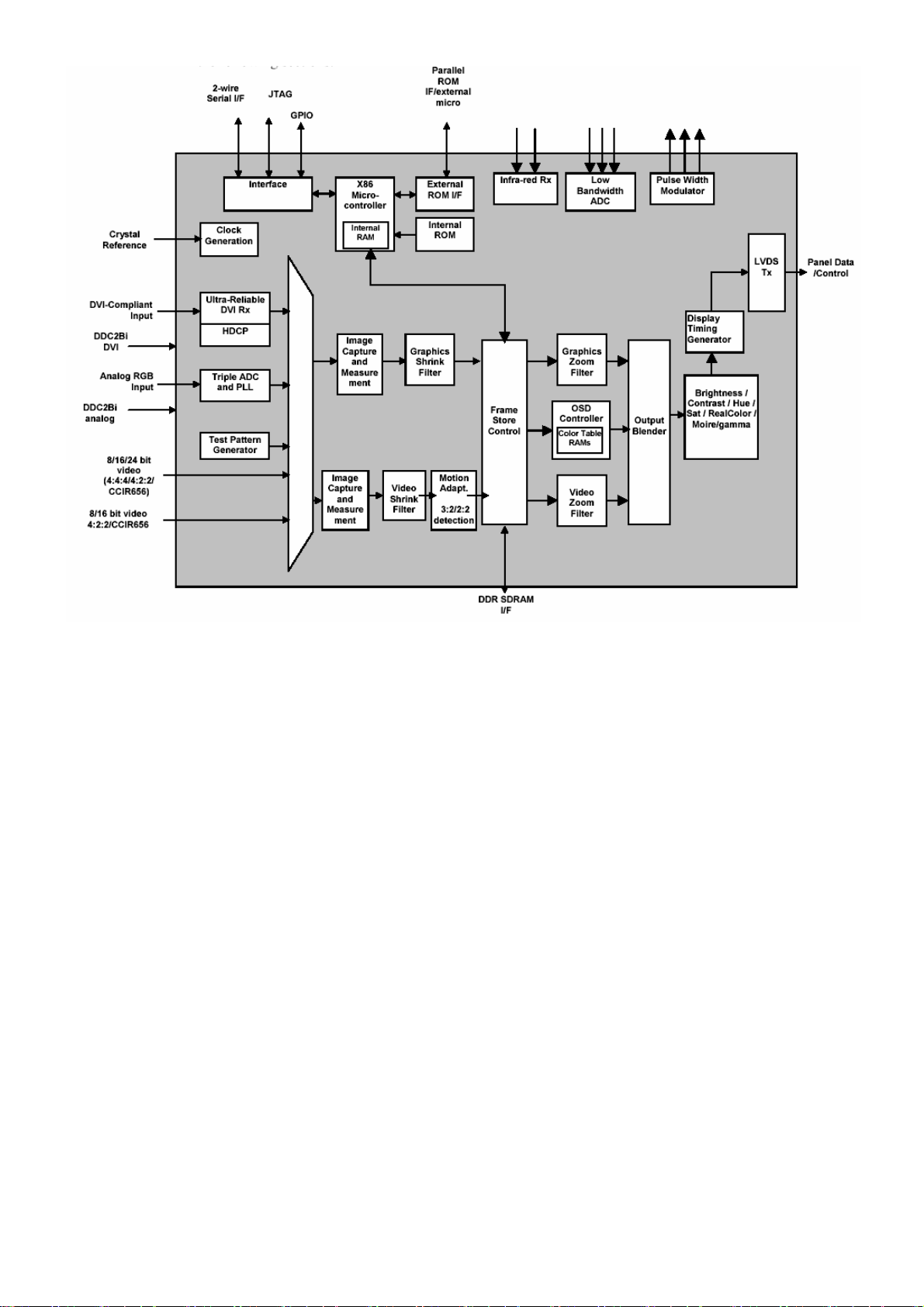

2.4 GM1501
GM1501 is a kind of dual channels image and video processing chip, which is mainly used for LCD displays and TV integrated products. With the resolution of WUXGA, it not only supports PIP technology, but also include all IC function of picture snap, process and display clock control. It integrates high speed AD converter, PLL, high reliability DVI receiver , X86 series microprocessor and LVDS converter inside. Its main e feature as below:
●High quality image zoom function
●Analog RGB signal input interface
●Intelligent input signal mode auto identification
●Integrated high performance PLL output
●High-reliable self-adaptive DVI input interface;
●4:4:4/4:2:2/CCR656/601 8/16/24bit digital video interface;
● Embedded adjustment circuit for gain contrast brightness color saturation hue and skin color; ● technology of reducing EMI power consumption efficiently;
●small angle oblique ripple process;
●High quality video process technology;
●Programmable output format;
●Embedded LVDS transmitter;
●Advanced OSD;
●Embedded micro controller
Pin Description
Pin |
Name |
Description |
|
|
9 |
Analog signal input port
L3 |
|
AVSYNC |
ADC vertical synchronization signal input |
|
L4 |
|
AHSYNC |
ADC horizontal synchronization signal input |
|
N2 |
|
VGA-SCL |
VGA lock input |
|
N1 |
|
VGA-SDA |
VGA digital input |
|
D1 D2 |
|
RED+ RED- |
Red analog signal input |
|
C3 |
|
SOG |
Green pedestal synchronization signal |
|
C1 C2 |
|
GREEN+ - |
Green analog signal input |
|
B1 B2 |
|
BLUE+ BLUE- |
Blue analog signal input |
|
A2,B3,E3,D3 |
|
ADC3.3 |
ADC3.3Vpower supply |
|
A3 A4 |
|
ADC1.8 |
ADC1.8Vpower supply |
|
A5 B4 |
|
ADC-DGND |
ADC digital ground |
|
C4 D4 E1 E2 E4 |
ADC-AGND |
ADC analog ground |
||
DVI import port |
|
|
|
|
N4 |
|
DVI-SCL |
DDC interface , serial clock signal |
|
N3 |
|
DVI-SDA |
DDC interface serial data signal |
|
A6 B6 |
|
RXC+ RXC- |
DVI clock input signal |
|
A8 A10 |
|
RX0+ RX2+ |
DVI input port |
|
B8 B10 |
|
RX0RX2- |
|
|
B11 |
|
REXT |
External interrupt resistance |
|
C6 C11 |
|
DVI-3.3 |
DVI 3.3V power supply |
|
D6 D8 D10 |
|
DVI-1.8 |
DVI 1.8V power supply |
|
A7,A11,B5,B7,C7,D7 |
|
DVI-GND |
DVI ground |
|
D11 |
|
|
|
|
Low bandwidth ADC port |
|
|
||
C13 |
|
LBADC-33 |
ADC3.3Vpower supply |
|
A12 B12 C12 |
|
LBADC_IN1 |
ADC analog input channel |
|
|
|
|
LBADC_IN3 |
|
D12 |
|
LBADC_RETURN |
Channel analog ground |
|
D13 |
|
LBADC-GND |
Power supply voltage analog ground |
|
|
|
|
|
|
OCM bus port |
|
|
|
|
AA1~AA3,Y1~Y3, |
|
OCMADDR0 |
Address input output port |
|
W1~W3,V1~V4, |
|
OCMADDR19 |
|
|
U1~U4,T1~T3 |
|
|
|
|
AB1~AB3,AC1~AC3, |
|
OCMDATA0~ |
Data input output port |
|
AD1~AD4,AE1~AE3, |
|
OCMDATA15 |
|
|
AF1~AF3 |
|
|
|
|
OCM port control signal |
|
|
||
R1 T4 P1 P2 |
|
ROM_CSn~ |
chip selection signal |
|
|
|
|
ROM_CS2n |
|
R2 |
|
OCM_REn |
Read enable signal |
|
R3 |
|
OCM_WEn |
Write enable signal |
|
L1 |
|
OCM_INT2 |
Interrupt |
|
L2 |
|
OCM_INT1 |
|
|
M1 |
|
OCM_UDO |
OCM data output |
|
M2 |
|
OCM_UDI |
OCM data input |
|
|
|
|
|
|
D25 |
|
OCM_TIMER1 |
OCM timer input |
|
|
|
|
|
|
Standard definition video |
control port |
|
||
D16 |
|
SVCLK |
SV pixels clock input |
|
C14 |
|
SVHSYNC |
SV horizon synchronization signal input |
|
B14 |
|
SVVSYNC |
SV vertical synchronization signal input |
|
A14 |
|
SVODD |
Scan status input |
|
A17 |
|
SVDV |
SV data input |
|
Standard definition video data port |
|
|||
D14,D15,A15,A16, |
|
SVDATA7~ |
SV ITU656 data input |
|
B15,B16,C15,C16 |
|
SVDATA0 |
|
10
Video Control Port
A20 |
VCLK |
Video pixels clock signal |
D19 |
VHS_CSYNC |
Video horizonl synchronization signal input |
C20 |
VVS |
Video vertical synchronization signal input |
B20 |
VODD |
Scan status input |
|
|
|
D20 |
VDV (VSOG) |
Video data input |
B17 |
VCLAMP |
Video clamp enable output |
A21,A22,A23,B21, |
VGRN7~ VGRN0 |
Green pedestal signal or Y signal input |
B22,C21,C22,D21 |
|
|
C17,C18,C19,A18 |
VRED7~ VRED0 |
Red pedestal signal or V/Cr/Pr signal input |
A19,B18,B19,D18 |
|
|
B23,B24,B25,A24 |
VBLU7~ VBLU0 |
Blue pedestal signal or U/Cb/Pb signal input |
A25,C23,C24,D24 |
|
|
Screen Control Port |
|
|
A26 |
PPWR |
Screen power control |
B26 |
PBIAS |
Screen bias control |
D26 C25 C26 |
PWM2 ~PWM0 |
Pulse width modulation output |
AC7 |
DCLK |
Pixels clock output |
AC16 |
OEXTR |
Connect external LVDS bias resistance |
|
|
|
LVDS Port |
|
|
AE14~AE16,AE19~ |
A0-~A3-, A0+~A3+ |
Low voltage difference data input |
AE23,AF13~AF16 |
B0-~B3-, B0+~B3+ |
|
AF19~AF23,AF11 |
|
|
AD14,AD11,AE13 |
LVDS_SHIELD[5] ~ |
Low voltage difference protect output |
AE11,AC11,AF10 |
LVDS_SHIELD[0] |
|
AE12,AF12, |
AC+,AC-,BC+,BC- |
Low voltage difference protect input |
AF20,AE20 |
|
|
Screen Port Power Supply |
|
|
|
|
|
AD12,AD13,AC12 |
LVDSB_3.3 |
LVDS B channel power supply |
|
|
|
AC13,AC14,AC15 |
LVDSB_GND |
B channel ground |
AC20,AC21,AC22 |
LVDSA_3.3 |
LVDS A channel power supply |
AD19,AC19,AC20 |
LVDSA_GND |
A channel ground |
AE17 |
VDDD33_LVDS |
Analog power supply |
AD17 |
VSSD33_LVDS |
Analog ground |
|
|
|
Clock Composite and |
Power Supply |
|
|
|
|
G4 |
XTAL |
Crystal oscillator interface |
|
|
|
F2 |
VDDD33_PLL |
Digital power supply |
H1 |
VDDD33_SDDS |
|
J1 |
VDDD33_DDDS |
|
|
|
|
G2 |
VSSD33_PLL |
Digital ground |
J4 |
VSSD33_SDDS |
|
K4 |
VSSD33_DDDS |
|
F4 |
VDDA33_RPLL |
Analog power supply |
G1 |
VDDA33_FPLL |
|
H3 |
VDDA33_SDDS |
|
J3 |
VDDA33_DDDS |
|
F3 |
VSSA33_RPLL |
Analog ground |
H4 |
VSSA33_FPLL |
|
H2 |
VSSA33_DDDS |
|
J2 |
VSSA33_DDDS |
|
|
|
|
G3 |
TCLK |
Reference clock signal input |
K2 |
ACS_RSET_HD |
External resistance terminal |
System Signal |
|
|
11
K1 |
RESETn |
Reset signal |
|
||
|
|
|
|
|
|
M3 M4 |
IR0 IR1 |
|
|
|
|
P4 |
MSTR_SCL |
Master clock output signal |
|
||
|
|
|
|
|
|
P3 |
MSTR_SDA |
Master data output/input signal |
|
||
|
|
|
|
|
|
R4 |
EXTCLK |
External clock input |
|
||
|
|
|
|
|
|
Frame memory interface |
|
|
|
||
U24,U23 |
|
FSCLKp,FSCLKn |
|
Differential store clock output |
|
V24,V25 |
|
FSRAS,FSCAS |
|
Address output |
|
V26 |
|
FSWE |
|
Write enable terminal |
|
W26 |
|
FSCKE |
|
Read enable terminal |
|
J24 |
|
FSVREF |
|
Reference voltage input |
|
K26 |
|
FSVREFVSS |
|
Reference voltage ground |
|
W25 |
|
FSVREF |
|
Reference voltage input |
|
W24 |
|
FSVREFVSS |
|
Reference voltage ground |
|
L26 |
|
FSDQS |
|
Data filter |
|
F24~F26,G23~G26 |
|
FSDATA31~ |
|
Data input output port |
|
H24~H26,J25,J26, |
|
FSDATA0 |
|
|
|
R24~R26,P24~P26 |
|
|
|
|
|
N23~N26,……. |
|
|
|
|
|
T24,T25,U25,U26 |
|
FSDQM3~ FSDQM0 |
|
Data output mark |
|
Y26 |
|
FSBKSEL1 |
|
Layer select address |
|
Y25 |
|
FSBKSEL0 |
|
|
|
AA24~AA26 |
|
FSADDR11~ |
|
Row and column address output |
|
AB24~AB26, |
|
FSADDR0 |
|
|
|
AC24~AC26 |
|
|
|
|
|
AD24~AD26 |
|
|
|
|
|
E23, F23, H23, J23, |
|
FS_2.5 |
|
2.5V power supply |
|
L23,M23,P23, R23, |
|
|
|
|
|
T23,V23,W23,Y23, |
|
|
|
|
|
AA23,AB23,AC23 |
|
|
|
|
|
K23 |
|
VDDA18_DLL |
|
1.8V power supply |
|
K25 |
|
VSSA18_DLL |
|
Power supply ground |
|
Digital power |
|
|
|
|
|
K10,K11,K16,K17, |
|
CORE_1.8 |
|
1.8V power supply |
|
L11,L16,T11,T16, |
|
|
|
|
|
T17,U10,U11,U16,U17 |
|
|
|
|
|
D23, W4,Y4, AA4, |
|
IO_3.3 |
|
3.3V power supply |
|
AB4,AC4,AC6,D17, |
|
|
|
|
|
D22,AC8,AC10 |
|
|
|
|
|
|
|
|
|
|
|
K12,K13,K14,K15, |
|
D_GND |
|
Power ground |
|
L10,L12,L13,L14, |
|
|
|
|
|
L15,L17,M10,M11, |
|
|
|
|
|
M12,M13 |
|
|
|
|
|
A1 AC D5 AC17 |
NO_CONNECT |
|
NC |
|
|
K3 F1 |
|
|
|
|
|
GM1501internal block Diagram |
|
|
|
12
2.5 Brief Introduction of TDA8759
TDA8759 is a triple 8-bit video converter interface. Sample rate is up to 81 Mbps .The IC can convert analog RGB signal into a 24bit RGB digital signal o, or converts analog YUV or YCbCr signal into a YUV or RGB digital. The IC supports resolutions from 480i and VGA to HDTV and XGA.
● Triple 8-bit Analog-to-Digital Converter (ADC) ●Three independent I2C selectable analog video sources ●Auto detect to interlace scan video signal
●1.8Vand 3.3Vsupplies
● Low gain temperature shift
●Output format support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 ,CCIR 656 or YUV 4:2:2 ●I²C bus control
●Programmable clock phase correct circuit inside ●100 MHz Amplifier bandwidth
●Integrated PLL distribution ●Power-Down mode

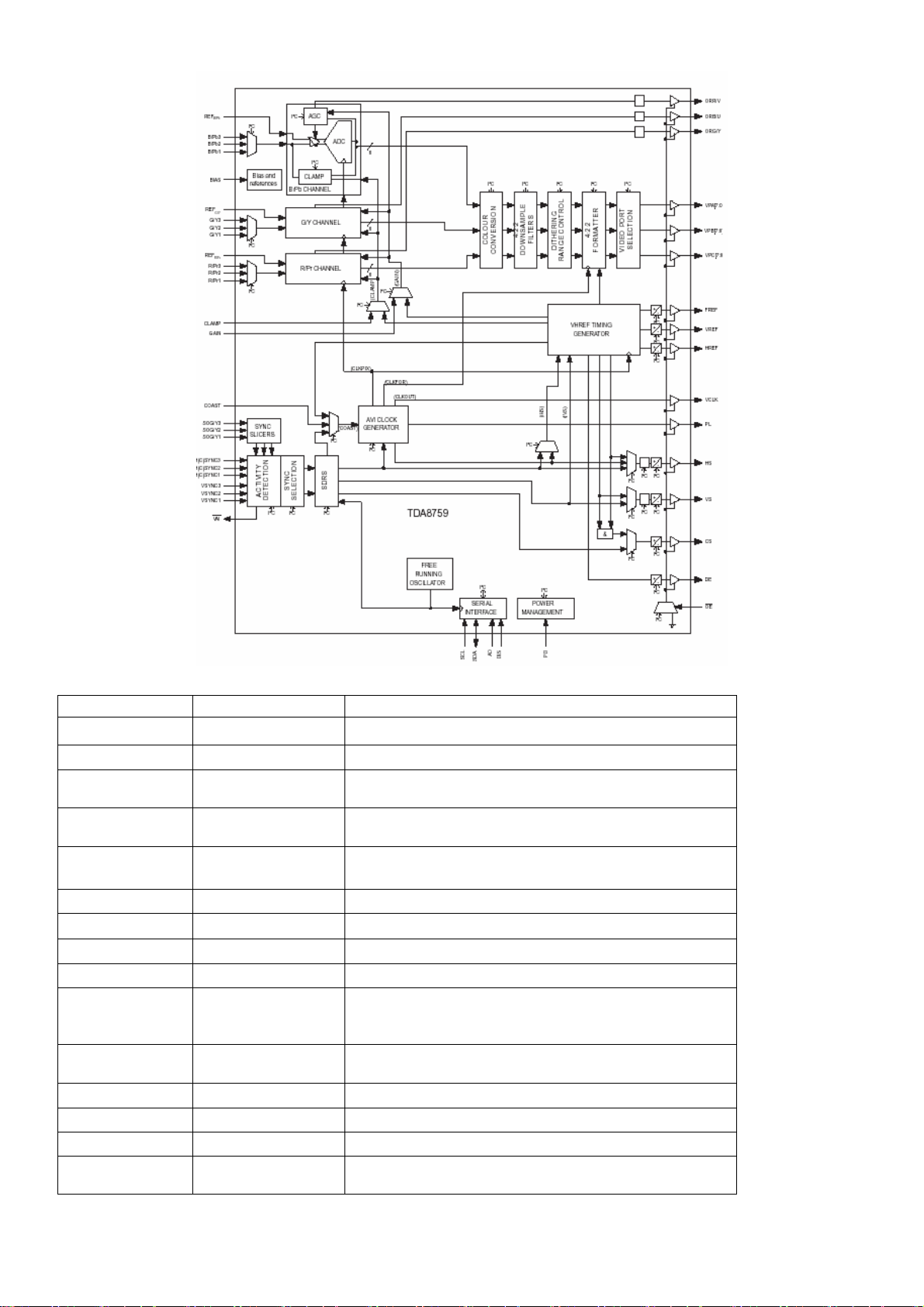

TDA8759 internal schematic Diagram
13
Pin Description
Pin |
Name |
Description |
1 |
HREF |
Horizon reference output |
|
|
|
2 |
VCLK |
Video clock output |
|
|
|
3,13,21,29, |
VDDO |
Video port output supply voltage |
37,45,164 |
|
|
4,14,22,30 |
OGND |
Video port output ground |
38,46,165 |
|
|
7 8 9 10 |
VPA0~VPA7 |
Video port A |
15 16 17 18 |
|
|
11,116,130,132 |
VDDC |
Power supply port |
12,117,159 |
CGND |
Ground |
|
|
|
23~28,31,32 |
VPB0~VPB7 |
Video port B |
|
|
|
35,36,39~44 |
VPC0~VPC7 |
Video port C |
|
|
|
47,53,57,58,55 |
AGND |
Analog ground |
60,66,70,71,75 |
|
|
81,83,85,86, |
|
|
48,54,59,61,67 |
VDDA |
Power supply port |
69,76,82,85,87,88 |
|
|
49 |
REFB/Pb |
Blue/blue-chrominance channel reference input signal |
|
|
|
52,51,50 |
B/Pb1~ B/Pb3 |
Blue/blue-chrominance channel analog input |
|
|
|
56 |
BIAS |
Bias input |
|
|
|
62 |
REFG/Y |
Green/luminance reference input |
|
|
|
|
|
14 |
65,64,63 |
G/Y1~G/Y3 |
Green/luminance analog input |
74,73,72 |
SOG/Y1~SOG/Y3 |
Sync on green//luminance input |
77 |
REFR/Pr |
Red/red-chrominance channel reference input |
|
|
|
80,79,78 |
R/Pr1~ R/Pr3 |
Red/red-chrominance channel analog input |
89~92,97~101 |
TST0~TST17 |
Reserved for test |
112,121,122, |
|
|
124,125,160~163 |
|
|
93 |
PD |
Power-down control input |
|
|
|
94 |
OE |
Output enable signal input |
|
|
|
96 |
A0 |
I²C bus address control signal input |
102 |
COAST |
PLL control signal input |
|
|
|
103 |
GAIN |
Gain input |
104 |
CLAMP |
Clamp input |
|
|
|
105~107 |
VSYNC1~VSYNC3 |
Vertical synchronization signal input |
|
|
|
108~110 |
H(C)SYNC1~ |
Horizon (color)synchronization signal input |
|
H(C)SYNC3 |
|
111 |
CKEXT |
External clock input |
|
|
|
113 |
TCLK |
Reserved for test |
|
|
|
114 |
DIS |
I²C bus disable control signal input |
118 |
SDA |
I²C bus data input/output |
|
|
|
119 |
SCL |
I²C bus clock input |
|
|
|
120,126,127,131 |
IGND |
Input digital ground |
133,142,148, |
|
|
123,138,139,145 |
VDDI |
Input digital supply voltage |
151,157 |
|
|
166 |
PL |
PLL disable signal output |
167 |
DE |
Data enable output |
168 |
HS |
Horizon synchronization signal input |
169 |
VS |
vertical synchronization signal input |
170 |
CS |
Color synchronization signal output |
171 |
ORR/V |
Red / chrominance ADC output |
172 |
ORB/U |
Blue /chrominance ADC output |
173 |
ORG/Y |
Green / chrominance ADC output |
174 |
VAI |
Video dynamic indication output |
175 |
FREF |
Scan signal output |
17 |
VREF |
Vertical reference input |
|
|
|
2. 6 TA2024 general:
The TA2024 is a 10W/ch continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath’s proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. It has below feature:
zMute control
zTemperature protect circuit
zLow noise switch
zPower supply:12V
Pin Function Descriptions
Pin(s) |
Name |
Function |
2, 3 |
DCAP2, DCAP1 |
Charge pump switching pins |
4, 9 |
V5D, V5A |
Digital 5VDC, Analog 5VDC |
5, 8, 17 |
AGND1, AGND2, AGND3 |
Analog Ground |
6 |
REF |
Internal reference voltage |
15
7 |
OVERLOADB |
A logic low output indicates the input signal |
|
|
has overloaded the amplifier |
10 14 |
OAOUT1, OAOUT2 |
Input stage output pins. |
11, 15 |
INV1, INV2 |
Single-ended inputs |
12 |
MUTE |
Mute control |
16 |
BIASCAP |
Input stage bias voltage |
18 |
SLEEP |
Sleep mode control |
19 |
FAULT |
A logic high output indicates thermal |
|
|
overload |
20, 35 |
PGND2, PGND1 |
Power Grounds (high current) |
22 |
DGND |
Digital Ground |
24, 27; 31, 28 |
OUTP2 & OUTM2; OUTP1 |
Bridged outputs |
|
& OUTM1 |
|
25, 26, 29, 30 |
VDD2, VDD2 VDD1, |
Supply pins for high current H-bridges, |
|
VDD1 |
nominally 12VDC. |
13, 21, 23, 32, 34 |
NC |
Not connected |
33 |
VDDA |
Analog 12VDC |
36 |
CPUMP |
Charge pump output |
1 |
5VGEN |
Regulated 5VDC source used to supply |
|
|
power to the input section (pins 4 and 9). |
TA2024 Block Diagram |
|
16
2.7 Brief Introduction to SM5302AS
The SM5302AS is a 3-channel video buffer with built-in 5th -order low pass filter. The cutoff frequency, signal input type, and output gain switching can be controlled using a IIC control bus, and the IIC slave address can be set by ADS(3-state input) to allow a maximum of three devices to be used simultaneous.
FEATUES:
●supply voltage analog:4.75V~5.25V; digital:3.0~5.5V
●2-system input multiplexer function(switchable using IIC or MUXSEL input)
●Filter bypass mode function for display specifications up to SVGA resolution.
●Video input pins can be independently set to sync-tip clamp/bias/direct input.
●Output gain switching: 0/6dB
●Output sag compensation circuit built-in.
● Half fc mode switch function(CH-2,CH-3) suitable for digital component signals.
17
● IIC interface control: slave address:90h,92h or 94h(up to three devices can be used simultaneously,selected by ADS input); data transfer rate: fast mode(up to 400kbps)
● Cutoff frequency:4.8 to 43MHz variable

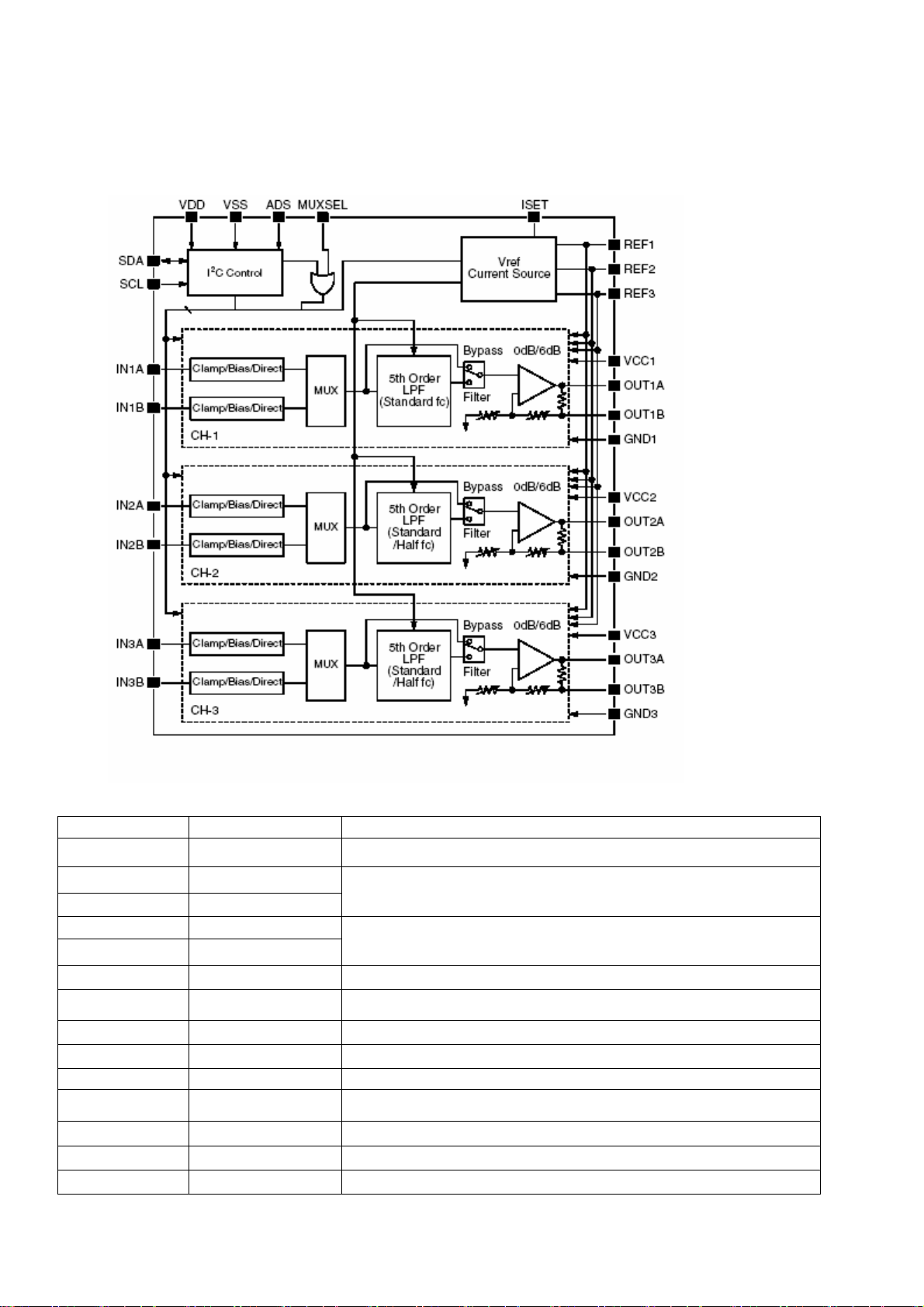

SM5302AS Internal Diagram
Pin Description
Pin |
Name |
Description |
|
1 |
REF1 |
Internal reference voltage 1 |
|
|
|
|
|
2 |
VDD |
Digital supply(3.0~5.5V). |
|
|
|
IIC data signal input/output |
|
3 |
SDA |
||
|
|||
4 |
SCL |
IIC clock signal input |
|
|
|
Digital ground |
|
5 |
Vss |
||
|
|
|
|
6 |
MUXSEL |
Input multiplexer switch control |
|
7 |
ADS |
IIC slave address select(three state input) |
|
|
|
|
|
8 |
IN1A |
Video signal input 1(CH-1, input A) |
|
|
|
|
|
9 |
IN1B |
Video signal input 1(CH-1, input B) |
|
10 |
ISET |
Internal current-setting resistor(Riset) connection(1.8KΩ) |
|
11 |
IN2A |
Video signal input 1(CH-2, input A) |
|
|
|
|
|
12 |
IN2B |
Video signal input 1(CH-2, input B) |
|
|
|
|
|
13 |
IN3A |
Video signal input 1(CH-3, input A) |
|
|
|
|
|
14 |
IN3B |
Video signal input 1(CH-3, input B) |
18
15 |
GND3 |
Analog ground(CH-3) |
|
16 |
Out3B |
Video signal output(CH-3,for sag compensation) |
|
|
|
|
|
17 |
Out3A |
Video signal output(CH-3) |
|
|
|
|
|
18 |
VCC3 |
Analog supply(CH-3)(4.75 to 5.25V). |
|
|
|
Analog ground(CH-2) |
|
19 |
GND2 |
||
|
|||
|
|
|
|
20 |
Out2B |
Video signal output(CH-2,for sag compensation) |
|
21 |
Out2A |
Video signal output(CH-2) |
|
22 |
VCC2 |
Analog supply(CH-2)(4.75 to 5.25V). |
|
23 |
GND1 |
Analog ground(CH-1, Vref) |
|
24 |
Out1B |
Video signal output(CH-1,for sag compensation) |
|
25 |
Out1A |
Video signal output(CH-1) |
|
26 |
VCC1 |
Analog supply(CH-1,Vref)(4.75 to 5.25V). |
|
27 |
REF3 |
Internal reference voltage 3 |
|
28 |
REF2 |
Internal reference voltage 2 |
2.8. Brief Introduction to SAA7115
The SAA7115 is a video capture device for various applications ranging from small screen products like e.g. digital set top boxes, personal video recording applications to big screen devices like e.g. LCD projectors due to it’s improved comb filter performance and 10 bit video output capabilities.
●Six analog inputs, internal analog source selectors;
●Two improved 9 Bit CMOS analog-to-digital converter in differential CMOS style; ●Automatic Clamp Control (ACC) for CVBS, Y and C;
●Enhanced Horizontal and vertical Sync Detection; ●PAL delay line for correcting PAL phase errors; ●Automatic TV/VCR detection;

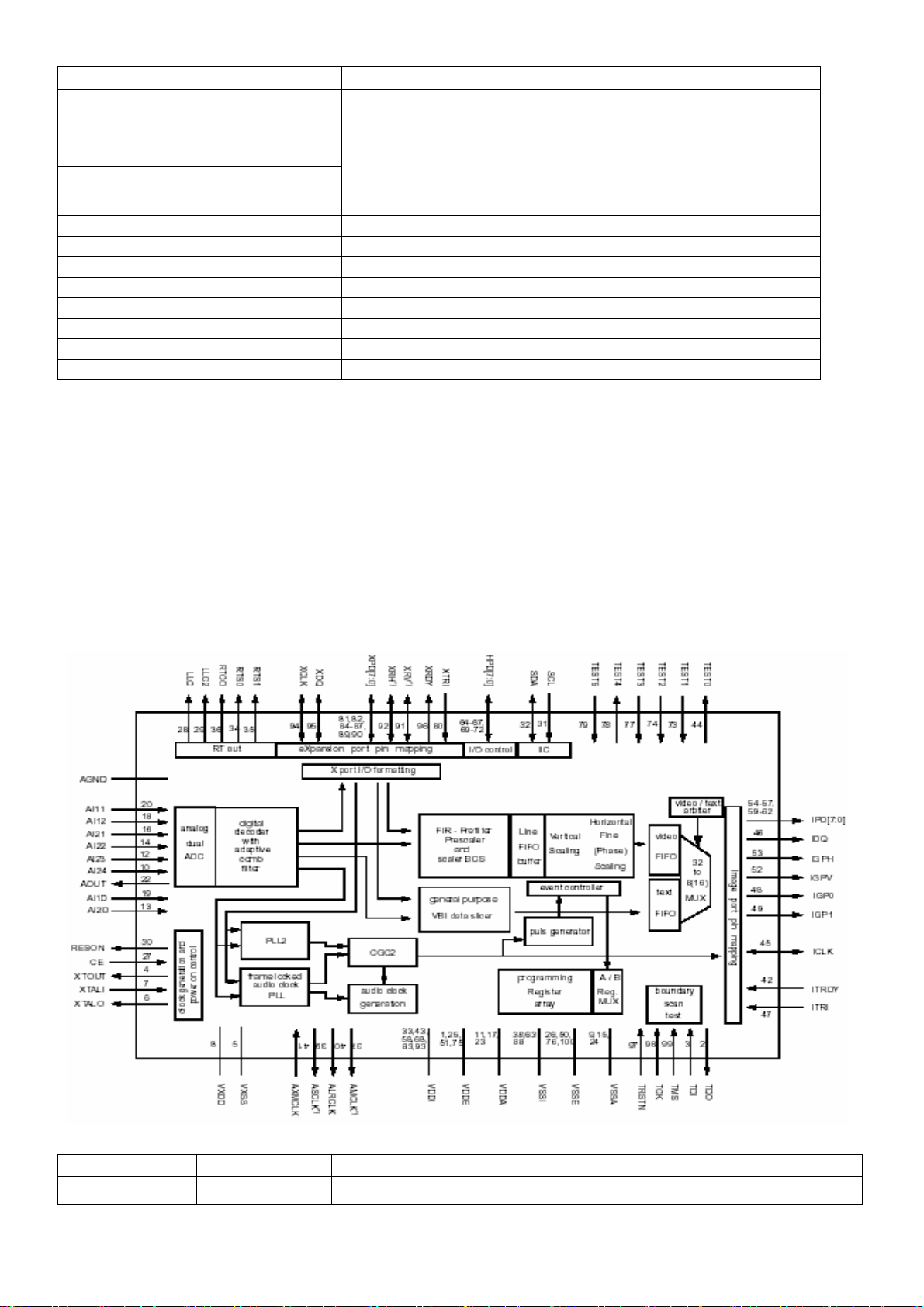

SAA7115 Internal Diagram
Pin Function |
|
|
|
Pin |
|
Name |
Description |
1,8,11,17,23,25,33 |
VDD |
|
Supply voltage port |
|
|
|
|
19
