Page 1
Project
Item No.
Quantity
MODEL 84 RACK CONVEYOR
STANDARD FEATURES
• ENERGY STAR® Qualified
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper & lower
spray arm assemblies
• Internal removable scrap baskets and
two-piece scrap screens
• Standard vertical opening accommodates
18” x 26” sheet pans
• Wide 26” leakproof doors, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Wash/rinse pump 3 Hp motors
• Stainless steel pump and impeller
• Single-point electric connection
MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl and
Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 84 high
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and measuring
84” long with 20-3/4” vertical opening. Features top
mounted control cabinet; upper and lower one-piece
stainless steel spray arm assemblies, removable internal
scrap baskets with two-piece scrap screens. Large 26”
front access doors with double-hook safety latch. Antijam conveyor drive system.
1 year parts and labor warranty.
Champion Industries, Inc.
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(3M) 9/06 Printed in U.S.A.
CH078
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Page 2
EFFICIENT NEW
SPRAY SYSTEM DESIGN
To make the E-Series more efficient and
more forgiving we designed a new spray
arm system that includes:
• Wall-of-water spray pattern via stainless
steel fluted directional spray jets for
quick and efficient washing
• Easily removable spray arm assembly
for ease of cleaning
• Stainless steel pump housing
and impeller
• Larger tanks hold more water for better
washing results
Wall-of-Water Spray Pattern
MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine
One-Piece Cast Stainless Steel
Spray Assembly
INTEGRATED
BOOSTER HEATER
As well as the E-Series performs, we
created a way to make it perform even
better. The electric booster heater may
be optional, but it is an exceptional value
— engineered within the E-Series footprint
to offer a variety of advantages over other
booster designs, such as:
• Inter-plumbed and inter-wired
• One control shuts off washer and
booster
• 15 kW for 40°F rise
• 24 kW for 70°F rise
• Conductive heat transfer to wash tank
• Stainless steel booster heater lasts
the life of the machine
• Integrated design saves floor space
Large Heating Element
Stainless Steel
Built-in Nested Booster
www.championindustries.com
Two-Piece Scrap Screen
Built-in Scrap Basket
Page 3
MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine

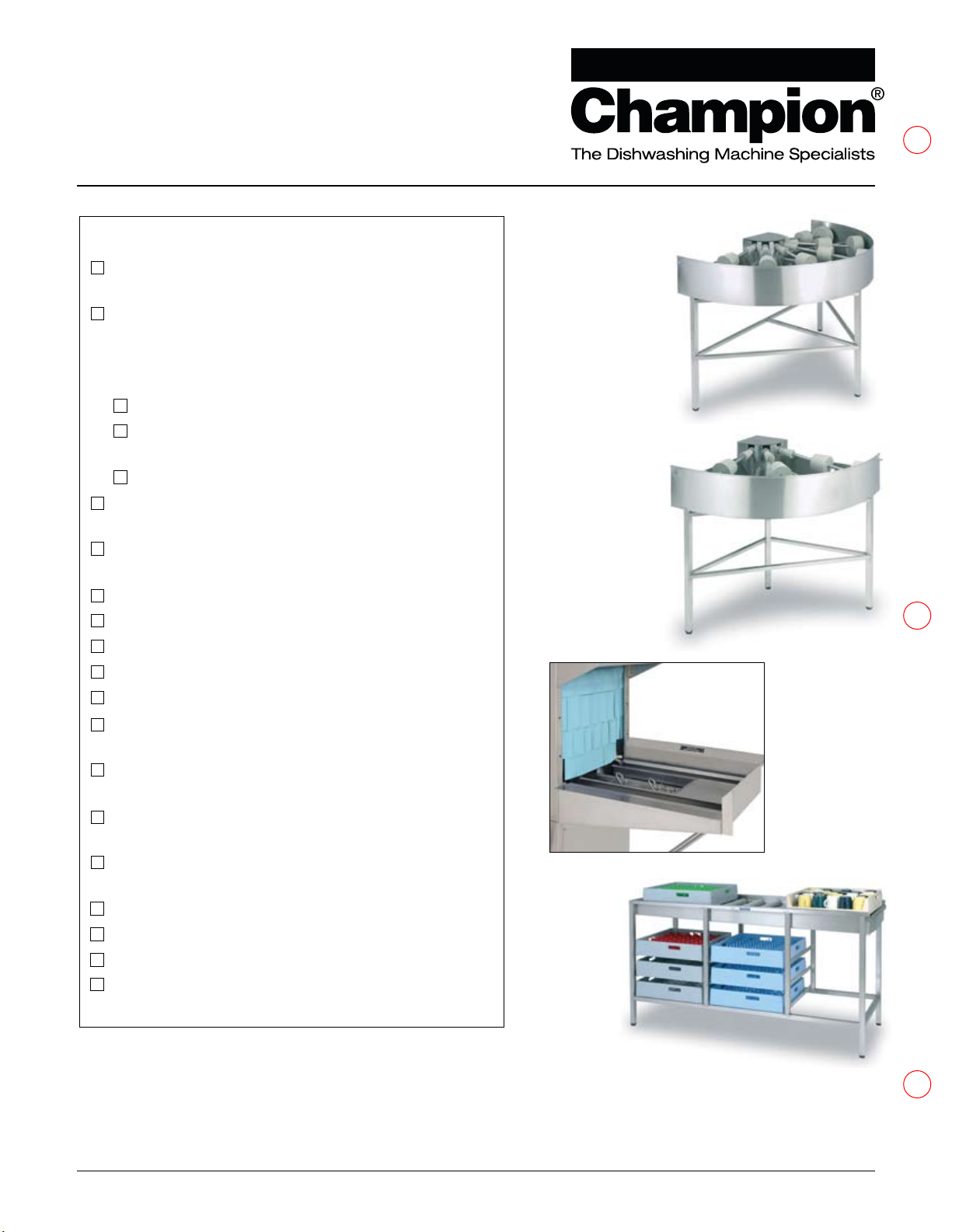

OPTIONS & ACCESSORIES
Tank heat: choice of steam coil, steam injector,
hot water coil
Blower-dryer with 60” hood, table, legs and
cradle assembly
Booster Heaters
(completely interplumbed, controls are interwired)
MODEL 84 RACK CONVEYOR
Steam: 40°F – 70°F rise
Electric:15 kW (40°F rise only)
(built-in 3 phase only)
Electric: 24 kW (70°F max. rise) (3 phase only)
Cantilever sideloader (with or without hood) for
90° load operation
Extended pawl bar (extended drive unit) for use with
load tabling
90° Motorized rack curve (unload)
180° Motorized rack curve (unload)
Racks: peg or flat racks (specify type)
Roller conveyor table (mobile or stationary)
Steam pressure regulating valve (unmounted)
Table limit switch, unmounted (recommended on all
rack conveyor installations)
Vent cowl, stainless steel with 7” stack and
locking damper
Extended Vent hood, stainless steel with 7” stack and
locking damper
Water pressure regulating valve (unmounted)
(standard with booster)
Vent fan control
Water hammer kit
Drain temp kit
Vertical clearance through machine: 24”
(instead of standard 20-3/4”) for large ware
Model MRC 180
180° Motorized
Rack Curve
(Must be ordered with Roller
Conveyor Table)
Model MRC 90
90° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
Cantilever
Sideloader
(No hood)
Model RCT 64
or RCT 84
Roller
Conveyor Table
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Page 4

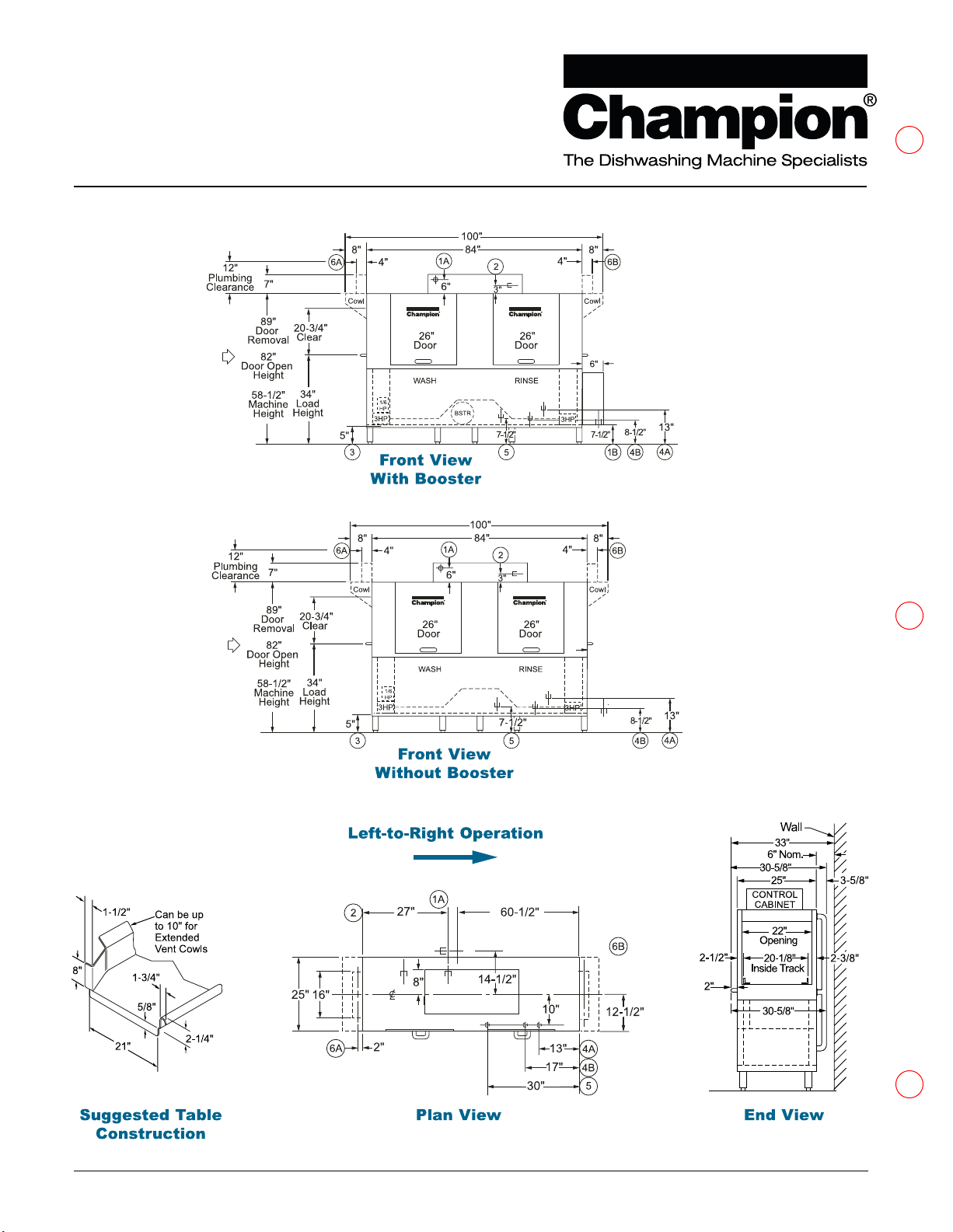

MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Page 5

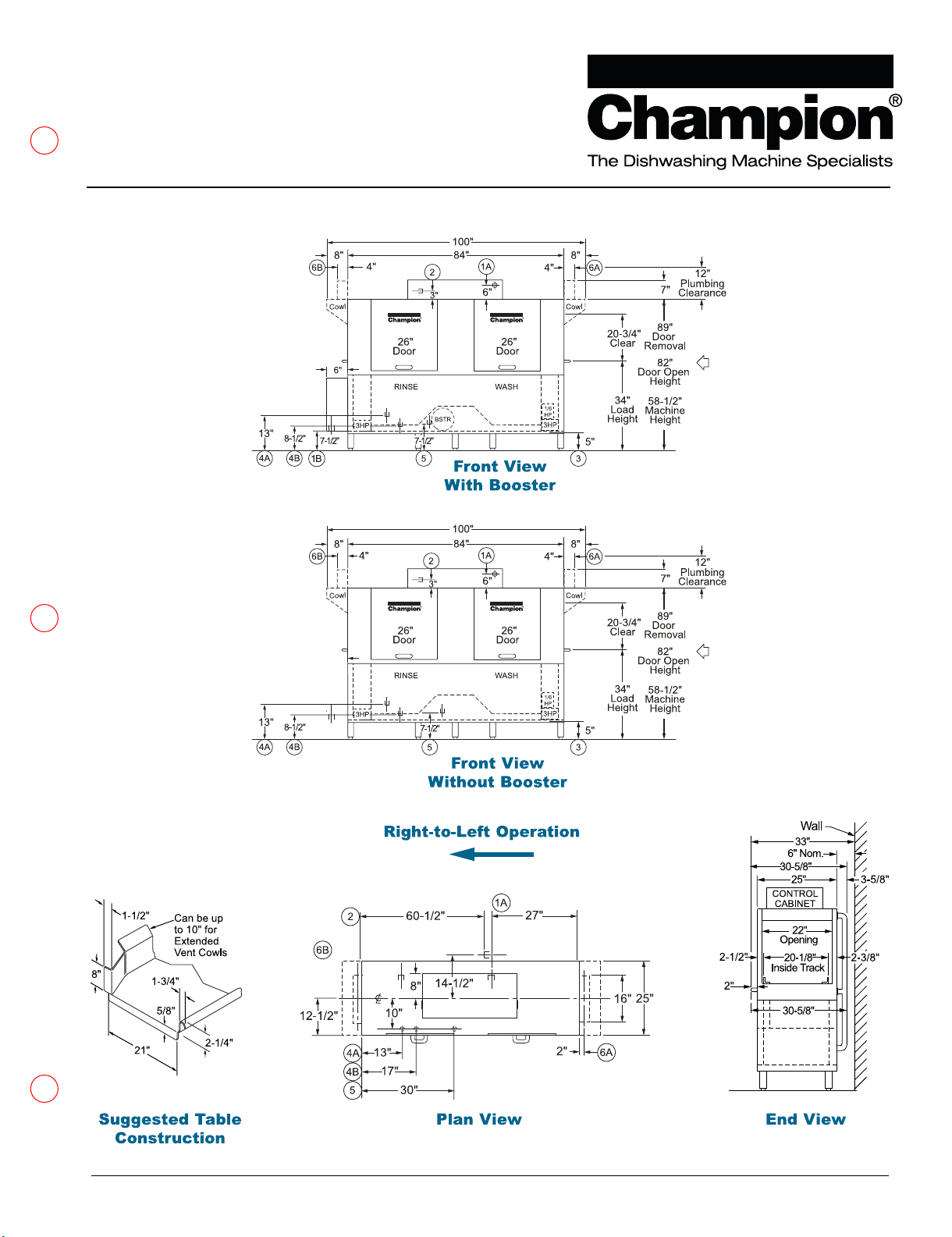

MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine
Dimensions shown in inches
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Page 6
MODEL 84
84” Two Tank
High-Temperature
Rack Conveyor Dishwashing Machine
Volume crated: 130 cu. ft.
Shipping weight crated: 850 lbs.
Utilities
1 Electrical
A Machine connection (see Table A)
B Booster connection (see Table B)
2 Hot Water
3/4” NPT 180°F/82°C min. hot water
connection. (Machine without booster.)
3/4” NPT 140°F/60°C min. hot water
connection. (40°F/22°C rise booster)
3/4” NPT 110°F/49°C min. hot water
connection. (70°F/39°C rise booster)
Flow pressure 20-22 psi.
3 Drain
1-1/2” NPT machine connection.
Maximum flow 15 gpm.
4 Steam
A 3/4” NPT machine connection.
Flow pressure 15-30 PSI. (Steam coil)
B 3/4” NPT machine connection.
Flow pressure 15-30 PSI. (Steam
injector)
5 Condensate (no back pressure)
1/2” NPT machine return to boiler
6 Vents
A Load end: 200 CFM @ 1/4” S.P.
B Unload end: 400 CFM @ 1/4” S.P.
(With blower-dryer increase room
ventilation by 600 CFM.)
TABLE A MACHINE CONNECTION
Machine only
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 162 200 200
240/60/1 142 175 175
208/60/3 90 110 110
240/60/3 80 100 100
480/60/3 40 50 50
575/60/3 31 40 40
Minimum Maximum
Dimensions shown in inches
TABLE B BOOSTER CONNECTION
SPECIFICATIONS
40°F/22°C Rise – 15kW
Electric built-in booster (booster only)
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/3 42 50 50
240/60/3 36 45 45
480/60/3 18 25 25
575/60/3 15 20 20
70°F/39°C Rise – 24kW
Electric built-in booster (booster only)
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/3 67 80 80
240/60/3 58 70 70
480/60/3 29 35 35
575/60/3 24 30 30
Machine and steam built-in booster
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 32 40 40
240/60/1 29 40 40
208/60/3 15 20 20
240/60/3 14 20 20
480/60/3 7 15 15
Minimum Maximum
Minimum Maximum
Minimum Maximum
Warning: Plumbing and electrical connections should be made by qualified personnel who will
observe all the applicable plumbing, sanitary, safety codes and the National Electrical Code.
Note: Water Hammer Arrestor (meeting ASSE-1010 standard or equivalent) to be supplied (by
others) in common water supply line at service connection.
Plumbing Notes: Because of the variation in house-supplied steam and water pressures, steam
and water pressure regulating valves (PRVs) may be needed. (Water PRV is standard on machines with
booster.) The PRVs can either be purchased from Champion or obtained locally.
Venting Notes: Fabricated duct size: 3-7/8” x 15-7/8” (Outside dimensions)
Capacity
Racks per hr. (NSF rated) 356
Wash tank (US gal.) 21
Conveyor speed (ft/min.) 9.9
Motor Horsepower
Drive 1/6
Wash 3
Rinse 3
Water Consumption
US Gal. per hr. (max. use) 131
US Gal. per rack .37
Heating
Tank Heat, electric (kW) 25
Tank heat, steam
(lbs/hr. required at
15 PSI flow pressure) 75
Electric booster (built-in)
(kW supplied for 40°F rise) 15
Electric booster
(kW supplied for 70°F rise) 24
Steam booster (lbs./hr.
required for 40°F rise) 75
Steam booster (lbs./hr.
required for 70°F rise) 120
Venting
Load end (minimum CFM) 200
Unload end (minimum CFM) 400
Standard 20” x 20”
rack complement
Peg 2
Flat 1
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
