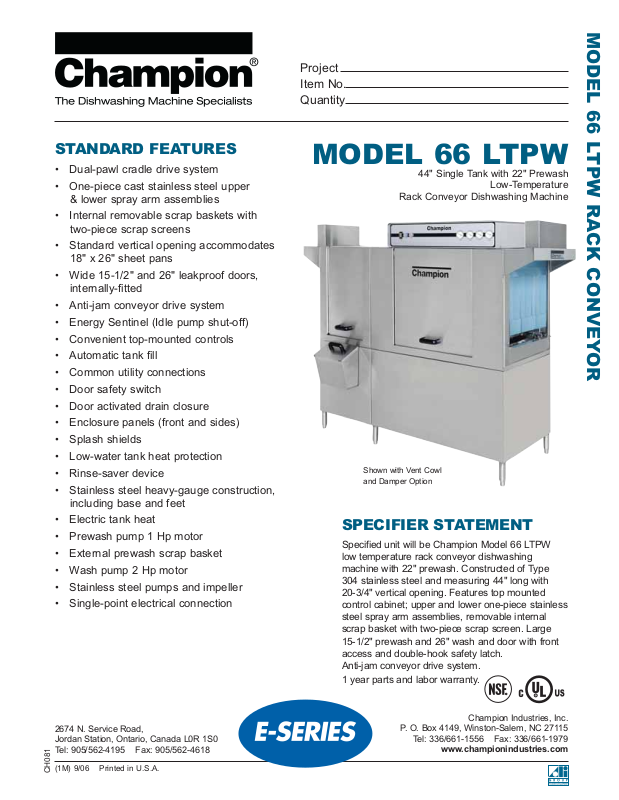

Page 1
(1M) 9/06 Printed in U.S.A.
CH081

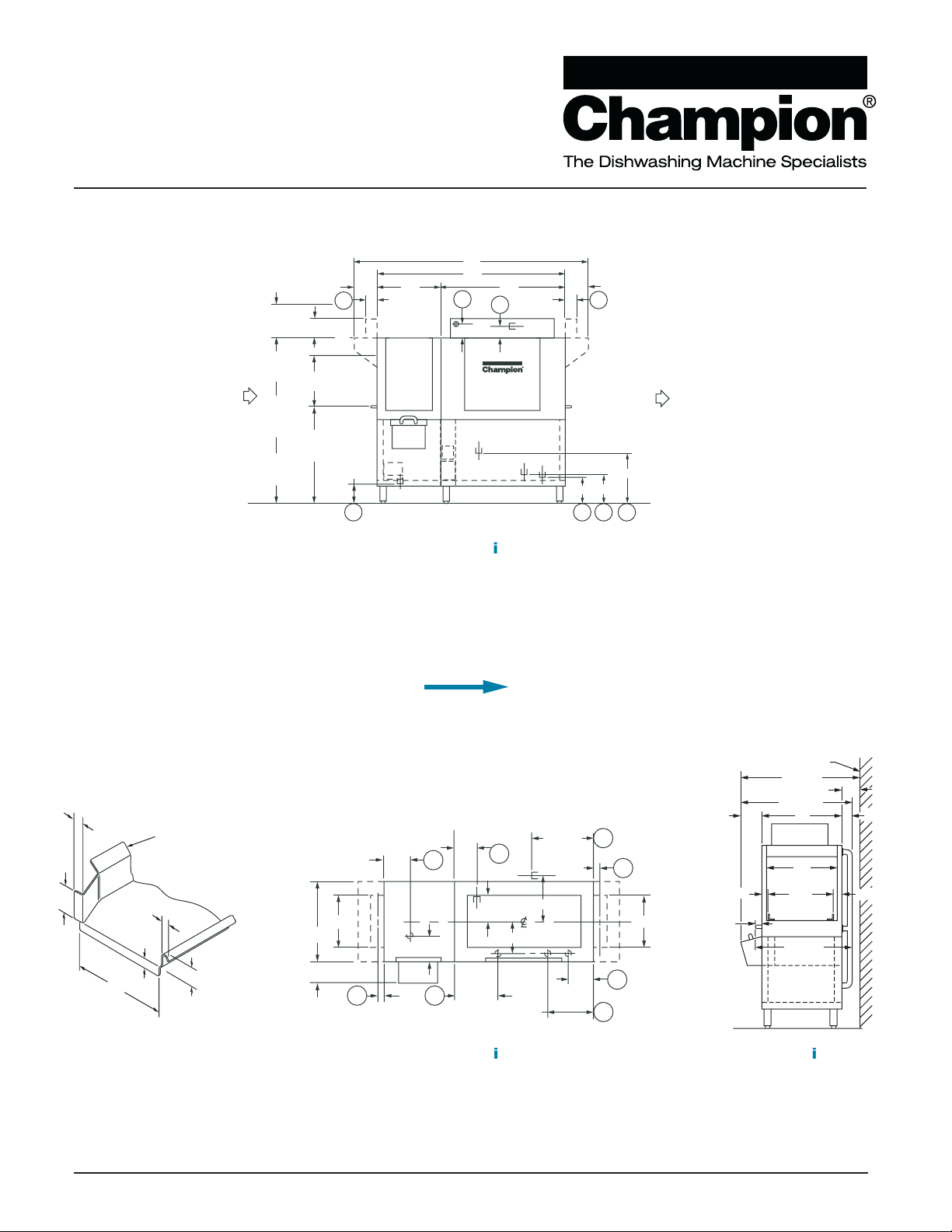

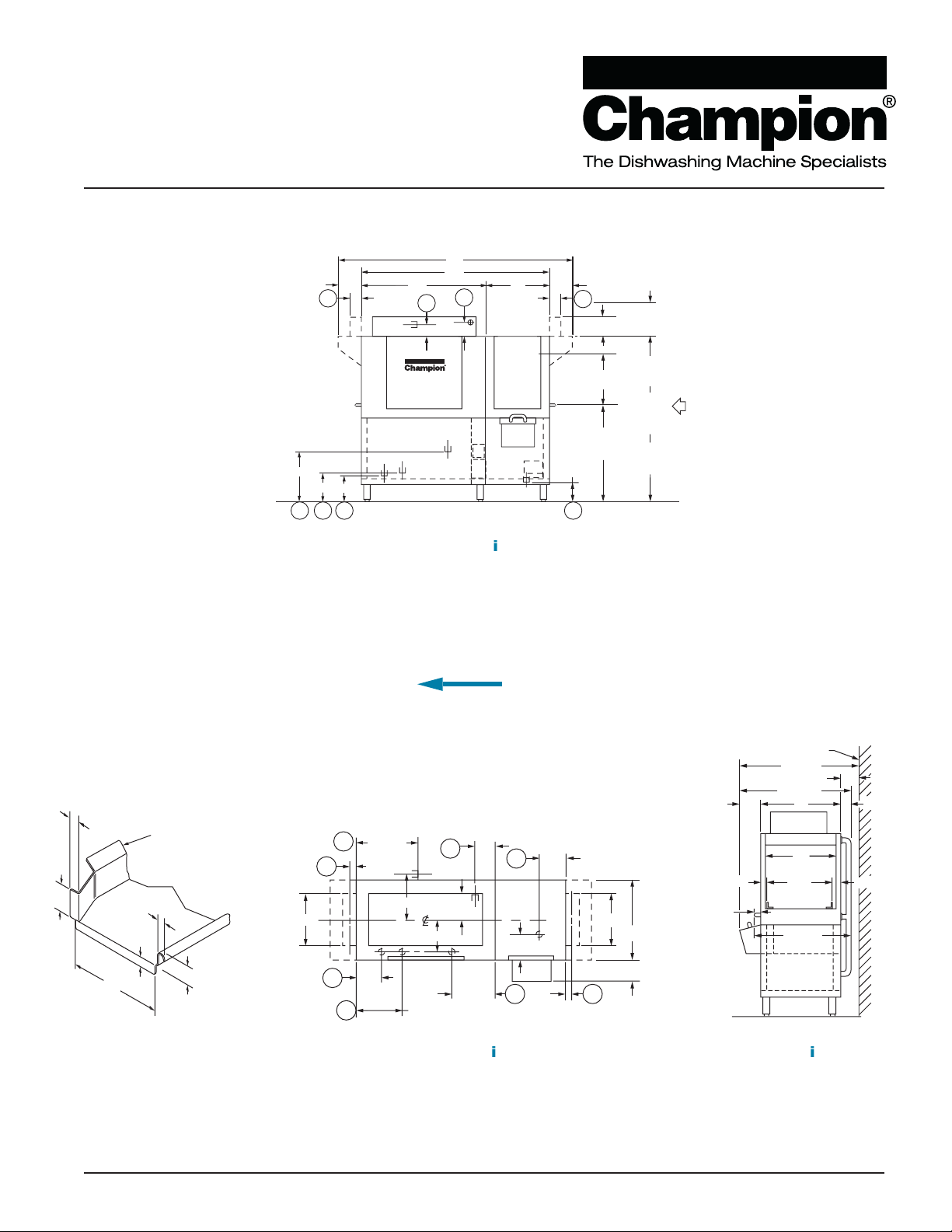

44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
MODEL 66 LTPW RACK CONVEYOR
SPECIFIER STATEMENT
Specified unit will be Champion Model 66 LTPW
low temperature rack conveyor dishwashing
machine with 22" prewash. Constructed of Type
304 stainless steel and measuring 44" long with
20-3/4" vertical opening. Features top mounted
control cabinet; upper and lower one-piece stainless
steel spray arm assemblies, removable internal
scrap basket with two-piece scrap screen. Large
15-1/2" prewash and 26" wash and door with front
access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
Shown with Vent Cowl
and Damper Option
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
STANDARD FEATURES
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap baskets with
two-piece scrap screens
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 15-1/2" and 26" leakproof doors,
internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Prewash pump 1 Hp motor
• External prewash scrap basket
• Wash pump 2 Hp motor
• Stainless steel pumps and impeller
• Single-point electrical connection
Project
Item No.
Quantity
Page 2
44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
Wall-of-Water Spray Pattern
Built-in Scrap Basket
Large Heating Element
Two-Piece Scrap Screen
One-Piece Cast Stainless
Steel Spray Assembly
EFFICIENT NEW
SPRAY SYSTEM DESIGN
To make the E-Series more efficient and
more forgiving we designed a new spray
arm system that includes:
• Wall-of-water spray pattern via
stainless steel fluted directional
spray jets for quick and efficient
washing
• Easily removable spray arm
assembly for ease of cleaning
• Stainless steel pump housing
and impeller
• Larger tanks hold more water for
better washing results
www.championindustries.com
Page 3
a
tion
5
t
dew
d
strion
new
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
12"
Plumbing
Clearance
89"
Door
Removal
82"
Door
Open
Height
58-1/2"
Machine
Height
7"
20-3/4"
Clear
34"
Load
Height
8"
6A
4"
Cowl
15-1/2"
Door
PRE
WASH
1HP
5"
35
2HP
1A
5"
1/6
HP
82"
66"
26" Door
44"22"
2
3"
WAS H
8"
4"
Cowl
6B
17-1/2"
10"
9"
4B
n
Left-to-RightOper
Wall
38-1/2"
6" Nom.
36-1/8"
1-1/2"
8"
21"
1-3/4"
5/8"
Can be up
to 10"
2-1/4"
25"
7-1/2"
6-1/2"
16"
6A
3A
6"
8"
8"
13-3/4"
1A
10"
34-3/4"
14-1/2"
2"
8"
2
6B
16"
4A
4B
7-1/2"
2-1/2"
2"
25"
CONTROL
CABINET
22"
Opening
20-1/8"
Ins. Track
30-5/8"
3-5/8"
2-3/8"
ugeste
ble
Pla
En
n
Page 4
on
"
t
dew
d
strion
new
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
82"
66"
44" 22"
26" Door
2
3"
WAS H
1A
5"
17-1/2"
5
6B
10"
4B 4A
8"
4"
Cowl
9"
2HP
8"
6A
4"
Cowl
5"
20-3/4"
Clear
Load
Height
15-1/2"
Door
PRE
WASH
1/6
HP
1HP
7"
34"
12"
Plumbing
Clearance
89"
Door
Removal
82"
Door
Open
Height
58-1/2"
Machine
Height
n
Right-to-LeftOper
1-1/2"
8"
21"
1-3/4"
5/8"
Can be up
to 10"
2-1/4"
16"
6B
4A
2
4B
34-3/4"
2"
8"
14-1/2"
14-1/2
10"
1A
8"
13-3/4"
8"
3A
i
Wall
38-1/2"
6" Nom.
36-1/8"
7-1/2"
6-1/2"
2-1/2"
16"
6"
25"
2"
25"
CONTROL
CABINET
22"
Opening
20-1/8"
Ins. Track
30-5/8"
7-1/2"
A
3-5/8"
2-3/8"
ugeste
ble
Pla
En
n
Page 5
Volume crated: 130 cu. ft.
Shipping weight crated: 800 lbs.
Dimensions shown in inches
Warning: Plumbing and electrical connections should be made by qualified personnel who will
observe all the applicable plumbing, sanitary, safety codes and the National Electrical Code.
Note: Water Hammer Arrestor (meeting ASSE-1010 standard or equivalent) to be supplied
(by others) in common water supply line at service connection.
Plumbing Notes: Because of the variation in house-supplied steam and water pressures, steam
and water pressure regulating valves (PRVs) may be needed. The PRVs can be purchased from
Champion or obtained locally.
Venting Notes: Fabricated duct size: 3-7/8" x 15-7/8" (Outside dimensions)
Caution: Silver, aluminum and pewter are attacked by sodium hypochlorite (liquid bleach).
Champion low-temperature dishwashing machines are designed for liquid bleach solutions not
exceeding 50 ppm.
Machine only
Minimum Maximum
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 77 100 100
240/60/1 68 90 90
208/60/3 43 60 60
240/60/3 37 45 45
480/60/3 18 25 25
575/60/3 14 20 20
Steam or Hot Water Heat
Minimum Maximum
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 25 35 35
240/60/1 22 30 30
208/60/3 13 20 20
240/60/3 11 15 15
480/60/3 6 15 15
575/60/3 5 15 15
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Utilities
1 Electrical
Machine connection (see Table)
2 Hot Water
3/4" NPT 140°F/60°C min. hot water
connection. Flow pressure 20-22 psi.
3 Drain
1-1/2" NPT machine connection.
Maximum flow 15 gpm.
4 Steam
A 3/4" NPT machine connection.
Flow pressure 15-30 PSI. (Steam coil)
B 3/4" NPT machine connection.
Flow pressure 15-30 PSI.
(Steam injector)
5 Condensate
1/2" NPT machine return to boiler
6 Vents (when required)
A Load end: 200 CFM @ 1/4" S.P.
B Unload end: 400 CFM @ 1/4" S.P.
(With blower-dryer increase room
ventilation by 600 CFM.)
44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
SPECIFICATIONS
Capacity
Racks per hr. (NSF rated) 180
Wash tank (gal.) 20
Conveyor speed (ft./min.) 5
Motor Horsepower
Drive 1/6
Wash 2
Prewash 1
Water Consumption
Gal. per hr. (max. use) 278
Gal. per rack 1.54
Temperatures °F
Wash 120
Final Rinse 140
Heating
Tank heat, electric (kW) 15
Tank heat, steam (lbs./hr
required at 15 psi flow
pressure) 75
Standard 20" x 20"
rack complement
Peg 2
Flat 1
Page 6
44" Single Tank with 22" Prewash
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 66 LTPW
MODEL 66 LTPW RACK CONVEYOR
OPTIONS & ACCESSORIES
Tank heat: choice of steam coils or steam injector
Blower-dryer with 60" hood, table, legs and
cradle assembly
Cantilever sideloader (with or without hood) for 90°
load operation
Extended pawl bar (extended drive unit) for use
with load tabling
90° Motorized rack curve (unload)
180° Motorized rack curve (unload)
Racks: peg or flat racks (specify type)
Roller conveyor table (mobile or stationary)
Steam pressure regulating valve (unmounted)
Table limit switch, unmounted
(recommended on all rack conveyor installations)
Vent cowl, stainless steel with 7" stack and
locking damper
Extended Vent hood, stainless steel with 7" stack
and locking damper
Water pressure regulating valve (unmounted)
Vent fan control
Water hammer kit
Drain temp kit
Vertical clearance through machine: 24"
(instead of standard 20-3/4") for large ware
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618

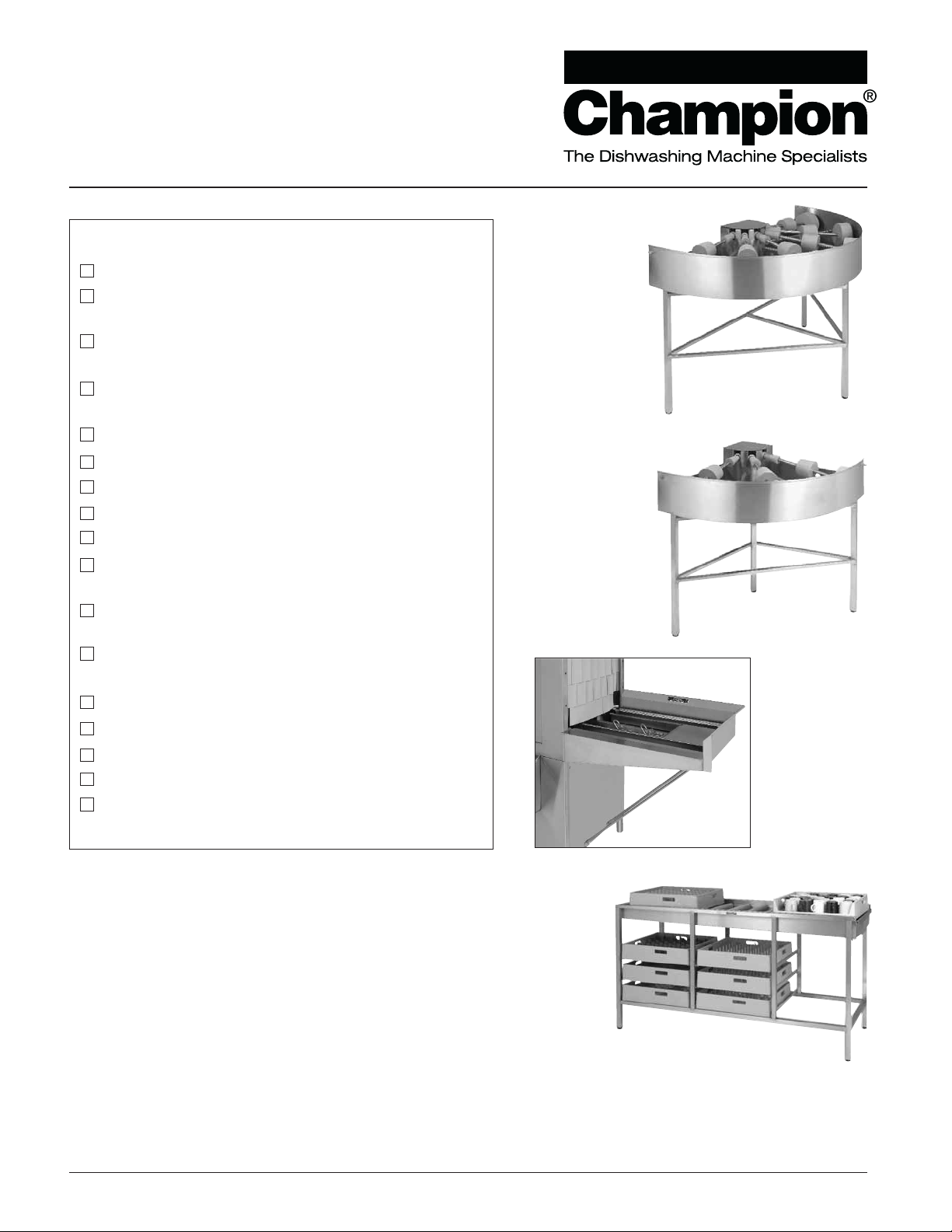

Model MRC 90
90° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
Model RCT 64
or RCT 84
Roller
Conveyor Table
Cantilever
Sideloader
(No hood)
Model MRC 180
180° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
