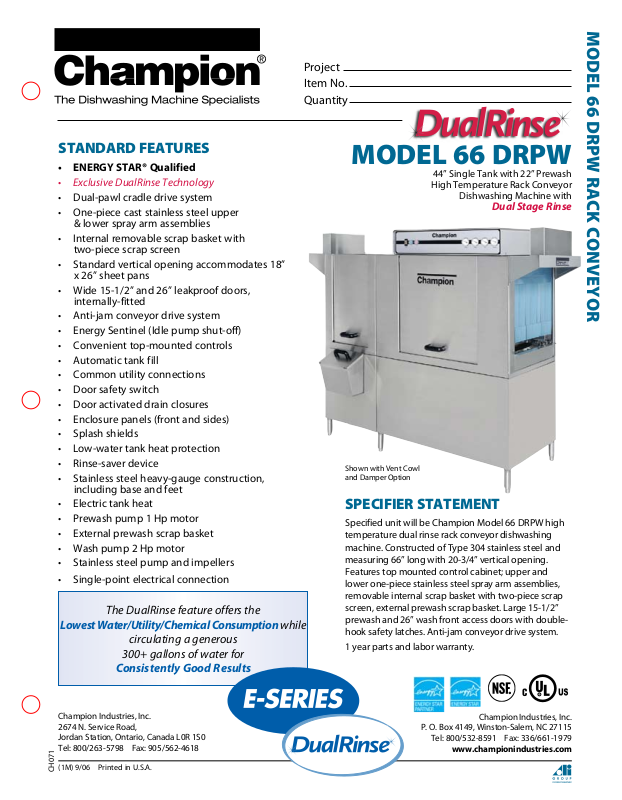

Page 1
STANDARD FEATURES
• ENERGY STAR® Qualified
• Exclusive DualRinse Technology
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap basket with
two-piece scrap screen
• Standard vertical opening accommodates 18”
x 26” sheet pans
• Wide 15-1/2” and 26” leakproof doors,
internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closures
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Prewash pump 1 Hp motor
• External prewash scrap basket
• Wash pump 2 Hp motor
• Stainless steel pump and impellers
• Single-point electrical connection
The DualRinse feature offers the
Lowest Water/Utility/Chemical Consumption while
circulating a generous
300+ gallons of water for
Consistently Good Results
MODEL 66 DRPW RACK CONVEYOR
Project
Item No.
Quantity
MODEL 66 DRPW
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 66 DRPW high
temperature dual rinse rack conveyor dishwashing
machine. Constructed of Type 304 stainless steel and
measuring 66” long with 20-3/4” vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm assemblies,
removable internal scrap basket with two-piece scrap
screen, external prewash scrap basket. Large 15-1/2”
prewash and 26” wash front access doors with doublehook safety latches. Anti-jam conveyor drive system.
1 year parts and labor warranty.
Champion Industries, Inc.
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 800/263-5798 Fax: 905/562-4618
(1M) 9/06 Printed in U.S.A.
CH071
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 800/532-8591 Fax: 336/661-1979
www.championindustries.com
Page 2
EFFICIENT NEW
SPRAY SYSTEM DESIGN
To make the E-Series more efficient and more
forgiving we designed a new spray arm system
that includes:
• Wall-of-water spray pattern via stainless
steel fluted directional spray jets for quick
and efficient washing
• Easily removable spray arm assembly for
ease of cleaning
• Stainless steel pump housing
and impeller
• Larger tanks hold more water for better
washing results
MODEL 66 DRPW
Wall-of-Water Spray Pattern
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
One-Piece Cast Stainless Steel
Spray Assembly
INTEGRATED
BOOSTER HEATER
As well as the E-Series performs, we created
a way to make it perform even better. The
electric booster heater may be optional,
but it is an exceptional value — engineered
within the E-Series footprint to offer a variety
of advantages over other booster designs,
such as:
• Inter-plumbed and inter-wired
• One control shuts off washer and booster
• 12 kW for 40°F rise
• 22 kW for 70°F rise
• Conductive heat transfer to wash tank
• Stainless steel booster heater lasts
the life of the machine
• Integrated design saves floor space
Large Heating Element
Two-Piece Scrap Screen
Stainless Steel
Built-in Nested Booster
Built-in Scrap Basket
LESS IS MORE WITH CHAMPION’S DUAL RINSE MODEL 66 DRPW
Check our NSF listings and you’ll see the 44 DR offers the lowest water consumption in its class with less than .54 US gallons per
rack. Water consumption this low means energy savings too. Our 40°F rise booster only requires 12 kW
and 70°F rise is only 22 kW.
What the numbers don’t show you is the advantage that our Dual Rinse technology provides by making sure all wares are
fully rinsed with more than 300 gallons per hour while actual fresh water consumption is only 112 gallons per hour.
www.championindustries.com
Page 3
MODEL 66 DRPW
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse

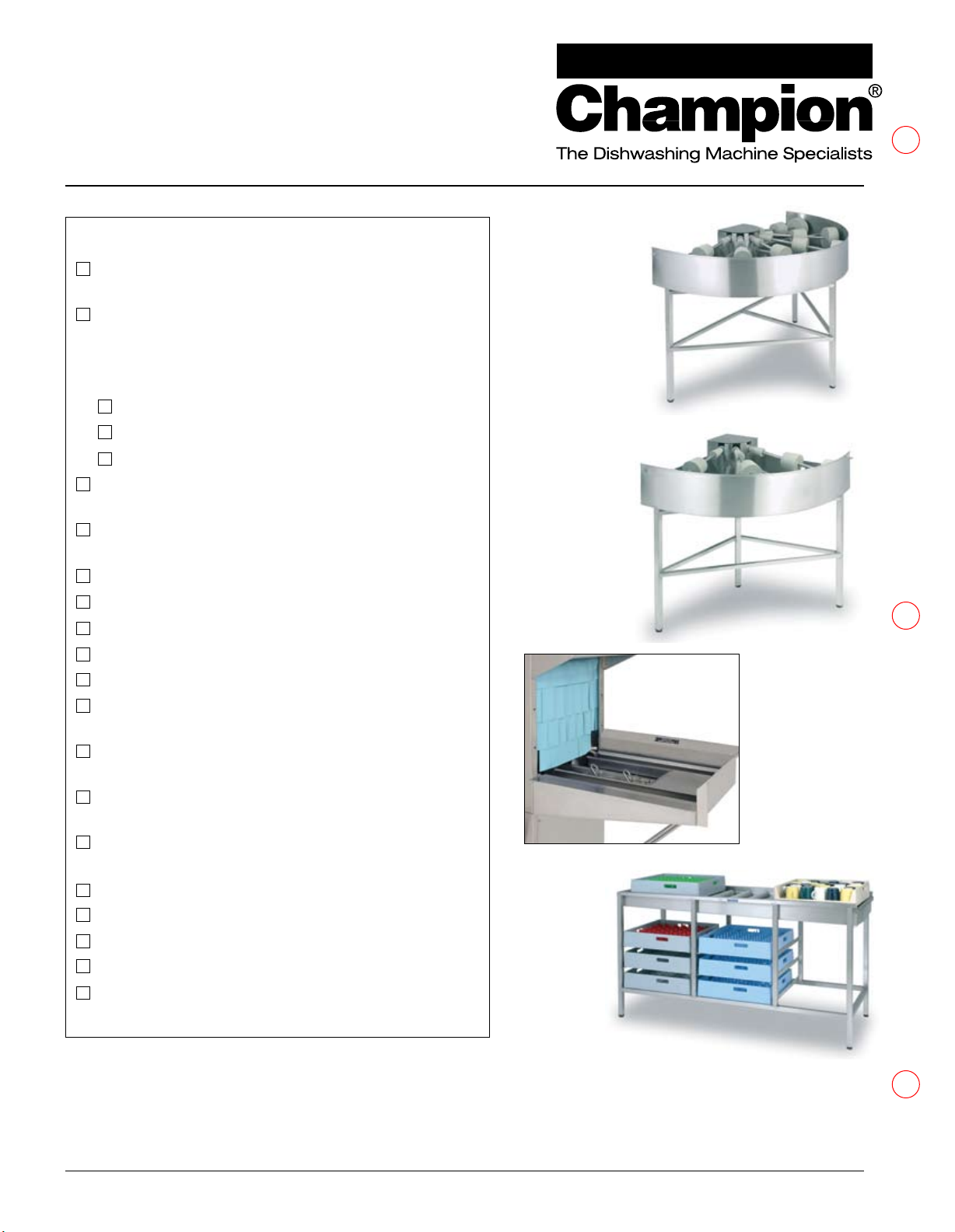

OPTIONS & ACCESSORIES
Tank heat: choice of steam coil, steam injector,
hot water coil
Blower-dryer with 60” hood, table, legs and
pawl bar assembly
Booster Heaters
(completely interplumbed, controls are interwired)
Steam: 40°F - 70°F rise
Electric: 12 kW (40°F rise) (built-in only)
Electric: 22 kW (70°F rise) (built-in only)
Cantilever sideloader (with or without hood)
MODEL 66 DRPW RACK CONVEYOR
for 90° load operation
Extended pawl bar (extended drive unit) for use
with load tabling
90° Motorized rack curve (unload)
180° Motorized rack curve (unload)
Racks: peg or flat racks (specify type)
Roller conveyor table (mobile or stationary)
Steam pressure regulating valve (unmounted)
Table limit switch, unmounted (recommended
on all rack conveyor installations)
Vent cowl, stainless steel with 7” stack and
locking damper
Extended vent hood, stainless steel with 7” stack and
locking damper
Water pressure regulating valve (unmounted)
(standard with booster)
Vent fan control
Two-point electrical connection
Water hammer kit
Drain temp kit
Vertical clearance through machine: 24”
(instead of standard 20”) for larger ware
Model MRC 180
180° Motorized
Rack Curve
(Must be ordered with Roller
Conveyor Table)
Model MRC 90
90° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
Cantilever
Sideloader
(No hood)
Model RCT 64
or RCT 84
Roller
Conveyor Table
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618
Page 4

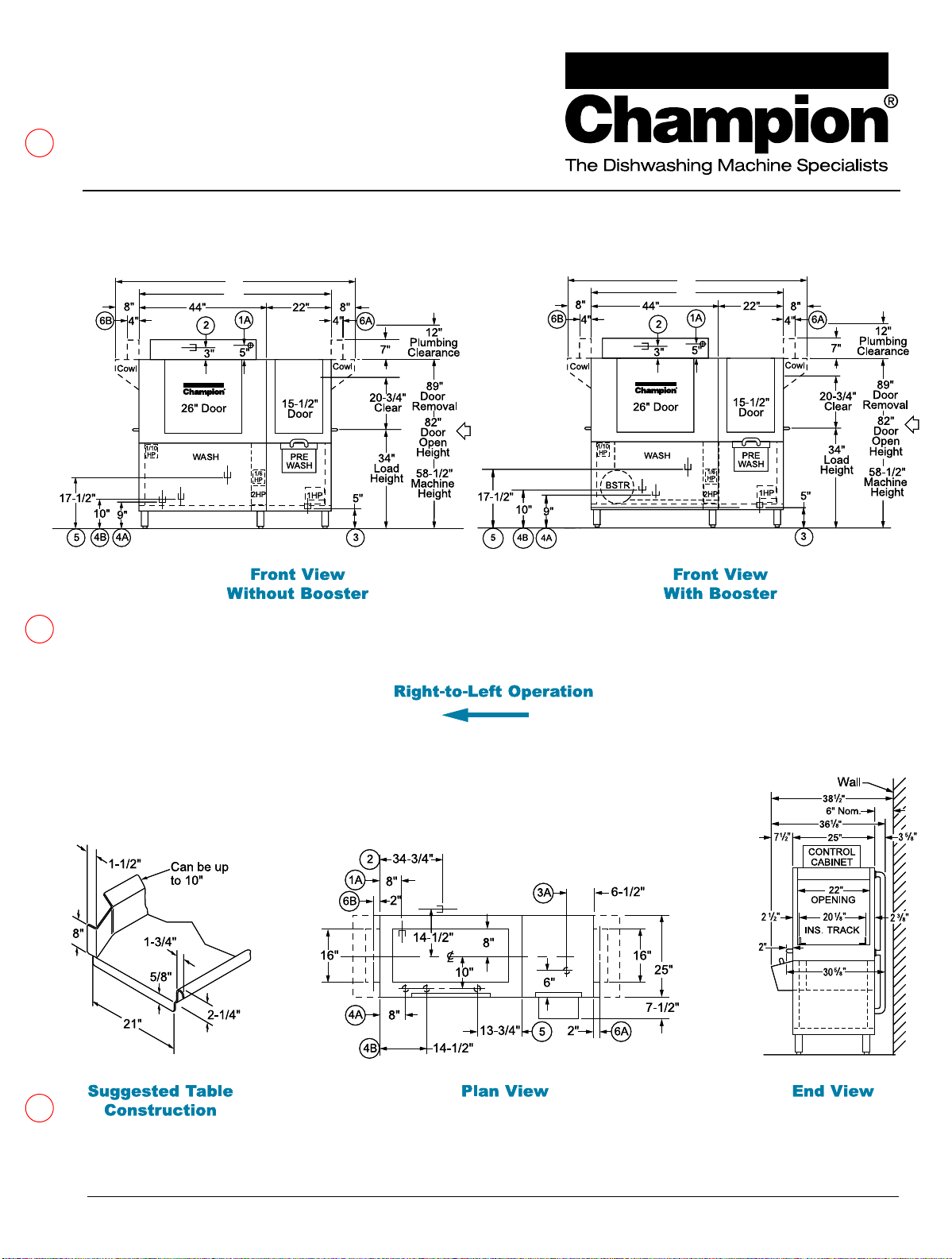

MODEL 66 DRPW MODEL 66 DRPW
82"
66"
82"
66"
82"
66"
82"
66"
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618
Page 5

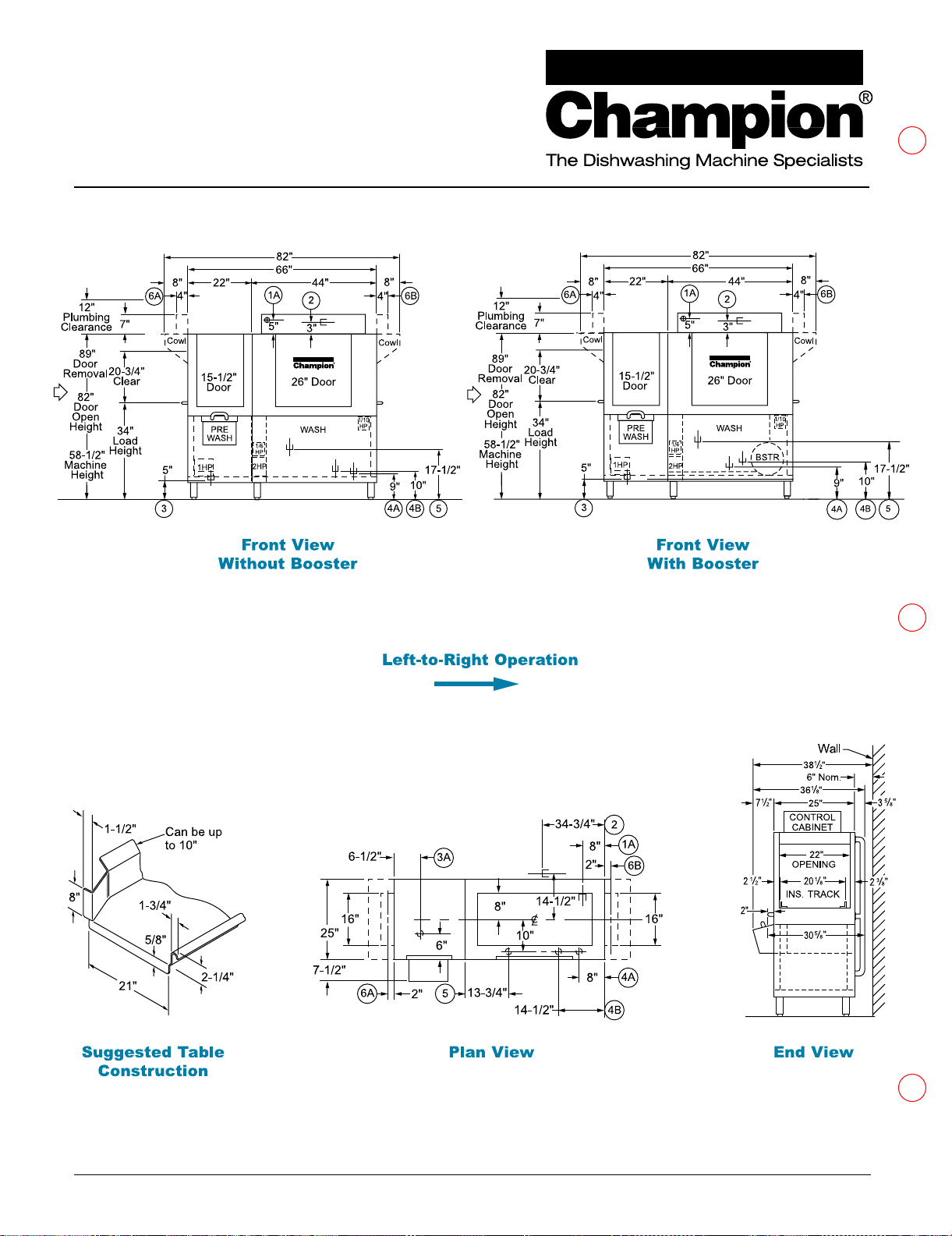

MODEL 66 DRPW
82"
66"
82"
66"
82"
66"
82"
66"
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
Dimensions shown in inches
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618
Page 6
44” Single Tank with 22” Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
Volume crated: 152 cu. ft.
Shipping weight crated: 800 lbs.
Utilities
1 Electrical Connection
A Machine only (see Table A)
B Machine & booster (see Table B)
2 Hot Water
3/4” NPT 180°F/82°C min. hot water
connection. (Machine without booster.)
3/4” NPT 140°F/60°C min. hot water
connection. (40°F/22°C rise booster)
3/4” NPT 110°F/49°C min. hot water
connection. (70°F/39°C rise booster)
Flow pressure 20-22 psi.
3 Drain
1-1/2” NPT machine connection.
Maximum flow 15 gpm.
4 Steam
A 3/4” NPT machine connection.
Flow pressure 15-30 PSI. (Steam coil)
B 3/4” NPT machine connection.
Flow pressure 15-30 PSI.
(Steam injector)
5 Condensate (no back pressure)
1/2” NPT machine return to boiler
6 Vents
A Load end: 200 CFM @ 1/4” S.P.
B Unload end: 400 CFM @ 1/4” S.P.
(With blower-dryer increase room
ventilation by 600 CFM.)
TABLE A MACHINE CONNECTION
Machine only
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 120 150 150
240/60/1 105 150 150
208/60/3 74 100 100
240/60/3 65 90 90
480/60/3 33 45 45
575/60/3 25 35 35
Minimum Maximum
TABLE B MACHINE & BOOSTER CONNECTION
40°F/22°C Rise – 12 kW
Machine and Electric built-in booster
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 178 225 225
240/60/1 155 200 200
208/60/3 108 150 150
240/60/3 94 125 125
480/60/3 47 60 60
575/60/3 37 50 50
70°F/39°C Rise – 22 kW
Machine and Electric built-in booster
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 226 300 300
240/60/1 197 250 250
208/60/3 136 175 175
240/60/3 118 150 150
480/60/3 60 80 80
575/60/3 47 60 60
Machine and steam built-in booster
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 42 60 60
240/60/1 37 50 50
208/60/3 29 40 40
240/60/3 26 35 35
480/60/3 12 15 15
Minimum Maximum
Minimum Maximum
Minimum Maximum
SPECIFICATIONS
Capacity
Racks per hr. (NSF rated) 208
Wash tank (US gal.) 21
Conveyor speed (ft/min.) 5.8
Motor Horsepower
Drive 1/6
Wash 2
Prewash 1
Dual Rinse 1/10
Water Consumption
US Gal. per hr.
(max. use) 112
US Gal. per rack .54
Heating
Wash Tank, electric (kW) 15
DualRinse Tank electric (kW) 3
Tank heat, steam (lbs/hr.
required at 15 PSI flow pressure) 75
Electric booster (built-in)
(kW supplied for 40°F rise) 12
Electric booster
(kW supplied for 70°F rise) 22
Steam booster (lbs./hr.
required for 40°F rise) 60
Steam booster (lbs./hr.
required for 70°F rise) 106
Venting
Load end (minimum CFM) 200
Unload end (minimum CFM) 400
Standard 20” x 20”
rack complement
Peg 2
Warning: Plumbing and electrical connections
should be made by qualified personnel who will
observe all the applicable plumbing, sanitary,
safety codes and the National Electrical Code.
Note: Water Hammer Arrestor (meeting ASSE-1010
standard or equivalent) to be supplied
(by others) in common water supply line at service
connection.
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618
Plumbing Notes: Because of the variation
in house-supplied steam and water pressures,
steam and water pressure regulating valves (PRVs) may
be needed. (Water PRV is standard on machines with
booster.) The PRVs can either be purchased from
Champion or obtained locally.
Venting Notes: Fabricated duct size:
3-7/8” x 15-7/8” (Outside dimensions)
