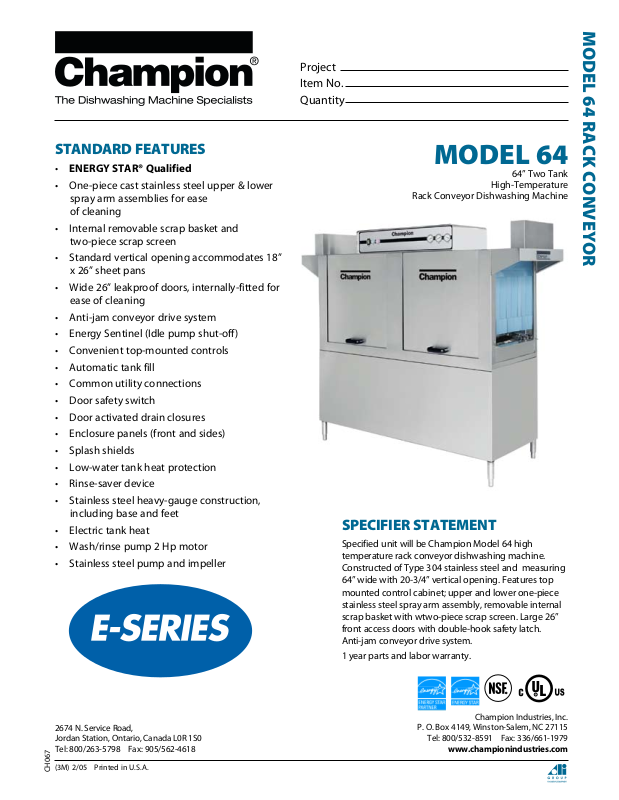

Page 1

Project Item No. Quantity

MODEL 64 RACK CONVEYOR

STANDARD FEATURES

• ENERGY STAR® Qualified

• One-piece cast stainless steel upper & lower spray arm assemblies for ease of cleaning

• Internal removable scrap basket and two-piece scrap screen

• Standard vertical opening accommodates 18” x 26” sheet pans

• Wide 26” leakproof doors, internally-fitted for ease of cleaning

• Anti-jam conveyor drive system

• Energy Sentinel (Idle pump shut-off)

• Convenient top-mounted controls

• Automatic tank fill

• Common utility connections

• Door safety switch

• Door activated drain closures

• Enclosure panels (front and sides)

• Splash shields

• Low-water tank heat protection

• Rinse-saver device

• Stainless steel heavy-gauge construction, including base and feet

• Electric tank heat

• Wash/rinse pump 2 Hp motor

• Stainless steel pump and impeller

MODEL 64

64” Two Tank

High-Temperature

Rack Conveyor Dishwashing Machine

Shown with Vent Cowl and Damper Option

SPECIFIER STATEMENT

Specified unit will be Champion Model 64 high temperature rack conveyor dishwashing machine. Constructed of Type 304 stainless steel and measuring 64” wide with 20-3/4” vertical opening. Features top mounted control cabinet; upper and lower one-piece stainless steel spray arm assembly, removable internal scrap basket with wtwo-piece scrap screen. Large 26” front access doors with double-hook safety latch. Anti-jam conveyor drive system.

1 year parts and labor warranty.

2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 Tel: 800/263-5798 Fax: 905/562-4618

(3M) 2/05 Printed in U.S.A.

CH067

Champion Industries, Inc.

P. O. Box 4149, Winston-Salem, NC 27115

Tel: 800/532-8591 Fax: 336/661-1979

www.championindustries.com

Page 2

EFFICIENT NEW SPRAY SYSTEM DESIGN

To make the E-Series more efficient and more forgiving we designed a new spray arm system that includes:

• Wall-of-water spray pattern via stainless steel fluted directional spray jets for quick and efficient washing

• Easily removable spray arm assembly for ease of cleaning

• Stainless steel pump housing and impeller

• Larger tanks hold more water for better washing results

Wall-of-Water Spray Pattern

MODEL 64

64” Two Tank

High-Temperature

Rack Conveyor Dishwashing Machine

One-Piece Cast Stainless Steel Spray Assembly

INTEGRATED BOOSTER HEATER

As well as the E-Series performs, we created a way to make it perform even better. The electric booster heater may be optional, but it is an exceptional value — engineered within the E-Series footprint to offer a variety of advantages over other booster designs, such as:

• Inter-plumbed and inter-wired

• One control shuts off washer and booster

• 15 kW for 40°F rise

• 24 kW for 70°F rise

• Conductive heat transfer to wash tank

• Stainless steel booster heater lasts the life of the machine

• Integrated design saves floor space

Large Heating Element

Stainless Steel Built-in Nested Booster

www.championindustries.com

Two-Piece Scrap Screen

Built-in Scrap Basket

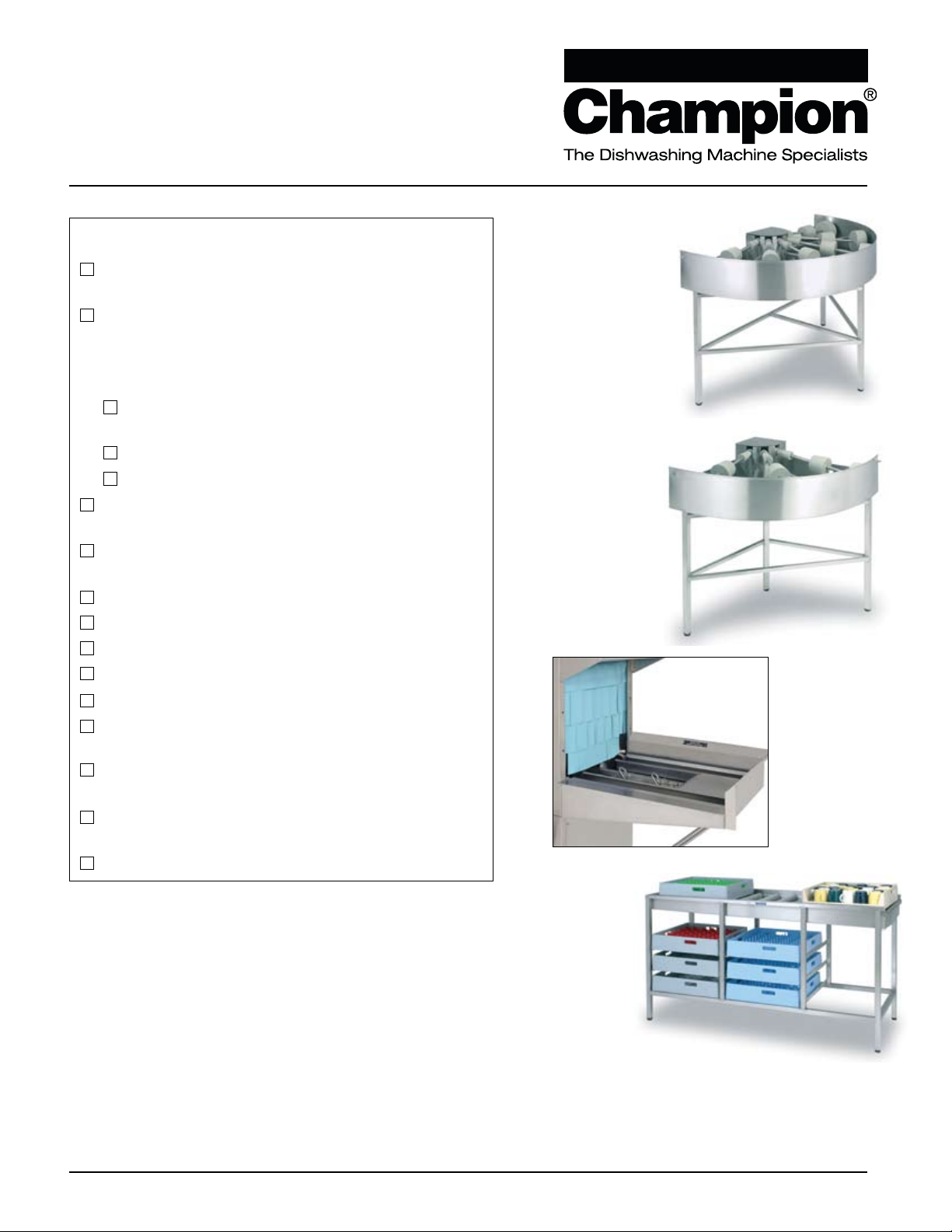

Page 3

MODEL 64

64” Two Tank High-Temperature Rack Conveyor Dishwashing Machine

OPTIONS & ACCESSORIES

Tank heat: choice of steam coil, steam injector, hot water coil

Blower-dryer with 60” hood, table, legs and pawl bar assembly

Booster Heaters (completely interplumbed, controls are interwired)

MODEL 64 RACK CONVEYOR

Electric: 15 kW (40°F rise max.) (built-in 3 phase only)

Electric: 24 kW (70°F max. rise) (3 phase only)

Steam: 40°F - 70°F rise

Cantilever sideloader (with or without hood) for 90° load operation

Extended pawl bar (extended drive unit) for use with load tabling

90° Motorized rack advance conveyor (unload)

180° Motorized rack advance conveyor (unload)

Racks: peg or flat racks (specify type)

Roller conveyor table (mobile or stationary)

Steam pressure regulating valve (unmounted)

Table limit switch, unmounted (recommended on all rack conveyor installations)

Vent cowl, stainless steel with 7” stack and locking damper

Water pressure regulating valve (unmounted) (standard with booster)

Vent fan control

Model MRC 180

180° Motorized

Rack Curve

(Must be ordered with Roller

Conveyor Table)

Model MRC 90

90° Motorized

Rack Curve

(Must be ordered with

Roller Conveyor Table)

Cantilever Sideloader

(No hood)

Model RCT 64

or RCT 84

Roller

Conveyor Table

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com

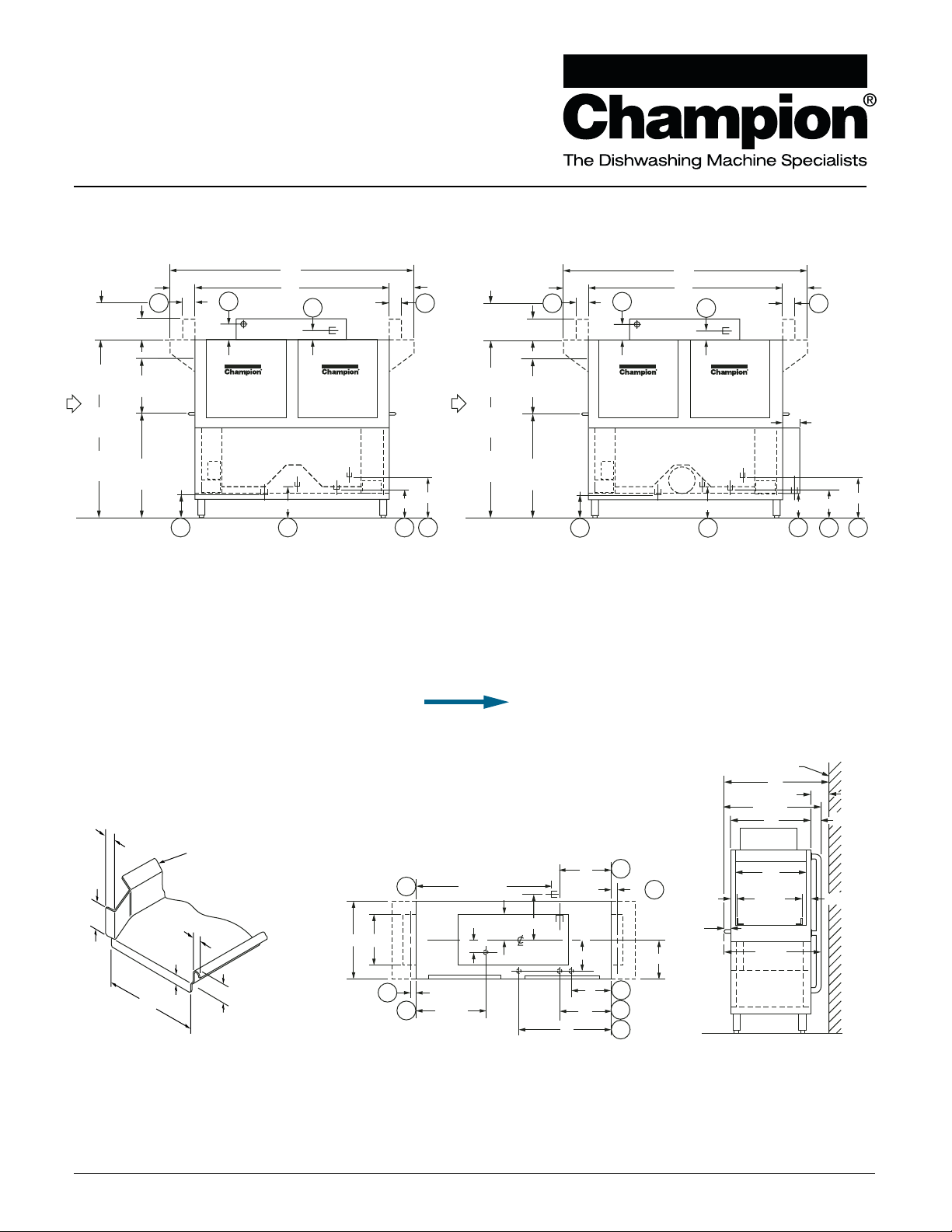

Page 4

MODEL 64

64" Two Tank High-Temperature Rack Conveyor Dishwashing Machine

MODEL 64

Left-to-Right Operation

12"

Plumbing

Clearance

80"

64"

26"

Door

26"

Door

RINSE

BSTR

8-1/2"

34"

Load

Height

89"

Door

Removal

58-1/2"

Machine

Height

82"

Door Open

Height

20-3/4"

Clear

7-1/2"

13"

WASH

2HP

1/6 HP

2HP

Cowl

7-1/2"

18"

10"

2-3/8"

30-5/8"

20-1/8"

2-1/2"

14-1/2"

56-1/2"

12-1/2"

43-1/4" 17"

13"

30"

3-5/8"

30-5/8"

33"

25"

16"

Front View

Without Booster

Front View

With Booster

End ViewSuggested Table

Construction

Plan View

12"

Plumbing

Clearance

80"

64"

26"

Door

26"

Door

RINSE

8-1/2"

34"

Load

Height

89"

Door

Removal

58-1/2"

Machine

Height

82"

Door Open

Height

20-3/4"

Clear

7-1/2"

13"

WASH

2HP

1/6 HP

2HP

Cowl

6" Nom.

Wall

Control

Cabinet

22"

25"

Opening

2-1/4"

1-3/4"

1-1/2"

Can be up to 10"

5/8"

21"

Ins. Track

64” Two Tank High-Temperature Rack Conveyor Dishwashing Machine

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com

2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618

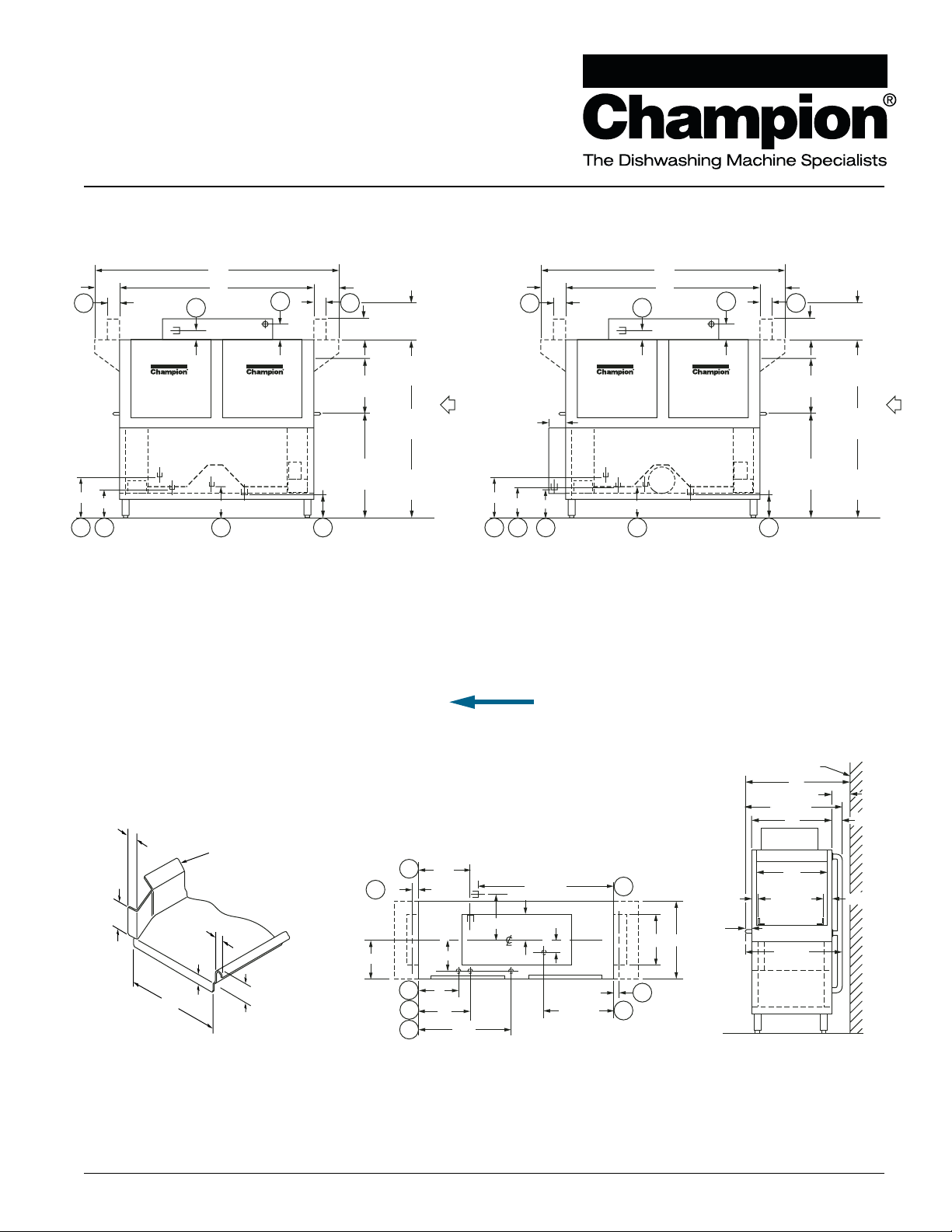

Page 5

MODEL 64

64" Two Tank High-Temperature Rack Conveyor Dishwashing Machine

MODEL 64

Right-to-Left Operation

BSTR

Front View

Without Booster

Front View

With Booster

End ViewSuggested Table

Construction

Plan View

12"

Plumbing

Clearance

80"

64"

26"

Door

26"

Door

RINSE

8-1/2"

34"

Load

Height

89"

Door

Removal

58-1/2"

Machine

Height

82"

Door Open

Height

20-3/4"

Clear

7-1/2"

13"

WASH

2HP

1/6 HP

2HP

Cowl Cowl

12"

Plumbing

Clearance

80"

64"

26"

Door

26"

Door

RINSE

8-1/2"

34"

Load

Height

89"

Door

Removal

58-1/2"

Machine

Height

82"

Door Open

Height

20-3/4"

Clear

7-1/2"

13"

WASH

2HP

1/6 HP

2HP

Cowl Cowl

7-1/2"

Wall

Control

Cabinet

Ins. Track

Opening

2-1/4"

12-1/2"

43-1/4"

14-1/2"

18"

25"

16"

17"

13"

10"

30"

56-1/2"

30-5/8"

3-5/8"

30-5/8"

6" Nom.

2-3/8"

2-1/2"

33"

25"

22"

20-1/8"

1-3/4"

1-1/2"

Can be up to 10"

5/8"

21"

64” Two Tank High-Temperature Rack Conveyor Dishwashing Machine

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com

2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618

Page 6

MODEL 64

64” Two Tank High-Temperature Rack Conveyor Dishwashing Machine

Volume crated: 130 cu. ft. Shipping weight crated: 865 lbs.

Utilities

1 Electrical

A Machine connection (see Table A) B Booster connection (see Table B)

2 Hot Water

3/4” NPT 180°F/82°C min. hot water connection. (Machine without booster.)

3/4” NPT 140°F/60°C min. hot water connection. (40°F/22°C rise booster)

3/4” NPT 120°F/49°C min. hot water connection. (60°F/34°C rise booster)

3/4” NPT 110°F/49°C min. hot water connection. (70°F/39°C rise booster)

Flow pressure 20-22 psi.

3 Drain

1-1/2” NPT machine connection. Maximum flow 15 gpm.

4 Steam

A 3/4” NPT machine connection.

Flow pressure 15-30 PSI. (Steam coil) B 3/4” NPT machine connection.

Flow pressure 15-30 PSI. (Steam injector)

5 Condensate (no back pressure)

1/2” NPT machine return to boiler

6 Vents

A Load end: 200 CFM @ 1/4” S.P. B Unload end: 400 CFM @ 1/4” S.P.

(With blower-dryer increase room ventilation by 600 CFM.)

Warning: Plumbing and electrical connections

should be made by qualified personnel who will observe all the applicable plumbing, sanitary, safety codes and the National Electrical Code.

Note: Water Hammer Arrestor (meeting ASSE-

1010 standard or equivalent) to be supplied (by others) in common water supply line at service connection.

Plumbing Notes: Because of the variation

in house-supplied steam and water pressures, steam and water pressure regulating valves (PRVs) may be needed. (Water PRV is standard on machines with booster.) The PRVs can either be purchased from Champion or obtained locally.

Venting Notes: Fabricated duct size:

3-7/8” x 15-7/8” (Outside dimensions)

TABLE A  MACHINE CONNECTION

Machine only

Supply Ckt. Overcurrent Elec. Rated Conductor Protective Specs. Amps Ampacity Device

208/60/1 162 200 200

240/60/1 142 175 175

208/60/3 90 110 110

240/60/3 80 100 100

480/60/3 40 50 50

575/60/3 31 40 40

TABLE B  BOOSTER CONNECTION

40°F/22°C Rise – 15kW Electric built-in booster (booster only)

Supply Ckt. Overcurrent Elec. Rated Conductor Protective Specs. Amps Ampacity Device

208/60/3 42 50 50

240/60/3 36 45 45

480/60/3 18 25 25

575/60/3 15 20 20

70°F/39°C Rise – 24kW Electric built-in booster (booster only)

Supply Ckt. Overcurrent Elec. Rated Conductor Protective Specs. Amps Ampacity Device

208/60/3 67 80 80

240/60/3 58 70 70

480/60/3 29 35 35

575/60/3 24 30 30

Machine and steam built-in booster

Supply Ckt. Overcurrent Elec. Rated Conductor Protective Specs. Amps Ampacity Device

208/60/1 32 40 40

240/60/1 29 40 40

208/60/3 15 20 20

240/60/3 14 20 20

480/60/3 7 15 15

Minimum Maximum

Dimensions shown in inches

SPECIFICATIONS

Capacity

Racks per hr. (NSF rated) 277 Wash tank (US gal.) 21 Conveyor speed (ft/min.) 7.7

Motor Horsepower

Drive 1/6 Wash 2 Rinse 2

Water Consumption

US Gal. per hr. (max. use) 124 US Gal. per rack .45

Heating

Tank Heat, electric (kW) 25 Tank heat, steam

(lbs/hr. required at 15 PSI flow pressure) 75

Electric booster (built-in)

(kw supplied for 40°F rise) 15

Electric booster (built-in)

(kW supplied for 70°F rise) 24

Steam booster (lbs./hr.

required for 40°F rise) 120

Steam booster (lbs./hr.

required for 70°F rise) 205

Venting

Load end (minimum CFM) 200 Unload end (minimum CFM) 400

Standard 20” x 20” rack complement

Peg 2 Flat 1

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com
