Page 1
Project
Item No.
Quantity
MODEL 44 LT RACK CONVEYOR
STANDARD FEATURES
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap baskets with
two-piece scrap screens
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 26" leakproof door, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Wash pump 2 Hp motor
• Stainless steel pump and impeller
• Single-point electrical connection
MODEL 44 LT
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 44 LT low
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and
measuring 44" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm
assemblies, removable internal scrap basket with
two-piece scrap screen. Large 26" wash door with
front access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(3M) 9/06 Printed in U.S.A.
CH080
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Page 2
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT
www.championindustries.com
Wall-of-Water Spray Pattern
Built-in Scrap Basket
Large Heating Element
Two-Piece Scrap Screen
One-Piece Cast Stainless
Steel Spray Assembly
EFFICIENT NEW
SPRAY SYSTEM DESIGN
To make the E-Series more efficient and
more forgiving we designed a new spray
arm system that includes:
• Wall-of-water spray pattern via
stainless steel fluted directional
spray jets for quick and efficient
washing
• Easily removable spray arm
assembly for ease of cleaning
• Stainless steel pump housing
and impeller
• Larger tanks hold more water for
better washing results
Page 3
a
tion
1A
5"
3"
26
Door
CowlCowl
5"
20-3/4"
Clear
34"
Load
Height
89"
Door
Removal
82"
Door
Open
Height
58-1/2"
Machine
Height
7"
12"
Plumbing
Clearance
2
4A
6A
5
1A
3
6B
4B
25"
28-1/2"
36"
14-1/2"
6"
8"
12-1/2"
16"
2"
8"
13-3/4"
9-1/4"
2"
14-1/2"
10"
Front View
Plan View
g
g
d
a
ble
Const
uction
9"
10"
17-1/2"
"
1-3/4"
1-1/2"
Can be up
to 10"
5/8"
"
8"
dew
6" Nom.
Wall
2-3/8"
2-1/2"
3-5/8"
30-5/8"
30-5/8"
20-1/8"
2"
CONTROL
CABINET
22"
25"
33"
Opening
Inside Track
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT

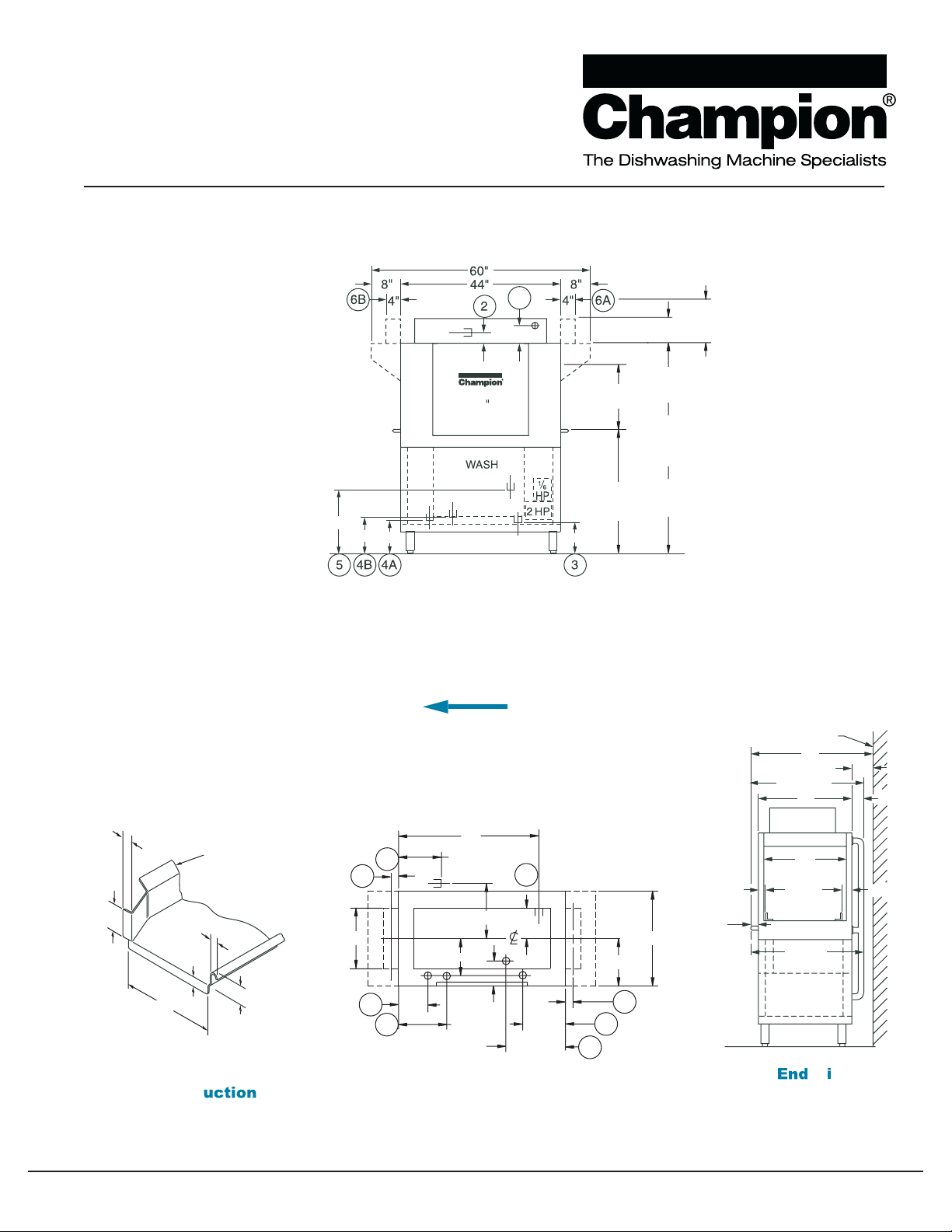

Left-to-Right Oper
Su
21
este
2-1/4
En
r
Page 4
a
tion
1A
5"
3"
26
Door
Cowl Cowl
5"
20-3/4"
Clear
34"
Load
Height
89"
Door
Removal
82"
Door
Open
Height
58-1/2"
Machine
Height
7"
12"
Plumbing
Clearance
2
4A
6A
5
1A
3
6B
4B
25"
28-1/2"
36"
14-1/2"
6"
8"
12-1/2"
16"
2"
8"
13-3/4"
9-1/4"
2"
14-1/2"
10"
Front View
Plan View
ew
g
g
d
a
ble
Const
6" Nom.
Wall
2"
CONTROL
CABINET
22"
25"
33"
OPENING
9"
10"
17-1/2"
"
1-3/4"
1-1/2"
Can be up
to 10"
5/8"
"
8"
30-5/8"
2-3/8"
2-1/2"
3-5/8"
36-5/8"
20-1/8"
Ins. Track
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT

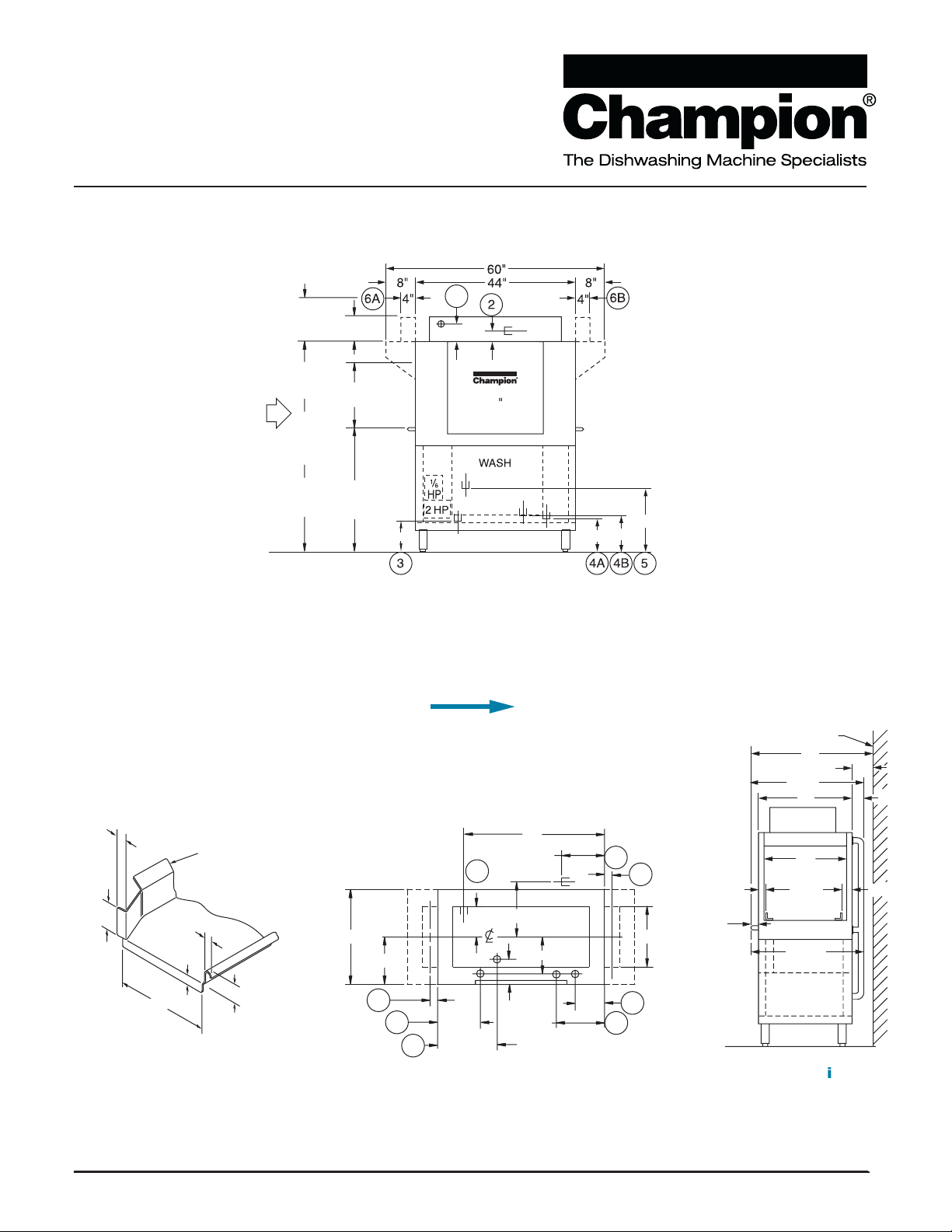

Right-to-Left Oper
Su
21
este
2-1/4
r
Page 5
Volume crated: 130 cu. ft.
Shipping weight crated: 600 lbs.
Dimensions shown in inches
Warning: Plumbing and electrical connections should be made by qualified personnel who will
observe all the applicable plumbing, sanitary, safety codes and the National Electrical Code.
Note: Water Hammer Arrestor (meeting ASSE-1010 standard or equivalent) to be supplied
(by others) in common water supply line at service connection.
Plumbing Notes: Because of the variation in house-supplied steam and water pressures, steam
and water pressure regulating valves (PRVs) may be needed. The PRVs can be purchased from
Champion or obtained locally.
Venting Notes: Fabricated duct size: 3-7/8" x 15-7/8" (Outside dimensions)
Caution: Silver, aluminum and pewter are attacked by sodium hypochlorite (liquid bleach).
Champion low-temperature dishwashing machines are designed for liquid bleach solutions not
exceeding 50 ppm.
Machine only
Minimum Maximum
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 94 125 125
240/60/1 83 110 110
208/60/3 58 70 70
240/60/3 47 60 60
480/60/3 23 30 30
575/60/3 18 25 25
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Utilities
1 Electrical
Machine connection (see table)
2 Hot Water
3/4" NPT 140°F/60°C min. hot water
connection. Flow pressure 20-22 psi.
3 Drain
1-1/2" NPT machine connection.
Maximum flow 15 gpm.
4 Steam
A 3/4" NPT machine connection.
Flow pressure 15-30 PSI. (Steam coil)
B 3/4" NPT machine connection.
Flow pressure 15-30 PSI.
(Steam injector)
5 Condensate
1/2" NPT machine return to boiler
6 Vents (when required)
A Load end: 200 CFM @ 1/4" S.P.
B Unload end: 400 CFM @ 1/4" S.P.
(With blower-dryer increase room
ventilation by 600 CFM.)
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT
SPECIFICATIONS
Capacity
Racks per hr. (NSF rated) 180
Wash tank (gal.) 20
Conveyor speed (ft./min.) 5
Motor Horsepower
Drive 1/6
Wash 2
Water Consumption
Gal. per hr. (max. use) 278
Gal. per rack 1.54
Temperatures °F
Wash 120
Final Rinse 140
Heating
Tank heat, electric (kW) 15
Tank heat, steam (lbs./hr
required at 15 psi flow
pressure) 75
Standard 20" x 20"
rack complement
Peg 2
Flat 1
Steam or Hot Water Heat
Minimum Maximum
Supply Ckt. Overcurrent
Elec. Rated Conductor Protective
Specs. Amps Ampacity Device
208/60/1 16 20 20
240/60/1 15 20 20
208/60/3 8 15 15
240/60/3 8 15 15
480/60/3 4 15 15
575/60/3 3 15 15
Page 6
44" Single Tank
Low-Temperature
Rack Conveyor Dishwashing Machine
MODEL 44 LT

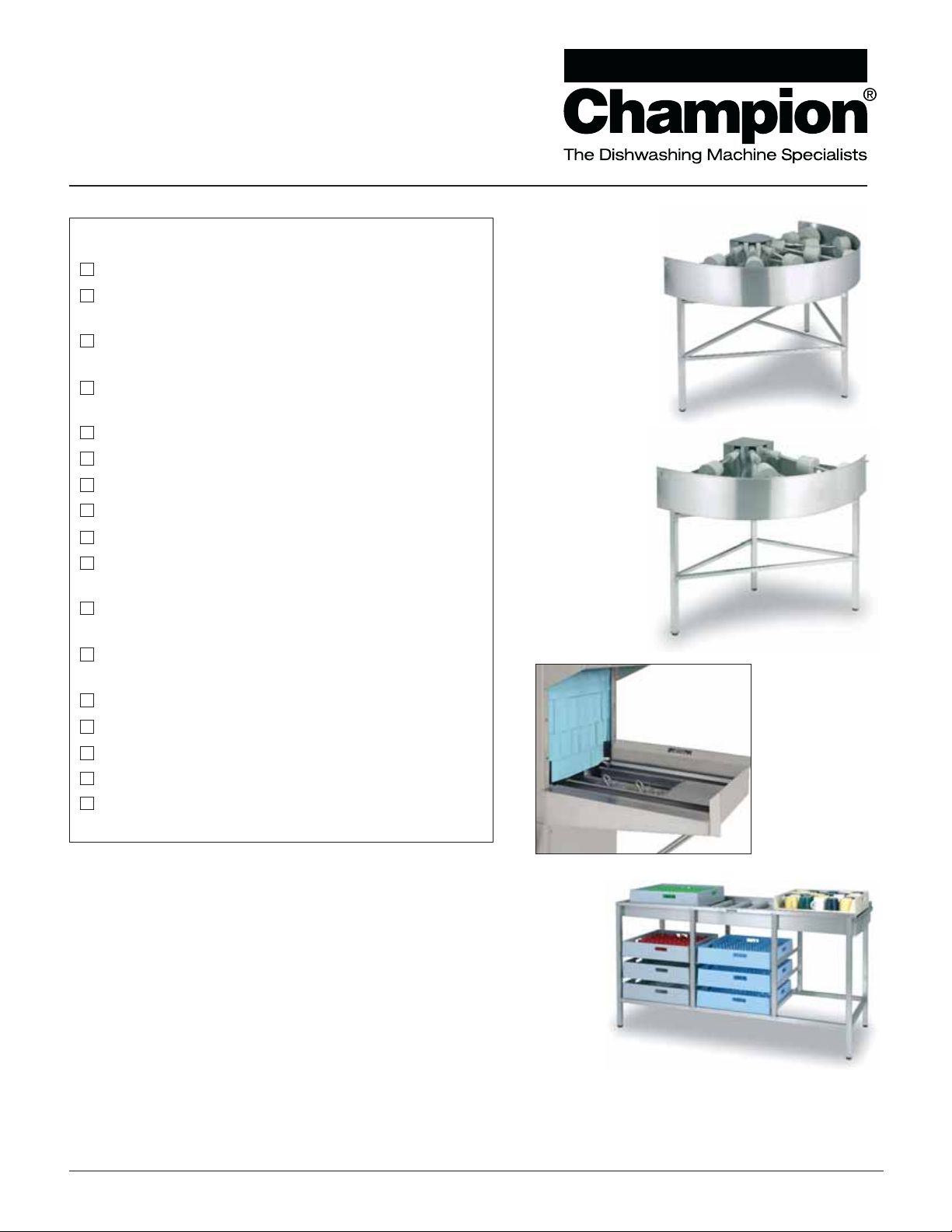

MODEL 44 LT RACK CONVEYOR
OPTIONS & ACCESSORIES
Tank heat: choice of steam coils or steam injector
Blower-dryer with 60" hood, table, legs and
cradle assembly
Cantilever sideloader (with or without hood)
for 90° load operation
Extended pawl bar (extended drive unit) for use
with load tabling
90° Motorized rack curve (unload)
180° Motorized rack curve (unload)
Racks: peg or flat racks (specify type)
Roller conveyor table (mobile or stationary)
Steam pressure regulating valve, unmounted
Table limit switch, unmounted
(recommended on all rack conveyor installations)
Vent cowl, stainless steel with 7" stack and
locking damper
Extended Vent hood, stainless steel with 7" stack
and locking damper
Water pressure regulating valve (unmounted)
Vent fan control
Water hammer kit
Drain temp kit
Vertical clearance through machine: 24"
(instead of standard 20-3/4") for large ware
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Model MRC 90
90° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
Model RCT 64
or RCT 84
Roller
Conveyor Table
Cantilever
Sideloader
(No hood)
Model MRC 180
180° Motorized
Rack Curve
(Must be ordered with
Roller Conveyor Table)
