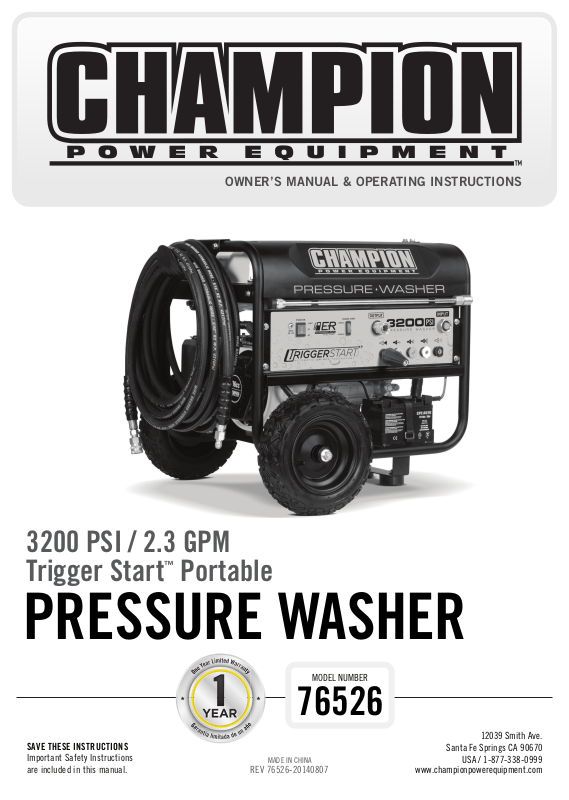

OWNER’S MANUAL & OPERATING INSTRUCTIONS

3200 PSI / 2.3 GPM
Trigger Start™ Portable

PRESSURE WASHER

MODEL NUMBER

76526

SAVE THESE INSTRUCTIONS

Important Safety Instructions
are included in this manual.

MADE IN CHINA

REV 76526-20140807

www.championpowerequipment.com

Santa Fe Springs CA 90670

12039 Smith Ave.

USA / 1-877-338-0999

AN IMPORTANT MESSAGE ABOUT TEMPERATURE:

Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.

Have questions or need assistance?

Do not return this product to the store!

WE ARE HERE TO HELP!

Visit our website:

www.championpowerequipment.com

for more info:

• Product Info & Updates

• Frequently Asked Questions

– or –

Call our Customer Care Team Toll-Free at:

1-877-338-0999

• Tech Bulletins

• Product Registration

WARNING:

The Engine Exhaust from this product contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm.

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

TABLE OF CONTENTS

76526

3200 PSI / 2.3 GPM

Trigger Start™ Portable

PRESSURE WASHER

Introduction ............................. 1

Pressure Washer ........................ 1

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

This Booklet ........................... 1

Manual Conventions ........................ 2

Safety Rules ............................. 3

Controls and Features ....................... 5

Pressure Washer ........................ 5

Utility Panel ............................ 6

Trigger Start™ Operation ................... 7

Parts Included .......................... 8

Assembly ............................... 9

Remove the Pressure Washer from the

Shipping Carton ........................ 9

Install the Wheel Kit ......................9

Install the Support Leg ....................9

Install the Handle ........................ 9

Connect the Battery ......................9

Attaching the Hose Hanger ................ 10

Attaching the Wand Holder ................ 10

Attaching the Gun Holder ................. 10

Install the Hoses ....................... 10

Attach the Pressure Gun ............... 10

Connect to Garden Hose ............... 10

Attach the Detergent Hose .............. 10

Add Engine Oil ........................ 11

Add Fuel ............................. 12

Operation .............................. 13

Pressure Washer Location ................. 13

Before Starting the Engine ................ 13

Starting the Engine ..................... 13

To Activate the Trigger Start™ feature .........13

To Start the Engine the Trigger Start™ feature ...13

Distance from Cleaning Surface ............ 14

High Pressure Wash ..................... 14

Turb o N o z z le .......................... 14

Thermal Relief Valve (TRV) ................ 15

Low Pressure Wash ..................... 15

Detergent Use ....................... 15

System Flush ....................... 15

Operating Tips ......................... 15

Stopping the Engine ..................... 16

To Stop the Engine Using the

Trigger Start™ feature .................... 16

Operation at High Altitude .................16

Maintenance and Storage ................... 17

Engine Maintenance ..................... 17

Oil ............................... 17

Spark Plugs ........................ 17

Air Filter ........................... 17

Cleaning ............................. 18

Adjustments ........................ 18

Maintenance Schedule ................. 18

Pressure Washer Maintenance .............. 18

Cleaning Spray Nozzle ................. 18

Storage ............................ 19

Engine Storage ........................ 19

Battery .............................. 19

Charging the Battery ..................... 19

Disconnect the Battery ................... 19

Pressure Washer Storage ................. 20

Winter Storage ........................ 20

Specifications ........................... 21

Engine Specifications .................... 21

Pressure Washer Specifications ............. 21

Fuel ................................ 21

Oil ................................. 21

Spark Plugs .......................... 21

Maintenance Valve Clearance .............. 21

Turb o N o z z le ........................ 21

Troubleshooting ...................... 22

Pressure Washer Parts Diagram ............. 23

Pressure Washer Parts List ................ 24

Engine Parts Diagram ................... 25

Engine Parts List ....................... 26

Warranty ............................... 27

Warranty Qualifications ................... 27

Repair/Replacement Warranty .............. 27

Do not return the unit to the place of

purchase ............................ 27

Warranty Exclusions ..................... 27

Normal Wear ....................... 27

Installation, Use and Maintenance ......... 27

Other Exclusions ..................... 27

Limits of Implied Warranty and

Consequential Damage ................... 27

Contact Information ..................... 27

Address ........................... 27

Customer Service .................... 27

Technical Service .................... 27

INTRODUCTION

ENGLISH 76526

Introduction

Congratulations on your purchase of a Champion Power
Equipment pressure washer. CPE designs and builds
pressure washers to strict specifications. With proper
use and maintenance, this pressure washer will bring
years of satisfying service.

Pressure Washer

This unit is a gasoline engine driven pressure washer. It is
designed for use in cleaning with or without detergent and
is suitable for decks, patios, house siding, vehicles, lawn
furniture, barbecue grills, gardening tools and more.

Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.

Accessories

Champion Power Equipment manufactures and sells
accessories designed to help you get the most from
your purchase. To find out more about our accessories,
please visit our web site at:

www.championpowerequipment.com

This Booklet

Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.

Champion Power Equipment Support

1-877-338-0999

Model Number

76526

Serial Number

Date of Purchase

Purchase Location

For O il Typ e see ‘Add Engine Oil‘ section. For Fuel Typ e see ‘Add Fuel‘ section.

1 REV 76526-20140807

76526 ENGLISH

MANUAL CONVENTIONS

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.

DANGER

DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.

WARNING

WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.

CAUTION

CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.

NOTE

If you have questions regarding your pressure
washer, we can help. Please call our help line at

1-877-338-0999

REV 76526-20140807 2

SAFETY RULES

ENGLISH 76526

WARNING

Read this manual thoroughly before operating your
pressure washer. Failure to follow instructions could
result in serious injury or death.

WARNING

The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.

DANGER

Engine exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.

Operate pressure washer outdoors only in a well
ventilated area.
DO NOT operate the pressure washer inside
any building, including garages, basements,
crawlspaces and sheds, enclosure or compartment,
including the pressure washer compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE, using a pressure
washer indoors CAN KILL YOU IN MINUTES.

DANGER

WARNING

Sparks can result in fire or electrical shock.

When servicing the pressure washer:

Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.

WARNING

Running engines produce heat. Severe burns can
occur on contact. Combustible material can catch
fire on contact.

DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all
sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from
combustible materials.

WARNING

DO NOT let water in the pump freeze.

See Storage section in the manual for instructions
regarding winter storage.
If water has frozen in the pressure washer, thaw the
pressure washer in a warm room before starting.
DO NOT pour hot water on or into the pump;
internal parts will be damaged and your warranty
will be voided.

Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.

3 REV 76526-20140807

WARNING

NEVER spray flammable liquids or use pressure
washer in areas containing combustible dust, liquids,
or vapor.

NEVER operate this machine in a closed building or
in or near an explosive environment.

– DO NOT remove fuel tank cap or fill fuel tank

while engine is hot or running (allow engine to
cool two minutes before refueling). Always fill the
tank slowly.

– Never disconnect the high pressure discharge

hose from the machine while the system is
pressurized.

76526 ENGLISH

SAFETY RULES

DANGER

Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.

When adding or removing fuel:

Turn the pressure washer off and let it cool for at
least two minutes before removing the fuel cap.
Loosen the cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the pressure washer
at the gas station. Use an approved container to
transfer the fuel to the pressure washer.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.

When starting the pressure washer:

DO NOT attempt to start a damaged pressure
washer.
Make certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the pressure washer is resting
firmly on level ground.

When operating the pressure washer:

DO NOT move or tip the pressure washer during
operation.
DO NOT tip the pressure washer or allow fuel or oil
to spill.

When transporting or servicing the pressure washer:

Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.

When storing the pressure washer:

Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.

CAUTION

NEVER run the unit dry.

Be sure the water supply is completely turned on
before operating the unit.

WARNING

Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.

When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.

DANGER

Keep clear of nozzle.
DO NOT point the pressure wand at a person,
an animal, yourself or electrical device. Even
when unit is not running and in the off position,
pressure can be trapped in lines. Reference proper
“de-pressurizing” process section of manual.

Always wear safety glasses or goggles and
protective equipment (hearing protection, gloves,
rubber boots, protective clothing) when operating or
performing maintenance.

– Never put hand or fingers over the spray tip

while operating the unit.
– Never try to stop or deflect leaks with any body part.
– Always engage the trigger safety latch in the

safe position when spraying is stopped even if

only for a few moments.
– Never point pressure washer wand at person,

animal, yourself or electrical outlet, even if unit

is not running and in the off position, pressure

can be trapped in the lines.

CAUTION

Improper treatment or use of the pressure washer can
damage it, shorten its life and void your warranty.

Use the pressure washer only for intended uses.
Operate only on level surfaces.
DO NOT expose pressure washer to excessive
moisture, dust, or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the pressure washer if:

– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively

REV 76526-20140807 4

ENGLISH 76526

CONTROLS AND FEATURES

Read this owner’s manual before operating your pressure washer. Familiarize yourself with the location and function
of the controls and features. Save this manual for future reference.

Pressure Washer

1

2

3

4

14

5

6

7 8 9 10 11

(1) High Pressure Hose Hanger – Used to hold high

pressure hose when not in use.

(2) Choke

(3) Fuel Valve Knob

(4) Air Filter – Protects the engine by filtering dust

and debris from the intake air.

(5) Recoil Starter – Used to start the engine.

13

12

(8) Oil Filler Cap – Check and fill engine oil level.

(9) Battery

(10) Utility Panel – See Utility Panel Section.

(11) Wand Holder – Used to hold wand when not

assembled and in use.

(12) Gun Holder – Used to hold gun when not

assembled and in use.

(6) Quick Drain Oil Draining System– Used to quickly

drain engine oil.

(7) 10 in. Pneumatic Tires

5 REV 76526-20140807

(13) Handle

(14) Fuel Tank – 3.8 gal. (14.4 L)

76526 ENGLISH

2F26面板 1:1

Utility Panel

CONTROLS AND FEATURES

21 3 4 6

5

(1) Smart Charger Port – plug in smart charger

(included) to charge battery (included).

(2) Ignition Switch – Used to start or stop the

pressure washer.

(3) Trigger Start™ Switch – Automatic ON/OFF

technology.

(4) Quick Connect Hose Output – Used to easily

connect and disconnect high pressure hose.

(5) Quick Connect Nozzle Storage – Used to store

quick connect nozzles when not in use.

(6) Garden Hose Input – Used to connect water supply

to unit.

REV 76526-20140807 6

CONTROLS AND FEATURES

ENGLISH 76526

Trigger Start™ Operation

This pressure washer is equipped with a patent pending
system that allows the operator to start and stop the
engine using the pressure washer gun. When working
at any distance from the machine, just pull the trigger
to start the engine and release the trigger to stop the
engine. There is no need to return to the machine to start
and stop the engine.

To activate the Trigger Start feature:

1. Connect and turn “ON” the water supply.

2. Make sure the fuel valve is in the “ON” position.

3. Move the Ignition Switch to the “ON” position.

4. Move the Trigger Start Switch to the “Enable”
position.

Only when the Trigger Start feature is active can the
engine be started or stopped using the trigger of the gun.

To start the engine using the Trigger Start feature:

1. Pull and hold the trigger of the gun.

2. The engine will attempt to start approximately 3
seconds after water begins to flow out of the gun.

Note : When the Trigger Start switch is in the “disabled”
position, the gun trigger will not start or stop the engine.
The water supply must be connected and turned “ON” for
the Trigger Start feature to function.

Note : Extension hoses may be added without affecting
this feature.

NOTE

There is no need to manually choke the engine. The
Engine Control Module automatically chokes the
engine during startup. If the engine fails to start on
the first attempt, it will automatically try again up
to six (6) times, without need of extra pulling of the
trigger.

To stop the engine using the Trigger Start feature:

1. Release the trigger of the gun

2. The engine will turn “OFF” approximately 15 seconds
after the trigger is released.

NOTE

If the trigger is released and then pulled before 15
seconds has elapsed, the engine will continue to run.
This allows the unit to continue running while the
operator stops washing momentarily to move the unit
or the object being washed.

7 REV 76526-20140807

76526 ENGLISH

Parts Included

Your 76526 Gasoline Powered Pressure Washer ships
with the following parts:

Wheel Kit

– 10 in. Pneumatic Wheel ................... 2

– Flange Bolt (M10x135 for Wheel) ............2

– Bushing ..............................2

– Flat Washer Ø10 ........................2

– Nut (M10 ) ............................2

– Support Leg w/Vibration Mounts .............1

– Flange Bolt (M8x16 for Support Leg) ..........2

– Handle ..............................1

– Flange Bolt (M8x45 for Handle) .............2

– Nut (M8) .............................6

Gun Assembly

– Pressure Gun ..........................1

– Wand ...............................1

– Wand Holder (Clamp). . . . . . . . . . . . . . . . . . . . . 2

– Flange Bolt (M5x12 for Clamps) .............4

– Gun Holders ........................... 2

– Bolt (M6x14 for Gun Holder) ................2

Hoses

– 50 ft. High Pressure Hose .................1

– Detergent Hose .........................1

– Hose Hanger ..........................1

– Flange Bolt (M8x40 for Pothook) .............2

CONTROLS AND FEATURES

50 ft. High

Pressure Hose

Detergent

Hose

Other

– Oil Funnel ............................1

– Spark Plug Socket ....................... 1

– Tur b o N o z z le ..........................1

– Smart Charger .........................1

– Start-up Oil ....................... 0.6 qt.

REV 76526-20140807 8

ASSEMBLY

ENGLISH 76526

Your pressure washer requires some assembly. If you have
any questions regarding the assembly of your pressure
washer, call our help line at 1-877-338-0999. Please have
your serial number and model number available.

CAUTION

This unit ships from our factory without oil. It must be
properly serviced with fuel and oil before operation.

Remove the Pressure Washer from the
Shipping Carton

1. Set the shipping carton on a solid, flat surface.

2. Remove everything from the carton except the
pressure washer.

3. Carefully cut each corner of the box from top to bottom.
Fold each side flat on the ground to provide a surface
area to install the wheel kit and support leg.

Install the Wheel Kit

Install the Support Leg

1. Attach the support leg to the pressure washer frame
with cap screws (M8x16) and nuts (M8).

2. Tip the pressure washer slowly so that it rests on the
wheels and support leg.

CAUTION

The wheel kit is not intended for over-the-road use.

You will need the following tools to install the wheels:

• 17 mm wrench OR adjustable wrench (not included)

• Socket wrench with a 16 mm socket (not included)

• Pliers (not included)

1. Before adding fuel and oil, tip the pressure washer on
it’s side.

2. Slide the M10x135 wheel bolt through the washer,
sleeve and wheel.

3. Slide the bolt through the mount point on the frame.

4. Fasten securely with the M10 nut.

5. Repeat steps 2-4 to attach the second wheel.

Install the Handle

1. Place the handle over the mounting channel on the
frame.

2. Secure the handle to the frame using the two handle
bolts (M8x45).

3. Place a lock nut (M8) on the end of each bolt and
fasten securely. DO NOT over tighten the lock nuts.

Connect the Battery

1. Remove the protective cover from the red (+) lead on

the bat tery.

2. Attach the red (+) lead to the red (+) terminal on the

battery with the cap screw and secure with the nut.

3. Repeat steps 1-2 for the black (–) battery lead.

9 REV 76526-20140807

76526 ENGLISH

ASSEMBLY

Attach the Hose Hanger

1. Slide hose hanger over the top of frame (recoil side).

2. Align hose hanger with mounting points on frame.

3. Slide the bolt (M8x40) through the mount point on
the frame.

4. Fasten securely with the M8 nut.

Attach the Wand Holder (Clamps)

1. Align clamp with mounting points on frame (power
panel side).

2. Slide the bolt (M5x12) through the mount point on
the frame.

3. Fasten securely.

4. Repeat steps 1-3 for second clamp.

Install the Hoses

Attach the Pressure Gun

1. Attach the wand with nozzle to the gun.

2. Connect the high pressure hose to the outlet
connection on the utility panel.

3. Connect the other end of the high pressure hose to
the gun.

Connect to Garden Hose

Secure a garden hose (not included) to the inlet
connection on the utility panel.

Attach the Detergent Hose

Connect the clear detergent hose to the brass barb on
the pumps outlet connector.

Attach the Gun Holder

1. Align gun holders with mounting points on frame
(Back side).

2. Slide the bolts (M6x14) through the mount points on
the frame.

3. Fasten securely.

Place the filter end of the detergent hose into pressure
washer detergent (not included).

NOTE

Detergents can only be applied at low pressure setting,
when using the black detergent nozzle.

NOTE

Bleach is a highly corrosive chemical. If bleach is run
through the unit, thoroughly flush clean water through
the detergent siphon hose and unit before storing.
Failure to do so will void warranty and will result in
damage to your pressure washer

REV 76526-20140807 10

ASSEMBLY

ENGLISH 76526

Add Engine Oil

CAUTION

DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the pressure
washer as a result of failure to follow these
instructions will void your warranty.

NOTE

The recommended oil type is 10W-30 automotive oil.

1. Place the pressure washer on a flat, level surface.

Add Engine Oil Cont’d.

NOTE

Check oil often during the break-in period. Refer to
the Maintenance section for recommended service
intervals.

NOTE

The pressure washer engine shaft has a sealed,
pre-lubricated ball bearing that requires no
additional lubrication for the life of the bearing.

2. Remove oil fill cap/dipstick to add oil.

3. Add up to 0.6 qt. (0.6 L) of oil and replace oil fill
cap /dipstick. DO NOT OVERFILL.

4. Check engine oil level daily and add as needed.

CAUTION

The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.

11 REV 76526-20140807

76526 ENGLISH

ASSEMBLY

Add Fuel

1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.

2. DO NOT mix oil with fuel.

3. Clean the area around the fuel cap.

4. Remove the fuel cap.

5. Slowly add fuel to the tank. DO NOT OVERFILL. Fuel
can expand after filling. A minimum of ¼ in.
(6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼ in. (6.4 mm) is
recommended. Fuel can be forced out of the tank as
a result of expansion if it is overfilled, and can affect
the stable running condition of the product. When
filling the tank, it is recommended to leave enough
space for the fuel to expand.

6. Screw on the fuel cap and wipe away any spilled fuel.

Add Fuel Cont’d.

NOTE

Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and
carbureto r.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend
fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not

covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.

CAUTION

Use regular unleaded gasoline with a minimum
octane rating of 85.

Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the pressure washer
at the gas station. Use an approved container to
transfer the fuel to the pressure washer.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.

WARNING

Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while filling.

REV 76526-20140807 12

OPERATION

ENGLISH 76526

Pressure Washer Location

This pressure washer must have at least five feet of
clearance from combustible material. Leave at least
three feet of clearance on all sides of the pressure
washer to allow for adequate cooling, maintenance and
servicing. Place the pressure washer in a well ventilated
area. DO NOT place the pressure washer near vents
or intakes where exhaust fumes could be drawn into
occupied or confined spaces. Carefully consider wind and
air currents when positioning pressure washer.

Before Starting the Engine

1. Turn the water supply ON.

2. Pull the trigger on the pressure gun to purge all
air from the pump and hose. This may take several
minutes.

3. Do not start the engine until a steady stream of water
is flowing from the nozzle.

Starting the Engine

1. Make certain the pressure washer is on a flat, level
surface.

2. Turn the Fuel Valve to the “ON” position.

Starting the Engine Cont’d.

NOTE

Keep choke lever in “Choke” position for only 1
pull of the recoil starter. After first pull, move choke
lever to the “Run” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
spark plug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.

NOTE

If the engine starts but does not run make certain
that the pressure washer is on a flat, level surface.
The engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.

To activate the Trigger Start feature:

1. Connect and turn “ON” the water supply.

2. Make sure the fuel valve is in the “ON” position.

3. Move the Ignition Switch to the “ON” position.

4. Move the Trigger Start Switch to the “Enable”
position.

Only when the Trigger Start feature is active can the
engine can be started or stopped using the trigger of the
gun.

3. Press the Ignition Switch to “ON”.

4. Move the choke lever to the “CHOKE” position.

5. ELECTRIC START: Press and hold the ignition switch
to the “START” position. Release as the engine begins
to roll over. If the engine fails to start within five
seconds, release the switch, move the choke to “RUN”
and wait at least ten seconds before attempting to
start the engine again.

6. RECOIL START: Pull the starter cord slowly until
resistance is felt and then pull rapidly.

7. Do not over-choke. As as soon as engine starts, move
the choke lever to the “RUN” position.

NOTE

If the engine does not start after 2 pulls, relieve pump
pressure by pulling the trigger on the pressure washer gun.

To start the engine using the Trigger Start feature:

1. Pull and hold the trigger of the gun.

2. The engine will attempt to start approximately 3
seconds after water begins to flow out of the gun.

Note : When the Trigger Start switch is in the “disabled”
position, the gun trigger will not start or stop the engine.
The water supply must be connected and turned “ON” for
the Trigger Start feature to function.

Note : Extension hoses may be added without affecting
this feature.

NOTE

There is no need to manually choke the engine.
The Engine Control Module automatically chokes
the engine during startup. If the engine fails to start
on the first attempt, it will automatically try again
up to six (6) times, without need of extra pulling of
the trigger.

13 REV 76526-20140807

76526 ENGLISH

OPERATION

Distance from Cleaning Surface

The distance between the spray nozzle and the cleaning
surface affects the impact force of the water. The
impact force of the water increases as the
nozzle is moved closer to the surface. You can vary the
impact force by controlling

• The nozzle’s fan pattern.

• The nozzle’s angle to the cleaning surface.

• The nozzle’s distance from the cleaning surface.

WARNING

Never use a narrow high impact stream on a
surface that is susceptible to damage. Avoid
spraying windows with a narrow high impact stream
or turbo nozzle. Doing so may break the glass.

1. Before triggering the gun, select a nozzle with a wide
fan pattern.

2. Place the nozzle approximately 4-5 ft. (1.2 - 1.5 m)
away from the cleaning surface. Then hold the nozzle
at a 45º degree angle to the cleaning surface. Trigger
the gun.

3. Vary the fan pattern spray angle and the distance
to the cleaning surface until optimum cleaning
efficiency is achieved without damaging the surface.

High Pressure Wash

CAUTION

Turbo Nozzle

WARNING

The turbo nozzle attachment is very powerful and is
not safe for use on all surfaces. Some surfaces may
be more delicate than others and caution should
be exercised when using this attachment. DO NOT
point the turbo nozzle in the direction of any human
being or animal, as this may cause severe injury or
harm.

A standard Zero degree nozzle (not included) delivers
maximum cleaning force to a surface but in the smallest
area. It can cut wood and chip concrete if left on one
spot.

The Turbo Nozzle (included) is a Zero degree nozzle that
rotates rapidly so the cleaning force never dwells on
one spot. The rotating action causes the nozzle to cover
much more area than a standard Zero degree nozzle.
This results in up to twice the cleaning speed of typical
15-40 degree fan nozzles.

To operate the nozzle, simply use the quick connect
feature and attach it to the end of the wand/lance.
When the trigger is pulled and water starts to flow, the
nozzle will spray a rapidly rotating Zero degree stream of
water. Begin spraying about 24 in. (61 cm) away from
the surface being cleaned. Gradually move the nozzle
closer to increase the cleaning/impact force.

Always engage the trigger safety latch when the unit
is not in use.

The trigger safety latch prevents the gun from being
triggered accidentally. Push the latch fully down to
engage it.

Your unit is equipped with a quick connect nozzle port.
Choose the appropriate nozzle tip for the job you are
performing.

CAUTION

The narrow high impact spray can damage some
surfaces.

A wide fan pattern distributes the impact of the water
over a larger area resulting in excellent cleaning action
with reduced risk of surface damage. Clean large surface
areas quickly using a wide fan pattern.

NOTE

Before attaching the turbo nozzle, make sure the
unit is off and has been depressurized.

NOTE

Cold water pressure washer applications only.

REV 76526-20140807 14

OPERATION

ENGLISH 76526

Thermal Relief Valve (TRV)

This pressure washer uses a pump that is equipped
with an automatic thermal relief valve. The thermal
relief valve will automatically open after approximately 2
minutes passing, without the pulling of the gun trigger,
while the engine is running. Running the engine and not
pulling the trigger causes the water temperature inside
the pump to heat up. When the temperature exceeds
140º F (60º C), or after approximately 2 minutes of non­gun use, the thermal relief valve automatically activates.
When the valve is activated, it opens to allow fresh/cool
water flow into the pump and hot water to escape. As a
result of the valve opening, hot water inside the pump
will spray out through the Thermal Relief Valve. When
the pump cools, the valve automatically closes.

CAUTION

Water leaving the valve and/or gun after the valve has
become activated may be hot. Make sure the pressure
washer is in a location that is not sensitive to hot water,
and has a clearance space around it of a minimum
distance of 3 ft. (91.4 cm) DO NOT point the gun at any
animal, human, or surface to avoid any damage and/or
injury caused by hot and/or pressurized water

NOTE

It is recommended that the inlet water temperature not
exceed 104º F (40º C).

Low Pressure Wash

Detergent Use

The use of detergents can dramatically reduce cleaning
time and assist in the removal of difficult stains. Many
detergents are customized for pressure washer use on
specific cleaning tasks. Pressure washer detergents are
as thick as water. Using thicker detergents – like dish
soap – will clog the chemical injection system.

System Flush

After using detergents, flush the suction system by placing
the detergent suction tube into a bucket of clean water.

Operating Tips

CAUTION

Never operate your pressure washer without water.

CAUTION

Never connect your pressure washer to a hot water supply.

Connecting your pressure washer to a hot water
source will significantly reduce the life of the pump
and will void your warranty.

CAUTION

Running the unit for more than two minutes without
spraying water causes heat to build up in the pump.

In the event that the pump gets too hot, a thermal relief
valve will open to release the hot water.
Running the unit without spraying water can damage
pump components and will void your warranty.

To reduce the risk of bodily injury or property damage,
always follow this procedure whenever spraying is
stopped, when work is completed, and before checking or
repairing any part of the system.

1. Engage the trigger safety latch.

2. Turn the unit off.

3. Remove the ignition cable from the spark plug.

4. Shut off the water supply.

5. Disengage the trigger safety latch and trigger the gun
to relieve pressure.

6. Re-engage the trigger safety latch.

7. Before overnight storage, long term storage, or
transporting unit, disconnect the water supply and
turn off the fuel supply valve.

NOTE

Use only detergents specially formulated for pressure washers.

You can effectively clean surfaces by combining the
chemical action of detergents with high pressure rinses. On
vertical surfaces, apply the detergent starting at the
bottom and work your way upward. This method prevents
the detergent from sliding down and causing streaks. Begin
high pressure rinsing at the bottom and work
your way upward. On particularly tough stains, use a brush
in combination with detergents and high pressure rinsing.

15 REV 76526-20140807

Stopping the Engine

1. Turn the Fuel Valve to the “OFF” position.

2. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.

3. Press the ignition switch to the “OFF” position.

4. Depressurize system
a. Turn off water supply.
b. Point gun/wand in safe direction. (Away from

people, animals or electrical outlets)

c. Depress trigger to depressurize system.

76526 ENGLISH

OPERATION

Stopping the Engine Cont’d.

5. Turn off and unplug all hoses. Never start or stop the
pressure washer unless the water supply is turned on.

Important: Always ensure that the Fuel Valve and the
Engine Switch are in the “OFF” position when the engine
is not in use.

To stop the engine using the Trigger Start feature:

1. Release the trigger of the gun

2. The engine will turn “OFF” approximately 15 seconds
after the trigger is released.

3. Press the Trigger Start switch to the “Off” position.

4. Press the engine switch to the “Off” position.

5. Rotate the fuel valve to the “Off” position.

6. Depressurize system
a. Turn off water supply.
b. Point gun/wand in safe direction. (Away from

people, animals or electrical outlets)

c. Depress trigger to depressurize system.

7. Turn off and unplug all hoses. Never start or stop the
pressure washer unless the water supply is turned on.

NOTE

If the trigger is released and then pulled before 15
seconds has elapsed, the engine will continue to run. This
allows the unit to continue running while the operator
stops washing momentarily to move the unit or the object
being washed.

Operation at High Altitude

The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and
air-fuel ratio decrease. Engine power will be reduced
approximately 3½% for every 1000 feet of elevation
above sea level. This is a natural trend and cannot
be changed by adjusting the engine. At high altitudes
increased exhaust emissions can also result due to the
increased enrichment of the air fuel ratio. Other high
altitude issues can include hard starting, increased fuel
consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.

WARNING

NEVER turn the water supply off before turning the
engine/motor off.

WARNING

The pressure washer can remain pressurized even if the
engine is not running. Turn engine/motor off, turn water
supply off and squeeze gun trigger 2-3 times.

WARNING

NEVER disconnect the high pressure discharge hose from
the machine while the system is pressurized.

NOTE

If the engine will not be used for a period of two (2) weeks
or longer, please see the Storage section for proper engine
and fuel storage.

Carburetor
Code

P19-3 -Z

P19-3-H

P19- 3-Y

Main Jet Part Number Altitude

Standard 26. 131017.20. Z

Altitude 26.131017.20 .01.Z

Standard 26. 131017.20. H

Altitude 26.131017.20 .01.H

Standard 26. 131017.20. Y

Altitude 26.131017.20 .01.Y

3500 feet
(1067 m eter s)

WARNING

Operation using the alternative main jet at elevations
lower than the recommended minimum altitude can
damage the engine. For operation at lower elevations, the
standard main jet must be used. Operating the engine
with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency
and performance.

REV 76526-20140807 16

MAINTENANCE AND STORAGE

ENGLISH 76526

The owner/operator is responsible for all periodic
maintenance.

WARNING

Never operate a damaged or defective pressure washer.

WARNING

Improper maintenance will void your warranty.

NOTE

Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.

Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the pressure washer.

NOTE

For service or parts assistance, contact our help
line at 1-877-338-0999

Engine Maintenance

To prevent accidental starting, remove and ground spark
plug wire before performing any service.

Oil

Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.

1. Remove oil fill cap/dipstick.

2. Use pliers to slide the spring clamp down the oil

drain hose and pull the hose off the plug bracket.

3. Point the hose into a drain pan and allow the oil to

drain completely. Note: The hose end must be lower
than the engine base to allow the oil to drain.

4. Replace oil drain hose onto plug bracket and slide

spring clamp back into position.

5. Add up to 0.6 qt. (0.6 L) of oil and replace oil fill

cap/dipstick. DO NOT OVERFILL.

6. Dispose of used oil at an approved waste

management facility.

17 REV 76526-20140807

Oil Cont’d.

NOTE

Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.

Spark Plugs

1. Remove the spark plug cable from the spark plug.

2. Use the spark plug tool that shipped with your
pressure washer to remove the plug.

3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.

4. Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).

0.7 - 0.8 mm

0.028 - 0.031 in.

5. Refer to the spark plug recommendation chart when
replacing the plug.

6. Carefully thread the plug into the engine.

7. Use the spark plug tool to firmly install the plug.

8. Attach the spark plug wire to the plug.

Air Filter

1. Remove the snap-on cover holding the air filter to
the assembly.

2. Remove the foam element.

3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.

4. Saturate in clean engine oil.

5. Squeeze in a clean, absorbent cloth to remove all
excess oil.

6. Place the filter in the assembly.

7. Reattach the air filter cover and snap in place.

76526 ENGLISH

MAINTENANCE AND STORAGE

Cleaning

CAUTION

DO NOT spray engine with water.

Water can contaminate the fuel system.

Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.

Adjustments

CPE recommends that you contact our service line at
1-877-338-0999 for all other service and/or adjustment
needs.

Maintenance Schedule

Follow the service intervals indicated in the schedule
below.
Service your pressure washer more frequently when
operating in adverse conditions.
Contact our help line at 1-877-338-0999 to locate the
nearest Champion Power Equipment certified service
dealer for your maintenance needs.

Pressure Washer Maintenance

Make certain that the pressure washer is kept clean and
stored properly. Only operate the unit on a flat, level
surface in a clean, dry operating environment. DO NOT
expose the unit to extreme conditions, excessive dust,
dirt, moisture or corrosive vapors.

CAUTION

DO NOT use a garden hose to clean the pressure washer.

Use a damp cloth to clean exterior surfaces of the
pressure washer.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the pressure washer.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.

Cleaning Spray Nozzle

Detach the quick connect nozzle from the wand. Use a
small wire rod (paper clip) to loosen up any particles in
the quick connect nozzle and flush with water.

Every 8 hours or daily

Check oil level

Clean around air intake and muffler

First 5 Hours

Change oil

Every 50 hours or every season

Clean air filter

Change oil if operating under heavy load or in hot
environments

Every 100 hours or every season

Change oil

Clean/Adjust spark plug

Check/Adjust valve clearance*

Clean spark arrester

Clean fuel tank and filter*

Every 250 hours

Clean combustion chamber*

Every 3 years

Replace fuel line

*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.

REV 76526-20140807 18

MAINTENANCE AND STORAGE

ENGLISH 76526

Storage

For short and long-term storage, please follow these
guidelines.

NOTE

Ignition switch should be in the “OFF” position
while pulling the recoil cord, and performing storage
maintenance steps.

Engine Stored for Less than 30 Days

1. Allow the engine to cool completely before storage.

2. Clean engine according to the Maintenance section.

3. To extend the fuel storage life add a properly
formulated fuel stabilizer to the tank.

4. Ensure the fuel valve is in the “OFF” position.

Engines Stored for Over 30 Days

1. Add a properly formulated fuel stabilizer to the tank.

2. Run the engine for a few minutes so the treated fuel
cycles through the fuel system and carburetor.

3. Turn the fuel valve to the “Off” position.

4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.

5. The engine needs to cool completely before cleaning
and storage.

6. Clean the engine according to the maintenance section.

7. Change the oil.

8. Remove the spark plug and pour about 1 ⁄2 ounce
(14.8 mL) of oil into the cylinder. Crank the engine
slowly to distribute the oil and lubricate the cylinder.

9. Reattach the spark plug.

DANGER

Engine exhaust contains odorless and colourless
carbon monoxide gas.

To avoid accidental or unintended ignition of the
product during periods of storage, the following
precautions should be followed:

– When storing the pressure washer for short

periods of time make sure that the Ignition
Switch, the Fuel Valve and the Trigger Start™
Switch are set in the OFF position.

– When storing the pressure washer for extended

periods of time make sure that the Ignition
Switch, the Fuel Valve and the Battery Switch
are set in the the the OFF position and the
battery leads have been disconnected from the
battery.

Battery

This product is equipped with an automatic battery
charging circuit. The battery will receive charging
voltage when the engine is running. The battery will
maintain a proper charge if the unit is used on a regular
basis (about once every two weeks). If it is used less
frequently, the battery should be connected to the
smart charger (included) or battery maintainer to keep
the battery properly charged. If the battery is not
able to start the engine, it can be started by manually
pulling the engine recoil cord. If the battery voltage is
extremely low, the charging circuit may not be able to
re-charge the battery. In this case, the battery must be
connected to the smart battery charger for re-charging
before it can be used.

Charge the Battery

For pressure washers equipped with batteries for electric
starting, proper battery maintenance and storage should
be followed. A smart battery charger (included) should
be used to charge the battery. Maximum charging rate
should not exceed 1.5 amps. Follow the instructions
included with any non Champion smart battery charger.
The battery should be fully charged at least once per
month.

NOTE

A Float Charger will maintain the battery condition
over long storage periods.

Disconnect the Battery

1. Remove the protective cover from the black/negative
battery lead.

2. Disconnect the black/negative lead from the black/
negative terminal on the battery and store the cap
screw and nut.

3. Repeat steps 1-2 for the red/positive battery lead.

4. Store the battery in a cool, dry place.

19 REV 76526-20140807

76526 ENGLISH

Pressure Washer Storage

1. Allow the pressure washer to cool completely before
storage.

2. Turn off the fuel supply at the fuel valve.

3. Clean the pressure washer according to the
instructions in the Maintenance section.

4. Store the unit in a clean, dry area out of direct sunlight.

Winter Storage

Protect your pressure washer parts from freezing.

1. Apply all storage instructions from previous sections.

2. Make sure pressure washer hose is free of all water
before storing for winter.

3. In order to prevent the pump from freezing you will
need to insert RV antifreeze.

4. You will need approximately 6 ounces of RV
Antifreeze, a funnel, and approximately
30 cm (12 in.) of garden hose or equivalent.
See diagram below.

MAINTENANCE AND STORAGE

5. Pour the antifreeze into the funnel, then pull on the
engine recoil starter to create suction in the pump
housing. Pull the recoil several times until antifreeze
comes out of the pump outlet.

REV 76526-20140807 20

SPECIFICATIONS

ENGLISH 76526

Engine Specifications

– Model .....................YF168FD-2-221

– Displacement .......................196cc

– Typ e ........................4-Stroke OHV

– Start Type ........................Electric

Pressure Washer Specifications

– Model ........................... 76526

– Max Pressure .................... 3200 PSI

– Max Water Temperature ...........104°F (40°C)

– Flow Capacity .....................2.3 GPM

– Fuel Capacity ................3.8 gal. (14.4 L)

– Gross Weight ..............126.8 lb. (57.5 kg)

– Net Weight ................111.3 lb. (50.5 kg)

– Height ................... 24.1 in. (61.3 cm)

– Width ................... 26.7 in. (67.8 cm)

– Length. . . . . . . . . . . . . . . . . . . . .31.5 in. (80 cm)

Fuel

Fuel capacity is 3.8 gal. (14.4 L). Use regular unleaded
gasoline with a minimum octane rating of 85 and an
ethanol content of less than 10% by volume.

Oil

Use 10W-30 automotive oil.
Oil capacity is up to 0.6 qt. (0.6 L).
DO NOT OVERFILL.
Please reference the following chart for recommended
oil types for use in the pressure washer.

Spark Plugs

OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent

Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).

Maintenance Valve Clearance

– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)

– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.

Turbo Nozzle

– Max PSI rating ...................... 3200

– Max GPM rating .......................2.5

– Degrees (of nozzle stream) ..........Zero degree

– Max temp .............................

cold water pressure washer applications only.

NOTE

The turbo nozzle attachment is not for use on
delicate surfaces, as it is uses a powerful Zero
degree nozzle and may damage or destroy certain
surfaces and objects.

NOTE

Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.

21 REV 76526-20140807

76526 ENGLISH

TROUBLESHOOTING

Problem Cause Solution

Pressure washer will not start No fuel Add fuel

Faulty spark plug Replace spark plug

Pressure washer will not start;
Pressure washer starts but runs
roughly

Pressure washer gallops Low fuel Check fuel level

Unit does not reach high pressure Water supply is restricted Check hoses for leaks, blockage, kinks

Spray pressure varies from high to low Poor inlet water supply Turn garden hose water on full force.

Detergent wash is not functioning
properly

Garden hose connection leaks Loose fittings Tighten

Spray wand leaks Spray wand not properly attached Tighten all connections

Pressure Washer is difficult to start using
Recoil/Electric Start
Pressure Washer will not start using
Recoil/Electric Start

Low oil level Fill crankcase to the proper level

Place pressure washer on a flat, level
surface

Choke in the wrong position Adjust choke

Spark plug wire loose Attach wire to spark plug

Garden hose is too small Replace with 5/8 in. garden hose or

larger

Garden hose inlet filter is clogged Remove garden hose, clean filter and

rinse out

Not enough inlet water Turn garden hose water on full force

Check hose for leaks, blockage, or
kinks

Garden hose inlet filter is clogged Remove garden hose, clean filter and

rinse out

Spray nozzle is obstructed Remove particles with small wire rod

(see maintenance section in manual)

Pump is sucking air Check all hoses and fittings, make

sure they are securely tightened down
and fastened. Turn off engine and
purge pump by squeezing trigger gun
until a steady stream of water flows

Detergent is too thick Dilute detergent

Incorrect nozzle Install black detergent nozzle

Detergent hose is not connected to
the pump housing

Spray nozzle is obstructed Clean nozzle and remove debris

Filter on detergent hose is clogged Clean with warm water or replace

Chemical Injector valve (inside pump)
partially blocked or stuck

Missing/worn-out rubber washer Replace rubber washer

Stuck EZ-Start Valve inside Pump Pull the Gun Trigger while starting the

Check connection. See diagram on
Pa ge 10

Quickly pull and release the gun trigger 4-5
time to clear the chemical injector valve

Pressure Washer
Contact Tech Support if the Pressure
Washer continues to build pressure during
starting

For further technical support:

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[e-mail]

REV 76526-20140807 22

SPECIFICATIONS

Parts Diagram

95

17

18

19

ENGLISH 76526

49

50

51

52

53

54

56

30

20

29

28

31

49

48

47

46

32

33

34

35

36

37

53

55

45

44

43

42

41

57

5859

60

61626364656768

9

101112

8

7

6

5

4

3

2

14

13

1

15

23

4

22

21

16

18

27

25

26

24

18

86

85

18

87

18

18

38

84

39

40

73

74

77

78

81

83

82

72

75

76

80

26

79

66

69

70

71

23 REV 76526-20140807

88

91

89

92 93 94

90

76526 ENGLISH

Parts List

Part Number Description

#

1.819.0510 Screw M5×10 2

1

122.072000.00 Fuel Meter Assembly 1

2

24.070800.00 Reversal Valve 1

3

2.06.006 Clamp ( Ø7×Ø1)

4

24.070014.01 Pipe, Reversal Valve

5

24.070100.00 Fuel Tank Cap

6

23.070301.00 Fuel Filter

7

122.071000.05.48 Fuel Tank, Yellow

8

1.5789.0620.2 Flange Bolt M6×20

9

1.93.06 Lock Washer Ø6

10

2.03.004 Washer (Ø24×Ø6.5×1.5)

11

122.070 015.01 Mount Vibration, Fuel Tank

12

122.070400.03 Fuel Co ck

13

2.06.007 Clamp (Ø8×b6)

14

152.070011.06 Pipe, Fuel (6.7 in.)

15

2.05.001 Clamp (Ø8×6.5)

16

1.5789.08 45 Flange Bolt M8×45

17

1.6177.1.08 Nut M8

18

122.200700.03.2 Handle

19

152.200702.00 Sheath, Handle

20

2.08.055.1 Bolt M6×14, Black

21

254.200012.04 Holder, Gun

22

255.252100.01 High Pressure Water Gun

23

122.070013.00 Pipe, Air Cleaner (85 +30+30)

24

122.070700.00 Carbon Canister (320CC)

25

1.5789.0612 Flange Bolt M6×12

26

1.6177.1.06 Nut M6

27

26.901 Engine

28

23.090006.22 Holder, Air Cleaner

29

1.5789.06 08 Flange Bolt M6×8

30

254.250100.04 High-Pressure Hose (10.6 in.)

31

254.250501.04 Connector (M22-R2 3/ 8 in.)

32

1.95.16 Wa sh er Ø16

33

21.030002.00 Seal, Rubber

34

255.250501.00 Connector (3/ 8 in.)

35

1.9074.1.0538.2

36

122.210002.20 Control Box

37

1.8 23 .0514 Screw M5×14

38

5.18 30.0 02 Remote Control Module

39

5.12 80 .0 03 Fus e (10A)

40

122.210003.00 Gromment

41

252.251003.00 Inlet Filter Gasket

42

254.250501.06 Connector (M18×1)

43

2.02.019 Nut (NH3/4)

44

254.250501.05 Connector (G1/2-M18×1)

45

254.250008.00 Pump Controller

46

2.07.017 O-Ring (Ø17×Ø2.25), Rubber

47

Screw and Washer Assembly
M5×38

Qty

16

Part Number Description

#

254.250501.07 Connector (G1/2)

48

2.06.015 Clamp ( Ø19.5 ×Ø15)

49

254.250501.01

3
1
1
1
1
4
4
4
4
1
2
1
2
2

1
1
2
2
1
1
1
3
1
1
1
1
1
1
1
1
1

2

1
2
1
1
1
1
1
1
1
1
1

50

254.250100.09 Water Hose (7.1 in.)

51

254.250501.02 Connector (G3/8)

52

2.07.013 O-Ring, Rubber

53

1.848.08 Washer Ø8

54

254.250501.03 Connector (G3/8-M22)

55

254.251000.03 Pump (3000PSI AR25G31)

56

2.08.010 Flange Bolt 5/16-24

57

1.93.08 Lock Washer Ø8

58

2.14.001 Key, Rectangle (4.78×4.78×40)

59

256 .250100.01 Detergent Hose (47.2 in.)

60

254.252300.05 Nozzle "Detergent" Black

61

254.252300.09 Nozzle "40" White

62

254.252300.08 Nozzle "25" Green

63

252.2014 00.01 Sheath, Rubber

64

254.252300.07 Nozzle "15" Yellow

65

254.252300.04 Turbo Nozzle

66

5.1010. 00 0. 3 Battery Switch

67

5.1000.001.3 Ignition Switch

68

122.069.26.2 Control Panel

69

5.1110.00 6 Receptacle (Bat tery Charge)

70

1.5789.0612.1 Flange Bolt M6×12, Black

71

255.252200.00 Wand

72

1.166 74.0 512.1 Flange Bolt M5×12, Black

73

254.200015.00.2 Clamp, Wand

74

1.5789.0825 Flange Bolt M8×25

75

252.201400.02 Rubber Mount

76

152.200002.02.2 Support Leg (93.5 mm)

77

1.5789.0816 Flange Bolt M8×16

78

9.1000.090 Battery 12V9AH

79

5.190 0.011 Black Wire, Battery (190 mm)

80

122.20 0013.01 Jacket, Battery

81

5.19 00.0 20 Red Wire, Batter y (380 mm)

82

152.20 0013.01 Jacket, Relay

83

122.200904.00 Pinch, Rubber

84

252.201200.00 Motor Mount

85

1.6182.10 Nut M10

86

254.2 01701.02 10 in. Pneumatic Wheel

87

254.2 00 016.01 Bushing (Ø19 × Ø10.5 ×92)

88

1.96.10 Washer Ø10

89

1.5782.10135 Bolt M10×135

90

6.1.118 .2 Frame

91

254.250100.08 High-Pressure Hose (50ft.)

92

1.5789.08 40 Flange Bolt M8×40

93

254.200012.02 Hose Hanger

94

9.1700.004 Smart Charger

95

Right Angle Connector
(M22-M22)

Qty

1
2

1

1
1
2
2
1
1
4
4
1
1
1
1
1
5
1
1
1
1
1
1
4
1
4
2
2
2
1
2
1
1
2
1
1
1
2
2
2
2
2
2
1
1
2
1
1

REV 76526-20140807 24

SPECIFICATIONS

Engine Parts Diagram

96

ENGLISH 76526

95

100,101,102

12

94

93

90

88

87

86

85

84

115

114

51

116

117

124

118

119

120

91

11

81

83

82

80

79

78

77

111

110

112

113

109

99

98

97

92

1

75

74

76

105

107

108

56

55

50

49

73

72

71

70

69

103

104

106

12

59

57

58

53

52

51

122

54

24

23

22

21

68

67

63

62

61

60

34

1

33

25

45

16

47

46

66

65

64

37

36

35

32

30

29

27

26

25

44

43

42

41

40

12

38

14

31，28

39

48

54

123

13

12

108

25 REV 76526-20140807

10

9

15

20

19

18

89

17

8

7

6

5

4

3

2

121

1

76526 ENGLISH

Part Number Description

#

1.5789.06 08 Flange Bolt M6×8 6

1

22.061100.00.2 Recoil Starter Cover, Black 1

2

21.061005.00 Recoil Starter Spring 1

3

2.10. 00 3 Ro pe (Ø5×15 50 ) 1

4

21.061001.01 Recoil Starte r Reel 1

5

45.060003.00 Spring, Ratchet 2

6

45.060002.00 Starter Ratchet (Iron) 2

7

45.060009.00 Spring, Ratchet Guide 1

8

45.060007.00 Ratchet Guide 1

9

45.060008.00 Screw, Ratchet Guide 1

10

24.040004.00 Guide Plate, Push Rod 1

11

1.5789.0612 Flange Bolt M6×12 9

12

24.080100.00.48 Fan Cover, Yellow 1

13

2.05.010 Clamp (Ø4×6.5) 2

14

21.061300.00 Recoil Handle 1

15

23.125200.00 Relay, Starter 1

16

45.030200.00 Support 1

17

2.06.013 Clamp (Ø13.5×b10) 1

18

24.032000.00 Oil Guide Assembly 1

19

2.03.016

20

2.02.006 Nu t M14 ×1. 5 1

21

21.060001.01 Pulley, Starter 1

22

23.080001.00 Cooling Fan 1

23

24.12010 0.0 7 Flywheel, Electric Start 1

24

2.11.0 01 Oil Seal (Ø25×Ø41.3×6) 2

25

2.03.020.1 Washer (Ø6.2×Ø15×0.5), Black 1

26

21.110100 .00 Gear, Governor 1

27

1.93.05 Lock Washer Ø5 2

28

21.110013.00 Shaft, Governor Gear 1

29

21.110 011.0 0 Clip, Governor Gear 1

30

1.16674.0516 Flange Bolt M5×16 2

31

21.110012. 01 Bushing, Governor Gear (Iron) 1

32

45.121000.00 Coil, Charging 1

33

23.030006.00 Plate, C oil 1

34

23.080600.02 Air Guide, Right Side 1

35

45.030032.00 Sheath, Wire 1

36

26.030100.00 Crankcase 1

37

21.127000.02 Oil Level Sensor 1

38

23.125100.00 Starter Motor A ssembly 1

39

23.050200.00 Connecting Rod 1

40

25.050100.03 Crankshaft, Straight 1

41

1.276.620 5 Bearing 6205 2

42

24.030008.00 Gasket, Crankcase Cover 1

43

22.031000.00.48 Oil Dipstick Assembly, Yellow 1

44

22.031000.01.48 Plug, Oil Assembly, Yellow 1

45

24.030007.00 Cover, Crankcase 1

46

1.5789.0832.0.8 Flange Bolt M8×32 6

47

2.04.005 Dowel Pin (Ø8×10) 2

48

23.110006.00 Rod, Governor 1

49

21.110003.00 Arm, Governor 1

50

1. 6 17 7. 0 6 Flange Nut M6 3

51

21.110001.00 Shaft, Governor Arm 1

52

22.123000.02 Ignition Coil (Shield) 1

53

1.5789.0625 Flange Bolt M6×25 5

54

23.110005.01 Spring, Throttle Return 1

55

23.110007.00 Spring, Governor 1

56

2.08.040 Bolt, Governor Arm (M6×21) 1

57

21.110008.00 Pin, Shaft 1

58

23 .1110 00.20 Control Assembly 1

59

25.040013.00 Lifter, Valve 2

60

2.04.001 Dowel Pin (Ø9×14) 2

61

26.041000.01 Camshaft 1

62

2.14. 012 Wo odruff Key (4×7.5×19) 1

63

Washer, Drain Bolt

(Ø10 ×Ø16×1.5)

Qty

Part Number Description

#

2.08.037 Bolt, Drain (M10×1.25× 25) 1

64

26.050005.00 Piston 1

65

23.050003.00 Pin, Piston 1

66

2.09.001 Circlip (Ø18× Ø1) 2

67

26.050303.00 Ring, Oil 1

68

26.050302.00 Ring, Second Piston 1

69

26.050301.00 Ring, First Piston 1

70

26.030009.00 Gasket, Cylinder Head (168-2) 1

71

2.04.003 Dowel Pin (Ø10×14) 2

72

23.040002.00 Valve, Intake 1

73

23.040006.00 Valve, Exhaust 1

74

26.080400.00 Air Guide, Lower 1

75

2.15.002(F6RTC) Spark Plug (F6RTC) 1

76

1.5789.0855 Flange Bolt M8×55 4

77

23.040017.00 Oil Seal, Valve 2

78

21.040003.00 Spring, Valve 2

79

21.040007.00 Retainer, Exhaust Valve Spring (up) 1

80

21.040001.00 Retainer, Intake Valve Spring (up) 1

81

21.040008.00 Rotator, Exhaust Valve 1

82

24.040202.00 Shaft, Rocker Arm 1

2

83

22.040009.00 Rocker Arm, Intake Valve 2

84

22.040012.00 Screw, Valve Adjustment 2

85

21.040021.00 Nut, Lock (M6×0.5) 2

86

1.97.1.06 Washer Ø6 2

87

1.6177.1.06 Flange Lock Nut M6 2

88

26. 131017.20 Standard Main Jet 1

89

26.131017.20 .01 Altitude Main Jet /

24.040201.00 Retainer, Rocker Arm 1

90

23.040010.00 Bolt, Rocker Arm 2

91

23.040005.00 Push Rod 2

92

21.020002.01 Gasket, Cylinder Head Cover 1

93

24.021000.00 C ylinder Head Cover (CPE) 1

94

23.020001.02 Breather Tube 1

95

1.5789.0 615 Flange Bolt M6×15 4

96

2.01.010 Stud Bolt M8×35 2

97

26.100001.00 Gasket, Exhaust 1

98

26.1010 00.0 3 Muffler Assembly 1

99

1.848.08 Washer Ø8 2

100

1.93.08 Lock Washer Ø8 2

101

1.617 5.08 Nut M8 2

102

26. 010100 .0 0 Cylinder Head (168-2) 1

103

2.01.003 Stud Bolt M6×90 2

104

24.130002.00 Gasket, Insulator 1

105

23.130001.00 Insulator, Carburetor 1

106

22.130003.00 Gasket, Carburetor 1

107

26.131000.24 Carburetor 1

108

81.130010.00 Spring, Connector 1

109

26.130 015. 24 Connecter, Choke Valve Axis 1

110

24.130004.20 Gasket, Air Cleaner 2

111

26.130005.24 Suppor t, Stepper Motor 1

112

45.132200.01 Stepper Motor 1

113

1.823.0408 Screw M4×8 2

114

81.132001.00 Cover, Stepper Motor 1

115

24.09110 0. 21 Base, Air Cleaner 1

116

23. 0910 02.21 Seal, Air Cleaner 1

117

23. 0910 01.21 Separator, Air Cleaner 1

118

23.091003.21 Element, Air Cleaner 1

119

24.091200.20 Cover, Air Cleaner 1

120

22.061000.00 Recoil Assembly 1

121

2.03.021.1 Washer (Ø6.4×Ø13×1), Black 1

122

1.5789.0629 Flange Bolt M6×29 1

123

24.091000.21 Air Cleaner Assembly 1

124

Qty

REV 76526-20140807 26

WARRANTY

ENGLISH 76526

WARRANTY

CHAMPION POWER EQUIPMENT

1 YEAR LIMITED WARRANTY

Effective September 1, 2006. Replaces all undated warranties
and all warranties dated before September 1, 2006.

Warranty Qualifications

Champion Power Equipment (CPE) will register this
warranty upon receipt of your Warranty Registration Card
and a copy of your sales receipt from one of CPE’s retail
locations as proof of purchase.
Please submit your warranty registration and your proof
of purchase within ten (10) days of the date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the
mechanical and electrical components will be free of
defects in material and workmanship for a period of one
(1) year from the original date of purchase, and one (1)
year for commercial & industrial use. Transportation
charges on product submitted for repair or replacement
under this warranty are the sole responsibility of the
purchaser. This warranty only applies to the original
purchaser and is not transferable.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will troubleshoot
any issue via phone or e-mail. If the problem is not
corrected by this method, CPE will, at its option, authorize
evaluation, repair or replacement of the defective part or
component at a CPE Service Center. CPE will provide you
with a case number for warranty service. Please keep it
for future reference. Repairs or replacements without prior
authorization, or at an unauthorized repair facility, will not
be covered by this warranty.

Warranty Exclusions

This warranty does not cover the following repairs and
equipment:

Normal Wear

Pressure washers need periodic parts and service to
perform well. This warranty does not cover repair when
normal use has exhausted the life of a part or the
equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if
this pressure washer is deemed to have been misused,
neglected, involved in an accident, abused, loaded
beyond the pressure washer’s limits, modified, installed
improperly or connected incorrectly to any water supply.

27 REV 76526-20140807

Installation, Use and Maintenance Cont’d.

Normal maintenance such as spark plugs, air filters,
adjustments, fuel system cleaning and obstruction due
to buildup is not covered by this warranty.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as filter elements, o-rings, etc.

– Accessory parts such as starting batteries, and

storage covers.

– Failures due to acts of God and other force majeure

events beyond the manufacturer’s control.

– Problems cause by parts that are not original

Champion Power Equipment parts.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to
cover any loss of time, use of this product, freight, or
any incidental or consequential claim by anyone from
using this pressure washer. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
A unit provided as an exchange will be subject to the
warranty of the original unit. The length of the warranty
governing the exchanged unit will remain calculated by
reference to the purchase date of the original unit.
This warranty gives you certain legal rights which may
change from state to state. Your state may also have
other rights you may be entitled to that are not listed
within this warranty.

Contact Information

Address

Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
www.championpowerequipment.com

Customer Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[e-mail]
Fax no.: 1-562-236-9429

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[e-mail]
24/7 Tech Support: 1-562-204-1188

Champion Power Equipment, Inc. (CPE),

The United States Environment Protection Agency (U.S. EPA.) and the California Air Resources Board (CARB)

Emission Control System Warranty

Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air
Resources Board (CARB) emission regulations.

YOUR WARRANTY RIGHTS AND OBLIGATIONS:

The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Emission
Control Systems Warranty on your 2014 small off-road engine and engine powered equipment. In California, new,
small off-road engines and new equipment that use small off-engines must be designed, built and equipped to meet
the State’s stringent anti smog standards. In the other states, new engines and equipment must be designed, built
and equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE warrants the
emission control system on your small off-road engine and equipment for the period of time listed below, provided
there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.

Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,
catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related
assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine at no cost to you
including diagnosis, parts and labor. For engines less than or equal to 80cc, only the fuel tank and fuel line is
subject to the evaporative emission control warranty requirements of this section.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:

This emission control system is warranted for two years, subject to provisions set forth below. If, during the
warranty period, emission related part on your engine is defective in materials or workmanship, the part will be
repaired or replaced by CPE.

OWNER WARRANTY RESPONSIBILITIES:

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in
your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off­road engine, but CPE cannot deny warranty solely for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.

As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if
your small, off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.

You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate
service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact:

Champion Power Equipment, Inc.

Customer Service
12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

[e-mail]

EMISSION CONTROL SYSTEM WARRANTY

The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.

1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (for

other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine
or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months
thereafter.

2. GENERAL EMISSIONS WARRANTY COVERAGE

CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent
purchaser that each of its small off-road engines is:
a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited
engines at or below 19 kilowatts and all applicable regulations adopted by the California Air Resources Board
and
b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical
in all material respects to the part as described in the engine manufacturer’s application for certification for a period
of two years.

3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:

a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners
Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it
shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under
the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.
b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the
Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the
effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or
replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.
c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that
part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE
according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,
shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for
such emissions-related part.
d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered
by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized
Service Outlet.
f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S.
Census 2000 without a CPE Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile
limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,
Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.
g. CPE shall be liable for damages to other original engine components or approved modifications
proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.
h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts
sufficient to meet the expected demand for such emission-related parts.
i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of
any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not
reduce CPE’s warranty obligation.
j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids
this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable
hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or
modified part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the
engine)

Systems covered by this
warranty

Parts Description

Fuel Metering System

Fuel regulator, Carburetor and internal parts

Air Induction System

Air cleaner, Intake manifold

Ignition System

Spark plug and parts, Magneto ignition system
Exhaust System

Exhaust manifold, catalytic converter

Miscellaneous Parts

Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed
systems.

Evaporative Emissions

Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls,
Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge
Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister
Mounting Brackets, Carburetor Purge Port Connector

TO OBTAIN WARRANTY SERVICE:

You must take your CPE engine or the product on which it is installed, along with your warranty registration card or
other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is
authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business
hours. Alternate service locations defined in Section (3)(f.) above must be approved by CPE prior to service. Claims
for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because
the engine was not properly maintained and used.

If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty
service, please write or call Customer Service at Champion Power Equipment, Inc.

Champion Power Equipment, Inc.

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

Attn.: Customer Service

[e-mail]
