Page 1

GARAGE DOOR OPENER

Model 3290

For Residential Use Only

The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196

www.liftmaster.com

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

is connected and properly aligned.

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

■ Periodic checks of the opener are required to ensure safe operation.

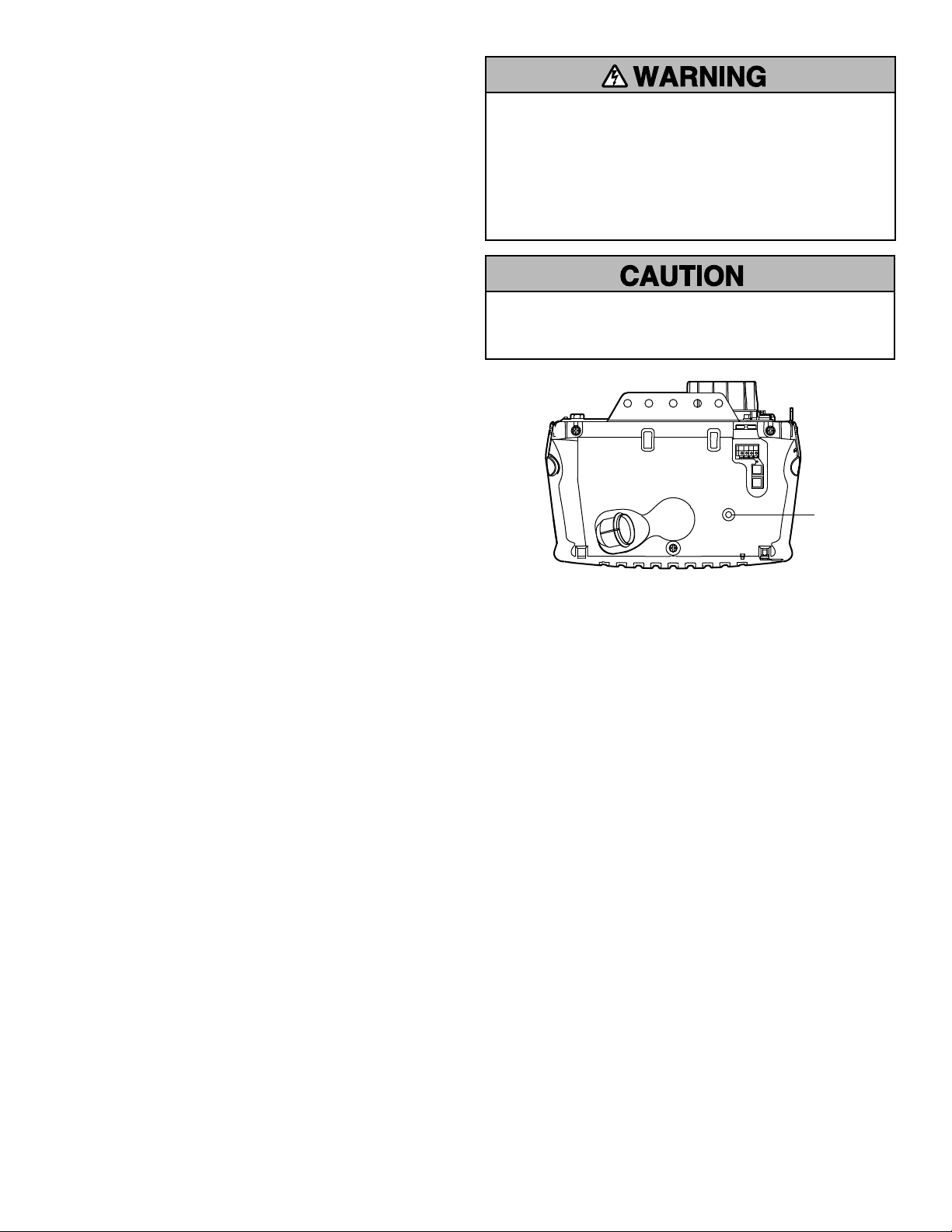

■ The model number label is located under the light lens on the left side panel of your opener.

Page 2

Introduction 2-5

Safety symbol and signal word review . . . . . . . . . . . . . . . . . . . . . 2

Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly 6-7

Attach the rail to the motor unit . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Attach the chain to the sprocket and install

the motor unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tighten the chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation 7-22

Installation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Determine the header bracket location . . . . . . . . . . . . . . . . . . . . . 8

Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

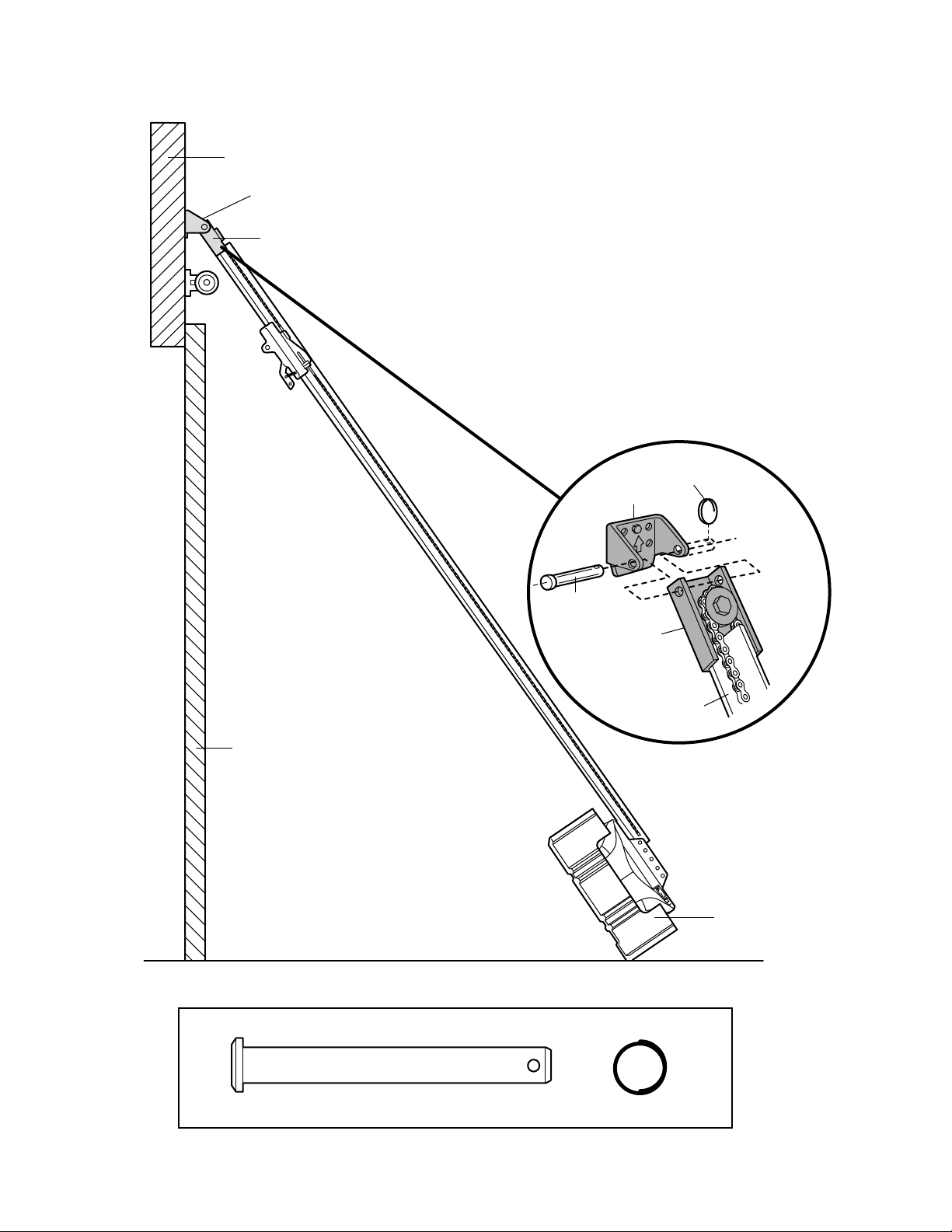

Attach the rail to the header bracket. . . . . . . . . . . . . . . . . . . . . . 10

Position the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

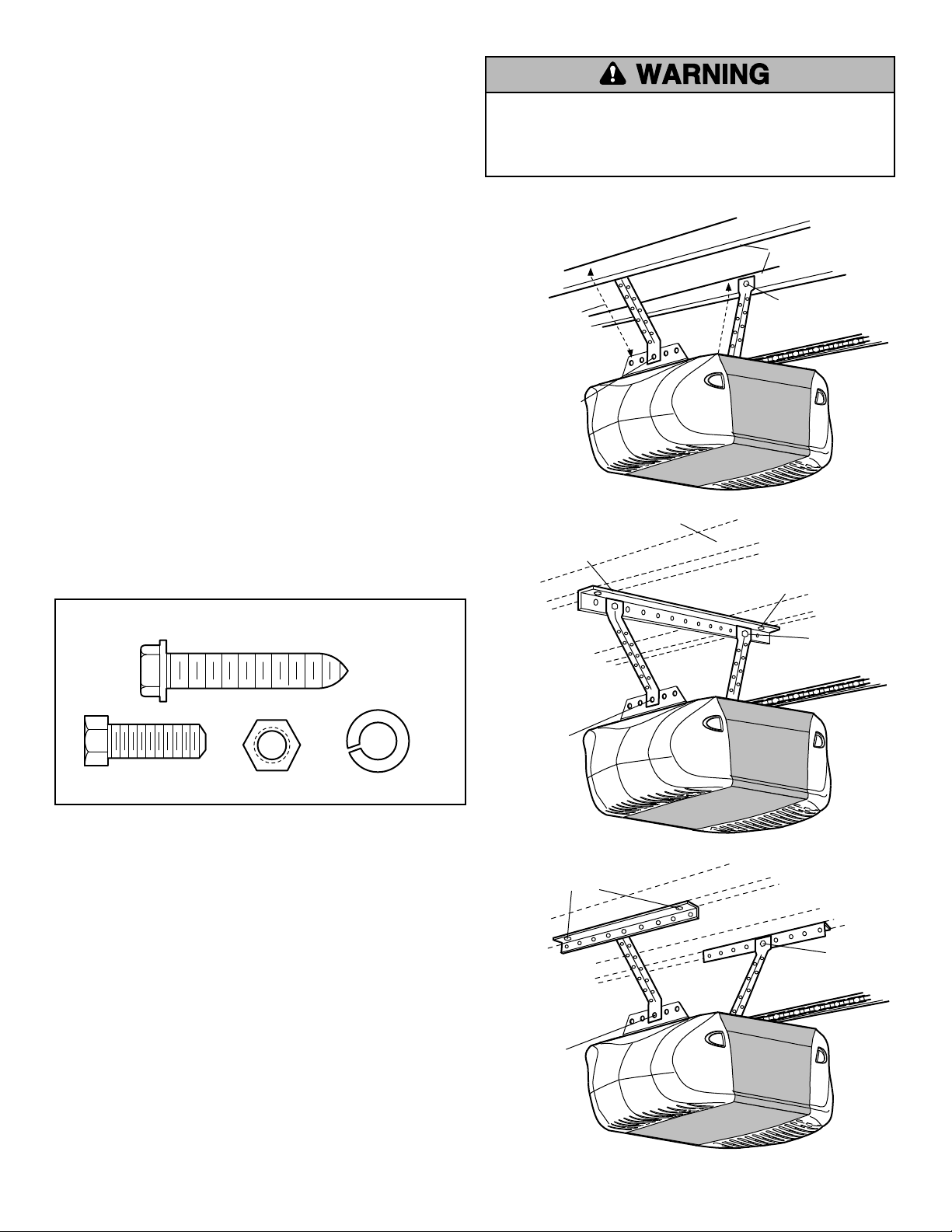

Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Install the Standby Power (optional) . . . . . . . . . . . . . . . . . . . . . 14

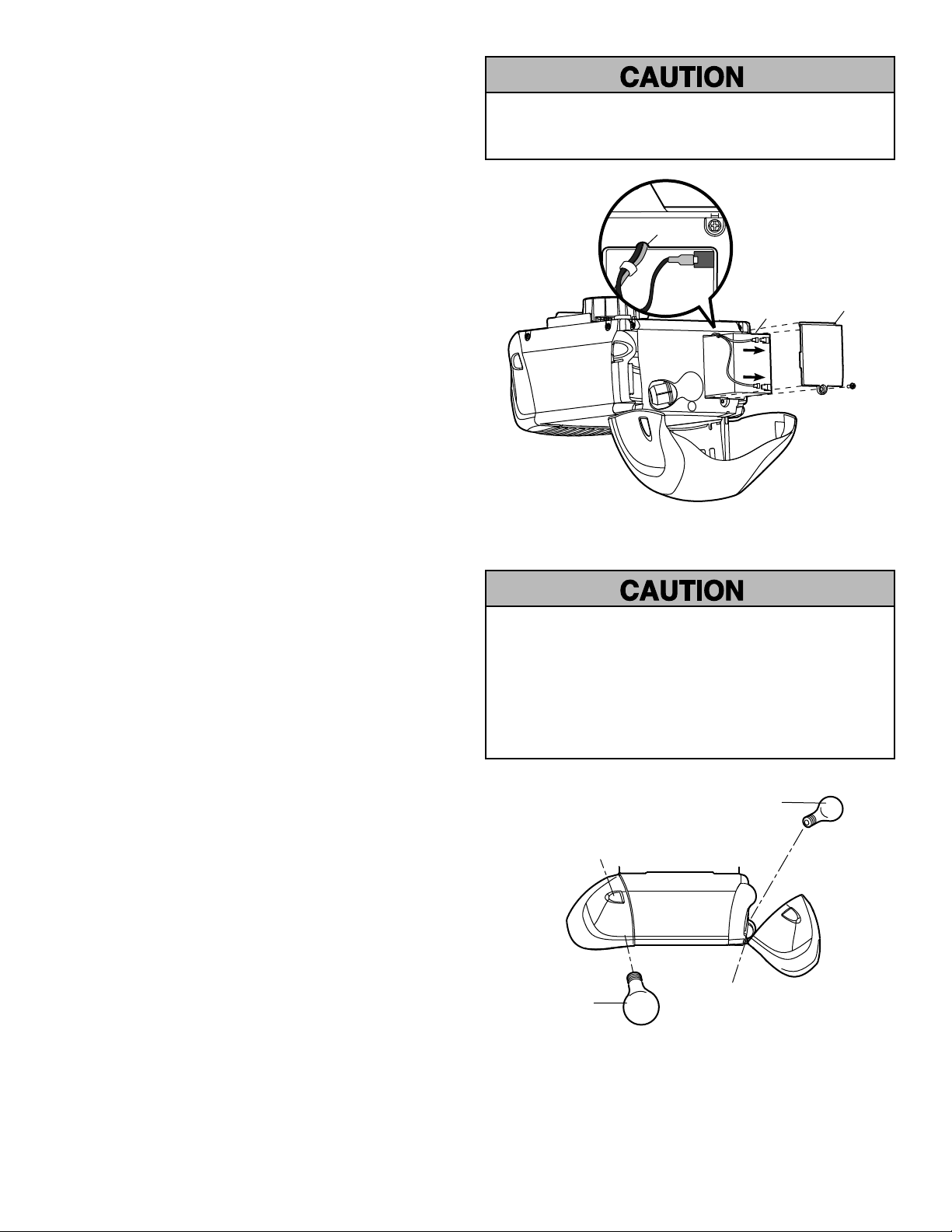

Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

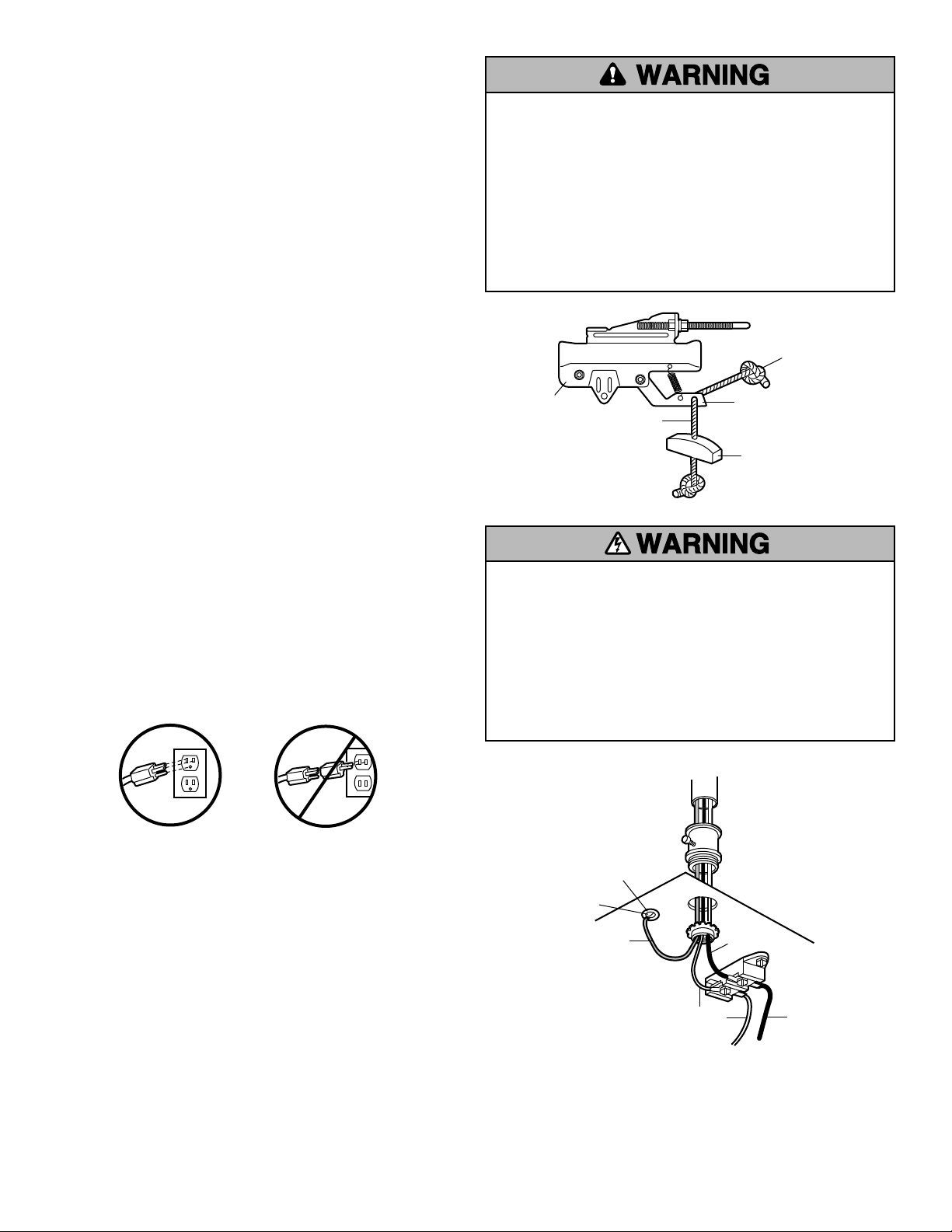

Attach the emergency release rope and handle . . . . . . . . . . . . . 15

Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

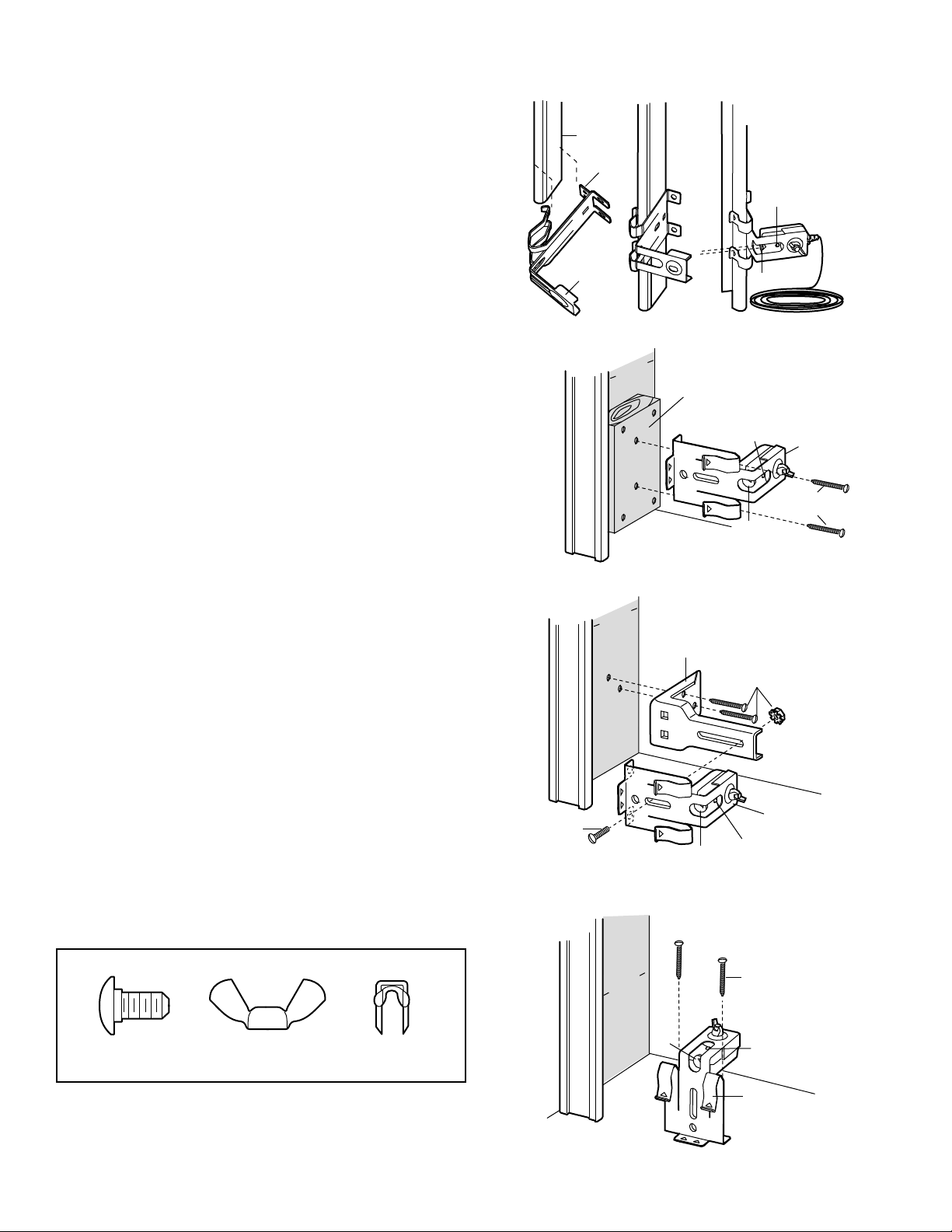

Install the Protector System

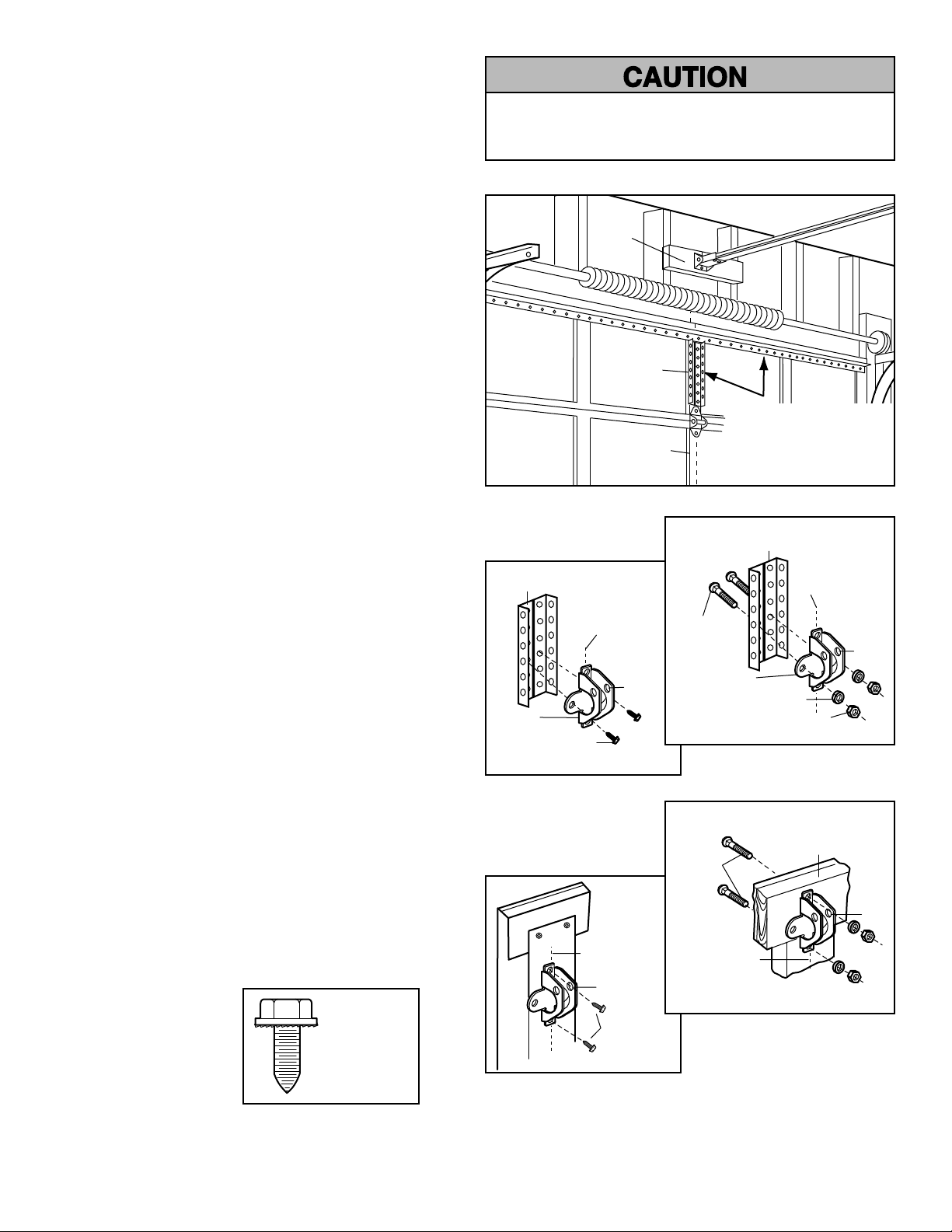

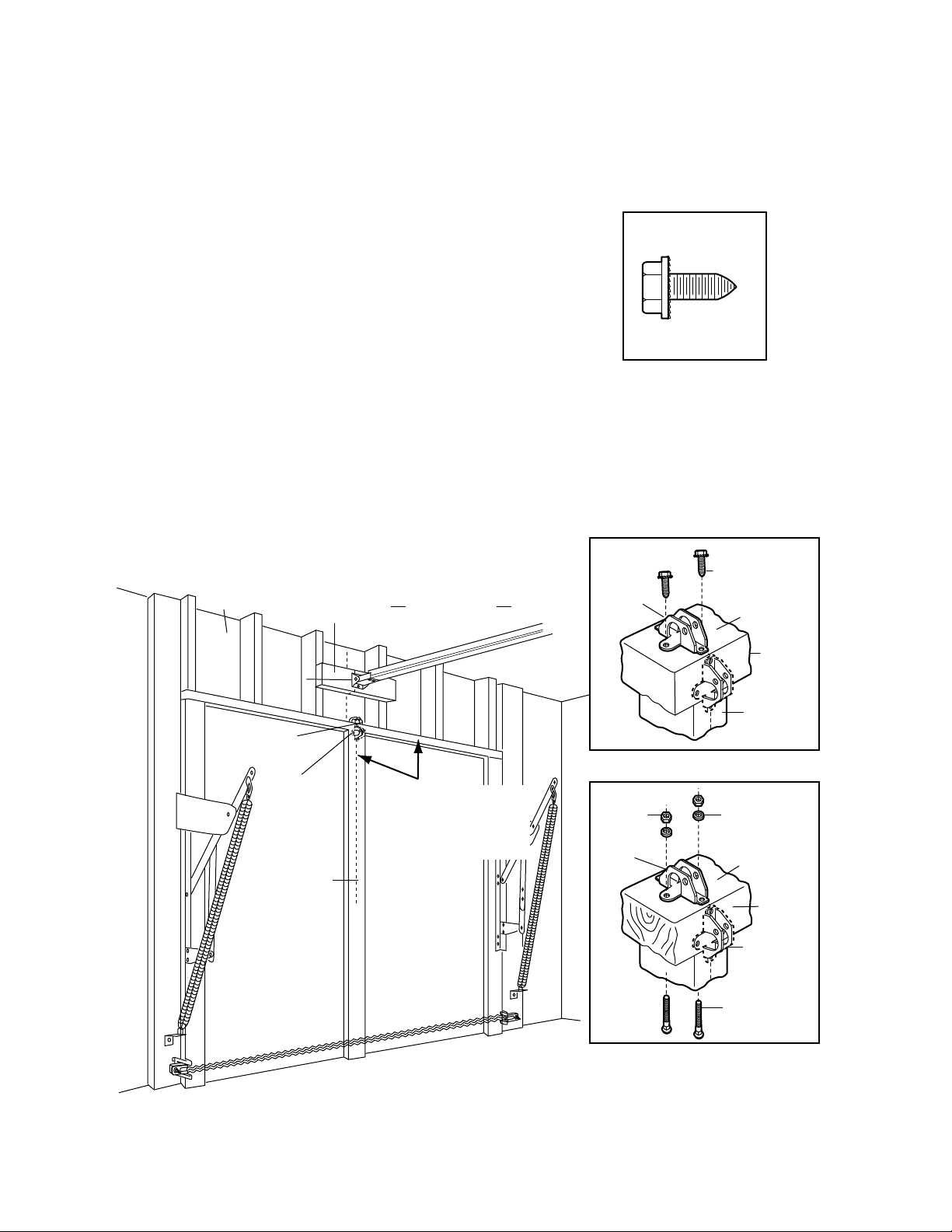

Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

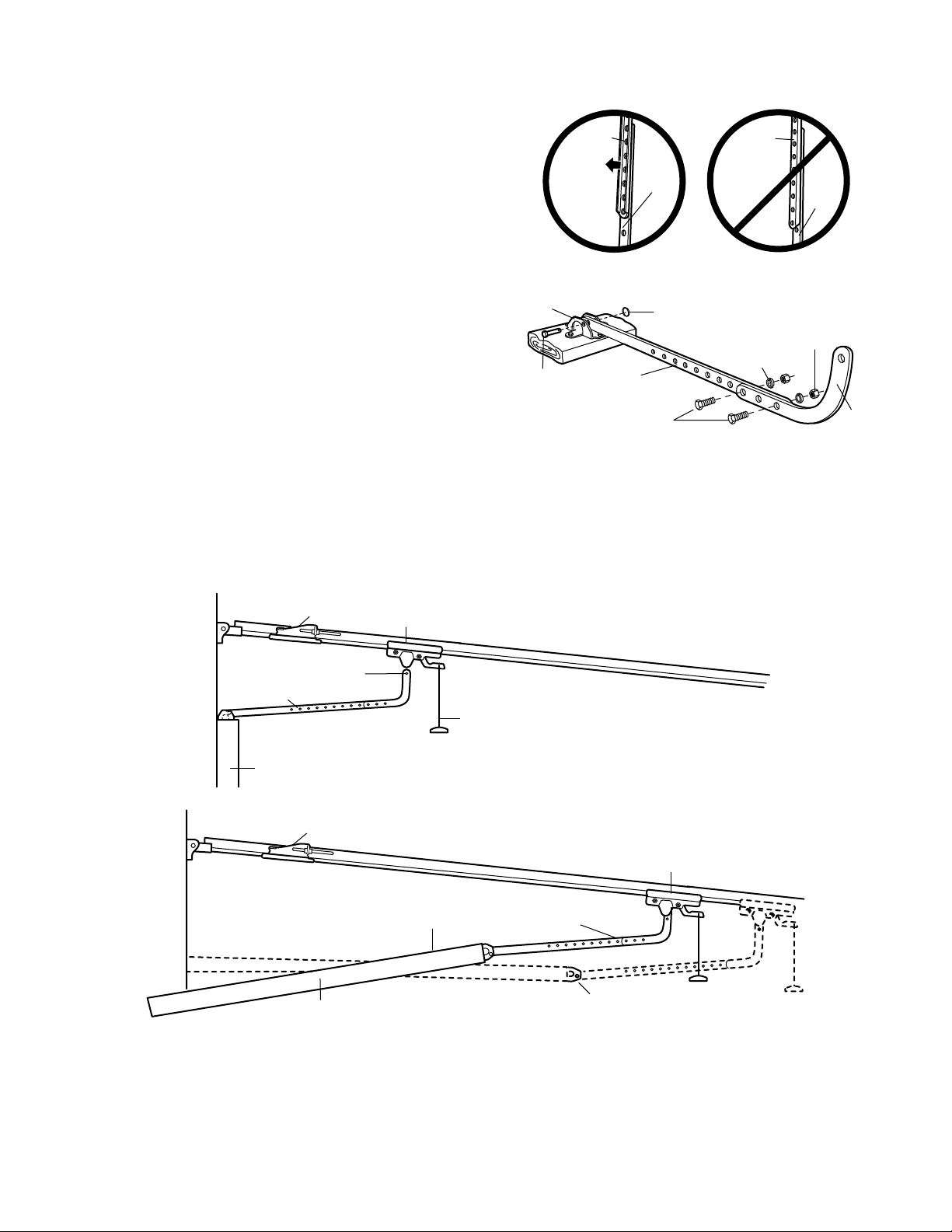

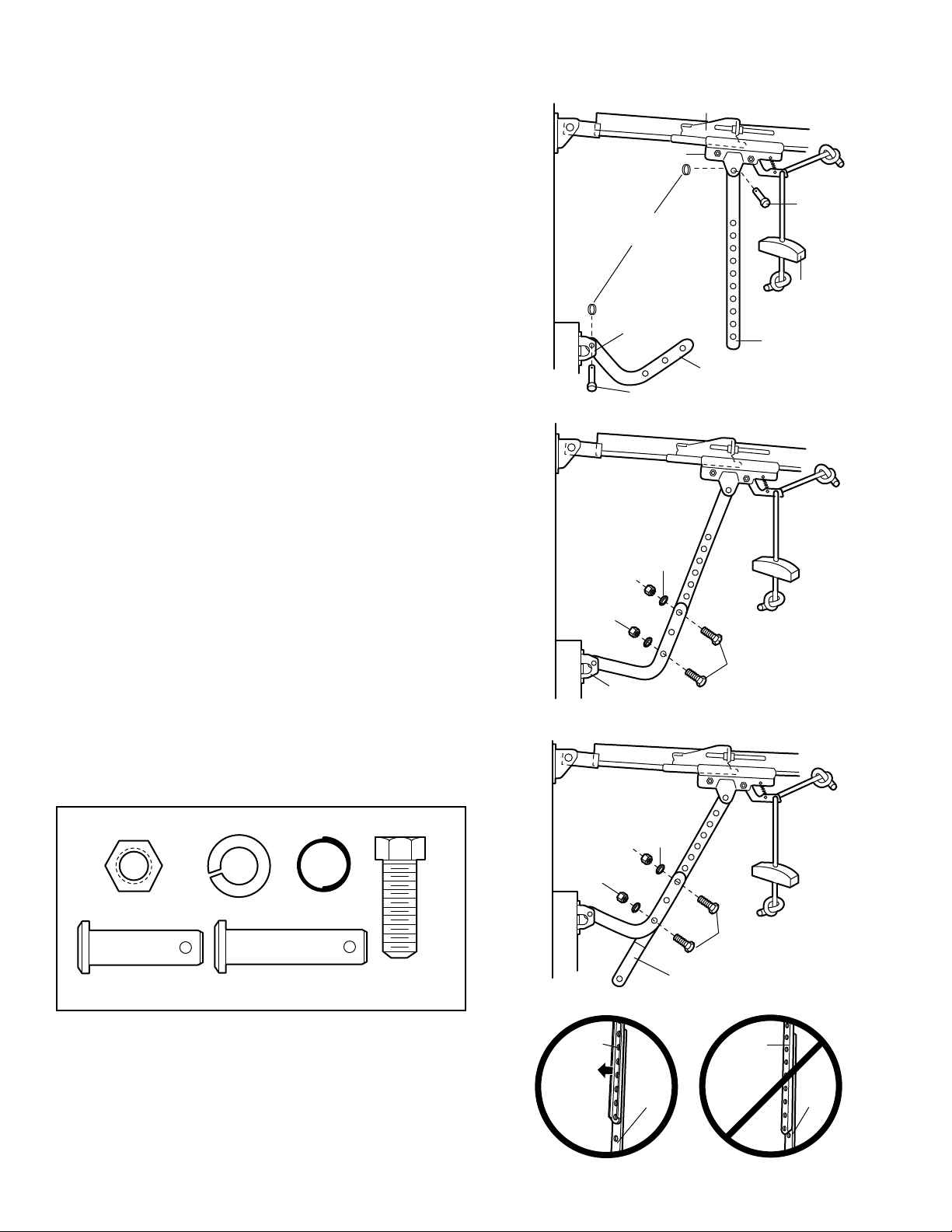

Connect door arm to trolley . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

. . . . . . . . . . . . . . . . . . . . . . . . 16-18

Operation 26-31

Operation safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using your garage door opener . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the wall-mounted door control . . . . . . . . . . . . . . . . . . . . . 27

To open the door manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Care of your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

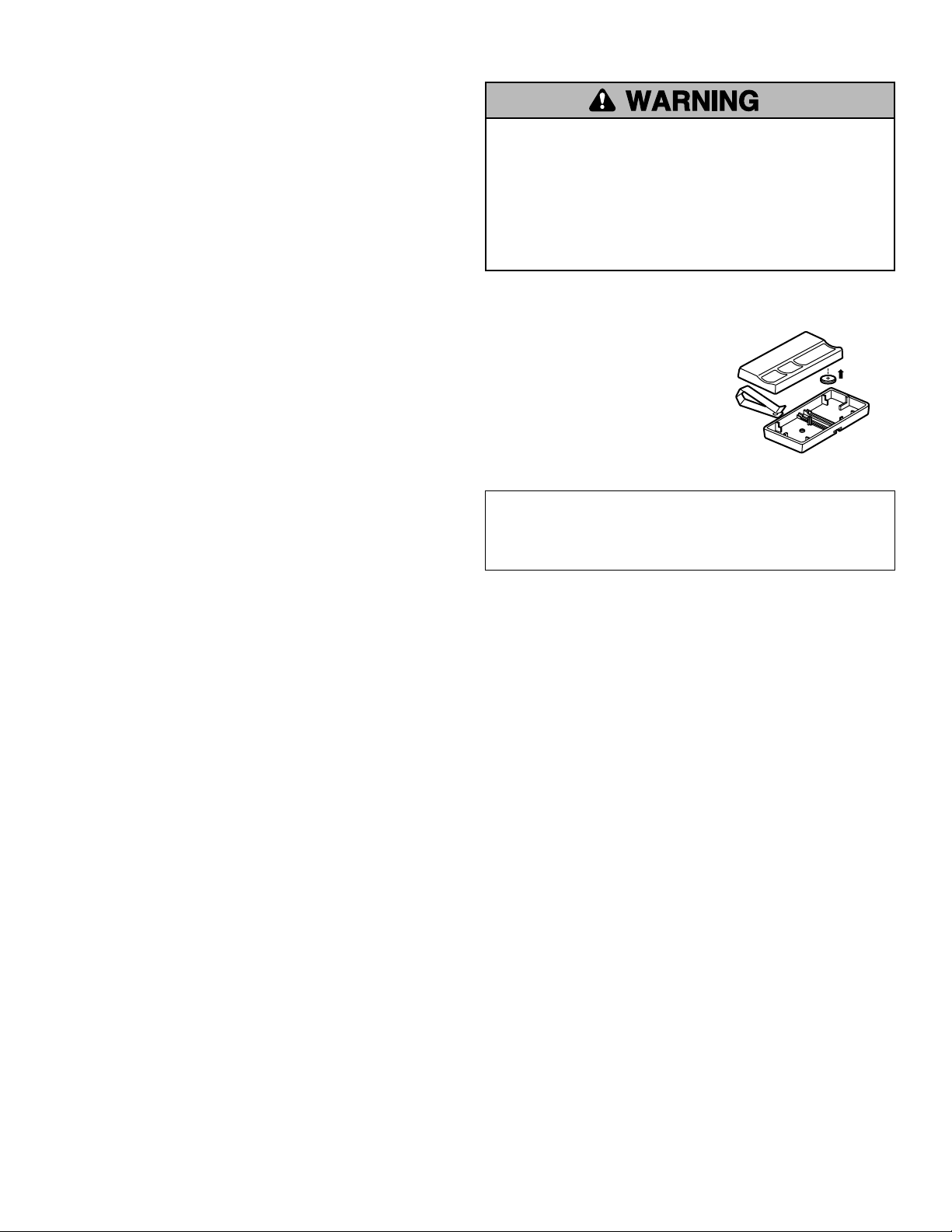

The remote control battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Standby Power (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Having a problem? (Troubleshooting) . . . . . . . . . . . . . . . . . . . . 30

Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

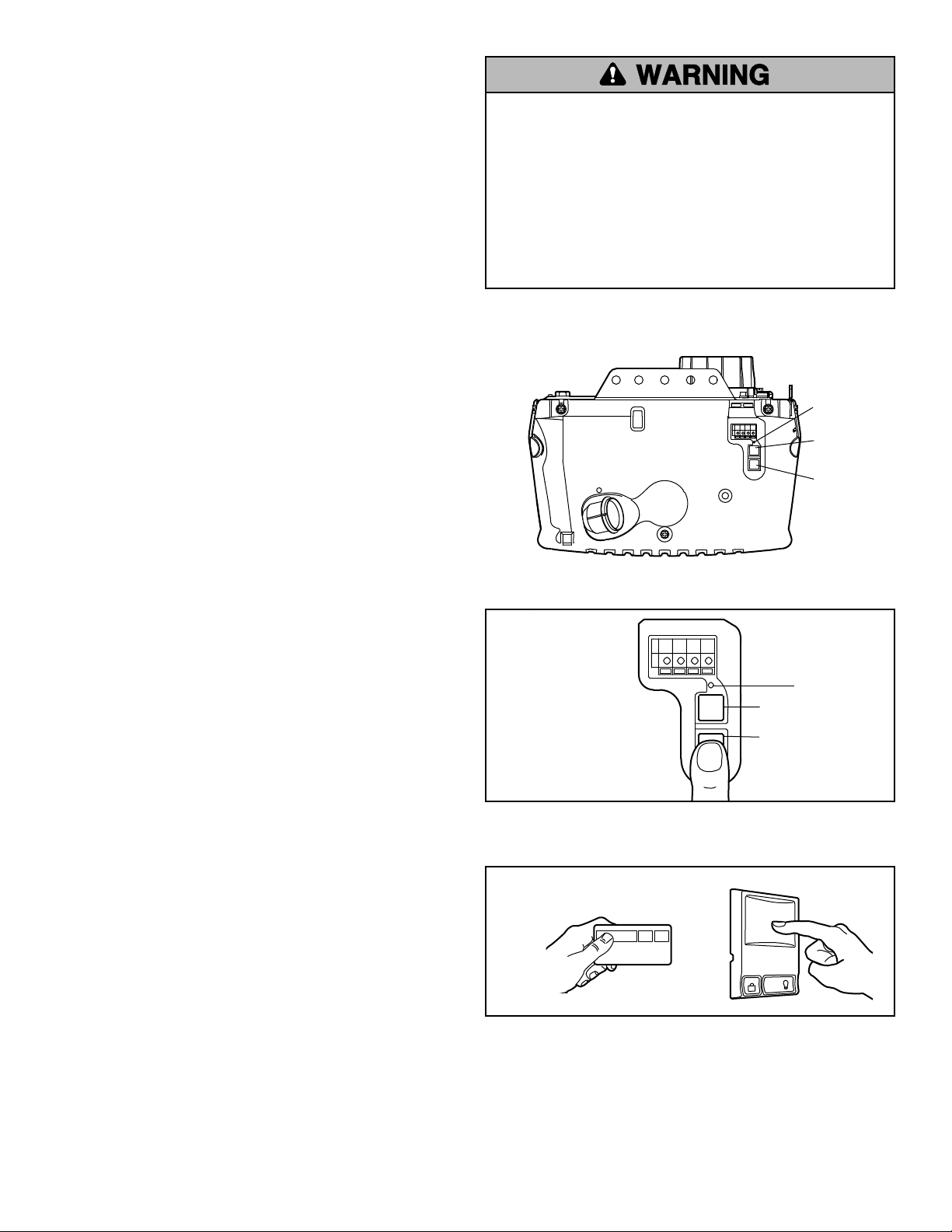

Programming 32-33

To add or reprogram a hand-held remote control . . . . . . . . . . . 32

To erase all codes from motor unit memory . . . . . . . . . . . . . . . 32

3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

To add, reprogram or change a Keyless Entry PIN. . . . . . . . . . . 33

Repair Parts 34-35

Rail assembly parts 34

Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

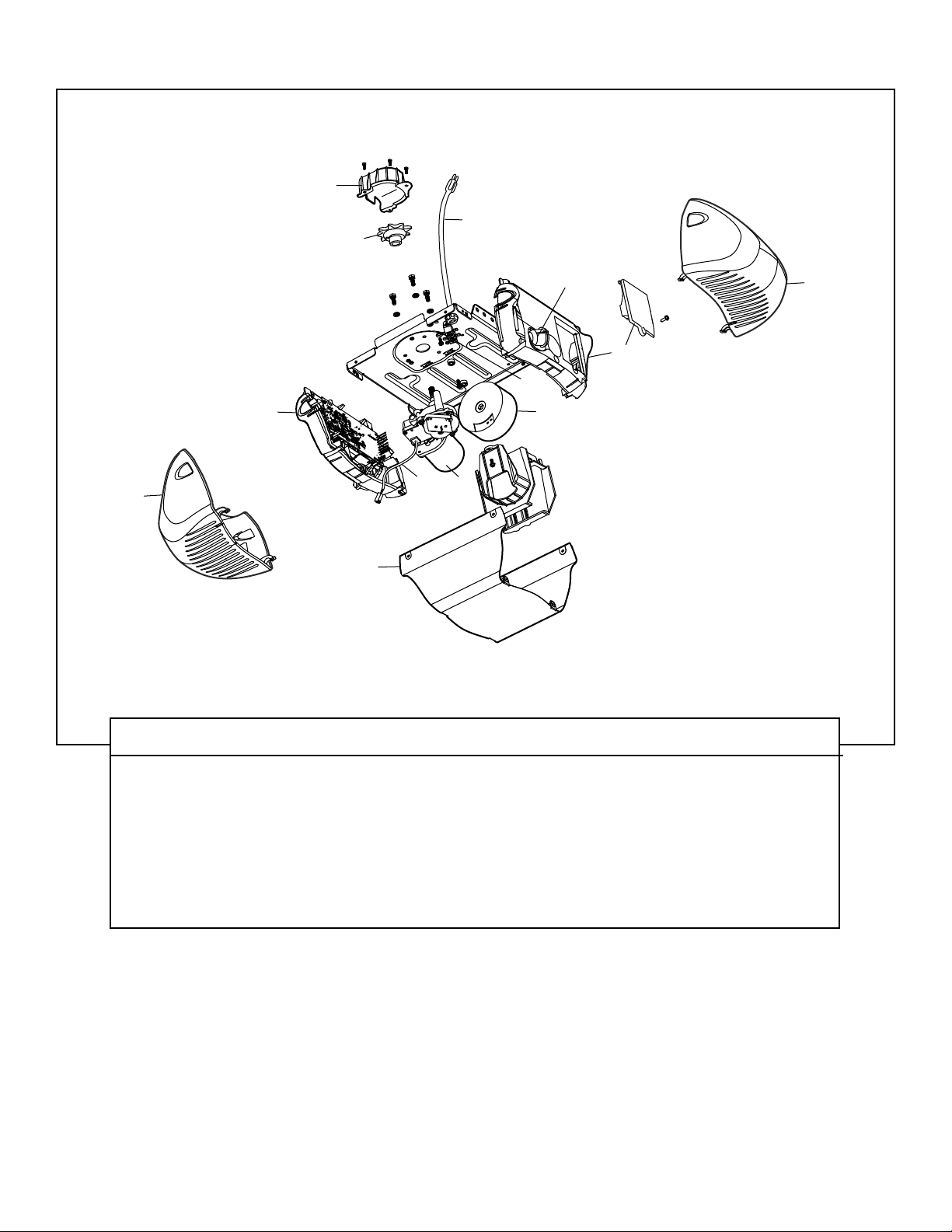

Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

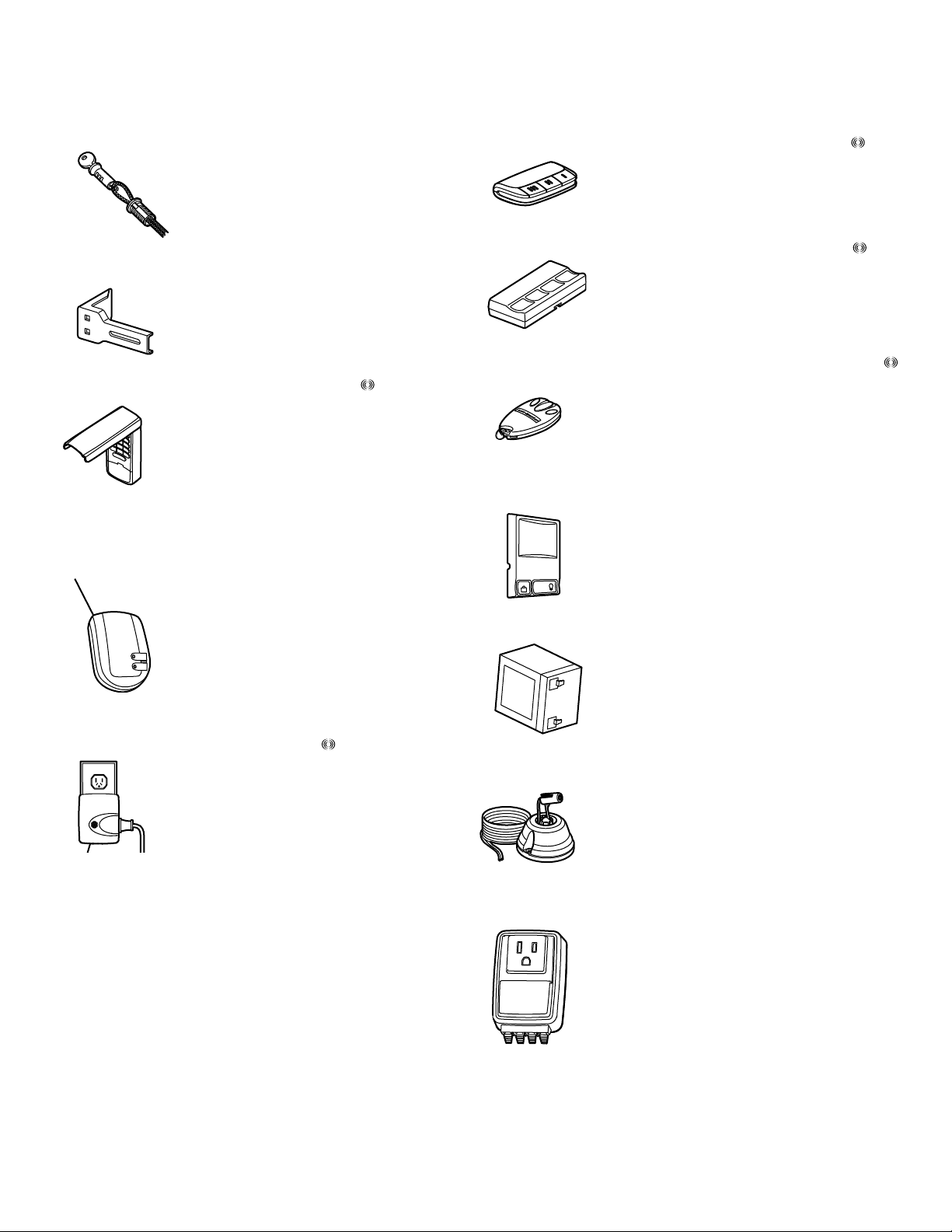

Accessories 36

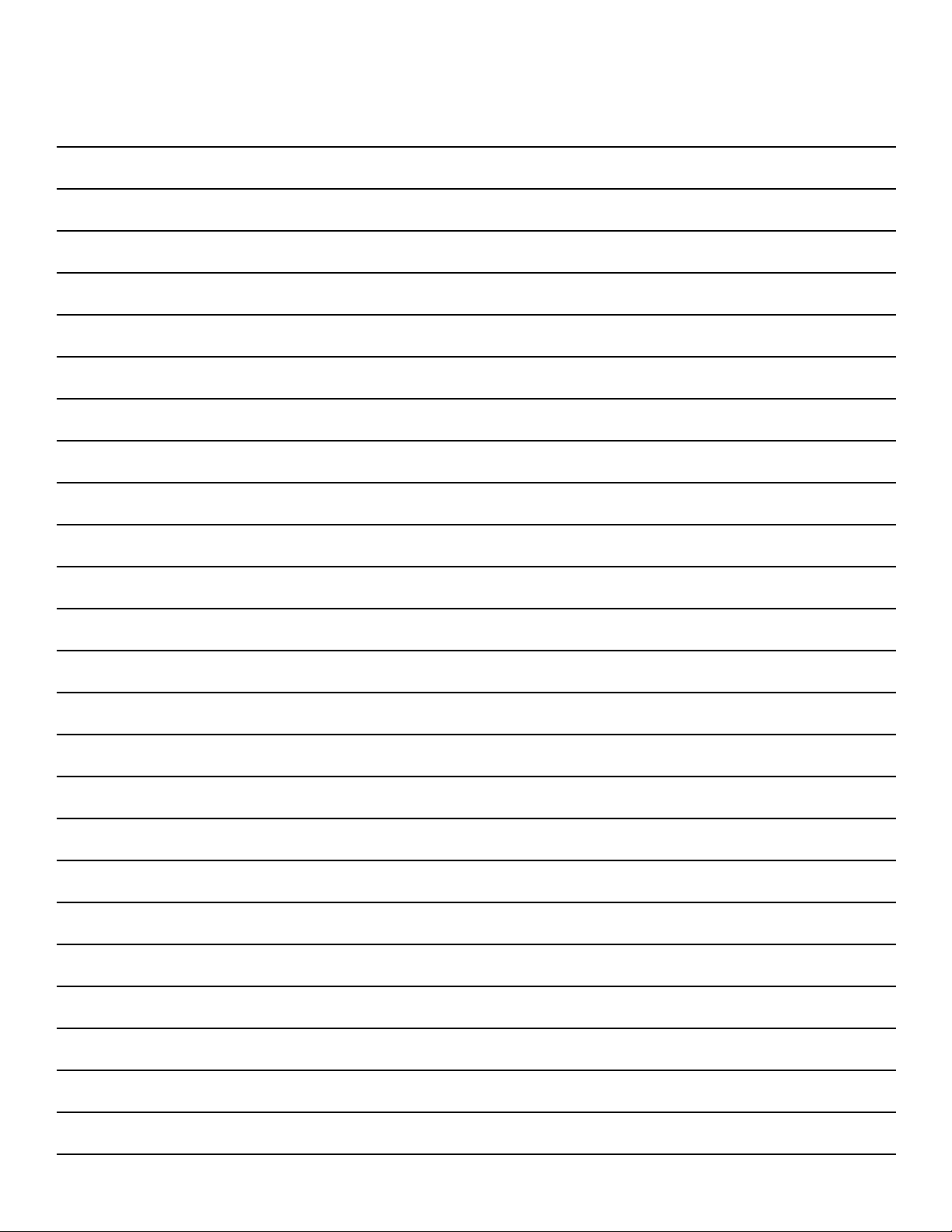

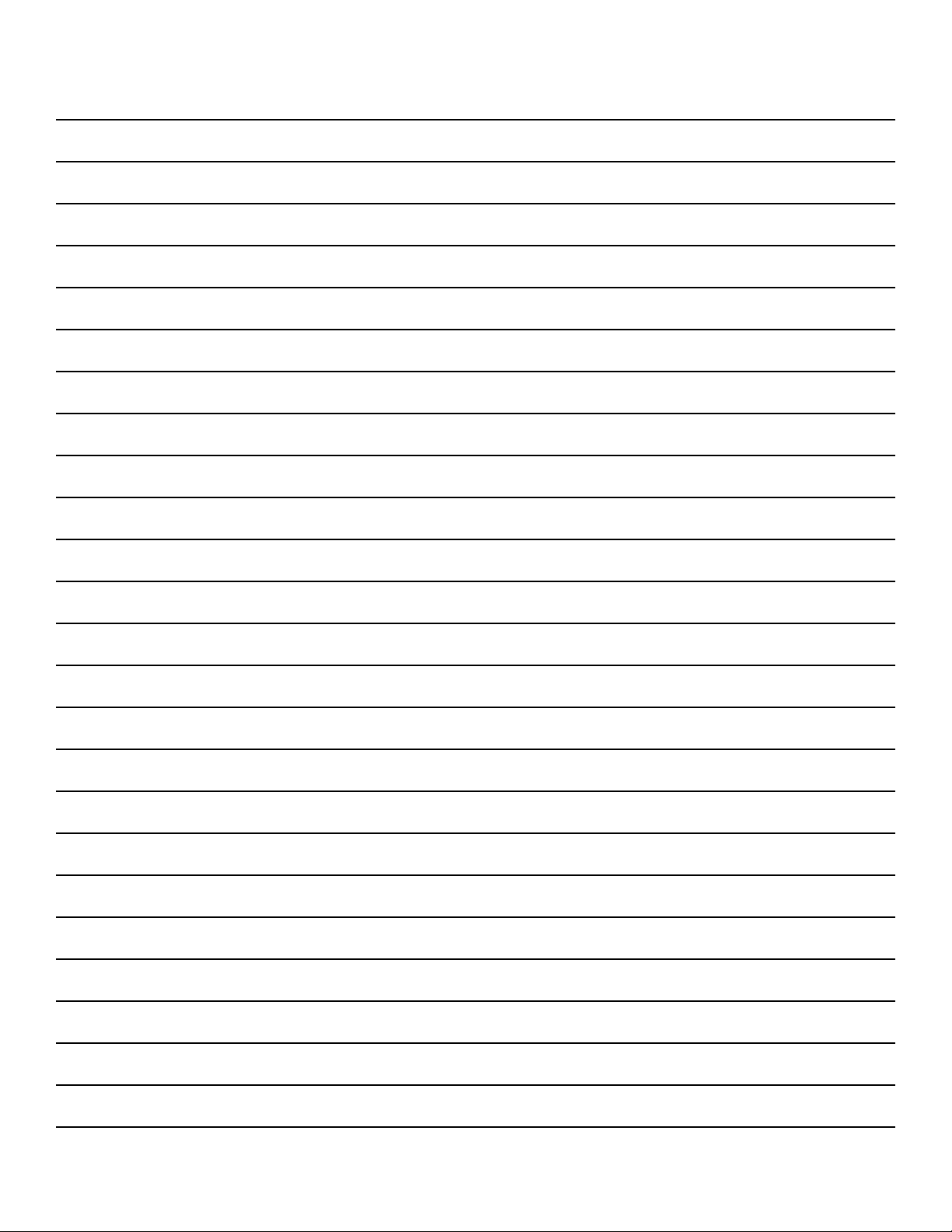

Notes 37-39

Repair Parts and Service 40

Warranty 40

Adjustment 23-25

Program the travel limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Set the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

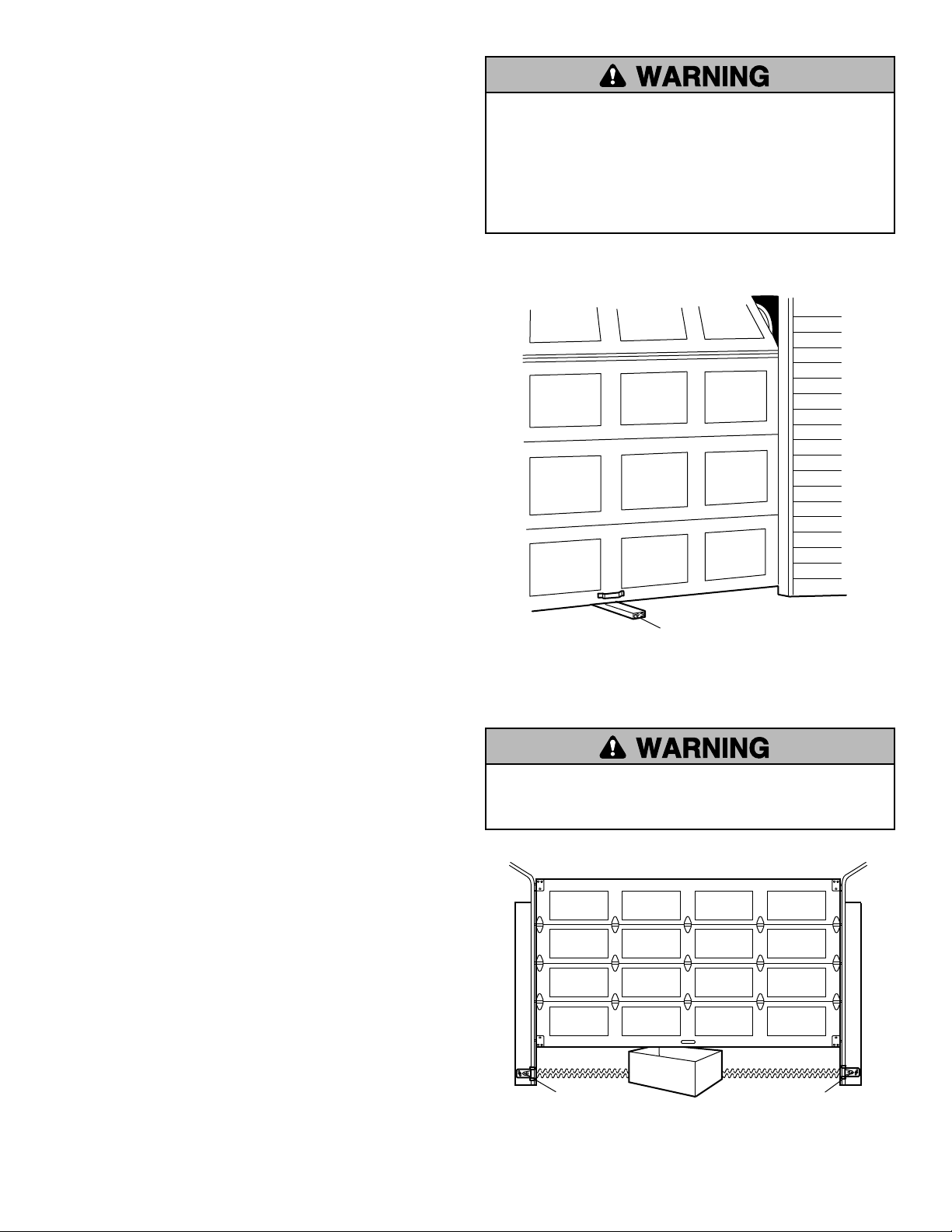

Test the safety reversal system. . . . . . . . . . . . . . . . . . . . . . . . . . 25

Test the Protector System

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

When you see these Safety Symbols and Signal Words on the

Mechanical

Electrical

following pages, they will alert you to the possibility of

injury or death

accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

if you do not comply with the warnings that

serious

Page 3

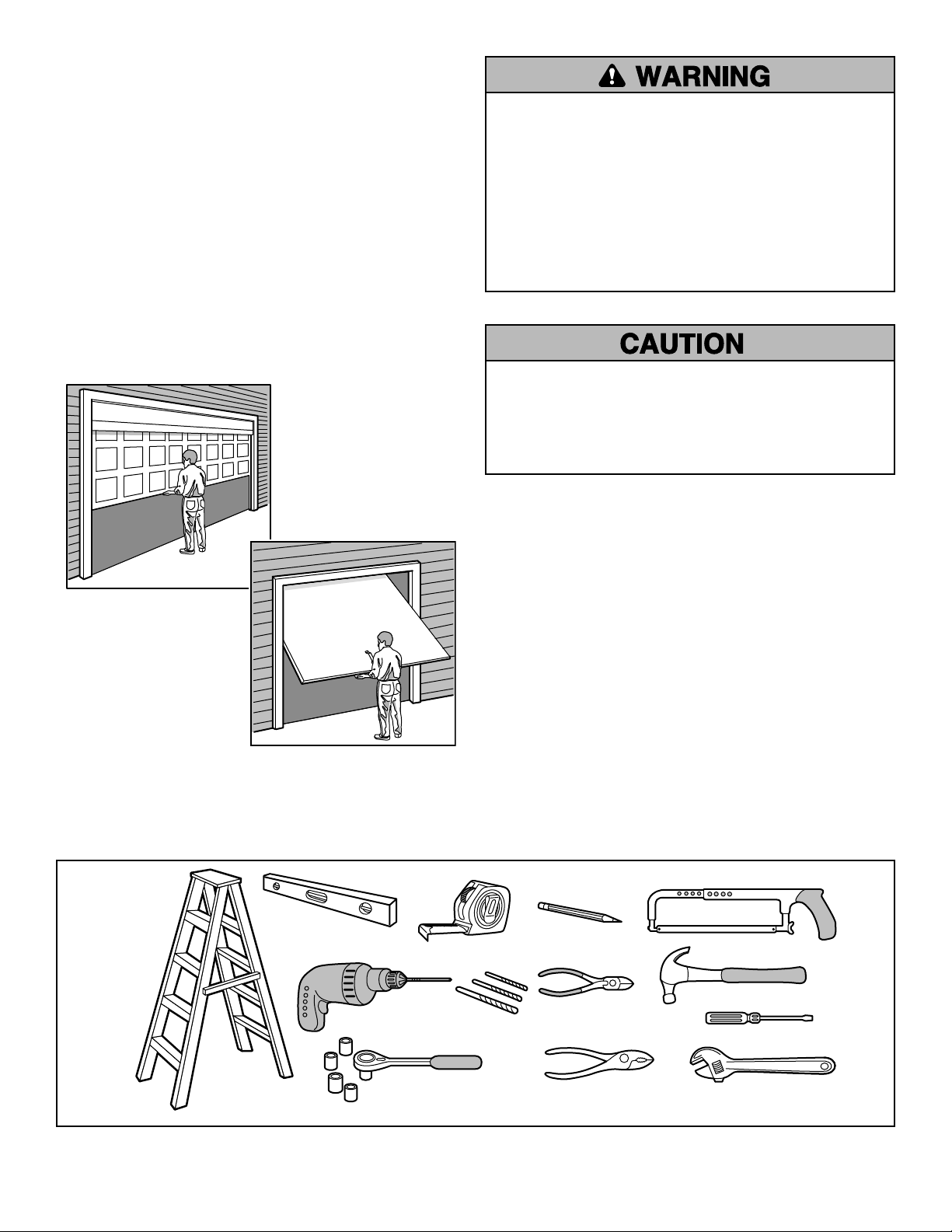

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the door. If

balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any binding or

sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may NOT reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

Sectional Door

One-Piece Door

Carpenter's Level (optional)

Drill

Tape Measure

Drill Bits 3/16", 5/16" and 5/32"

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

Pencil

Wire Cutters

Hack Saw

Claw Hammer

Screwdriver

Stepladder

Socket and Wrench 1/2", 5/8", 7/16", 5/8", 7/16", 9/16" and 1/4"

Pliers

Adjustable End Wrench

Page 4

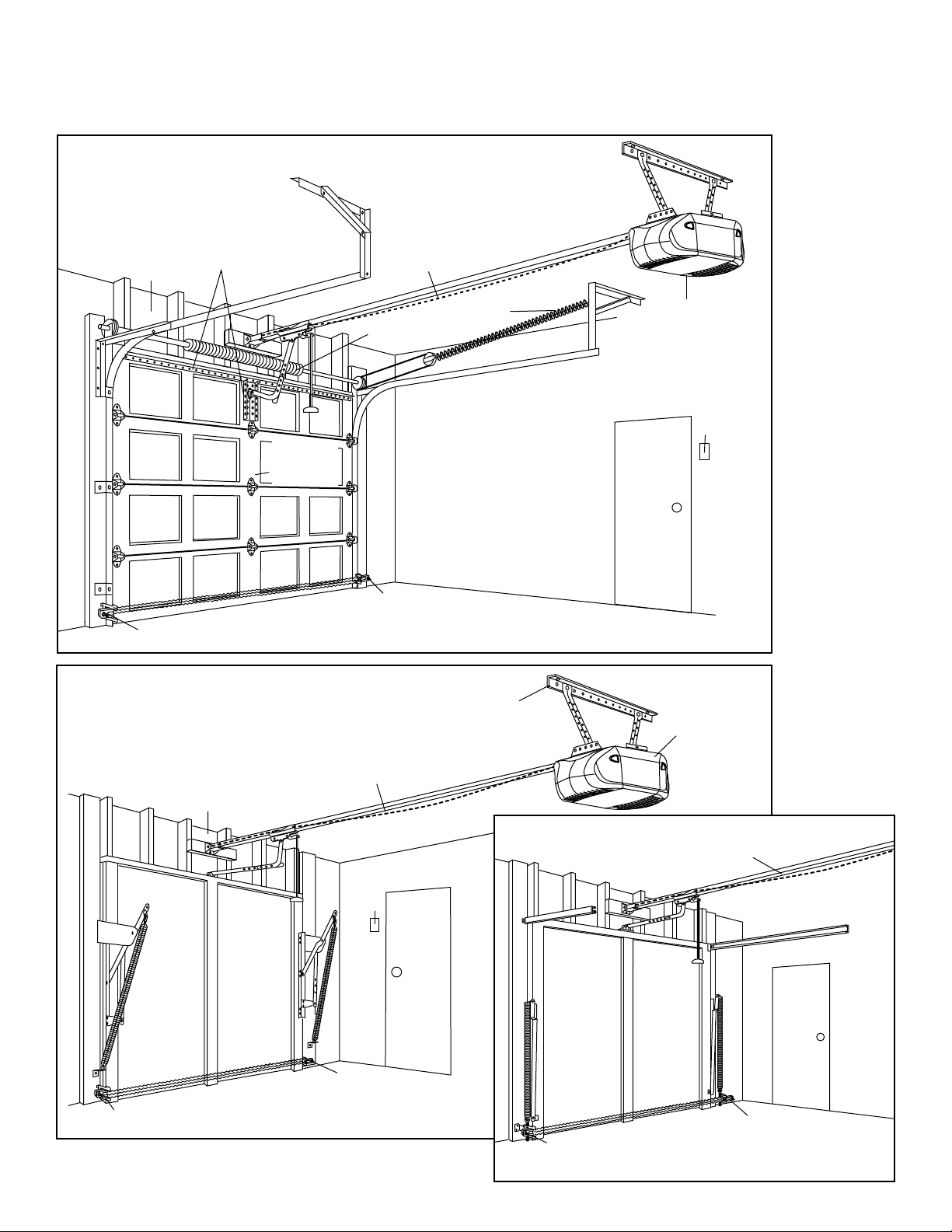

Planning

Safety Reversing Sensor

Support bracket & fastening hardware is required. See page 12.

— — — — — — — — — — — — — — — —

Header Wall

FINISHED CEILING

Torsion Spring

Extension Spring

Safety Reversing Sensor

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Access Door

Wallmounted Door Control

Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 19 for details.

Motor Unit

Slack in chain tension is normal when garage door is closed.

Vertical Centerline of Garage Door

Access Door

Safety Reversing Sensor

Slack in chain tension is normal when garage door is closed.

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

SECTIONAL DOOR INSTALLATION

ONE-PIECE DOOR WITHOUT TRACK

Safety Reversing Sensor

Header Wall

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Slack in chain tension is normal when garage door is closed.

WallMounted Door Control

Safety Reversing Sensor

Access Door

FINISHED CEILING

Support bracket & fastening hardware is required. See page 12.

ONE-PIECE DOOR WITH TRACK

Motor Unit

Page 5

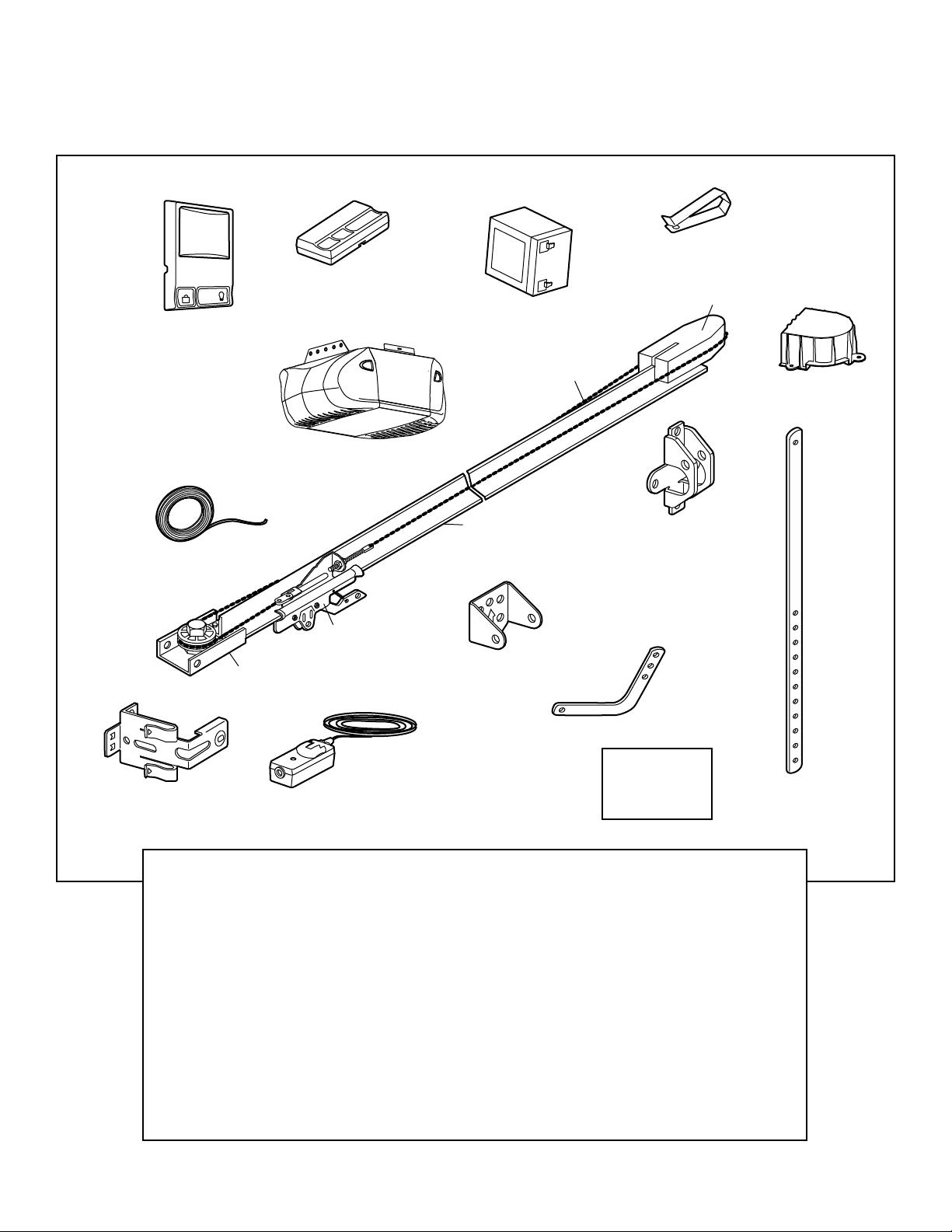

Carton Inventory

Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model purchased.

LOCK

LIGHT

Multi-Function Door Control

2-Conductor Bell Wire White & White/Red

SECURITY✚

3-Button Remote Control

Motor Unit with Light Lenses

If anything is missing, carefully check the packing material. Parts may be stuck in the foam. Hardware for installation is also listed below.

Remote Control Visor Clip

Battery

(optional)

Chain

One-Piece T-rail

Styrofoam

Sprocket Cover

Door Bracket

Chain Pulley Bracket

Safety Reversing Sensor Bracket (2)

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4) Hex Screw #8x3/8" (2) Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1) Nut 5/16"-18 (4) Lock Washer 5/16" (4) Screw 6ABx1-1/4" (2)

Trolley

The Protector System (2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye) with 2-Conductor White & White/Black Bell Wire attached

Header Bracket

Curved Door Arm Section

Safety Labels and Literature

Self-Threading Screw 1/4"-14x5/8" (2) Screw 6-32x1" (2) Insulated Staples (10) Ring Fastener (3) Dry Wall Anchors (2) Rope Handle Rail Grease Carriage Bolt 1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2)

Straight Door Arm Section

Page 6

Styrofoam

Rail Hole

Washered Bolt

5/16"-18x1/2"

USE ONLY THIS

TYPE AND SIZE

BOLT

Chain Sprocket

#8x3/8" Hex Screws

Sprocket Cover

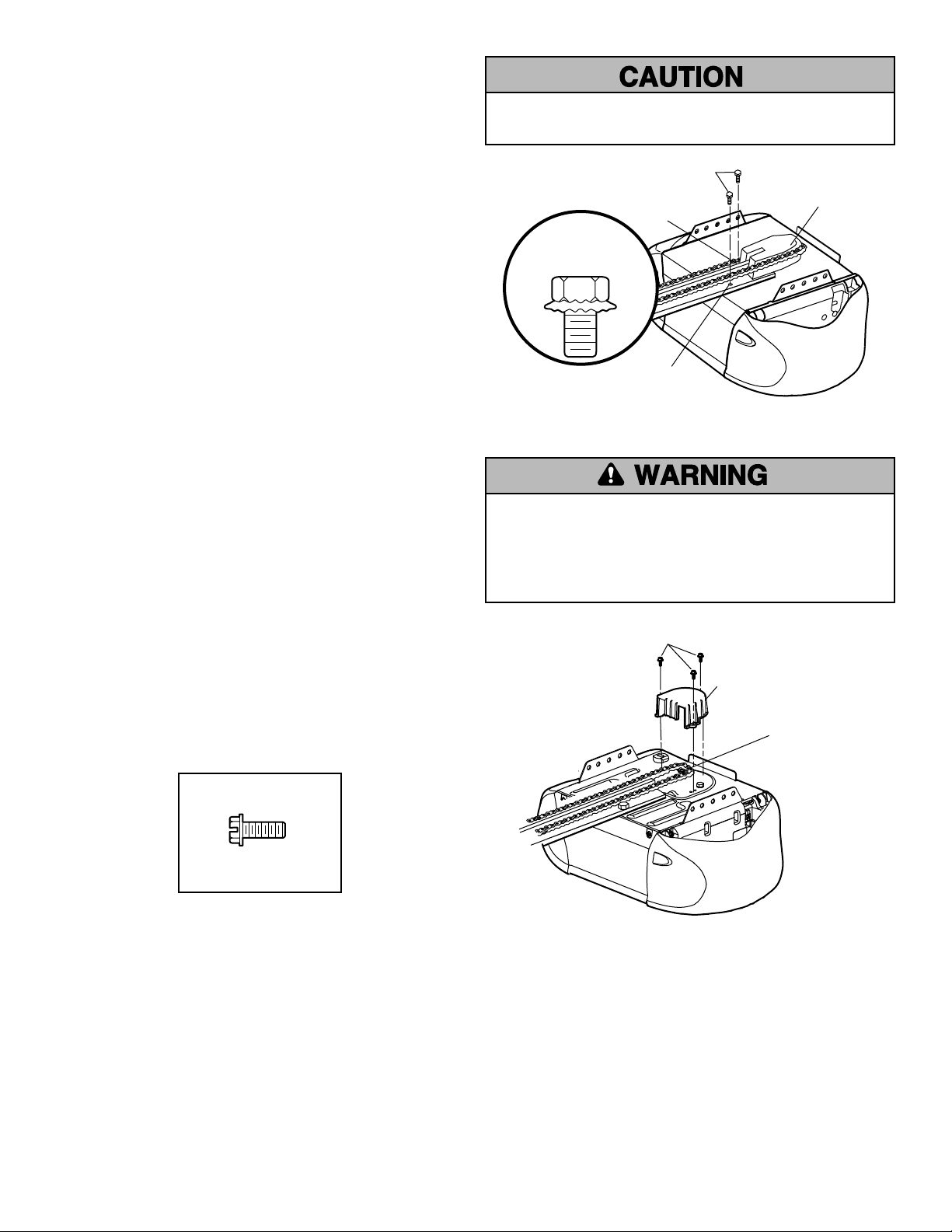

ASSEMBLY STEP 1

Hex Screw #8x3/8"

Attach the Rail to the Motor Unit

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

• Remove the two washered bolts mounted in top of motor unit.

• Position rail at a 45° angle to opener so one hole in rail and motor unit line up.

• Thread one of the washered bolts part way in.

Use only these bolts! Use of any other bolts will cause serious damage to door opener.

• Align rail and styrofoam over sprocket. Cut tape from rail, chain and styrofoam.

• REMOVE STYROFOAM.

ASSEMBLY STEP 2

Attach the Chain to the Sprocket and Install the Sprocket Cover

• Position chain over the sprocket. If necessary, loosen the outer nut on the trolley to obtain more chain slack.

• Insert the second washered bolt. CAUTION: Use only the bolt

previously removed from motor unit!

• Tighten both bolts securely through the rail into the motor unit as shown.

• Install the sprocket cover: Insert the back tab in the slot. Squeeze the cover slightly and insert the front tab in the slot on the mounting plate. Attach with #8x3/8" hex screws provided.

To avoid SERIOUS damage to opener, ONLY use bolts mounted in top of motor unit.

To avoid possible SERIOUS INJURY to fingers from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.

• Securely attach sprocket cover BEFORE operating.

HARDWARE SHOWN

ACTUAL SIZE

Page 7

WARNING WARNING

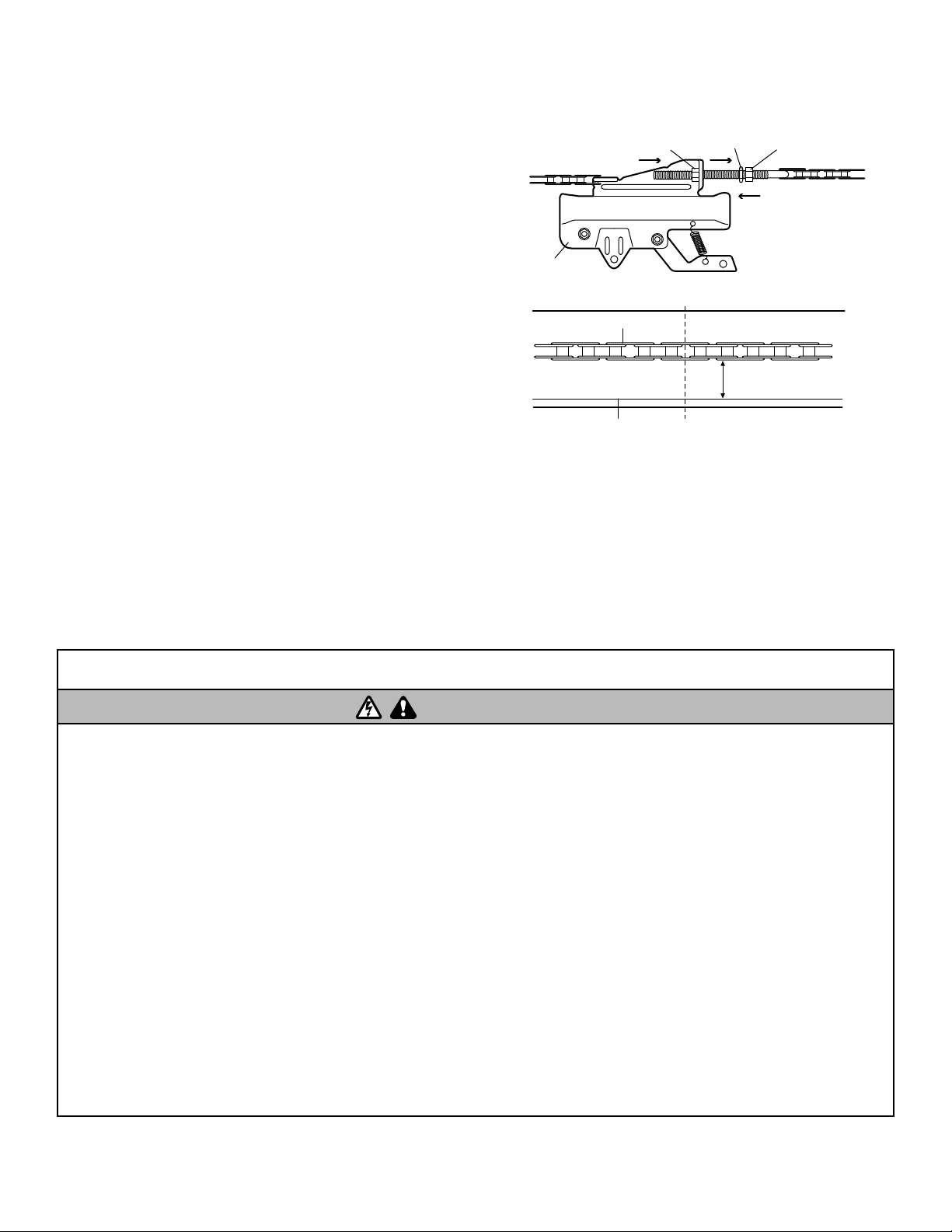

ASSEMBLY STEP 3

Tighten the Chain

• Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown (Figure 1).

• When the chain is approximately 1/2" (13 mm) above the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is too loose. When installation is complete, you may notice some chain droop

with the door closed. This is normal. If the chain returns to the position shown in Figure 2 when the door is open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect trolley before adjusting chain. You may notice loosening of chain after Adjustment Step 3 (Test the Safety Reversal System). Check for proper tension and readjust chain if necessary. Then repeat Adjustment Step 3.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.

Figure 1

Figure 2

To Tighten Outer Nut

Trolley

Base of Rail

Chain

Outer Nut

Mid Length of Rail

Lock Washer

1/2" (13 mm)

Inner Nut

To Tighten Inner Nut

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.

4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.

5. Install garage door opener 7 feet (2.1 m) or more above floor.

6. Mount emergency release handle 6 feet (1.8 m) above floor.

7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet (1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door

control.

11. Place manual release/safety reverse test label in plain view

on inside of garage door.

12. Upon completion of installation, test safety reversal system.

Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

13. To avoid SERIOUS PERSONAL INJURY or DEATH from

electrocution, disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

Page 8

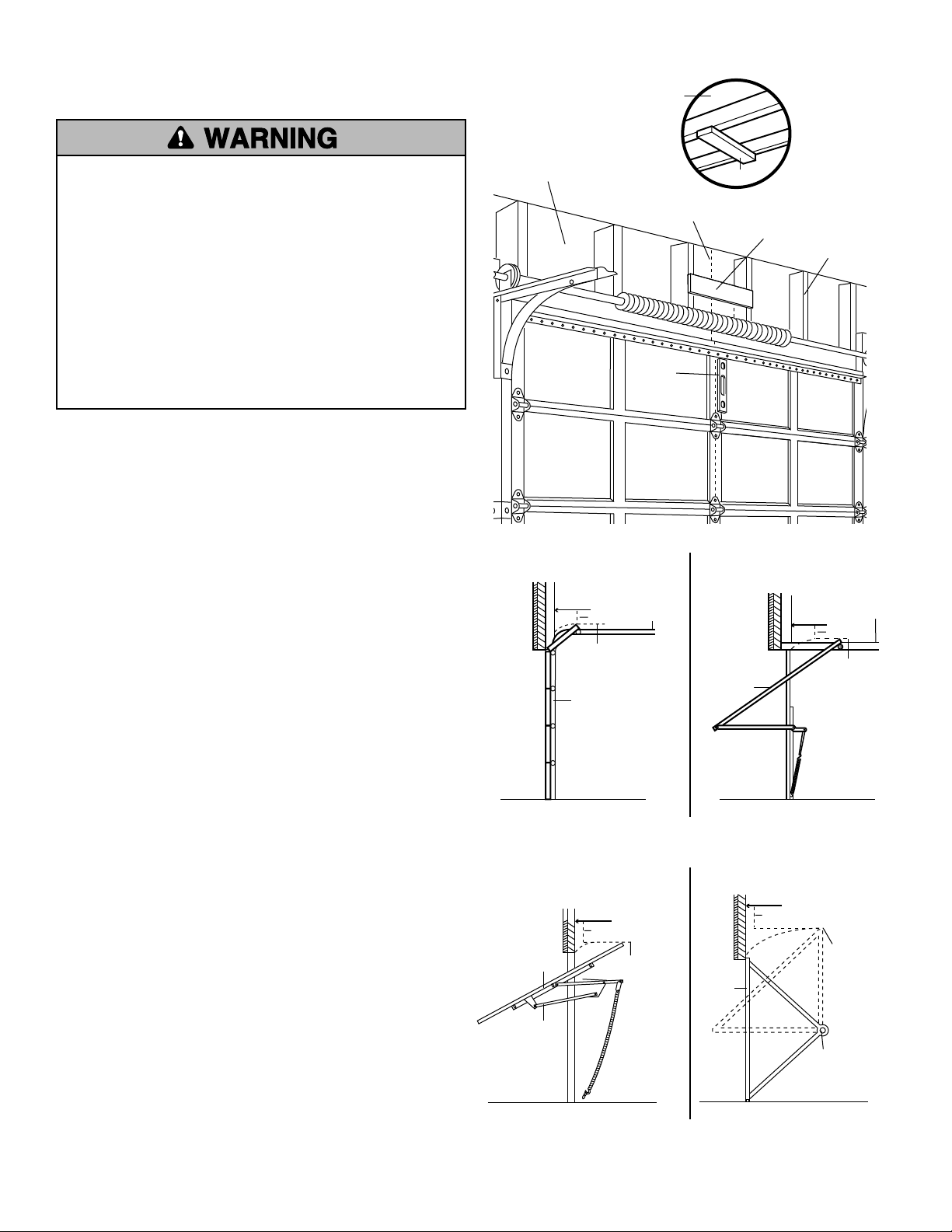

INSTALLATION STEP 1

Header Wall

Vertical Centerline of Garage Door

Level (optional)

2x4

Structural Supports

OPTIONAL CEILING MOUNT FOR HEADER BRACKET

Unfinished Ceiling

Door

Jamb Hardware

One-piece door without track: jamb hardware

8" (20 cm)

Highest Point of Travel

Door

Pivot

8" (20 cm)

One-piece door without track: pivot hardware

Highest Point of Travel

Header Wall

Sectional door with curved track

Highest Point of Travel

Door

2" (5 cm)

One-piece door with horizontal track

Door

Track

Header Wall

Highest Point of Travel

2" (5 cm)

Track

Determine the Header Bracket Location

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might NOT reverse when required.

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet (1.22 m) of

the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 9) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).)

If you need to install the header bracket on a 2x4 (on wall or

ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 9.

3. Open your door to the highest point of travel as shown. Draw an inter secting horizontal line on the header wall above the high point:

• 2" (5 cm) above the high point for sectional door and

one-piece door with track.

• 8" (20 cm) above the high point for one-piece door without

track.

This height will provide travel clearance for the top edge of the

door.

NOTE: If the total number of inches exceeds the height available

in your garage, use the maximum height possible, or refer to page 9 for ceiling installation.

Page 9

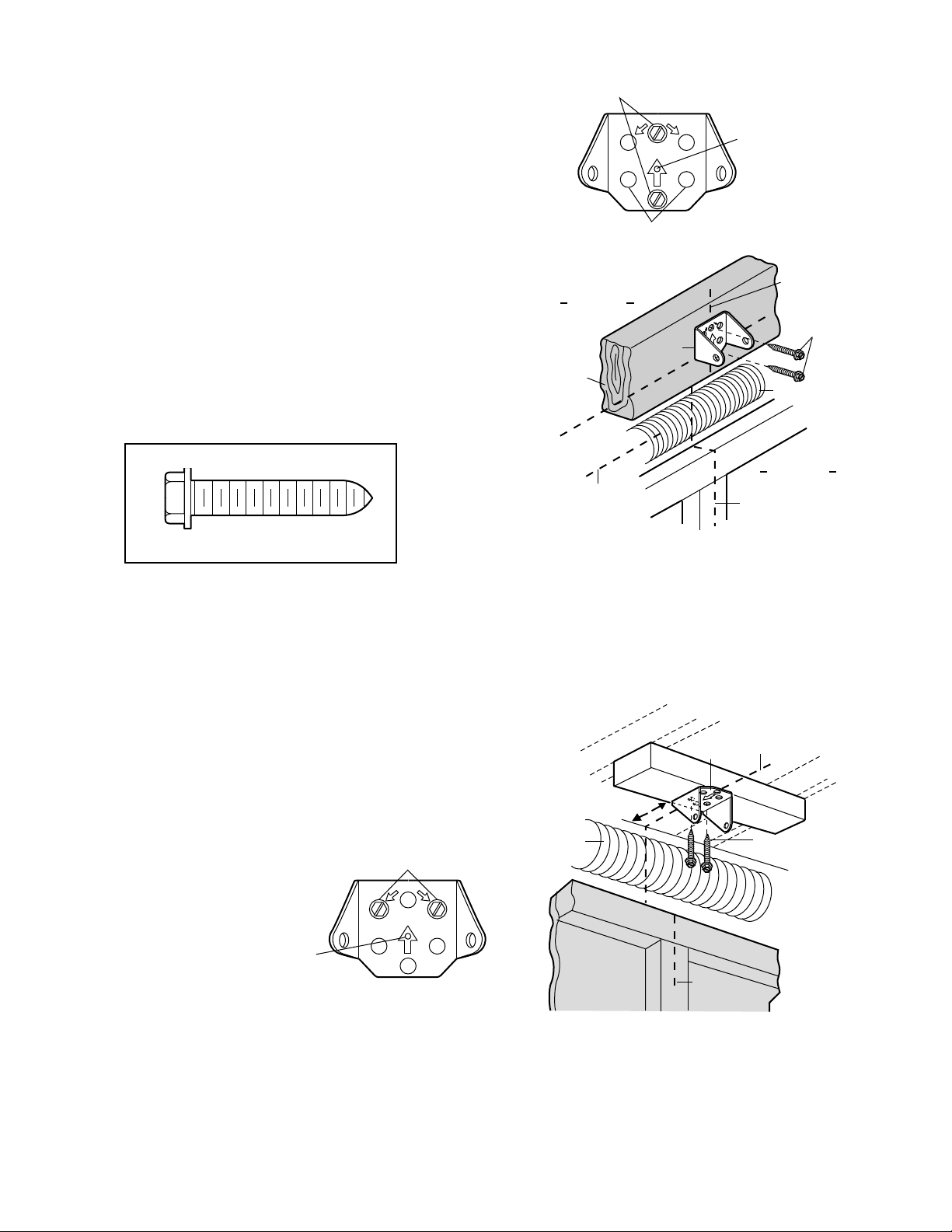

INSTALLATION STEP 2

Lag Screw 5/16"x9x1-5/8"

Ceiling Mounting Holes

CEILING MOUNT ONLY

Lag Screws 5/16"-9x1-5/8"

Garage Door

– Finished Ceiling –

– Header Wall –

Header Bracket

6" (15 cm) Maximum

Door Spring

Vertical Centerline of Garage Door

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the

header bracket over drywall. If installing into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

HARDWARE SHOWN ACTUAL SIZE

Horizontal Line

Wall Mounting Holes

Header Wall

2x4 Structural Support

Highest Point of Garage Door Travel

CEILING MOUNT ONLY

Optional Wall Mounting Holes

Header Bracket

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

Vertical Centerline of Garage Door

Lag Screws 5/16"-9x1-5/8"

Door Spring

Garage Door

Vertical Centerline of Garage Door

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Page 10

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Header Bracket

Chain Pulley Bracket

Temporary Support

Header Wall

Garage Door

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Header Bracket

Chain Pulley Bracket

T-Rail

INSTALLATION STEP 3

Attach the Rail to the Header Bracket

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

NOTE:

If the door spring is in the way you’ll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

HARDWARE SHOWN ACTUAL SIZE

Page 11

INSTALLATION STEP 4

Rail

Door

2x4 is used to determine the correct mounting height from ceiling.

Top of Motor Unit

Header Bracket

Top of Door

2x4 is used to determine the correct mounting height from ceiling.

Trolley

Release Arm

ENGAGED

RELEASED

Position the Opener

Follow instructions which apply to your door type as illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK

A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain disconnected until Installation Step 12 is completed.

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

ONE-PIECE DOOR WITHOUT TRACK

• With the door fully open and parallel to the floor, measure the distance from the floor to the top of the door.

• Using a stepladder as a support, raise the top of the opener to this height.

• The top of the door should be level with the top of the motor unit. Do not position the opener more than 4" (10 cm) above this point.

Page 12

INSTALLATION STEP 5

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Lag Screw 5/16"-9x1-5/8"

Measure Distance

Lag Screws 5/16"-18x1-7/8"

Structural Supports

Bracket (Not Provided)

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

Hidden Support

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Hang the Opener

Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2 and Figure 3), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided.

1. Remove foam packaging. Measure the distance from each side of the motor unit to the structural support.

2. Cut both pieces of the hanging bracket to required lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with 5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

8. Grease the top and underside of the rail surface where the trolley slides with rail grease.

NOTE: DO NOT connect power to opener at this time.

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.

Figure 1

Figure 2

HARDWARE SHOWN ACTUAL SIZE

Lag Screw 5/16"-18x1-7/8"

Figure 3

Page 13

INSTALLATION STEP 6

LOCK

LIGHT

REMOVE COVER

Bell Wire

Terminal Screws

Bottom Mounting Hole

Top Mounting Hole

Drywall Anchors

Insulated Staples

Screw 6ABx1-1/4" (standard installation)

Screw 6-32x1" (pre-wired)

To Replace Insert Bottom Tabs First

PRE-WIRED INSTALLATION

LOCK

LIGHT

LOCK

LIGHT

To Replace Insert Bottom Tabs First

STANDARD INSTALLATION

24 Volt 2-Conductor Bell Wire in Gang Box

Strip wire 7/16"

7/16" (11 mm)

Red GreyWhite

To insert or release wire, push in tab with screwdriver tip

Door Control Connections

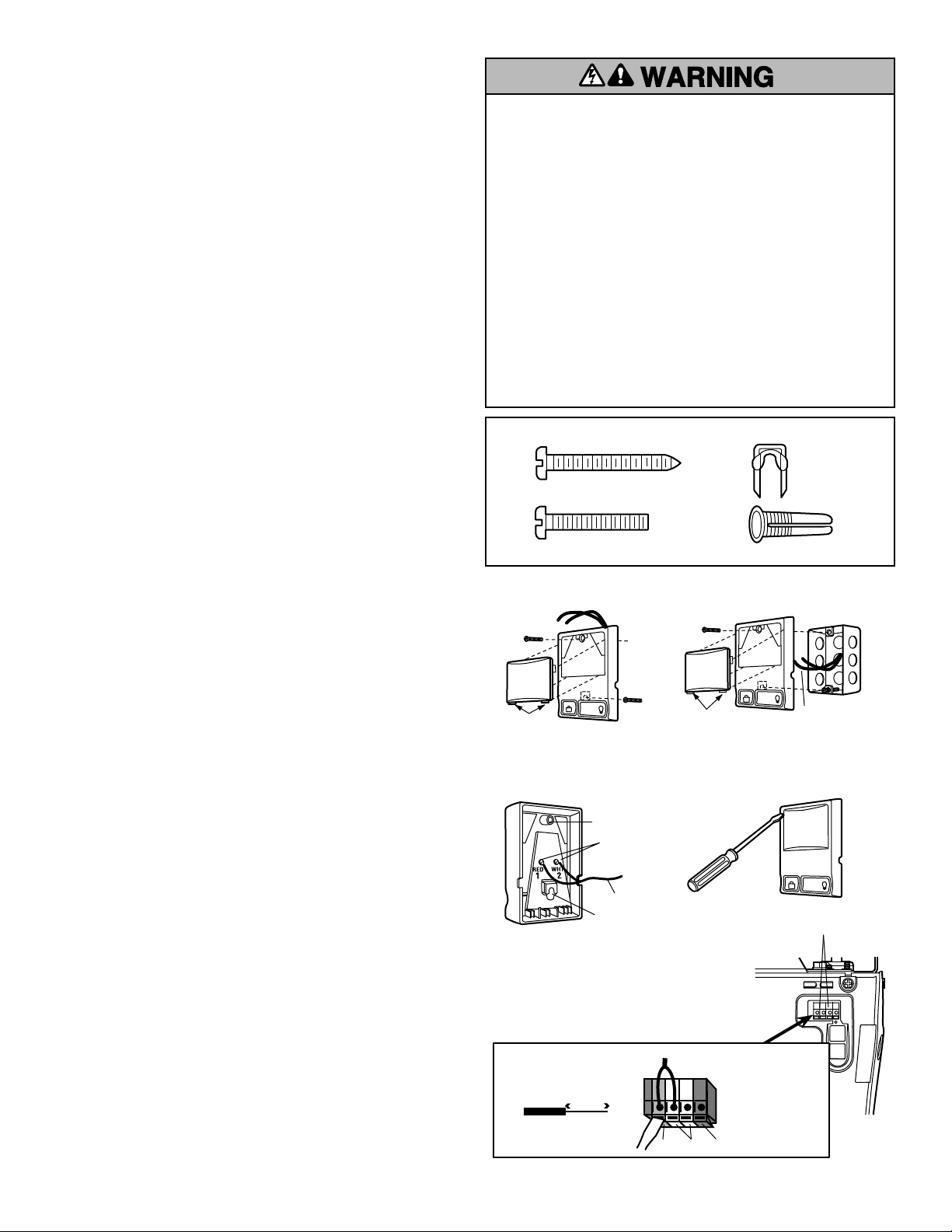

Install the Door Control

Locate door control within sight of door at a minimum height of 5 feet (1.5 m) where small children cannot reach, and away from moving parts of door and door hardware. The installation surface must be smooth and flat. If installing into drywall (Figure 1), drill 5/32" holes and use anchors provided. For pre-wired installations (as in new home construction), it may be mounted to a single gang box (Figure 2).

NOTE: After installation, a green or amber indicator light behind the cover will indicate proper connection. If not lit, the Lock and Light features will not function (reverse wires to correct).

1. Strip 7/16" (11 mm) of insulation from one end of bell wire and connect to the two screw terminals on back of door control by color: white wire to WHT and white/red wire to the RED (Figure 3).

2. Remove cover by gently prying at slot in the top of the cover with a small flat head screwdriver (Figure 4). Fasten with 6ABx1-1/4" self-tapping screws (drywall installation) or 6-32x1" machine screws (into gang box) as follows:

• Drill and install bottom screw, allowing 1/8" (3 mm) to

protrude above wall surface.

• Position bottom of door control on screw head and slide

down to secure. Adjust screw for snug fit.

• Install top screw with care to avoid cracking plastic housing.

DO NOT overtighten.

• Insert bottom tabs and snap on cover.

NOTE: The push bar may stick if the door control is not

mounted on a smooth surface. If a click is not heard when pressing the push bar, loosen the two mounting screws or relocate the door control to a smoother surface.

3. (Standard installation only) Run bell wire up wall and across ceiling to motor unit. Use insulated staples to secure wire in several places. DO NOT pierce wire with a staple, creating a short or open circuit.

4. Strip 7/16" (11 mm) of insulation from end of bell wire. Connect bell wire to the quick-connect terminals as follows: white to white and white/red to red (Figure 5).

NOTE: When connecting multiple door controls to the opener,

twist same color wires together. Insert wires into quick-connect holes: white to white and red/white to red.

5. Use tacks or staples to permanently attach entrapment warning label to wall near door control, and manual release/safety reverse test label in a prominent location on inside of garage door.

NOTE: DO NOT connect power and operate opener at this time. The trolley will travel to the full open position but will not return to the close position until the sensor beam is connected and properly aligned.

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing door control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.

• NEVER permit children to operate or play with door control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.

HARDWARE SHOWN ACTUAL SIZE

Figure 1

Figure 3

MULTI-FUNCTION DOOR CONTROL (BACK)

Figure 2

Figure 4

Quick-Connect Terminals

Figure 5

Page 14

100 Watt (Max) Standard Light Bulb

Release Tab

Lens Hinge

100 Watt (Max) Standard Light Bulb

INSTALLATION STEP 7

Battery

Battery Cover

Channel

Install the Standby Power (optional)

• Make sure motor unit is unplugged.

• Using a Phillips head screwdriver, remove the battery cover on the motor unit.

• Partially insert battery into motor unit with terminals facing out.

• Connect the red (+) and black (-) wires from motor unit to corresponding terminals on battery.

• Verify the battery wires are seated in the channel.

• Replace battery cover.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

INSTALLATION STEP 8

Install the Lights

• Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in the fully open position. Do not remove the lens.

• Install a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• Reverse the procedure to close the lens.

• Use A19, standard neck garage door opener bulbs for replacement.

NOTE:

Use only standard light bulbs. The use of short neck or

speciality light bulbs may overheat the endpanel or light socket.

To prevent possible OVERHEATING of the endpanel or light socket:

• DO NOT use short neck or specialty light bulbs.

• DO NOT use halogen bulbs. Use ONLY incandescent. To prevent damage to the opener:

• DO NOT use bulbs larger than 100W.

• ONLY use A19 size bulbs.

Page 15

RIGHT

WRONG

Ground Tab

Green Ground Screw

Ground Wire

Black Wire

PERMANENT WIRING CONNECTION

White Wire

Black Wire

INSTALLATION STEP 9

Trolley

NOTICE

Overhand Knot

Emergency Release Handle

Rope

Trolley Release Arm

Attach the Emergency Release Rope and Handle

• Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.8 m) above the floor. Ensure that the rope and handle clear the tops of all vehicles to avoid entanglement. Secure with an overhand knot.

NOTE:

If it is necessary to cut the rope, heat seal the cut end with

a match or lighter to prevent unraveling.

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

INSTALLATION STEP 10

Electrical Requirements

To avoid installation difficulties, do not run the opener at this time.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a qualified electrician to install the proper outlet.

If permanent wiring is required by your local code, refer to the following procedure.

To make a permanent connection through the 7/8" (2 cm) hole in the top of the motor unit:

• Remove the motor unit cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw.

The opener must be grounded.

• Reinstall the cover.

To avoid installation difficulties, do not run the opener at this time.

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

• Garage door installation and wiring MUST be in compliance

with ALL local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change

plug in ANY way to make it fit outlet. Be sure the opener is grounded.

Page 16

INSTALLATION STEP 11

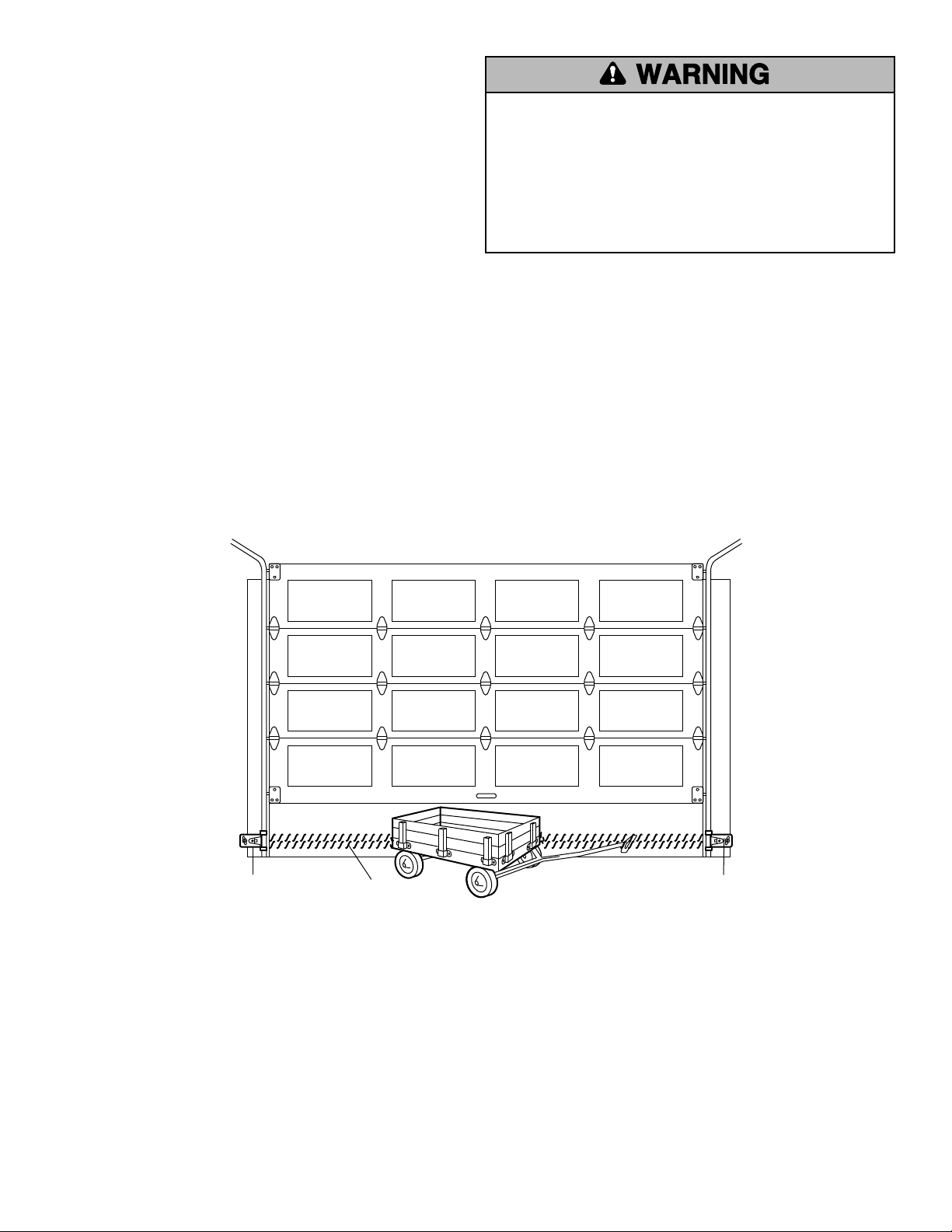

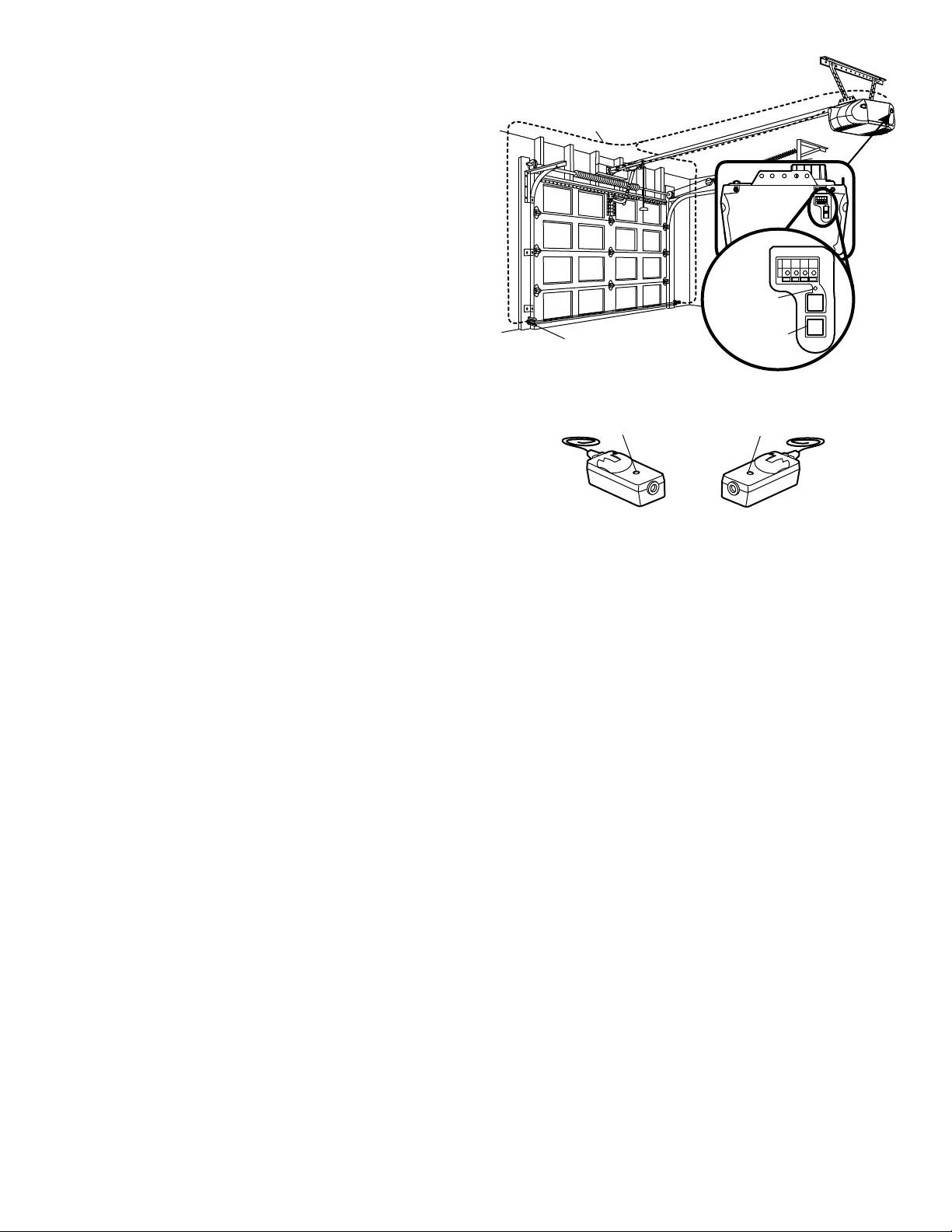

Invisible Light Beam Protection Area

Safety Reversing Sensor 6" (15 cm) max. above floor

Install The Protector System

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam. The sending eye (with an amber indicator light) transmits an invisible light beam to the receiving eye (with a green indicator light). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to full open position, and the opener lights will flash 10 times.

The units must be installed inside the garage so that the sending and receiving eyes face each other across the door, no more than 6" (15 cm) above the floor. Either can be installed on the left or right of the door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track of sectional garage doors without additional hardware.

Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• Correctly connect and align the safety reversing sensor. This

required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER

than 6" (15 cm) above garage floor.

If it is necessary to mount the units on the wall, the brackets must be securely fastened to a solid surface such as the wall framing. Extension brackets (see Accessories) are available if needed. If installing in masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door is closing.

Facing the door from inside the garage.

Page 17

INSTALLING THE BRACKETS

Wing Nut 1/4"-20

Staples

Carriage Bolt 1/4"-20x1/2"

Be sure power to the opener is disconnected. Install and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows.

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each door track, with the curved arms facing the door. Snap into place against the side of the track. It should lie flush, with the lip hugging the back edge of the track (Figure 1).

If your door track will not support the bracket securely, wall installation is recommended.

Wall installation (Figures 2 & 3):

• Place the bracket against the wall with curved arms facing the door. Be sure there is enough clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket (see Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on the wall at each side of the door, no higher than 6" (15 cm) above the floor.

• Attach brackets to wall with lag screws (not provided).

• If using extension brackets or wood blocks, adjust right and left assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (see Accessories) to elevate sensor brackets so the lenses will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies at the same distance out from the wall. Be sure all door hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

Figure 1

Figure 2

Figure 3

DOOR TRACK MOUNT (RIGHT SIDE)

Door Track

Lip

Safety Reversing Sensor Bracket

WALL MOUNT (RIGHT SIDE)

Inside Garage Wall

WALL MOUNT (RIGHT SIDE)

Inside Garage Wall

Fasten Wood Block to Wall with Lag Screws (not provided)

Extension Bracket (See Accessories)

Indicator Light

Lens

Indicator Light

Lag Screws (not provided)

Lens

(Provided with Extension Bracket)

Safety Reversing Sensor Bracket

HARDWARE SHOWN ACTUAL SIZE

Figure 4

(Provided with Extension Bracket)

Lens

FLOOR MOUNT (RIGHT SIDE)

Inside

Garage Wall

Lens

Safety Reversing Sensor Bracket

Indicator Light

Attach with Concrete Anchors (not provided)

Indicator Light

Safety Reversing Sensor Bracket

Page 18

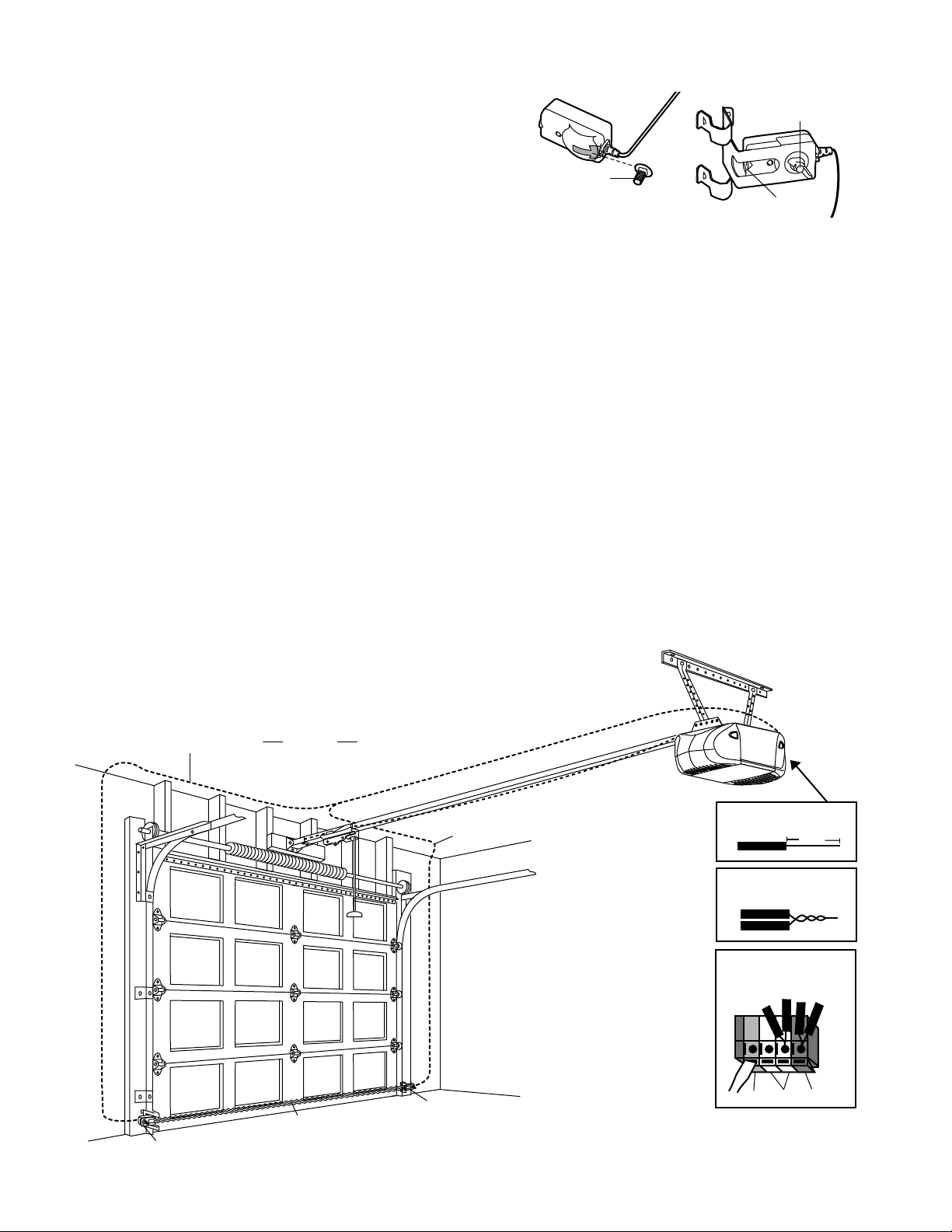

Invisible Light Beam Protection Area

Safety Reversing Sensor

Connect Wire to Opener Quick-Connect Terminals

Bell Wire

Finished

Ceiling

Quick-Connect Terminals

3. To release or insert wire, push in tab with screwdriver tip

1. Strip wire 7/16" (11 mm)

2. Twist like colored wires together

7/16" (11mm)

Red

Grey

White

Carriage Bolt 1/4"-20x1/2"

Lens

Wing Nut 1/4"-20

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 5).

• Finger tighten the wing nuts.

• Run the wires from both sensors to the opener. Use insulated staples to secure wire to wall and ceiling.

• Strip 7/16" (11 mm) of insulation from each set of wires. Separate white and white/black wires sufficiently to connect to the opener quick-connect terminals. Twist like colored wires together. Insert wires into quick-connect holes: white to white and white/black to grey (Figure 6).

ALIGNING THE SAFETY REVERSING SENSORS

• Plug in the opener. The indicator lights in both the sending and receiving eyes will glow steadily if wiring connections and

alignment are correct.

The sending eye amber indicator light will glow regardless of alignment or obstruction. If the green indicator light in the receiving eye is off, dim, or flickering (and the invisible light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

Figure 5MOUNTING AND WIRING THE SAFETY REVERSING SENSORS

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can occur at

staples, or at opener connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn’t:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE:

When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will blink 10 times. See page 16.

Figure 6

Page 19

INSTALLATION STEP 12

Vertical Centerline of Garage Door

Door Bracket Location

Header Bracket

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Door Bracket

Vertical Centerline of Garage Door

Vertical Reinforcement

Self-Threading Screw 1/4"-14x5/8"

Door Bracket

Nut 5/16"-18

Bolt 5/16"-18x2" (Not Provided)

Lock Washer 5/16"

Vertical Reinforcement

Vertical Centerline of Garage Door

Self-Threading Screw 1/4"-14x5/8"

Vertical Centerline of Garage Door

Inside Edge of Door or Reinforcement Board

Bolt 5/16"x2" (Not Provided)

Vertical Centerline of Garage Door

Fasten the Door Bracket

Follow instructions which apply to your door type as illustrated below or on the following page.

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE:

Many door reinforcement kits provide for direct

attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 13.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws (Figure 2A).

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided) (Figure 2B).

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws (Figure 3).

Wood Doors:

• Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided) (Figure 4).

NOTE:

The 1/4"-14x5/8" self-threading screws are not intended for

use on wood doors.

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket.

Contact your door manufacturer for reinforcement kit.

Figure 1

Figure 2B

Figure 2A

HARDWARE SHOWN

ACTUAL SIZE

Figure 4

Figure 3

Page 20

ONE-PIECE DOORS

Self-Threading Screw 1/4"-14x5/8"

Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also.

• Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.

• Metal Doors:

Drill 3/16" pilot holes and fasten the bracket with

the 1/4"-14x5/8" self-threading screws provided.

• Wood Doors: Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2" lag screws (not provided) depending on your installation needs.

NOTE: The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.)

HARDWARE SHOWN

ACTUAL SIZE

Header Wall

Header

Bracket

Door Bracket

Optional Placement of Door Bracket

Vertical Centerline of Garage Door

2x4 Support

Finished Ceiling

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Door Bracket

Nut 5/16"-18

Door Bracket

Self-Threading Screw 1/4"-14x5/8"

Top of Door (Inside Garage)

Top Edge of Door

Optional Placement

METAL DOOR

Lock Washer 5/16"

Top of Door (Inside Garage)

Top Edge of Door

Optional Placement

Carriage Bolt 5/16"x2" (Not Provided)

For a door with no exposed framing, or for the optional installation, use lag screws 5/16"x1-1/2" (Not Provided) to fasten door bracket.

WOOD DOOR

Page 21

INSTALLATION STEP 13

Ring Fastener

Door Bracket

Clevis Pin 5/16"x1-1/4"

Curved Door Arm

Straight Door Arm

Clevis Pin 5/16"x1"

Inner Trolley

Outer Trolley

Emergency Release Handle

Lock Washers 5/16"

Nuts 5/16"-18

Door Bracket

Bolts 5/16"-18x7/8"

Lock Washers 5/16"

Nuts 5/16"-18

Bolts 5/16"-18x7/8"

Cut This End

Lock Washer 5/16"

Nut 5/16"-18

Ring Fastener

Hex Bolt 5/16"-18x7/8"

Clevis Pin 5/16"x1" (Trolley)

Clevis Pin 5/16"x1-1/4" (Door Bracket)

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on the following page.

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3.

• Figure 1:

– Fasten straight door arm section to outer trolley with the

5/16"x1" clevis pin. Secure the connection with a ring fastener.

– Fasten curved section to the door bracket in the same way,

using the 5/16"x1-1/4" clevis pin.

IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm (Figure 4).

• Figure 2:

– Bring arm sections together. Find two pairs of holes that line

up and join sections. Select holes as far apart as possible to increase door arm rigidity.

• Figure 3, Hole alignment alternative:

– If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" (15 cm) from the solid

end. Reconnect to trolley with cut end down as shown. – Bring arm sections together. – Find two pairs of holes that line up and join with bolts, lock

washers and nuts.

• Pull the emergency release handle toward the opener

at a 45° angle so that the trolley release arm is horizontal. Proceed to Adjustment Step 1, page 23. Trolley will re-engage automatically when opener is operated.

Figure 1

Figure 2

Figure 3

HARDWARE SHOWN ACTUAL SIZE

Figure 4

CORRECT INCORRECT

Straight Door Arm

Curved

(Groove facing out)

Door Arm

Straight Door Arm

Curved Door Arm

Page 22

Nuts 5/16"-18

Lock Washers 5/16"

Ring Fastener

Straight Arm

Bolts 5/16"-18x7/8

Door Bracket

Clevis Pin 5/16"x1-1/4"

Curved Door Arm

Door Arm

Door Arm Connector Hole

Closed Door

Outer Trolley

Emergency Release Handle

Inner Trolley

Outer Trolley

Open Door

Door Arm

Correct Angle

Door with Backward Slant (Incorrect)

Inner Trolley

ALL ONE-PIECE DOORS

1. Assemble the Door Arm: IMPORTANT: The groove on the straight door arm MUST face

away from the curved door arm (Figure 5).

• Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap).

• Make sure the garage door is fully closed. Connect the straight door arm section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

• Pull the emergency release handle, disconnecting the outer trolley from the inner trolley by pulling straight down on the emergency release handle and sliding the outer trolley back toward the motor unit.

• Connect the curved door arm section to the trolley using the 5/16"x1-1/4" clevis pin and ring fastener.

NOTE: Adjusting the limits on the following page:

• The trolley will automatically connect. If not, review the trolley lockout feature on page 27.

• When setting the up limit on the following page, the door should not have a “backward” slant when fully open as illustrated below. A slight backward slant will cause unnecessary bucking and/or jerking operation as the door is being opened or closed from the fully open position.

Figure 5

CORRECT

Straight Door Arm

(Groove facing out)

Curved Door Arm

INCORRECT

Straight Door Arm

Curved Door Arm

Figure 6

Page 23

Push and hold until the door is at desired UP position

LED

BLACK

PURPLE

Push either button to stop door at desired

DOWN position

BLACK

PURPLE

LED

ADJUSTMENT STEP 1

LOCK

LIGHT

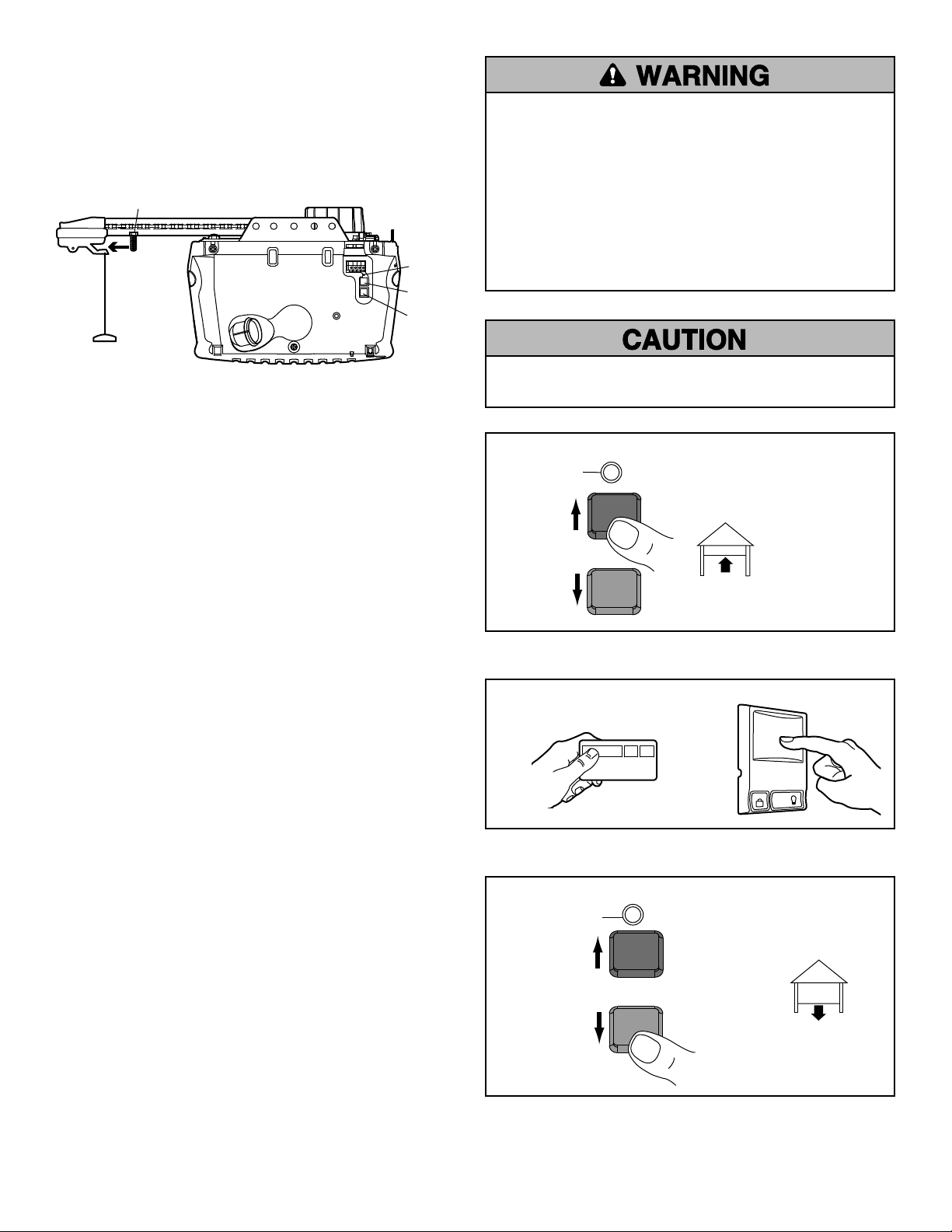

Program the Travel Limits

Travel limits regulate the points at which the door will stop when moving up or down.

Figure 1

Adjust the position of the door by using the black and purple buttons. Black moves the door UP (open) and purple moves the door DOWN (close).

Setting the UP position:

1. Press and hold the black button until the LED starts flashing

slowly, then release (Figure 2).

2. Push and hold the black button until the door reaches the

desired UP (open) position.

NOTE: Make sure the door opens high enough for your vehicle.

3. Push the door control or programmed remote control. This sets

the UP (open) limit and begins closing the door (Figure 3).

4. Immediately when the door begins to close, press and release

either the black or purple button. This will stop the door.

Setting the DOWN position:

5. Push and hold the purple button until the door reaches the

desired DOWN (closed) position (Figure 4).

6. Once the door is closed, if there appears to be too much

pressure on the door, you may toggle the door back and forth using the black and purple buttons to reach the desired closed position.

7. Push the door control or programmed remote control. This sets

the DOWN (close) limit and the door should open.

Proceed to Set the Force.

Cover Protection Bolt

2-4" (5-10 cm)

LED

Black Button

Purple Button

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Figure 2

Figure 3

Figure 4

Page 24

LOCK

LIGHT

Black Button

Purple Button

LED

Push Purple button twice to enter unit into Force

Adjustment Mode

ADJUSTMENT STEP 2

Set the Force

The force setting measures the amount of force required to open and close the door.

1. Push the purple button twice to enter into the Force Adjustment Mode. The LED will flash quickly.

2. Push the door control or programmed remote control. The door will close (DOWN).

3. Push the door control or programmed remote control again. The door will open (UP).

4. Push the door control or programmed remote control a third time to close the door (DOWN).

The LED will stop flashing when the force has been programmed. The door must travel through a complete cycle, up and down, in

order for the force to be set properly. If the garage door opener cannot open and close the door fully, inspect the door to ensure that it is balanced properly and is not sticking or binding.

If the door is not stopping exactly where you would like it, repeat

Program the Travel Limits.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

Figure 1

LED

Black Button

Purple Button

Figure 2

Figure 3

Page 25

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction. The door must reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far enough in the down direction. Complete Adjustment Steps 1 and 2 Program the Travel Limits, and Set the Force.

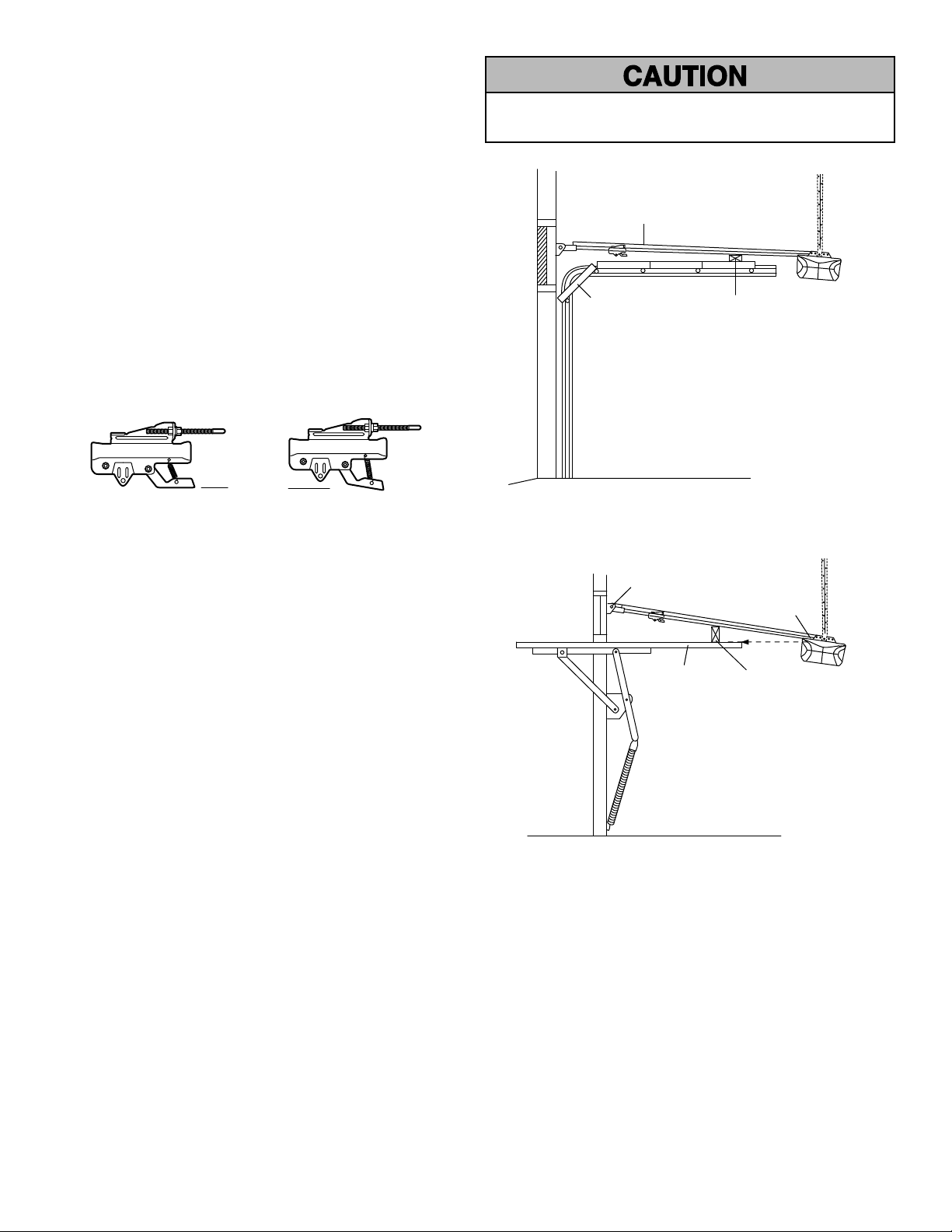

NOTE: On a sectional door, make sure limit adjustments do not

force the door arm beyond a straight up and down position. See Figure 3, page 21.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board (or 2x4 laid flat), remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

• If the unit continues to fail the Safety Reverse Test, call for a trained door systems technician.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on the floor.

1-1/2" (3.8 cm) board (or a 2x4 laid flat)

ADJUSTMENT STEP 4

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door. The door will not move more than 1" (2.5 cm), and the opener lights will flash.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6" (15 cm) above the floor), call for a trained door systems technician.

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

Safety Reversing Sensor

Page 26

OPERATION

WARNING WARNING

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPEN DOOR.

6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly, causing SEVERE INJURY or DEATH.

7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal system MUST be tested.

11. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly may cause SEVERE INJURY or DEATH.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 3). An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.

13. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.

14. ALWAYS disconnect electric power to garage door opener BEFORE making ANY repairs or removing covers.

15. SAVE THESE INSTRUCTIONS.

Using Your Garage Door Opener

Your Security✚® opener and hand-held remote control have been factory-set to a matching code which changes with each use, randomly accessing over 100 billion new codes. Your opener will operate with up to eight Security✚® remote controls and one Security✚® Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your opener with any of the following:

• The Hand-Held Remote Control: Hold the large push button down until the door starts to move.

• The Wall-Mounted Door Control: Hold the push button or bar down until the door starts to move.

• The Keyless Entry (See Accessories): If provided with your garage door opener, it must be programmed before use. See

Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse. If the obstruction interrupts the sensor beam, the opener lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door won’t close from a hand-held remote. However, you can close the door with the door control, the Outside Keylock, or Keyless Entry, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

The opener lights

when the opener is initially plugged in; when power is restored after interruption; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Multi-Function Door Control is activated. Bulb size is A19. Bulb power is 100 watts maximum.

Security✚® light feature:

walks through the open garage door. With a Multi-Function Door Control, this feature may be turned off as follows: With the opener lights off, press and hold the light button for 10 seconds, until the light goes on, then off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds until the light goes off, then on again.

will turn on under the following conditions:

Lights will also turn on when someone

Page 27

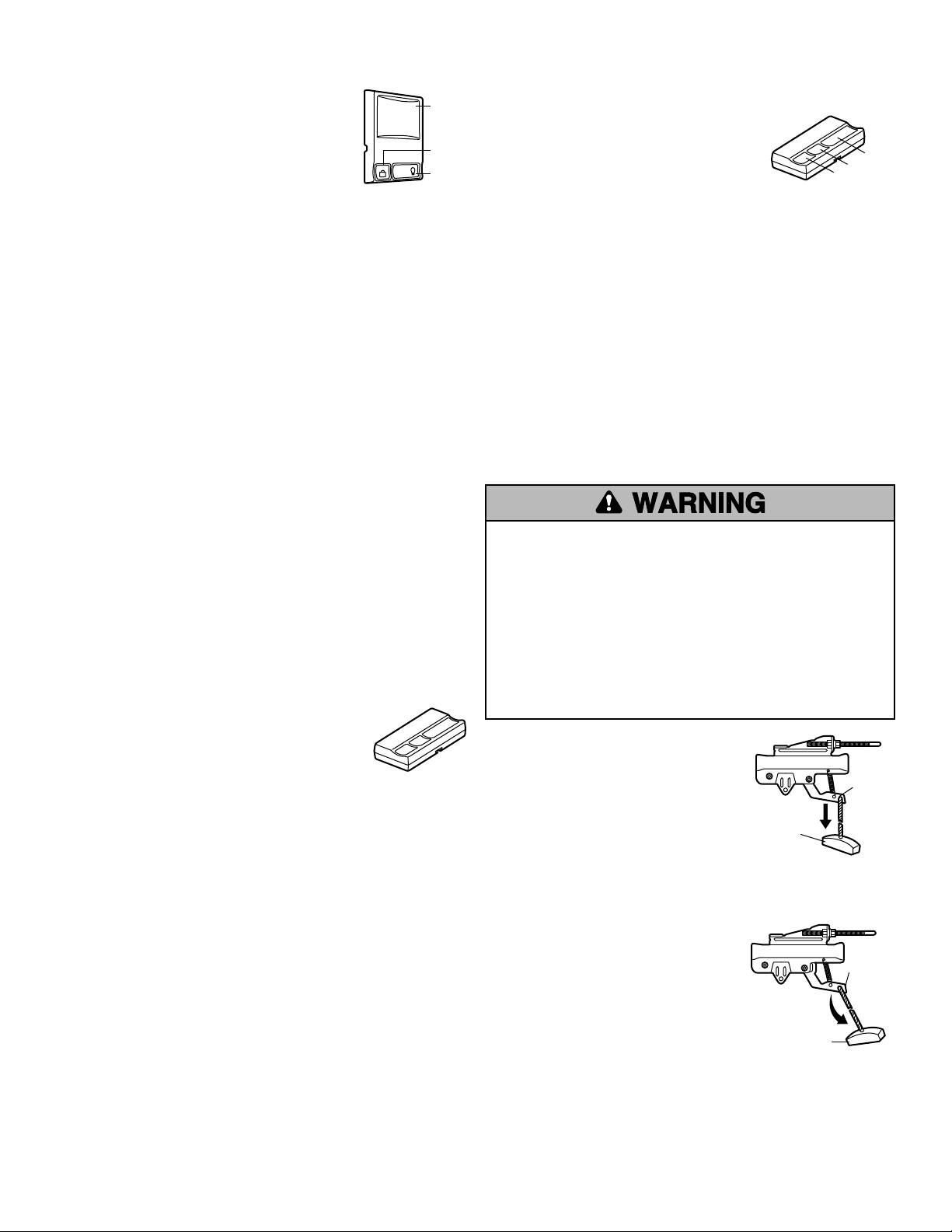

Using the Wall-Mounted Door Control

Trolley Release Arm

NOTICE

Emergency Release Handle (Down and Back)

Trolley Release Arm

NOTICE

Emergency Release Handle (Pull Down)

THE MULTI-FUNCTION DOOR CONTROL

Press the push button to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it’s opening.

Light feature

Press the Light button to turn the opener light on or off. It will not control the opener lights when the door is in motion. If you turn it on and then activate the opener, the light will remain on for 4-1/2 minutes. Press again to turn it off sooner. The 4-1/2 minute interval can be changed to 1-1/2, 2-1/2, or 3-1/2 minutes as follows: Press and hold the Lock button until the light blinks (about 10 seconds). A single blink indicates that the timer is reset to 1-1/2 minutes. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes. Repeat again for a 3-1/2 minute interval, etc., up to a maximum of four blinks and 4-1/2 minutes.

Lock feature

Designed to prevent operation of the door from hand-held remote controls. However, the door will open and close from the Door Control, the Outside Keylock and the Keyless Entry Accessories.

To activate, press and hold the Lock button for 2 seconds. The push bar light will flash as long as the Lock feature is on.

To turn off, press and hold the Lock button again for 2 seconds. The push bar light will stop flashing. The Lock feature will also turn off whenever the “learn” button on the motor unit panel is activated.

Additional features when used with the 3-button hand-held remote

A) To control the opener lights:

In addition to operating the door, you may program the remote to operate the lights.

1. With the door closed, press and hold a small remote button

2. Press and hold the Light button on the Multi-Function Door

3. While holding the Light button, press and hold the Lock button

4. After the opener lights flash, release all buttons.

that you want to control the light.

Control.

on the door control.

Push Button

Lock

LOCK

Button Light

LIGHT

Button

B) To operate one door using all three buttons on the hand-held

remote:

You may program the remote to open the

Stop

Open

door with the large button, close it with the middle button, and stop the door’s movement with the third button.

NOTE: If remote is already programmed, you must first erase all codes. See Programming.

1. With the door closed, press and hold the large remote push button.

2. Press and hold the Lock button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights flash, release all buttons.

To Open the Door Manually

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

The door should be fully closed if possible. Pull down on the emergency release handle and lift the door manually. To reconnect the door to the opener, press the door control push bar.

MANUAL DISCONNECT POSITION

The lockout feature prevents the trolley from reconnecting automatically. Pull the emergency release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary. To disengage the lockout feature, pull the handle straight down. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the door control or remote.

LOCKOUT POSITION

Page 28

Care of Your Opener

Battery positive side up (+)

MAINTENANCE SCHEDULE

Once a Month

• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens and closes fully. Adjust limits and/ or force if necessary (see pages 23 and 24).

• Repeat the safety reverse test. Make any necessary adjustments (see Adjustment Step 3).

Twice a Year

• Check chain tension. Disconnect trolley first. Adjust if necessary (see page 7).

Once a Year

• Oil door rollers, bearings and hinges. The opener does not require additional lubrication. Do not grease the door tracks.

THE REMOTE CONTROL BATTERY

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• DO NOT recharge, disassemble, heat above 100° C (212° F) or incinerate.

The lithium battery should produce power for up to 5 years.

To replace battery, use the visor clip or screwdriver blade to pry open the case as shown. Insert battery positive side up (+).

Dispose of old battery properly. Replace the battery with only 3V2032

coin cell batteries.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 29

Standby Power (Optional)

OPERATING INSTR UCTIONS

1. Test the installed battery with the motor unit.

To test the battery, disconnect the motor unit power cord from the electrical outlet.

• A solid orange LED indicates the battery is operating on battery power.

• A flashing orange LED with beep indicates the unit is operating on battery power and that the battery charge is low.

• To test the battery is functioning properly, open and close the garage door.

• Re-connect the motor unit power cord back into the electrical outlet.

• Verify that the green LED is flashing on the SPU (indicates that the battery is now charging).

• Test completed.

2. Charge the battery.

• Battery will take 24 to 48 hours to fully charge.

A fully charged battery supplies 12 Vdc to the motor unit for one to two days of normal operation during an electrical power outage. If the battery voltage drops too low, the batteries will disconnect and the motor unit will no longer operate under battery power.

After the electrical power has been restored, the battery will recharge within 48 hours. Under normal usage batteries will last 3 to 5 years.

To obtain maximum battery life and prevent damage, disconnect the battery when motor unit is unplugged for an extended period of time.

NOTE: Door operation may be limited until battery is fully charged. The motor unit’s lights will not turn on during battery mode.

To reduce the risk of FIRE or INJURY to persons:

• Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

• Use ONLY LiftMaster part number 485LM for replacement battery.

• DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

Battery Status LED

NOTE:

LED is most visible with worklight off.

GREEN LED:

All systems are normal.

• A solid LED light indicates the battery is fully charged.

• A flashing LED indicates the battery is being charged.

NOTE:

Battery do not have to be fully charged to operate the

motor unit.

ORANGE LED:

The motor unit has lost power and is operating off of the battery.

• A solid LED with beep, sounding approximately every 2 seconds, indicates the motor unit is activating the door and is operating off of the battery.

• A flashing LED with beep, sounding every 30 seconds, indicates battery is low.

• Once the power is restored the battery will recharge. This is indicated by a flashing green LED.

RED LED:

• If a red LED remains on when the power is restored, and is accompanied by a beep sounding every 30 seconds, replace the battery.

• To obtain maximum battery life and prevent damage, also disconnect the battery if you unplug the motor unit while on vacation or any other extended period of time.

Page 30

Having a Problem (Troubleshooting)

Bell Wire

Safety Reversing Sensor

Diagnostics Located On Motor Unit

“Learn” Button LED or Diagnostic LED

“Learn” Button

NOTE:

Always unplug battery prior to troubleshooting.

1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be connected and

aligned correctly before the garage door opener will move in the down direction.

• Verify the safety reversing sensors are properly installed,

aligned and free of any obstructions. Refer to Installation

Step 10: Install The Protector System

• Check diagnostic LED for flashes on the motor unit then refer

to the Diagnostic Chart on the following page.

2. My remotes will not activate the door:

• Verify your door control is not blinking. If it is blinking,

deactivate the Lock Mode following the instructions for Using the Wall-Mounted Door Control.

• Reprogram remotes following the programming instructions.

Refer to Programming.

• If remote will still not activate your door, check diagnostic

LED for flashes on motor unit then refer to Diagnostic Chart on the following page.

Sending Eye Safety Reversing Sensor (Amber Indicator Light)

Receiving Eye Safety Reversing Sensor (Green Indicator Light)

3. My door reverses for no apparent reason: Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Manually check door for balance or any binding problems.

• Refer to Adjustment Step 2, Set the Force.

4. My door reverses for no apparent reason after fully closing and touching the floor: Repeat safety reverse test after

adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Refer to Adjustment Step 1, Program the Travel Limits.

5. My lights will not turn off when door is open:

• The garage door opener is equipped with a security light

feature. This feature activates the light on when the safety reversing sensor beam has been obstructed. Refer to Operation section; Using the Wall-Mounted Door Control,

Light Feature.

6. My motor unit hums briefly:

• First verify that the trolley is against the stop bolt.

• Release the door from the opener by pulling the Emergency Release Rope.

• Manually bring the door to a closed position.

• Loosen the chain by adjusting the outer nut 4 to 5 turns. This relieves the tension.

• Run the motor unit from the remote control or door control. The trolley should travel towards the door and stop. If the trolley re-engages with the door, pull the Emergency Release Rope to disengage.

• Re-tighten the outer nut so the chain is a 1/2" (13 mm) above the base of the rail. (When the door is reconnected and closed, the chain will sag. This is normal.)

• If the trolley does not move away from the bolt, repeat the steps above.

7. If battery status LED is not lit properly:

• Check battery connections.

8. My garage door opener beeps:

• A solid LED with beep, sounding approximately every 2 seconds, indicates the motor unit is activating the door and is operating off of the battery.

• A flashing LED with beep, sounding every 30 seconds, indicates battery is low.

• If a red LED remains on when the power is restored,and is accompanied by a beep sounding every 30 seconds, replace the battery.

Page 31

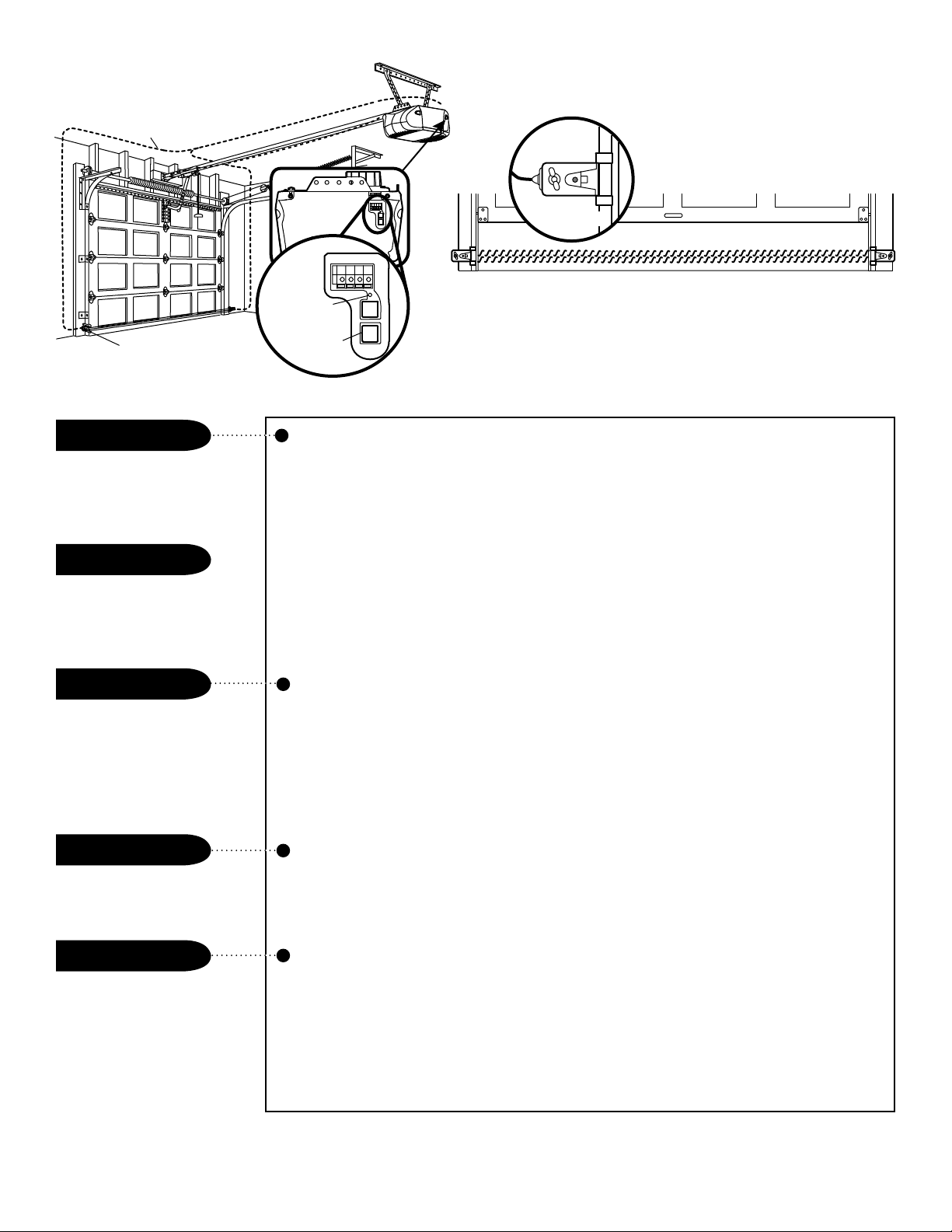

Bell Wire

Safety Reversing Sensor

Diagnostics Located On Motor Unit

“Learn” Button LED or Diagnostic LED

“Learn” Button

Installed

Safety Reversing

Sensor

Diagnostic Chart

Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below.

1 FLASH

Safety reversing sensors wire open (broken or disconnected).

2 FLASHES

Safety reversing sensors wire shorted or black/white wire reversed.

3 FLASHES

Door control or wire shorted.

4 FLASHES

Safety reversing sensors slightly misaligned (dim or flashing LED).

Symptom: One or both of the Indicator lights on the safety reversing sensors do not glow steady.

• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white wires reversed), broken or disconnected wires, replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove sensors from brackets and shorten sensor wires to 1-2 ft (30-60 cm) from back each of sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety reversing sensors.

Symptom: The door doesn’t activate from the door control.

• Inspect door control/wires for a short (staple in wire), replace as needed.

• Disconnect wires at door control, touch wires together. If motor unit activates, replace door control.

• If motor unit does not activate, disconnect door control wires from motor unit. Momentarily short across red and white terminals with jumper wire. If motor unit activates, replace door control wires.

Symptom: Sending indicator light glows steadily, receiving indicator light is dim or flashing.

• Realign receiving eye sensor, clean lens and secure brackets.

5 FLASHES

Motor RPM is not recognized.

Symptom: Door travels 2-3 inches and stops.

• Reprogram limits and forces. See Adjustment section.

• If the motor unit continues to travel 2-3 inches, check the travel module connection or replace the travel module.

Symptom: No movement, motor runs 2-3 seconds.

• Reconnect the emergency release.

• Motor may need to be replaced.

Page 32

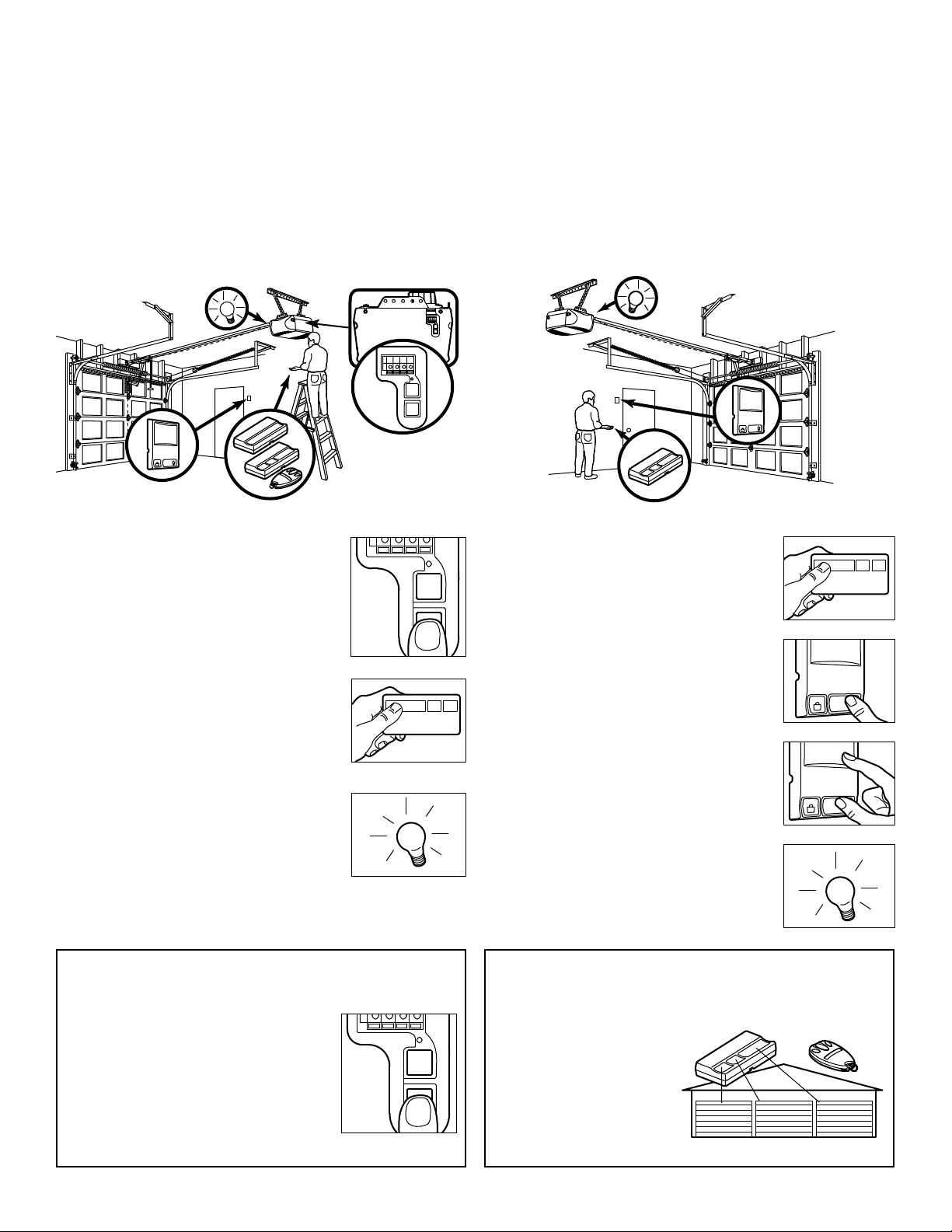

PROGRAMMING

LOCK

LIGHT

LOCK

LIGHT

NOTICE: If this Security of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code remote control to circumvent that technical measure.

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control. The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional 315 MHz Security✚

USING THE “LEARN” BUTTON USING THE DOOR CONTROL

✚

garage door opener is operated with a non-rolling code remote control, the technical measure in the receiver

remote controls.

To Add or Reprogram a Hand-held Remote Control

1. Press and release the “learn” button on the motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, press and hold the button on the hand-held remote* that you wish to operate your garage door.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Erase All Codes From Motor Unit Memory

1. Press and hold the button on the hand-held remote* that you wish to operate your garage door.

2. While holding the remote button, press and hold the LIGHT button on the door control.

3. Continue holding both buttons while you press the push bar on the door control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

*3-Button Remotes (315 MHz)

To deactivate any unwanted remote, first erase all codes: Press and hold the “learn” button on motor

unit until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use.

If provided with your garage door opener, the large button is factory programmed to operate it. Additional buttons on any Security✚® 3-button remote or mini-remote can be programmed to operate other Security✚® garage door openers.

Page 33

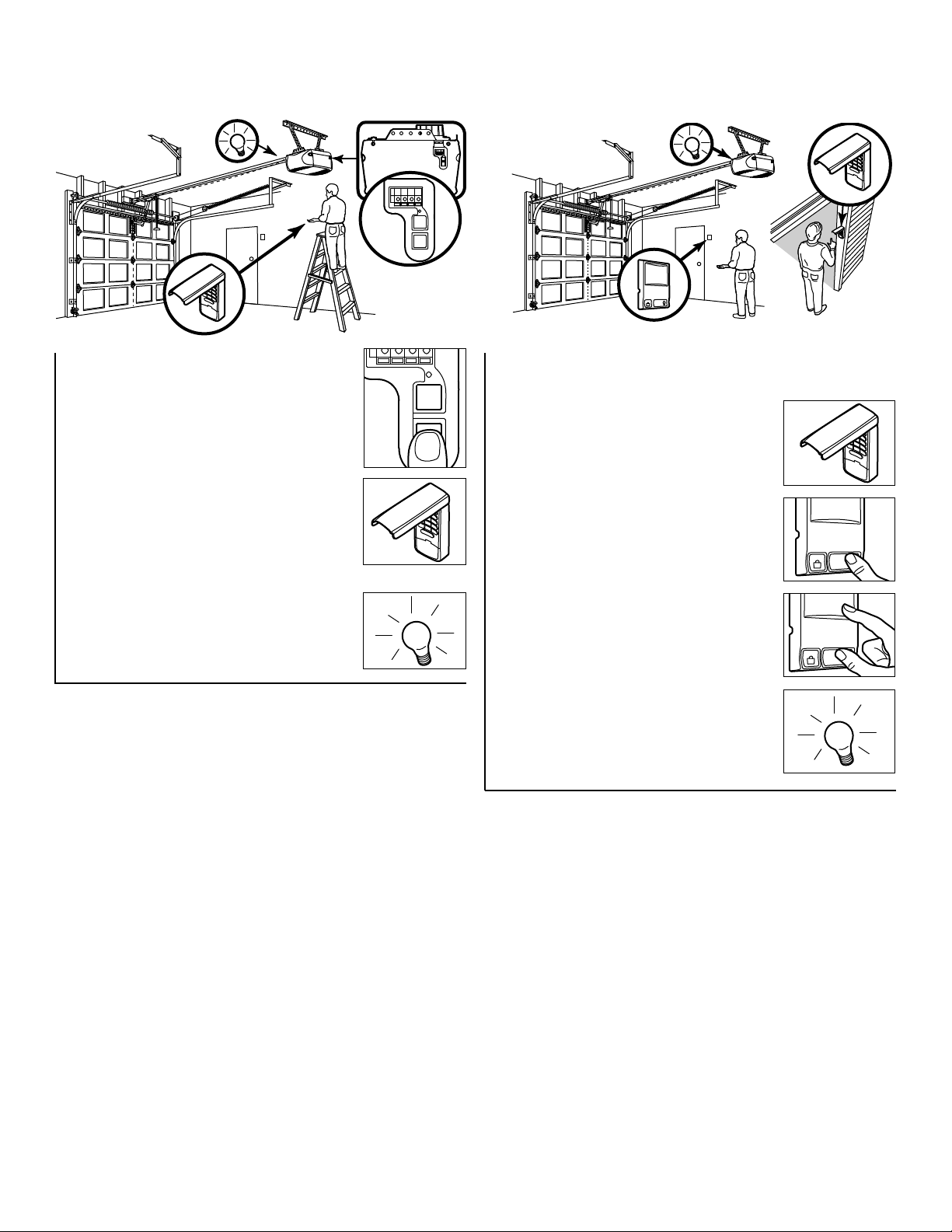

To Add, Reprogram or Change a Keyless Entry PIN

LOCK

LIGHT

LOCK

LIGHT

NOTE:

Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON USING THE DOOR CONTROL

1. Press and release the “learn” button on motor unit. The learn indicator light will

NOTE:

This method requires two people if the Keyless Entry is

already mounted outside the garage.

glow steadily for 30 seconds.

1. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold ENTER.

2. Within 30 seconds, enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold the enter button.

2. While holding the ENTER button, press and hold the LIGHT button on the door control.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

3. Continue holding the ENTER and LIGHT buttons while you press the push bar on the door control (all three buttons are held).

To change an existing, known PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press and hold

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter. The motor unit lights will blink once when the PIN has been

learned. Test by pressing the new PIN, then press Enter. The door should

move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of accesses, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the button.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

hours

3. To set the number of

this temporary PIN will work, press

the number of hours (up to 255), then press ✽.

3. To set the number of

times

this temporary PIN will work, press

the number of times (up to 255), then press #.

The opener light will blink once when the temporary PIN has been learned.

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening. To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

Page 34

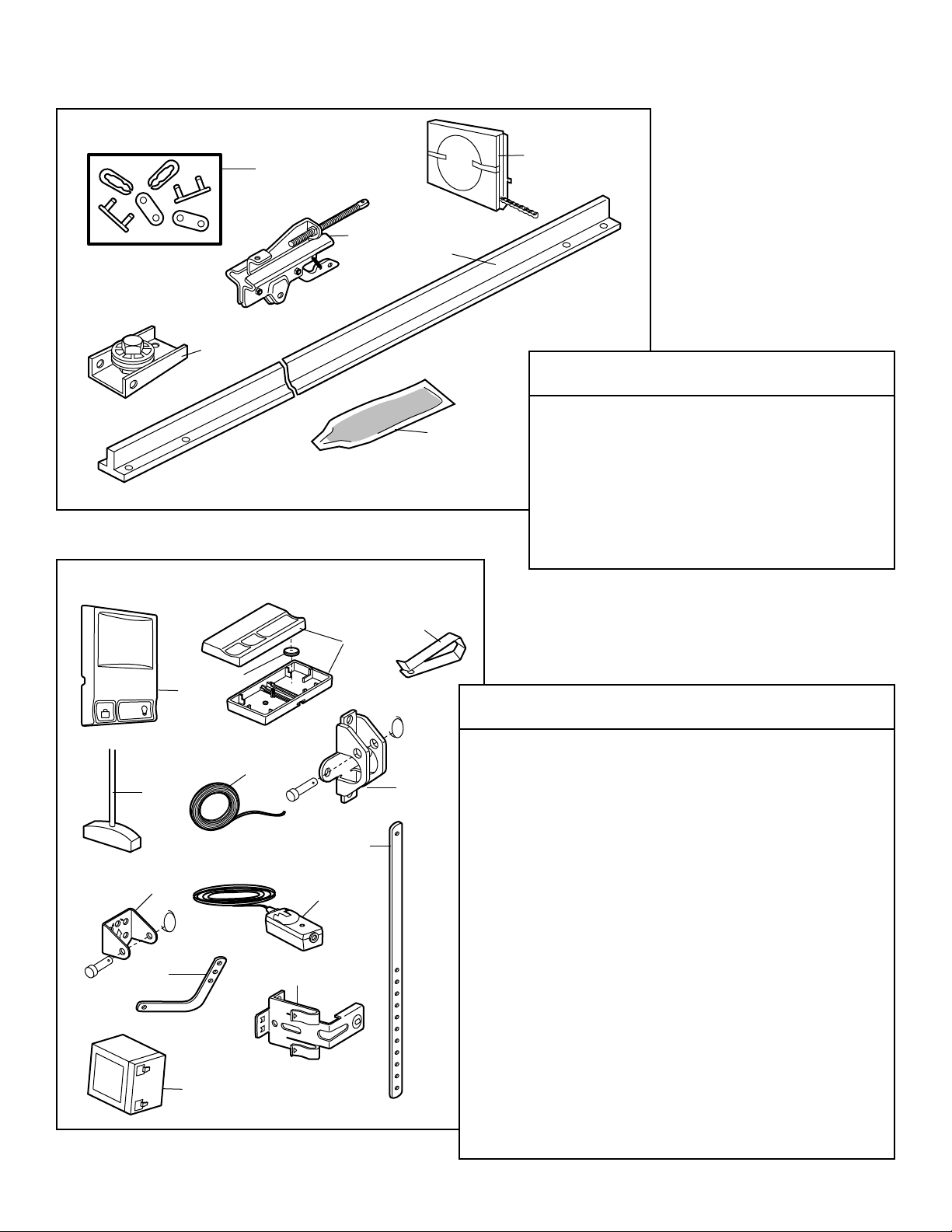

REPAIR PARTS

Rail Assembly Parts

Installation Parts

LOCK

LIGHT

NOTICE

KEY PART NO. NO. DESCRIPTION

1 4A1008 Master link kit

2 41A4813 Chain pulley bracket 3 41A3489 Complete trolley assembly 4 1707LM One-piece rail - 7 feet (2.1 m) 1708LM One-piece rail - 8 feet (2.4 m) 1710LM One-piece rail - 10 feet (3 m) 5 41D3484 Full chain assembly 6 83A11-2 Rail grease

KEY PART NO. NO. DESCRIPTION

1 41A5273-1 Multi-function door control

2 373LM 3-Button remote control 3 10A20 3V2032 Lithium battery 4 29C151 Remote control visor clip 5 41A2828 Emergency release rope and handle assembly 6 41B4494 2-Conductor bell wire, white & white/red 7 41A5047 Door bracket with clevis pin & fastener 8 41A4353-1 Header bracket with clevis pin & fastener 9 41A5034 Safety reversing sensor kit

(receiving and sending eyes) with

3 feet (.9 m) 2-conductor bell wire 10 178B34 Straight door arm section 11 178B35 Curved door arm section 12 41A5266-1 Safety reversing sensor brackets (2) 13 485LM Battery

NOT SHOWN

41A2770-13 Installation hardware bag

(includes hardware listed on page 5) 114A4188 Owner’s manual 114A4188SP Owner’s manual - Spanish

Page 35

Motor Unit Assembly Parts

KEY PART NO. NO. DESCRIPTION

1 41C76 Sprocket cover 2 41B5348 Chain sprocket 3 41B4245 Line cord 4 41B4375-3 Terminal block with screws 5 41A6281 Wire harness kit 6 41D794 Motor with positioning sensor 7 41DB002-2 Receiver logic assembly

KEY PART NO. NO. DESCRIPTION

8 41A6231 End panel with battery door and

9 41C190 Transformer and harness 10 41D504-4 Cover 11 108D79 Light lens 12 4A1344 Light socket

NOT SHOWN 485LM Battery kit

screw

Page 36

ACCESSORIES

CLOSEDCLOSED

OPENOPEN

1702LM

41A5281

377LM

915LM

Outside Quick Release:

Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley.

Extension Brackets:

(Optional) For safety reversing sensor installation onto the wall or floor.

SECURITY✚

Keyless Entry :

Enables homeowner to operate garage door opener from outside by entering a password on a specially designed keyboard. Also can add a temporary password for visitors or service persons. This temporary password can be limited to a programmable number of hours or entries.

Garage Door Monitor:

Security for the largest door of your home! Tells you if your garage door is open or

closed. Monitors up to 4 garage doors by adding additional sensor modules.

373P

374LM

370LM

378LM

485LM

SECURITY✚® 3-Button Remote Control :

Includes visor clip.

SECURITY✚® 4-Button Remote Control :

Includes visor clip.

SECURITY✚

3-Button Mini Remote Control :

With key ring and fastening strip.

Wireless Door Control:

Push bar, light feature and auxiliary button. Includes battery.

Standby Power System:

Provides backup power to the garage door opener.

395LM

Remote Light Control

Enables homeowner to turn on a lamp, television or other appliance from car, bedside, or anywhere in the home with a remote.

975LM

990LM

Laser Park Assist:

Laser enables homeowners to precisely park vehicles in the garage.

Surge Protector:

The Garage Door Opener Surge Protector is

designed to protect LiftMaster

garage door openers against damage from lightning and power surges.

Page 37

NOTES

Page 38

NOTES

Page 39

NOTES

Page 40

LIFTMASTER® SERVICE

HOW TO ORDER

IS ON CALL

REPAIR PARTS

Selling prices will be furnished on request or parts will be

OUR LARGE SERVICE ORGANIZATION SPANS AMERICA

shipped at prevailing prices and you will be billed

accordingly.

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE. SIMPLY DIAL OUR

TOLL FREE NUMBER:

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE

THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

1-800-528-9131

• MODEL NUMBER

ADDRESS ORDERS TO:

www.liftmaster.com

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

For professional installation, parts and service, contact your local LIFTMASTER/CHAMBERLAIN dealer. Look for him

SERVICE INFORMATION TOLL FREE NUMBER:

Tucson, Arizona 85706

in the Yellow Pages, or call our Service number for a list of dealers in your area.

LIFTMASTER® ONE YEAR LIMITED WARRANTY

LIFETIME MOTOR LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY FOR EVERCHARGE

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 12 full months from the date of purchase and that the motor is free from defect in materials and/or workmanship for a period of the lifetime of the product. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

STANDBY POWER BATTERY

1-800-528-9131

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131; toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE ONE YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE BATTERY, WHICH IS LIMITED IN DURATION TO ONE YEAR, MOTOR, WHICH IS LIMITED IN DURATION TO THE LIFETIME LIMITED WARRANTY PERIOD FOR THE MOTOR, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Chamberlain Security+ 3290, LiftMaster Premium Security+ 3290 Owner's Manual

TABLE OF CONTENTS

INTRODUCTION

Preparing your garage door

Tools needed

Planning

Carton Inventory

Attach the Rail to the Motor Unit

Attach the Chain to the Sprocket and Install the Sprocket Cover

Tighten the Chain

INSTALLATION

Determine the Header Bracket Location

Install the Header Bracket

Attach the Rail to the Header Bracket

Position the Opener

Hang the Opener

Install the Door Control

Install the Standby Power (optional)

Install the Lights

Attach the Emergency Release Rope and Handle

Electrical Requirements

Install The Protector System

Fasten the Door Bracket

Connect Door Arm to Trolley

Program the Travel Limits

Set the Force

Test the Safety Reversal System

Test The Protector System

OPERATION

Using Your Garage Door Opener

Using the Wall-Mounted Door Control

To Open the Door Manually

Care of Your Opener

Standby Power (Optional)

Diagnostic Chart

PROGRAMMING

To Erase All Codes From Motor Unit Memory

To Add, Reprogram or Change a Keyless Entry PIN

REPAIR PARTS

Rail Assembly Parts

Installation Parts

Motor Unit Assembly Parts

ACCESSORIES
