Page 1

1-1/4 hps* Belt Drive Garage Door Opener with

MyQ

Smartphone Control

and Battery Backup

Model HD950WF

FOR RESIDENTIAL USE ONLY

Write down the MyQ® serial number located on the garage door opener:

* Horsepower similar (hps) designates that this garage

door opener system meets Chamberlain’s pulling force specification for a 1-1/4 horsepower garage door opener.

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

properly aligned.

■ Periodic checks of the garage door opener are required to ensure safe operation.

■ The model number label is located on the left side panel of your garage door

opener.

■ This garage door opener is compatible with MyQ accessories.

■ DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended devices and features are to be used ONLY

with sectional doors.

is connected and

and Security+ 2.0™

Preparation. . . . . . . . . . . . . . . .1-4

Assembly . . . . . . . . . . . . . . . . .5-8

Installation . . . . . . . . . . . . . . . 9-26

Adjustments . . . . . . . . . . . . . 27-29

Battery Backup. . . . . . . . . . . . . . 30

MyQ

Smartphone Control

Get Connected . . . . . . . . . . . . . . 31

Operation . . . . . . . . . . . . . . . 32-36

Maintenance . . . . . . . . . . . . . . . 37

Troubleshooting. . . . . . . . . . . 38-39

Accessories. . . . . . . . . . . . . . . . 40

Warranty. . . . . . . . . . . . . . . . . . 41

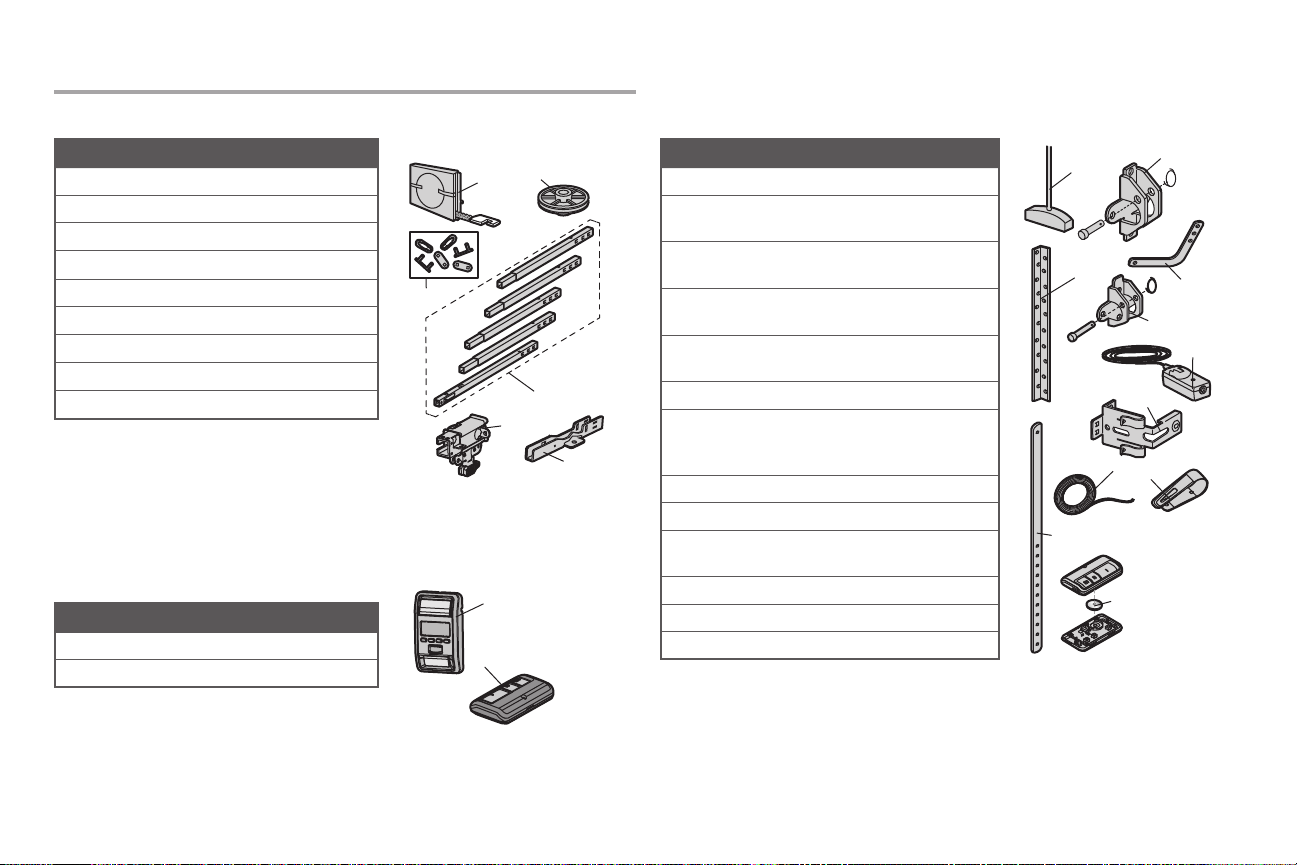

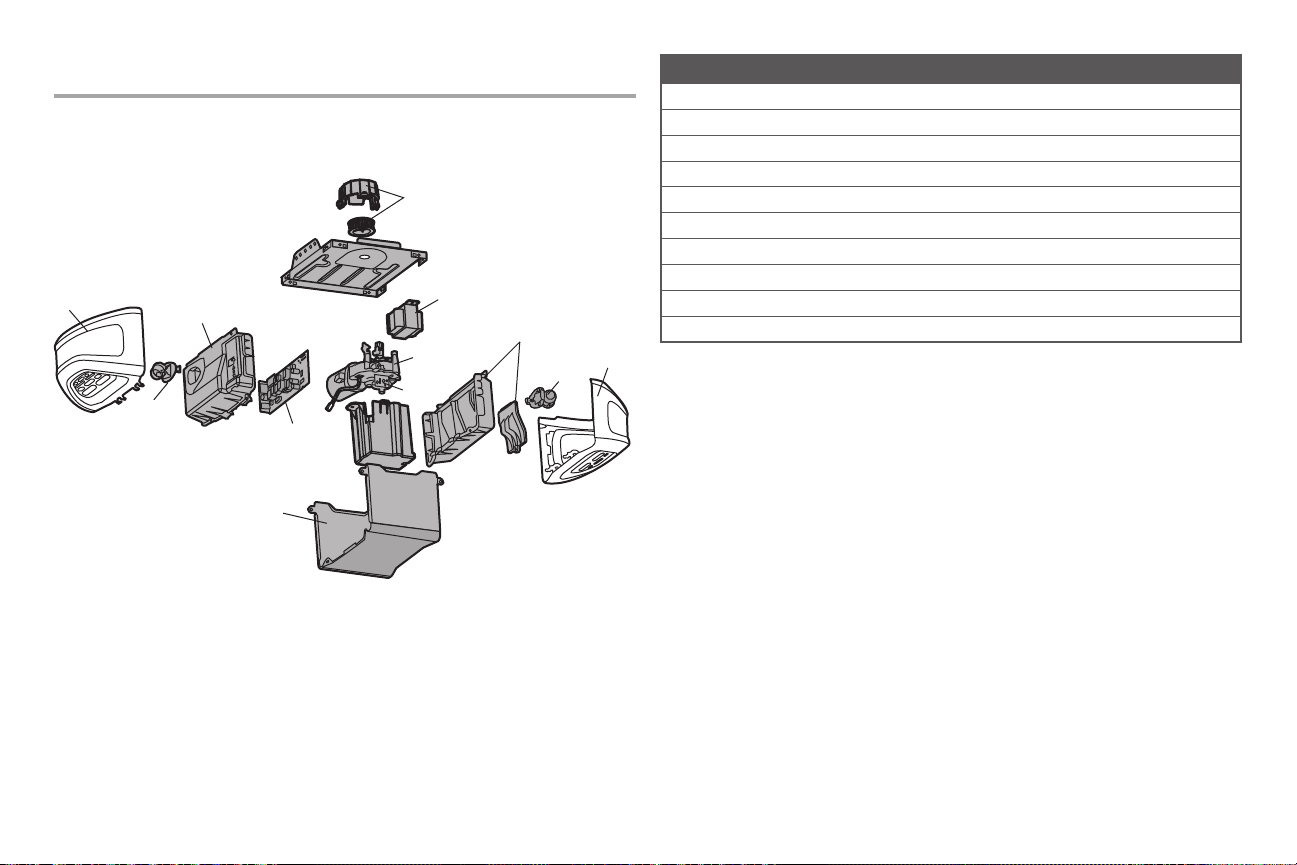

Repair Parts . . . . . . . . . . . . . 42-43

www.chamberlain.com

www.mychamberlain.com

The Chamberlain Group, Inc.

Elmhurst, Illinois 60126-1196

845 Larch Avenue

Page 2

Torsion Spring

Extension Spring

Preparation

Safety Symbol and Signal Word Review

Thisgarage dooropener hasbeen designed andtested to offer safe service provided it is installed, operated, maintained andtested in strictaccordance with the instructionsand warnings contained in this manual.

When you see these SafetySymbols and Signal Words on the following pages, theywill alert you to the possibilityofserious injury or death if you do not comply with the warnings that accompanythem. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

Mechanical

Electrical

When you see this SignalWord on the following pages,itwill alertyou to the possibilityofdamage to your garage door and/or the garage door opener if you do not comply with the cautionary statementsthat

accompanyit.Read them carefully.

Unattended Operation

The Timer-to-Close(TTC) feature, the MyQ®Smartphone Control app,and MyQ®Garage Door and Gate Monitor are examples of unattended close and aretobe used ONLY withsectional doors.Any device or feature that allows the door to close withoutbeing in the lineofsightofthe doorisconsidered unattended close. The Timer-to-Close(TTC) feature, the MyQ®Smartphone Control, and any other MyQ®devicesare to be used ONLY with sectional doors.

Check the Door

To prevent possible SERIOUS INJURY or DEATH:

l ALWAYS call a trained door systemstechnician if garagedoor binds, sticks,or is out of balance.

An unbalanced garage door may NOT reverse when required.

l NEVER trytoloosen,moveor adjust garage door, door springs,cables,pulleys, bracketsortheir

hardware, ALL of which are underEXTREMEtension.

l Disable ALL locksand remove ALL ropes connected to garagedoor BEFORE installation and

operating garage door opener to avoid entanglement.

l DO NOT install on a one-piece door if using devicesor featuresproviding unattended close.

Unattended devices and features are to beused ONLY with sectional doors.

To prevent damage to garage door andopener:

l ALWAYS disable locksBEFORE installing and operating the opener. l ONLY operate garagedoor opener at 120 V, 60 Hztoavoid malfunction anddamage.

Before you begin:

1. Disable locksand remove any ropes connected to the garage door.

2. Liftthe doorhalfwayup.Release the door.If balanced, it should stay in place, supported entirely by its springs.

3. Raiseand lower the doortocheckfor binding or sticking. Ifyour door binds, sticks,orisoutofbalance,call a trained door systems technician.

4. Checkthe seal on the bottom of the door. Any gap between the floor and the bottomofthe door must not exceed 1/4 inch (6 mm). Otherwise,the safetyreversal systemmaynotwork properly.

5. The opener should be installed above the center of the door.If there is a torsion spring orcenter bearing plate in the wayoftheheader bracket,itmay be installed within 4feet(1.2m)tothe leftor right of the door center. See page10.

Page 3

Wi-Fi signal is weak.

The garage door opener will likely connect to your Wi-Fi network. If not, try one of the options below

No Wi-Fi signal. Try one of the following:

• Move your router closer to the garage door opener to minimize interference from walls and other objects

• Buy a Chamberlain MyQ® Internet Gateway (CIGBU) see page 40

• Buy a Wi-Fi range extender

Check Signal Strength. If you see:

Wi-Fi signal is strong. You’re all set!

Install your new garage door opener.

Visit wiﬁhelp.chamberlain.com for more details

3/16

7/16

1/2

5/32

5/16

5/8

9/16

1/4

7/16

Preparation

Test the Wi-Fi®Signal Strength in your garage

You will need a router with Wi-Fi and a smartphone or other mobile device.Makesure your mobile device is connected to your Wi-Fi network.Hold your mobile device in the place where your garagedoor opener will be installed and checkthe Wi-Fi signal strength.

See MyQ®Smartphone Control page31 to connect your garage door opener to your Wi-Fi network.

Additional Items You May Need:

Survey your garagearea to see if you will needany of the following items:

l (2) 2X4 Pieces of wood : Maybe used to fasten the header brackettothe structural supports.

Also used to position the garage door opener during installation and for testing the safety reversing sensors.

l Support bracket and fasteninghardware: Mustbeused if you have a finished ceiling in your

garage.

l Extensionbrackets (MODEL 041A5281-1) orwood blocks: Depending upon garage

construction, extensionbrackets or wood blocksmaybeneeded to install the safetyreversing sensor.

l Fastening hardware: Alternate floor mounting of the safetyreversing sensor will require

hardware notprovided.

l Outside quick release (MODEL 7702CB): Required for a garage with NO accessdoor. l Door reinforcement: Required if you have a lightweight steel,aluminum,fiberglass or glass

panel door.

l Railextension kit: Required if your garage door is more than 7 feet (2.13 m) high.

Tools Needed

Page 4

Preparation

Carton Inventory

Your garage door opener is packaged in one cartonwhichcontainsthe motor unitandall parts illustrated below. Accessories vary dependingon the garage door opener model purchased. Depending on your model,other accessoriesmaybe included with your garage door opener.Instructions for these accessories will be attached to the accessory and arenotincluded in this manual. Save the carton and packing material until the installation and adjustmentiscomplete. The images throughoutthis manual are for reference only andyour product maylook different.

A. Header bracket B. Pulley C. Door bracket D. Curved doorarm E. Straight door arm

(Packaged inside front railsection)

F. Trolley

NOTE: Be sure to assemble the trolley before sliding onto rail.

G. Emergencyrelease rope and handle

H. Rail (1 front and 4 center sections)

I. Hanging brackets(2)

(Packaged inside the frontrail section)

J. Garage door opener (motor unit)

K. Sprocketcover and screws

L. “U” bracket

M. Belt

N. Door control (Smart Control Panel®)

O. Remote control (2)

P. The Protector System

Safetyreversingsensorswith 2 conductor white and white/blackwire attached: Sending Sensor (1), Receiving Sensor (1), andSafetySensorBrackets (2)

NOT SHOWN

White and red/white wire Owner's manual Hardware

Page 5

Clevis Pin 5/16"x1-1/2"

Ring Fastener (3)

Hex Bolt 5/16"-18x7/8" (4)

Lock Washer 5/16"-18 (5)

Nut 5/16"-18 (6)

Self-Threading Screw 1/4"-14x5/8" (2)

Clevis Pin 5/16"x1"

Clevis Pin 5/16"x1-1/4"

Carriage Bolt 1/4"-20x1/2" (2)

Wing Nut 1/4"-20 (2)

ASSEMBLY INSTALLATION

Screw 6ABx1" (2)

Drywall Anchors (2)

Screw 6-32x1" (2)

DOOR CONTROL

Insulated Staples (

Not Shown)

Lag Screw 5/16"-9x1-5/8" (4)

Hex Screw #8x3/8" (3) (packed with the sprocket cover)

Bolt 1/4"-20x1-3/4"

Lock Nut 1/4"-20

Bolt

Nut 3/8"

Lock Washer 3/8"

Master Link

Spring Trolley Nut

Threaded Shaft with

Preparation

Hardware

Page 6

Assembly

To garage

door opener

(TO MOTOR UNIT)

Front Rail Section (TO DOOR)

“U” Bracket

Outer Trolley

Inner Trolley

Wear Pads

SLIDE TO STOPS ON TOP AND SIDES OF “U” BRACKET

Trolley

Rail Tab

STEP 1 Assemble the rail and install the trolley

To prevent INJURY frompinching, keep handsandfingersawayfromthe joints while assembling the rail.

To avoid installationdifficulties, do not run the garage dooropener until instructed to doso.

The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when assembled.

1. Remove the straight door arm and hanging bracketpackaged inside the front rail and setaside for Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove

the straight door arm stored within the railsection.

2. Align the railsections on a flat surface as shown and slide the tapered endsinto the larger ones. Tabs along the side will lock into place.

3. Place the motor unit on packing material to protect the cover,and rest the backend of the rail on

4. Asa temporary stop,insertascrewdriver into the holein the second rail section from the motor

5. Checkto be sure there are 4 plastic wear pads inside the inner trolley.If theybecame loose

6. Slide the trolley assembly toward the screwdriver asshown.

7. Slide the railontothe “U” bracket,until it reaches all the stopson the top and sides of the “U”

top.For convenience,puta support under the front end of the rail.

unit,asshown.

during shipping, checkall packing material. Snap them back into position as shown.

bracket.

Page 7

Assembly

“U” Bracket

Cover Protection Bolt Hole

Bolt 1/4"-20x1-3/4"

Lock Nut 1/4"-20

Bolts (Mounted in the garage door opener)

HARDWARE

Bolt 1/4"-20x1-3/4"

Lock Nut 1/4"-20

Rail

Trolley Connector

Bolt

Lock Washer 3/8"

Nut 3/8"

Rail Tab

CORRECT INCORRECT

Idler Pulley

Grease Inside Pulley

HARDWARE

Bolt

Nut 3/8"

Lock Washer 3/8"

Rail Tab

STEP 2 Fasten the rail to the motor unit

To avoid SERIOUS damage to garage door opener,useONLY those bolts/fastenersmounted in the top of the opener.

1. Insert a 1/4"-20x1-3/4" boltinto the cover protection bolt hole on the back end of the railas shown.Tightensecurely with a 1/4"-20 locknut.DO NOT overtighten.

2. Remove the bolts fromthe top of the motor unit.

3. Use the carton to support the front end of the rail.

4. Place the “U” bracket,flat side down onto the motor unit andalign the bracketholes withthebolt holes.

5. Fasten the “U” bracketwith the previously removed bolts;DONOTuseany power tools.The use of power tools may permanently damage the garage door opener.

STEP 3 Install the idler pulley

1. Lay the belt beside the rail,asshown. Grasp the end with the hooked trolley connector and pass approximately 12" (30 cm) of belt through the window. Keep the ribbed side toward the rail, and allow it to hang until AssemblyStep 4.

2. Remove the tape fromthe idler pulley. The inside center should be pre-greased.Ifdry, regrease to ensure properoperation.

3. Place the idler pulley into the window as shown.

4. Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and nut underneath the railuntilthe lockwasher iscompressed.

5. Rotate the pulleyto be sure it spins freely.

6. Locatetherail tab. The rail tab is near the idler pulley on the front railsection. Usea flathead screwdriver andliftthe rail tab until the tab is vertical (90º).

Page 8

Assembly

HARDWARE

Master Link

Threaded Shaft with Spring Trolley Nut

Sprocket

Figure 3

Threaded Shaft

Master Link

Figure 2

Trolley Connector

Figure 1

Retaining Slot

STEP 4 Install the belt

1. Pull the belt around the idler pulleyand toward the trolley.The ribbed side mustcontactthe pulley.

2. Hookthe trolleyconnector into the retaining sloton the trolley as shown (Figure 1).

3. With the trolley againstthe screwdriver, dispense the remainderofthe beltalong the rail lengthtowardthe motorunit and around the sprocket(Figure 2). The sprocketteeth mustengage the belt.

4. Checkto make sure the belt is nottwisted.Connect the trolley threaded shaftwith the master link (Figure 3).

l Push pins of master link bar throughholes in end of belt and trolley threaded shaft. l Push master link cap over pins andpastpin notches. l Slide the closed end of the clip-on spring over one ofthe pins.Push the open end of the

clip-on spring onto the other pin.

5. Remove the spring trolley nut from the threaded shaft.

6. Insert the trolley threaded shaftthrough the hole in the trolley.

Page 9

Assembly

Nut Ring

BEFORE

(2.5

cm)

Nut Ring

AFTER

1-1/4"

(3.18 cm)

Spring Trolley Nut

Nut Ring Slot

Hex Screw #8x3/8" (Packed with the sprocket cover)

HARDWARE

Hex Screw #8x3/8"

Sprocket Cover

STEP 5 Tighten the belt

1. Byhand, thread the spring trolley nut on the threaded shaftuntil it is finger tight against the trolley.Donotuse any tools.Remove the screwdriver.

2. Insert a flathead screwdriver tip into one of the nut ring slotsand brace it firmlyagainstthe trolley.

3. Tightenthe spring trolley nut with an adjustable wrench or a 7/16" openend wrench abouta quarter turn until the spring releases and snapsthe nutring against the trolley.Thissetsthe spring to optimum belt tension.

STEP 6 Install the sprocket cover

To avoid possible SERIOUS INJURY tofinger from moving garage door opener:

l ALWAYS keep hand clear of sprocketwhile operating opener. l Securely attachsprocket cover BEFORE operating.

1. Position the sprocketcover over the sprocketas shownand fasten to the mounting plate with 8x3/8"hex screws provided.

You have now finished assembling yourgarage dooropener.Please read the following warnings beforeproceeding to the installationsection.

Page 10

Installation

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READANDFOLLOWALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garagedoor openerONLY on properlybalanced and lubricated garagedoor. An improperly balanced doormayNOT reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairsto cables, spring assemblies and other hardware MUSTbe made by a trained door systemstechnician BEFORE installing opener.

4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.

5. Install garagedoor opener7 feet(2.13 m) or more above floor.

6. Mounttheemergencyrelease within reach, but at least 6 feet (1.83 m) above the floor and avoiding contactwith vehicles to avoid accidental release.

7. NEVER connectgarage door openerto power source until instructedtodo so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener.Theycould be caught in garagedoor or opener mechanisms.

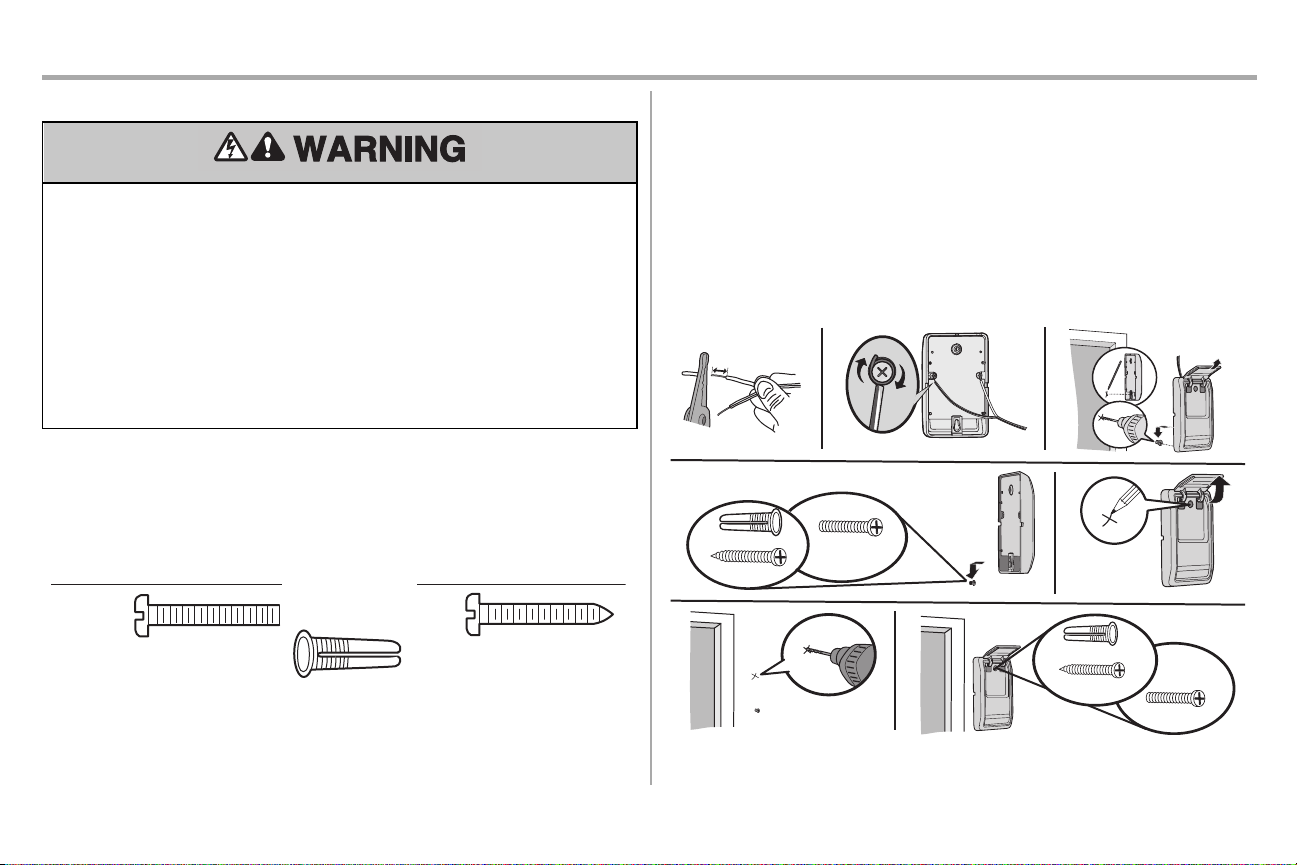

9. Install wall-mounted garage door control:

l within sightofthegarage door. l out of reach of children at minimum height of 5 feet (1.5m). l away fromALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safetyreverse testlabel in plain viewon inside of garage door.

12. Upon completion of installation,test safety reversal system.Door MUSTreverse on contactwith a 1-1/2" (3.8 cm) high object(ora 2x4 laid flat) on the floor.

13. To avoid SERIOUS PERSONAL INJURY or DEATHfromelectrocution, disconnectALL electric and batterypower BEFORE performing ANY service or maintenance.

14. DO NOTinstallon a one-piecedoor if using devices or features providing unattended close. Unattended devices and features are to beused ONLY with sectional doors.

Page 11

Installation

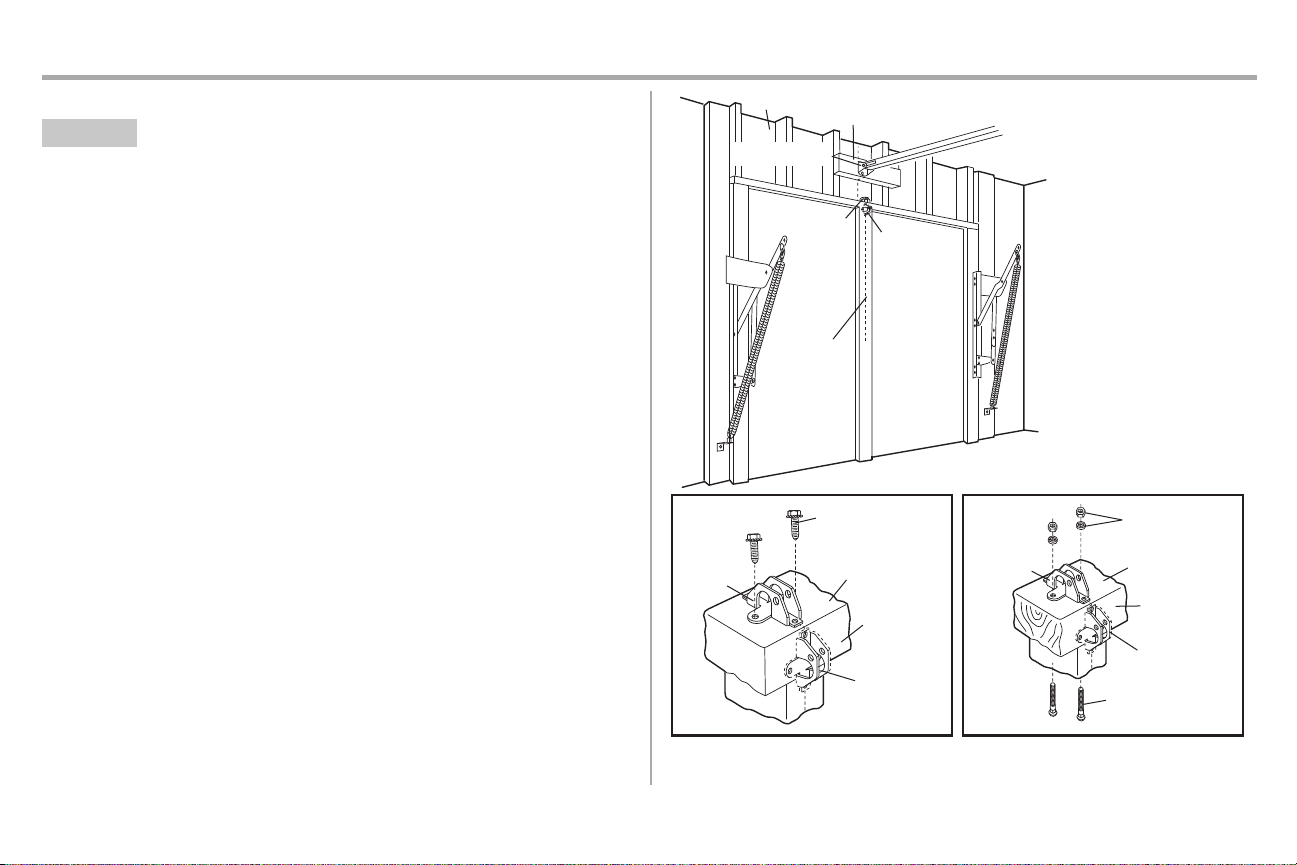

Header Wall

Vertical Centerline of Garage Door

2x4

Structural Supports

Level (Optional)

Unﬁnished Ceiling

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Sectional door with curved track

Header Wall

Track

2" (5 cm)

Highest Point of Travel

Door

One-piece door with horizontal track

Header Wall

Track

2" (5 cm)

Highest Point of Travel

Door

One-piece door without track:

jamb

hardware

Header Wall

8" (20

cm)

Highest Point of Travel

Door

Jamb

Hardware

One-piece door without track:

pivot hardware

Header Wall

8" (20

cm)

Highest Point of Travel

Door

Pivot

STEP 1 Determine the header bracket location

To prevent possible SERIOUS INJURY or DEATH:

l Header bracketMUST be RIGIDLY fastened to structural support on header wall or ceiling,

otherwise garage door mightNOTreversewhen required.DO NOT install header bracketover drywall.

l Concreteanchors MUSTbe used if mounting headerbracketor2x4 into masonry. l NEVER trytoloosen,moveor adjust garage door, springs, cables,pulleys,brackets,ortheir

hardware, ALL of which are underEXTREMEtension.

l ALWAYS call a trained door systemstechnician if garagedoor binds, sticks,or is out of balance.

An unbalanced garage door might NOT reverse when required.

Installation procedures vary according to garage door types.Followtheinstructions which apply to your door.

1. Closethedoor and mark the inside vertical centerline of the garagedoor.

2. Extend the line onto the header wall above the door.You can fasten the header bracketwithin 4 feet(1.22 m) of the leftor right of the doorcenter onlyifa torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 11) when clearance is minimal. (Itmaybe mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).Ifyou need to install the header bracketon a 2x4 (onwall or ceiling), use lag screws(notprovided) to securely fasten the 2x4 to structural supports as shown here andon page 11.

3. Open your door tothe highest point of travel as shown.Drawan intersecting horizontal line on the header wall 2" (5 cm) above the high point :

l 2" (5 cm) above the high pointfor sectional door and one-piece door with track. l 8" (20 cm)above the high pointfor one-piece door without track.

Thisheight will provide travel clearance for the top edge of the door. NOTE: If the total number ofinches exceeds the height available in your garage, use the maximum heightpossible, or refer to page 11 for ceiling installation.

Page 12

Installation

HARDWARE

Lag Screw 5/16"-9x1-5/8"

Wall Mount

Optional Mounting

Holes

Vertical Centerline of Garage Door

(Header Wall)

Header Bracket

2x4 Structural Support

Door Spring

(Garage Door)

Highest Point of Garage Door Travel

Horizontal Line

Lag Screw 5/16"-9x1-5/8"

(Header Wall)

Ceiling Mounting

Holes

(Finished

Ceiling)

Vertical Centerline of Garage Door

Header Bracket

6" (15 cm) Maximum

Door Spring

(Garage Door)

Lag Screw 5/16"-9x1-5/8"

STEP 2 Install the header bracket

You can attachthe header bracketeither to the wall above the garage door, or to the ceiling.Followthe instructions which will work bestfor your particular requirements.Donot installthe header bracket over drywall.Ifinstalling into masonry, use concrete anchors (not provided).

OPTION A WALL INSTALLATION

1. Centerthe bracketon the verticalcenterline with the bottomedge of the bracket on the horizontal line as shown (with the arrowpointing toward the ceiling).

2. Markthe vertical set of bracketholes.Drill3/16" pilot holes and fasten the bracket securelyto a structural support with the hardware provided.

OPTION B CEILING INSTALLATION

1. Extend the verticalcenterline onto the ceiling as shown.

2. Centerthe bracketon the verticalmark,no more than 6"(15cm) from the wall. Makesure the arrow is pointing away fromthewall.The bracket can be mounted flush against the ceiling when clearance is minimal.

3. Markthe side holes. Drill 3/16" pilot holesand fasten bracket securelytoa structural supportwith the hardware provided.

Page 13

Installation

HARDWARE

Clevis Pin 5/16"x1-1/2"

Ring Fastener

Clevis Pin 5/16"x1-1/2"

Ring Fastener

One-piece door without tracks

All other door types

Connected Disconnected

STEP 3 Attach the rail to the header bracket

1. Position the opener on the garage floor below the header bracket.Use packing material asa protective base.

NOTE: Ifthe door spring is in the way, you will need help. Have someone hold the opener securely on a temporary support to allowthe rail to clear the spring.

2. Position the rail bracketagainsttheheader bracket.

3. Align the bracketholes and joinwith a clevispin as shown.

4. Insert a ringfastener to secure.

STEP 4 Position the garage door opener

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

1. Remove the packing material and liftthegarage dooropener onto a ladder.

2. Fullyopen the door and place a 2x4 (laid flat)under the rail.For one-piece doorswithout tracks, lay the 2x4 on it's side.

NOTE: A 2x4 is ideal for setting the distance between the rail and the door.If the ladder is not tall enough you will need help at this point.If the door hits the trolley when it is raised, pull the trolley release arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door opener. The trolley can remain disconnected until instructed.

Page 14

Installation

Finished Ceiling

Unﬁnished Ceiling

HARDWARE

Hex Bolt 5/16"- 18x7/8"

Nut 5/16"-18

Lock

Washer

5/16"-18

Lag Screw 5/16"-9x1-5/8"

Finished

Ceiling

(not provided)

Lag Screw 5/16"9x1-5/8"

(not provided)

Hex Bolt 5/16"- 18x7/8"

Nut 5/16"-18

Lock

Washer

5/16"-18

STEP 5 Hang the garage door opener

To avoid possible SERIOUS INJURY froma falling garagedoor opener,fasten it SECURELY to structural supports of the garage.Concrete anchors MUSTbe used if installing ANY bracketsinto masonry.

Hanging the garage door opener will vary dependingon your garage.Beloware three example installations.Your installation maybe different.For ALLinstallations the garage door opener MUSTbe connected to structural supports.The instructions illustrateone of the examples below.

1. On finished ceilings, use the lag screws to attacha support bracket(not provided) to the structural supportsbefore installing the garage door opener.

2. Makesure the garage door opener is aligned withthe header bracket.Measure the distance fromeach side of the garagedoor openertothesupport bracket.

3. Cutbothpiecesofthehanging bracket to required lengths.

4. Attach the end of each hanging bracketto the supportbracketwith appropriate hardware (not provided).

5. Attach the garagedoor openertothe hanging bracketswith the hex bolts,lockwashers, and nuts.

6. Remove the 2x4 andmanually close the door. Ifthe door hits the rail, raise the header bracket.

Page 15

Installation

STEP 6 Install the light bulbs

To prevent possible OVERHEATING of the end panelor light socket:

l UseONLY A19 incandescent (100W maximum) or compactfluorescent (26W maximum) light

bulbs.

l DO NOT use incandescent bulbs larger than 100W. l DO NOT use compactfluorescent light bulbs largerthan 26W (100W) equivalent. l DO NOT use halogen bulbs. l DO NOT use short neckor specialtylightbulbs.

1. Pull on the top sides of the light lens and rotate the light lens down.

2. Insert an A19incandescent(100W maximum) or compactfluorescent (26W, 100W equivalent) light bulb into the light socket.

3. Rotate the lens up to close.

NOTE: Do not use halogen,short neck, or specialtylight bulbs as these may overheat the end panel or light socket. Do not use LED bulbsasthey may reduce the range or performance of your remote controls.

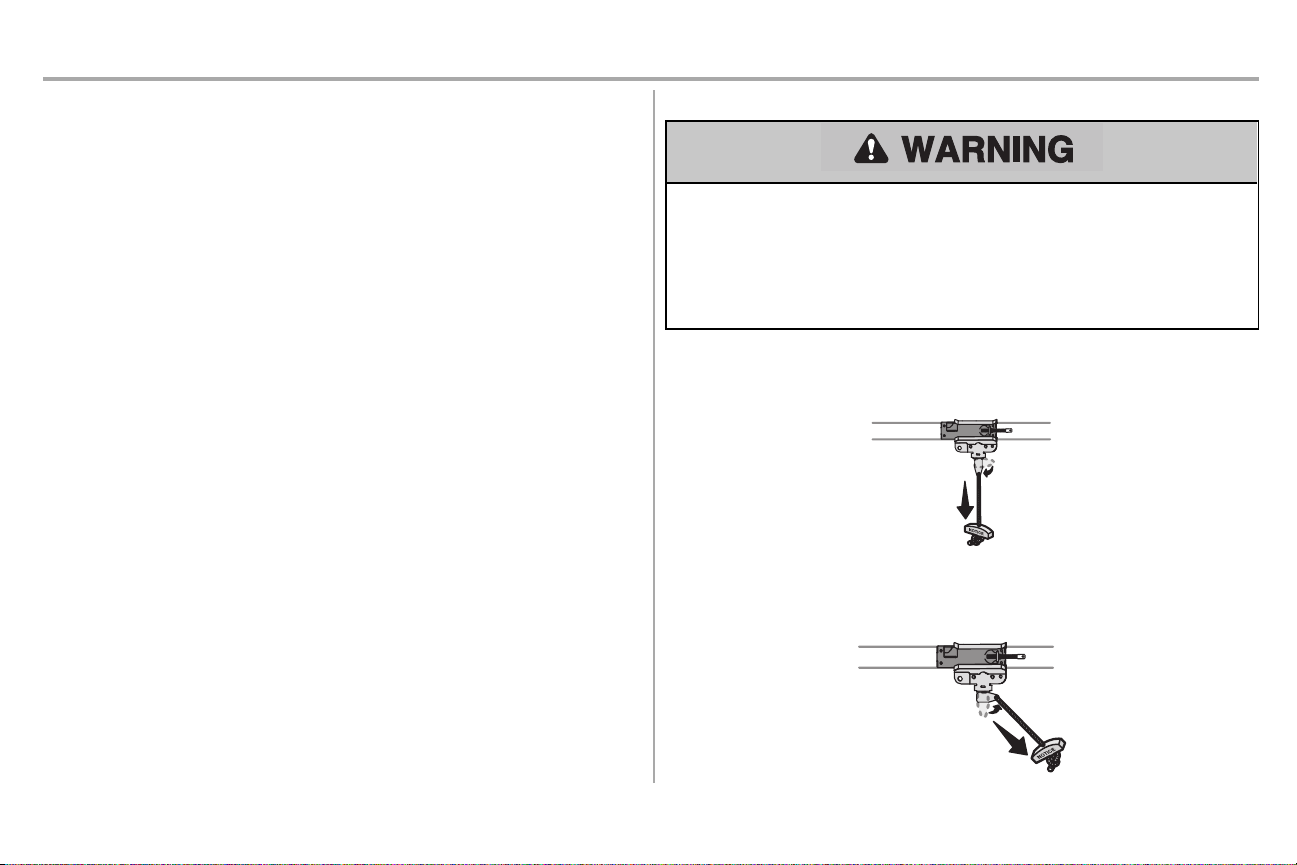

STEP 7 Attach the emergency release rope and handle

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

l Ifpossible, use emergency release handle todisengage trolley ONLY when garagedoor is

CLOSED. Weakor broken springsorunbalanced doorcould result in an open door falling rapidly and/or unexpectedly.

l NEVER use emergency release handle unless garage doorway is clear of persons and

obstructions.

l NEVER use handletopull door open orclosed. Ifrope knot becomes untied, you could fall.

1. Insert one end of the emergency release ropethrough the handle.Make sure that “NOTICE”is right side up. Tie a knot at least1 inch (2.5 cm) from the end of the emergency release rope.

2. Insert the other endoftheemergencyrelease rope through the holein the trolley release arm. Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding contactwith vehicles to prevent accidental release andsecure with a knot.

NOTE: Ifitisnecessary to cutthe emergency release rope,seal the cut end with a match or lighter to prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to avoid entanglement.

Page 16

Installation

Self-Threading Screw 1/4"-14x5/8"

HARDWARE

FIGURE 1

FIGURE 3

FIGURE 4

FIGURE 2

Vertical Reinforcement

Vertical Centerline of Garage Door

Door Bracket

Vertical Reinforcement

Vertical Centerline of Garage Door

Hardware (not provided)

Door Bracket

Vertical Centerline of Garage Door

Hardware

(not provided)

Inside Edge of Door or Reinforcement Board

Self-Threading Screw 1/4"-14x5/8"

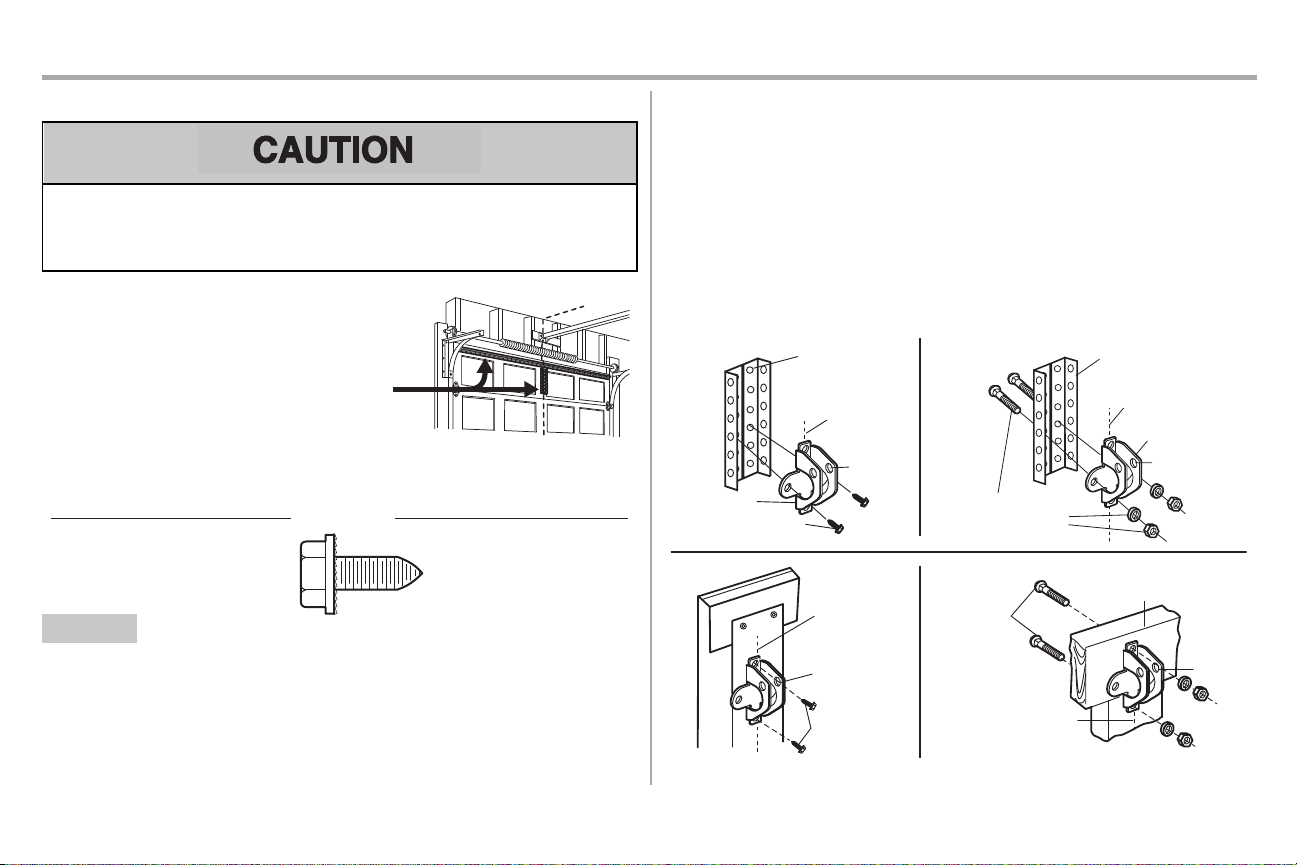

STEP 8 Install the door bracket

Fiberglass,aluminum or lightweight steel garage doors WILLREQUIRE reinforcementBEFORE installation of door bracket.Contactthegarage doormanufacturer or installing dealerforopener reinforcementinstructions or reinforcementkit. Failure to reinforce the top section as required according to the door manufacturer mayvoid the door warranty.

A horizontal andvertical reinforcementisneeded for lightweight garage doors (fiberglass, aluminum,steel, doors with glass panel, etc.)(not provided). A horizontal reinforcementbrace should be long enough to be secured to twoor three vertical supports.A vertical reinforcementbrace should cover the heightofthe top panel. Contactthegarage doormanufacturer or installing dealer for opener reinforcement instructions or reinforcementkit.

NOTE: Many door reinforcement kitsprovide for directattachment of the clevispin and door arm. In this case you will not need the door bracket;proceed to the next step.

OPTION A SECTIONAL DOORS

1. Centerthe door bracketon the previously marked verticalcenterline used for the header bracket

2. Position the top edge ofthe bracket2"-4" (5-10 cm) belowthe top edge of the door, OR directly

3. Mark,drillholes and install as follows,depending on your door’sconstruction.

installation.Note correct UP placement,asstamped inside the bracket.

below any structural support acrossthe top ofthe door.

Metal orlight weight doors using a vertical angle ironbrace between the door panelsupport and the doorbracket:

l Drill 3/16" fastening holes. Secure the doorbracketusing the two1/4"-14x5/8" self threading

screws. (Figure 1)

l Alternately,usetwo 5/16"-18x2" bolts,lockwashers and nuts (not provided). (Figure 2)

Metal,insulated orlight weight factory reinforced doors:

l Drill 3/16" fastening holes. Secure the doorbracketusing the self-threadingscrews.(Figure 3)

Wood Doors:

l Usetop and bottom or side to side door bracketholes.Drill 5/16" holes through the door and

secure bracketwith 5/16"-18x2" carriagebolts, lock washersand nuts (not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

Page 17

Installation

For a door with no exposed framing, or for the optional installation, use lag screws 5/16"x1-1/2" (not provided) to fasten the door bracket.

Vertical Centerline of Garage Door

Optional Placement of Door Bracket

Door Bracket

Header Bracket

Header Wall

2x4 Support

(Finished Ceiling)

Door Bracket

Top

of Door

(Inside Garage)

Top Edge of Door

Optional Placement

Top Edge of Door

Top of Door (Inside Garage)

Door Bracket

Hardware (not provided)

Metal Door

Wood Door

Self-Threading Screw 1/4"-14x5/8"

STEP 8 Install the door bracket (continued) OPTION B ONE-PIECE DOORS

1. Centerthe door bracketon the top of the door,in line with the header bracketasshown.

2. Markeither the leftand right, or the top andbottomholes.

Metal Doors:

l Drill 3/16" pilot holesand fasten the bracketwith the self-threading screws provided.

Wood Doors:

l Drill 5/16" holes anduse5/16"-18x2" carriage bolts,lockwashers and nuts (not provided) or

5/16"x1-1/2"lag screws(notprovided) depending on your installation needs.

NOTE: The door bracketmaybe installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.)

Page 18

Installation

HARDWARE

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16" -18

Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"

Ring

Fastener

Straight Door Arm

Curved

Door Arm

(Groove

facing out)

CORRECT

Straight Door Arm

Curved Door Arm

INCORRECT

Lock Washer

5/16" -18

Nut 5/16"-18

Hex Bolt 5/16"-18x7/8"

Clevis Pin 5/16"x1-1/4"

Ring Fastener

Clevis Pin 5/16"x1"

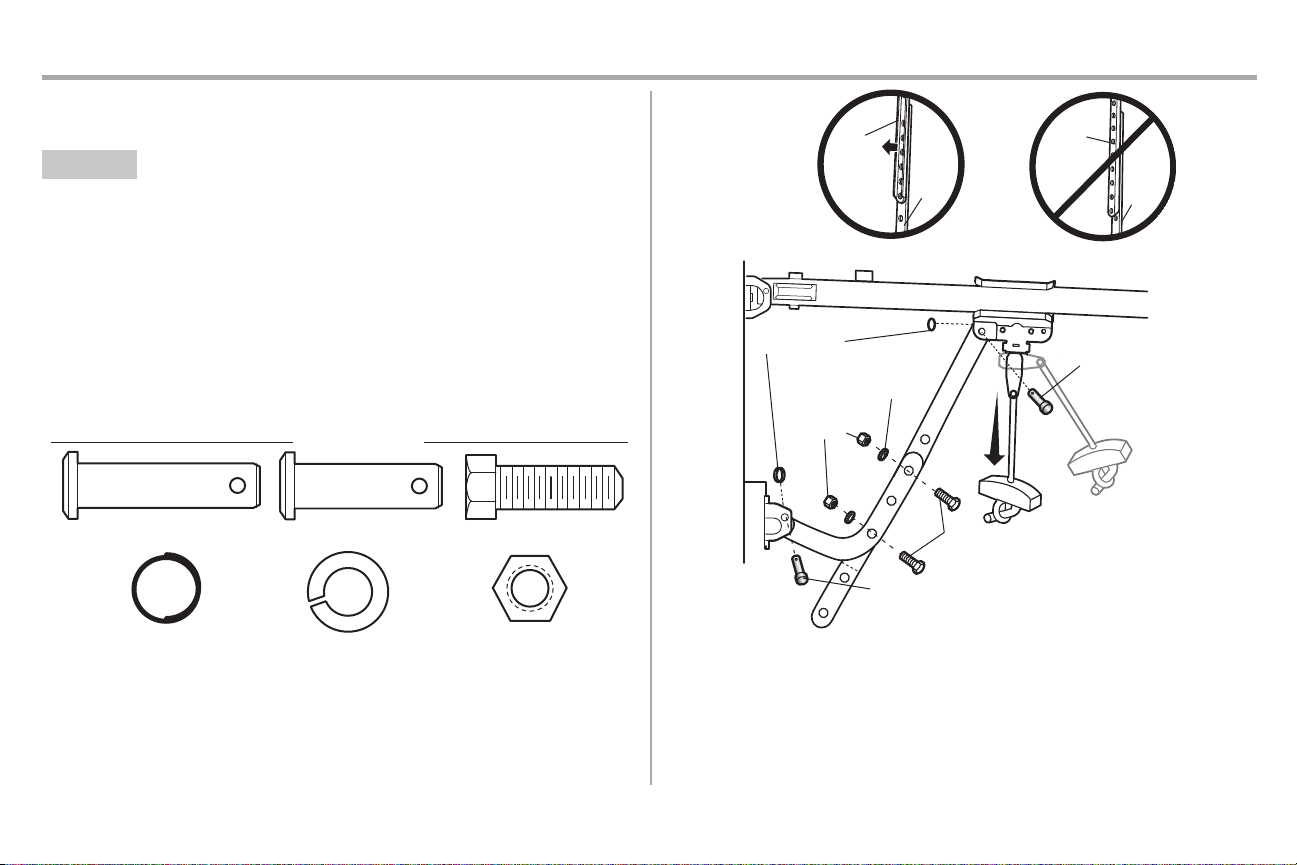

STEP 9 Connect the door arm to the trolley

Installation will vary according to the garage door type. Follow the instructions which apply to your door.

OPTION A SECTIONAL DOORS

IMPORTANT: Thegroove on the straight door arm MUST faceawayfrom the curved doorarm.

1. Closethedoor. Disconnect the trolley by pulling the emergency release handle.

2. Attach the straight door armto the outer trolley using the clevis pin. Secure with the ringfastener.

3. Attach the curved door arm to the doorbracketusing the clevis pin. Secure with the ringfastener.

4. Bring arm sections together.Find twopairs of holes that line up and joinsections.Selectholes as far apart as possible to increase doorarm rigidity and attach using the bolts, nuts,and lock washers.

5. Pull the emergency release handletowardthe garage door opener until the trolley release arm is horizontal. The trolley will re-engageautomatically when the garage door opener is activated.

NOTE: Ifthe holesin the curved door arm and the straight door arm do not align,reverse the straight door arm, selecttwo holes (as far apartaspossible) and attach using bolts , nuts,and lock washers . If the straight door arm is hanging down too far, you may cut6 inches (15 cm) from the solid end.

Page 19

Installation

HARDWARE

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16" -18

Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"

Ring

Fastener

One-Piece Door without Track

One-Piece Door with Track

Straight Door Arm

Curved Door Arm

(Groove

facing out)

CORRECT

INCORRECT

Straight Door Arm

Curved Door

Arm

Ring Fastener

Nut 5/16"-18

Ring Fastener

Lock Washer 5/16" -18

Clevis Pin 5/16"x1-1/4"

Hex Bolt 5/16"-18x7/8"

Clevis Pin 5/16"x1"

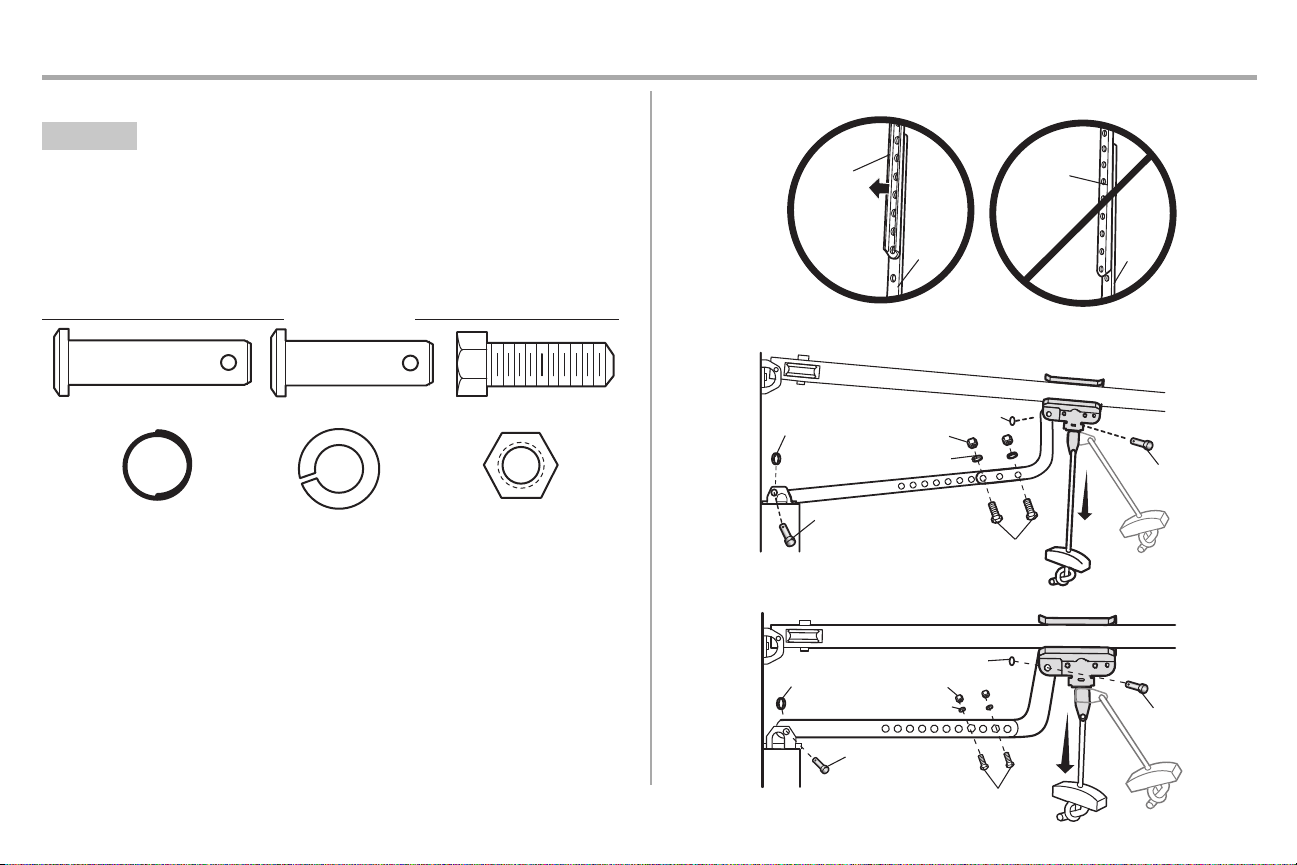

STEP 9 Connect the door arm to the trolley (continued) OPTION B ONE-PIECE DOORS

IMPORTANT: Thegroove on the straight door arm MUST faceawayfrom the curved doorarm.

1. Closethedoor. Disconnect the trolley by pulling the emergency release handle.

2. Fasten the straight door armand the curved door armtogether to the longestpossible length

3. Attach the straight door armto the doorbracketusing the clevis pin. Secure with the ringfastener.

4. Attach the curved door arm to the trolley using the clevispin.Secure withthe ring fastener.

5. Pull the emergency release handletowardthe garage door opener until the trolley release arm

(with a 2 or 3 hole overlap) using the bolts,nuts,andlockwashers.

is horizontal.

Page 20

Installation

HARDWARE

Screw 6ABx1"

(2)

Drywall Anchors

(2)

Screw 6-32x1" (2)

7/16" (11 mm)

Wall

2 3

DRYWALL

GANG BOX

6ABx1"

6-32x1"

Drywall Anchor

4-5

6-32x1"

GANG BOX

DRYWALL

6ABx1"

Drywall Anchor

STEP 10 Install the door control

To prevent possible SERIOUS INJURY or DEATH from electrocution:

l Be sure power is NOT connected BEFORE installing door control. l ConnectONLY to 12 VOLTlowvoltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garagedoor:

l Install doorcontrolwithin sight of garage door, out of reach of children at a minimum heightof5

feet(1.5 m),and away fromALL moving parts of door.

l NEVER permit children to operateor play with door control push buttons or remote control

transmitters.

l Activate door ONLY when it can be seen clearly, isproperly adjusted,and there areno

obstructions to door travel.

l ALWAYS keep garage door in sight until completely closed.NEVER permit anyone to cross path

of closing garage door.

INTRODUCTION

Older Chamberlain door controls and third party productsare not compatible. Install the doorcontrol within sightofthedoor at a minimumheight of 5 feet (1.5 m) where small childrencannotreach,and away fromthemovingpartsofthedoor. For gang box installationsitisnotnecessary to drill holes or install the drywall anchors.Use the existing holes in the gang box.

NOTE: Your productmay lookdifferent than the illustrations.

1. Strip 7/16 inch (11 mm) of insulation from one end of the wire and separate the wires.

2. Connectone wire to each of the two screwson the backofthe door control. The wires can be connected to either screw.If your garage is pre-wired for the door control choose anytwo wires to connect,note which wires are used so the correct wires are connected to the garagedoor opener in a later step.

3. Markthe location of the bottom mounting hole and drilla 5/32 inch (4 mm)hole.

4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.

5. Position the bottomhole of the door control over the screw and slide down into place.

6. Liftthe push bar up and mark the top hole.

7. Remove the doorcontrolfromthe wall and drilla 5/32 inch (4 mm)hole for the top screw.

8. Position the bottomhole of the door control over the screw and slide down into place. Attachthe top screw.

Page 21

Installation

HARDWARE

Insulated

Staple

(Not Shown)

RED

WHITE

GREY

7/16" (11 mm)

Staple

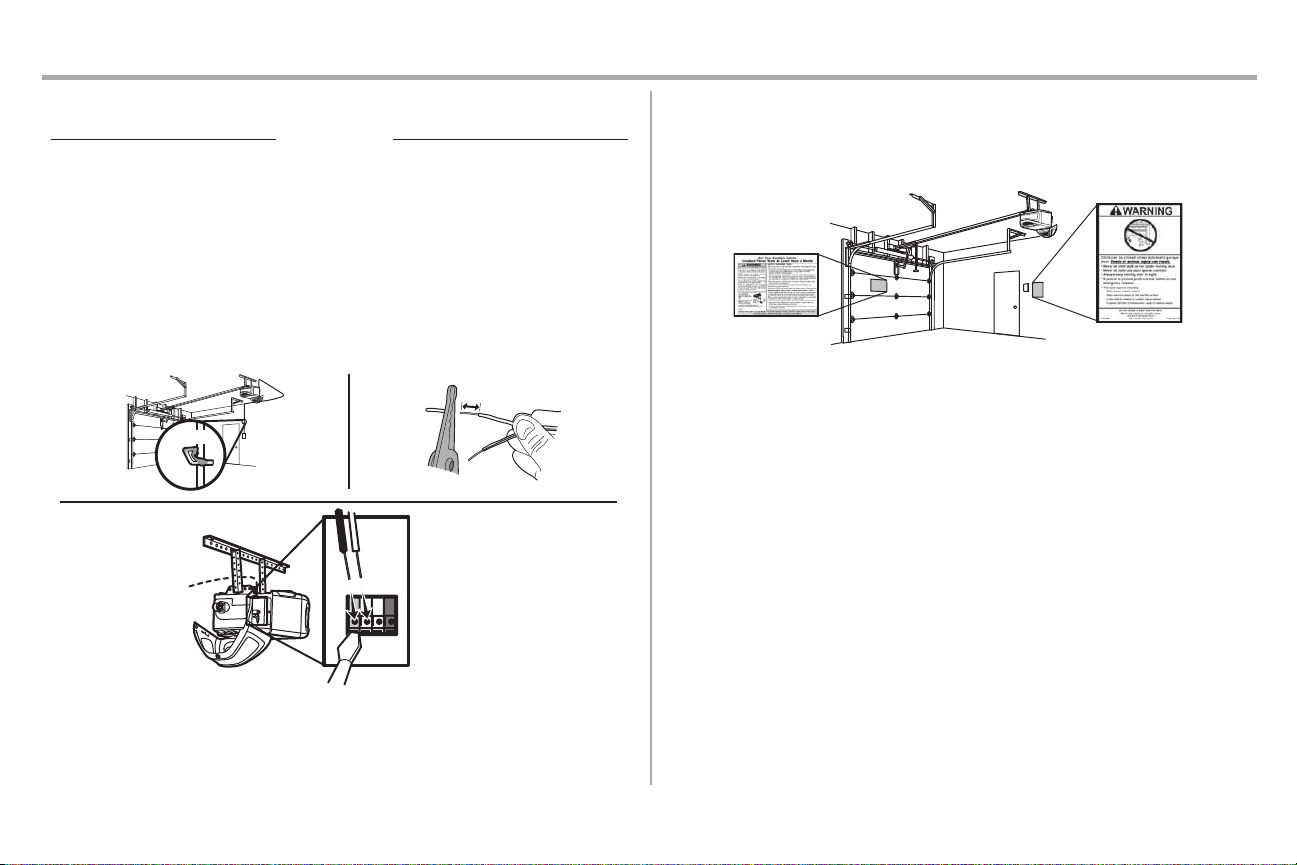

STEP 11 Wire the door control to the garage door opener

1. Run the white and red/whitewire fromthe door control to the garage door opener.Attach the wire to the wall and ceiling with the staple (not applicable for gang boxorpre-wired installations). Do not pierce the wire withthestaple as thismaycause a short or an opencircuit.

2. Strip 7/16 inch (11 mm) of insulation from the end of the wire near the garage door opener.

3. Connectthe wire to the red and white terminals on the garage door opener.If your garageisprewired make sure you use the same wiresthatare connected to the door control. To insert or release wires from the terminal, push in the tab withscrewdriver tip.

STEP 12 Attach the warning labels

1. Attach the entrapment warning label on the wall nearthe door control with tacksorstaples.

2. Attach the manual release/safety reverse testlabel in a visible location on the inside of the garage door.

Page 22

Installation

Safety Reversing Sensor 6" (15

cm) max. above ﬂoor

Invisible Light Beam Protection Area

Facing the door from inside the garage

HARDWARE

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

No more than 6 inches (15 cm)

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

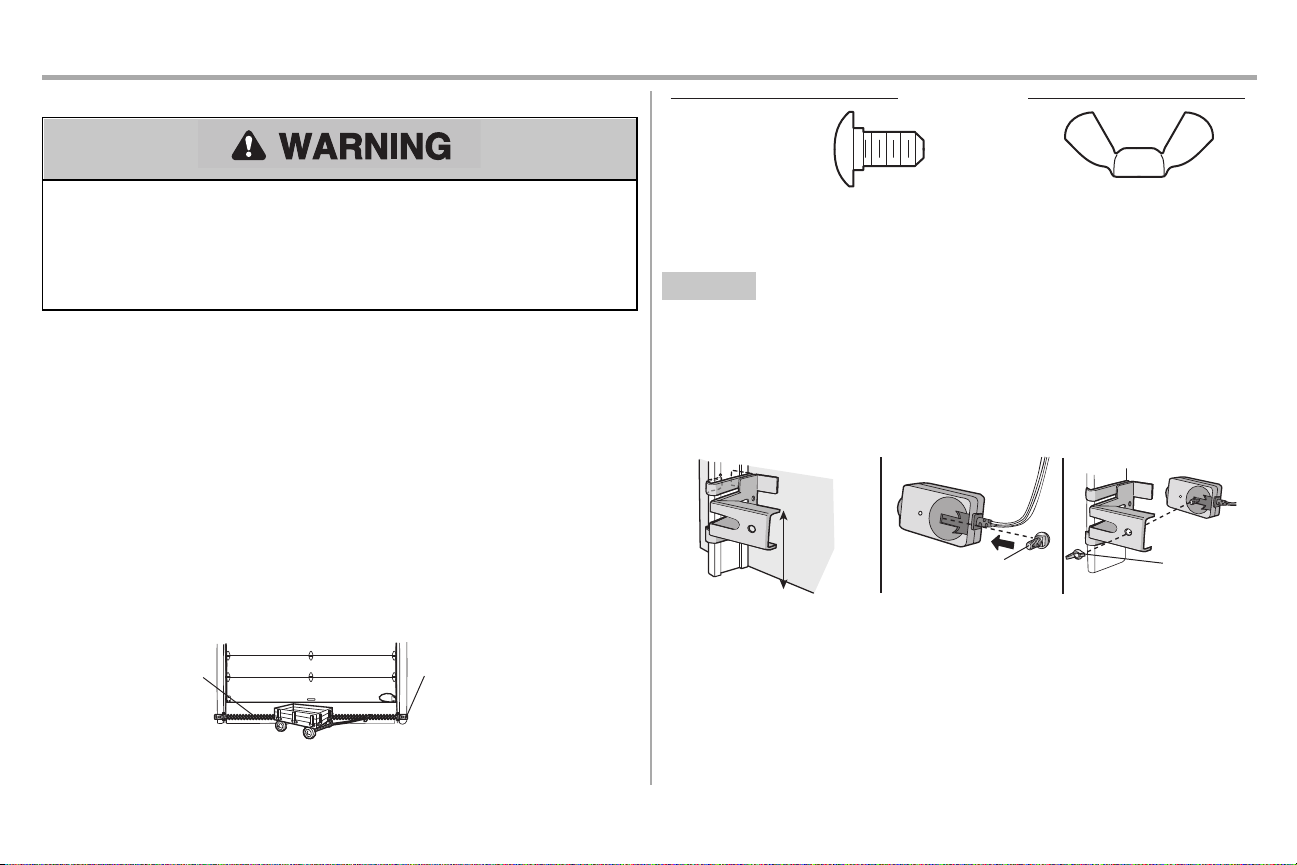

STEP 13 Install the Protector System

Be sure power is NOT connected to the garagedoor openerBEFORE installing the safetyreversing sensor.

To prevent SERIOUS INJURY or DEATH fromclosinggarage door:

l Correctlyconnect and align the safety reversing sensor. Thisrequired safetydeviceMUST NOT

be disabled.

l Install the safetyreversing sensor so beam is NO HIGHERthan 6" (15 cm) above garage floor.

IMPORTANTINFORMATIONABOUT THESAFETY REVERSING SENSORS The safety reversing sensors must be connected and aligned correctlybefore the garage door

openerwillmove inthedown direction.

The sending sensor (with an amber LED) transmitsaninvisible light beam to the receiving sensor (with a green LED). Ifanobstruction breaks the light beam while the door is closing, the doorwillstop and reverse to the full open position,and the garage door opener lightswill flash10 times.

NOTE: For energy efficiencythe garage door opener will enter sleep mode when the door is fully closed. The sleep mode shuts the garage door opener down until activated.The sleep mode is sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off and whenever the garage door opener lights turn on the sensor LEDs will light. The garage door opener will not go into the sleep mode until the garage door opener has completed 5 cyclesupon power up.

When installing the safetyreversing sensorscheckthe following:

l Sensors are installed inside the garage, one on either side ofthe door. l Sensors are facing each other with the lenses aligned and the receiving sensor lens does not

receive direct sunlight.

l Sensors are nomore than 6 inches (15 cm) above the floor andthelight beam is unobstructed.

The safetyreversing sensors can be attached to the door track,thewall,or the floor. The sensorsshould be no more than 6 inches (15 cm) above the floor. If the door trackwill not supportthe sensor bracketa wall installation is recommended. Choose one ofthe following installations.

OPTION A DOOR TRACK INSTALLATION

1. Slide the curved arms of the sensor bracketaround the edgeofthe door track.Snap into place so thatthe sensor bracketisflush against the track.

2. Slide the carriageboltinto the sloton each sensor.

3. Insert the bolt through the hole in the sensor bracketand attachwith the wing nut.The lenses on both sensors should point toward each other. Make sure the lensis notobstructedbythe sensor bracket.

Page 23

Installation

(Not provided)

No more than 6 inches (15 cm)

Inside G

arage

Wall

(Not provided)

Lens

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

nsid

arage

(Not provided)

1 2

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

STEP 13 Install the Protector System®(continued) OPTION B WALL INSTALLATION

Ifadditional clearance is needed an extension bracket (not provided) orwood blockscan be used. Make sure each brackethasthe sameamount ofclearance so they will align correctly.

1. Position the sensor bracketagainstthewall withthecurvedarmsfacing the door.Make sure there is enoughclearance for the beam to be unobstructed.Mark holes.

2. Drill 3/16 inch pilot holesfor each sensor bracket and attach the sensor bracketsto the wall using lag screws(not provided).

3. Slide the carriageboltinto the sloton each sensor.

4. Insert the bolt through the hole in the sensor bracketand attachwith the wing nut.The lenses on both sensors should point toward each other. Make sure the lensis notobstructedbythe sensor bracket.

OPTION C FLOOR INSTALLATION

Usean extension bracket(not provided) or wood block to raise the sensor bracketifneeded.

1. Carefullymeasure the position of both sensor bracketssotheywill be the same distance fromthe wall and unobstructed.

2. Attach the sensor bracketstothefloor using concrete anchors (not provided).

3. Slide the carriageboltinto the sloton each sensor.

4. Insert the bolt through the hole in the sensor bracketand attachwith the wing nut.The lenses on both sensors should point toward each other. Make sure the lensis notobstructedbythe sensor bracket.

Page 24

Installation

HARDWARE

Insulated

Staple

(Not Shown)

Staple

7/16" (11 mm)

WHITE

GREY

RED

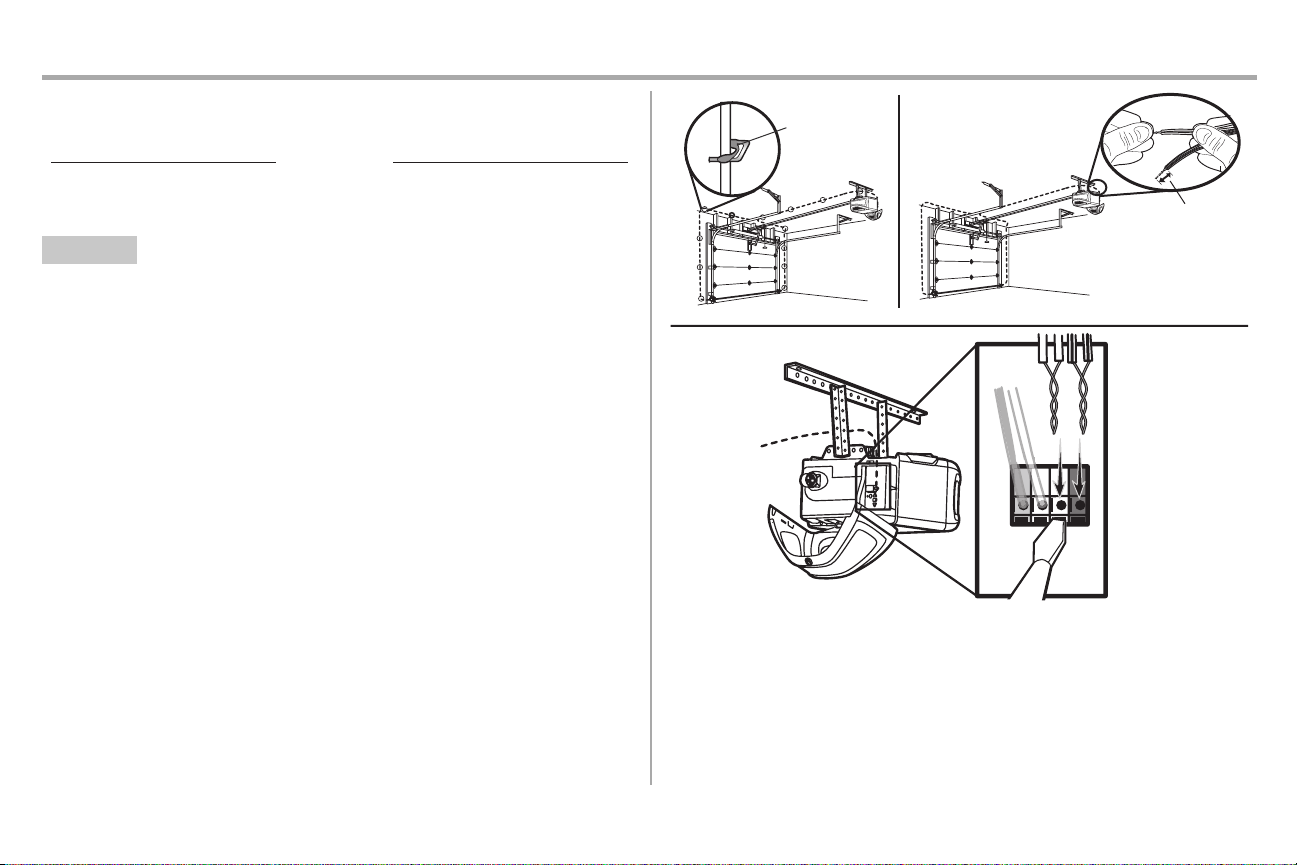

STEP 14 Wire the Safety Reversing Sensors

Ifyour garage already haswires installed for the safetyreversingsensors,proceed to page 24.

OPTION A INSTALLATION WITHOUT PRE-WIRING

1. Run the wire from both sensors to the garage door opener.Attach the wire to the wall and ceiling withthe staples.

2. Strip 7/16 inch (11 mm) of insulation from each setofwires.Separate the wires.Twistthe white wires together.Twistthewhite/black wires together.

3. Insert the white wires into the white terminal on the garage door opener.Insert the white/black wires into the grey terminal on the garage door opener. To insert or remove the wires from the terminal,push in the tab with a screwdriver tip.

Page 25

Installation

Safety reversing sensor wires

Pre-installed wires

White

White/Black

Yellow (for example)

Purple (for example)

Not Provided

Pre-installed wires

Safety reversing sensor wires

7/16" (11 mm)

Yellow

Purple

7/16" (11 mm)

WHITE

RED

GREY

Purple (for example)

Yellow

(for example)

To insert or remove the wires from the terminal, push in the tab with a screwdriver tip.

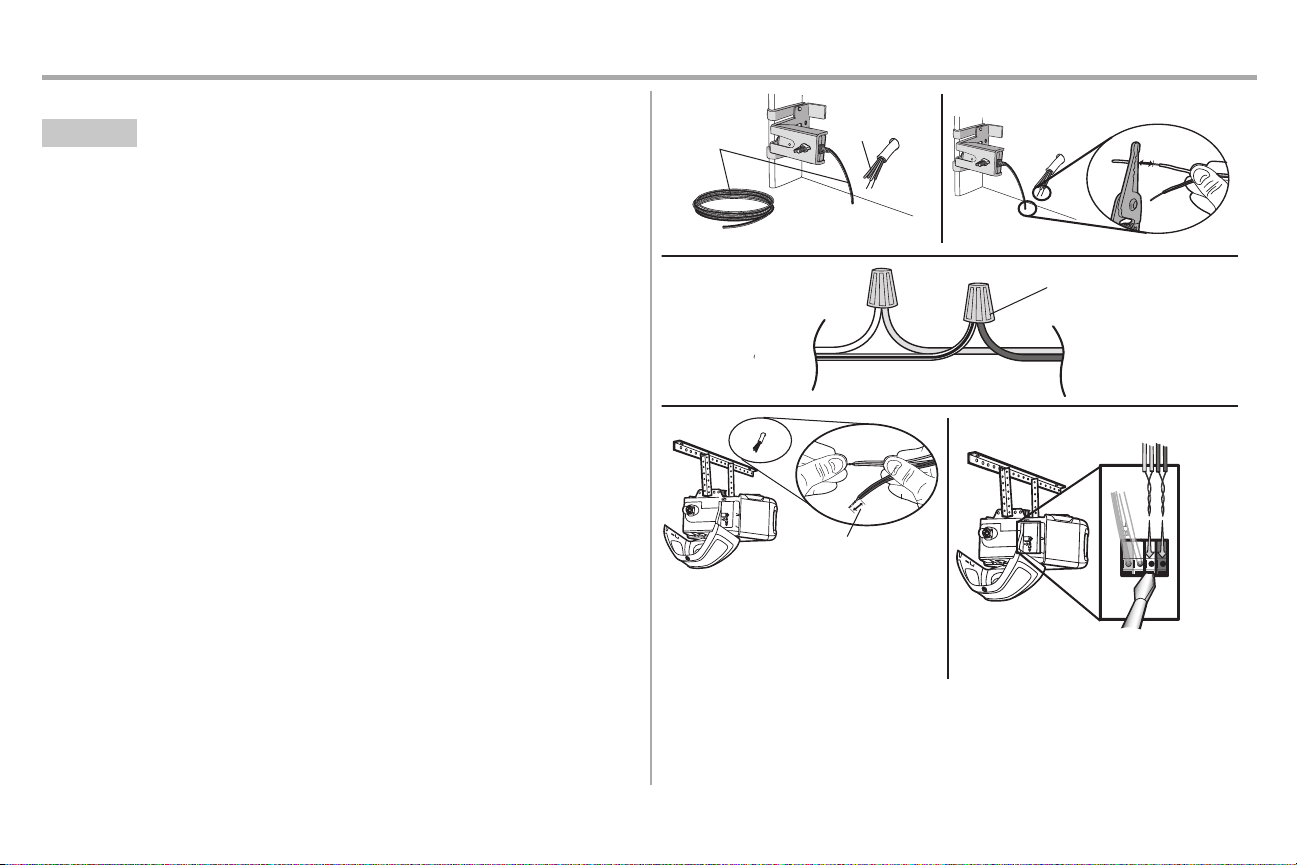

STEP 14 Wire the Safety Reversing Sensors (continued) OPTION B PRE-WIRED INSTALLATION

1. Cutthe endofthesafetyreversing sensor wire, making sure there is enoughwire to reach the pre-installed wires from the wall.

2. Separate the safetyreversingsensorwiresand strip 7/16 inch (11 mm) of insulation from each end. Choose two of the pre-installed wires and strip 7/16 inch (11 mm) ofinsulation from each end. Make sure that you choose the same color pre-installed wires for each sensor.

3. Connectthe pre-installed wires to the sensor wires with wire nuts making sure the colors correspond for each sensor. For example, the white wire would connecttothe yellow wire and the white/blackwire would connect to the purple wire.

4. Atthegarage door opener, strip 7/16 inch (11 mm) of insulation from each end of the wires previously chosen for the safetyreversing sensors.Twistthe like-colored wires together.

5. Insert the wires connected to the white safety sensor wires to the white terminal on the garage door opener.Insert the wires that are connected to the white/blacksafetysensor wires to the grey terminal on the garage door opener.

Page 26

Installation

Ground Tab

Green Ground Screw

Ground Wire

White Wire

Black Wire

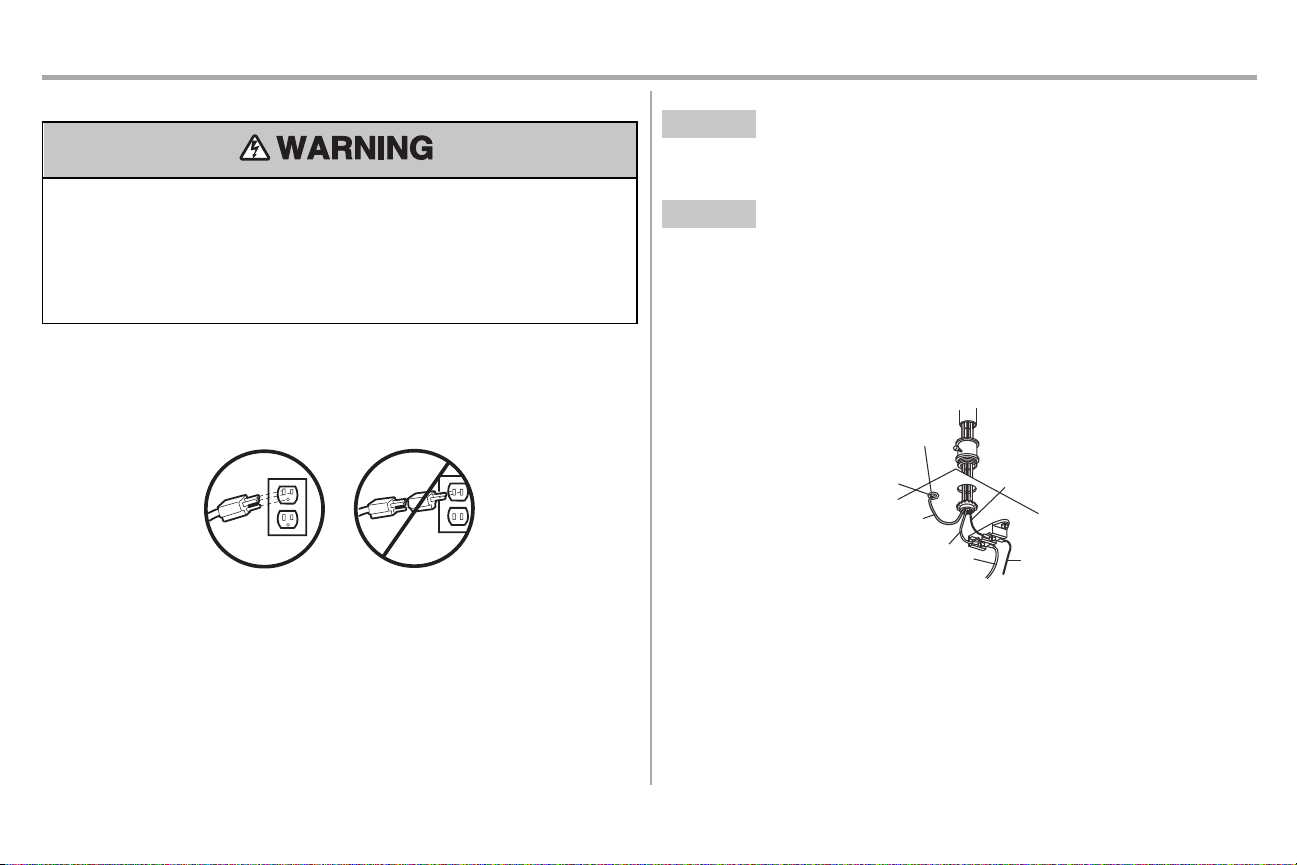

STEP 15 Connect power

To prevent possible SERIOUS INJURY or DEATH from electrocution orfire:

l Be sure power is NOT connected to the opener,and disconnectpower to circuitBEFORE

removing cover to establish permanent wiring connection.

l Garage door installation and wiring MUST be in compliance with ALL local electricaland

building codes.

l NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fitoutlet. Be

sure the openerisgrounded.

To avoid installationdifficulties, do not run the opener at this time.

To reduce the risk of electric shock, your garagedoor openerhas a grounding type plugwith a third groundingpin.Thisplug will only fit into a grounding type outlet.If the plug doesn’t fitintotheoutletyou have, contact a qualified electrician to install the proper outlet.

THERE ARE TWO OPTIONS FOR CONNECTING POWER:

OPTION A TYPICAL WIRING

1. Plug in the garage door opener into a grounded outlet.

2. DO NOTrun garage door opener at thistime.

OPTION B PERMANENT WIRING

If permanentwiringis required by yourlocal code,refer to the followingprocedure. Tomake a permanent connectionthrough the 7/8 inchhole inthe topof the motor unit (according to local code):

1. Remove the motor unitcover screwsand set the cover aside.

2. Remove the attached 3-prongcord.

3. Connectthe black (line) wire to the screwon the brass terminal; the white(neutral) wire to the screwon the silver terminal;and the groundwire to the green ground screw.The opener must

be grounded.

4. Reinstall the cover.

Page 27

Installation

Green LED

Amber LED

If the receiving sensor is in direct sunlight, switch it with sending sensor so it is on the opposite side of the door.

(invisible light beam)

SENDING SENSOR RECEIVING SENSOR

RED

WHITE

GREY

STEP 16 Aligning the safety reversing sensors

The door will not close if the sensors have not beeninstalledandaligned correctly.

When the lightbeamisobstructed or misaligned while the door is closing,thedoor will reverse and the garage door opener lights will flash ten times. Ifthe door isalready open,it will notclose.

1. Checkto make sure the LEDs in both sensors are glowingsteadily. The LEDs in both sensors will glow steadily if theyare aligned and wired correctly.

The sensors can be aligned by loosening the wing nuts,aligning the sensors, and tightening the wing nuts.

IFTHE AMBER LEDONTHE SENDING SENSOR IS NOT GLOWING:

1. Makesure there is power to the garage door opener.

2. Makesure the sensor wire is not shorted/broken.

3. Makesure the sensor has been wired correctly:white wires to white terminal and white/black wires to grey terminal.

IFTHE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:

1. Makesure the sensor wire is not shorted/broken.

2. Makesure the sensorsare aligned.

STEP 17 Ensure the door control is wired correctly

Ifthe doorcontrolhas been installed and wired correctly,amessage will display on the Smart Control Panel screen.

Page 28

Adjustments

UP (Open)

DOWN (Close)

CORRECT

INCORRECT

UP Button

Adjustment Button

DOWN Button

PROGRAMMING BUTTONS

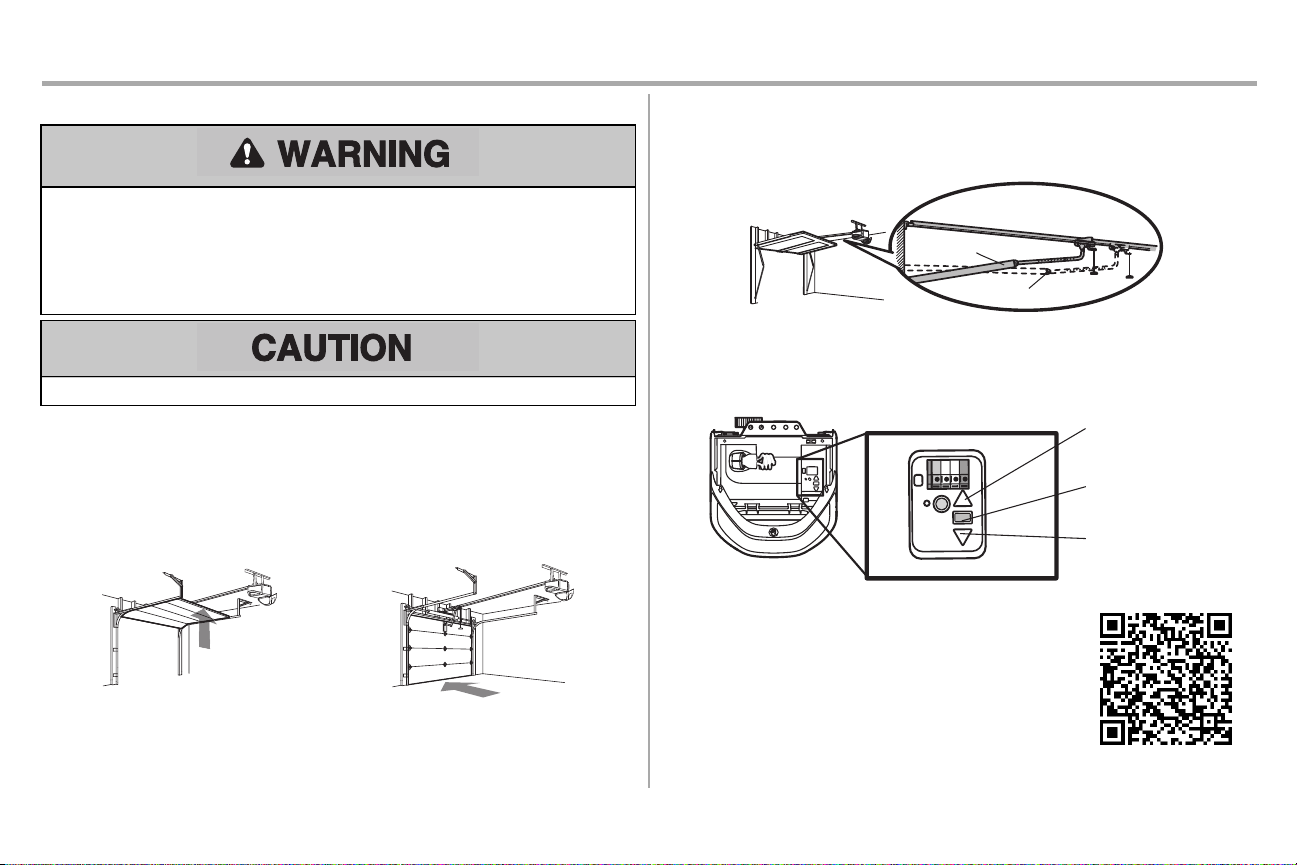

Introduction

Withouta properly installed safety reversal system,persons(particularlysmall children)could be SERIOUSLY INJUREDor KILLED by a closing garage door.

l Incorrectadjustment of garage door travel limits will interfere with proper operation of safety

reversal system.

l AfterANY adjustmentsaremade,the safety reversal system MUSTbe tested. Door MUST reverse

on contactwith 1-1/2" (3.8 cm) high object(or2x4laid flat) on floor.

To prevent damage to vehicles, be sure fully opendoor provides adequateclearance.

Your garage door opener is designed with electronic controlsto make setup and adjustmentseasy.The adjustmentsallowyou to programwhere the door will stop in the open (UP) and close (DOWN) position. The electronic controlssensetheamountofforcerequired to openand close the door.The forceis adjusted automaticallywhen you program the travel.

NOTE: Ifanything interferes with the door’s upward travel it will stop. Ifanything interferes with the door’s downward travel, it will reverse.

One-Piece Doors Only

When setting the UP travel for a one-piecedoor ensure that the doordoes not slant backwards when fullyopen (UP). Ifthe door is slanted backwardsthiswill cause unnecessarybuckingand/or jerking when the door isopening or closing.

Programming Buttons

The programming buttons are located on the left side panel of the garage door opener and areused to program the travel. While programming, the UP andDOWNbuttons can be used to movethe door as needed.

To watch a short instructional video on how to programthe travelon your new garage door opener use your smartphone to read the QR Code:

Page 29

Adjustments

UP Button

Adjustment Button

DOWN Button

PROGRAMMING BUTTONS

1 2

4 5

6 7

STEP 1 Program the Travel

Withouta properly installed safety reversal system,persons(particularlysmall children)could be SERIOUSLY INJUREDor KILLED by a closing garage door.

l Incorrectadjustment of garage door travel limits will interfere with proper operation of safety

reversal system.

l AfterANY adjustmentsaremade,the safety reversal system MUSTbe tested. Door MUST reverse

on contactwith 1-1/2" (3.8 cm) high object(or2x4laid flat) on floor.

While programming, the UP and DOWNbuttons can be used to move the door as needed.

1. Pressand hold the AdjustmentButton until the UP Button begins to flash and/or a beep is heard.

2. Pressand hold the UP Button until the doorisin the desired UP position.

3. Once the door is in the desired UP position press and releasetheAdjustmentButton. The garage door opener lights will flash twice and the DOWNButtonwill begin to flash. IMPORTANT

NOTE: For one-piece doorinstallations refer to page 27.

4. Pressand hold the DOWNbutton until the doorisin the desired DOWN position.

5. Once the door is in the desired DOWNposition pressandrelease the Adjustment Button.The garage door opener lights will flash twice and the UP Button will begintoflash.

6. Pressand release the UP Button.When the door travelsto the programmedUPposition,the DOWNButton will begin to flash.

7. Pressand release the DOWNButton. The door will travel to the programmed DOWN position. Programming is complete.

* Ifthe garage door opener lightsare flashing 5 timesduring the stepsforProgram the Travel, the programming hastimed out. Ifthe garage door opener lights are flashing 10 timesduring the steps for Program the Travel, the safetyreversing sensorsare misaligned or obstructed (refer to page26).When the sensorsare alignedand unobstructed, cyclethedoor through a complete up anddown cycle using the remote control or the UP andDOWNbuttons.Programming is complete.Ifyou are unable to operate the door upand down, repeatthe steps for Programming the Travel.

Page 30

Adjustments

1 2

STEP 2 Test the Safety Reversal System

STEP 3 Test the Protector System

Withouta properly installed safety reversal system,persons(particularlysmall children)could be SERIOUSLY INJUREDor KILLED by a closing garage door.

l SafetyreversalsystemMUST be tested every month. l AfterANY adjustmentsaremade,the safety reversal system MUSTbe tested. Door MUST reverse

on contactwith 1-1/2" (3.8 cm) high object(or2x4laid flat) on the floor.

1. With the door fullyopen, place a 1-1/2 inch (3.8 cm) board(or a 2x4 laidflat) on the floor, centered under the garage door.

2. Operate the door in the down direction. The door MUST reverse on striking the obstruction.

Ifthe doorstops and does not reverse on the obstruction, the down travel needsto be increased (refer to AdjustmentStep1). Repeat the test. When the door reverses on the 1-1/2" (3.8 cm) board (or 2x4 laid flat),remove the obstruction andrun the openerthrough 3 or4 completetravel cyclestotest adjustment. Ifthe garage door opener continues to fail the safety reversal test,call a trained door systemstechnician.

Withouta properly installed safety reversing sensor,persons (particularly smallchildren) could be SERIOUSLY INJUREDor KILLED by a closing garage door.

1. Open the door.Placethegarage dooropener carton in the path of the door.

2. Presstheremotecontrolpush button to close the door. The door will not move more than aninch (2.5 cm),and the garage door opener lights will flash 10 times.

The garage door opener will not close from a remote control if the LED in either safetyreversing sensor is off(alerting you to the factthatthe sensor is misaligned or obstructed).If the garage door opener closesthe door when the safetyreversing sensor is obstructed (andthe sensorsare no more than 6 inches [15 cm]abovethefloor),call for a trained door systemstechnician.

Page 31

Battery Backup

Battery Status LED

1 2

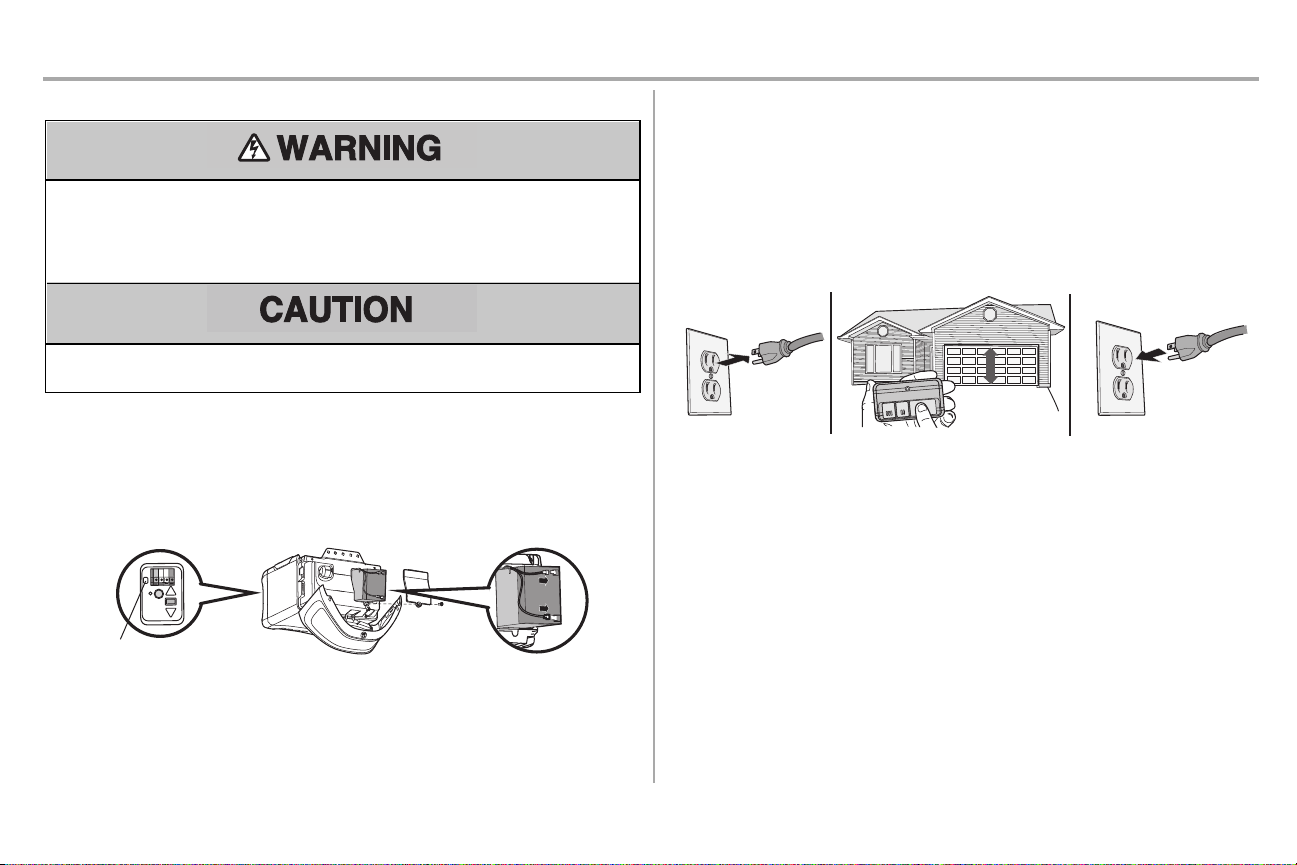

STEP 1 Install the Battery

To reduce the risk of FIREor INJURY to persons:

l Disconnect ALL electricand batterypower BEFORE performing ANY service or maintenance. l UseONLY Chamberlain part#41A6357-1 for replacement battery. l DO NOT dispose of batteryin fire.Batterymay explode. Check withlocal codesfor disposal

instructions.

ALWAYS wear protective gloves and eye protection when changingthebatteryorworking around the batterycompartment.

The batterybackupallowsaccess in and out of your garage,even when the power is out. The battery does not have to be fully charged to operate the garage door opener.When the garage door opener is operating onbattery power, it will run slower and the batterystatus LED will glow solid orange,a beep will sound approximately every2 seconds.The following featuresare unavailablewhen operating on batterypower:

l Garage Door OpenerLights l Unattended close devicesand features (e.g. MyQ

Smartphone Control andTimer-to-Close)

5. Replace the batterycover and plug in the garage door opener.

6. Waitfor the green BatteryStatus LED to startflashing before proceedingtotest the battery.

STEP 2 Test the Battery

1. Unplug the garagedoor opener.The batterystatusLED will glow solid orange indicating opener is operating on battery power or will flash indicating low battery power.

2. Open and close the door using the remote control or door control.

3. Plug in the garage door opener.VerifythebatterystatusLEDisflashing green,indicating the batteryischarging.

Charge the Battery

The batterycharges while the garagedoor openerisplugged into an electricaloutlet.The battery requires 24 hours to fully charge. A fully charged batterysupplies 12Vdc to the garagedoor openerfor one to two days of normal operation during an electrical power outage. After the electrical power has been restored, the batterywillrecharge within 24 hours. The batterywilllastapproximately1to2 years withnormal usage. To obtain maximum batterylifeand prevent damage, disconnect the batterywhen the garage door opener is unpluggedforan extended periodoftime, such as a summer or winter home.

1. Unplug the garagedoor opener.

2. Open the lightlenson the right side panelofthegarage dooropener. Use a Phillipshead screwdriver to remove the battery coveron the garagedoor opener.

3. Partially insertthe batteryintothe battery compartment with the terminals facingout.

4. Connectred (+) and black (-) wires from the garage door opener to the corresponding terminals on the battery.

Page 32

MyQ®Smartphone Control

“beep”

Blue LED

ATT 100%9:25 PM

http://setup.myqdevice.com

Welcome. This step-by-step guide will help you connect your Wi-Fi Garage Door Opener to the internet through your home’

s Wi-Fi network.

Press Start to begin the process by scanning for available networks.

Tap EXIT to reconnect your mobile device to your home’s Wi-Fi network.

About

Exit

Start

Google Play

App Store

Get Connected

…and control your garage door opener withthe MyQ®App.

You will need:

l A smartphone or tablet l BroadbandInternet connection l A strong Wi-Fi signal in the garage,see page 2 l Password for your home network

l MyQ

serial number located on the garage door opener

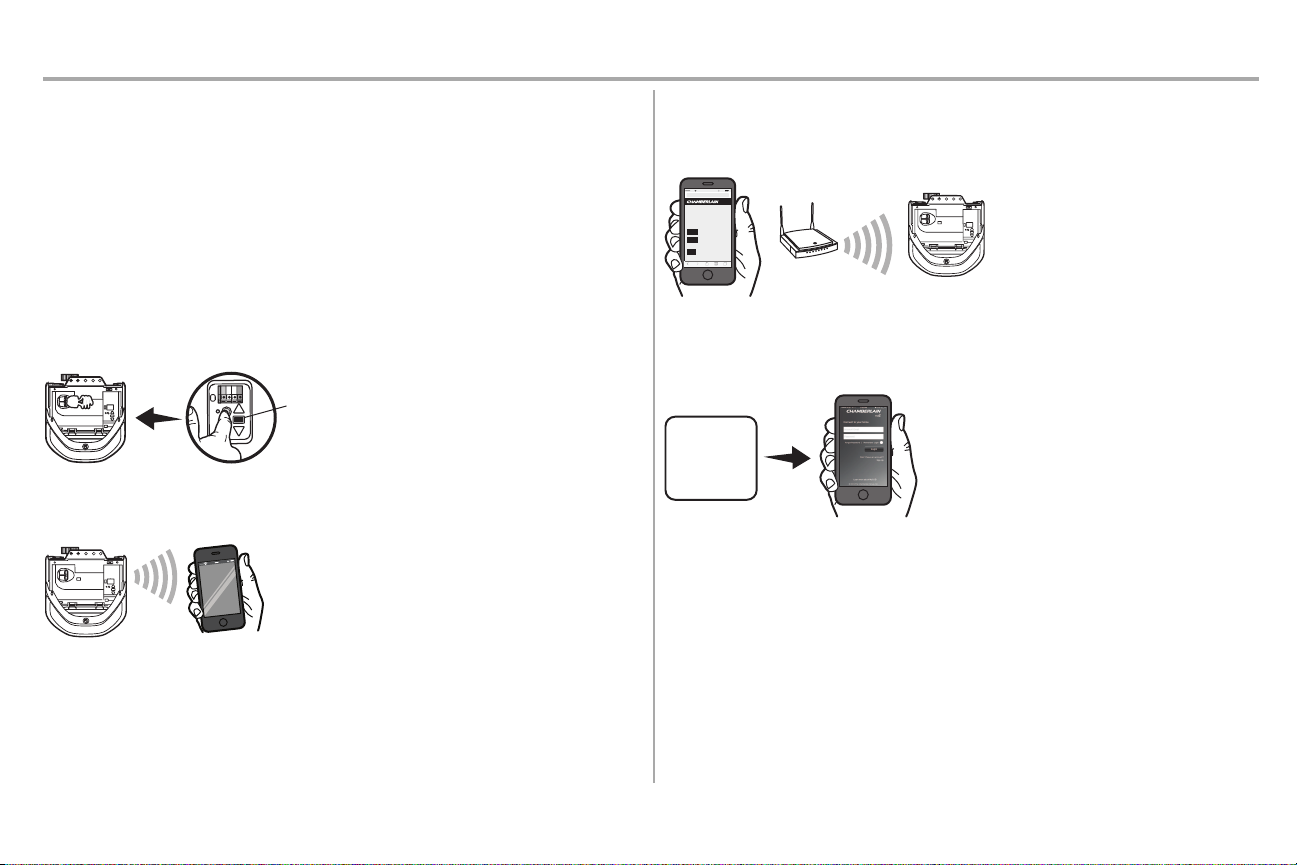

1. ACTIVATE "WI-FI LEARN" MODE

Press and release the yellow LEARNbutton on the garage door opener 3 times.Thegarage door opener will beep once and a blue light will flash. You have 20minutesto complete the connection process.

2. CONNECT TO THE MyQ®Wi-Fi NETWORK

On your mobiledevice,gotoSettings > Wi-Fi, and select the network withthe"MyQ-" prefix.

3. CONNECT THE GARAGE DOOR OPENER TO YOUR HOME WI-FI NETWORK

Launch the web browser (such as Safari orChrome)on your mobile device and go to "setup.myqdevice.com".Follow the on-screen promptstoadd the garagedoor openertoyour home Wi-Fi network.

4. SETUP YOUR MyQ®ACCOUNT

Download the MyQ®app from the App StoreSMor Google Play™ store.Sign up for your MyQ®account and addtheMyQ®serial number to your account.

Congratulations you've successfully completedthe setup.Enjoy MyQ®Smartphone Control!

In addition to controlling your garage door opener you can control your house lighting with additional MyQ®accessories, see page 40.

NOTES:

The MyQ®Smartphone Control WILL NOT work if the garage door opener is operating on battery power. To erase the Wi-Fi settings,see page 36.

To learn more go to wifihelp.chamberlain.com.

Page 33

Operation

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READANDFOLLOWALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garagedoor control push buttons or remote controls.

3. ONLY activate garagedoor when itcan be seen clearly, it is properlyadjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door insightand away frompeople andobjectsuntil completely closed.NOONE SHOULDCROSS THEPATHOFTHE MOVING DOOR.

5. NO ONE SHOULD GO UNDERA STOPPED, PARTIALLY OPENED DOOR.

6. Ifpossible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Usecaution when using this release with the dooropen. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJURY or DEATH.

7. NEVER use emergency release handle unlessgarage doorwayisclear of persons and obstructions.

8. NEVER use handle to pull garage door openor closed.Ifrope knotbecomesuntied,you could fall.

9. After ANY adjustmentsaremade,thesafety reversal systemMUSTbetested.

10. Safetyreversal system MUST be tested everymonth.Garage door MUSTreverseon contactwith 1-1/2" (3.8 cm) high object(ora 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly increases the riskofSEVERE INJURY or DEATH.

11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page1).An improperly balanced doormayNOTreverse when required and could result in SEVEREINJURY or DEATH.

12. ALL repairsto cables, spring assemblies and other hardware, ALL of which are under EXTREME tension,MUST be made by a trained door systemstechnician.

13. ALWAYS disconnect electricand battery power to garage door opener BEFORE making ANY repairs or removing covers.

14. Thisoperator system is equipped with an unattended operation feature. The doorcould move unexpectedly.NO ONE SHOULDCROSS THE PATH OF THEMOVING DOOR.

15. DO NOTinstallon a one-piecedoor if using devices or features providing unattended close. Unattended devices and features are to beused ONLY with sectional doors.

16. SAVE THESE INSTRUCTIONS.

Page 34

Operation

Using your Garage Door Opener

l The garage door opener can be activated witha wall-mounted door control,remotecontrol,

wirelesskeyless entry,MyQ®Smartphone Control appor MyQ®Garage Door Monitor. When the door is closed andthegarage dooropener is activated the door will open. Ifthe door senses an obstruction or is interrupted while opening the door will stop.When the door is in any position other than closed and the garagedoor openerisactivated the door will close.If the garage door opener sensesan obstruction while closing, the door will reverse. Ifthe obstruction interrupts the sensor beam the garagedoor opener lightswill blink 10 times.Ifthe door isfullyopen, and the safety reversing sensors are notinstalled, or are misaligned, the door will not close from a remote control,TTC,or the MyQ®Smartphone Control app.However,you can close the door by holding the button on the doorcontrolor the ENTER button on the keylessentryuntilthedoor is fully closed.

l The garage door opener light bulbs will turn on when the opener is initially plugged in; power is

restored after interruption, or when the garage door opener is activated. The lights will turn off automatically after 4-1/2 minutes.The lightswill turn on when someone enters through the open garage door andthe safety reversing sensor infrared beamisobstructed,seepage 33. Use an incandescentA19 light bulb(100 wattmaximum) or for maximum energy efficiencya 26W (100W equivalent) compactfluorescent light (CFL) bulb.NOTE: Do notuse halogen, shortneck, or

specialtylightbulbs as these mayoverheat the end panel or light socket. Do not use LED bulbs as they mayreduce the range or performance of your remote controls.

To Open the Door Manually

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

l Ifpossible, use emergency release handle todisengage trolley ONLY when garagedoor is

CLOSED. Weakor broken springsorunbalanced doorcould result in an open door falling rapidly and/or unexpectedly.

l NEVER use emergency release handle unless garage doorway is clear of persons and

obstructions.

l NEVER use handletopull door open orclosed. Ifrope knot becomes untied, you could fall.

DISCONNECT THE TROLLEY

1. The door should be fully closed if possible.

2. Pull down on the emergency release handlesothe trolleyrelease arm snaps to the vertical position.The door can nowbe raised and lowered as often as necessary.

TO RECONNECT THE TROLLEY

1. Pull the emergency release handletowardthe garage door opener so the trolley release arm snaps to the horizontal position. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the doorcontrolor remote control.

Page 35

Operation

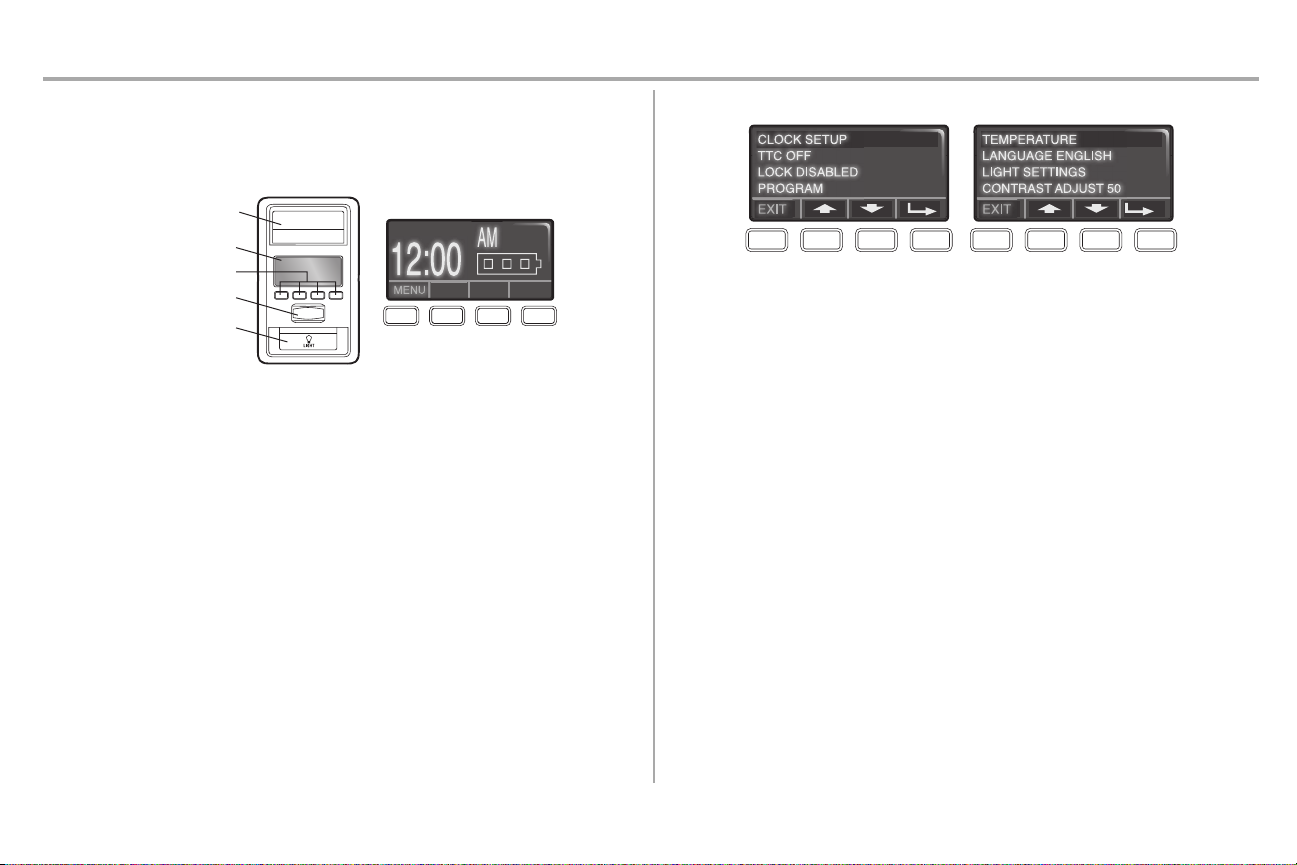

Push Bar

LIGHT Button

Motion Sensor

Navigation Buttons

Screen

Door Control

SYNCHRONIZE THE DOOR CONTROL: To synchronize the door control to the garage door opener,

press the push bar until the garage door opener activates (it maytake up to 3 presses).Testthe door control by pressing the push bar;each press of the push bar will activate the garagedoor opener.

PUSH BAR: Press the push bar to open or close the door. LIGHT BUTTON: Press the LIGHT buttontoturn the garage door opener lights on or off.When the lights

are turned on they will stayon until the LIGHT button is pressed again, or until the garagedoor openeris activated. Once the garagedoor opener isactivated the lights will turn off after the specified period of time(the factory default is 4-1/2 minutes).The LIGHTbutton will notcontrol the lightswhen the door is in motion.TheLight Feature will turn on the light on the garage door opener when someone enters through the opengarage door and the safetyreversing sensor infrared beam isobstructed.

MOTIONSENSOR: The motion sensor automatically turns on the garage door opener lights when motion is detected.The lights come on for the set period of time,and then shut off.If using the garage door opener light as a work lightdisable the motion sensor, otherwise the lights may turn offautomatically if you are beyond the range of the motion sensor.

NAVIGATIONAND SCREEN: The screen displays the time,temperature, and currentbattery charge (if applicable) until the menu button is pressed,and then it will display the menu options.Ifthere is a problem with the garagedoors opener the screen will display an error code (diagnosticcode,see page

38). The features on the doorcontrolcan be programmed through a series of menus on the screen.Use the navigation buttons to scroll through the menus andmake selections.

MENU OPTIONS

CLOCKSETUP: Set the time; choose 12 or 24 hourclockandshow/hide clock. TEMPERATURE: Displaythetemperature in FahrenheitorCelsiusand show/hide the temperature. LANGUAGE: Select English, Spanish or French. CONTRAST ADJUST: Adjust the screen contrast. LIGHT SETTINGS:

To change the amountoftime the lights stayon:

1. SelectLIGHTSETTINGS fromthemenu.

2. SelectLIGHTTIME.

3. Selectthetime interval.

To turn the Light Feature onor off(Factory default is On):

1. SelectLIGHTSETTINGS fromthemenu.

2. SelectAUTOMATICLIGHTS.

3. SelectENTRY SENSOR.

To turn the motion sensor on or off:

1. SelectLIGHTSETTINGS fromthemenu.

2. SelectAUTOMATICLIGHTS.

3. SelectMOTION SENSOR.

LOCK: Preventsthe garage door opener frombeing activated by remote controlswhile still allowing activation from the door control and keyless entry.

To turn the LOCK feature ONorOFF:

1. SelectLOCK from the menu. When the LOCK feature ison,amessage displays on the screen.

Page 36

Operation

2 3

? ?

Press

to continue.

Press

to continue.

MENU OPTIONS (CONTINUED)

TIMER-TO-CLOSE (TTC) (Factory default is set to off): The Timer-to-Closefeature automatically

closesthe door after a specified timeperiod and can be adjusted using the doorcontrol.DO NOT enable TTCifoperating a one-piece door.TTCistobe used ONLY with sectional doors. The garagedoor opener will beep and the lights will flash before closing the door.The TTC feature will deactivate if the garage door encounters an obstructiontwice; or the safetyreversing sensors are incorrectlyinstalled. The garage door will reverse open and WILL NOT close until the obstructionsare clear or the safety reversing sensors are correctlyinstalled.When the obstruction hasbeen cleared or the safetyreversing sensorshave been aligned,thedoor will close when the garage door opener is activated. TTCWILL NOTworkifthe garage door opener is operating bybattery power or if the safetyreversing sensorsare misaligned. Thisfeature isNOTintended to be the primarymethod of closing the door.Akeyless entry should be installed in the event of an accidental lock out when using thisfeature.

To turn TTCon or off or to set the TTCtime interval:

1. SelectTTC from the menu.

2. Selecta timeinterval of1,5,10 minutes or a custom setting up to 99 minutes. Once the TTChas been set and the door is open, a message will display on the screen with the selected time interval.

To temporarily suspend the TTCfeature select HOLD.SelectREL to resume normal TTC operation. PROGRAM: Any compatible remote control,wirelesskeyless entry,or MyQ®devicescanbe

programmed to the garage door using the PROGRAM option from the menu.

Remote Control and Keyless Entry

Yourremote controlhas been programmed at the factory to operate with your garage door opener, randomly accessingover100 billion new codes with each use. Your garage door opener can be

programmed with up to 8 remote controls,1 keylessentry,2 Security+2.0™ door controls and 6 MyQ accessories. Older Chamberlainremotecontrolsare NOTcompatible, see page40 for compatible accessories. Programming can be donethrough the door control or the learnbuttonon the garagedoor opener.To program additional accessories refer to the instructionsprovided with the accessory or visit www.chamberlain.com.If your vehicle is equipped witha Homelink®, you mayrequire anexternal adapter depending on the make,model, and year of your vehicle. Visit www.homelink.comfor additional information.

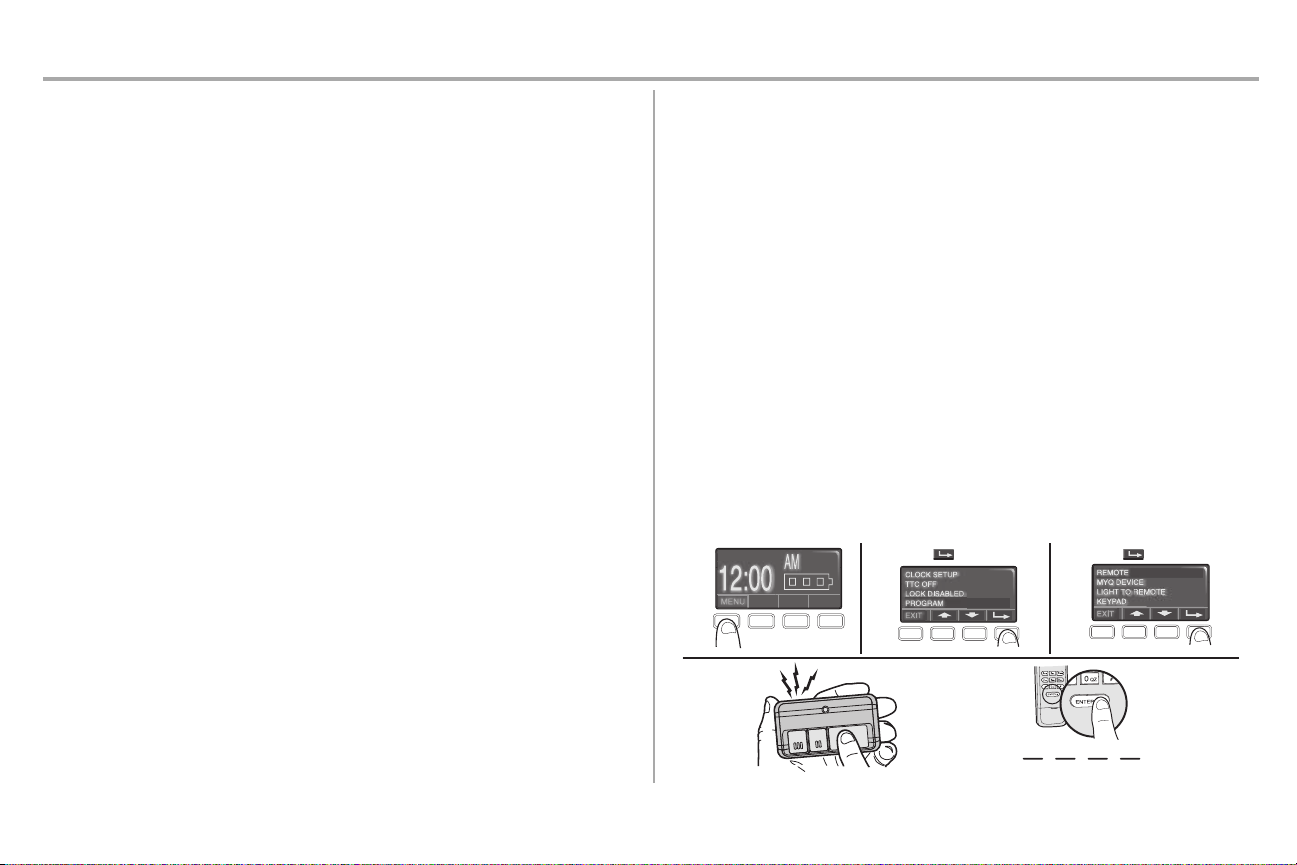

TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN USING THE DOOR CONTROL

1. Pressthenavigation button below "MENU"toviewthe Features menu.

2. Use the navigation buttons to scroll to "PROGRAM".

3. Select"REMOTE" or "KEYPAD" to programfrom the programmenu.

4. Remote Control: Press the button on the remote control that you wish to operate your garage door. Keyless Entry: Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry keypad.Then press the ENTERbutton.

The garage door opener lights will flash (or two clicks will be heard) when the code hasbeen programmed. Repeat the stepsfor programming additional remote controls or keylessentrydevices.If programming is unsuccessful,repeat the stepsusing the learn button on the garage door opener.

Page 37

Operation

To Erase the Memory

ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES

1. Pressand hold the LEARN button on garage door opener until the learn LED goes out (approximately 6 seconds).All remote control and keylessentry codes are now erased. Reprogram any accessoryyouwish to use.

ERASE ALL REMOTE CONTROLS, KEYLESS ENTRIES AND MyQ®DEVICES FROM GARAGE DOOR OPENER

1. Pressand hold the LEARN button on garage door opener until the learn LED goes out (approximately 6 seconds).

2. Immediately press and holdtheLEARNbuttonagain until the learn LEDgoesout.Allcodesare now erased. Reprogram anyaccessoryyou wish to use.

ERASE THE CONNECTION FROM GARAGE DOOR OPENER TO HOME Wi-Fi NETWORK

1. Pressand hold the black adjustmentbutton on the garage door opener until 3 beepsare heard (Approximately 6 seconds).

ERASE A MyQ®ACCOUNT

1. Go to www.mychamberlain.comtoaccess your MyQ®account.

2. Clickon the "Account" tab.

3. Click"EditUser".

4. Click"Delete this account".

5. Click"Delete".

Go to wifihelp.chamberlain.comformore details.

Page 38

Maintenance

Maintenance Schedule

EVERY MONTH

l Manually operate door. If it is unbalanced or binding,call a trained doorsystemstechnician. l Checkto be sure door opens andcloses fully.Adjustifnecessary,seepage27. l Testthe safetyreversalsystem.Adjust if necessary,see page27.

EVERY YEAR

l Oil doorrollers,bearings and hinges. The garagedoor openerdoes not require additional

lubrication. Do not grease the door tracks.

l Testthe battery backup and consider replacing the batteryto ensure the garage door opener will

operate during an electrical power outage, see page 30 to testthe battery backup.

The Remote Control Battery

To prevent possible SERIOUS INJURY or DEATH:

l NEVER allow small children near batteries. l Ifbattery is swallowed,immediately notifydoctor.

To reduce risk of fire, explosion or chemical burn:

l Replace ONLY with 3V CR2032 coin batteries. l DO NOT recharge, disassemble,heatabove 212°F(100°C) or incinerate.

The 3V CR2032 lithium batteryshould produce power for up to 3 years. Ifthe batteryislow,the remote control’s LED will not flash when the button is pressed.

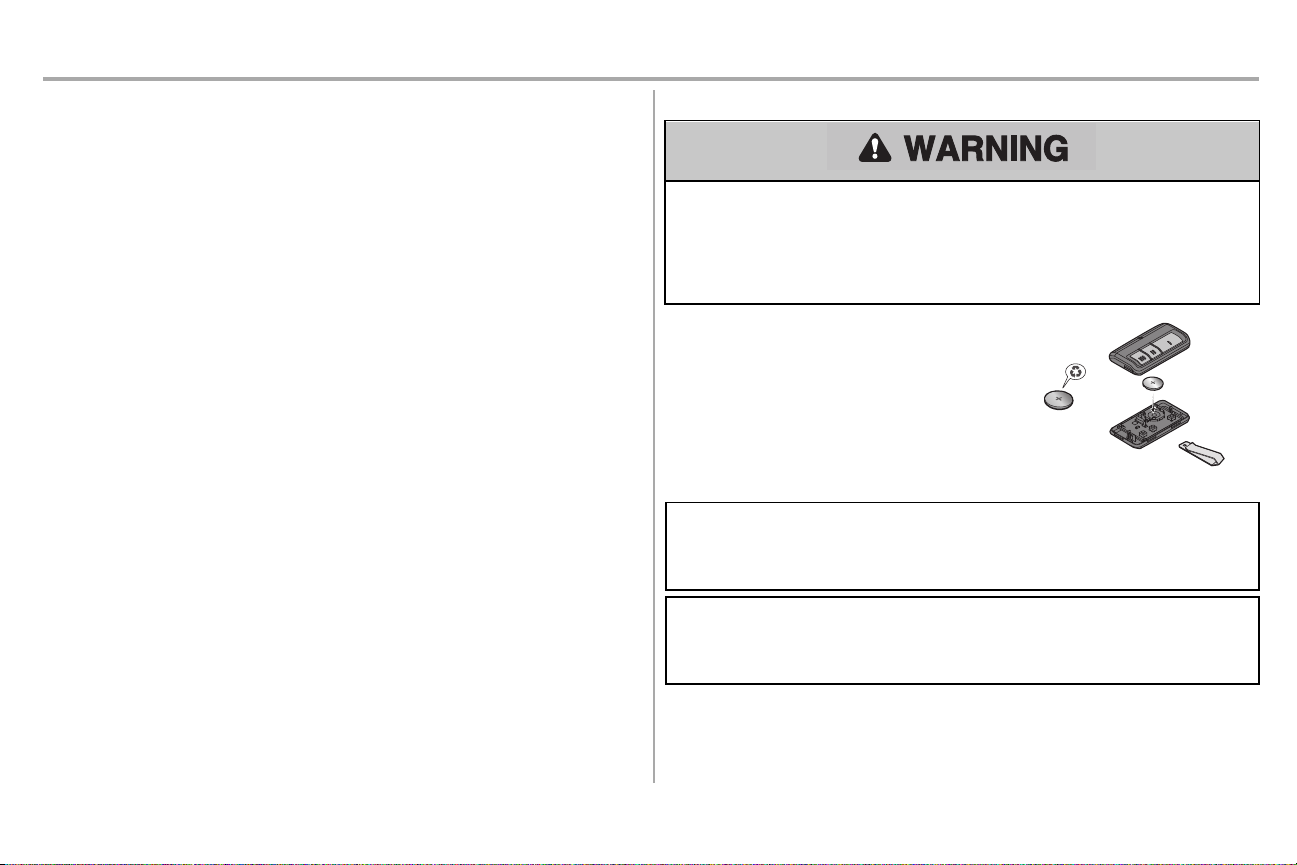

To replace battery,pryopen the case firstinthemiddle (1), then at each side (2 and 3) with the visor clip.Replace the batterieswith only3VCR2032 coin cell batteries.Insert batterypositive side up. Dispose of old batteriesproperly.

NOTICE: Tocomplywith FCC and/orIndustryCanada (IC)rules, adjustment ormodificationsofthistransceiver are prohibited. THERE ARENO USERSERVICEABLEPARTS. Thisdevicecomplieswith Part15oftheFCC rules and IC RSS-210.Operationissubject to the followingtwoconditions: (1)thisdevice maynotcau seha rmfulinterference,a nd (2)thisdevice must accept anyinterferencereceived, including interference that maycause undesired operation. Thisdevicemust be installed inawaywherea minimum8"(20cm)distance ismaintained between users/bystand ersanddevice.

AVIS: Lesrèglesde la FCC et/ou d’Indu strie Canad a(IC)interdisent toutajustement ou toutemodification de cerécepteur. ILN’EXISTE AUCUNE PIÈCESUSCEPTIBLED’ÊTREENTRETENUE PAR L’UTILISATEUR. Cet appareilest conformeauxd ispositionsdela partie 15 durèglement de la FCC etdel'norme ICRSS-210. Son utilisation est assujettie aux deux conditoins suivante s:(1) cedispositifnepeutcauser desinterférencesnuisibles,et (2) cedispositifdoitaccepte rtou te interférencerecue ,y comprisu ne interférence pouvantcauserun fonctionnement non souhaité. Cet appareildoit être installé de manièreàlaisserunedistance d’au moins20cm(8 po)entre celui-cietl’utilisateur ou toute pe rsonne.

Page 39

Troubleshooting

Diagnostic Chart

Your garage door opener is programmed with self-diagnostic capabilities.The UP and DOWN arrows on the garage door opener flash the diagnostic codes.

DIAGNOSTICCODE SYMPTOM SOLUTION

Up Arrow Flash(es)

1 1

1 2

1 3

1 4

1 5

1 6

2 1-5

3 2

3 3

4 1-4

Down Arrow

Flash(es)

The garage door opener will not close and the light bulbs flash.

The door control will not function.

The garage door opener will not close and the light bulbs flash.

Door moves 6-8" stopsor reverses.

No movement,onlyasingle click.

Opener hums for 1-2 seconds no movement.

Door coastsafter it has come to a complete stop. Program traveltocoasting position or have doorbalanced by a trained door systemstechnician.

No movement,orsound. Replace logic board.

Unable to set the travel or retain position. Checktravel module for proper assembly,replaceifnecessary.

The batterystatus LED is constantly flashing green. Batterybackup charging circuiterror,replace the logic board. Door is moving stopsor reverses. Manually open and close the door.Check for binding or obstructions,such as a broken spring or door

Safetysensors are not installed, connected,orwiresmaybe cut.Inspect sensor wiresfora disconnected or cut wire.

There is a short or reversed wire for the safetysensors. Inspectsafetysensorwire at all staple and connection points,replace wire or correct as needed.

The wires for the door control are shorted or the door control is faulty. Inspectdoor control wires atall staple and connection points,replace wire or correct as needed.

Safetysensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs are steady and notflickering. Make sure nothing is hanging or mounted onthedoor that would interrupt the sensor’s path while closing.

Manually open and close the door.Check for binding or obstructions,such as a broken spring or door lock,correct as needed. Check wiring connections at travel module and at the logic board.Replace travel module if necessary.

Manually open and close the door.Check for binding or obstructions,such as a broken spring or door lock,correct as needed. Replace logicboard if necessary.

Manually open and close the door.Check for binding or obstructions,such as a broken spring or door lock,correct as needed. Replace motor if necessary.

lock,correct as needed. If the door is binding or sticking contact a trained doorsystemstechnician. Ifdoor is not binding or stickingattempt to reprogramtravel (refer to page27).

Page 40

Battery Status LED

Troubleshooting

DIAGNOSTICCODE SYMPTOM SOLUTION

Up Arrow Flash(es)

4 5

4 6

Down Arrow

Flash(es)

Opener runs approximately6-8",stops and reverses. Communication errortotravelmodule.Checktravel module connections,replace travel module if

The garage door opener will not close and the light bulbs flash. Safetysensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both

necessary.

LEDs are steady and notflickering. Make sure nothing is hanging or mounted onthedoor that would interrupt the sensor’s path while closing.

The garage dooropener can beep forseveralreasons:

l Operating onbattery power orthe 12Vdc batteryneedstobe replaced, see page 30. l Garage door opener has been activated through a device or feature such as Timer-to-Close or

garage door monitor, see page33.

My remote control willnot activate the garage door:

l Verify the lockfeatureisnot activated on the door control. l Reprogram the remote control. l Ifthe remote control will still not activate the doorcheck the diagnosticcodestoensure the garage

door opener is working properly.

My door willnot close and the light bulbs blink on my motor unit:

The safetyreversing sensor must be connected and aligned correctlybeforethe garage door opener will move in the down direction.

l Verify the safety sensorsare properlyinstalled, alignedand free of any obstructions.

My garage door opener light(s) willnot turn off when the door is open:

The garage door opener is equippedwith a feature that turns the light on when the safetyreversing sensorshave been obstructedor when the motion sensor on the door control detectsmovement in the garage. These features can be disabled using the door control, see page33.

My neighbor’s remote control opens my garage door:

Erase the memory from your garage door opener and reprogram the remote control(s).

The LEDs onthe doorcontrolblink:

Ifyou have a Smart Control Panel installed and the TTCisset to a customtime, press the ON button on the Premium Motion-Detecting Control Panel to setthe time properly.

My vehicle's Homelink®is not programming to my garage door opener:

Depending on the make, model, and year of your vehicle an external adapter may be required.Visit www.homelink.com for additionalinformation.

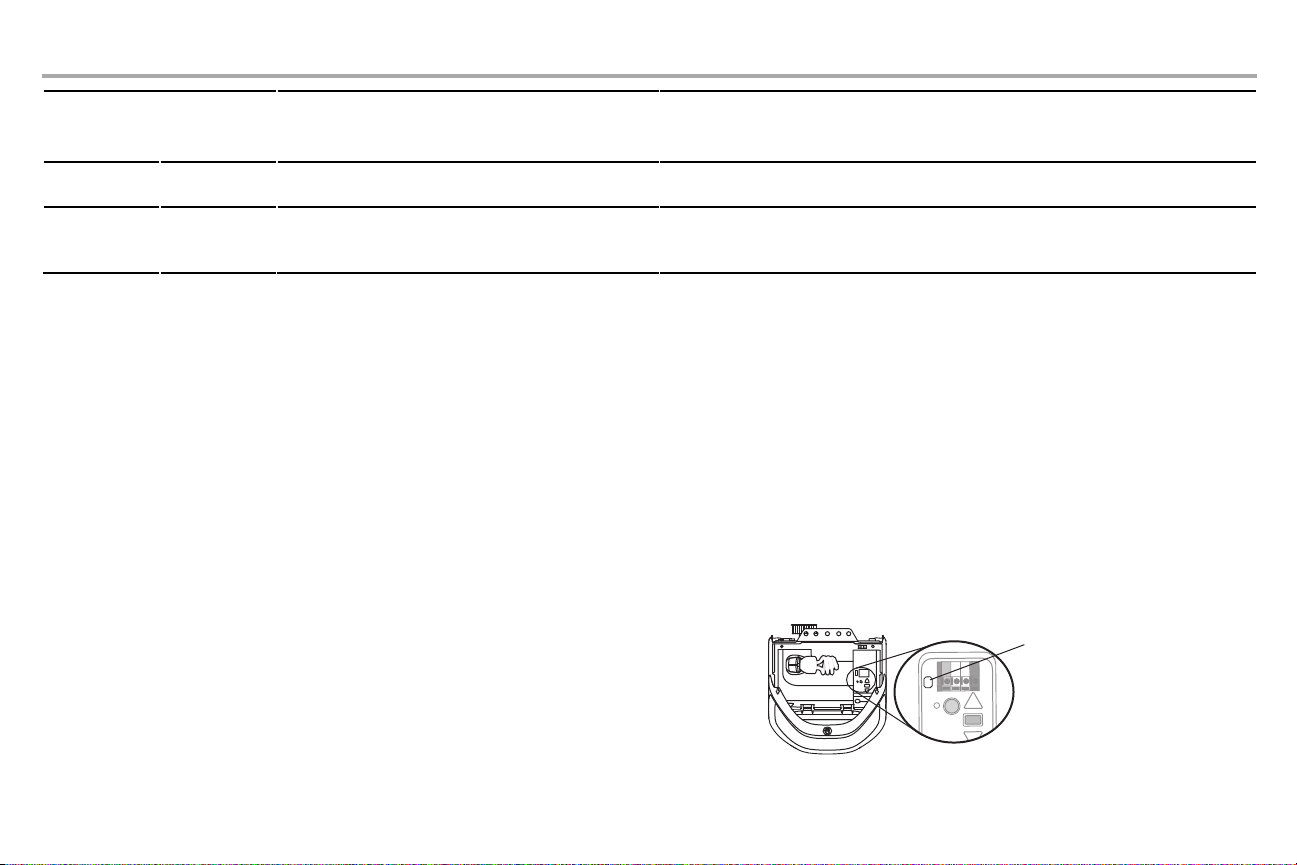

Wi-Fi troubleshooting

Ifyour black adjustmentbutton is notsolid green go to wifihelp.chamberlain.com.

Green battery status LED - All systems are normal:

l A solid green LED light indicates the batteryisfullycharged. l A flashing greenLED indicatesthe batteryisbeing charged.

Orange battery status LED - The garage door opener has lost powerandis in battery backup mode:

l A solid orange LED with beep, sounding approximately every 2 seconds,indicatesthe garagedoor

opener is operating onbattery power.

l A flashing orange LED with beep, sounding every 30 seconds,indicatesthe batteryislow.

Red battery status LED - The garage door opener's 12V battery needs to be replaced:

l A solid redLED withbeep, sounding every 30 seconds,indicates the 12V batterywillno longerhold

a charge and needsto be replaced. Please call for replacement batterytoallow your system to operate during a power outage.

Page 41

Accessories

CLOSED

7702CB

Outside Quick Release:

041A5281-1

Required for a garage with NO access door.

8808CB

8 Foot (2.4 m) Rail Extension:

CLLP1

To allow an 8 foot (2.4 m) door to open fully.

8810CB

10 Foot (3 m) Rail Extension:

CLSS1

To allow a 10 foot (3 m) door to open fully.

MyQ® Accessories

You can program up to 10 MyQ® accessories to your MyQ® account.

PILCEV MyQ® Remote Lamp Control:

Monitor and control this plug in lamp switch with the MyQ® Smartphone App.

WSLCEV MyQ® Interior/Exterior Light

Extension Brackets:

(Optional) For safety reversing sensor installation onto the wall or ﬂ oor.

Laser Parking Assistant:

Park in the right spot every time! A laser beam is activated by your garage door opener and projected on to the dashboard of your vehicle to guide perfect parking.

System Surge Protector:

The Garage Door Opener Surge Protector is designed to protect Chamberlain garage door openers against damage from lightning and power surges. Easy to install.

Switch

Monitor and control this wall light switch with the MyQ® Smartphone App.

953EV

Remote Control:

Works with ALL Chamberlain openers from 1993-present.

compatible. Includes visor

MyQ clip.

940EV Wireless Keypad:

For use outside of the home to enable access to the garage using a 4-digit PIN. Works with ALL Chamberlain openers from 1993-present. MyQ® compatible.

956EV Keychain Remote Control:

Works with ALL Chamberlain openers from 1993-present. MyQ® compatible. With key ring.

CIGBU

MyQ® Internet Gateway:

Offers longer range wireless signal than standard Wi-Fi. Plugs into your home router as an optional way to provide MyQ® Smartphone Control for your garage door opener and MyQ® light controls.

41A6357-1 Standby Power System

Battery:

Provides backup power to the garage door opener.

AGDMEV Garage Door Monitor:

Monitor open/closed status for up to 4 MyQ

compatible garage door openers or gate operators and close them from anywhere in the home.

Page 42

Warranty

This garage door opener WILL NOT work until the

STOP!

safety reversing sensors are properly installed and aligned.

CHAMBERLAIN® LIMITED WARRANTY

The Chamberlain Group, Inc. in which this product is originally installed, that it is free from defects in materials and/or workmanship for a speciﬁ c period of time as deﬁ ned below (the “Warranty Period”). The warranty period commences from the date of purchase.

Parts Motor Accessories Belt Battery Backup

5 Years Lifetime 1 year Lifetime 1 year

(“Seller”) warrants to the ﬁ rst retail purchaser of this product, for the residence

WARRANTY PERIOD



Contact Information

For installation and service information, please visit:

www.chamberlain.com/parts-and-support

If you are ordering a repair part please have the following information:

part number, part name, and model number.

Address repair parts orders to:

The Chamberlain Group, Inc.

6050 S. Country Club Road

Tucson, AZ 85706

www.prodregister.com/chamberlain



The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety. If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800- 528-9131, toll free, before dismantling this product. You will be advised of disassembly and shipping instructions when you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description of the problem and a dated proof- of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are conﬁ rmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory rebuilt parts at Seller’s sole option. [You are responsible for any costs incurred in removing and/or reinstalling the product or any component .]

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States and Provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you speciﬁ c legal rights, and you may also have other rights, which vary from state to state and province to province.

Page 43

Repair Parts

Rail Assembly Parts

Description Part Number

1 Belt 41A5250

2 Pulley 144C54

3 Master Link 4A1008

4 Rail 41A5665

5 Trolley Assembly 41C5141-2

6 “U” Bracket 12D598-1

Not Shown

Wear Pads 183A163

Hardware Bag 041A7920-2

Accessories

Description Part Number

1 Smart Control Panel® 41A7305-1

2 Remote Control 953ESTD

Installation Parts

1 Curved Door Arm 178B35

2 Door Bracket with Clevis

41A5047-1

Pin and Fastener

3 Emergency Release Rope

41A2828

and Handle

4 Header Bracket with

41A5047-2

Description Part Number

NOTICE

Clevis Pin and Fastener

5 Remote Control

29B137

Visor Clip

6 Safety Sensor Bracket 041A5266-3

7 Safety Sensor Kit

41A5034 Receiving and sending sensors with wire

8 Straight Door Arm 178B34

9 White and Red/White Wire 41B4494-1

10 3V CR2032 Lithium

10A20

Battery

11 Hanging Brackets 12B776

Not Shown

Owner’s Manual 114A4763

Page 44

Repair Parts

Garage Door Opener Parts

Description Part Number

1 Sprocket and Sprocket Cover with Screws 041C1751

2 End Panel with light socket 041D7639-1

3 Light Lens 041D7572

4 Light Socket 041C0279

5 Transformer 041D0277-1

6 Cover 041D0614-23

7 Motor with Travel Module 041D1739-1

8 End Panel for Receiver Logic Board with light socket 041D8214

9 Receiver Logic Board 050DCTWF

10 Travel Module 041A7114-7

is a registered trademark of Wi-Fi Alliance

Chamberlain HD950WF, WD1000WF, LW9000WF, HD750WFC, LW6000WFC User Manual

CONTENTS

Preparation

Safety Symbol and Signal Word Review

Unattended Operation

Check the Door

Test the Wi-Fi®Signal Strength in your garage

Additional Items You May Need:

Tools Needed

Carton Inventory

Hardware

Assembly

STEP 1 Assemble the rail and install the trolley

STEP 2 Fasten the rail to the motor unit

STEP 3 Install the idler pulley

STEP 4 Install the belt

STEP 5 Tighten the belt

STEP 6 Install the sprocket cover

Installation

STEP 1 Determine the header bracket location

STEP 2 Install the header bracket

STEP 3 Attach the rail to the header bracket

STEP 4 Position the garage door opener

STEP 5 Hang the garage door opener

STEP 6 Install the light bulbs

STEP 7 Attach the emergency release rope and handle

STEP 8 Install the door bracket

STEP 9 Connect the door arm to the trolley

STEP 10 Install the door control

STEP 11 Wire the door control to the garage door opener

STEP 12 Attach the warning labels

STEP 14 Wire the Safety Reversing Sensors

STEP 15 Connect power

STEP 16 Aligning the safety reversing sensors

STEP 17 Ensure the door control is wired correctly

Adjustments

PROGRAMMING BUTTONS

Introduction

One-Piece Doors Only

STEP 1 Program the Travel

STEP 2 Test the Safety Reversal System

Battery Backup

STEP 1 Install the Battery

STEP 2 Test the Battery

Charge the Battery

Operation

Remote Control and Keyless Entry
