Chamberlain GAILM User Manual

Model GAILM

Gate Access Intercom

NOTE: If there is already an existing receiver proceed to Pre-Installed LiftMaster Receiver.

Overview

The Gate Access Intercom can be used as either a primary or secondary door and gate access point. It can be used to control electric gates, entry doors, or pedestrian doors with electric strikes. The Intercom uses a secure digital connection that allows it to operate without interfering with other Intercom networks. The Intercom is compatible with various Liftmaster Wireless Products.

Carton Inventory

Bolt (4)

Screw (4)

Washer (4)

Allen Wrench

Intercom

Nut (4)

Gate Control Unit (GCU) (not provided)

NOTE: This step applies only if Intercom is going to control a gate or electric strike. If not, proceed to

Program Accessories.

Set the Dipswitches on the Intercom to match the GCU number to be controlled:

Control Dipswitch Dipswitch Gate # #1 #2

1 DOWN DOWN 2 UP DOWN 3 DOWN UP

Refer to GCU manual for GCU Dipswitch settings.

Program Intercom to GCU

NOTE: If there is already an existing receiver proceed to Pre-Installed LiftMaster Receiver section.

Step 1: Remove GCU cover.

Setup

Install Batteries

Install 4 AA Alkaline batteries (not provided). (Lithium batteries recommended for colder environments.)

Set Dipswitches

Primary Intercom: Switch #1 is set to

the UP position (default).

Secondary Intercom: Switch #1 is set to the DOWN position.

Step 2: Install 4 AA Alkaline batteries (not provided). (Lithium batteries recommended for colder environments.)

Step 3: Press the Learn button on the GCU for one second. The LED will light for 20 seconds.

Step 4: Within 20 seconds, press and hold the Learn button for 10 seconds.

The Intercom will beep and the GCU will cycle the relay and flash 3 times indicating programming is successful.

Pre-Installed Liftmaster Receiver

Portable Intercom

Program

Step 1: Pry open the front

panel of the receiver case with a coin or a screwdriver. Step 2: Set Dipswitch #1 to the UP position on the Intercom. Step 3: Press and release the Learn button on the receiver. The Indicator Light will light for 30 seconds indicating that receiver is in Learn Mode. Step 4: Within 30 seconds, press and release the Learn button on the Intercom for 10 seconds.

Repeat Steps 2-4 for each remote, or control device that will be used to access the Liftmaster door or gate operator.

Indicator Light

Learn Button

Erase All Control Codes

Press and hold the Learn button on the receiver until the Indicator Light turns off indicating that the receiver memory is clear (about 6 seconds).

To clear Portable Intercom memory, press and hold Learn button until a beep is heard. Step 1: Press and hold the Learn button on the Intercom until a beep is heard. Step 2: Within 15 seconds, press and release the Learn button on the Portable Intercom. Intercom will beep indicating programming is successful. Program any additional intercoms to the Portable Intercom that has already been programmed. Refer to Portable Intercom manual for more details.

Flush Mount Intercom

Program Accessories

NOTE: If the Intercom is set as the Secondary Intercom, there is no need to program it to any accessory.

Telephone Interface Unit (OTIU)

To clear the memory on the OTIU, dial “**#8” on the telephone connected to the OTIU. A beep will be heard. Step 1: On the phone connected to the OTIU, press “**07” after hearing the dial tone. Listen for a double beep. Hang up and Learn LED will flash for 15 seconds. Step 2: Within 15 seconds, press and release the Learn button on the Intercom. The OTIU will ring the telephone and Caller ID will display “Unit Learned”. Refer to OTIU manual for more details.

To clear Flush Mount Intercom memory, press and hold both buttons. Two beeps will be heard and the channel lights will begin to cycle. Continue to hold until a third beep is heard (about 15 seconds). Step 1: Press and hold the Learn button on the Intercom until a beep is heard. Step 2: Within 20 seconds, press and hold both buttons on the Flush Mount Intercom for 3 seconds. The LEDs will flash. Intercom will beep indicating programming is successful. Program any additional intercoms to the Flush Mount Intercom that has already been programmed.

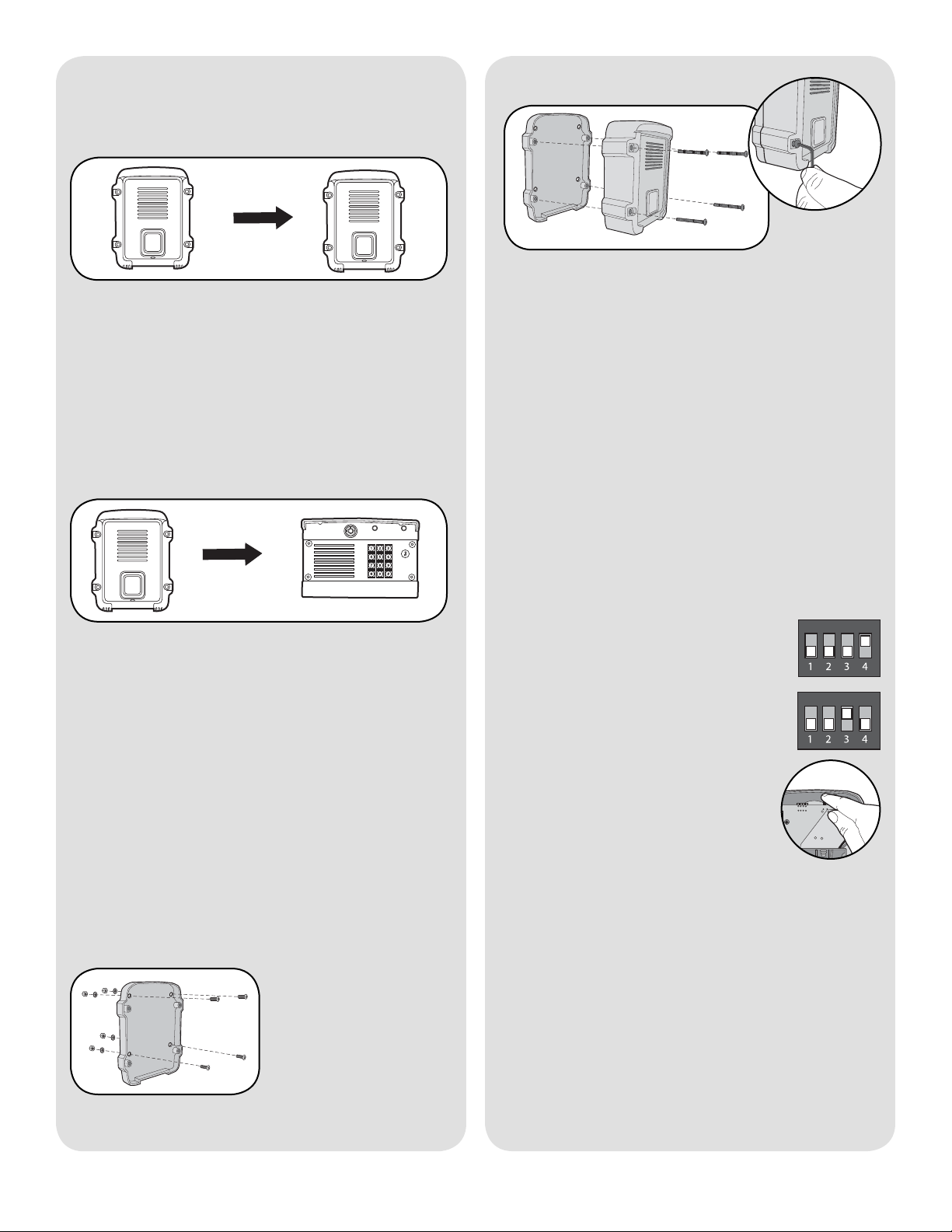

Program Secondary Intercom

NOTE: This step applies only if there is a Secondary Intercom. If not, proceed to Mount Intercom.

Step 1: Set Dipswitch #1 to the DOWN position on the Secondary Intercom. Step 2: Press the Learn button on the Primary Intercom. Step 3: Within 15 seconds, press the Learn button on the Secondary Intercom. Intercom will beep indicating programming is successful. Secondary Intercom is now connected to the whole network.

Gate Access Panel (GAPLM)

Step 2

Mount the Intercom onto the back panel with screws. Tighten screws with Allen wrench.

Operation

The Intercom is waterproof so that rain or high humidity will not effect it. However, do not mount Intercom in the direct path of a sprinkler system as the Intercom’s life can be reduced.

Battery: The AA batteries (not provided) will last up to two years depending on use (Lithium batteries recommended for colder environments.) If batteries are low, the intercom will emit a tone every ten minutes. If used with the OTIU, the OTIU will ring the telephone and display Caller ID message of GAPLM low battery after a call from the gate is made.

Step 1: Set Dipswitch #1 to the DOWN position on the Secondary Intercom. Step 2: Press the Learn button on the Secondary Intercom. Step 3: Within 20 seconds enter Master PIN Number on GAPLM. Step 4: Press “05” and GAPLM will beep indicating programming is successful.

Mount Intercom

It is recommended that the Intercom be mounted to a Gooseneck post or non-metallic surface.

NOTE: Metal surfaces can shorten the range of the Intercom. If mounting on a metal surface and long range is required, use a non-metallic spacer to move the Intercom away from the metal surface.

Step 1

Volume: To increase the speaker

volume, set Dipswitch #4 to the UP position.

Sensitivity: To increase microphone sensitivity, set Dipswitch #3 to the UP position.

Clear Memory: Set Dipswitch #1 to the DOWN position (secondary device mode). Press and hold the Learn button for 15 seconds, during this time the Intercom may beep (once or consecutively). Continue to hold until a long beep is heard.

Choose mounting location for Intercom. Remove the back panel and attach it to a solid surface or post.

Troubleshooting

When it gets cold, Intercom does not function. In this case, use AA Photo Lithium batteries, which are 1.5V each. They will also extend battery life.

Intercom is not getting expected transmission range.

Metal surfaces can shorten the range of the Intercom. If mounting on a metal surface and long range is required, use a non-metallic spacer to move the Intercom away from the metal surface. When used in buildings with stucco or cement walls, the range is greatly reduced. Repeaters can be used close to the building to solve this problem. Repeaters can also be used if there is a 900 Mhz noise source nearby that is affecting the range.

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-2806

www.liftmaster.com

When using with Repeaters, the sound is not clear.

Ensure that the Repeaters are properly programmed. To test, remove the batteries from one Repeater. If the remaining Repeater is working, switch the batteries and test the other Repeater. If one of the Repeaters does not work, it means if has not been programmed. Both Repeaters must be programmed for the system to work.

Intercom is too loud/not loud enough.

Adjust Dipswitch #4 as explained in the Operation section.

Intercom is too sensitive/not sensitive enough.

Adjust Dipswitch #3 as explained in the Operation section.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
