For Classes I, II, III,
IV
pg 1
Contents
General Information.................................................................................................................3
Features...................................................................................................................................5
Parts Identification...................................................................................................................6
Installation................................................................................................................................8
Alternate Installation..............................................................................................................12
Electrical................................................................................................................................13
Pg.
Fine Tuning............................................................................................................................17
Master and Slave...................................................................................................................18
Wiring Diagrams....................................................................................................................19
Safety Edge and Warning Placards.......................................................................................21
Options..................................................................................................................................23
Maintenance and Safety........................................................................................................25
Trouble Shooting....................................................................................................................26
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of injury or death:
1) READ AND FOLLOW ALL INSTRUCTIONS
2) Never let children operate or play with gate controls. Keep the remote control away from children.
3) Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4) Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates the non-contact sensors.
After adjusting the force or the limit of travel, re-test the gate operator. Failure to adjust and re-test the gate operator properly can increase the risk of
injury or death.
5) Use the emergency release only when the gate is not moving.
6) KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate hardware.
7) The entrance is for vehicles only. Pedestrians must use separate entrance.
8) SAVE THESE INSTRUCTIONS.
pg 2
General Information
OVERALL DIMENSIONS: Height: 21" (53 cm) Length: 12" (30 cm) Width: 17" (43 cm)
SHIPPING WEIGHT: 140 pounds (64 kg)
z Options: Steel Mounting Stand: 23 pounds (10 kg)
POWER REQUIREMENT: Dedicated 115 Volt AC (+/- 10V), 5 AMP Power Circuit
APPLICATIONS:
z Maximum Gate Weight: 1,500 pounds (680 kg)
z Maximum Gate Length: 40 feet (12 m)
z Maximum Gate Speed: 10in/sec (12in/sec also available)
INCLUDED WITH OPERATOR:
BASE PLATE HOLE PATTERN
z 40-Feet of # 41 Roller Chain
z 2-Master Links # 41
z 2-Zinc Plated Chain Bolts
z 2-Chain Brackets, Right and Left
z 2-U-Bolts, Round (for chain brackets)
z 2-U-Bolts, Square (for chain brackets)
z 2-Safety Safety Warning Placards
z 1-Hex Wrench 5/16"
z 1-Instruction Manual
z 1-Flexible Conduit End Fitting 1/2"
z 4-Sleeve Anchor Bolts (red heads) 3/8" X 3"
z 1-Hex Bolt with Nut, 1/4"-20
z 1-Self Tapping Screw, 1/4"-20
pg 3
General Information continued...
CIRCUIT BOARD:
The AGS 3000 uses the Full Systems Capability circuit board, a powerful
control system which is used on many other AGS gate operators. This circuit board operates on 12 ~ 18
Volts and can deliver power to the motor through high power external switching. The limit switch input
terminals require the use of normally open type limit switches. These switches are used to accurately
stop the gate operator in the open and closed positions. To safeguard the operator from damage that
could result from limit switch or gate sensitivity failure, the Full Systems Capability circuit board has a
built-in maximum run timer which will allow the operator to run for approximately 40 seconds and then shut
off automatically. The Full Systems Capability circuit board has an adjustable gate sensitivity feature
which will stop or reverse the gate if the gate is pushing harder than normal because of an obstruction.
GATE SENSITIVITY: The AGS 3000 Full Systems Capability circuit board has a built-in safety
feature which when adjusted properly will deliver only enough power to the motor to overcome the
resistance of the gate. The amount of power that the circuit board will deliver can be adjusted for both
directions of travel to accommodate the various gate weights that the AGS 3000 operator is
recommended for. (See Applications Pg. 3)
Vehicular Gate Operator Classes:
Class I - Residential Vehicular Gate Operator: A vehicular gate operator (or system) intended for use in a home of
one-to four single family dwelling, or a garage or parking area associated therewith.
Class II - Commercial/General Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for
use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages,
retail store, or other building servicing the general public.
Class III - Industrial/Limited Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for use
in an industrial location or building such as a factory or loading dock area or other locations not intended to service the
general public.
Class IV - Restricted Access Vehicular Gate Operator: A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport security area or other restricted access location not servicing the
general public, in which unauthorized access is prevented via supervision by security personnel.
Gate Operator model AGS2000 is intended for Vehicular Gate Operator Classes I, II, III, and IV.
Gate Inspection:
a) Install the gate operator only when:
1) The operator is appropriate for the construction of the gate and the usage Class of the gate,
2) All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum
of 4 feet (1.2 m) above the ground to prevent a 2-1/4 inch (57.15 mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
3) All exposed pinch points are eliminated or guarded, and
4) Guarding is supplied for exposed rollers.
b) The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a
separate access opening.
c) The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent
structures then opening and closing to reduce the risk of entrapment.
d) The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
Do not over-adjust the gate sensitivity to compensate for a damaged gate.
pg 4
Features
OPERATION
The AGS 3000 Full Systems Capability can operate in a AUTO CLOSE TIMER (TIMER ON) or a
PUSH-TO-OPEN/PUSH-TO-CLOSE (TIMER OFF) mode of operation. In the AUTO CLOSE TIMER
mode of operation the operator is given a command to open the gate and hold it open until the input is
released and until the auto close timer has elapsed at which point the operator will close the gate
automatically. In the PUSH-TO-OPEN/PUSH-TO-CLOSE mode of operation each time a signal is sent to
the operator, it will cause it to do the opposite of what it did before. (i.e., If the gate is closed, it will start
opening, if it is open, it will start closing: If it is closing, it will REVERSE TO OPEN, if it is opening, it will
REVERSE TO CLOSE.)
CONTROLS
The AGS 3000 Full Systems Capability works with the following control devices: Radio
transmitters and their receiver (specified by and available from the manufacturer). Key switches, Push
buttons (separate or intercom), numerical key pads and any peripheral equipment which can supply
normally open or normally closed contacts. These contacts can be connected to the operator input
terminals to perform the opening, close, safety, or the stop functions.
AUTO CLOSE TIMER
The operator comes factory preset with the auto close timer turned OFF. The auto close timer will
close the gate automatically after a specific amount of time has elapsed. The amount of time can be
easily adjusted between 0 and 45 seconds by turning a small "pot" located on the right edge of the circuit
board (See page 17). The timer can be disabled or activated by flipping a single switch located on the
top right edge of the circuit board. If the timer will be used it is recommended that some type of
supplementary safety device be installed. If more time is required, there is an extended timer available
from the manufacturer allowing up to 100 min.
MANUAL RELEASE SWITCH
This simple on-off switch is built into the operator. In an emergency, EVEN WITH THE POWER
OFF, the gate can be pushed open manually after flipping the switch from Operate to Release.
GATE SENSITIVITY ADJUSTMENT
The amount of force necessary to stop the gate can be adjusted to conform to the various sizes
and weights of any particular gate. When adjusting the sensitivity, the operator can be given only as much
energy as is necessary to overcome the resistance of the gate. If the gate should strike an obstruction in
either direction, the gate will reverse. If the gate should again strike an obstruction before reaching a limit,
the gate will stop, remain stopped, and will sound an alarm. (See page 17)
MASTER AND SLAVE
Some very large entrances may require the use of two gates. If this is the case, the two gates can
be easily automated using the "master and slave" configuration. This configuration uses two gates and
two operators in ONE driveway. The operators used are two regular AGS 3000 Full Systems Capability
operators one of which is of standard "right hand operation" and the other which is easily converted to
"left hand operation" by flipping a single switch located at the top of the circuit board. (See page 17.)
pg 5
Parts Identification
pg 6
Parts Identification continued...
PART # QNTY. QNTY.
001 1 ALLEN WRENCH FOR COVER, 5/16" HEX KEY
002 2 BEARING, SELF ALIGNING, 1" BORE
003 4 BOLT, 3/8"-16 X 1", SOCKET HEAD CAP
004 4 BOLT, SLEAVE ANCHOR, 3/8" X 3"
005 2 BRIDGE RECTIFIER, 35 AMP
006 2 CHAIN BRACKET ANGLE, RIGHT AND LEFT
007 1 CHAIN, #41, 40 FT
008 1 CIRCUIT BOARD, FULL SYSTEMS CAPABILITY
009 1 CIRCUIT BREAKER RESET BUTTON, 5 AMP
010 1 COVER, LARGE METAL FOR OPERATOR
011 1 COVER, PLEXI GLASS FOR CIRCUIT BOARD
012 1 DRIVE SHAFT 1" WITH THREADED BODY
013 1 FITTING, 90 DEGREE FOR FLEX CONDUIT
014 1 FITTING, STRAIGHT FOR FLEX CONDUIT
015 1 FRAME SUBSTRATE
016 1 GEAR BOX SPEED REDUCER, ON MOTOR
017 1 HANDY BOX FOR 115 VOLT RECEPTACLE
018 1 HANDY BOX RECEPTACLE COVER PLATE
019 1 IDLER PLATE, FOR MOUNTING SPROCKETS
020 1 LIMIT GUIDE PLATE
021 2 COMPRESSION SPRING FOR GUIDE PLATE
022 2 LIMIT NUT
023 2 LIMIT SWITCH
024 0 LIMIT SWITCH ASSEMBLY
025 1 LIMIT SWITCH MOUNTING PLATE
026 2 MASTER LINK #41
027 1 MOTOR, 1/2 HP, 90VDC
028 0 OPTION, SPACE SAVER FOR REAR MOUNT
029 0 OPTION, STEEL MOUNTING STAND
030 2 PLATE, SIDE, RIGHT AND LEFT
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
050
051
052
053
054
055
056
057
058
059
060
1 POWER CORD "PIG TAIL"
1 RECEPTACLE, 115 VOLT DUPLEX
1 RELAY HOUSING BASE
1 RELAY HOUSING COVER
2 RELAY, 12 VOLT DC
1 RESISTOR, BALLAST, 10 OHM
1 SIGN, METAL CAUTION
1 SPROCKET, DRIVE #41, 1" BORE, 41B20
2 SPROCKET, IDLER #41, 3/4" BORE, 41B24
1 SPROCKET, LARGE GEAR REDUCTION 41B54
1 SPROCKET, SMALL GEAR REDUCTION ON MOTOR
4 STANDOFF, 1" ALUMINUM, M/F, FOR PLEXI GLASS
4 STANDOFF, 1/2" ALUMINUM, F/F, FOR CIRCUIT
BOARD
1 STICKER, AGS 3000
STICKER, AGS MANUFACTURING
1
STICKER, CAUTION1
STICKER, MANUAL RELEASE
1
STICKER, ON/OFF BREAKER1
STICKER, PATENT
1
STRAIN RELEIF CONNECTOR FOR PIG TAIL
1
SWITCH, MANUAL RELEASE
1
1
SWITCH, POWER ON/OFF TOGGLE
TRANSFORMER, 18 VOLT
1
1
TRANSFORMER, 70 VOLT
2
U-BOLT, ROUND
U-BOLT, SQUARE
2
2
BOLT, HEX HEAD 5/16"-18 X 3/4"
WASHER, SPLIT RING 5/16" ID
1
2
SCREW, 8-32 X 1" SOCKET HEAD CAP
4 SCREW, 6-32 X 3/8" PAN HEAD PHILLUPS
PART # QNTY. QNTY.
061 4 WASHER, 3/8" ID, STAINLESS
062 4 NUT, JAM STYLE
063 2 WASHER, SPLIT RING 5/8" ID
064 4 SCREW, SOCKET HEAD CAP
065 4 LOCK NUT
066 7 SCREW, SOCKET HEAD CAP 3/8"-16
067 20 FLAT WASHER, 3/8" ID
068 7 SCREW, SOCKET HEAD CAP
069 2 BOLT, HEX HEAD
070 2 BUSHING, BRONZE
071 1 KEY, 3/16"
072 2 SCREW, SOCKET HEAD CAP
073 4 WASHER, FLAT 3/16" ID
074 4 BOLT, HEX HEAD 3/8"-16
075 4 WASHER, SPLIT RING 3/8" ID
076 2 KEY, WOODRUF 1/4"
077 4 SCREW, PAN HEAD PHILLUPS
078 1 POWER CORD (PIG TAIL)
079 1 RECEIVER (OPTIONAL)
080
081
082
083
084
085
086
087
088
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
pg 7
Installation
INSPECT PACKAGING
TEST OPERATOR
Remove the gate operator from it's
package and make sure that all parts are
included. Refer to General Information and
Parts Identification. If any parts appear to be
missing, contact a dealer.
Temporarily plug the operator into
115 Volt outlet or extension cord.
Before beginning installation, test the
gate operator by running the operator back
and fourth 2 or 3 times. If the gate operator
appears to have any shipping damage,
contact a dealer.
If the gate operator is equipped with
radio controls, the operator may be run back
and fourth by pressing the radio transmitter.
If the gate operator is not equipped
with radio controls, the operator may be run
back and fourth by momentarily touching the
open input terminals together. The terminals
can be touched together with a short length of
wire, paper clip or needle nose pliers. For the
full systems capability circuit board, the open
input terminals are 5 and 6.
Disconnect Power when finished!
SET TRANSMITTER SWITCHES
pg 8
Now is a good time to set the radio
transmitter and receiver to a unique setting.
All units come from the factory with identical
settings and therefore it is advisable to
change the setting. To change the switch
setting, simply set the switches in the radio
receiver (using a paper clip or similar) to any
arbitrary setting and then set the switches in
the transmitter/s to match the switches in the
receiver. The battery in the transmitter may
last 1 to 2 years. Be sure to replace the
battery only with one that is the same type
as the original (9 Volt).
Installation continued...

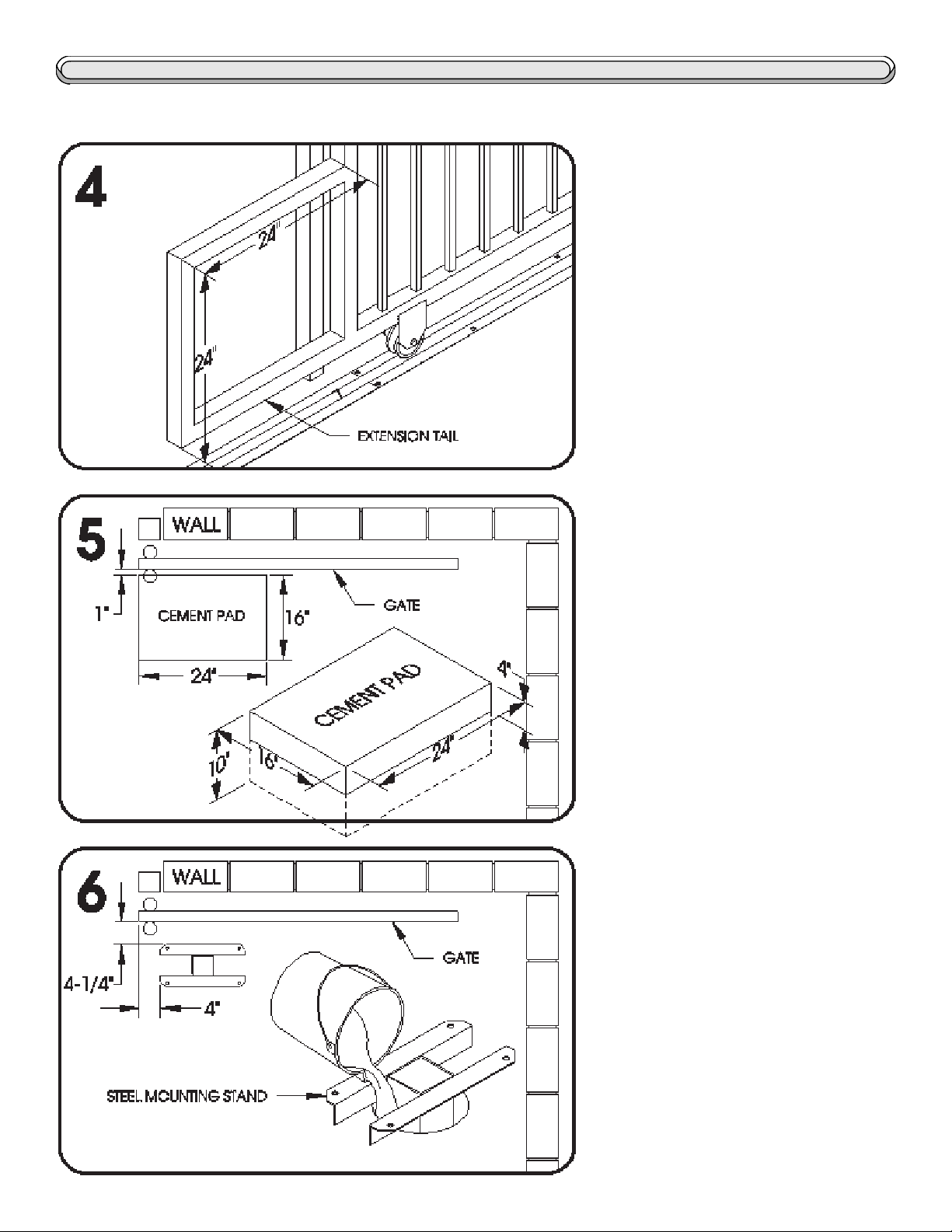

GATE PREPERATION
CEMENT PAD LOCATION
Disconnect Power from the gate
operator!
The tail end of the gate should
extend approximately 24" beyond the edge of
the driveway. If this is not the case, an
extension tail will need to be added to the
gate. This will give room for the gate operator.
Make the extension tail 24" X 24" as shown.
If the gate has not yet been fabricated, add
24" to the length of the gate.
If no concrete surface exists to
attach the gate operator to, make a cement
pad 16" X 24" X 10" (4" above ground). Place
the shortest pad edge even with the driveway
edge. Place the longer edge of the pad 1"
away from the gate.
OPTIONAL MOUNTING STAND
If the steel mounting stand will be
used, place the shortest edge of the stand 4"
from the driveway edge and place the longest
edge of the stand 4-1/2" away from the gate.
The top of the steel stand may sit on the
ground or the stand may be elevated to keep
the operator above snow, flooding etc. Make
a post hole and cement the stand in place,
making sure the stand is level and square to
the gate.
pg 9
Loading...
