GARAGE DOOR OPENER

For Residential Use Only

Model M3100M - 1/2HP

The Chamberlain Group, Inc.

845 Larch Avenue

Elmhurst, Illinois 60126-1196

www.chamberlain.com

Model M350M - 1/3HP

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the front panel of your opener.

is connected and properly aligned.

Introduction 2-5

Safety symbol and signal word review . . . . . . . . . . . . . . . 2

Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . 3

Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly 6-7

Attach the rail to the motor unit . . . . . . . . . . . . . . . . . . . . 6

Attach the chain to the sprocket

and install the sprocket cover . . . . . . . . . . . . . . . . . . . . . . 6

Tighten the chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation 7-22

Installation safety instructions . . . . . . . . . . . . . . . . . . . . . 7

Determine the header bracket location . . . . . . . . . . . . . . . 8

Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . . . 9

Attach the rail to the header bracket . . . . . . . . . . . . . . . . 10

Position the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Install the light(s) and lens(es) . . . . . . . . . . . . . . . . . . . . 13

Attach the emergency release rope and handle. . . . . . . . 13

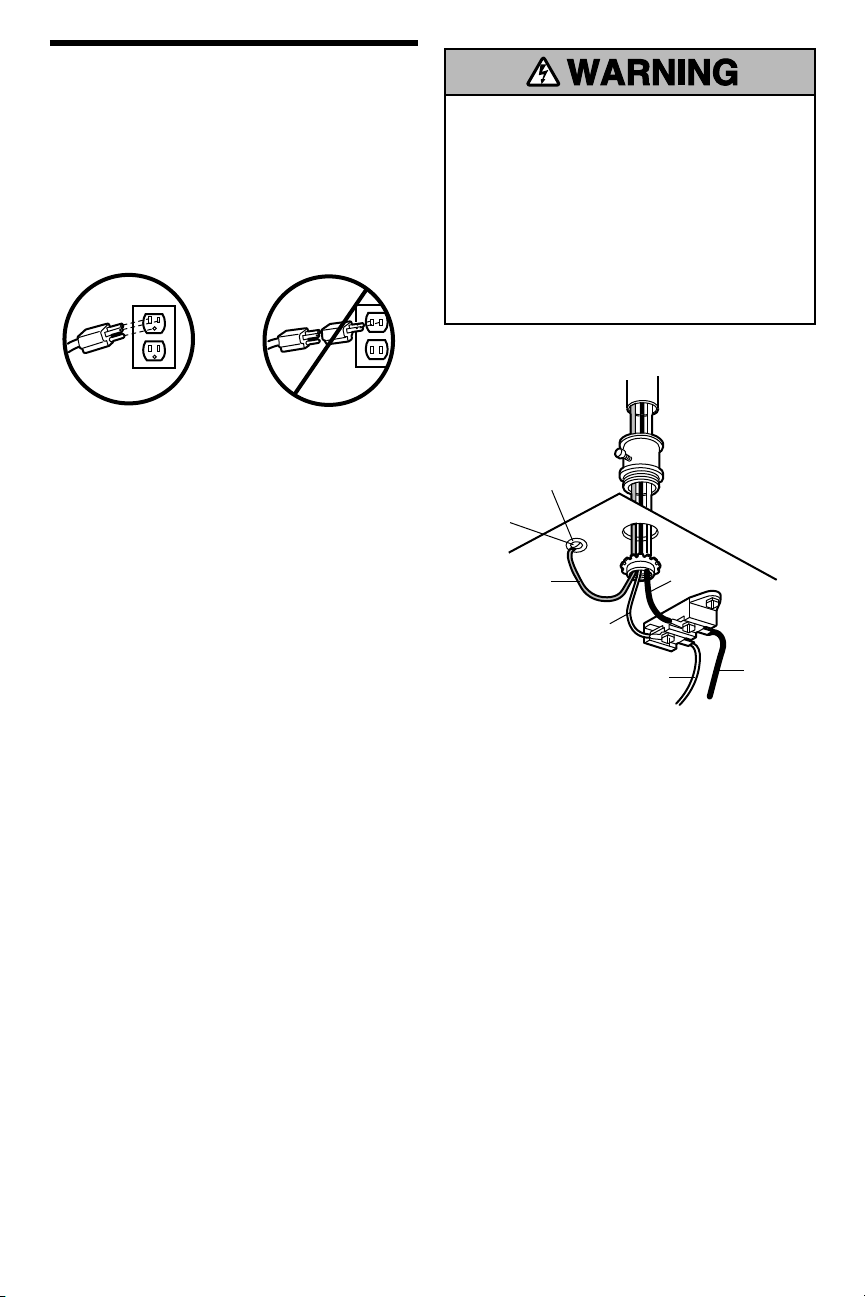

Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Install the Protector System

Fasten the door bracket. . . . . . . . . . . . . . . . . . . . . . . 19-20

Connect door arm to trolley . . . . . . . . . . . . . . . . . . . 21-22

. . . . . . . . . . . . . . . . . . 15-18

Adjustment 23-25

Adjust the UP and Down travel limits . . . . . . . . . . . . . . . 23

Adjust the force. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Test the safety reversal system. . . . . . . . . . . . . . . . . . . . 25

Test the Protector System

. . . . . . . . . . . . . . . . . . . . . . . 25

Operation 26-30

Operation safety instructions . . . . . . . . . . . . . . . . . . . . . 26

Using your garage door opener . . . . . . . . . . . . . . . . . . . 26

Using the wall-mounted door control . . . . . . . . . . . . . . . 27

To open the door manually . . . . . . . . . . . . . . . . . . . . . . . 27

Care of your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programming 31-32

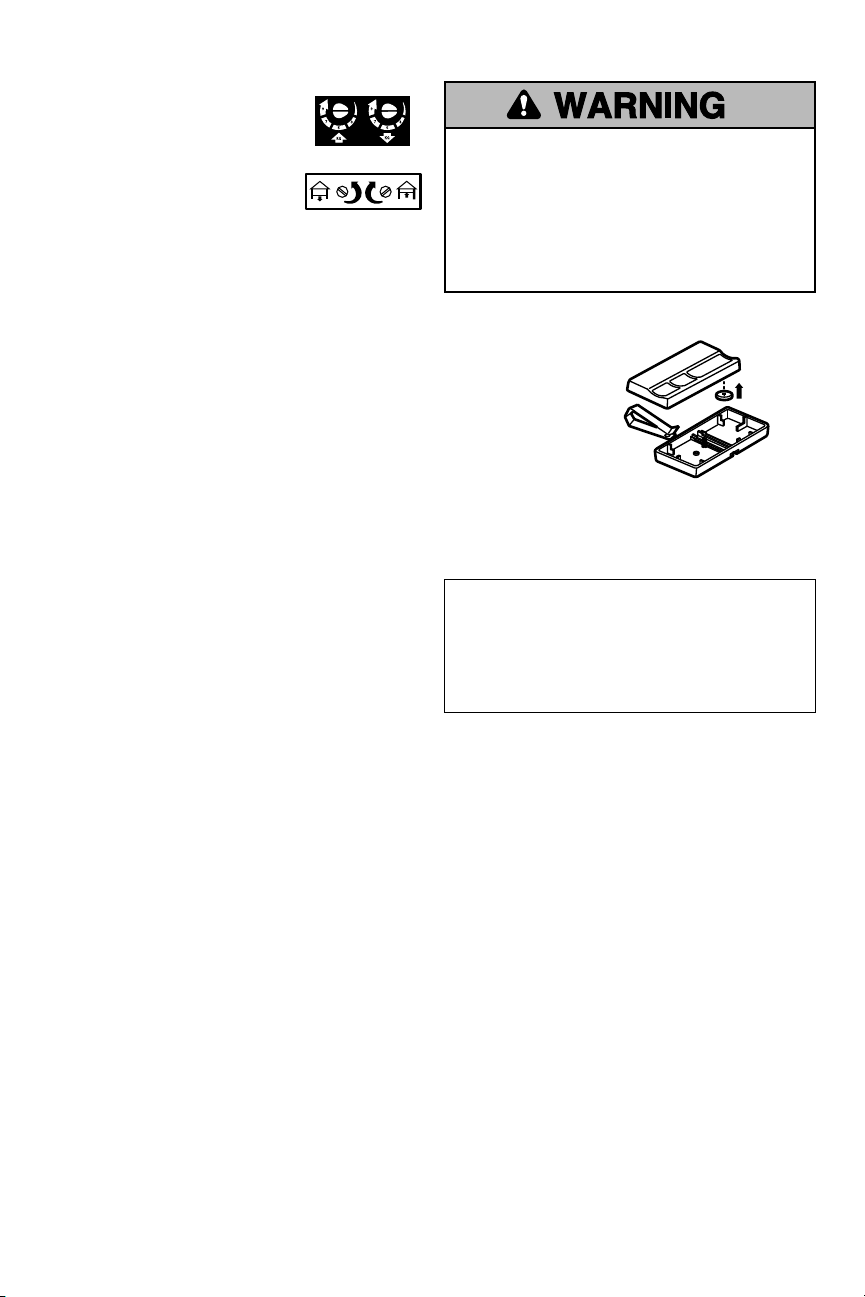

To add or reprogram a hand-held remote control. . . . . . 31

To erase all codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To add, reprogram or change

a Keyless Entry PIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Repair Parts 33-34

Rail assembly parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . 34

Accessories 35

Repair Parts and Service 36

Warranty 36

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the

Mechanical

Electrical

warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the

door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any

binding or sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

Sectional Door

To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks or is out of balance. An unbalanced garage door may NOT reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

Stepladder

One-Piece Door

Carpenter’s Level (Optional)

Drill

1/2" and 7/16" Sockets and Wrench

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

Tape Measure

3/16", 5/16" and 5/32" Drill Bits

Pencil

Wire Cutters

Screwdriver

Hack Saw

Claw Hammer

Pliers

Adjustable End Wrench

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may ﬁ nd it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

SECTIONAL DOOR INSTALLATION

Horizontal and vertical reinforcement is needed for lightweight garage doors (ﬁ berglass, steel, aluminum, door with glass panels, etc.). See page 19 for details.

Header Wall

Door Center

Gap between ﬂ oor and bottom of

Safety Reversing Sensor

door must not exceed 1/4" (6 mm).

ONE-PIECE DOOR WITHOUT TRACK

Header Wall

Slack in chain tension is normal when garage door is closed.

Torsion Spring

Safety Reversing Sensor

Slack in chain tension is normal when garage door is closed.

FINISHED CEILING Support bracket & fastening hardware is required. See page 11.

Extension Spring

Access Door

FINISHED CEILING Support bracket & fastening hardware is required. See page 11.

Motor Unit

Wall-Mounted Door Control

Motor Unit

Safety Reversing Sensor

Wall-Mounted Door Control

Safety Reversing Sensor

Gap between ﬂ oor and bottom of door must not exceed 1/4" (6 mm).

Access Door

ONE-PIECE DOOR WITH TRACK

Slack in chain tension is normal when garage door is closed.

Access

Door Safety Reversing Sensor

Gap between ﬂ oor and bottom of door must not exceed 1/4" (6 mm).

Carton Inventory

Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model purchased.

If anything is missing, carefully check the packing material. Parts may be stuck in the foam. Hardware for installation is also listed below.

(Model M3100M)

Multi-Function Door Control Panel

(Model M3100M)

Light Lens (2)

Header Bracket

Chain Pulley Bracket

Lighted Door Control Button with 6ABx1-1/2" Screws

(Model M350M)

Light Lens (1)

(Model M3100M)(Model M350M)

Trolley

SECURITY✚ 3-Button Remote Control

Sprocket Cover

Door Bracket

One-Piece T-rail

(Model M350M)

SECURITY✚ Single-Button Remote Control

Chain

Curved Door Arm Section

2-Conductor Bell Wire White & White/Red

Remote Control Visor Clip

Styrofoam

Safety Reversing Sensor Bracket (2)

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4) Lag Screw 5/16"-9x1-5/8" (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1) Nut 5/16"-18 (4) Lock Washer 5/16" (4) Screw 6ABx1-1/4" (2) Screw 6-32x1" (2)

The Protector System (2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye) with 2-Conductor White & White/Black Bell Wire attached

Self-Threading Screw 1/4"-14x5/8" (2) Insulated Staples Ring Fastener (3) Drywall Anchors (2) Rope Handle Carriage Bolt 1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2)

Safety Labels

and

Literature

Straight Door Arm Section

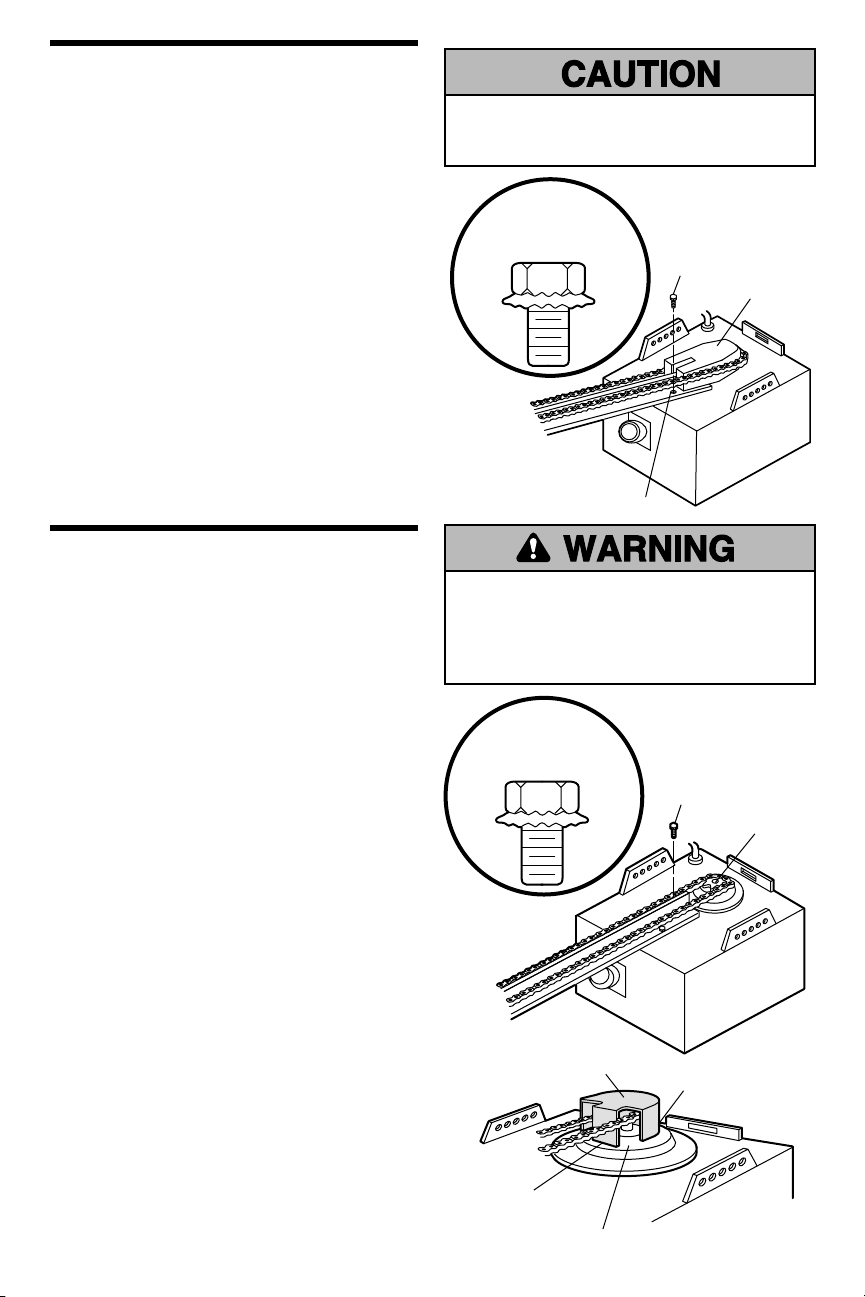

ASSEMBLY STEP 1

Attach the Rail to the Motor Unit

To avoid installation difﬁ culties, do not run the garage door opener until instructed to do so.

• Remove the two washered bolts mounted in top of motor unit.

• Position rail at a 45° angle to opener so one hole in rail and motor unit line up.

• Thread one of the washered bolts part way in.

Use only these bolts! Use of any other bolts will cause serious damage to door opener.

• Align rail and styrofoam over sprocket. Cut tape from rail, chain and styrofoam.

• REMOVE STYROFOAM.

ASSEMBLY STEP 2

Attach the Chain to the Sprocket and Install the Sprocket Cover

• Position chain over the sprocket. If necessary, loosen the outer nut on the trolley to obtain more chain slack.

• Insert the second washered bolt. CAUTION: Use only

the bolt previously removed from motor unit!

• Tighten both bolts securely through the rail into the motor unit as shown.

• Install the sprocket cover: Insert the back tab in the slot. Squeeze the cover slightly and insert the front tab in the slot on the mounting plate.

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the opener.

USE ONLY THIS TYPE AND SIZE

BOLT

Washered Bolt 5/16"-18x1/2"

Styrofoam

Rail Hole

To avoid possible SERIOUS INJURY to ﬁ ngers from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.

• Securely attach sprocket cover BEFORE operating.

USE ONLY THIS TYPE AND SIZE

BOLT

Washered Bolt 5/16"-18x1/2"

Motor Unit Sprocket

Sprocket Cover

Back Tab Slot

Front Tab Slot

Mounting Plate

ASSEMBLY STEP 3

WARNING

WARNING WARNING

Tighten the Chain

• Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown (Figure 1).

• When the chain is approximately 1/2" (13 mm) above the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is too loose. When installation is complete, you may notice some chain

droop with the door closed. This is normal. If the chain returns to the position shown in Figure 2 when the door is open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect trolley before adjusting chain.

NOTE: You may notice loosening of chain after Adjustment Step 3 (Test the Safety Reversal System). Check for proper tension and readjust chain if necessary. Then repeat Adjustment Step 3.

You have now ﬁ nished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.

Figure 1

To Tighten Outer Nut

Trolley

Figure 2

Base of Rail

Chain

Lock

Outer

Washer

Nut

Mid Length of Rail

Inner Nut

To Tighten Inner Nut

1/2" (13 mm)

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.

4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above ﬂ oor.

6. Mount emergency release within reach, but at least 6 feet (1.83 m) above the ﬂ oor and avoiding contact with vehicles to avoid accidental release.

7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of

5 feet (1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safety reverse test label in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid ﬂ at) on the ﬂ oor.

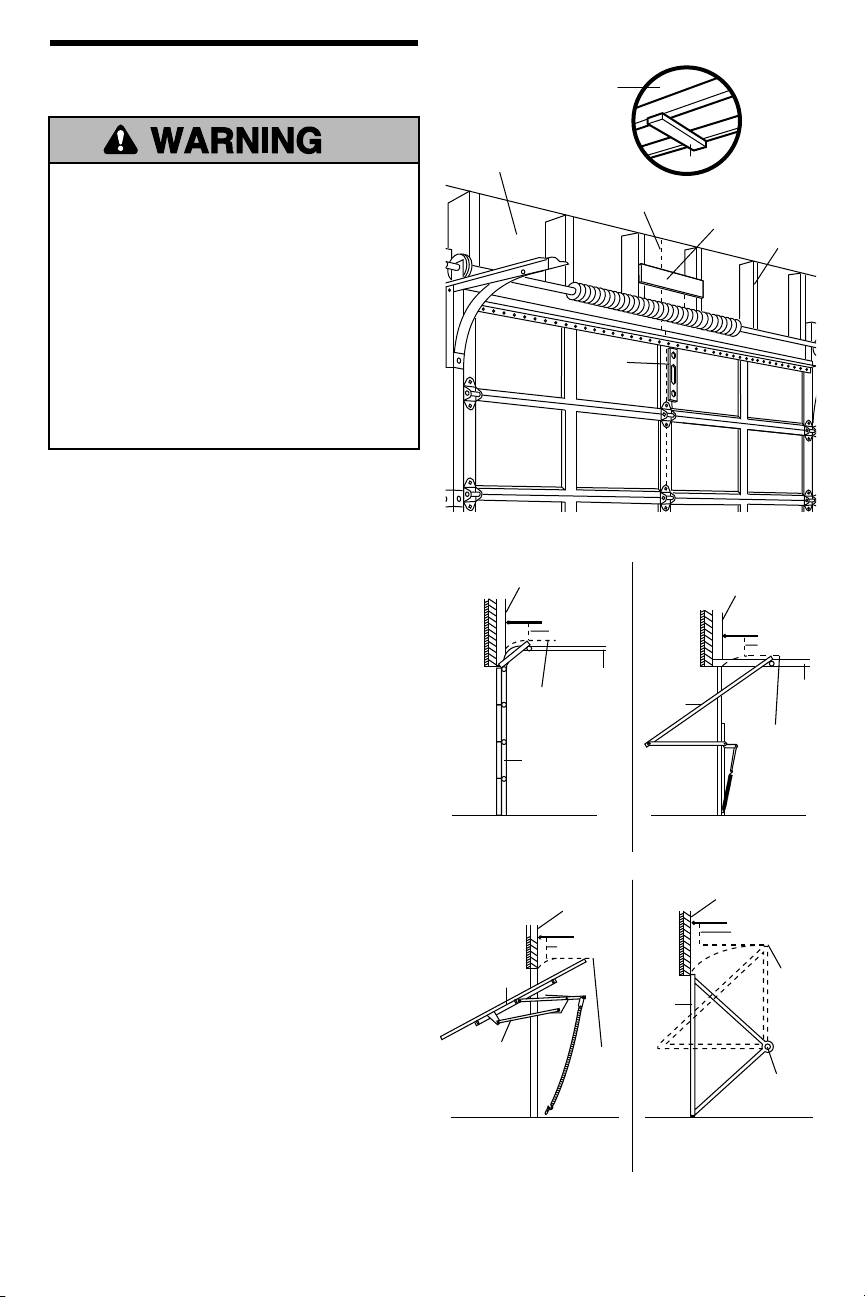

INSTALLATION STEP 1

Determine the Header Bracket Location

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might NOT reverse when required.

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet

(1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 9) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).)

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 9.

3. Open your door to the highest point of travel as shown. Draw an inter secting horizontal line on the header wall above the high point:

• 2" (5 cm) above the high point for sectional door

and one-piece door with track.

• 8" (20 cm) above the high point for one-piece door

without track.

This height will provide travel clearance for the top

edge of the door.

NOTE: If the total number of inches exceeds the height

available in your garage, use the maximum height possible, or refer to page 9 for ceiling installation.

Header Wall

Highest Point of Travel

Door

Sectional door with curved track

Door

Jamb Hardware

Unﬁ nished Ceiling

Level (optional)

2" (5 cm)

Track

Header Wall

8" (20 cm)

Highest Point of Travel

Vertical Centerline of Garage Door

Door

One-piece door with horizontal track

Door

2x4

Header Wall

8" (20 cm)

OPTIONAL CEILING MOUNT FOR HEADER BRACKET

Structural Supports

2" (5 cm)

Track

Highest Point of Travel

Pivot

One-piece door without track: jamb hardware

One-piece door without track: pivot hardware

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do

not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

Wall Mounting Holes

Optional Wall Mounting Holes

- Header Wall -

2x4 Structural Support

Vertical Centerline of Garage Door

Header Bracket

Lag Screws 5/16"-9x1-5/8"

HARDWARE SHOWN ACTUAL SIZE

Lag Screw 5/16"-9x1-5/8"

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted ﬂ ush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Ceiling Mounting Holes

Horizontal Line

Highest Point of Garage Door Travel

6" (15 cm) Maximum

Door Spring

- Garage Door -

Vertical Centerline of Garage Door

- Finished Ceiling -

Header Bracket

Lag Screws 5/16"-9x1-5/8"

Vertical Centerline of Garage Door

- Header Wall -

Garage Door

Vertical Centerline of Garage Door

INSTALLATION STEP 3

Attach the Rail to the Header Bracket

• Position the opener on the garage ﬂ oor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need

help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

HARDWARE SHOWN

ACTUAL SIZE

Ring Fastener

Header Wall

Header Bracket

Chain Pulley Bracket

T-rail

Garage Door

Header Bracket

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Chain Pulley Bracket

Rail

Clevis Pin 5/16"x2-3/4"

INSTALLATION STEP 4

Position the Opener

Follow instructions which apply to your door type as illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK

A 2x4 laid ﬂ at is convenient for setting an ideal door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid ﬂ at on the top section beneath the rail.

• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain disconnected until Installation Step 12 is completed.

Trolley

ENGAGED

Release Arm

ONE-PIECE DOOR WITHOUT TRACK

A 2x4 on its side is convenient for setting an ideal door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 on its side on the top section of the door beneath the rail.

• The top of the door should be level with the top of the motor unit. Do not position the opener more than 4" (10 cm) above this point.

RELEASED

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

Rail

Door

Header Bracket

2x4 is used to determine the correct mounting height from ceiling.

Top of Door

2x4 is used to determine the correct mounting height from ceiling.

Temporary Support

INSTALLATION STEP 5

Hang the Opener

Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On ﬁ nished ceilings (Figure 2 and Figure 3), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided.

1. Measure the distance from each side of the motor unit to the structural support.

2. Cut both pieces of the hanging bracket to required lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with 5/16"-18x1-7/8" lag screws (not provided).

5. Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

NOTE: DO NOT connect power to opener at this time.

HARDWARE SHOWN ACTUAL SIZE

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.

Figure 1

Structural Support

(Not provided) Lag Screws 5/16"-18x1-7/8"

Measure Distance

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Figure 2

Hidden Support

Bracket (Not Provided)

FINISHED CEILING

(Not provided) Lag Screws 5/16"-18x1-7/8"

(Not Provided)

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Hex Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Figure 3

(Not provided) Lag Screws 5/16"-18x1-7/8"

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

(Not Provided)

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

INSTALLATION STEP 6

Install the Door Control

Locate door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from moving parts of the door and door hardware. The installation surface must be smooth and ﬂ at. If installing into drywall (Figure 1), drill 5/32" holes and use anchors provided. For pre-wired installations (as in new home construction), it may be mounted to a single gang box (Figure 2). NOTE: After installation, a

green indicator light behind the cover will indicate proper connection. If not lit, the Lock and Light features will not function (reverse wires to correct).

1. Strip 1/4" of insulation from one end of bell wire and connect to the two screw terminals on back of door control by color: white wire to 2 and white/red wire to 1. (Figure 3)

2. Lighted door control: Fasten to wall with 6ABx1-1/2" self-tapping screws.

Multi-function door control: Remove cover by gently

prying on a side corner near the top of the cover with a small ﬂ at head screwdriver (Figure 4). Fasten with 6ABx1-1/4" self-tapping screws (drywall installation) or 6-32x1" machine screws (into gang box) as follows:

• Drill and install bottom screw, allowing 1/8" to

protrude above wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug ﬁ t.

• Install top screw with care to avoid cracking plastic

housing. Do not overtighten.

• Insert bottom tabs and snap on cover. (To remove

cover after mounting, gently pry at top with paper clip or small ﬂ at head screwdriver.)

NOTE: The push bar may stick if the door control is not mounted on a smooth surface. If a click is not heard when pressing the push bar, loosen the two mounting screws or relocate the door control to a smoother surface.

3. (Standard installation only) Run bell wire up wall and across ceiling to motor unit. Use insulated staples to secure wire in several places. Do not pierce wire with a staple, creating a short or open circuit.

4. Connect bell wire to the opener terminal screws as follows: white to 2 and white/red to 1. (Figure 5)

5. Use tacks or staples to permanently attach entrapment warning label to wall near door control, and manual release/safety reverse test label in a prominent location on inside of garage door.

NOTE: DO NOT connect the power and operate the opener at this time. The trolley will travel to the full open position but will not return to the close position until the sensor beam is connected and properly aligned. See Safety Reversing Sensor Instructions beginning on page 15.

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing door control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.

• NEVER permit children to operate or play with door control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.

HARDWARE SHOWN ACTUAL SIZE

6ABx1-1/2" Screw Lighted Door Control Button

-2

-1

Opener Terminal Screws

Insulated Staples

Drywall Anchors

PRE-WIRED INSTALLATION

Single Gang Box

24 Volt Bell Wire

Figure 4

REMOVE COVER

2 3

6ABx1-1/4" Screw (standard installation)

6-32x1" Screw (pre-wired installation)

Figure 1 Figure 2

To Replace Insert Bottom Tabs First

STANDARD INSTALLATION

To Replace Insert Bottom Tabs First

Figure 3

MULTI-FUNCTION DOOR CONTROL (BACK)

Top Mounting Hole

WHT

RED

Bell Wire Bottom Mounting Hole

Figure 5

Push Button

Push Bar

Terminal Screws

Bell Wire

DOOR CONTROL BUTTON (BACK)

WHT

RED

Lock Button

BACK PANEL

Light Button

INSTALLATION STEP 7

Install the Light(s) and Lens(es)

INSTALL THE LIGHTS

• Install up to a 75 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The light(s) will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the light(s) will turn OFF.

• Use A19, standard neck garage door opener bulbs for replacement.

INSTALL THE LENSES: (Model M3100M) Figure 1

• Slide lenses into guides. Snap bottom tabs into lens slots.

• Reverse the procedure to remove the lenses.

INSTALL THE LENS: (Model M350M) Figure 2

• Locate and loosen (approximately 1/8") the two screws near top of motor unit front panel. Position lens against panel with slotted tabs directly below screws. Slide lens up to seat tabs behind screws. Snap bottom tabs of lens into panel slots. Retighten top panel screws to secure lens.

NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket.

To prevent possible OVERHEATING of the endpanel or light socket:

• DO NOT use short neck or specialty light bulbs.

• DO NOT use halogen bulbs. Use ONLY incandescent. To prevent damage to the opener:

• DO NOT use bulbs larger than 75W.

• ONLY use A19 size bulbs.

Figure 1

Lens Guide

Lens Tab

Lens Slot

75 Watt (Max) Light Bulb

Figure 2

Light Lens

Panel

Lens Slot

Screw

INSTALLATION STEP 8

Attach the Emergency Release Rope and Handle

• Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.83 m) above the ﬂ oor. Ensure that the rope and handle clear the tops of all vehicles to avoid entanglement. Secure with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

Lens Tab

75 Watt (Max) Light Bulb

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/ or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

Trolley

Rope

Trolley Release Arm

Emergency Release Handle

Overhand Knot

INSTALLATION STEP 9

Electrical Requirements

To avoid installation difﬁ culties, do not run the opener at this time.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only ﬁ t into a grounding type outlet. If the plug doesn’t ﬁ t into the outlet you have, contact a qualiﬁ ed electrician to install the proper outlet.

RIGHT WRONG

To prevent possible SERIOUS INJURY or DEATH from electrocution or ﬁ re:

• Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing cover to establish permanent wiring connection.

• Garage door installation and wiring MUST be in compliance with ALL local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it ﬁ t outlet. Be sure the opener is grounded.

PERMANENT WIRING CONNECTION

If permanent wiring is required by your local code, refer to the following procedure.

To make a permanent connection through the 7/8" hole in the top of the motor unit:

• Remove the motor unit cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw. The opener must be grounded.

• Reinstall the cover.

To avoid installation difﬁ culties, do not run the opener at this time.

Green Ground Screw

Ground Wire

Ground Tab

White Wire

Black Wire

INSTALLATION STEP 10

Install The Protector System

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam. The sending eye (with an amber indicator light) transmits an invisible light beam to the receiving eye (with a green indicator light). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to full open position, and the opener lights will ﬂ ash 10 times.

The units must be installed inside the garage so that the sending and receiving eyes face each other across the door, no more than 6" (15 cm) above the ﬂ oor. Either can be installed on the left or right of the door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track of sectional garage doors without additional hardware.

Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage ﬂ oor.

If it is necessary to mount the units on the wall, the brackets must be securely fastened to a solid surface such as the wall framing. Extension brackets (see Accessories) are available if needed. If installing in masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door is closing.

Safety Reversing Sensor 6" (15 cm) max. above ﬂ oor

Invisible Light Beam Protection Area

Facing the door from inside the garage.

Safety Reversing Sensor 6" (15 cm) max. above ﬂ oor

INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the ﬂ oor. They may be installed in one of three ways, as follows.

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each door track, with the curved arms facing the door. Snap into place against the side of the track. It should lie ﬂ ush, with the lip hugging the back edge of the track, as shown in Figure 1.

If your door track will not support the bracket securely, wall installation is recommended.

Wall installation (Figures 2 & 3):

• Place the bracket against the wall with curved arms facing the door. Be sure there is enough clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket (see Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on the wall at each side of the door, no higher than 6" (15 cm) above the ﬂ oor.

• Attach brackets to wall with lag screws (not provided).

• If using extension brackets or wood blocks, adjust right and left assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (see Accessories) to elevate sensor brackets so the lenses will be no higher than 6" (15 cm) above the ﬂ oor.

• Carefully measure and place right and left assemblies at the same distance out from the wall. Be sure all door hardware obstructions are cleared.

• Fasten to the ﬂ oor with concrete anchors as shown.

HARDWARE SHOWN ACTUAL SIZE

Figure 1

Figure 2

Figure 3

(Provided with Extension Bracket)

DOOR TRACK MOUNT (RIGHT SIDE)

Door Track

Safety Reversing Sensor Bracket

WALL MOUNT (RIGHT SIDE)

Lip

Extension Bracket (See Accessories)

Indicator Light

Lens

Fasten Wood Block to Wall with Lag Screws (Not Provided)

Indicator Light

Lens

(Provided with Extension Bracket)

Lens

Indicator Light

Safety Reversing Sensor Bracket

Lag Screws (Not Provided)

Safety Reversing Sensor Bracket

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

Staples

Figure 4

FLOOR MOUNT (RIGHT SIDE)

Lens

Attach with Concrete Anchors (Not Provided)

Indicator Light

Safety Reversing Sensor Bracket

MOUNTING AND WIRING THE SAFETY REVERSING SENSORS

Mounting:

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 5).

• Finger tighten the wing nuts.

Option A - Installation Without Pre-Wiring:

• Run the bell wire from both sensors to the garage door opener. Attach the wire to the wall and ceiling with the staples (Figure 6).

Option B - Pre-Wired Installation:

If your garage already has wires installed for the safety reversing sensors, follow the instructions below:

• Cut the end of the safety reversing sensor wire, making sure there is enough wire to reach the pre-installed wires from the wall (Figure 7).

• Separate the safety reversing sensor wires and strip 1/4" (6 mm) of insulation from each end. Choose two of the pre-installed wires and strip 1/4" (6 mm) of insulation from each end. Make sure that you choose the same color pre-installed wires for each sensor (Figure 8).

• Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors correspond for each sensor (Figure 9).

Figure 5

Carriage Bolt 1/4"-20x1/2"

Figure 6

Figure 7

Wing Nut 1/4"-20

Lens

Figure 8

Safety Reversing Sensor Wires

Figure 9

Safety Reversing Sensor Wires

White

White/Black

1/4" (6 mm)

Not Provided

Pre-Installed Wires

1/4" (6 mm)

Pre-Installed

Wires

Connect to garage door opener:

• Strip 1/4" (6 mm) of insulation from each set of wires. Separate white and white/black wires sufﬁ ciently to connect to the opener terminal screws: white to 2 and white/black to 3 (Figure 10).

Figure 10

- Finished Ceiling -

Bell Wire

Safety Reversing Sensor

Bell Wire

Invisible Light Beam Protection Area

ALIGNING THE SAFETY REVERSING SENSORS

• Plug in the opener. The indicator lights in both the sending and receiving eyes will glow steadily if wiring connections and alignment are correct.

The sending eye amber indicator light will glow regardless of alignment or obstruction. If the green indicator light in the receiving eye is off, dim, or ﬂ ickering (and the invisible light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

Connect Wire to Opener Terminal Screws

1/4" (6 mm)1. Strip wire 1/4" (6 mm)

2. Connect to the opener terminal screws

Safety Reversing Sensor

Door Control Connections (Dotted Line)

OPENER TERMINAL SCREWS

Safety Reversing Sensor Connections

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at terminal connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn’t:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will blink 10 times. See page 15.

INSTALLATION STEP 11

Fasten the Door Bracket

Follow instructions which apply to your door type as illustrated below or on the following page.

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 12.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws. (Figure 2A)

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 2B)

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure 3)

Wood Doors:

• Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

HARDWARE SHOWN ACTUAL SIZE

Self-Threading Screw 1/4"-14x5/8"

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket. Contact your door manufacturer for reinforcement kit.

Header Bracket

Door Bracket Location

Vertical Centerline of Garage Door

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Figure 1

Vertical

Vertical Reinforcement

Vertical Centerline of Garage Door

Door Bracket

Self-Threading Screw 1/4"-14x5/8"

Reinforcement

Bolt 5/16"-18x2" (Not Provided)

Door Bracket

Figure 2A

Bolt 5/16"x2" (Not Provided)

Vertical Centerline of Garage Door

Vertical Centerline of Garage Door UP

Self-Threading Screw 1/4"-14x5/8"

Figure 3

Vertical Centerline of Garage Door

Lock Washer

Nut

5/16"

5/16"-18

Inside Edge of Door or Reinforcement Board

Figure 2B

Figure 4

ONE-PIECE DOORS

Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also.

• Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.

• Metal Doors: Drill 3/16" pilot holes and fasten the bracket with the 1/4"-14x5/8" self-threading screws provided.

• Wood Doors: Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2" lag screws (not provided) depending on your installation needs.

NOTE: The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.)

HARDWARE SHOWN

ACTUAL SIZE

Self-Threading Screw 1/4"-14x5/8"

Header Wall

Header Bracket

Door Bracket

Optional Placement of Door Bracket

Vertical Centerline of Garage Door

- Finished Ceiling -

2x4 Support

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

For a door with no exposed framing, or for the optional installation, use lag screws 5/16"x1-1/2" (Not Provided) to fasten door bracket.

Door Bracket

Nut 5/16"-18

Door Bracket

Self-Threading Screw 1/4"-14x5/8"

Top of Door (Inside Garage)

Top Edge of Door

Optional Placement

METAL DOOR

Lock Washer 5/16"

Top of Door (Inside Garage)

Top Edge of Door

Optional Placement

Carriage Bolt 5/16"x2" (Not Provided)

WOOD DOOR

INSTALLATION STEP 12

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on the following page.

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3.

• Figure 1:

– Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a ring fastener.

– Fasten curved section to the door bracket in the

same way, using the 5/16"x1-1/4" clevis pin.

IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm (Figure 4).

• Figure 2:

– Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

• Figure 3, Hole alignment alternative:

– If holes in curved arm are above holes in straight

arm, disconnect straight arm. Cut about 6" (15 cm) from the solid end. Reconnect to trolley with cut end

down as shown. – Bring arm sections together. – Find two pairs of holes that line up and join with

bolts, lock washers and nuts.

• Pull the emergency release handle toward the opener at

a 45° angle so that the trolley release arm is horizontal. Proceed to Adjustment Step 1, page 23. Trolley will re-engage automatically when opener is operated.

Figure 1

Figure 2

Figure 3

Outer Trolley

Nuts 5/16"-18

Door Bracket

Inner Trolley

Ring Fastener

Door Bracket

Clevis Pin 5/16"x1-1/4"

Lock Washers 5/16"

Clevis Pin 5/16"x1"

Emergency Release Handle

Straight Door Arm

Curved Door Arm

Bolts 5/16"-18x7/8"

Nut 5/16"-18 Ring Fastener

Clevis Pin 5/16"x1-1/4" (Door Bracket)

Clevis Pin 5/16"x1" (Trolley)

HARDWARE SHOWN

ACTUAL SIZE

Lock Washer 5/16"

Hex Bolt 5/16"-18x7/8"

Lock Washers 5/16"

Nuts 5/16"-18

Cut This End

Figure 4

CORRECT INCORRECT

Straight Door Arm

Curved (Groove facing out)

Door

Arm

Bolts 5/16"-18x7/8"

Straight Door Arm

Curved Door Arm

ALL ONE-PIECE DOORS

1. Assemble the door arm, Figure 5:

IMPORTANT: The groove on the straight door arm MUST

face away from the curved door arm.

• Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap).

• With the door closed, connect the straight door arm section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

2. Adjustment procedures, Figure 6:

• On one-piece doors, before connecting the door arm to the trolley, the travel limits must be adjusted. Limit adjust ment screws are located on the left side panel as shown on page 23. Follow adjustment procedures below.

• Open door adjustment: decrease UP travel limit

- Turn the UP limit adjustment screw counterclockwise 4 turns.

- Press the Door Control push button. The trolley will travel to the fully open position.

- Manually raise the door to the open position (parallel to the ﬂ oor), and lift the door arm to the trolley. The arm should touch the trolley just in back of the door arm connector hole. Refer to the fully open trolley/ door arm positions in the illustration. If the arm does not extend far enough, adjust the limit further. One full turn equals 2" (5 cm) of trolley travel.

• Closed door adjustment: decrease DOWN travel

limit

- Turn the DOWN limit adjustment screw clockwise 4 complete turns.

Figure 6

Inner Trolley

Door Arm Connector Hole

Door Arm

Outer Trolley

Figure 5

CORRECT INCORRECT

Straight Door Arm

(Groove facing out)

Door Bracket

Clevis Pin 5/16"x1-1/4"

Curved Door Arm

Ring Fastener

Straight Arm

Bolts 5/16"-18x7/8"

Straight Door Arm

Lock Washers 5/16"

Curved Door Arm

Nuts 5/16"-18

Curved Door Arm

- Press the Door Control push button. The trolley will travel to the fully closed position.

- Manually close the door and lift the door arm to the trolley. The arm should touch the trolley just ahead of the door arm connector hole. Refer to the fully closed trolley/door arm positions in the illustration. If the arm is behind the connector hole, adjust the limit further. One full turn equals 2" (5 cm) of trolley travel.

3. Connect the door arm to the trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight “backward” slant in full open position as shown in the illustration, decrease the UP limit until the door is parallel to the ﬂ oor.

NOTE: When setting the up limit on the following page, the door should not have a “backward”slant when fully open as illustrated below. A slight backward slant will cause unnecessary bucking and/or jerking operation as the door is being opened or closed from the fully open position.

Closed Door

Inner Trolley

Open Door

Emergency Release Handle

Correct Angle

Outer Trolley

Door Arm

Door with Backward Slant

(Incorrect)

ADJUSTMENT STEP 1

Adjust the UP and DOWN Travel Limits

Limit adjustment settings regulate the points at which the door will stop when moving up or down.

To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (Adjustment Step 3, page 25).

Adjustment procedures are outlined below. Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments. Run

the opener through a complete travel cycle after each adjustment.

NOTE: Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE LIMITS

• If the door does not open completely but opens at least ﬁ ve feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 2" (5 cm) of travel.

NOTE: To prevent the trolley from hitting the cover

protection bolt, keep a minimum distance of 2-4" (5 cm - 10 cm) between the trolley and the bolt.

• If door does not open at least 5 feet (1.5 m):

Adjust the UP (open) force as explained in Adjustment

Step 2.

• If the door does not close completely:

Increase down travel. Turn the down limit adjustment

screw counterclockwise. One turn equals 2" (5 cm) of travel.

If door still won't close completely and the trolley

bumps into the pulley bracket (page 4), try lengthening the door arm (page 21) and decreasing the down limit.

• If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit adjustment

screw clockwise. One turn equals 2" (5 cm) of travel.

• If the door reverses when closing and there is no visible interference to travel cycle:

If the opener lights are ﬂ ashing, the Safety Reversing

Sensors are either not installed, misaligned, or obstructed. See Troubleshooting, page 18.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door is binding or unbalanced, call for a trained door systems technician. If the door is balanced and not binding, adjust the DOWN (close) force. See Adjustment Step 2.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid ﬂ at) on ﬂ oor.

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Cover Protection Bolt

2-4"

(5-10 cm)

Travel Limit Adjustment Screws

Adjustment Label

ADJUSTMENT STEP 2

Adjust the Force

Force adjustment controls are located on the back panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door.

If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction. Weather conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is about 3/4 of a complete turn. Do not force controls beyond that point.

Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not guarantee reversal on a 1-1/2" (3.8 cm) obstruction. See Adjustment Step 3, page 25. If the door is hard to

hold or doesn’t reverse, DECREASE the DOWN (close) force by turning the control counterclockwise. Make small adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

• If the door reverses during the down (close) cycle and the opener lights aren’t ﬂ ashing, INCREASE

DOWN (close) force by turning the control clockwise. Make small adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do not increase the

force beyond the minimum amount required to close the door.

2. Test the UP (open) force

• Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn’t stop, DECREASE UP (open) force by turning the control counterclockwise. Make small adjustments until the door stops easily and opens fully. After each adjustment, run the opener through a complete travel cycle.

• If the door doesn’t open at least 5 feet (1.5 m),

INCREASE UP (open) force by turning the control clockwise. Make small adjustments until door opens completely. Readjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close garage door.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid ﬂ at) on ﬂ oor.

Force Adjustment Controls

BACK PANEL

FORCE ADJUSTMENT LABEL

Close ForceOpen Force

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid ﬂ at) on the ﬂ oor, centered under the garage door.

• Operate the door in the down direction. The door must reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far enough in the down direction. Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

NOTE: On a sectional door, make sure limit

adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 21.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board, remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

• If the unit continues to fail the Safety Reverse Test, call for a trained door systems technician.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage ﬂ oor.

• Any repair to or adjustment of the opener.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid ﬂ at) on the ﬂ oor.

1-1/2" (3.8 cm) board (or a 2x4 laid ﬂ at)

ADJUSTMENT STEP 4

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm), and the opener lights will ﬂ ash.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6" (15 cm) above the ﬂ oor), call for a trained door systems technician.

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

Safety Reversing Sensor Safety Reversing Sensor

OPERATION

WARNING

WARNING WARNING

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight and away from people and objects until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPEN DOOR.

6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Use caution when using this release with the door open. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJURY or DEATH.

7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal system MUST be tested.

11. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or a 2x4 laid ﬂ at) on the ﬂ oor. Failure to adjust the garage door opener properly increases the risk of SEVERE INJURY or DEATH.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 3). An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.

13. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.

14. ALWAYS disconnect electric power to garage door opener BEFORE making ANY repairs or removing covers.

15.

SAVE THESE INSTRUCTIONS.

Using Your Garage Door Opener

Your Security✚® opener and hand-held remote control have been factory-set to a matching code which changes with each use, randomly accessing over 100 billion new codes. Your opener will operate with up to eight Security✚® remote controls and one Security✚® Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your opener with any of the following:

• The Hand-Held Remote Control: Hold the large push button down until the door starts to move.

• The Wall-Mounted Door Control: Hold the push button or bar down until the door starts to move.

• The Keyless Entry (See Accessories): If provided with your garage door opener, it must be programmed before use. See Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse. If the obstruction interrupts the sensor beam, the opener lights will blink for ﬁ ve seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door won’t close from a hand-held remote. However, you can close the door with the Door Control, the Outside Keylock, or Keyless Entry, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

The opener lights will turn on under the following conditions: when the opener is initially plugged in; when power is restored after interruption; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Multi-Function Door Control is activated. Bulb size is A19. Bulb power is 75 watts maximum.

Security

someone walks through the open garage door. With a Multi-Function Door Control, this feature may be turned off as follows: With the opener lights off, press and hold the light button for 10 seconds, until the light goes on, then off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds until the light goes off, then on again.

✚

light feature: Lights will also turn on when

Using the Wall-Mounted Door Control

Press the push bar/button to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening.

Push Bar

Lock Button

Light Button

Push Button

THE MULTI-FUNCTION DOOR CONTROL

Light feature

Press the Light button to turn the opener light on or off. It will not control the opener lights when the door is in motion. If you turn it on and then activate the opener, the light will remain on for 4-1/2 minutes. Press again to turn it off sooner. The 4-1/2 minute interval can be changed to 1-1/2, 2-1/2, or 3-1/2 minutes as follows: Press and hold the Lock button until the light blinks (about 10 seconds). A single blink indicates that the timer is reset to 1-1/2 minutes. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes. Repeat again for a 3-1/2 minute interval, etc., up to a maximum of four blinks and 4-1/2 minutes.

Lock feature

Designed to prevent operation of the door from hand-held remote controls. However, the door will open and close from the Door Control, the Outside Keylock and the Keyless Entry Accessories.

To activate, press and hold the Lock button for 2 seconds. The push bar light will ﬂ ash as long as the Lock feature is on.

To turn off, press and hold the Lock button again for 2 seconds. The push bar light will stop ﬂ ashing. The Lock feature will also turn off whenever the “Learn” button on the motor unit panel is activated.

Additional features when used with the 3-Button hand-held remote

A) To control the opener lights:

In addition to operating the door, you may program the remote to operate the lights.

1. With the door closed, press and hold a small remote button that you want to control the light.

2. Press and hold the Light button on the Multi-Function door control.

3. While holding the Light button, press and hold the Lock button on the door control.

4. After the opener lights ﬂ ash, release all buttons.

B) To operate one door using all three

buttons on the hand-held remote:

You may program the remote to open the door with the large button, close it

Stop

Open

with the middle button, and stop the door’s movement with the third button.

NOTE: If remote is already programmed, you must ﬁ rst erase all codes. See Programming.

1. With the door closed, press and hold the large remote push button.

2. Press and hold the Lock button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights ﬂ ash, release all buttons.

To Open the Door Manually

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

The door should be fully closed if possible. Pull down on the emergency release handle and lift the door manually. To reconnect the door to the opener, press the door control push button.

The lockout feature prevents the trolley from reconnecting automatically, Pull the emergency release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary. To disengage the lockout feature, pull the handle straight down. The trolley will reconnect on the next UP or DOWN operation.

Emergency Release Handle (Pull Down)

MANUAL DISCONNECT

Emergency Release Handle (Down and Back)

LOCKOUT POSITION

Trolley Release Arm

POSITION

Trolley Release Arm

Care of Your Opener

LIMIT AND FORCE ADJUSTMENTS:

Weather conditions may cause some minor changes in door operation requiring some re-adjustments, particularly during the ﬁ rst year of operation.

Pages 23 and 24 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (Adjustment Step 3, page 25) after any adjustment of limits or force.

MAINTENANCE SCHEDULE

Every Month

• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens and closes fully. Adjust limits and/or force if necessary. (See pages 23 and 24.)

• Repeat the safety reverse test. Make any necessary adjustments. (See Adjustment Step 3.)

Two Times a Year

• Check chain tension. Disconnect trolley ﬁ rst. Adjust if necessary. (See page 7.)

Every Year

• Oil door rollers, bearings and hinges. The opener does not require additional lubrication. Do not grease the door tracks.

Every Three to Four Years

• Use a rag to wipe away the existing grease from the garage door opener rail. Reapply a small layer of white lithium grease to the rail.

FORCE CONTROLS

LIMIT CONTROLS

THE REMOTE CONTROL BATTERY

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor. To reduce risk of ﬁ re, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• DO NOT recharge, disassemble, heat above 100° C (212° F) or incinerate.

The lithium battery should produce power for up to 5 years.

To replace battery, use the visor clip or screwdriver

Battery positive side up (+)

blade to pry open the case as shown. Insert battery positive side up (+).

Dispose of old battery properly. Replace the battery with only 3V2032 coin cell batteries.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Having a Problem?

1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be

connected and aligned correctly before the garage door opener will move in the down direction.

• Verify the safety reversing sensors are properly

installed, aligned and free of any obstructions. Refer to Installation Step 10: Install The Protector

System

• Check diagnostic LED for ﬂ ashes on the motor unit

then refer to the Diagnostic Chart on the following page.

2. My remotes will not activate the door:

• Verify your door control is not blinking. If it is

blinking, deactivate the Lock Mode following the instructions for Using the Wall-Mounted Door

Control.

• Reprogram remotes following the programming

instructions. Refer to Programming.

• If remote will still not activate your door, check

diagnostic LED for ﬂ ashes on motor unit then refer to Diagnostic Chart on the following page.

Bell Wire

Safety Reversing Sensor

Sending Eye Safety Reversing Sensor (Amber Indicator Light)

“Learn” Button LED or

Diagnostic LED

Receiving Eye Safety Reversing Sensor (Green Indicator Light)

3. My door reverses for no apparent reason: Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Manually check door for balance or any binding

problems.

• Refer to Adjustment Step 2, Adjust the Force.

4. My door reverses for no apparent reason after fully closing and touching the ﬂ oor: Repeat safety reverse

test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Refer to Adjustment Step 1, Adjust the UP and

DOWN Travel Limits. Decrease down travel by turning down limit adjustment screw clockwise.

5. My lights will not turn off when door is open:

• The garage door opener is equipped with a security light feature. This feature activates the light on when the safety reversing sensor beam has been obstructed. Refer to Operation section; Using the

Wall-Mounted Door Control, Light Feature.

6. My motor unit hums brieﬂ y:

• First verify that the trolley is against the stop bolt.

• Release the door from the opener by pulling the

Emergency Release Rope.

• Manually bring the door to a closed position.

• Loosen the chain by adjusting the outer nut 4 to 5

turns. This relieves the tension.

• Run the motor unit from the remote control or door

control. The trolley should travel towards the door and stop. If the trolley re-engages with the door, pull the Emergency Release Rope to disengage.

• Decrease the UP travel by turning the UP Travel

adjustment screw 2 full turns away from the arrow.

• Re-tighten the outer nut so the chain is a 1/2"

(13 mm) above the base of the rail. (When the door is reconnected and closed, the chain will sag. This is normal.)

• If the trolley does not move away from the bolt,

repeat the steps above.

Bell Wire

Diagnostics Located On Motor Unit

Installed Safety Reversing Sensor

Safety Reversing Sensor

Diagnostic Chart

1 FLASH

Safety reversing sensors wire open (broken or disconnected).

2 FLASHES

Safety reversing sensors wire shorted or black/ white wire reversed.

3 FLASHES

Door control or wire shorted.

“Learn” Button

LED or Diagnostic LED

Symptom: One or both of the Indicator lights on the safety reversing sensors do not glow steady.

• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white wires reversed), broken or disconnected wires, replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove sensors from brackets and shorten sensor wires to 1-2 ft. (30-60 cm) from back each of sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety reversing sensors.

Symptom: LED is not lit on door control.

• Inspect door control/wires for a short (staple in wire), replace as needed.

• Disconnect wires at door control, touch wires together. If motor unit activates, replace door control.

• If motor unit does not activate, disconnect door control wires from motor unit. Momentarily short across red and white terminals with jumper wire. If motor unit activates, replace door control wires.

Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will ﬂ ash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below.

4 FLASHES

Safety reversing sensors slightly misaligned (dim or ﬂ ashing LED).

5 FLASHES

Motor overheated or possible RPM sensor failure. Unplug to reset.

6 FLASHES

Motor Circuit Failure. Replace Receiver Logic Board.

Symptom: Sending indicator light glows steadily, receiving indicator light is dim or ﬂ ashing.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is ﬁ rmly secured to wall and does not move.

Symptom: Motor has over heated; the motor unit does not operate or trolley is stuck on stop bolt = Motor unit hums brieﬂ y; RPM Sensor = Short travel 6-8" (15-20 cm).

• Unplug unit to reset. Try to operate motor unit, check diagnostic code.

• If it is still ﬂ ashing 5 times and motor unit moves 6-8" (15-20 cm), replace RPM sensor.

• If motor unit doesn’t operate, motor unit is overheated. Wait 30 minutes and retry. If motor unit still will not operate replace logic board.

Symptom: Motor unit doesn’t operate.

• Replace logic board because motor rarely fails.

PROGRAMMING

NOTICE: If this Security in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control. The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security✚

USING THE “LEARN” BUTTON USING THE DOOR CONTROL

✚

garage door opener is operated with a non-rolling code transmitter, the technical measure

remote controls.

To Add or Reprogram a Hand-Held Remote Control

1. Press and release the “learn” button on the motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, press and hold the button on the hand-held remote* that you wish to operate your garage door.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote, ﬁ rst erase all codes:

Press and hold the “learn” button on motor unit until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use.

1. Press and hold the button on the hand-held remote* that you wish to operate your garage door.

2. While holding the remote button, press and hold the LIGHT button on the door control.

3. Continue holding both buttons while you press the push bar on the door control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

*3-Button Remotes (315 MHz)

If provided with your garage door opener, the large button is factory programmed to operate it. Additional buttons on any Security✚ remote or compact remote can be programmed to operate other Security✚ garage door openers.

3-Button

To Add, Reprogram or Change a Keyless Entry PIN

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON USING THE DOOR CONTROL

LOCK

LIGHT

1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, enter a four digit personal identiﬁ cation number (PIN) of your choice on the keypad. Then press and hold the ENTER button.

NOTE: This method requires two people if the Keyless Entry is already mounted outside the garage.

1. Enter a four digit personal identiﬁ cation number (PIN) of your choice on the keypad. Then press and hold ENTER.

2. While holding the ENTER button, press and hold the LIGHT button on the door control.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To change an existing, known PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press

3. Continue holding the ENTER and LIGHT buttons while you press the push bar on the door control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter.

The motor unit lights will blink once when the PIN has been learned.

Test by pressing the new PIN, then press Enter. The door should move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of accesses, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the

button.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will work, press the number of hours (up to 255), then press ✽.

3. To set the number of times this temporary PIN will work, press the number of times (up to 255), then press #.

The opener light will blink once when the temporary PIN has been learned.

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening. To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

REPAIR PARTS

Rail Assembly Parts

Installation Parts

KEY PART NO. NO. DESCRIPTION

1 4A1008 Master link kit 2 41A4813 Chain pulley bracket 3 41A3489 Complete trolley assembly

4 1707LM One-piece rail - 7 feet (2.1 m) 5 41D3484 Full chain assembly 6 83A11-2 Rail grease

NOT SHOWN

1708LM One-piece rail - 8 feet (2.4 m) 1710LM One-piece rail - 10 feet (3 m)

KEY PART NO. NO. DESCRIPTION

1 41A5273-13 Multi-function door control panel 2 41A4166 Lighted door control button 3 10A20 3V2032 Lithium battery 4 371AC Single-Button remote control 5 373AC 3-Button remote control 6 29B137 Remote control visor clip 7 41A2828 Manual rope & handle assembly 8 41A5047 Door bracket with clevis pin

& fastener

9 41B4494-1 2-Conductor bell wire, white

& white/red

10 41A4353 Header bracket with clevis pin

& fastener 11 178B35 Curved door arm section 12 41A5266-1 Safety reversing sensor brackets (2) 13 41A5034 Safety reversing sensor kit (receiving

and sending eyes) with 3 feet (.9 m)

2-conductor bell wire 14 178B34 Straight door arm section

NOT SHOWN

41A2770-6 Installation hardware bag

(includes hardware listed on page 5) 114A4279 Owner's manual 114A4279SP Owner’s manual - Spanish

Motor Unit Assembly Parts

(M3100M)

(M350M)

Brown Wire

Drive Gear

(Down) Contact

Center Limit Contact

LIMIT SWITCH ASSEMBLY

(UP) Contact

Grey Wire

Yellow Wire

(M3100M)

(M350M)

(M3100M)

KEY PART NO. NO. DESCRIPTION

1 31D380 Sprocket cover 2 41C4220A Gear and sprocket assembly

Complete with: Spring washer, Thrust washer, Retaining ring, Bearing plate, Roll pins (2), Drive gear and worm gear, Helical gear

with retainer and grease 3 41B4245 Line cord 4 143D100 End panel (M350M) 5 41A2916 End panels with all labels

(M3100M) 6 175B88 Light socket 7 108D34 Lens (M3100M)

108D36 Lens (M350M) 8 30B532 Capacitor - 1/2 HP

30B533 Capacitor - 1/3 HP 9 12A373 Capacitor bracket 10 41A3150 Terminal block with screws 11 41D3058 Universal replacement motor

Complete with: Motor, worm,

bracket, bearing assembly, RPM

sensor

KEY PART NO. NO. DESCRIPTION

12 41A3583-19 Cover (M3100M) 41A3583-20 Cover (M350M)

13 41A2818 Helical gear & retainer with

grease 14 41D3452 Limit switch assembly 15 41C4398A RPM sensor assembly 16 41C4246 Wire harness assembly

with plug 17 41A2826 Shaft bearing kit 18 41A2822A Interrupter cup assembly 19 41A5021-M-315 Receiver logic board (M3100M)

Complete with: Logic board

End panel with all labels, Light

socket 41A5021-1M-315 Receiver logic board (M350M) 20 41A3673 End panel with all labels

(M3100M) 41A3712 End panel with all labels

(M350M) NOT SHOWN 41A2825 Opener assembly hardware

kit (includes screws not

designated by a number in

illustration).

ACCESSORIES

1702LM

59LM

41A5281

376LM

98LM

Outside Quick Release:

Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley.

Outside Keylock:

Opens the garage door automatically from outside when remote control is not handy.

Extension Brackets:

(Optional) For safety reversing sensor installation onto the wall or ﬂ oor.

SECURITY✚® Keyless Entry :

Enables homeowner to operate garage door opener from outside by entering a password on a specially designed keyboard. Also can add a temporary password for visitors or service persons. This temporary password can be limited to a programmable number of hours or entries.

Motion Detecting Control Panel:

Multi-function door control with motion sensor that automatically turns opener lights on for 5 minutes when it detects a person entering the garage. Sensor can be easily deactivated when desired.

371AC

372AC

373AC

374AC

370LM

SECURITY✚ Control

Single-Button Remote

Includes visor clip.

SECURITY✚ Control

2-Button Remote

Includes visor clip.

SECURITY✚ Control

3-Button Remote

Includes visor clip.

SECURITY✚ Control

4-Button Remote

Includes visor clip.

SECURITY✚ Control

3-Button Mini Remote

With key ring and fastening strip.

ACCESS MASTER SERVICE IS

ON CALL

OUR LARGE SERVICE ORGANIZATION SPANS

AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE SEVEN DAYS A WEEK.

SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-9131

For professional installation, parts and service,

contact your local CHAMBERLAIN/ACCESS MASTER dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be

billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

Tucson, Arizona 85706

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

ACCESS MASTER ONE-YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase [and that the motor is free from defect in materials and/or workmanship: Model M3100M, for the lifetime of the product to the first-time purchaser; Model M350M, for a period of 24 full months (2 years) from the date of purchase.]. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE ONE-YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE [EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE MOTOR, WHICH ARE LIMITED IN DURATION TO THE LIFETIME LIMITED WARRANTY PERIOD FOR THE M3100M MOTOR AND THE TWO-YEAR LIMITED WARRANTY PERIOD FOR THE M350M MOTOR], AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

MOTOR LIMITED WARRANTY

Chamberlain M350M, M3100M, AccessMaster Security+ M3100M-1/2HP, AccessMaster Security+ M350M-1/3HP Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Owner’s Manual

TABLE OF CONTENTS

INTRODUCTION

Safety Symbol and Signal Word Review

Preparing your garage door

Tools needed

Planning

Carton Inventory

INSTALLATION HARDWARE

Attach the Rail to the Motor Unit

Attach the Chain to the Sprocket and Install the Sprocket Cover

Tighten the Chain

INSTALLATION

Determine the Header Bracket Location

Install the Header Bracket

Attach the Rail to the Header Bracket

Position the Opener

Hang the Opener

Install the Door Control

Install the Light(s) and Lens(es)

Attach the Emergency Release Rope and Handle

Electrical Requirements

MOUNTING AND WIRING THE SAFETY REVERSING SENSORS

ALIGNING THE SAFETY REVERSING SENSORS

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

Fasten the Door Bracket

Connect Door Arm to Trolley

Adjust the UP and DOWN Travel Limits

Adjust the Force

Test the Safety Reversal System

OPERATION

Using Your Garage Door Opener

Using the Wall-Mounted Door Control

To Open the Door Manually

Care of Your Opener

Having a Problem?

Diagnostic Chart

PROGRAMMING

To Add or Reprogram a Hand-Held Remote Control

To Add, Reprogram or Change a Keyless Entry PIN

REPAIR PARTS

Rail Assembly Parts

Installation Parts

Motor Unit Assembly Parts

ACCESSORIES

HOW TO ORDER
