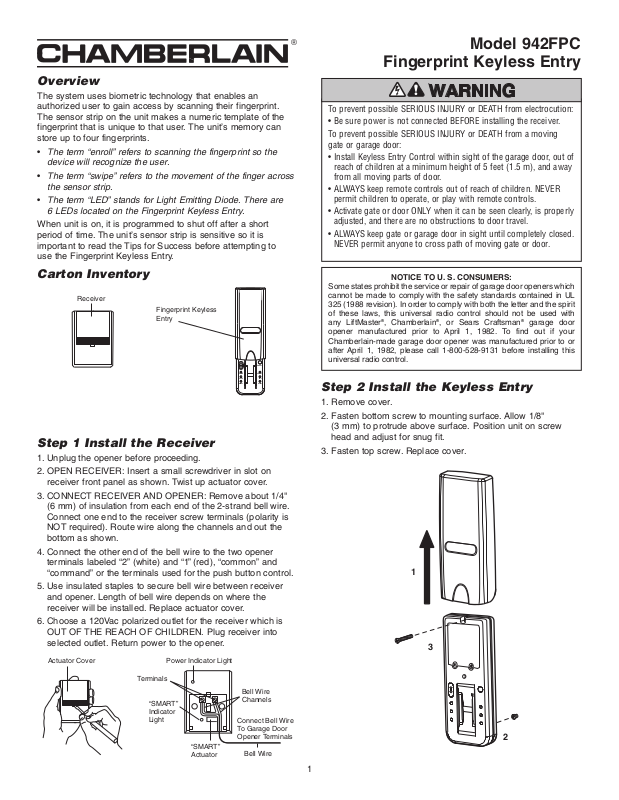

Chamberlain 942FPC User Manual

Model 942FPC

Fingerprint Keyless Entry

Overview

The system uses biometric technology that enables an authorized user to gain access by scanning their fingerprint. The sensor strip on the unit makes a numeric template of the fingerprint that is unique to that user

. The unit’s memory can

store up to four fingerprints.

• The term “enroll” refers to scanning the fingerprint so the

device will recognize the user

• The term “swipe” refers to the movement of the finger across the sensor strip.

• The term “LED” stands for Light Emitting Diode. There are 6 LEDs located on the Fingerprint Keyless Entry

When unit is on, it is programmed to shut off after a short period of time.

The unit’s sensor strip is sensitive so it is important to read the Tips for Success before attempting to use the Fingerprint Keyless Entry.

Carton Inventory

Receiver

Fingerprint Keyless Entry

ENROLL

SEND

ENROLL

PASS FAIL

READY RETRY

Step 1 Install the Receiver

1. Unplug the opener before proceeding.

2. OPEN RECEIVER: Insert a small screwdriver in slot on

receiver front panel as shown. Twist up actuator cover.

3. CONNECT RECEIVER AND OPENER: Remove about 1/4"

(6 mm) of insulation from each end of the 2-strand bell wire. Connect one end to the receiver screw terminals (polarity is NOT

required). Route wire along the channels and out the

bottom as shown.

4. Connect the other end of the bell wire to the two opener

terminals labeled “2” (white) and “1

” (red), “common” and

“command” or the terminals used for the push button control.

5. Use insulated staples to secure bell wire between receiver

and opener

. Length of bell wire depends on where the

receiver will be installed. Replace actuator cover.

6. Choose a 120Vac polarized outlet for the receiver which is

OUT

OF THE REACH OF CHILDREN. Plug receiver into

selected outlet. Return power to the opener.

Actuator Cover

Power Indicator Light

Terminals

Bell Wire Channels

“SMART” Indicator Light

Connect Bell Wire T

o Garage Door

Opener Terminals

“SMART” Actuator

Bell

Wire

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is not connected BEFORE installing the receiver. To prevent possible SERIOUS INJURY or DEATH from a moving

gate or garage door:

• Install Keyless Entry Control within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from all moving parts of door

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.

• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door

NOTICE TO U. S. CONSUMERS:

Some states prohibit the service or repair of garage door openers which cannot be made to comply with the safety standards contained in UL 325 (1988 revision). In order to comply with both the letter and the spirit of these laws, this universal radio control should not be used with any LiftMaster®, Chamberlain®, or Sears Craftsman® garage door opener manufactured prior to April 1, 1982. To find out if your Chamberlain-made garage door opener was manufactured prior to or after April 1, 1982, please call 1-800-528-9131 before installing this universal radio control.

Step 2 Install the Keyless Entry

1. Remove cover.

2. Fasten bottom screw to mounting surface. Allow 1/8" (3 mm) to protrude above surface. Position unit on screw head and adjust for snug fit.

3. Fasten top screw. Replace cover.

Tips for Success

CORRECT

1. Make sure finger is clean and dry. Place finger flat above the sensor strip with the top knuckle above the sensor.

2. Swipe finger straight down keeping firm contact with the sensor

. The swipe should be a slow, constant speed.

SPECIAL NOTES: Use the same finger for every swipe. It is important to swipe finger slowly and firmly as this is the reason most swipes fail.

Swipe finger straight down keeping firm contact with

Start swipe with

the sensor. the top knuckle above the sensor strip.

Sensor Strip

The scan should end at the tip of finger.

INCORRECT

• Do not bend finger during swipe as this will only scan the tip of your finger.

• Swipe finger straight down, not at an angle.

• Swipe flat, not tilted or rolled to one side.

Reference

Cover

Resend button: When pressed the door will stop if

Enroll button: W

hen

moving up or reverse if

pressed the unit will go

moving down.

into Enroll mode.

Send LED (yellow): Lit after a passed fingerprint

Enroll LED (yellow):

scan and indicates that the

Lit when the unit is in

Resend

button is active

Enroll mode.

and can be used to stop

ENROLL

SEND

ENROLL

Fail LED (red): Lit when

or reverse door travel.

PA S S FAIL

READY RETRY

a scanned fingerprint

Pass LED (green): Lit when

does not match a

a scanned fingerprint

stored print.

Sensor Strip

matches a stored print.

Retry LED (yellow): Lit

hen another swipe is

Ready LED (green): Lit

required.

when unit is ready to scan fingerprint.

Extra directions are located on the inside of cover.

Step 3 Enroll Initial User

NOTE: The unit requires 3 passed swipes to enroll a user.

1. Open cover to turn unit on. Wait until Enroll LED and Ready LED are lit (not

flashing).

ENROLL

SEND

ENROLL

PASS FAIL

READY RETRY

2. Swipe finger slowly and firmly down the

sensor strip until three passed swipes are made.

NOTE: The Pass LED will light for a passed swipe. The Retry LED will light if another swipe is needed. Swipe slowly and with more pressure if this occurs.

ENROLL

3. After the third passed swipe, the Enroll

SEND

ENROLL

and Pass LED will flash. Enrollment is

PASS

READY

FAIL

RETRY

complete.

NOTE: If cover is already open, press either the Resend or the Enroll button to turn unit on. If the Ready LED is lit, refer to Factory Reset in the Erase/Reset section.

Step 4 Enroll Additional User(s)

NOTE: The device can store up to four fingerprints at a time. An enrolled user must swipe finger first to enroll new user.

1. Open cover and wait until Ready LED

is lit.

ENROLL

SEND

ENROLL

PASS FA IL

READY RETRY

2. Press and hold Enroll button until Enroll LED starts to flash.

3. While the Enroll LED is flashing, an

enrolled user must slowly and firmly swipe finger.

4. The Enroll LED and Ready LED will

ENROLL

light when ready for new user to swipe finger.

SEND

ENROLL

PASS FAIL

READY RETRY

5. New user should swipe finger slowly and

firmly down the sensor strip until three

passed swipes are made.

6. The Enroll LED and Pass LED will

ENROLL

flash when new user is enrolled. Unit

SEND

ENROLL

will return to Ready mode.

PASS FAIL

READY RETRY

NOTE: If cover is already open, press either the Resend or the Enroll button to turn unit on. The Pass LED will light for a passed swipe. The Retry LED will light if another swipe is needed.

Step 5 Programming

NOTE: The unit must have an enrolled user before it can be programmed to the receiver. Due to the 30 second time interval, a second person may be needed to press the “SMART” actuator.

1. Remove the front panel of the receiver case. Press and release the “SMAR

T” actuator on the receiver. The “SMART” indicator light will glow steady for 30 seconds.

2. Open the Fingerprint Keyless Entry cover and wait for Ready LED to light.

3. Within 30 seconds of pressing the “SMAR

T” actuator, slowly and firmly

swipe enrolled finger.

NOTE: The Retry LED will light if another swipe is needed.

4. After a passed swipe, the Pass LED will light followed by a lit Send LED. Programming is complete.

5. If the opener does not operate, press and release the Resend button at 1 second intervals for up to 5 seconds until the door moves. Programming is complete.

NOTE: If unit will not program to opener

, repeat the steps above or refer to Troubleshooting.

ENROLL

SEND

ENROLL

PAS S FAIL

READY RETRY

ENROLL

SEND

ENROLL

PASS FAIL

READY RETRY

Step 6 Operation

1. Open cover and wait until Ready LED

is lit.

ENROLL

SEND

ENROLL

PASS FAI L

READY RETRY

2. Swipe finger slowly and firmly down the

sensor strip.

3. The Pass LED will flash and garage door will either open or close.

ENROLL

SEND

ENROLL

PASS FAIL

READY RETRY

NOTE: If cover is already open, press either the Resend or the Enroll button to turn unit on. The Fail or Retry LED will light if another swipe is needed. If this occurs, swipe slowly and with more pressure. It may require multiple swipes to get a passed swipe.

While the door is traveling, the Send LED will be lit. During this time, the only way to reverse or stop the door is to press the Resend button.
