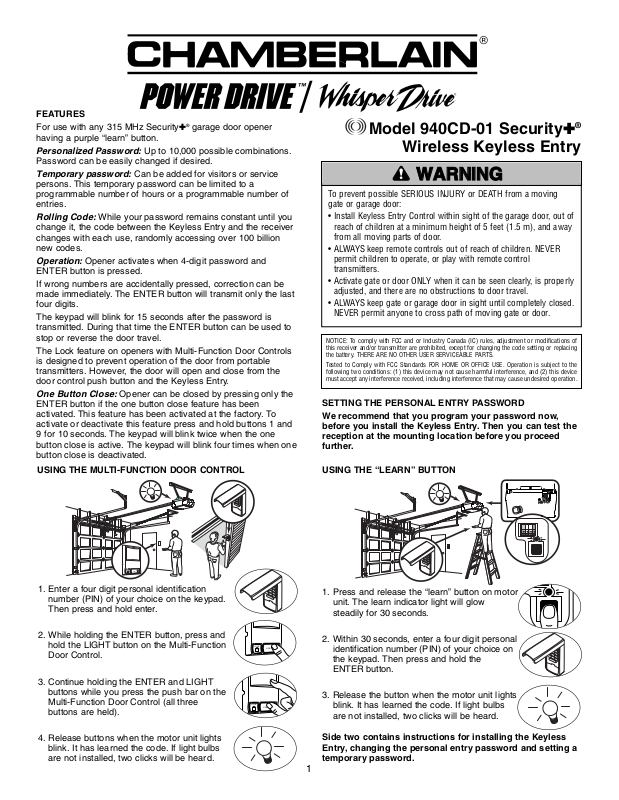

Model 940CD-01 Security✚

Wireless Keyless Entry

™

FEATURES

For use with any 315 MHz Security✚

garage door opener

having a purple “learn” button. Personalized Password: Up to 10,000 possible combinations.

Password can be easily changed if desired. Temporary password: Can be added for visitors or service

persons. This temporary password can be limited to a programmable number of hours or a programmable number of entries.

Rolling Code: While your password remains constant until you change it, the code between the Keyless Entry and the receiver changes with each use, randomly accessing over 100 billion new codes.

Operation: Opener activates when 4-digit password and ENTER button is pressed.

If wrong numbers are accidentally pressed, correction can be made immediately. The ENTER button will transmit only the last four digits.

The keypad will blink for 15 seconds after the password is transmitted. During that time the ENTER button can be used to stop or reverse the door travel.

The Lock feature on openers with Multi-Function Door Controls is designed to prevent operation of the door from portable transmitters. However, the door will open and close from the door control push button and the Keyless Entry.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold enter.

2. While holding the ENTER button, press and hold the LIGHT button on the Multi-Function Door Control.

3. Continue holding the ENTER and LIGHT buttons while you press the push bar on the Multi-Function Door Control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold the ENTER button.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

SETTING THE PERSONAL ENTRY PASSWORD We recommend that you program your password now,

before you install the Keyless Entry. Then you can test the reception at the mounting location before you proceed further.

USING THE “LEARN” BUTTON

USING THE MULTI-FUNCTION DOOR CONTROL

Side two contains instructions for installing the Keyless Entry, changing the personal entry password and setting a temporary password.

To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:

• Install Keyless Entry Control within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from all moving parts of door.

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote control transmitters.

• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

WARNING

Craftsman®is a Registered Trademark of Sears, Roebuck and Co.

INSTALLATION

1. Choose a convenient location for installation. Install out of the reach of children at a minimum height of 5 feet (1.5 m), away from all moving parts of door.

For a one-piece door, choose the optional location shown in the illustration to avoid injury as the door swings up and out.

Test the reception of the Keyless Entry by operating your opener from the selected location. Change the location if necessary.

2. Remove the compartment cover to access the bottom mounting hole. Slide the cover down to remove. Remove battery.

3. Center the template on selected location. Mark the top centerline screw location and drill 1/8" pilot hole. Install top mounting screw, allowing 1/8" to protrude above surface. Position keyless entry on screw head and adjust for snug fit. Drill 1/8" pilot hole for the bottom mounting screw. Complete installation with bottom screw, using care to avoid cracking plastic housing. Do not over tighten.

Reinstall battery and replace the compartment cover. To replace compartment cover slide up and snap it into place.

TO CHANGE AN EXISTING, KNOWN PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter. The motor unit lights will blink once when the PIN has been

learned. Test by pressing the new PIN, then press Enter. The door

should move.

TO SET A TEMPORARY PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of openings, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the button.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will work, press the number of hours (up to 255), then press ✽.

3. To set the number of openings this temporary PIN will work, press the number of times to open (up to 255), then press #.

The opener light will blink once when the temporary PIN has been learned.

Door Jamb Edge (Optional)

Keyless Entry

Door Jamb Face (SECTIONAL DOOR ONLY)

KEYLESS ENTRY MUST BE INSTALLED WITHIN SIGHT OF THE DOOR

Exterior Front Wall 1-Piece or Sectional Door

Typical Installation

Bottom Mounting Hole

Battery Cover

9V Battery

Top Cover

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

WARNING

Replacement parts:

Keypad cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D542-3

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A25

Battery cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D541

THE KEYLESS ENTRY BATTERY

The battery should produce power for at least one year. Replace when the Keyless Entry illumination becomes dim.

Dispose of old battery properly.

FOR SERVICE DIAL OUR TOLL FREE NUMBER: 1-800-528-9131

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening.To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

SPECIAL NOTE: The temporary password can ONLY be programmed to Keyless Entry working on a Chamberlain, Craftsman

or LiftMaster Garage Door Opener. It WILL NOT

work on Keyless Entry programmed to an external receiver. The temporary password will continue to CLOSE the door even

after the time has expired. To eliminate this, program a new temporary password into the

Keyless Entry.

KEYLESS ENTRY MOUNTING

(For reference only.)
