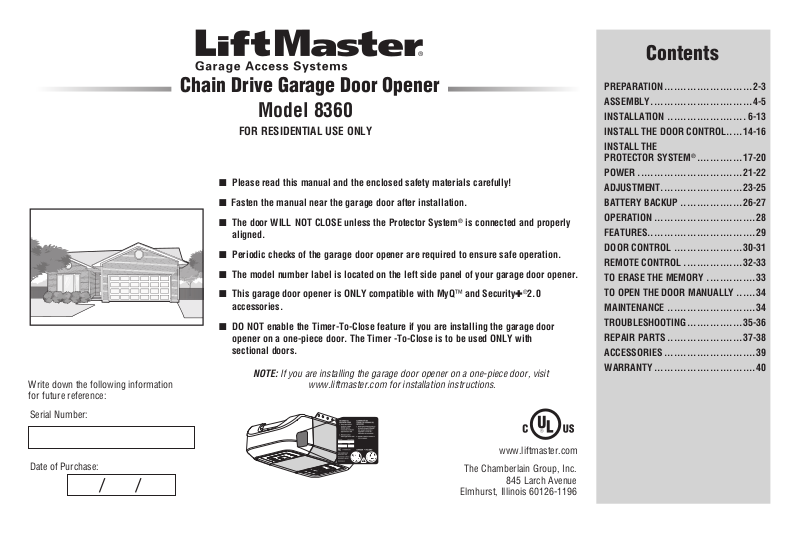

Chamberlain 8360, 8550C User Manual

Write down the following information
for future reference:

Serial Number:

Date of Purchase:

Chain Drive Garage Door Opener

Model 8360

FOR RESIDENTIAL USE ONLY

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System® is connected and properly

aligned.

■ Periodic checks of the garage door opener are required to ensure safe operation.

■ The model number label is located on the left side panel of your garage door opener.

■ This garage door opener is ONLY compatible with MyQ™ and Security✚®2.0

accessories.

■ DO NOT enable the Timer-To-Close feature if you are installing the garage door
opener on a one-piece door. The Timer -To-Close is to be used ONLY with
sectional doors.

NOTE: If you are installing the garage door opener on a one-piece door, visit

www.liftmaster.com for installation instructions.

.

www.liftmaster.com

The Chamberlain Group, Inc.

845 Larch Avenue

Elmhurst, Illinois 60126-1196

Contents

PREPARATION ...........................2-3

ASSEMBLY ...............................4-5

INSTALLATION ........................ 6-13

INSTALL THE DOOR CONTROL .....14-16

INSTALL THE
PROTECTOR SYSTEM

POWER ................................21-22

ADJUSTMENT.........................23-25

BATTERY BACKUP ...................26-27

OPERATION ...............................28

FEATURES.................................29

DOOR CONTROL .....................30-31

REMOTE CONTROL ..................32-33

TO ERASE THE MEMORY ...............33

TO OPEN THE DOOR MANUALLY ......34

MAINTENANCE ...........................34

TROUBLESHOOTING .................35-36

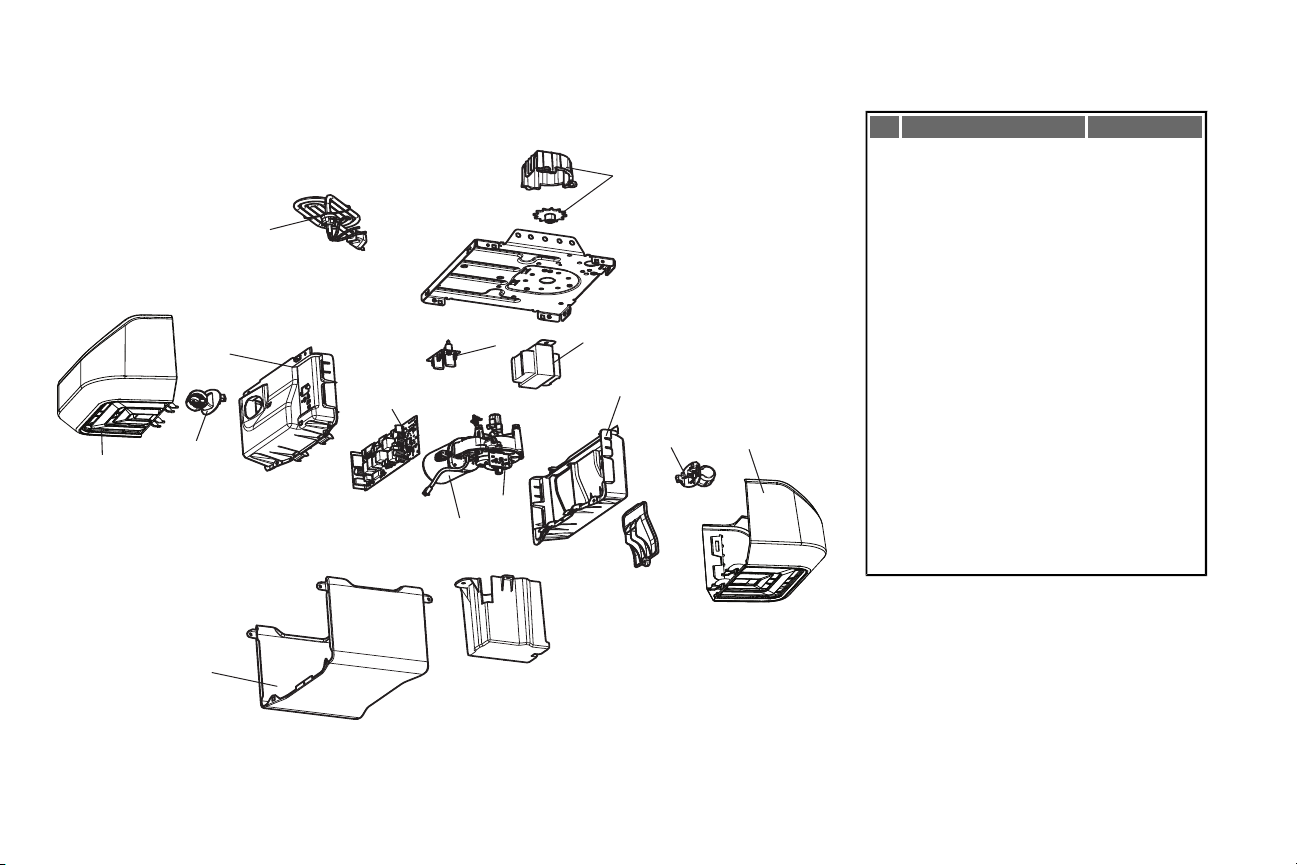

REPAIR PARTS .......................37-38

ACCESSORIES ............................39

WARRANTY ...............................40

®

..............17-20

Torsion Spring

Extension Spring

2

1

3/16

7/16

1/2

5/32

5/16

5/8

9/16

1/4

7/16

Preparation

Safety Symbol and Signal Word Review

Thisgarage door opener has been designed and
tested to offer safeserviceprovided it is installed,
operated, maintained and tested in strict
accordance with the instructionsand warnings
contained in thismanual.

When you see these SafetySymbolsand Signal
Words on the following pages, they will alertyou
to the possibilityof serious injury or death if you
do not comply with the warnings that accompany
them.The hazard may come from something
mechanical or from electricshock.Read the
warnings carefully.

Mechanical

When you see this Signal Word on the following
pages, it will alert you to the possibilityof damage
to your garage door and/or the garage door
opener if you do notcomply with the cautionary
statementsthat accompany it. Read them
carefully.

Electrical

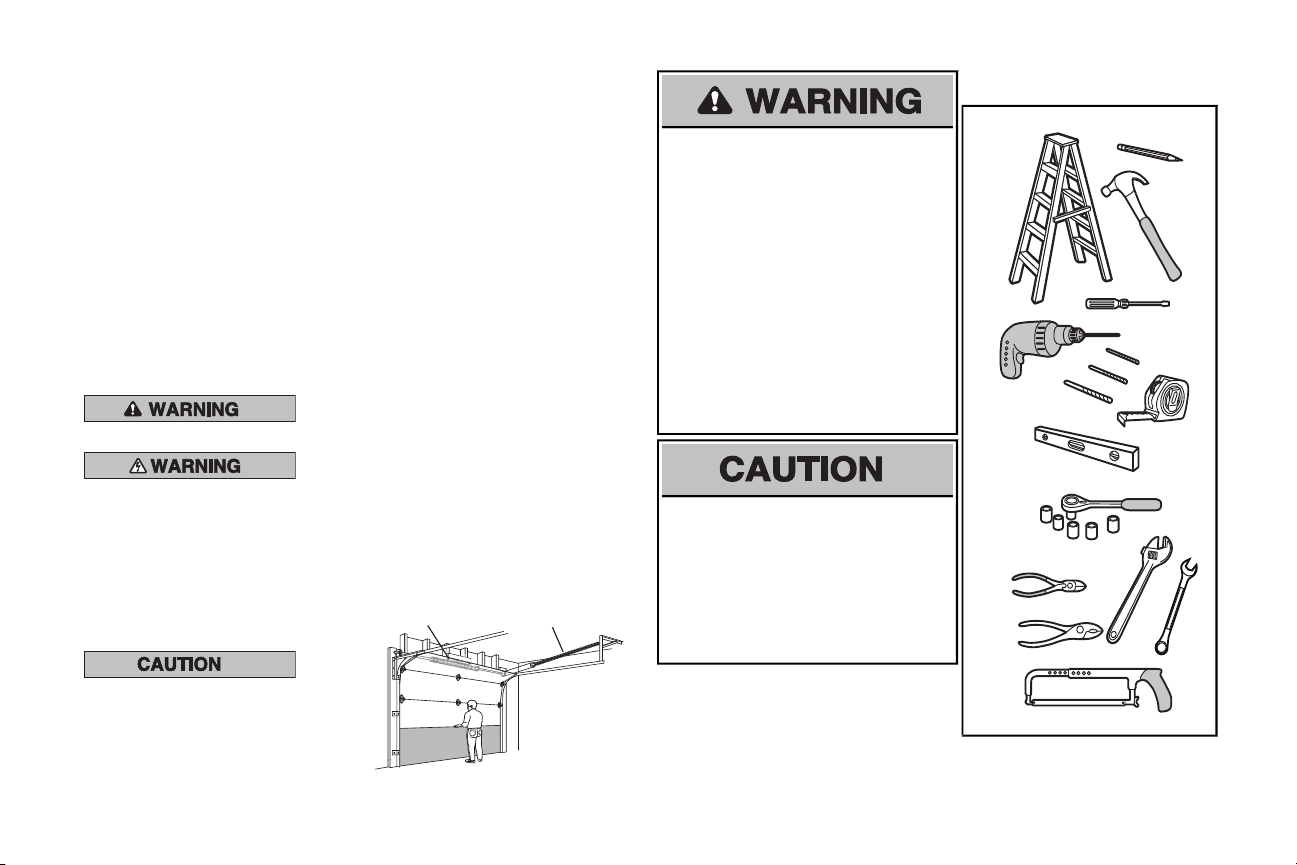

Check the Door

1. Disable locks and removeany ropes
connected to the garage door.

2. Liftthe door halfwayup. Release the
door. Ifbalanced, it should stayin
place, supported entirely by its springs.

3. Raise and lower the door to checkfor
binding or sticking. If your door binds,
sticks,or is out ofbalance,call a trained
door systemstechnician.

4. Checkthe seal on the bottomof the
door. Any gap between the floor and
the bottom ofthe door mustnot exceed
1/4 inch (6 mm).Otherwise, the safety
reversal systemmaynot workproperly.

5. The opener should be installed above
the center of the door. Ifthere is a
torsion spring or center bearing plate
in the way of the header bracket,it may
be installed within 4 feet(1.2 m) to the
leftor right of the door center. See
installing the Header Bracket section.

Tools Needed

To preventpossible SERIOUSINJURYor
DEATH:

• ALWAYS call a trained door systems
technician if garage door binds,sticks,or is
out of balance. An unbalanced garage
door may not reverse when required.

• NEVER try toloosen, moveor adjust
garage door,door springs, cables,pulleys,
bracketsor their hardware, ALLofwhich
are under EXTREMEtension.

• Disable ALLlocks and remove ALLropes
connected to garage door BEFORE
installation and operating garage door
opener to avoid entanglement.

To preventdamage to garage door and
opener:

• ALWAYS disable locksBEFORE installing
and operating the opener.

• ONLY operate garage door opener at
120 V, 60 Hz to avoid malfunction and
damage.

2

886LM

A

B

C

J

N

I

O

D

E

F

H

G

K

L

M

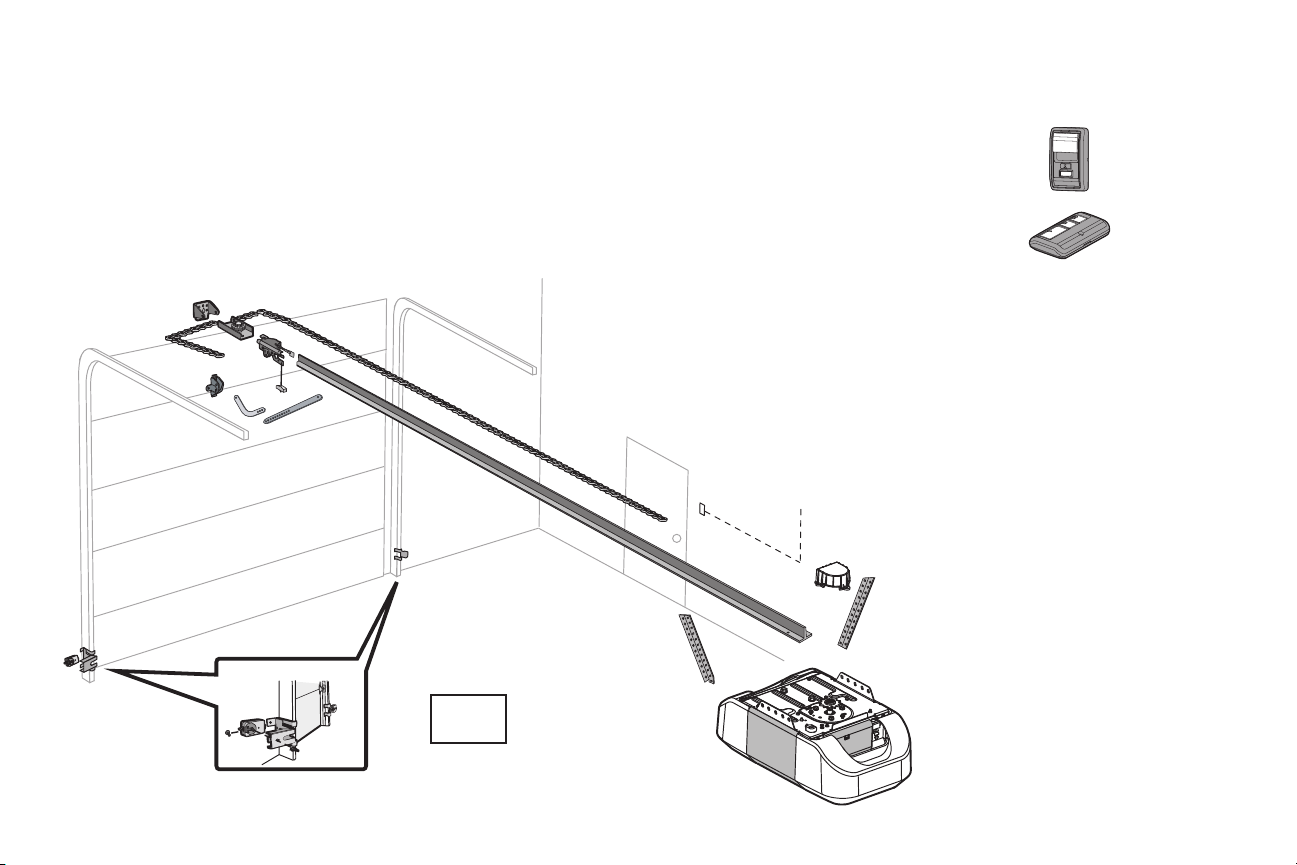

Overview/Carton Inventory

GARAGE DOOR OPENER ASSEMBLY

A. tekcarb redaeH
B. Pulley and bracket
C. tekcarb rooD
D. mra rood devruC
E. mra rood thgiartS

F. yellorT
G. Emergency release rope and handle
H. Rail
I. renepo rood egaraG

NOTE: Accessories will vary depending on the garage door opener model purchased. Depending on your specific model, other accessories
may be included with your garage door opener. The instructions for these accessories will be attached to the accessory and are not included
in this manual. The images throughout this manual are for reference and your product may look different.

J. revoc tekcorpS
K. Chain
L. lortnoc rooD

M. eriw etihw/der dna etihW

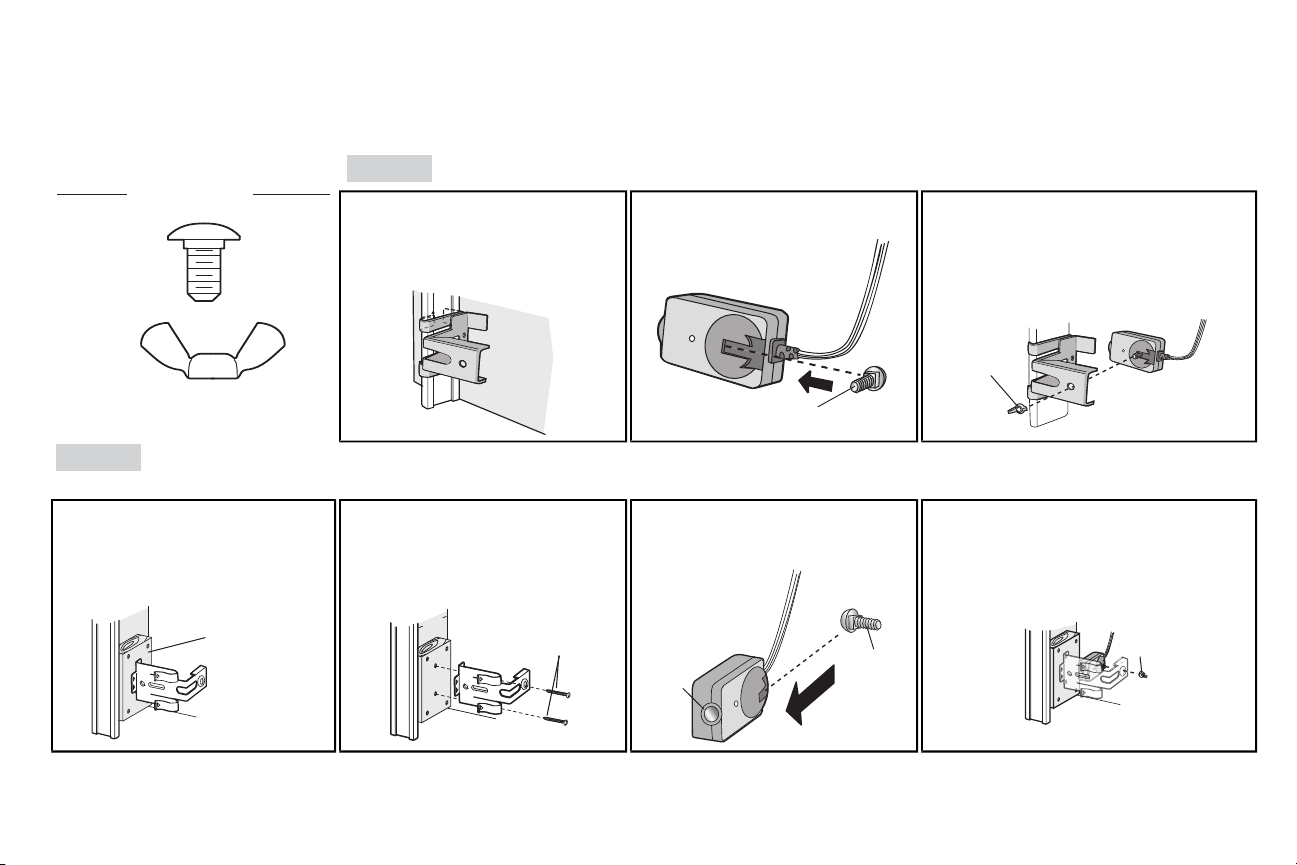

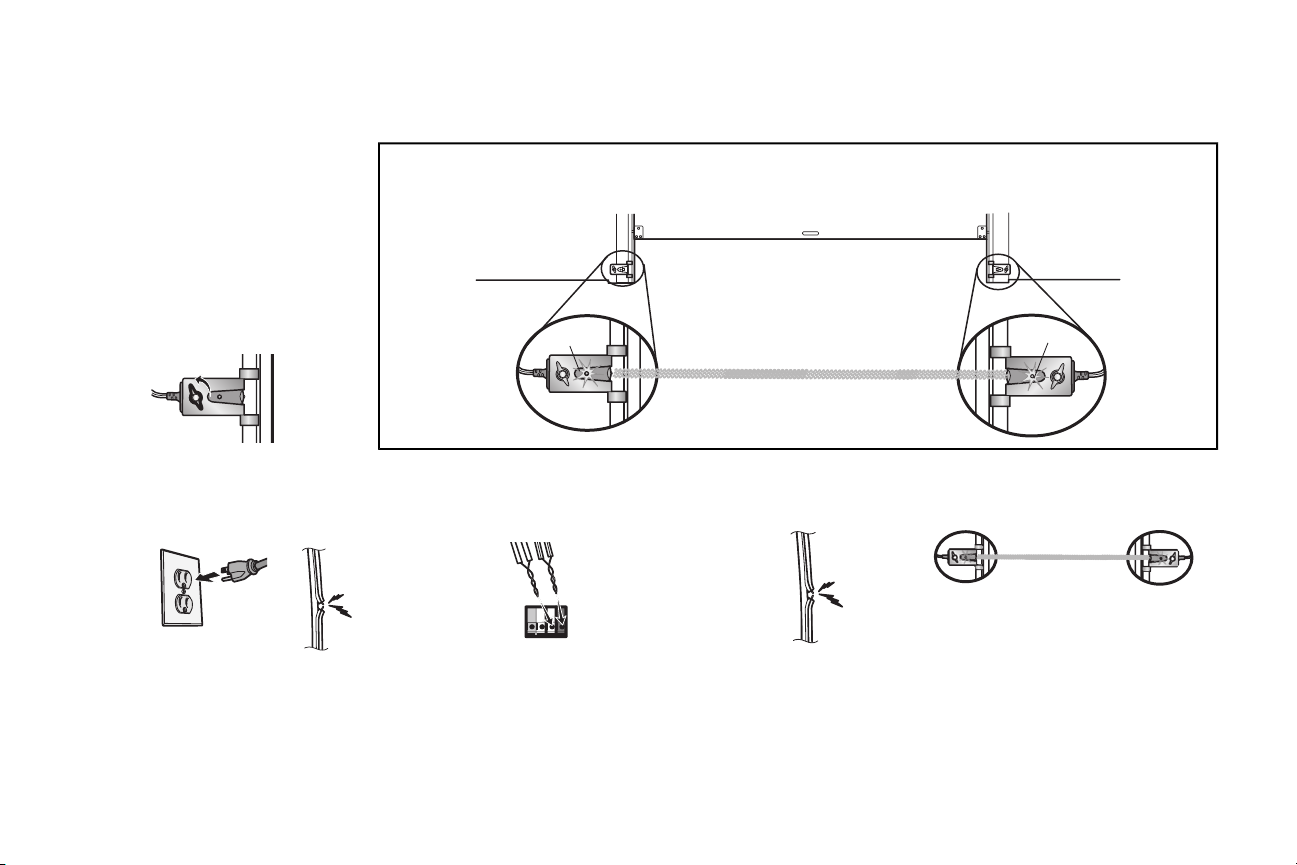

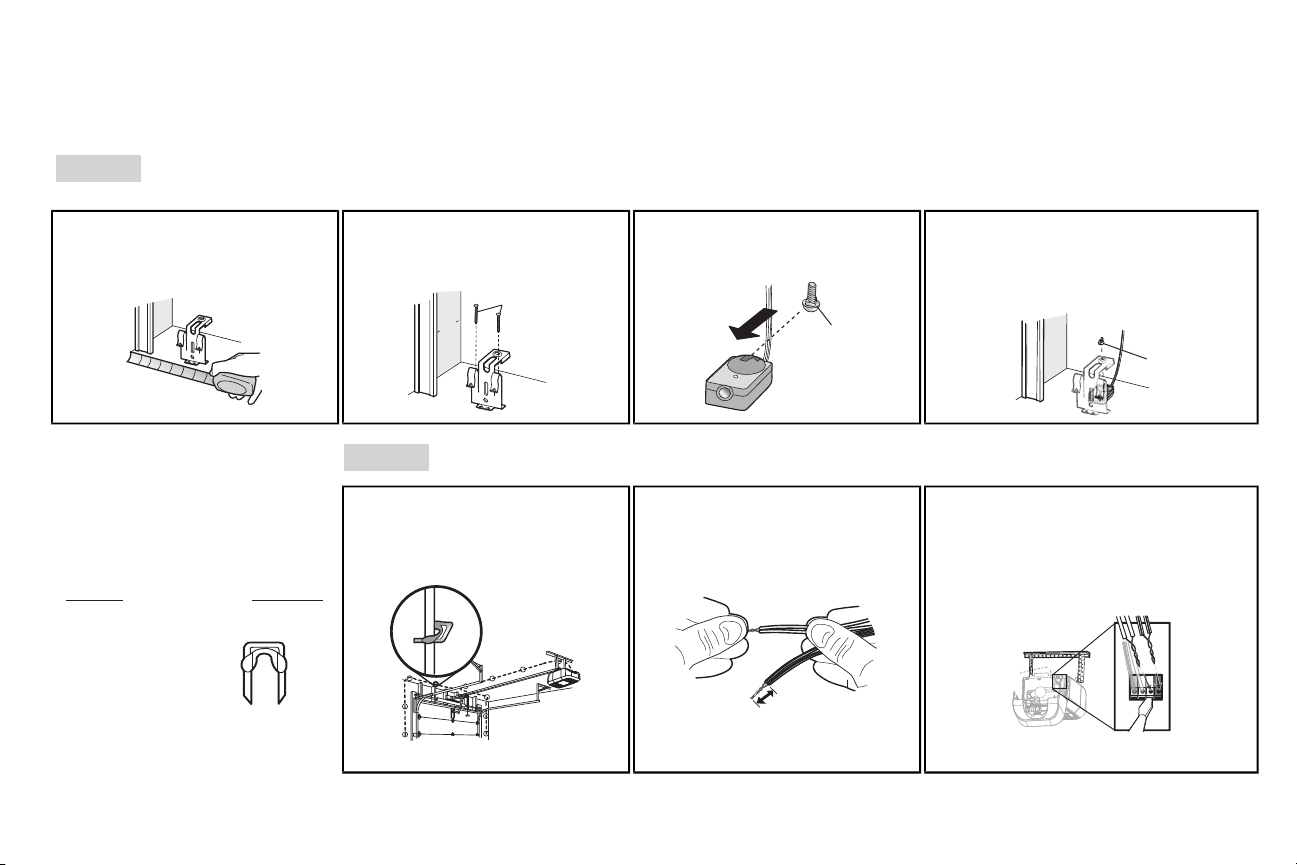

The Protector System

®

N. srosnes gnisrever ytefaS

with white and white/black wire attached:

Sending Sensor (1) Receiving Sensor (1)
and Safety Sensor Brackets (2)

O. erutaretil dna slebal ytefaS

Hardware

Assembly
H1 Washered Bolt 5/16"-18 x 1/2"(2)

[mounted in the top of the garage
door opener]

Installation
H2 Hex Bolt 5/16"-18 x 7/8" (4)

H3 Lag Screw 5/16"-9 x 1-5/8" (2)
H4 Lag Screw 5/16"-18 x 1-7/8" (2)
H5 Clevis Pin 5/16" x 2-3/4" (1)
H6 Clevis Pin 5/16" x 1-1/4" (1)
H7 Clevis Pin 5/16" x 1" (1)
H8 Nut 5/16"-18 (4)
H9 Lock Washer 5/16"-16 (4)
H10 Self-Threading Screw 1/4"-14 x 5/8" (2)
H11 Ring Fastener (3)
H12 Carriage Bolt 1/4"-20 x 1/2" (2)
H13 Wing Nut 1/4"-20 (2)

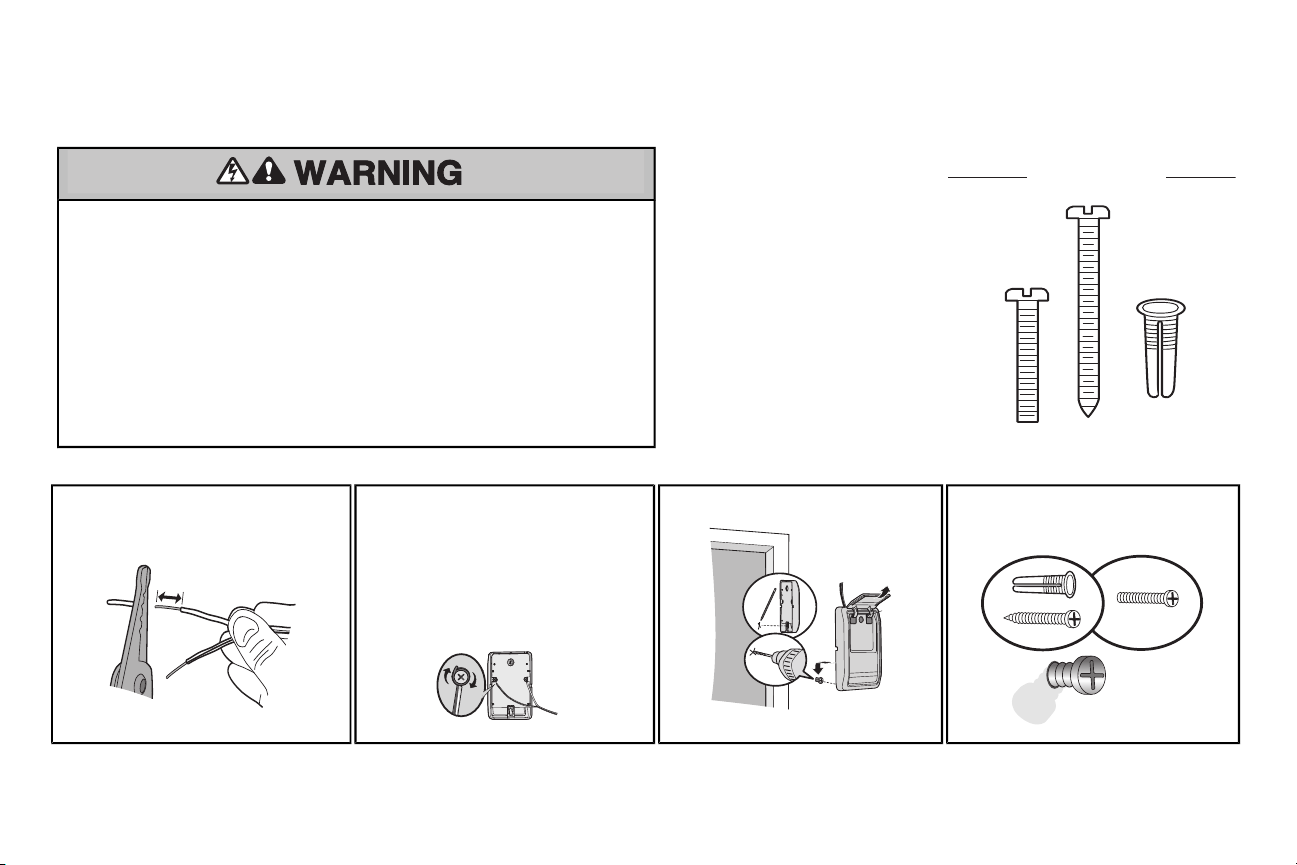

Door Control Hardware
H14 Screw 6AB x 1-1/4" (2)

H15 Screw 6-32 x 1" (2)
H16 Drywall Anchors (2)
H17 Insulated Staples (10)

893LM

Remote Control

Premium
Motion-Detecting
Control Panel

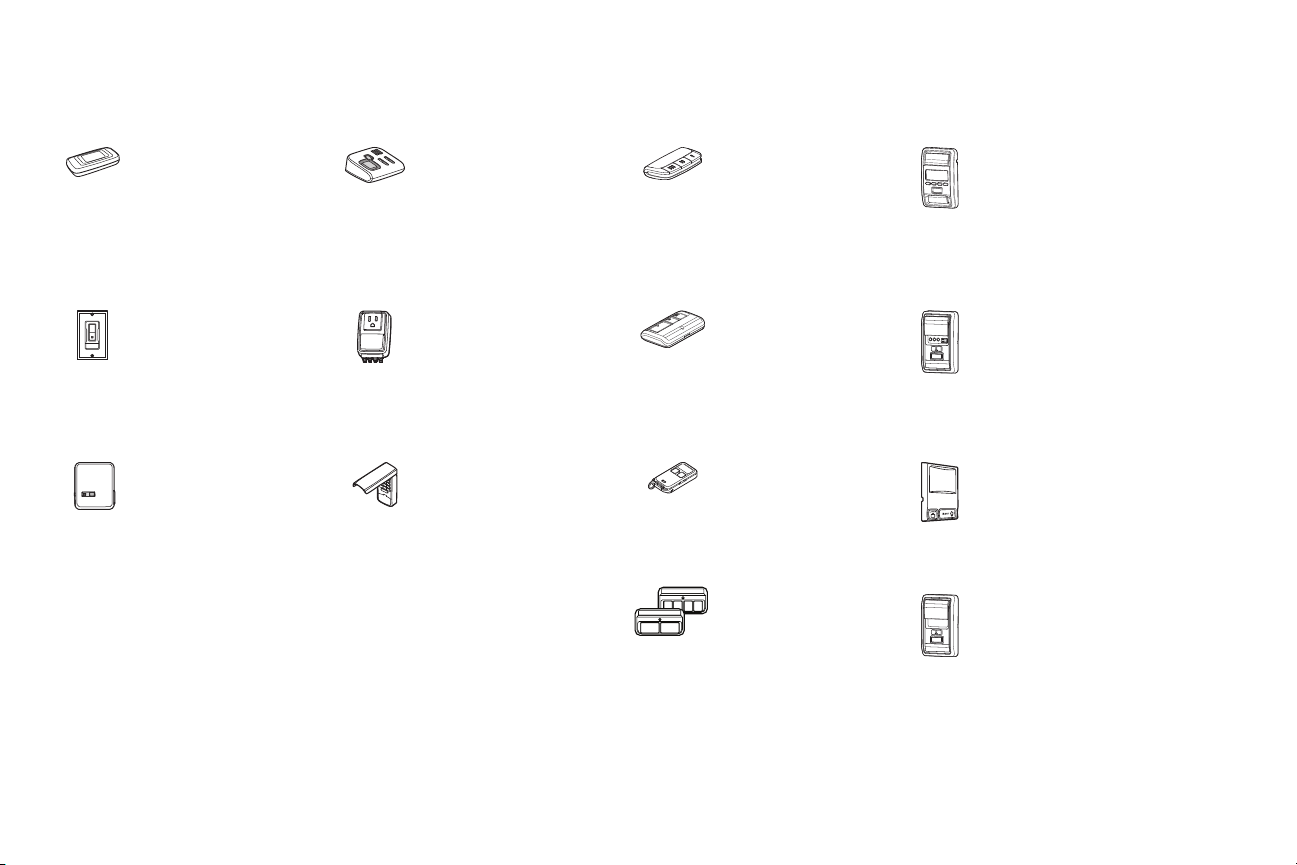

MyQ™ AND SECURITY✚®2.0
ACCESSORIES

Preparation

3

Mounted in the
garage door opener

HARDWARE

H1 (3)

Hex Screw
#8x3/8"
(Packed with the
sprocket cover)

H1 (2)

Washered Bolt
5/16"-18 x 1/2"

H1

Assembly

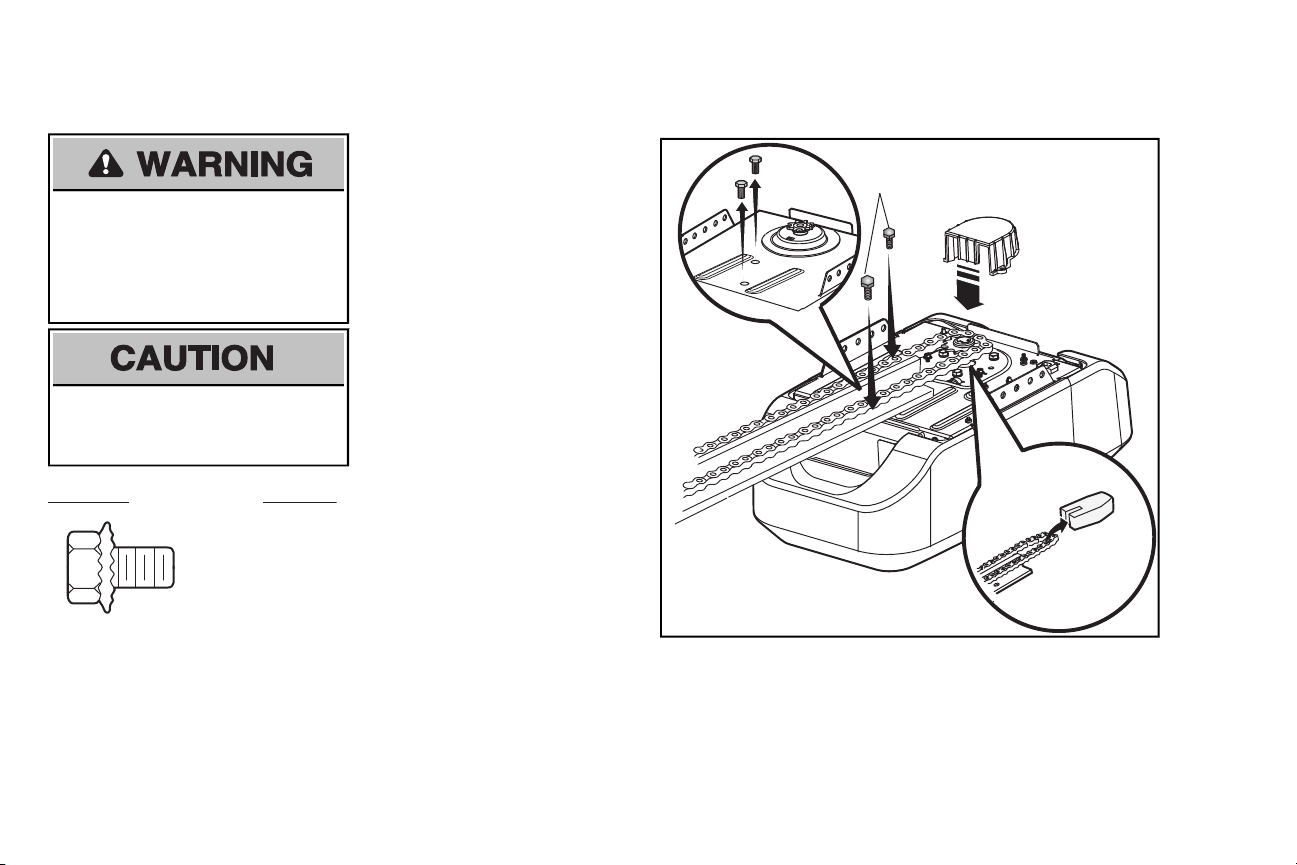

1 Attach the rail to the garage door opener

NOTE: ONLY use the bolts removed from the
garage door opener. Place the garage door

To avoid possible SERIOUS INJURY to finger
frommoving garage door opener:

• ALWAYS keep hand clear of sprocket while
operating opener.

• Securely attach sprocket cover BEFORE
operating.

To avoid SERIOUS damage to garage door
opener, use ONLY those bolts/fasteners
mounted in the top of the opener.

opener on the packing material to prevent
scratching.

1.1 Removethe twobolts from the top of the

garage door opener.

1.2 Align the rail and the styrofoamover the

sprocket. Cut the tape from the rail, belt,
and styrofoam.

1.3 Fasten the rail with the previouslyremoved

bolts(H1).

1.4 Position the chain around the garage door

opener sprocket.

1.5 Install the sprocket cover by squeezing the

sides and inserting the tabsinto the slots
on the garage door opener.

.

4

1/2"

Assembly

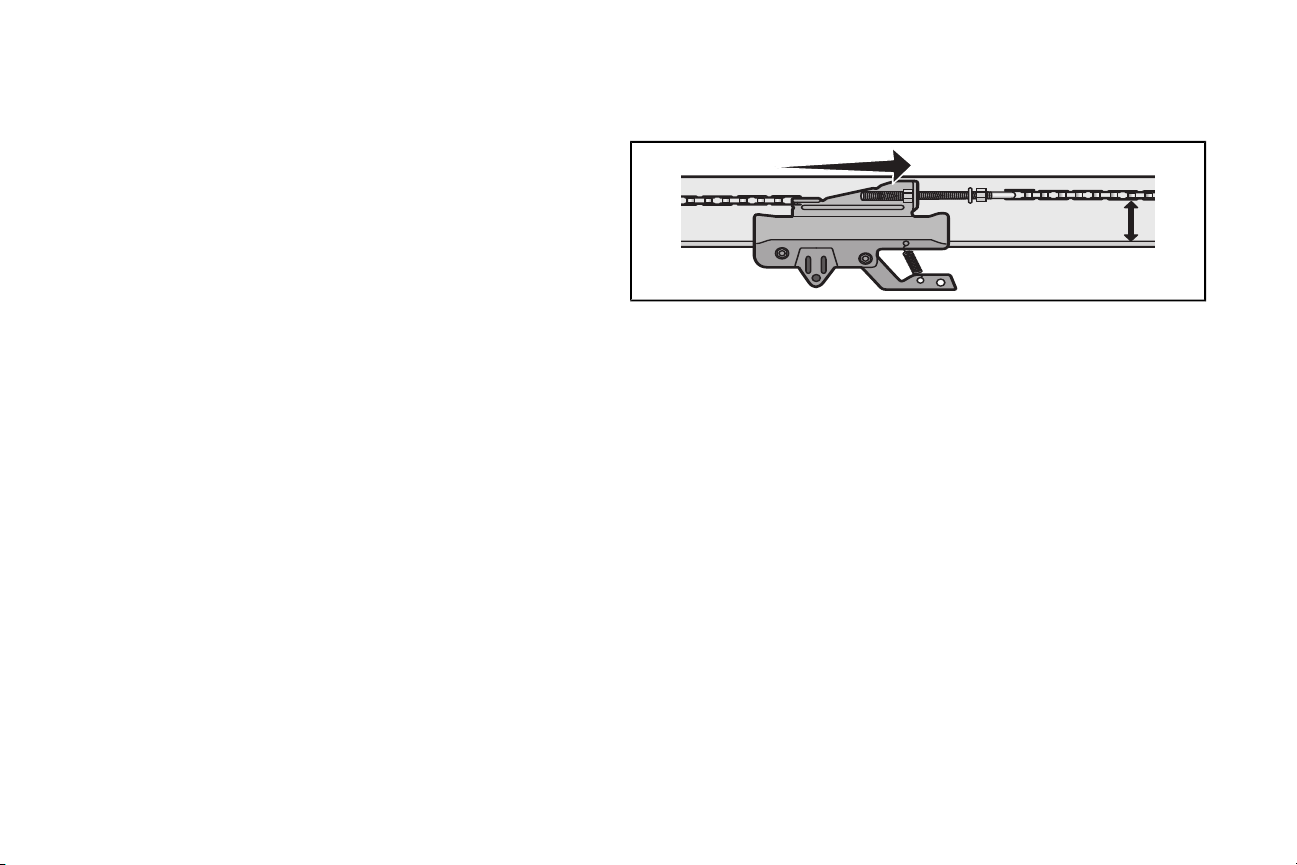

2 Tighten the Chain

2.1 Loosen the inner nut and lock washer on the trolley threaded shaft.

2.2 Tighten the outer nut untilthe chain isa 1/2 inch above the base of the rail at the midpoint of

the rail.

2.3 Re-tightenthe inner nut.

Slack in the chain is normal when the door is closed. No readjustment is necessary.

NOTE: Sprocket noise can result if the chain is too loose. During future maintenance, ALWAYS pull
the emergency release handle to disconnect the trolley before adjusting the chain.

5

WARNING

Installation

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGSAND INSTRUCTIONS.

2. Install garage door opener only on properly balanced and lubricated garage door. An
improperly balanced door may notreverse when required and could result in SEVERE
INJURYor DEATH.

3. ALL repairs to cables, spring assemblies and other hardware MUSTbe made by a trained
door systemstechnician BEFORE installing opener.

4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing
opener to avoid entanglement.

5. Install garage door opener 7 feet(2.13 m) or more above floor.

6. Mount the emergency release within reach, butat least6 feet(1.83 m) above the floor and
avoiding contactwithvehicles to avoid accidentalrelease.

7. NEVER connectgarage door opener to power source until instructed to do so

8. NEVERwearwatches,rings or loose clothing while installing or servicing opener. They could
be caught in garage door or opener mechanisms.

NOTE:If you are installing the garage door opener on a one-piece door, visit www.liftmaster.comfor installation instructions.

9. Install wall-mounted garage door control:

• within sightof the garage door.

• out of reach of children at minimum height of 5 feet (1.5 m).

• away fromALL moving partsof the door.

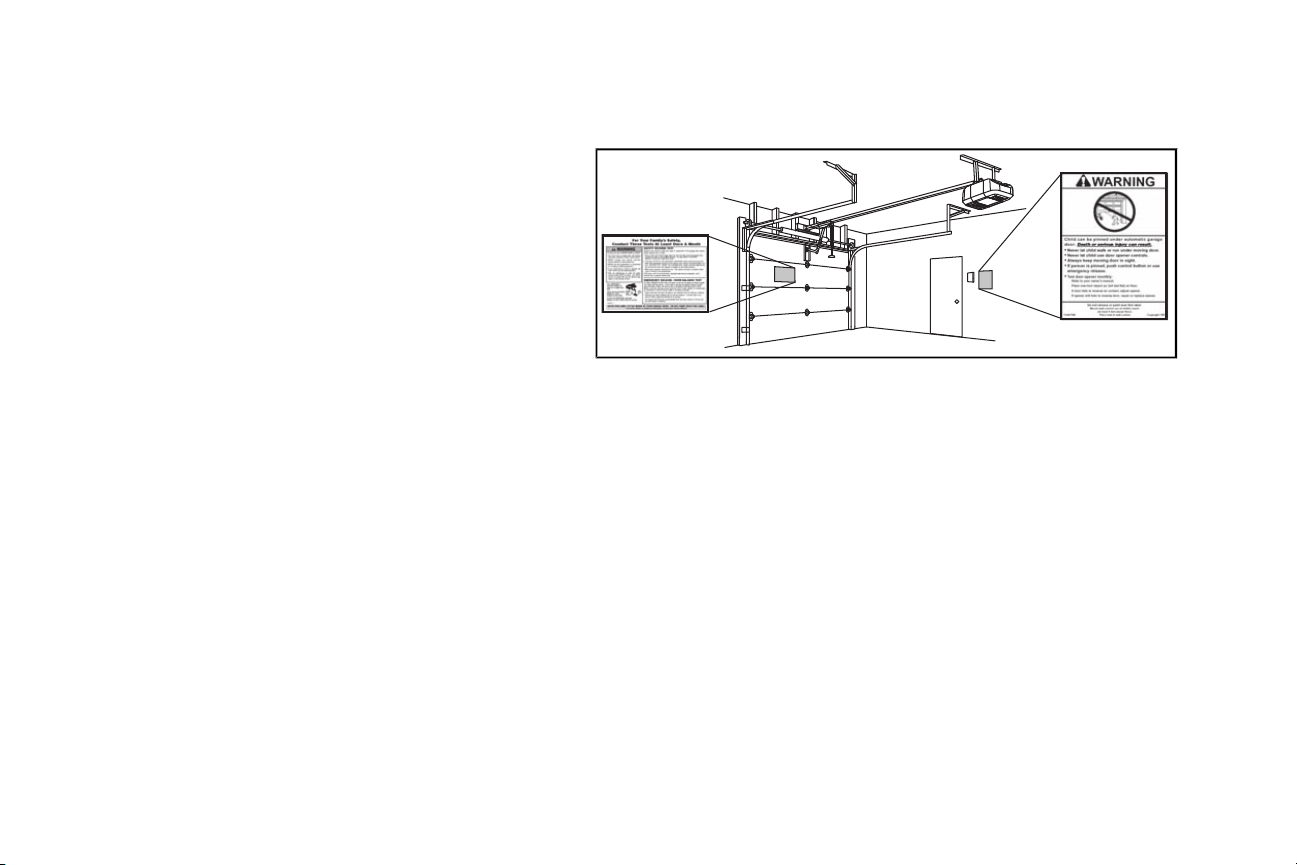

10. Placeentrapment warning label on wall nextto garage door control

11. Placemanual release/safetyreversetestlabel in plain view on inside ofgarage door.

12. Upon completion of installation,testsafety reversalsystem.Door MUSTreverse on.contactwith
a 1-1/2" (3.8cm) high object(or a 2x4 laid fl at) on the floor.

13. To avoid SERIOUSPERSONAL INJURY or DEATH from electrocution,disconnectALL
electricand battery power BEFORE performing any service or maintenance.

14. DO NOTenable the Timer-to-Close functionalityif operating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.

6

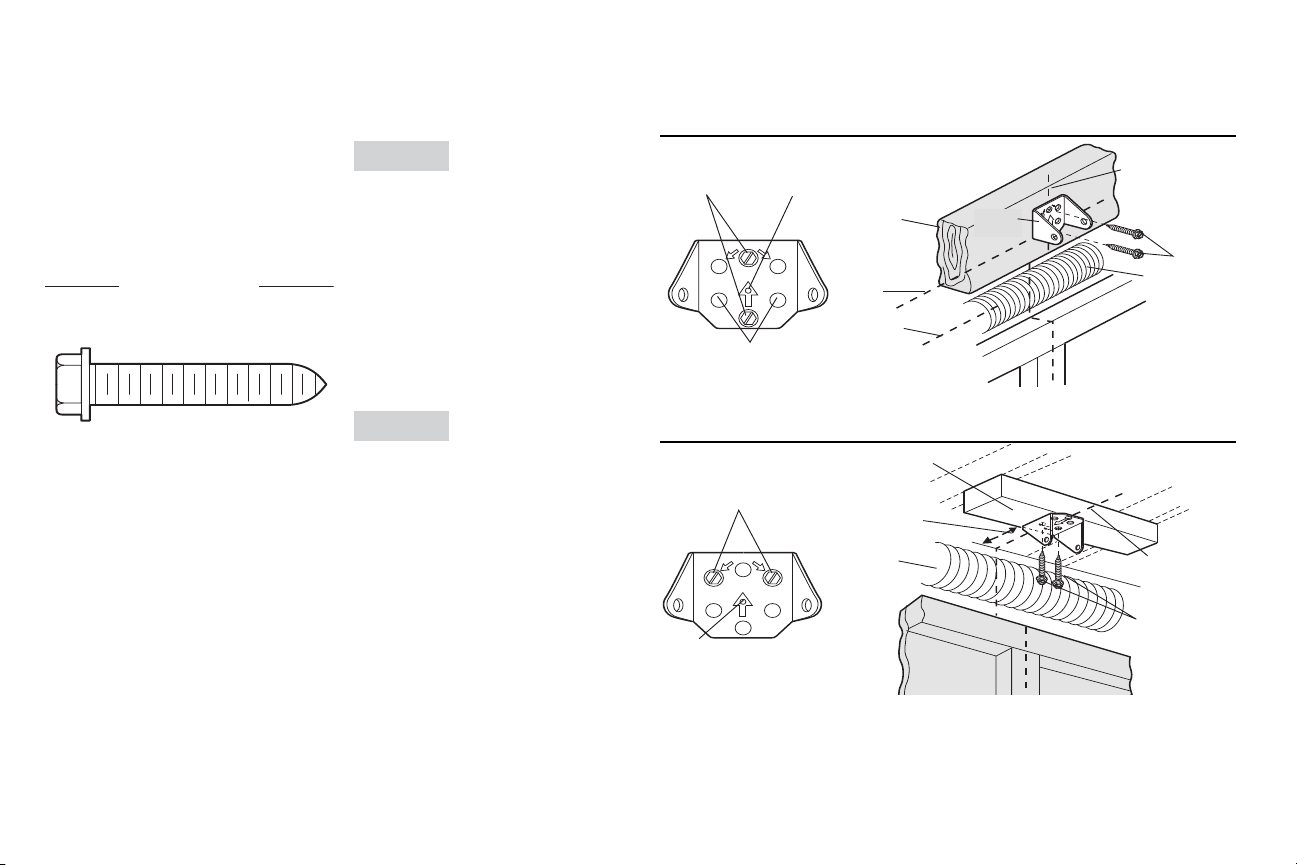

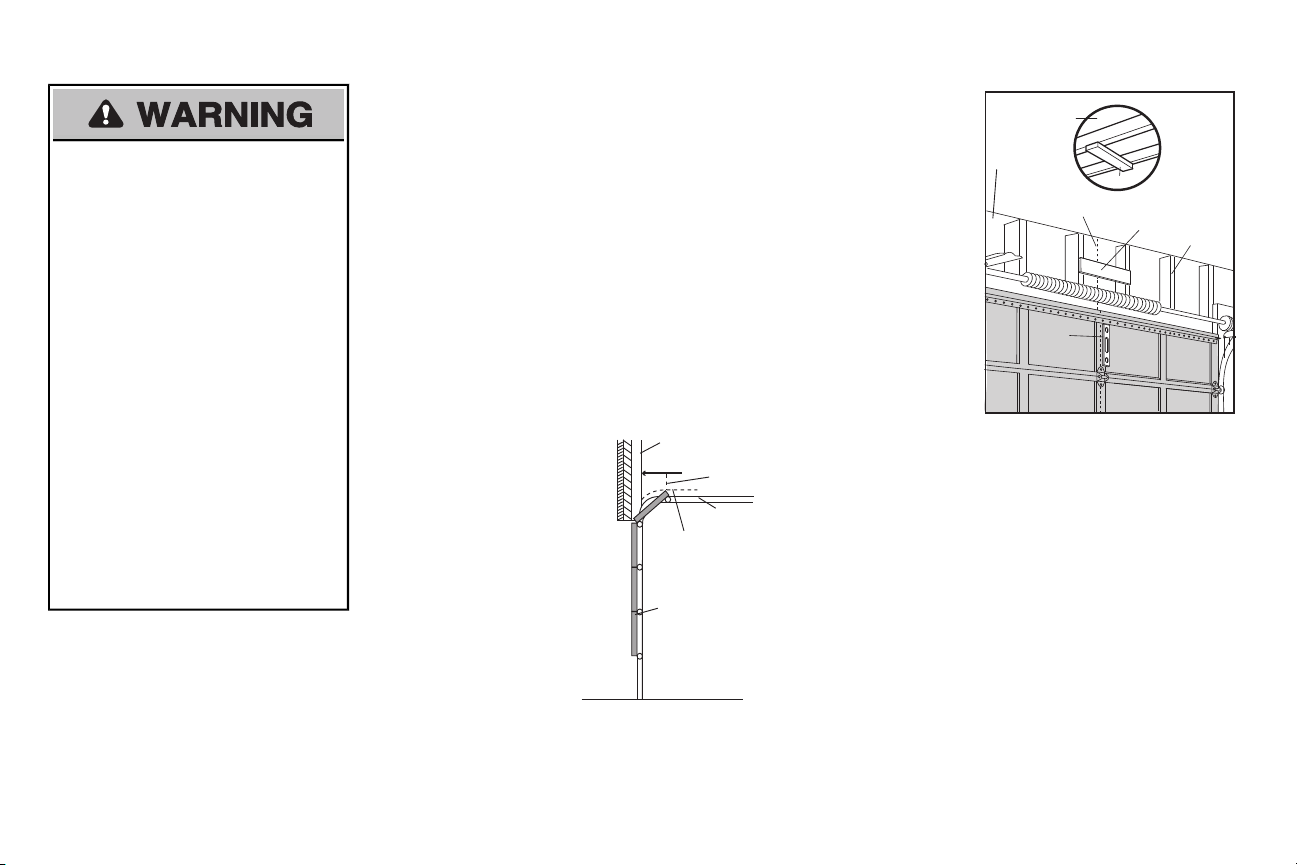

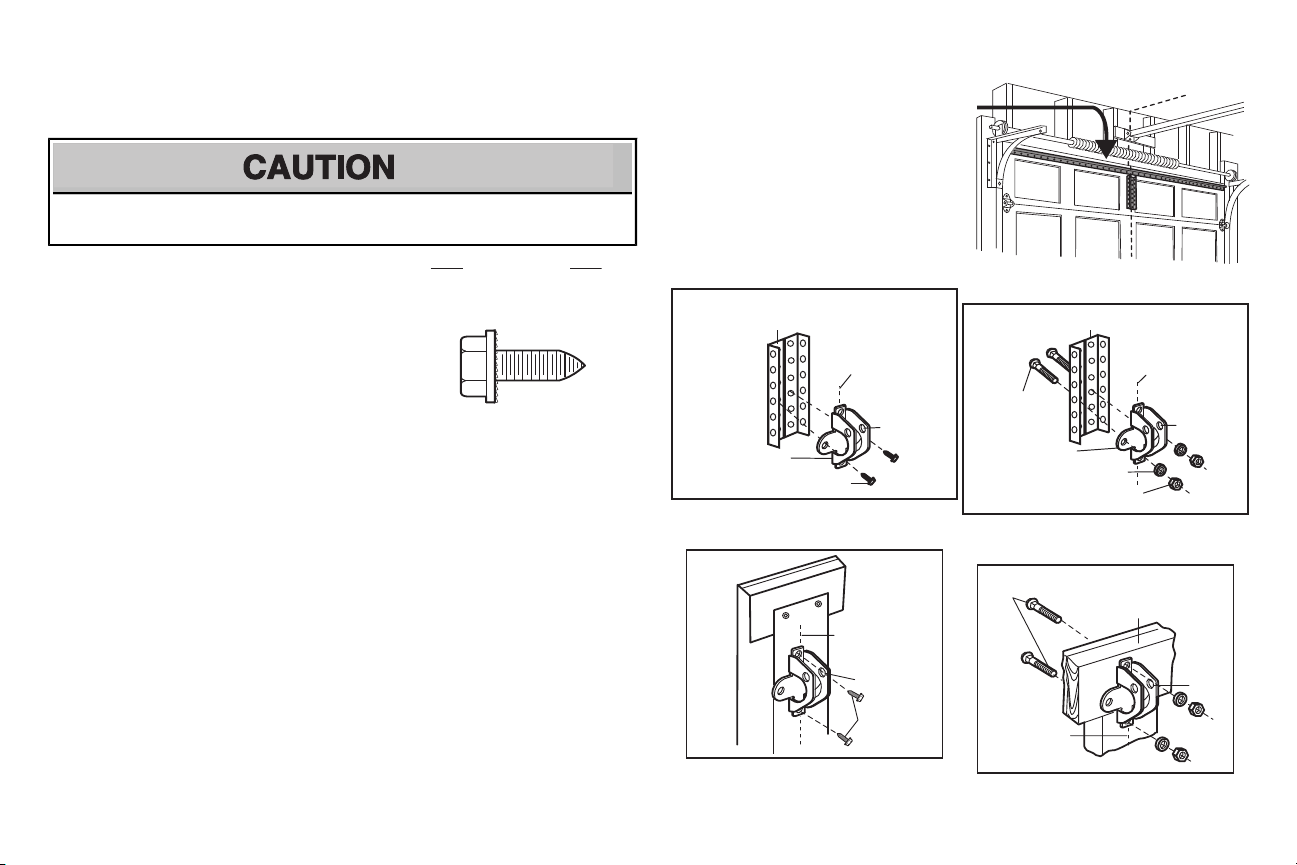

1 Determine the header bracket location

Sectional door with curved track

Header Wall

Track

2" (5 cm)

Highest Point
of Travel

Door

Header Wall

Unfinished Ceiling

Vertical Centerline
of Garage Door

2x4

2x4

Structural
Supports

Level
(Optional)

OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET

To preventpossible SERIOUSINJURY or
DEATH:

• Header bracketMUSTbe RIGIDLY
fastened to structural supporton header
wall or ceiling,otherwise garage door might
NOTreverse when required. DO NOT
install header bracketover drywall.

• Concreteanchors MUSTbe used if
mounting header bracket or 2x4 into
masonry.

• NEVER try toloosen, moveor adjust
garage door,springs, cables, pulleys,
brackets, or their hardware, ALL of which
are under EXTREME tension.

• ALWAYS call a trained door systems
technician if garage door binds,sticks,or is
out of balance. An unbalanced garage
door might NOT reverse when required.

• DO NOT enable the Timer-to-Close
functionality if operating either one-piece or
swinging garage doors. To be enabled
ONLY when operating a sectional door.

NOTE: Ifyou are installing the garage door opener on a one-piece door, visit www.liftmaster.com for
installation instructions.

1.1 Close the door and mark the inside vertical centerline of the garage door.

1.2 Extend the line onto the header wall above the door.

You can fasten the header bracket within4 feet (1.22 m) of the left orright of the door
center only if a torsionspring or center bearing plate is in the way; or you can attach it to
the ceilingwhen clearance is minimal.(It may be mountedon the wall upside downif
necessary, to gainapproximately 1/2" (1 cm).

Ifyou need to install the header bracketon a 2x4 (on wall or ceiling),use lag screws(not

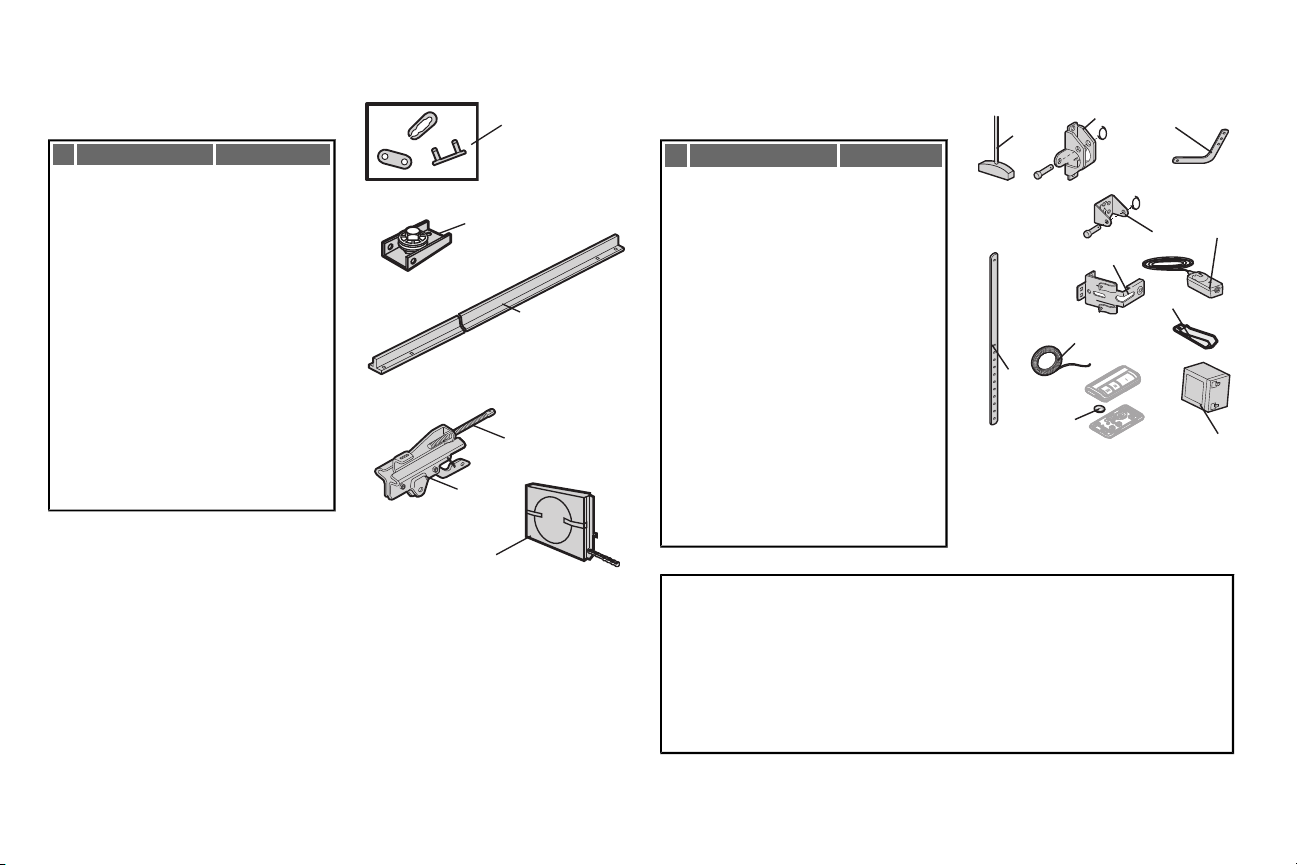

provided) to securely fasten the 2x4 to structural supports.

1.3 Open your door to the highestpoint of travel as shown. Draw an intersecting horizontal line on

the header wall 2" (5 cm) above the high point.Thisheightwill provide travel clearance for the
top edge of the door.

NOTE: Ifthe total number of inches exceeds the height available in your garage, use the maximum
height possible, or refer to page 8 ceiling installation.

7

HARDWARE

H3 (2)

Lag Screw
5/16"-9x1-5/8"

UP

CEILING MOUNT ONLY

Wall Mount

Optional
Mounting
Holes

H3

Vertical
Centerline of
Garage Door

(Header Wall)

Header
Bracket

2x4 Structural
Support

Door Spring

(Garage Door)

Highest Point of
Garage Door
Travel

Horizontal
Line

The nail hole is for positioning

swercs gal esu tsum uoY .ylno

.tekcarb redaeh eht tnuom ot

UP

CEILING MOUNT ONLY

(Header Wall)

Ceiling Mounting Holes

(Finished Ceiling)

Vertical
Centerline of
Garage Door

Header
Bracket

6" (15 cm)
Maximum

Door Spring

(Garage Door)

H3

The nail hole is for positioning

swercs gal esu tsum uoY .ylno

.tekcarb redaeh eht tnuom ot

Installation

2 Install the Header Bracket

You can attach the header bracketeither to the
wall above the garage door, or to the ceiling.
Follow the instructions whichwill workbest for
your particular requirements.Donot installthe

header bracket over drywall. If installing into
masonry,use concrete anchors (not provided).

OPTION A WALL INSTALLATION

2.1A Center the bracketon the vertical

centerline withthe bottomedge of the
bracketon the horizontal line asshown
(with the arrow pointing toward the
ceiling).

2.2A Mark the vertical set ofbracket holes(do

not use the holes designated for ceiling
mount).Drill 3/16" pilotholes and fasten
the bracketsecurelyto a structural
support with the hardware provided (H3).

OPTION B CEILING INSTALLATION

2.1B Extend the vertical centerline onto the

ceiling as shown.

2.2B Center the bracketon the vertical mark,

no more than 6" (15 cm) from the wall.
Make sure the arrow is pointing away
fromthe wall.The bracketcan be
mounted flush against the ceiling when
clearance isminimal.

2.3B Mark the side holes. Drill 3/16" pilot holes

and fasten bracketsecurely to a structural
support with the hardware provided (H3).

8

H11

H5

HARDWARE

H5

Clevis Pin
5/16"x2-3/4"

H11

Ring Fastener

Connected Disconnected

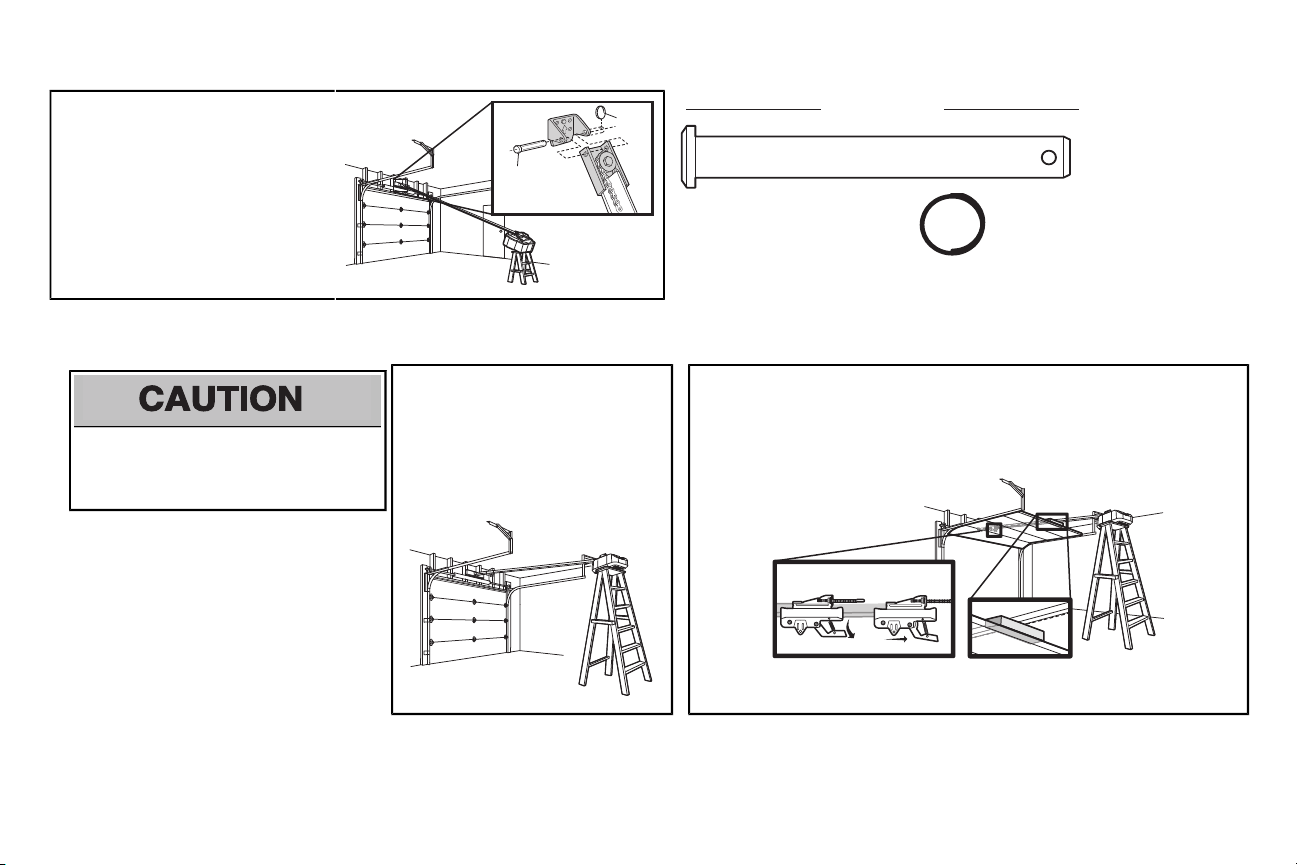

3 Attach the rail to the header bracket

3.1 Align the rail withthe header bracket.

Insertthe clevis pin (H5) through the
holes in the header bracketand rail.
Secure withthe ring fastener (H11).

NOTE: Use the packing material as a
protective base for the garage door opener.

4 Position the garage door opener

To preventdamage to garage door, restgarage
door opener rail on 2x4 placed on top section of
door.

4.1 Removethe packing material and lift the

garage door opener onto a ladder.

NOTE: A 2x4 is ideal for setting the distance
between the rail and the door. Ifthe ladder is
not tall enough you will need help at this point.

9

4.2 Fullyopen the door and place a 2x4 (laid flat)under the rail.

NOTE: Ifthe door hits the trolley when it is raised, pull the trolley release arm down to
disconnectthe inner and outer trolley.Slide the outer trolley toward the garage door opener.
The trolley can remain disconnected until instructed.

HARDWARE

H4 (2)

Lag Screw 5/16"- 18x1-5/8"

H2 (2)

Hex Bolt 5/16"- 18x7/8"

H8 (2)

Nut 5/16"-18

H9 (2)

Lock Washer
5/16"-16

Finished Ceiling

Unfinished Ceiling

Finished
Ceiling

H4

(not provided)

H4

(not provided)

H2

H8

H9

Installation

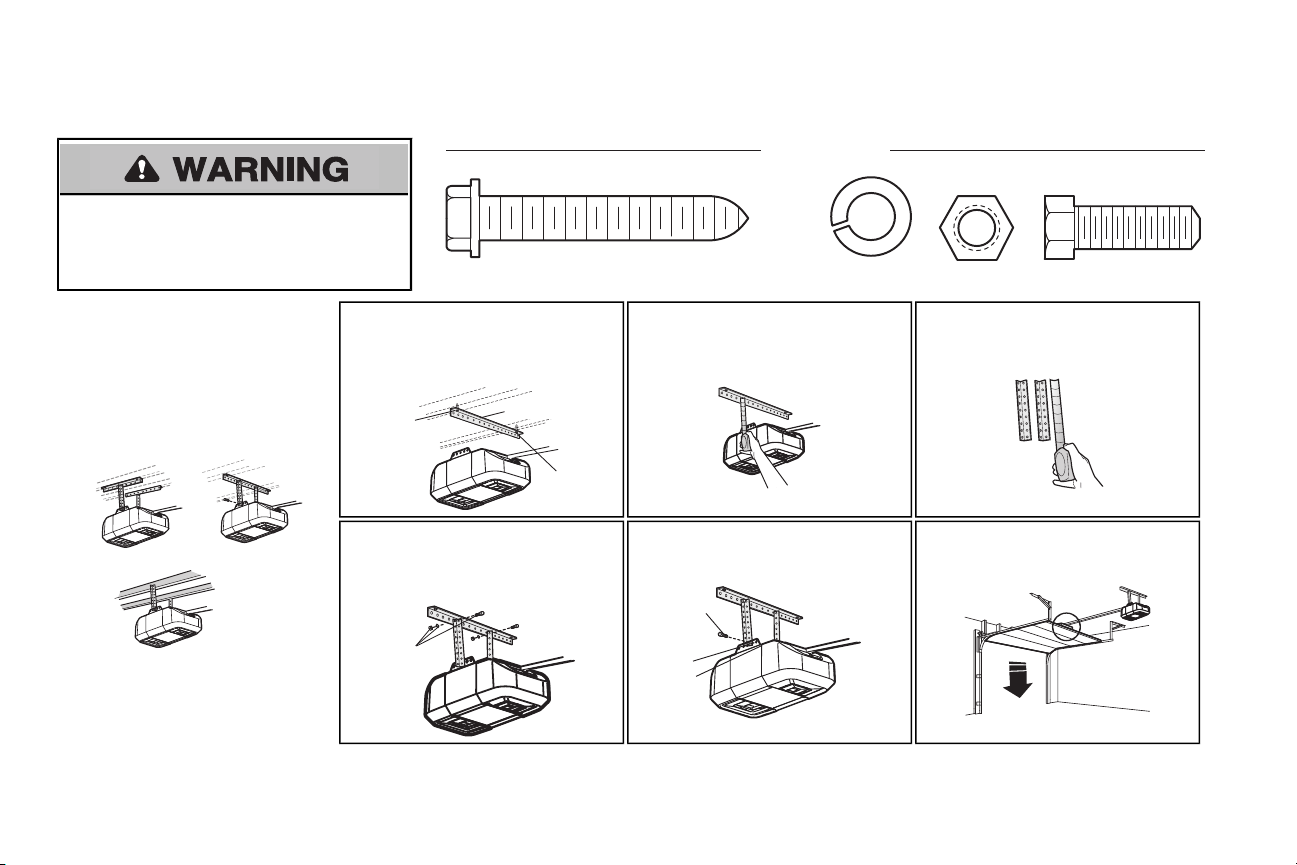

5 Hang the garage door opener

To avoid possible SERIOUS INJURY froma
falling garage door opener, fasten it SECURELY to
structural supportsof the garage. Concrete anchors MUST
be used ifinstalling ANY brackets intomasonry.

Hanging the garage door opener will vary
depending on your garage. Below are three
example installations. Your installation may be
different.For ALL installations the garage door
opener MUST be connected to structural
supports.The instructionsillustrate one ofthe
examples below.

5.1 On finished ceilings,use the lag screws

(H4) to attacha support bracket(not
provided) to the structural supports
before installing the garage door opener.

5.4 Attach the end of each hanging bracketto

the supportbracket with appropriate
hardware (not provided).

5.2 Make sure the garage door opener is

aligned with the header bracket.Measure
the distance fromeach side ofthe garage
door opener to the support bracket.

5.5 Attach the garage door opener to the

hanging brackets with the bolts (H2), lock
washers(H9) and nuts (H8).

10

5.3 Cut bothpieces of the hanging bracket

(not provided) to required lengths.

5.6 Remove the 2x4 and manually closethe

door. Ifthe door hitsthe rail,raise the
header bracket.

or or

Trolley
Release Arm

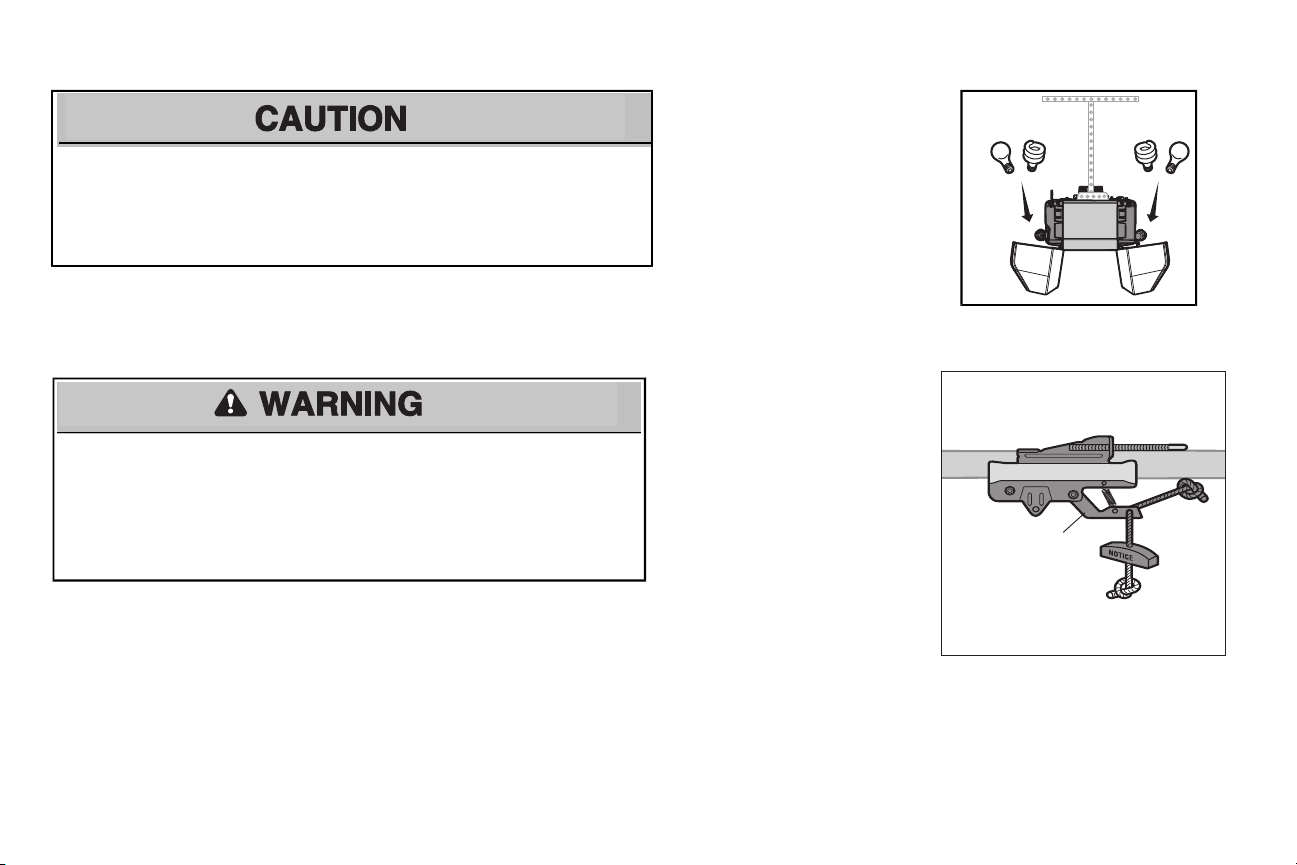

6 Install the light bulbs

6.1 Pull on the top center of the light lens and

rotate the light lens down.

To preventpossible OVERHEATING of the end panel or light socket:

• UseONLY A19 incandescent or compact fluorescent lightbulbs.

• DO NOT use incandescentbulbs larger than 100W.

• DO NOT use compact fluorescent light bulbslarger than 26W (100W) equivalent.

• DO NOT use halogen bulbs.

• DO NOT use short neck or specialtylight bulbs.

6.2 Insertan A19 incandescent or compact

fluorescentlight bulb (100 wattmaximum),
into the light socket.

6.3 Rotatethe lens up to close.

NOTE: The use of short neck or speciality light
bulbs may overheat the end panel or light socket.

7 Attach the emergency release rope and handle

7.1 Insertone end of the emergencyrelease

rope through the handle. Make sure that

To preventpossible SERIOUSINJURY or DEATH froma falling garage door:

• Ifpossible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could resultin an open door falling
rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.

• NEVER use handle to pull door open or closed.Ifrope knot becomes untied, you could fall.

NOTE: Ifit is necessaryto cut the emergencyrelease rope, seal the cut end with a match or lighter to prevent unraveling. Ensure the emergencyrelease
rope and handle are above the top of all vehicles to avoid entanglement.

“NOTICE” is rightside up. Tie a knot at
least1 inch (2.5 cm) fromthe end of the
emergency release rope.

7.2 Insertthe other end ofthe emergency

release rope through the hole in the
trolley release arm. Makesure the
handle is 6 feet(1.83 m) above the floor
and secure with a knot.

11

H10 (2)

Self-Threading Screw
1/4˝-14x5/8˝

HARDWARE

Door
Bracket

Vertical
Centerline
of Garage Door

UP

Vertical
Reinforcement

FIGURE 2

H10

UP

H10

Vertical
Centerline
of Garage
Door

FIGURE 4

FIGURE 1

Door
Bracket

Nut
5/16"-18

Bolt
5/16"-18x2"
(Not Provided)

Lock Washer
5/16"

UP

Vertical Reinforcement

FIGURE 3

Vertical
Centerline
of Garage Door

UP

Inside Edge
of Door or
Reinforcement Board

Bolt 5/16"x2"
(Not Provided)

FIGURE 5

Vertical
Centerline
of Garage
Door

Installation

8 Install the door bracket

Fiberglass,aluminum or lightweight steel garage doors WILLREQUIRE reinforcement BEFORE
installation of door bracket.Contactyour door manufacturer for reinforcementkit.

Figure 1 showsone piece of angle iron as the horizontal
brace. For the vertical brace, 2 pieces ofangle iron are
used tocreate a U-shaped support. The best solution is to
checkwithyour garage door manufacturer for an opener
installation door reinforcementkit.

NOTE: Many door reinforcementkitsprovide for direct
attachment of the clevispin and door arm. In this case you
will not need the door bracket; proceed to the next step.

8.1 Center the door bracket on the previously marked vertical centerline used for the header bracket

installation.Note correct UP placement,as stamped inside the bracket.

8.2 Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directlybelow

any structural supportacrossthe top of the door.

8.3 Mark,drill holes and install as follows,depending on your door’s construction:

Metal or light weight doors using a vertical angle ironbrace between the door panel support and
the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the twoself threading screws (H10).
(Figure 2)

• Alternately, use two 5/16" bolts,lockwashers and nuts(not provided). (Figure 3)

Metal,insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws (H10).
(Figure 4)

NOTE: The 1/4"-14x5/8"self-threading screws are not intended for use on wood doors.

Wood Doors:

• Use top and bottom or side to side door bracketholes.Drill 5/16” holes through the door and
secure bracketwith 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 5)

A horizontal andvertical reinforcement is
needed for lightweight garage doors
(fiberglass, aluminum, steel,doors with glass
panel,etc.) (not provided).
A horizontal reinforcement brace shouldbe
long enoughto be secured to two or three
vertical supports. A verticalreinforcement
brace shouldcover the height of the toppanel.

12

Straight
Door Arm

Curved
Door
Arm

(Groove
facing out)

CORRECT

INCORRECT

Straight
Door
Arm

Curved
Door
Arm

H11

H7

H11

H6

HARDWARE

H2 (2)

Hex Bolt 5/16"-18x7/8"

H8 (2)

Nut
5/16"-18

H9 (2)

Lock
Washer

5/16" -16

H7

Clevis Pin
5/16"x1"

H6

Clevis Pin 5/16"x1-1/4"

H11 (2)

Ring Fastener

H8

H9

H2

H8

H9

H2

If the straight door arm is hanging
down too far, you may cut 6 inches
(15 cm) from the solid end.

Trolley
release arm

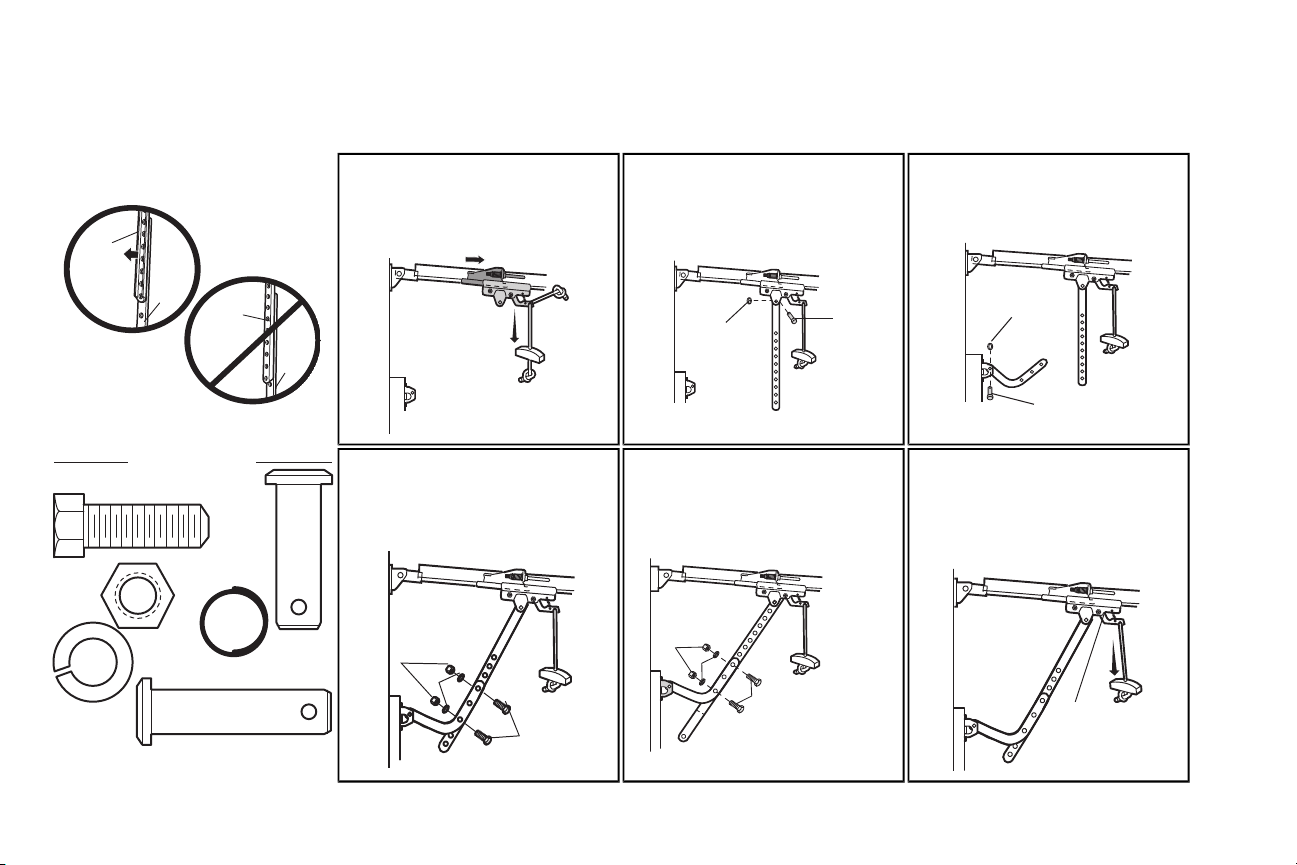

9 Connect the door arm to the trolley

IMPORTANT:The groove on the straight door arm MUST face away from the curved door arm.

9.1 Close the door. Disconnect the trolley by

pulling the emergency release handle.
Slide the outer trolleyback (awayfrom
the door) about 2" (5 cm).

9.4 Align the straightdoor arm withthe

curved door arm.Select two aligned
holes (as far apart as possible) and
attach using the bolts(H2),nuts (H8)
and lock washers (H9).

9.2 Attachthe straight door arm to the outer

trolley using the clevispin (H7). Attach
withthe ring fastener (H11).

NOTE: Ifthe holes do not line up, reverse the
straight door arm. Select two aligned holes (as
far apart as possible) and attach using the bolts
(H2), nuts (H8) and lock washers(H9).

.

13

9.3 Attachthe curved door arm to the door

bracketusing the clevis pin (H6).
Attach withthe ring fastener (H11).

9.5 Pull the emergency release handle

toward the garage door opener until the
trolley release arm is horizontal.The
trolley will re-engage automatically when
the garage door opener isactivated.

Install the Door Control

H14 (2)

Screw
6ABx1-1/4"

HARDWARE

H16 (2)

Drywall
Anchors

H15 (2)

Screw
6-32x1"

7/16"
(11 mm)

Wall

H15

DRYWALL

GANG BOX

H14

H16

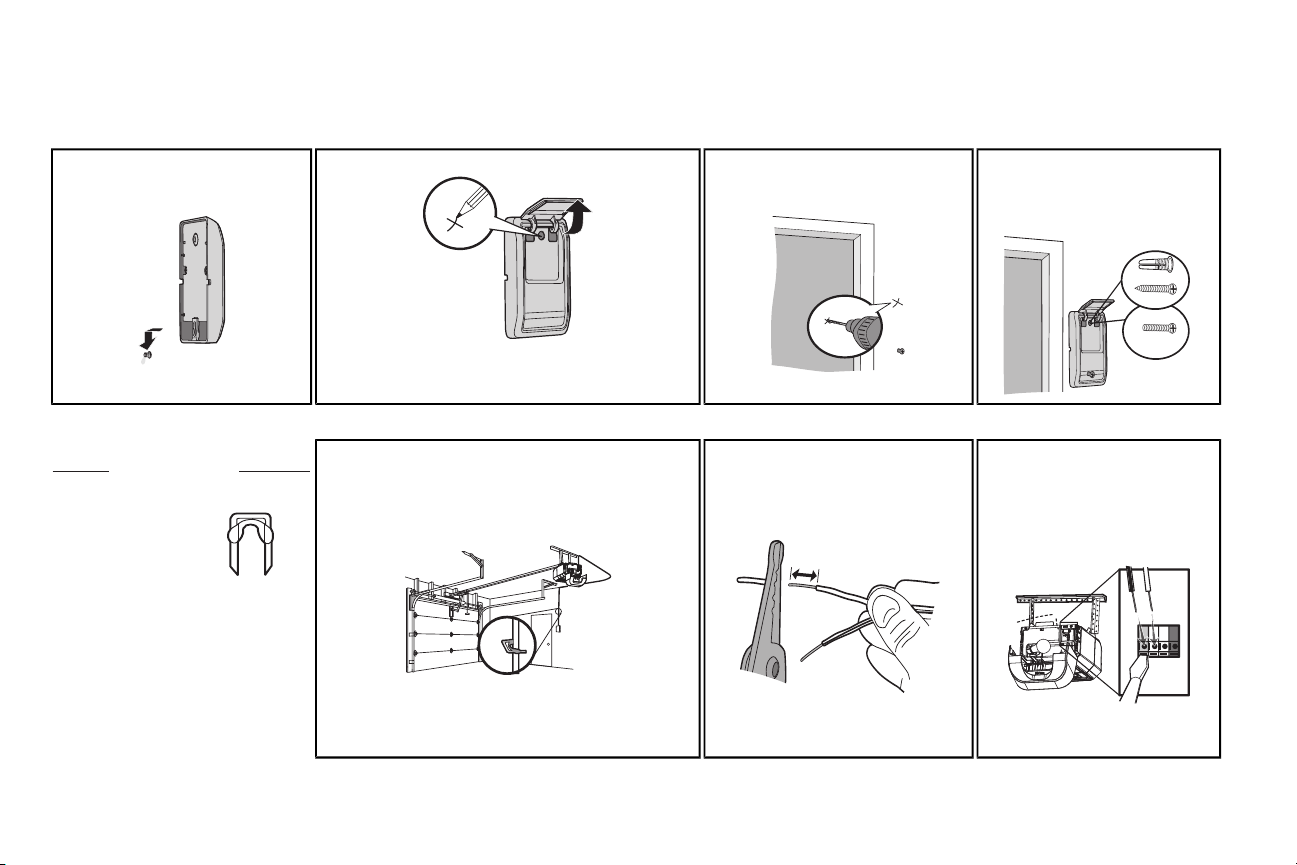

1 Install the door control

INTRODUCTION

Compatible with MyQ™ and Security+®2.0

To preventpossible SERIOUSINJURY or DEATH fromelectrocution:

• Be sure power is NOT connected BEFORE installing door control.

• ConnectONLY to 24 VOLT lowvoltage wires.
To preventpossible SERIOUSINJURY or DEATH froma closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of5 feet
(1.5 m), and away from ALL moving partsof door.

• NEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.

• Activate door ONLY when itcan be seen clearly,is properly adjusted,and there are no
obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed.NEVER permitanyone to cross path of
closing garage door.

NOTE: For gang box installations it is not necessary to drill holes or install the drywall anchors.Use the existing holes in the gang box.

1.1 Strip 7/16 inch (11 mm) ofinsulation from

one end of the wire and separate the wires.

1.2 Connectone wire to each of the two screws

on the backof the door control. The wires
can be connected to either screw.

PRE-WIREDINSTALLATIONS:Choose
any two wiresto connect,note which wires
are used so the correctwires are connected
at the garage door opener in a later step.

accessories.NOTE:Older LiftMaster

accessories and third partyproducts are not
compatible.Your garage door opener is

compatible with up to2 Smart Control Panelsor
4 of any other Security+®2.0 door controls.
Install the door control within sightof the door at
a minimumheightof 5 feet (1.5 m) where small
children cannot reach,and away from the
moving partsof the door.

NOTE: Your productmay look different than
moving partsof the door the illustrations.

1.3 Mark the location ofthe bottommounting

14

hole and drill a 5/32 inch (4 mm)hole.

1.4 Install the bottom screw,allowing 1/8 inch

(3 mm)to protrude fromthe wall.

Install the Door Control

DRYWALL

H14

H16

H15

GANG BOX

HARDWARE

H17 (10)

Insulated Staple

H17

7/16"
(11 mm)

RED

WHITE

WHITE

GREY

k

1.5 Position the bottomhole of the door

1.6 Lift the push bar up and mark the top hole. 1.7 Removethe door control from the wall

control over the screwand slide
down into place.

2 Wire the door control to the garage door opener

2.1

Run the white and red/whitewire fromthe door control to

the garage door opener. Attach the wire tothe wall and
ceiling withthe staples (H17) (not applicable for gang box

or pre-wired installations).Do notpierce the wire with the

staple as thismay cause a shortor an open circuit.

PRE-WIRED INSTALLATIONS: When wiring

the door control to the garage door opener
make sure you use the same wires thatare
connected to the door control.

and drill a 5/32 inch (4 mm) hole for
the top screw.

2.2

Strip 7/16 inch (11 mm) ofinsulation

fromthe end of the wire near the
garage door opener.

15

door control over the screwand
slide down intoplace. Attach the
top screw.

2.3

Connectthe wire to the red and

white terminals on the garage
door opener.To insertor
release wires from the terminal,
push in the tab withscrewdriver
tip.

1.8 Position the bottom hole ofthe

Install the Door Control

3 Attach the warning labels

3.1 Attach the entrapmentwarning label on the wall near the door control with tacksor

staples.

3.2 Attach the manual release/safetyreverse testlabel in a visible location on the inside of

the garage door.

16

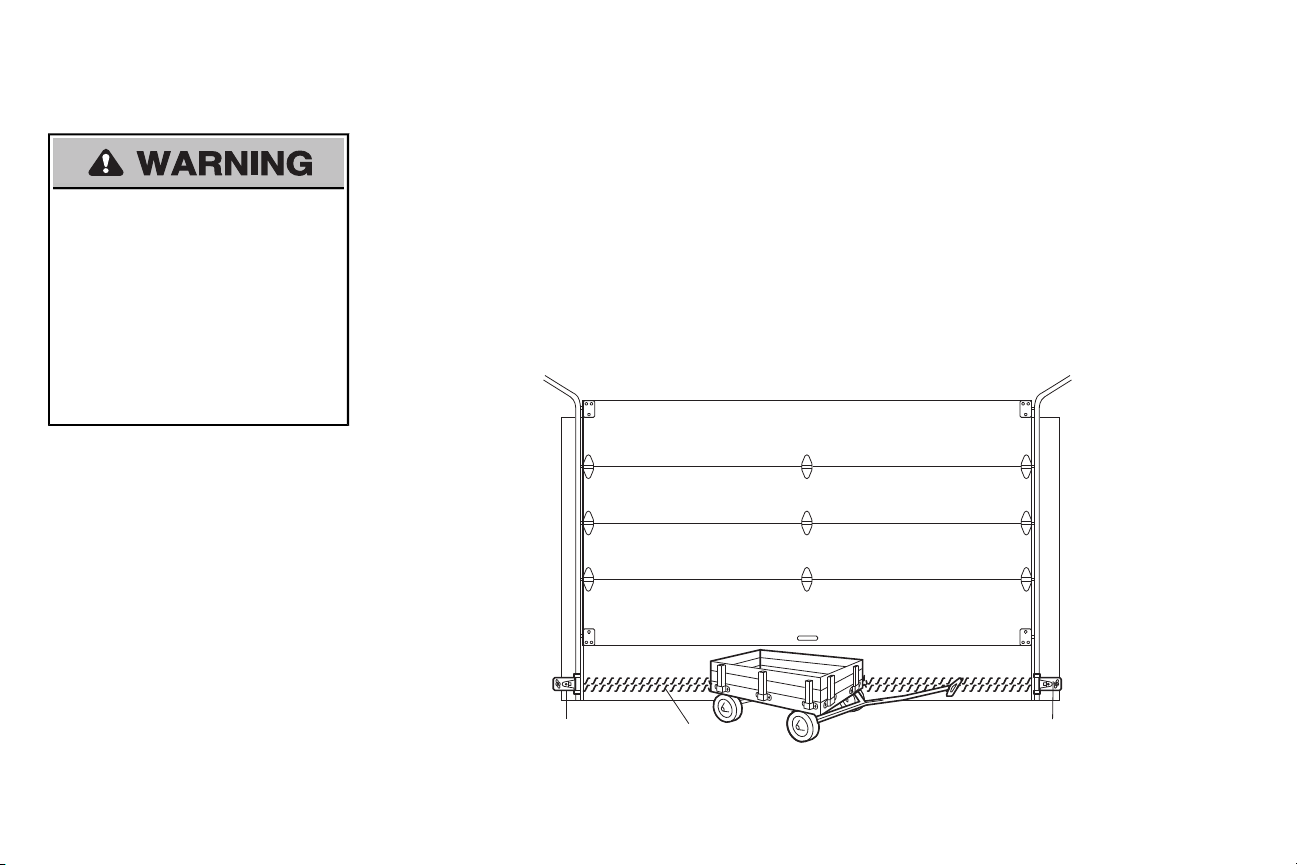

Install the Protector System

Invisible Light Beam
Protection Area

Safety Reversing Sensor
6" (15 cm) max. above floor

Safety Reversing Sensor
6" (15 cm) max. above floor

®

Introduction

Be sure power isNOT connected to the garage
door opener BEFORE installing the safety
reversing sensor.
To preventSERIOUS INJURY or DEATHfrom
closing garage door:

• Correctlyconnectand align the safety
reversing sensor.Thisrequired safety
device MUST NOT be disabled.

• Install the safetyreversing sensor so beam
is NO HIGHERthan 6" (15 cm) above
garage floor.

IMPORTANTINFORMATIONABOUTTHESAFETYREVERSINGSENSORS
The safety reversing sensors must be connectedand aligned correctly before the garage dooropenerwillmove in the down direction.

The sending sensor (with an amber LED) transmitsan invisible light beam to the receiving sensor (witha green LED). Ifan obstruction breaks the light
beam while the door is closing,the door will stop and reverse tothe full open position,and the garage door opener lights will flash 10 times.

NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully closed. The sleep mode shuts the garage door
opener down until activated. The sleep mode is sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn
off and whenever the garage door opener lights turn on the sensor LEDs will light. The garage door opener will not go into the sleep mode until the
garage door opener has completed 5 cycles upon power up.

When installing the safetyreversing sensors checkthe following:

• Sensorsare installed inside the garage, one on either side of the door.

• Sensorsare facing each other with the lenses aligned and the receiving sensor lens does not receive direct sunlight.

• Sensorsare no more than 6 inches(15 cm) above the floor and the light beam is unobstructed.

17

Install the Protector System

HARDWARE

H12 (2)

Carriage Bolt
1/4"-20x1/2"

H13 (2)

Wing Nut
1/4"-20

H12

H13

(not provided)

In

side

G

a

rage

Wal

l

(not provided)

H12

Lens

H13

®

1 Install the Safety Reversing Sensors

The safetyreversing sensorscan be attached to the door track,the wall,or the floor. Ifthe door trackwill notsupport the sensor bracketa wall installationis recommended.Choose one of the following installations.

OPTION A

1.1A Slide the curved armsof the sensor

OPTION B WALLINSTALLATION

Ifadditional clearance is needed an extension bracket (not provided) or wood blocks can be used. Make sure each brackethas the same amountof clearance so they will align correctly.

1.1B Position the sensor bracket againstthe

wall with the curved arms facing the
door. Makesure there isenough
clearance for the beam to be
unobstructed.Markholes.

1.2B Drill 3/16 inch pilot holesfor each

DOOR TRACK INSTALLATION

bracketaround the edge of the door
track. Snap into place so thatthe
sensor bracketis flush againstthe
track.

sensor bracketand attach the sensor
bracketstothe wall using lag screws
(not provided).

1.2A Slide the carriage bolt (H12) into the

sloton each sensor.

1.3B Slide the carriage bolt (H12) into the

sloton each sensor.

1.3A Insert the bolt through the hole in the sensor

bracketand attachwith the wing nut (H13).The
lenses on bothsensors should pointtoward
each other.Make sure the lens isnot obstructed
by the sensor bracket.

1.4B

Insertthe boltthrough the hole in the sensor
bracketand attachwith the wing nut (H13).The
lenses on bothsensors should pointtoward
each other.Make sure the lens isnot
obstructed by the sensor bracket.

18

Install the Protector System

Insi

d

e

Garage
Wa

l

l

(not provided)

H12

H13

HARDWARE

H17 (10)

Insulated Staple

H17

7/16"
(11 mm)

RED

WHITE

WHITE

GREY

1 Install the Safety Reversing Sensors

®

OPTION C

FLOOR INSTALLATION

Usean extension bracket(not provided) or wood blackto raise the sensor bracketifneeded.

1.1C Carefully measure the position ofboth

sensor brackets so theywill be the same
distancefrom the wall and unobstructed.

1.2C

Attach the sensor bracketsto the floor
using concreteanchors (not
provided).

2 Wire the Safety Reversing

Sensors

PRE-WIRED INSTALLATIONS: Ifyour garage

already has wires installed for the safety
reversing sensors,refer to the instructionson the
following page.

OPTION A

2.1A Run the wire from both sensors to the

INSTALLATION WITHOUT PRE-WIRING

garage door opener. Attach the wire to
the wall and ceiling with the staples
(H17).

1.3C

Slide the carriage bolt (H12) intothe
sloton each sensor.

2.2A Strip 7/16 inch (11 mm)of insulation

fromeach setof wires.Separate the
wires.Twist the white wires together.
Twist the white/blackwires together.

19

1.4C

Insertthe boltthrough the hole in the sensor
bracketand attachwith the wing nut (H13).The
lens on both sensors should point toward each
other. Make sure the lens is not obstructed by
the sensor bracket.

2.3A Insert the white wires into the white terminal on

the garage door opener. Insert the white/black
wires into the grey terminal on the garage door
opener. To insertor remove the wires from the
terminal,push in the tab with a screwdriver tip.

Install the Protector System

7/16"
(11 mm)

7/16"
(11 mm)

Safety reversing sensor wires

Pre-installed
wires

White

White/Black

Yellow
(for example)

Purple
(for example)

Not Provided

Pre-installed
wires

Safety reversing sensor wires

7/16"
(11 mm)

Yellow

Purple

RED

WHITE

WHITE

GREY

Purple
(for example)

Yellow

(for example)

To insert or remove the wires
from the terminal, push in the
tab with a screwdriver tip.

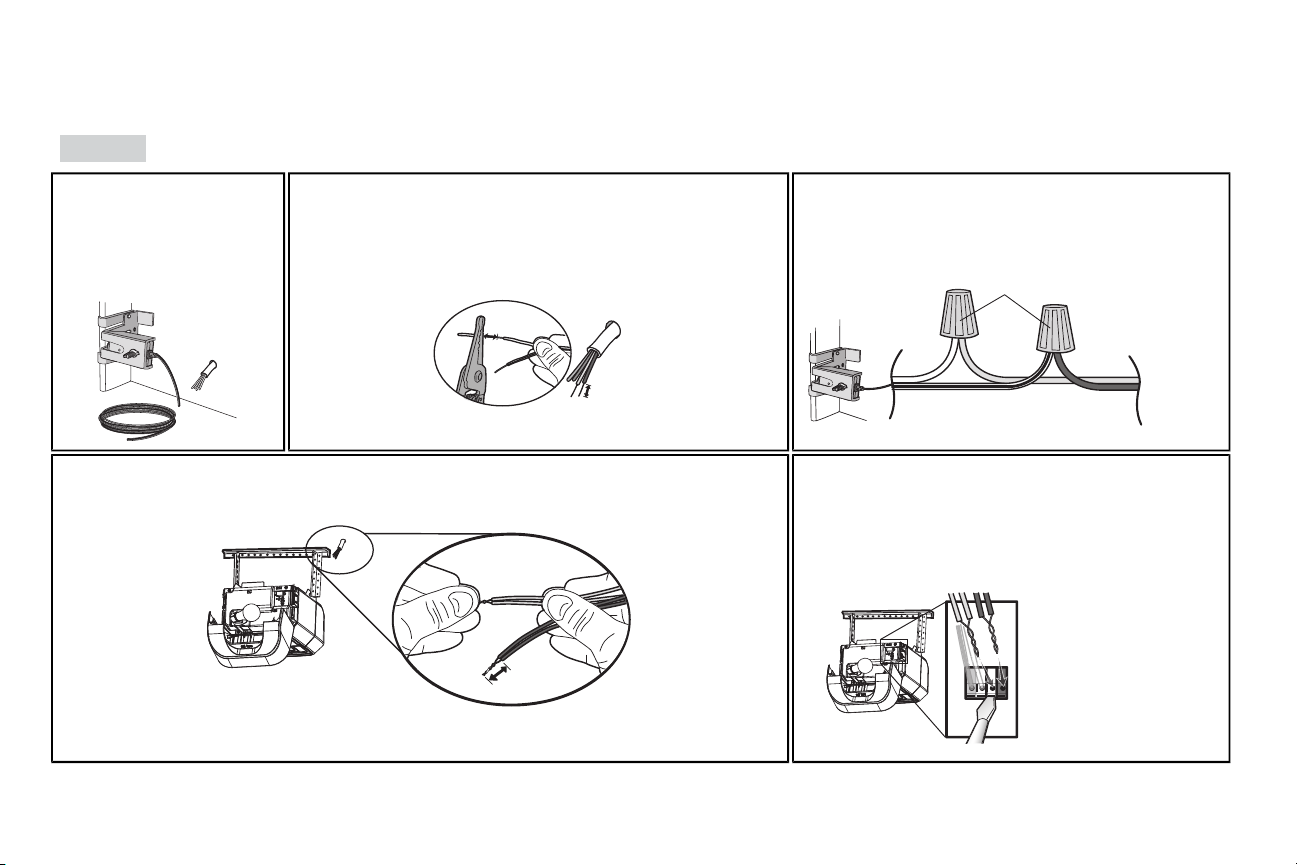

OPTION B PRE-WIRED INSTALLATION

®

2.1B Cut the end of the safety

reversing sensorwire, making
sure there is enough wire to
reach the pre-installed wires

2.2B Separate the safetyreversing sensor wires and strip 7/16 inch (11 mm) of

insulation fromeach end. Choose two of the pre-installed wiresand strip 7/16
inch (11 mm)of insulation from each end. Make sure that you choose the
same color pre-installed wires for each sensor.

fromthe wall.

2.4B At the garage door opener,strip 7/16 inch (11 mm) of insulation fromeach end of the wires previouslychosen for the

safety reversing sensors.Twistthe like-colored wires together.

20

2.3B Connectthe pre-installed wires to the sensor wires with wire nuts

making sure the colors correspond for each sensor.For example,
the white wire would connectto the yellow wire and the white/black
wire would connectto the purple wire.

2.5B Insert the wires connected to the white safetysensor wires to the

white terminal on the garage door opener. Insert the wires that are
connected to the white/blacksafetysensor wires tothe grey
terminal on the garage door opener.

Ground Tab

Green Ground
Screw

Ground Wire

Black
Wire

White Wire

PERMANENT WIRING CONNECTION

Wire Nuts

Power

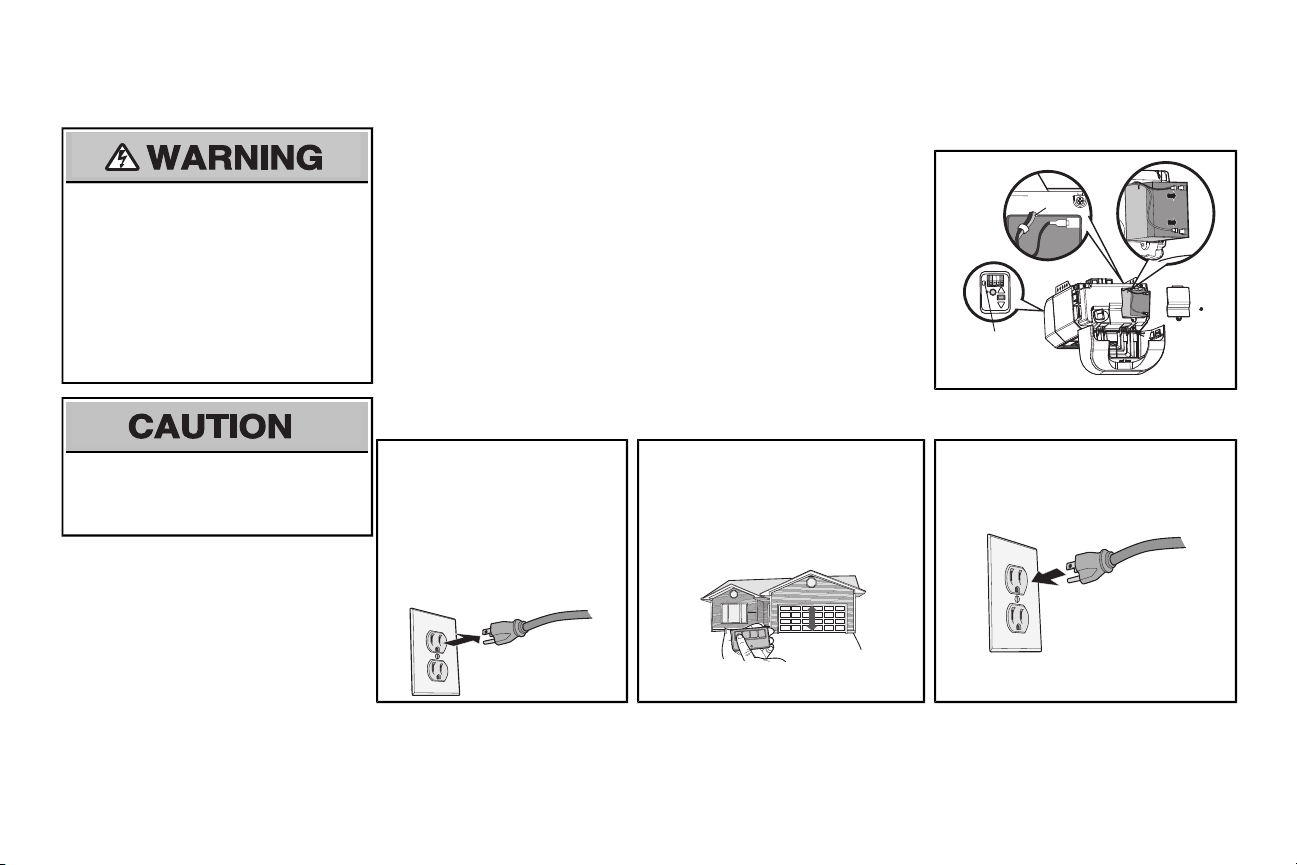

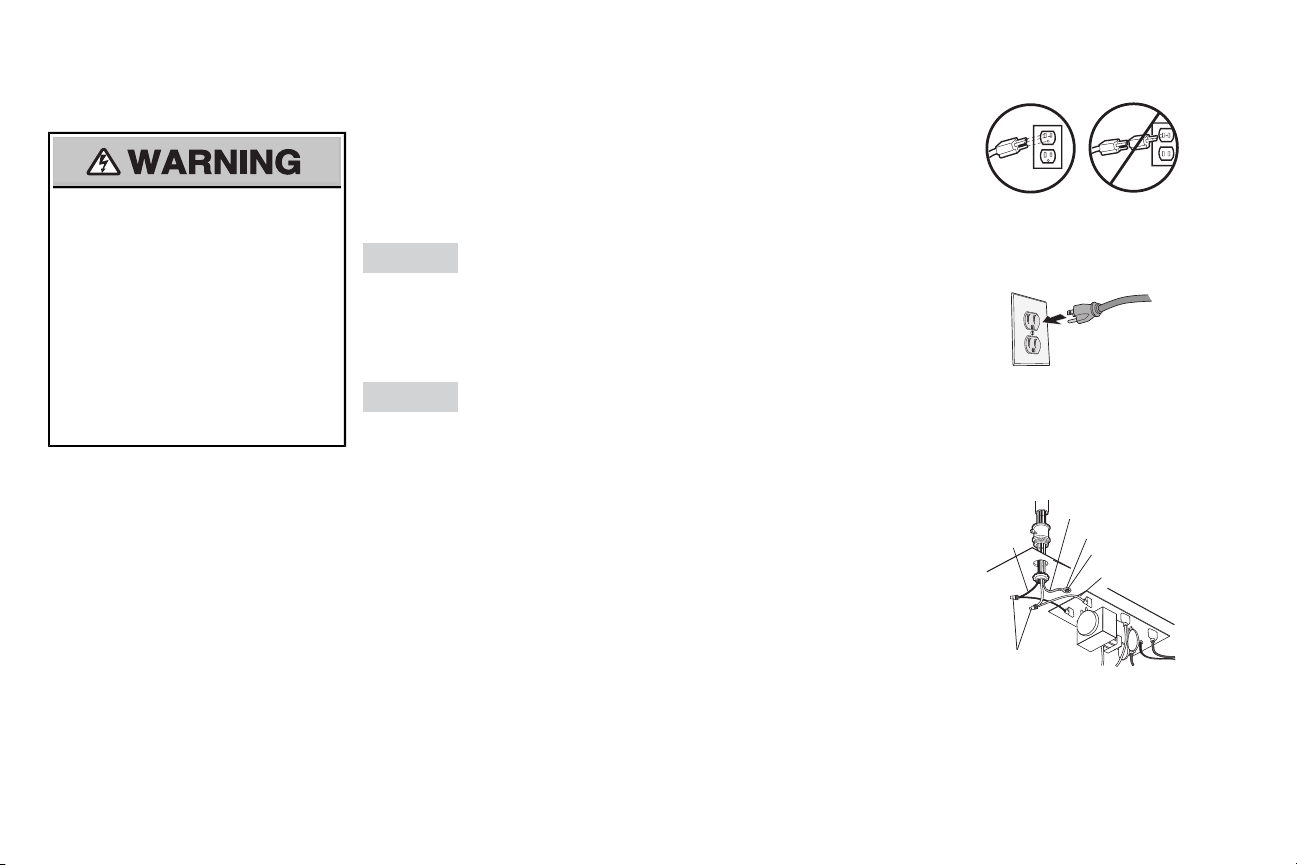

1 Connect Power

To preventpossible SERIOUSINJURY or
DEATHfrom electrocution or fire:

• Be sure power is NOT connected to the
opener, and disconnectpower to circuit
BEFORE removing cover to establish
permanent wiring connection.

• Garage door installation and wiring MUST
be in compliance with ALL local electrical
and building codes.

• NEVER use an extension cord, 2-wire
adapter, or change plug in any way tomake
it fit outlet. Be sure the opener is grounded.

To avoid installation difficulties,do not activate the garage dooropenerat this time.

To reduce the risk of electricshock,your garage door opener has a grounding typeplug with a third
grounding pin. This plug will only fit into a grounding type outlet.Ifthe plug doesn’t fit intoyour outlet,
contacta qualified electrician to install the proper outlet.

THERE ARE TWO OPTIONS FOR CONNECTIONPOWER:

OPTION A

TYPICAL WIRING

1.1A Plug in the garage door opener into a grounded outlet.

1.2A DO NOTrun garage door opener at thistime.

OPTION B

Ifpermanent wiring is required by your local code, refer to the following procedure.
To make a permanent connectionthrough the 7/8" hole in the top of the motor unit(according to local
code):

PERMANENT WIRING

1.1B Be sure power isNOT connected to the opener,and disconnect power to circuit.

1.2B Removethe garage door opener cover and set aside.

1.3B Removethe attached green ground terminal.

1.4B Cutblack and whitewires and strip away 1/2" (1 cm)of insulation,3" (7.5 cm) before spade

terminals.

1.5B Removethe power cord from opener.

1.6B Install a conduit or flex cable adapter to the 7/8"hole.

1.7B Run wires through conduit, cut to proper length and strip insulation.

1.8B Attach withwire nutsprovided. Attachthe ground wire to the green ground screw.The opener

mustbe grounded.

1.9B Properly secure wire under plastictiesso that wire does not come in contactwith moving parts.

1.10B Reinstall the cover.DO NOT run garage door opener at thistime.

21

Green LED

ROSNES GNIVIECERROSNES GNIDNES

Amber LED

If the receiving sensor is in
direct sunlight, switch it with
sending sensor so it is on the
opposite side of the door.

(invisible light beam)

Make sure there is
power to the garage
door opener.

Make sure the
sensor wire is not
shorted/broken.

RED

WHITE

WHITE

GREY

Make sure the sensor has been wired
correctly: white wires to white terminal
and white/black wires to grey terminal.

Make sure the sensors are aligned.Make sure the sensor wire is

not shorted/broken.

Power

2 Ensure the Safety Reversing Sensors are aligned

The doorwillnot close if the sensors have not been
installed and alignedcorrectly.

When the lightbeam is obstructed or misaligned while
the door isclosing, the door will reverse and the
garage door opener lights will flash ten times.If the
door is already open, it will not close. The sensors can
be aligned by loosening the wing nuts,aligning the
sensors,and tightening the wing nuts.

.

IFTHE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING: IFTHE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:

2.1 Checkto make sure the LEDs in both sensors are glowing steadily.The LEDsin both sensors will glowsteadily if theyare aligned and

wired correctly.

3 Ensure the Door Control is wired correctly

Ifthe door control has been installed and wired correctly, the command LEDbehind the push bar will blink.

22

UP (Open)

DOWN (Close)

UP Button

Adjustment
Button

DOWN Button

PROGRAMMING BUTTONS

Adjustments

Withouta properlyinstalled safety reversal
system,persons (particularlysmall children)
could be SERIOUSLY INJURED or KILLED by a
closing garage door.

• Incorrectadjustmentof garage door travel
limitswill interferewith proper operation of
safety reversal system.

• AfterANY adjustmentsare made, the safety
reversal systemMUSTbe tested. Door
MUSTreverse on contact with 1-1/2" (3.8
cm)high object(or 2x4 laid flat)on floor.

INTRODUCTION

Your garage door opener is designed with
electronic controls to make setup and
adjustmentseasy.The adjustmentsallow you
to program where the door will stop in the
open (UP) and close (DOWN) position.The
electronic controls sense the amount of force
required to open and close the door.The
force is adjusted automatically when you
program the traveland cannot be changed.

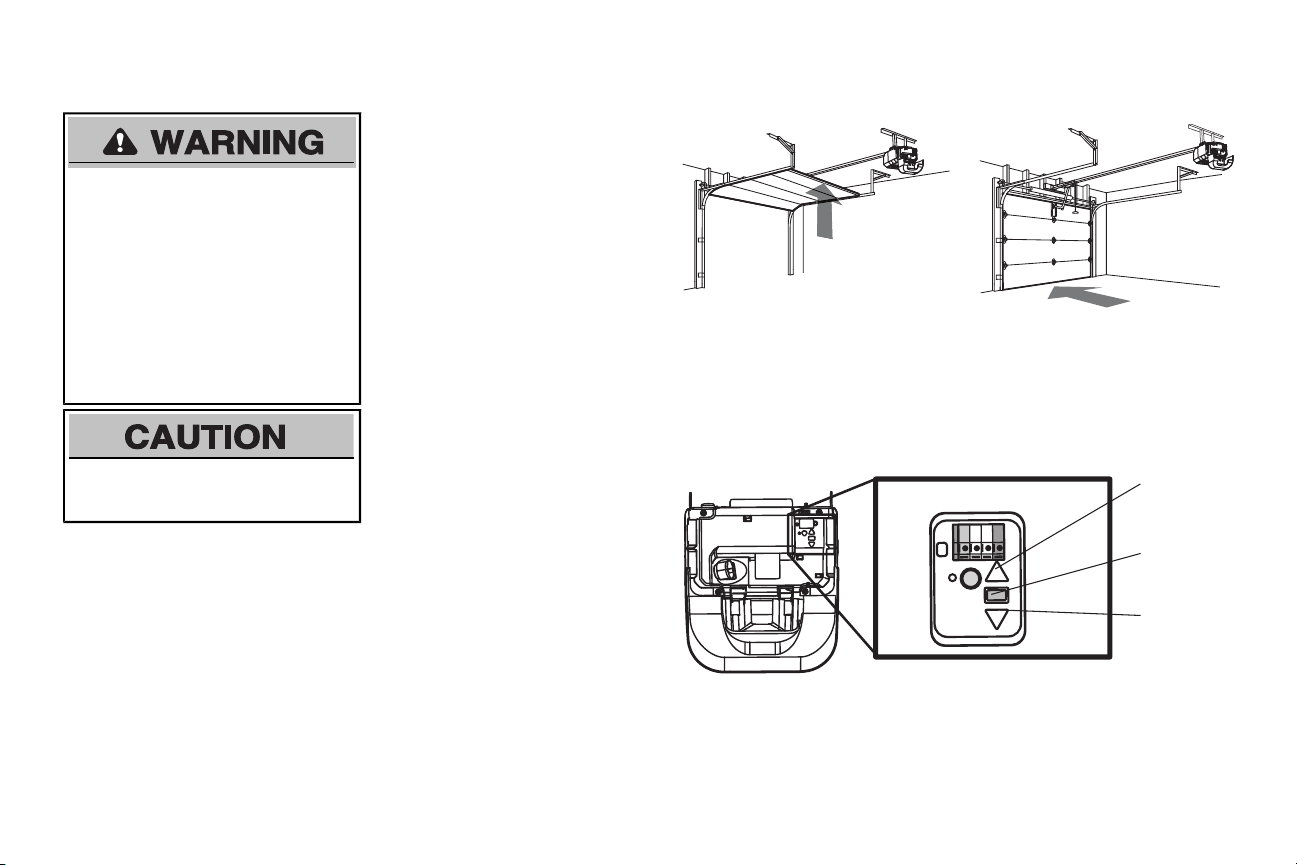

PROGRAMMING BUTTONS

To preventdamage to vehicles,be sure fully
open door provides adequate clearance.

TIP: If anything interferes with the door’s

upward travel it will stop. If anything interferes with
the door’s downward travel, it will reverse.

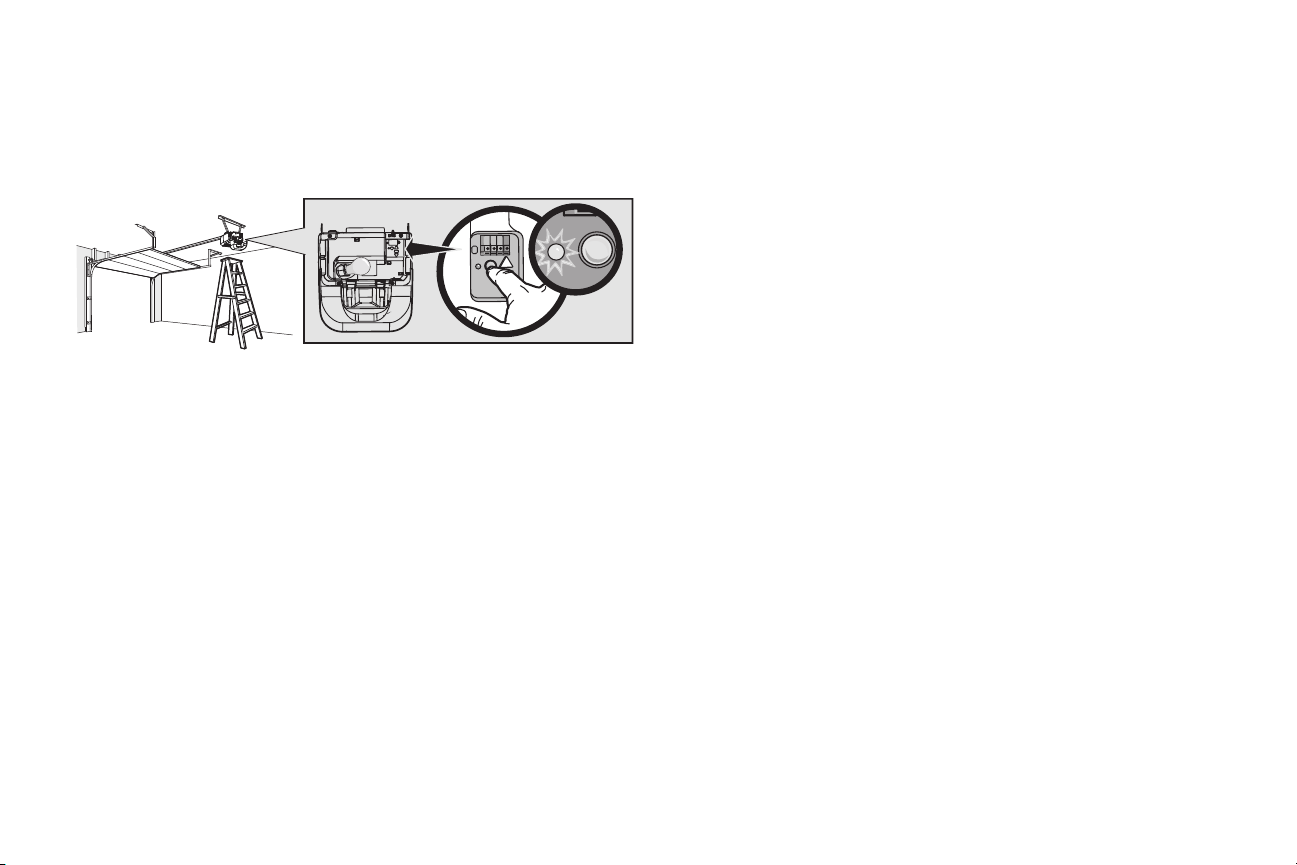

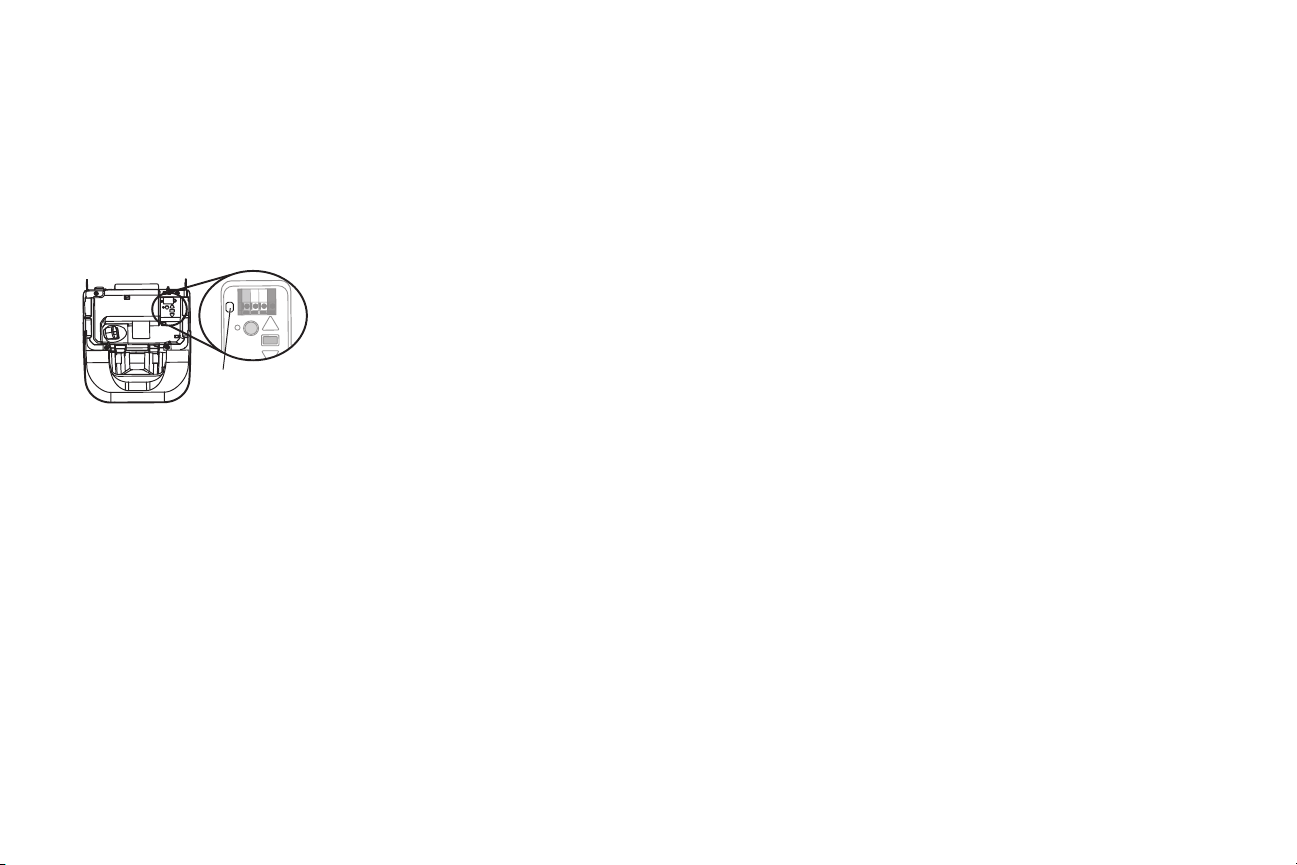

The programming buttonsare located on the
leftside panel of the garage door opener and
are used to program the travel.

23

Adjustments

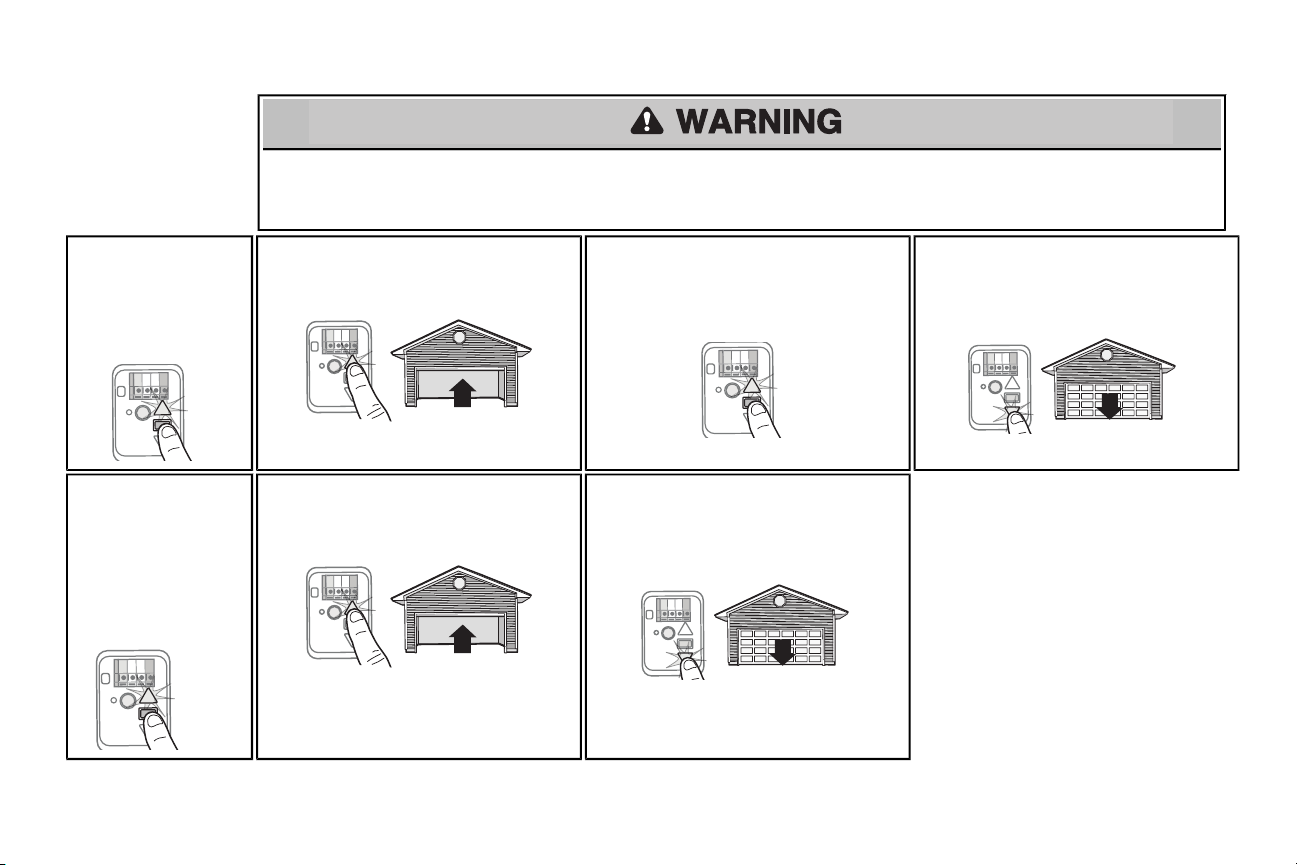

1 Program the

Travel

Withouta properlyinstalled safety reversal system,persons (particularlysmall children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrectadjustmentof garage door travel limitswill interfere with proper operation of safetyreversal system.

• ANYadjustmentsare made, the safetyreversalsystem MUST be tested. Door MUSTreverse on contact with 1-1/2" (3.8cm) high object(or 2x4 laid flat)on floor.

1.1 Press and hold the

AdjustmentButton until
the UP Button begins to
flash and/or a beep is
heard.

1.5 Once the door isin the

desired DOWNposition
press and release the
AdjustmentButton.The
garage door opener
lights will fl ash twice
and the UP Button will
begin to flash.

1.2 Press and hold the UP Button until the door is in

the desired UP position.

NOTE: The UPand DOWNButtonscan be
used to move the door up and down as needed.

1.6 Press and release the UP Button.When the

door travelsto the programmed UP position, the

DOWNButton will begin to flash.

1.3 Once the door isin the desired UP position

press and release the Adjustment Button. The
garage door opener lights will flash twice and
the DOWN Buttonwill begin to flash.

1.7 Press and release the DOWN Button. The door

will travel to the programmed DOWN position.
Programming is complete.

24

1.4 Press and hold the DOWN Buttonuntil the door

is in the desired DOWNposition.

NOTE: The UPand DOWNButtonscan be
used to move the door up and down as needed.

*

Ifthe garage door opener lightsare flashing 5
timesduring the stepsfor Program the Travel, the
programming has timedout. If the garage door
opener lightsare flashing 10 times during the steps
for Program the Travel, the safetyreversing
sensorsare misaligned or obstructed(refer to
page 18). When the sensors are aligned and
unobstructed,cycle the door through a complete
up and down cycle using the remote control or the
UP and DOWNbuttons.Programming is complete.
Ifyou are unable to operate the door up and down,
repeat the steps for Programming the Travel.

Adjustments

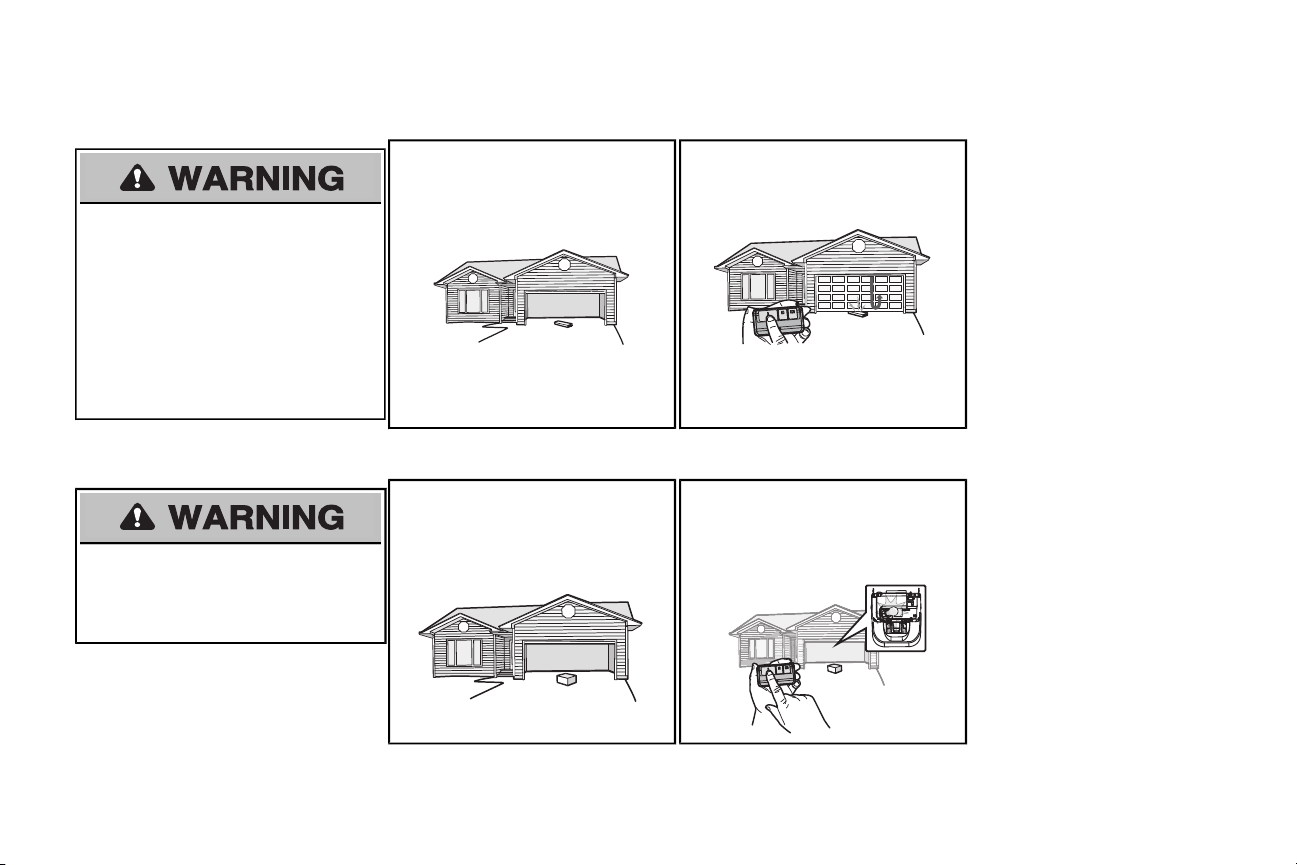

2 Test the Safety Reversal System

Withouta properlyinstalled safety reversal system,
persons (particularlysmall children) could be
SERIOUSLY INJURED or KILLED by a closing
garage door.

• Safetyreversal systemMUSTbe tested every
month.

• AfterANY adjustmentsare made, the safety
reversal systemMUSTbe tested. Door MUST
reverse on contactwith 1-1/2" high (3.8 cm)
object (or 2x4 laid flat) on the floor.

3 Test the Protector System

Without a properly installed safety reversing
sensor, persons (particularly small children) could
be SERIOUSLY INJUREDor KILLED by a closing
garage door.

2.1 With the door fully open, place a 1-1/2

inch (3.8 cm) board (or a 2x4 laid flat)on
the floor, centered under the garage
door.

3.1 Open the door. Place the garage door

opener carton in the path of the door.

2.2 Press the remote control push button to

close the door. The door MUSTreverse
when itmakes contactwith the board.

3.2 Press the remote control push button to

close the door. The door will not move
more than an inch (2.5 cm),and the
garage door opener lights will flash 10
times.

Ifthe door stops and does not reverse on
the obstruction,the travel needsto be
adjusted (refer to AdjustmentStep 1).

Repeat the test.When the door reverses
upon contactwiththe 1-1/2 inch board,
remove the board and open/closethe
door 3 or 4 timesto testthe adjustment.

Ifthe test continues to fail, call a trained
door systemstechnician.

The garage door opener will not close
froma remote controlif the LED in either
safety reversing sensor is off (alerting you
to the factthatthe sensor is misaligned or
obstructed).

Ifthe garage door opener closesthe door
when the safetyreversing sensor is
obstructed (and the sensorsare no more
than 6 inches[15 cm]above the floor), call
for a trained door systems technician.

25

Channel

Battery

Status LED

Battery Backup

To reduce the risk of FIRE or INJURYto persons:

• Disconnect ALL electricand batterypower
BEFORE performing ANY service or
maintenance.

• UseONLY LiftMaster part # 485LMfor
replacement battery.

• Do NOT dispose of batteryin fire. Battery may
explode. Check with local codesfor disposal
instructions.

1 Install the battery

1.1 Unplug the garage door opener.

1.2 Open the light lens on the right side panel of the garage door opener. Usea Phillips

head screwdriver to remove the batterycover on the garage door opener.

1.3 Partially insertthe batteryinto the battery compartmentwith the terminals facing out.

1.4 Connectred (+) and black (-) wiresfrom the garage door opener to the

corresponding terminals on the battery.

1.5 Verify the batterywires are seatedin the channel and replace the batterycover.

1.6 Plug in the garage door opener.

1.7 Wait for the green BatteryStatusLED to startflashing before proceeding to testthe

battery.

2 Test the battery

ALWAYS wear protective gloves and eye
protection when changing the batteryor working
around the batterycompartment.

2.1

Unplug the garage door

opener. The batterystatus LED
will either glowsolid orange
indicating opener is operating
on batterypower or will flash
indicating low battery power.

NOTE: Make sure the garage
door opener is unplugged.

2.2

Open and close the door using the

remote control or door control.

NOTE: The garage door opener may
run slower if the battery is not fully
charged. The battery will take 24 hours
to fully charge.

26

2.3 Plug in the garage door opener. Verify

the battery statusLED flashing green,
indicating the battery is charging.

Battery Status LED

Battery Backup

BATTERY STATUS LED

NOTE: The BatteryStatusLED is most visible
with the garage door opener light off. Battery
does not have to be fullycharged to operate
the garage door opener.

GREEN LED:

All systemsare normal.

• A solid green LED light indicatesthe
batteryis fully charged.

• A flashing green LED indicatesthe battery
is being charged.

ORANGE LED:

The garage door opener has lost power and is
in batterybackup mode.

• A solid orange LED withbeep, sounding
approximately every 2 seconds, indicates
the garage door opener isoperating on
batterypower.

• A flashing orange LED with beep,
sounding every 30 seconds, indicatesthe
batteryis low.

RED LED:

The garage door opener's 12V batteryneeds
to be replaced.

• A solid red LED with beep, sounding every
30 seconds,indicatesthe 12V batterywill
no longer hold a charge and needs to be
replaced. Please call for replacement
batteryto allow your system to operate
during a power outage.

CHARGE THE BATTERY

The battery will take 24 hours to fully charge. A fullycharged battery supplies12V DC to the garage door opener for one to twodays ofnormal operation during an electricalpower outage. Once the
batteryvoltage drops too low, the batterywill no longer operate.After the electricalpower has been restored, the batterywill recharge within 24 hours.The batterywill last 1 to 2 years with normal usage.
To obtain maximum battery life and prevent damage, disconnectthe battery when the garage door opener is unplugged for an extended period of time.

NOTE: Door operation may be limited until the battery is fully charged. The garage door opener lights will not turn on during battery backup mode.

27

WARNING

Operation

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permitchildren to operate or
play with garage door control push buttonsor remote controls.

3. ONLY activate garage door when it can be seen clearly,it is properlyadjusted, and there are
no obstructions to door travel.

4. ALWAYS keep garage door in sight until completely closed.

5. NO ONE SHOULD CROSS THE PATHOF THEMOVING DOOR. NO ONE SHOULD GO
UNDER A STOPPED,PARTIALLY OPENED DOOR.

6. Ifpossible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could resultin an open door falling
rapidly and/or unexpectedly.

7. NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.

8. NEVER use handle to pull garage door open or closed. If rope knot becomesuntied, you
could fall.

9. AfterANY adjustmentsare made, the safetyreversal system MUST be tested.

10. Safetyreversal systemMUSTbe tested every month.Garage door MUST reverseon
contactwith 1-1/2" high (3.8 cm) object (or a 2x4 laid flat)on the floor.

11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 2). An improperly
balanced door may NOT reverse when required and could result in SEVERE INJURY
or DEATH.

12. ALL repairs to cables,spring assembliesand other hardware, ALL of which are under
EXTREME tension, MUST be made bya trained door systemstechnician.

13. ALWAYS disconnect electric power to garage door opener BEFORE making ANY
repairs or removing covers.

14. This operator systemis equipped with an unattended operation feature. The door
could moveunexpectedly.NO ONE SHOULDCROSS THE PATH OF THE MOVING
DOOR.

15. DO NOTenable the Timer-to-Close functionalityif operating either one-piece or
swinging garage doors. To be enabled ONLY when operating a sectional door.

16. SAVE THESE INSTRUCTIONS.

28

Features

Your garage door opener is equipped with featuresto provide you with greater control over your
garage door operation.

TIMER-TO-CLOSE

The Timer-to-Close feature automaticallyclosesthe door after a specified time period that can be
adjusted using a TTCenabled door control.Prior to the door closing there will be an audible and visual
alert.

MyQ™

MyQ™ technology uses a 900MHz signal to provide two-waycommunication between the garage door
opener and MyQ™ accessories. Your garage door opener iscompatible withup to 16 MyQ™
accessories.

SECURITY+®2.0 REMOTE CONTROLS AND DOOR CONTROLS

Your garage door opener is compatible with up to 2 Smart Control Panels or 4 of anyother
Security+®2.0 door controls.Your garage door opener has already been programmed at the factoryto
operate withyour remote control, whichchanges witheach use, randomlyaccessing over 100 billion
new codes. The garage door opener is compatible with up to 24 remote controls.

THE PROTECTOR SYSTEM®(SAFETY REVERSING SENSORS)

When properly connected and aligned, the safetyreversing sensors will detectan obstruction in the
path ofthe infrared beam. If an obstruction breaksthe infrared beam while the door is closing,the door
will stop and reverse to full open position, and the opener lightswill flash 10 times.If the door is fully
open, and the safetyreversing sensorsare not installed,or are misaligned, the door will not close from
a remote control. However, you can closethe door if you hold the button on the door control or keyless
entry until the door is fully closed. The safetyreversing sensorsdo no effectthe opening cycle.

ENERGY CONSERVATION

For energy efficiencythe garage door opener will enter sleep mode when the door isfully closed. The
sleep mode shuts the garage door opener down until activated. The sleep mode is sequenced with the
garage door opener light bulb; asthe light bulb turnsoffthe sensor LEDswill turn off and whenever the
garage door opener lights turn on the sensor LEDs will light.The garage door opener will not go into
the sleep mode until the garage door opener has completed 5 cycles upon power up.

LIGHTS

The garage door opener light bulbs will turn on when the opener isinitially plugged in; power is
restored after interruption, or when the garage door opener is activated.The lightswill turn off
automatically after 4-1/2 minutes.An incandescentA19 light bulb (100 wattmaximum)or for maximum
energy efficiency a 26W (100W equivalent) compactfluorescentlight (CFL)bulb may be used.

LIGHTS FEATURE

The garage door opener isequipped withan added feature; the lightswill turn on when someone
enters through the open garage door and the safety reversing sensor infrared beam isbroken. For
added control over the light bulbs on your garage door opener, see the Door Control section.

USING YOUR GARAGE DOOR OPENER

The garage door opener can be activated through a wall-mounted door control, remote control,
wirelesskeylessentry or MyQ™ accessory.

When the door isclosed and the garage door opener is activated the door will open. If the door senses
an obstruction or is interrupted while opening the door will stop.When the door is in any position other
than closed and the garage door opener is activated the door will close.Ifthe garage door opener
sensesan obstruction while closing,the door will reverse.Ifthe obstruction interruptsthe sensor beam
the garage door opener lightswill blink 10 times.However,you can close the door ifyou hold the button
on the door control or keylessentry until the door is fully closed.The safetyreversing sensorsdo no
effect the opening cycle.

The safetyreversing sensor must be connected and aligned correctly before the garage door opener
will move in the down direction.

29

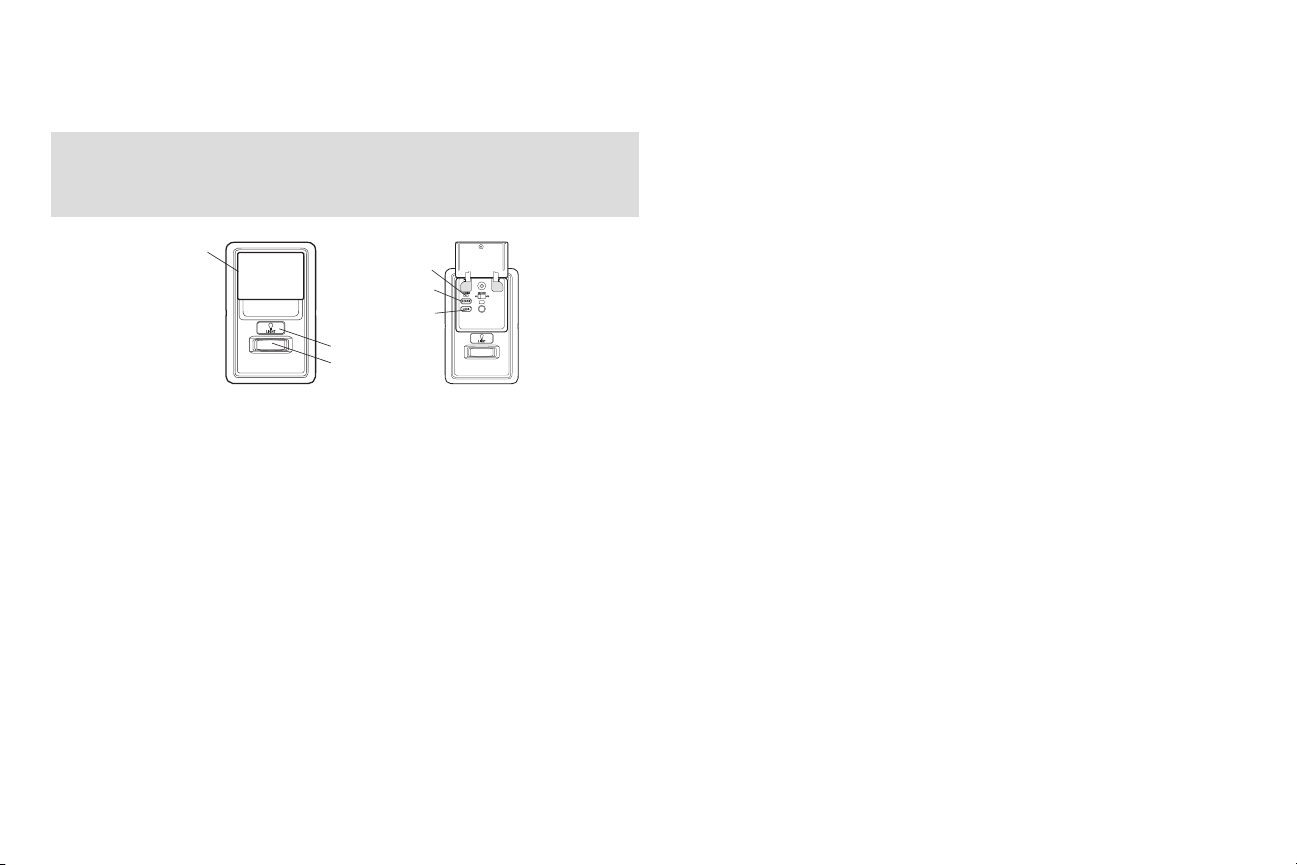

Push Bar

LIGHT Button
Motion Sensor

SERVICE LED

LOCK Button

LEARN Button

Door Control

USING THE DOOR CONTROL

SYNCHRONIZETHEDOORCONTROL

To synchronize the door control to the garage door opener, press the push bar until the garage door
opener activates(it may take up to 3 presses).Testthe door control by pressing the push bar, each
press of the push bar will activate the garage door opener.

PUSH BAR

Press the push bar to open or close the door.

LIGHT BUTTON

Press the LIGHTbutton to turn the garage door opener lightson or off.When the lights are turned on
theywill stayon until the LIGHTbutton ispressed again, or until the garage door opener is activated.
Once the garage door opener is activated the lightswill turn off after the specified period of time (the
factory setting is4-1/2 minutes).The LIGHTbuttonwill not control the lightswhen the door is in motion.

HOLDOPEN

To temporarily suspend the Timer-To-Close (TTC) feature press and release the HOLDOPENbutton
(the HOLDOPENbuttonwill light solid).Press the HOLDOPENbutton again to resume normal
TTCoperation.

The followingfeatures are accessible by lifting up the push bar:

LEARN A DEVICE

Any compatible remote controls,wireless keyless entry,or MyQ™ accessories can be programmed to
the garage door opener bypressing the LEARNbutton,see page 32.

LOCK

The LOCK feature is designed to prevent activation of the garage door opener from remote controls
while still allowing activation from the door control and keylessentry.This feature is useful for added
peace of mind when the home is empty(i.e. vacation).

TIMER-TO-CLOSE (TTC) (881LMONLY)

DO NOT enable TTCif operating a one-piece door. TTCis to be used ONLY with sectional doors.
Factory defaultis setto off.TTCcan be setto automatically close your garage door from the fully open
position after a specified period of time(1, 5, 10 minute intervals).The garage door opener will beep
and the lightswill flash before closing the door. The screen on the door control can display the statusof
the TTC.TTCWILL NOT workif the garage door opener is operating by battery power or if the safety
reversing sensorsare misaligned. This feature is NOT intended to be the primary method of closing the
door. A keyless entry shouldbe installed in the event of an accidentallock out whenusingthis

feature.

NOTE: Before enabling the TTC for the first time,or if you experience a power outage, cycle the garage
door opener open and closed to allow the TTC to set.

AUTOMATIC LIGHT

Motion Sensor

Factory defaultis setto on. This feature will automatically turn on the garage door opener lights when
motion is sensed.The lights will come on for the set period of time, then shut off.
The lightswill turn on when someone enters through the open garage door and the safety reversing
sensor infrared beam is broken. If using the garage door opener light as a work light disable the
AutomaticLight Feature,otherwise the light will turn offautomaticallyif you are beyond the range of the
sensor.

MAINTENANCE ALERT (MAS)

Thisfeature assiststhe homeowner in ensuring the garage door opener systemstays in good working
condition. The MAS feature MUST be activated at timeof installation.The factorysetting is off.The
serviceLEDwill come on after 4500 garage door opener cycles.This indicates the garage door opener
mayneed maintenance; contactyour installation dealer. Ifthe MASfeature is activated, the command
LED (yellow) and the serviceLED (red) will alternate flashing back and forth.

30

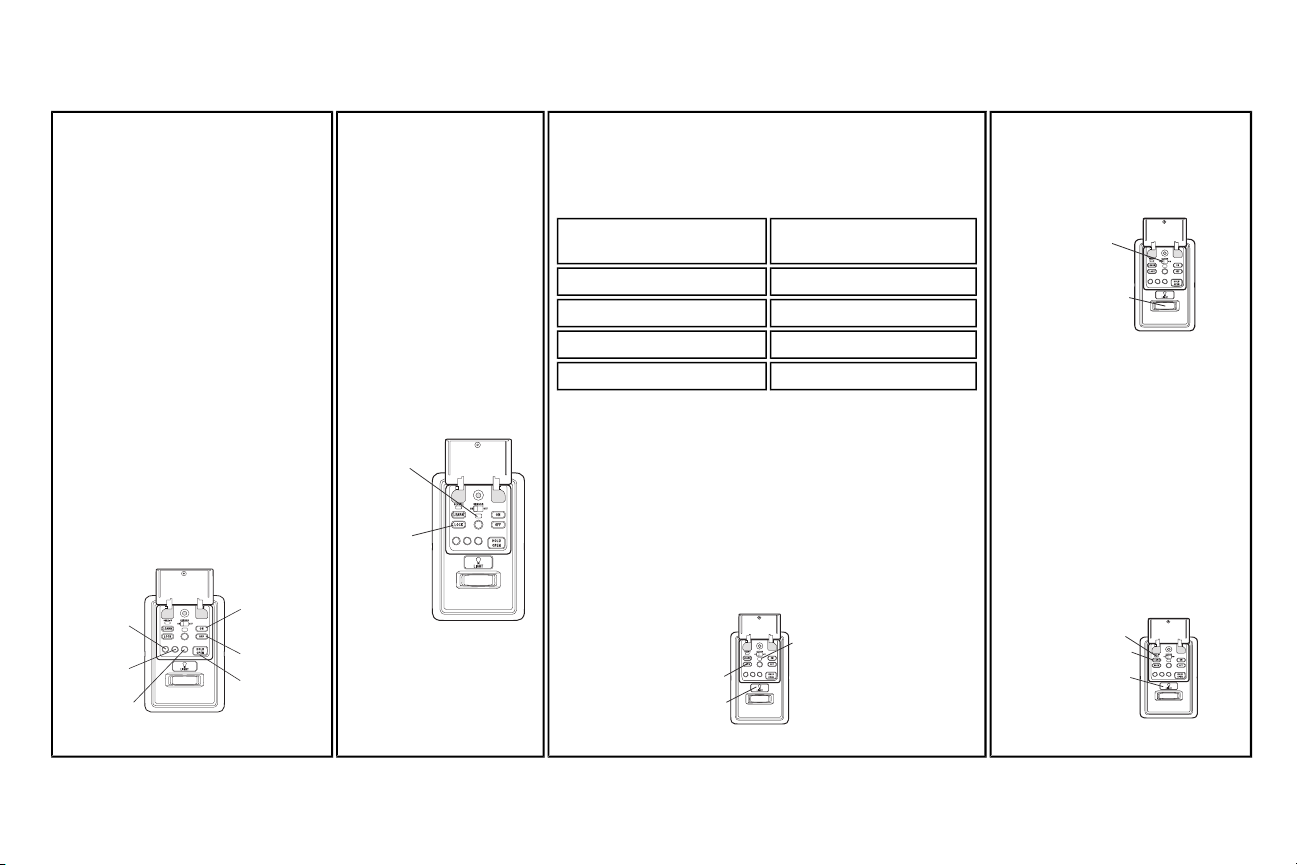

ON Button

OFF Button

HOLD OPEN
Button

1 Minute
TTC LED

5 Minute
TTC LED

10 Minute
TTC LED

LOCK Button

Command LED

LOCK Button

LIGHT Button

Command LED

*

Approximately
10 seconds

Motion Sensor
Switch

Motion
Sensor

LEARN Button

LIGHT Button

Service LED

Door Control

TIMER-TO-CLOSE (TTC)
(881LMONLY)

NOTE: DONOTenable TTCif operating a
one-piece door. TTCis to be used ONLY
sectional doors.

Activate:

Press and hold the ONbutton until one of the
TTCLEDslight up. Then pressthe ONbutton
again to cycle through the time interval options
(the corresponding TTCLED will light for each
timeinterval). The garage door opener light
bulbs will blinkas confirmation.

Deactivate:

Press and hold the OFFbutton until all TTC
LEDs turn offand a beep is heard from the
motor unit.

Temporarily hold dooropen(suspendTTC):

Press and release the HOLD OPEN button.
Press the HOLDOPEN button again to resume
normal TTCoperation.

LOCK

Activate:

Press and hold the LOCKbutton
for 2 seconds. The command
LEDwillflash as long as the lock
feature is activated and your
handheld remotecontrol will not
operate your garage door at this
time.

Deactivate:

Press and hold the LOCK button
again for 2 seconds.The
command LEDwill stop flashing
and normal operation will resume.

LIGHT

To change the amount of time the garage door opener lightswill stay on:
Press and hold the LOCK button until the garage door opener lights flash.*

The time interval is indicated by the number of flashes.

Number of times garage d oor

opener light s f lash

1 1 1/2 Minutes

2 2 1/2 Minutes

3 3 1/2 Minutes

4 4 1/2 Minutes

To cycle through the time interval repeat the step above.

LIGHTFEATURE
Deactivate:

Press and hold the LIGHTbutton until the garage door opener lights turn
on, then off again.*

Activate:

Startwith the garage door opener lights on. Pressand hold the LIGHT
button until the garage door opener lights turn off,then on again.*

NOTE: Ifthe command LEDis continuously blinking, the LOCK feature
needs to be deactivated.

Times t he garage d oor op ener ligh t

stays on

MOTIONSENSOR

Activate/Deactivate:

Slide the motion sensor switch ON or OFF.

MAINTENANCEALERT
SYSTEM (MAS):

Activate/Deactivate

Press and hold the LEARNbutton.Then
press the LIGHTbutton.The service
LEDwillflash the status; Active is 2 flashes
and deactivatedis 3 flashes.

31

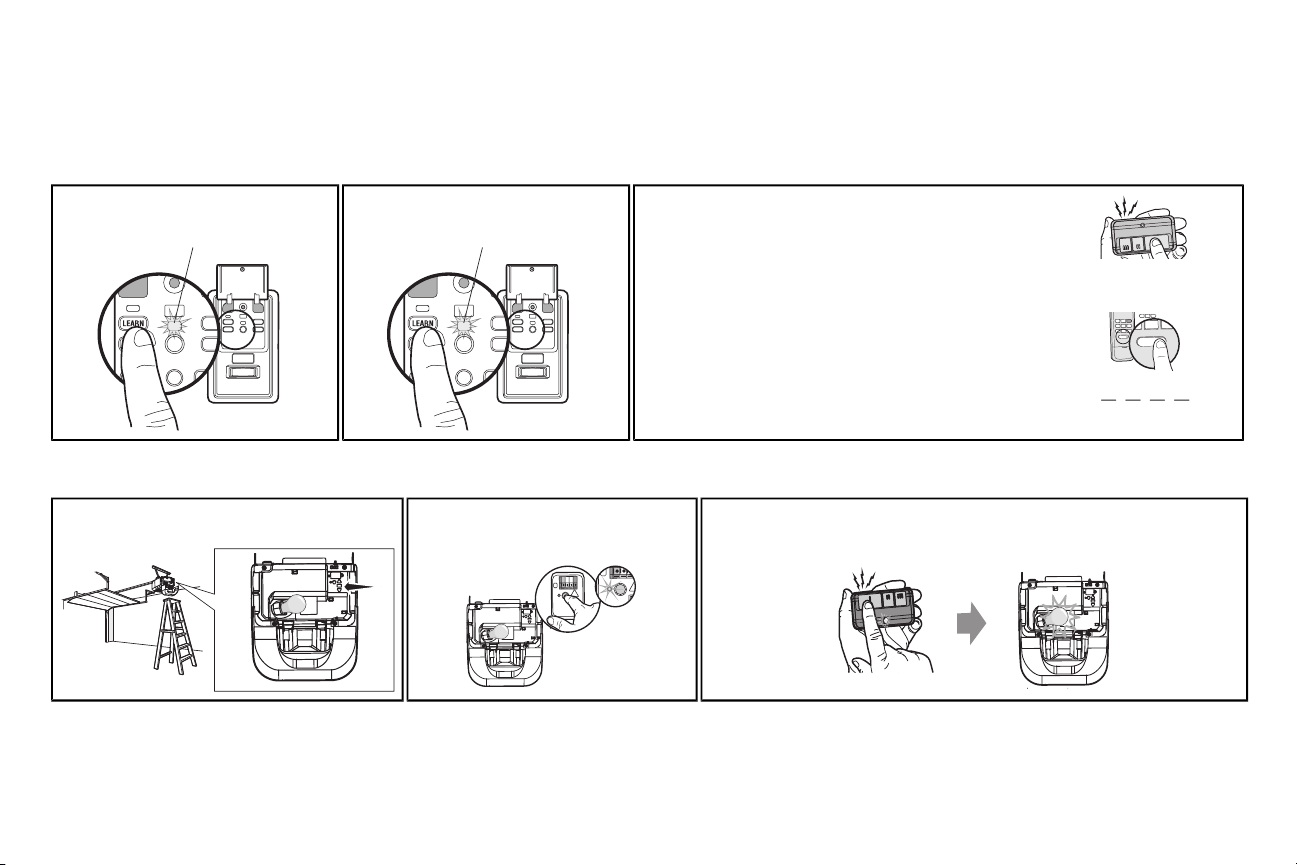

The command LED will flash once.

The command LED will flash once again.

OR

PIN

? ? ? ?

1

2

A

BC

3

DEF

4

GHI

5

JKL

6

MNO

7

P

RS

8

TUV

9

WXY

0

QZ

*

#

E

NT

E

R

0 QZ

*

#

ENTER

“click”

“click”

Remote Controls

Your garage door opener has been programmed at the factoryto operate withyour remote control. To program additional remotecontrols refer to the instructionsprovided with the additional remote controlsor
visitwww.liftmaster.com.

TO ADD, REPROGRAM,OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN USING THE DOOR CONTROL

1 Press the LEARN button on the door control

to enter Programming Mode.

PROGRAMUSINGTHEGARAGEDOOROPENER

1 Locate the Learn Button. 2 Press and immediatelyrelease the Learn

2 Press the LEARN button again,the LED will

flash once.

button.The Learn LEDwill glow steadyfor
30 seconds.Within 30 seconds...

3 Remote Control:

Press the button on the remote controlthat you wish to operate
your garage door.

Keyless Entry:

Enter a 4-digit personal identification number (PIN) of your choice
on the keyless entry keypad. Then pressthe ENTERbutton.

The garage door opener lightswill flash(or two clickswill be heard)
when the code has been programmed.Repeat the stepsabove for
programming additional remote controlsor keylessentry devices.If
programming is unsuccessful, program the remote using the learn
button.

3 Press and hold the button the remotecontrol thatyou wishto use.

Release the button when the garage door opener lightsblink or two clicks are heard.
Ifprogramming to other products, pressthe button a second time toactivate products.

32

Remote Controls

To Erase the Memory

ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES

1 Press and hold the learn button on garage door opener until the learn LED goes out

(approximately 6 seconds).All remote control and keylessentry codes are now erased.

Reprogram any accessoryyou wishto use.

ERASE ALL DEVICES

1 Press and hold the learn button on garage door opener until the learn LED goes out

(approximately 6 seconds).

2 Immediatelypress and hold the learn button again until the learn LED goes out.All codes are

now erased.

Reprogram any accessoryyou wishto use.

33

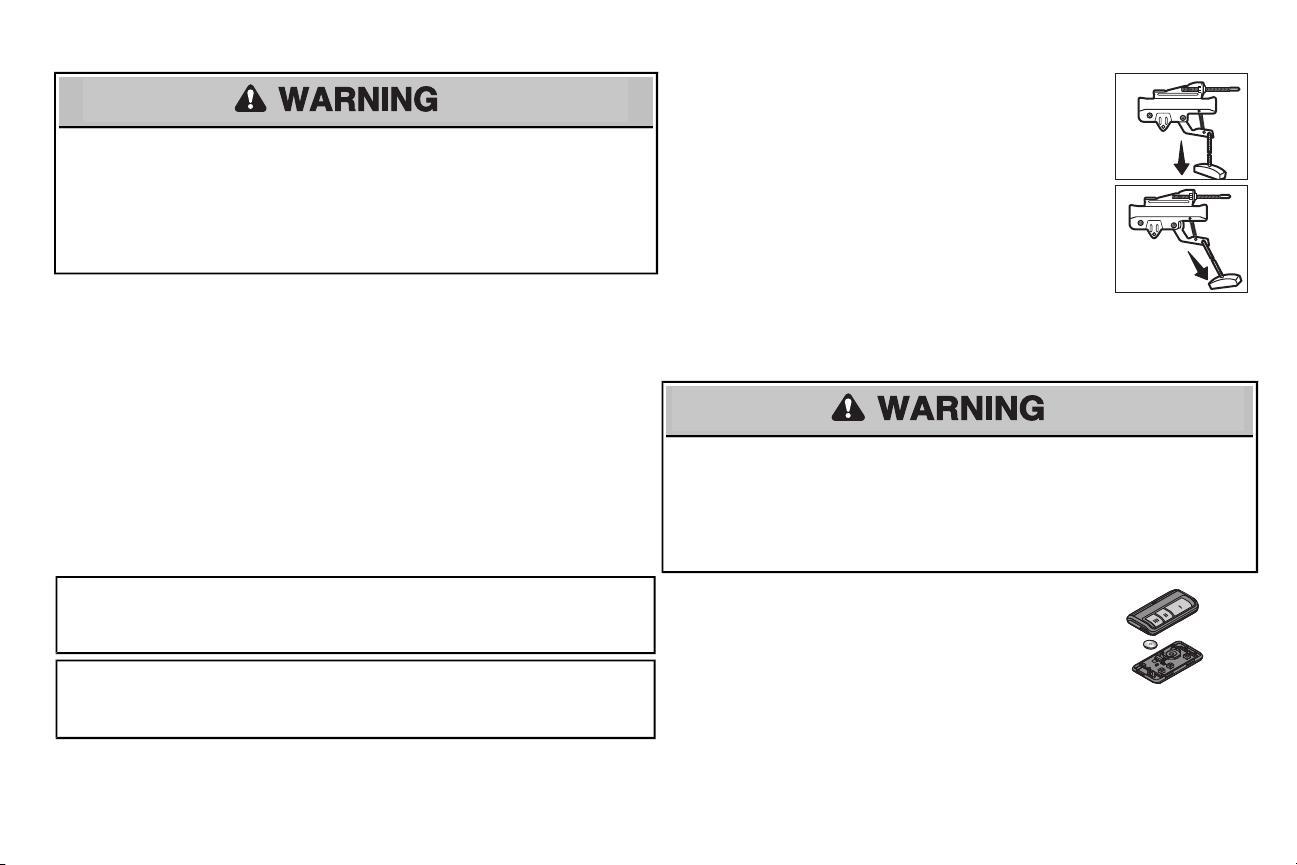

NOTICE

NOTICE

To Open the Door Manually

To preventpossible SERIOUSINJURY or DEATH froma falling garage door:

• Ifpossible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springs or unbalanced door could resultin an open door falling rapidly
and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.

• NEVER use handle to pull door open or closed.Ifrope knot becomes untied, you could fall.

Maintenance

EVERY MONTH

• Manually operate door. If it is unbalanced or binding,call a trained door systemstechnician.Checkto
be sure door opens and closesfully.Adjust if necessary(refer toAdjustment section).Repeat the
safety reverse test.Make any necessary adjustments (refer to Adjustmentsection).

EVERY YEAR

• Oil door rollers, bearings and hinges. The garage door opener doesnot require additional
lubrication. Do not grease the door tracks.

EVERY TWO TO THREE YEARS

• Usea rag to wipe away the existing grease fromthe garage door opener rail. Reapplya small layer
of white lithium grease to the top and underside ofthe rail surface where the trolley slides.

• Testthe battery and consider replacing the battery to ensure the garage door opener will operate
during an electrical power outage.

NOTICE: To complywith FCC and/or Industry Canada (IC) rules, adjustment or modifications of this transceiverare prohibited. THERE
ARENO USER SERVICEABLEPARTS.
Thisdevice complieswith Part 15 ofthe FCC rules and IC RSS-210. Operation issubject to the following two conditions:(1)this de vice
may no t cause harmful interference, and (2) this device must accept any inte rference received,including interference that may cause
undesiredoperation.

AVIS: Les règlesde laFCC et/ou d’IndustrieCanada (IC) interdisenttout a justement outoute modification de ce récep teur.IL N’EXISTE
AUCUNE PIÈCESUSCEPTIBLED’ÊTREENTRETENUEPARL’UTIL ISATEUR.

Cet appareilest confo rmeauxdispositionsde lapartie 15 du règlementde la FCCet de l'normeICRSS-210. Son u tilisation est assujettie
aux deuxconditoins suivantes :(1)ce dispositifne peut causerdesinterféren cesnuisibles,et (2)ce dispositifdoit acceptertoute
interférence recue, y comprisune interférence pouvant cau serun fonctionnement nonsouhaité.

DISCONNECTTHE TROLLEY

1 The door should be fullyclosed ifpossible.
2 Pull down on the emergencyrelease handle.

RECONNECT THE TROLLEY

The lockoutfeature prevents the trolley fromreconnecting automatically.

1 Pull the emergencyrelease handle down and back(toward the

opener). The door can then be raised and lowered manually as often
as necessary.

2 To disengage the lockout feature, pull the handle straightdown. The

trolley will reconnect on the next UP or DOWNoperation,either
manually or byusing the door control or remote control.

THE REMOTE CONTROL BATTERY

To preventpossible SERIOUSINJURY or DEATH:

• NEVER allow small children near batteries.

• If batteryis swallowed, immediately notifydoctor.
To reduce risk offire, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• DO NOT recharge, disassemble, heatabove 212°F (100°C) or incinerate.

To replace the battery,pry open the case in the middle, then at each side with
the visor clip.Insertreplacementbatterypositiveside up (+).

Replace the batteries with only 3V2032 coin cell batteries. Dispose ofold
batteriesproperly.

34

Troubleshooting

Diagnostic Chart

Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnosticcodes.

DIAGNOSTIC
CODE

1-1 1 FLASH 1 FLASH

1-2 1 FLASH 2 FLASHES

1-3 1 FLASH 3 FLASHES

1-4 1 FLASH 4 FLASHES

1-5 1 FLASH 5 FLASHES

UP
ARROW

DOWN
ARROW

SYMPTOM CAUSE RESOLUTION

The garage door opener will not close
and the light(s)will flash

The garage door opener will not close
and the light(s)will flash

Wall-mounted door control will not
function

The garage door opener will not close
the door and the light(s)flash

The garage door opener clicks but no
movement

The opener runs approximately6-8"
and stopsand/or reverses

Safetysensorsare not
installed,connected, or
wires may be cut

Safetysensor wire
shorted or reversed

The wires for the door
control are shorted or
the door control is faulty

Misaligned or
obstructed safety
sensors

Bad logic board

Communication error to
travel module

Inspectsensor wires for a disconnected or cut wire(s). If the sending sensor withthe
amber LED is NOT lit, check the wire and connections for thatsensor. If sending
sensor LEDis lit,checkthe wire connections leading to the receiving sensor (green
LED). Reattachwire or replace wire (22 gauge wire) as needed. If pre-wired home,
checkthe splices. See page18for installation. Close the garage door using the
remote control or the door control.

Inspectsensor wire for incorrectwiring or a pinched wire. Ifthe sending sensor
(amber LED) isnot lit,checkthe wire leading to and from thatsensor. Check staple
points.Ifsending sensor LED is lit,checkthe wire leading to the receiving sensor
(green LED). Reattach wire or replace wire (22 gauge wire) as needed. Ifpre-wired
home, check the splices.See page 18 for installation. Close the garage door using
the remotecontrol or the door control.

Inspectdoor control wires for a short (staple in wire), replace wire (22 gauge wire) as
needed. After installing new door control wires, if door control still does not operate
garage door opener, replace the door control.

Realign the receiving sensor (green LED) by ensuring the LED is steady and not
flickering. A flicker ofthe safety sensor LED indicatesa misalignment.Make sure
nothing is hanging or mounted on the door interrupting the sensor’s pathwhile
closing.Close the garage door using the remote control or the door control.

Replace the logic board.

Disconnect all power,remove cover,and locate the travel module.Ensure the wires
for travel module are connected,if wires are connected,then replace the travel
module.

35

Troubleshooting

DIAGNOSTIC
CODE

3-3 3 FLASHES 3 FLASHES

4-1 4 FLASHES 1 FLASH

4-2 4 FLASHES 2 FLASHES

4-3 4 FLASHES 3 FLASHES

4-4 4 FLASHES 4 FLASHES

4-5 4 FLASHES 5 FLASHES

4-6 4 FLASHES 6 FLASHES

These are additional troubleshooting issues thatwill not show up in the diagnosticcodes:

My garage door openerbeeps every 30 seconds:

Refer to the Battery StatusLEDsection on page 27.

My remote control wil not activate the garage door:

• Verify the lock feature is not activated on the door control.

• Reprogram the remotecontrol.

• Ifthe remotecontrol will still notactivate the door checkthe diagnosticcodes to ensure
the garage door opener isworking properly.

UP
ARROW

DOWN
ARROW

SYMPTOM CAUSE RESOLUTION

The garage door opener is
idle and the batteryLED is
constantly flashing green

Door isclosing, stops and
reverses

The door stopswhile opening
for no apparent reason

The door reversesfor no
apparentreason or after
touching the floor

Mydoor reverses for no
apparentreason or after
touching the floor

The opener runs
approximately
6-8" and stopsand/or
reverses

The door reversesfor no
apparentreason while
traveling down

BatteryLED flashing
Green, charging circuit
stopsand startsto drain
causing battery charging
status.

Obstruction, binding or
sticking door

Obstruction, binding or
sticking door

Obstruction, binding or
sticking door

Obstruction, binding or
sticking door

Communication error to
travel module

Safetysensorswere
temporarily obstructed
or misaligned

Replace the logic board.

Ifyour door is binding or sticking,contacta trained door systemstechnician.Ifyour door is okay, reprogram
the travel, refer to page 24.

Manually open and close the door. Checkfor binding or obstructions. Refer to page 2.

Ifyour door is binding or sticking,contacta trained door systemstechnician.Ifyour door is okay, reprogram
the travel, refer to page 24.

Manually open and close the door. Checkfor binding or obstructions. Refer to page 2 .

Disconnect all power,remove cover,and locate the travel module.Ensure the wiresfor travelmodule are
connected,if wires are connected,then replace the travel module.

ReviewDiagnosticCodes 1-1, 1-2,and 1-4 correct as necessary.If problem persistsremovethe sensors
fromthe bracketsand realign the sensorsensuring the LED’s are steady and not flickering. Check for a
temporary obstruction such as a rope attached tothe door. Excessivevibration on the door rails may cause
the sensors to be misaligned while the door is closing, secure rails or re-install the sensor bracketsto the
wall or floor, refer to page 18.

My garage door openerlight(s) will not turnoff when the dooris open:

The garage door opener isequipped witha feature that turns the light on when the safetyreversing
sensorshave been obstructedor when the motion sensor on the door control detectsmovementin the
garage. These features can be disabled using the door control, refer to theDoor Control section.

My neighbor’s remote controlopens my garage door:

Erase the memory fromyour garage door opener and reprogram the remote control(s).

The LEDs on the doorconrol blink:

Ifyou have an Smart Control Panel installed and the TTCis setto a customtime,press the ONbutton on the
Premium Motion-DetectingControl Panel to set the time properly.

36

1

3

4

5

6

2

NOTICE

UP

CEILING MOUNT ONLY

1

2

3

4

5

6

7

8

9

10

11

Repair Parts

Rail Assembly Parts

DESCR IPTION PART NUMBER

1 Chain - for 7 footdoor

Chain - for 8 foot door
Chain - for 10foot door

2 Chain Pulley Bracket 41A4813
3 Master Link 4A1008
4 One-Piece Rail

7 feet (2.1 m)
One-Piece Rail
8 feet (2.4 m)
One-Piece Rail
10 feet (3 m)

5 Trolley Assembly 41A3489
6 Trolley Threaded Shaft 109B48

NOTSHOWN

Owner'sManual 114A4246

Installation Parts

DESCR IPTION PART NUMBER

41D3484
41D3483
41D3485

1707LM

1708LM

1710LM

1 Curved Door Arm 178B35
2 Door Bracket with Clevis

Pin and Fastener

3 Emergency Release Rope

andHandle

4 Header Bracket with Clevis

Pin and Fastener

5 RemoteControl Visor Clip 29B137
6 Safety Sensor Bracket 41A5266-1
7 Safety Sensor Kit

Receivingand sending
sensors with 3 feet (.9 m)
2-conductor wire

8 StraightDoor Arm 178B34
9 White andRed/White Wire 41C5141-1
10 3V2032LithiumBattery 10A20
11 Battery Backup 485LM

41A5047-1

41A2828

41A5047-2

41A5034

Contact Information

Address repair parts order to:

The Chamberlain Group, Inc.
6050 S. Country ClubRd.
Tucson, AZ 85706

Before calli ng, please have the model number of the garage door opener. If you are calling about a

Troubleshooting issue, it i s recommended that you have access to your garage door opener while calling. If you

are ordering a repair part please have the following information: part number, part name, and model number.

37

For installation and service information call:

1-800-528-9131

Or visitus online at:

www.liftmaster.com

11

12

4

10

1

9

5

3

6

2

7

8

4

3

Repair Parts

Garage Door Opener Parts

DESCRIPTION PART NUMBER

1 Sprocket and SprocketCover 41B5348-2
2 End Panel with labels, battery

cover and lightsocket

3 Light Lens 41A7562
4 Light Socket 41C279
5 Transformer 41A7635
6 Cover 41A7619-1
7 Motor and TravelModule 41D1739-1
8 Travel Module 41A7114-7
9 End Panel with all labels and

light socket

10 Receiver Logic Board 45DCT
11 Line Cord 41B135-1
12 Filter Board with Screws 41B7611

NOT SHOWN

Wire HarnesswithScrews 41B7418
BatteryBackup 485LM

41D217

41D216

38

Accessories

828LM MyQ™ Internet Gateway:

Internetenabled accessory
which connectsto the computer
and allows you to monitor and
control garage door openers
and lighting accessories
powered by MyQ™ home
activation technology.

823LM

Remote Light Switch:

Automaticallycontrol your lights
using your garage door opener,
a Security

®

2.0 remotecontrol

+

or a MyQ™ Internet Gateway.
Simply replacesyour current
wired wall switch.

825LM Remote Light Control:

Automaticallycontrol your lights
using your garage door opener,
a Security+®2.0 remotecontrol
or a MyQ™ Internet Gateway.

829LM Garage Door Monitor:

Monitor open/closedstatusfor up to
4 MyQ™ compatible garage door
openers and close them from
anywhere in the home.

990LM System Surge Protector:

The Garage Door Opener Surge
Protectoris designed to protect
LiftMaster®garage door openers
against damage from lightning and
power surges.Easy to install.

877MAX

SECURITY+®2.0 Keyless Entry:

For use outside of the home to
enable accessto the garage using
a 4-digit PIN.Works with ALL
LiftMaster®openers from 1993­present.

895MAX

SECURITY+®2.0 3-Button
Remote Control:

Compatible with LiftMaster

®

garage door openers
manufactured since 1993.
Includesvisor clip.

893MAX

SECURITY+®2.0 3-Button
Remote Control:

Compatible with LiftMaster

®

garage door openers
manufactured since 1993.
Includesvisor clip.

890MAX

SECURITY+®2.0 3-Button
Mini Remote Control:

Compatible with LiftMaster

®

garage door openers
manufactured since 1993.

892LT/894LT 2 & 4 Button Learning Remote

Controls:

Workswith any LiftMaster

®

Garage Door opener
manufactured since 1997. Also
compatible with EncryptedDIP
for gate applications.

880LM

881LM

885LM

886LM

SECURITY+®2.0 Smart Control Panel®:

Displaystemperature,time and system
diagnostics;includes a push bar to open
and close the door and a lock feature for
extra security.

SECURITY+®2.0 MotionDetectingControl
Panel with Timer-To-Close Control:

Multi-function door control with motion
sensor that automatically turns opener lights
on when itdetectsa person entering the
garage. Sensor can be easilydeactivated
when desired.

SECURITY+®2.0 Wireless DoorControl:

Push bar, lightfeature and auxiliary button.
Includesbattery.

SECURITY+®2.0 MotionDetecting
ControlPanel:

Multi-function door control with motion
sensor that automatically turns opener
lights on when it detects a person
entering the garage. Sensor can be
easily deactivated when desired.

39

Warranty

LIFTMASTER ONE YEAR LIMITEDWARRANTY

LIFETIME MOTOR LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY FOR MODEL485LM BATTERYBACKUP

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or
workmanshipfor a period of 12 fullmonths from the date of purchase and that themotor and belt are free from defectin materials and/or workmanship for a period of the lifetime of the product. The
proper operation ofthis productis dependent on your compliance with the instructions regarding installation, operation,and maintenance and testing. Failure to complystrictlywith those instructions will
void this limited warranty in itsentirety.

If,during the limited warranty period, this productappears to contain a defect covered by this limitedwarranty,call 1-800-528-9131; toll free, before dismantling thisproduct.Then send thisproduct, pre­paid and insured, toour service center for warranty repair. You will be advised of shipping instructions when you call.Please include a brief description ofthe problem and a dated proof-of-purchase
receipt with any product returned for warrantyrepair. Productsreturned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limitedwarranty,will
be repaired or replaced (atSeller’s sole option) at no cost to you and returned pre-paid.Defective partswill be repaired or replaced with new or factory-rebuilt parts atSeller’s sole option.

ALLIMPLIED WARRANTIES FORTHE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIEDWARRANTIES OF MERCHANTABILITY ANDFITNESS FORA PARTICULAR PURPOSE, ARE
LIMITEDINDURATION TO THEONE YEAR LIMITED WARRANTY PERIODSET FORTH ABOVE EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE BATTERY, WHICHIS LIMITEDIN
DURATION TO ONE YEAR, MOTOR , WHICH ISLIMITED IN DURATION TO THE LIFETIME LIMITED WARRANTY PERIOD FOR THE MOTOR , AND NO IMPLIED WARRANTIES WILL EXIST OR
APPLY AFTER SUCH PERIOD. Some states do notallow limitations on how long an implied warranty lasts, so the above limitationmay not apply to you.THIS LIMITED WARRANTY DOES NOT
COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE
REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR
REPLACED UNIT,REPLACEMENT OF BATTERIES IN REMOTE CONTROL TRANSMITTERS ANDLIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE
DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE
CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR
CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR
BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO
ASSUME FOR US ANY OTHERLIABILITY IN CONNECTION WITHTHE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential,incidental or special damages, so the above limitation or exclusion may not apply to you.This limited warranty gives you specific
legal rights,and you may also have other rights,whichvary from state tostate.

© 2011, The Chamberlain Group, Inc.

114A4246B All RightsReserved
