Page 1

GARAGE DOOR OPENER

Model 3840

For Residential Use Only

The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196

www.LiftMaster.com

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

is connected

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

and properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located under the light lens on the left side panel

of your opener.

Page 2

Introduction 2-5

Safety symbol and signal word review . . . . . . . . . . . . . . . 2

Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . . 3

Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Assembly 6

Fasten rail to the motor unit . . . . . . . . . . . . . . . . . . . . . . . 6

Installation 7-22

Installation safety instructions . . . . . . . . . . . . . . . . . . . . . 7

Determine the header bracket location . . . . . . . . . . . . . . 8

Install the header bracket. . . . . . . . . . . . . . . . . . . . . . . . . 9

Attach the rail to the header bracket . . . . . . . . . . . . . . . 10

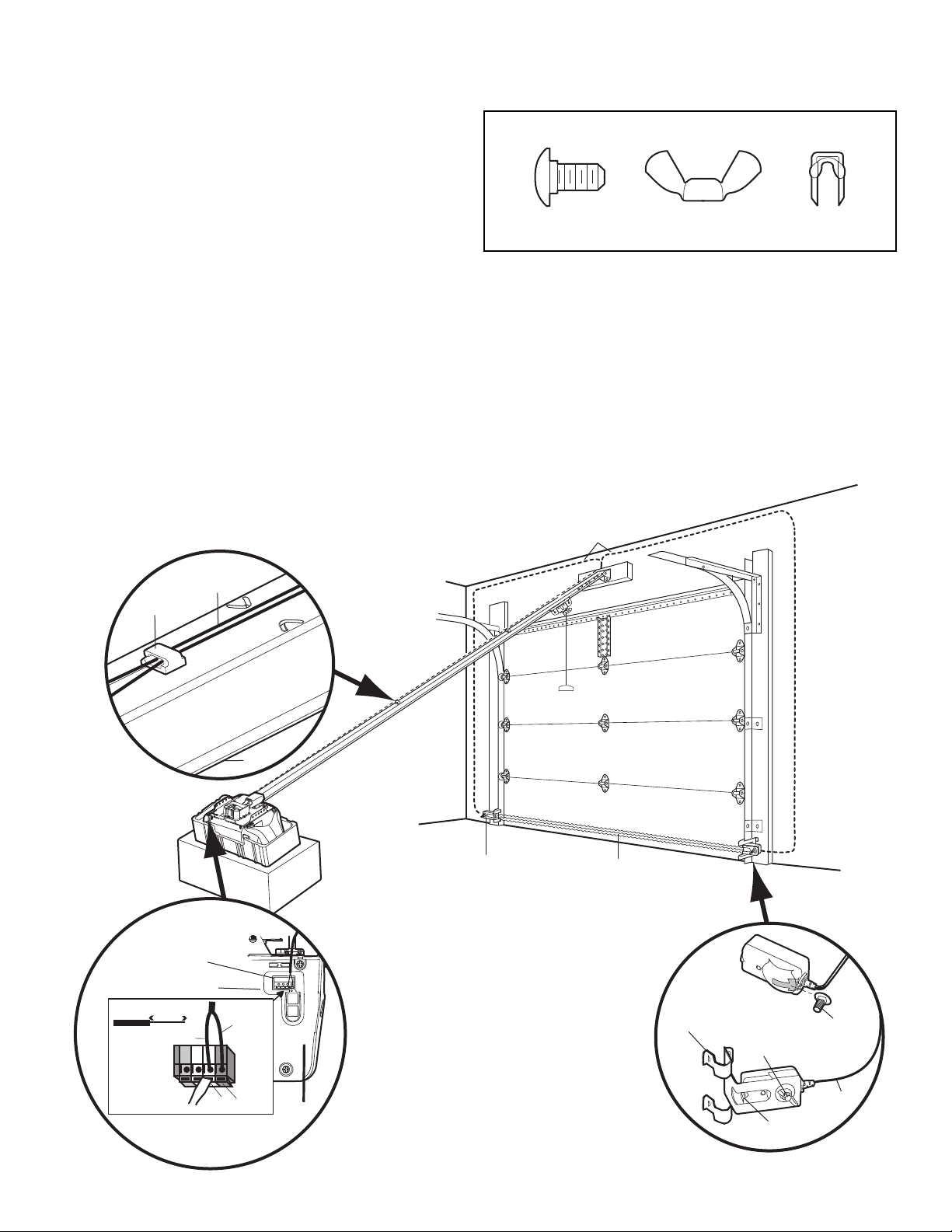

Install the Protector System

Position the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

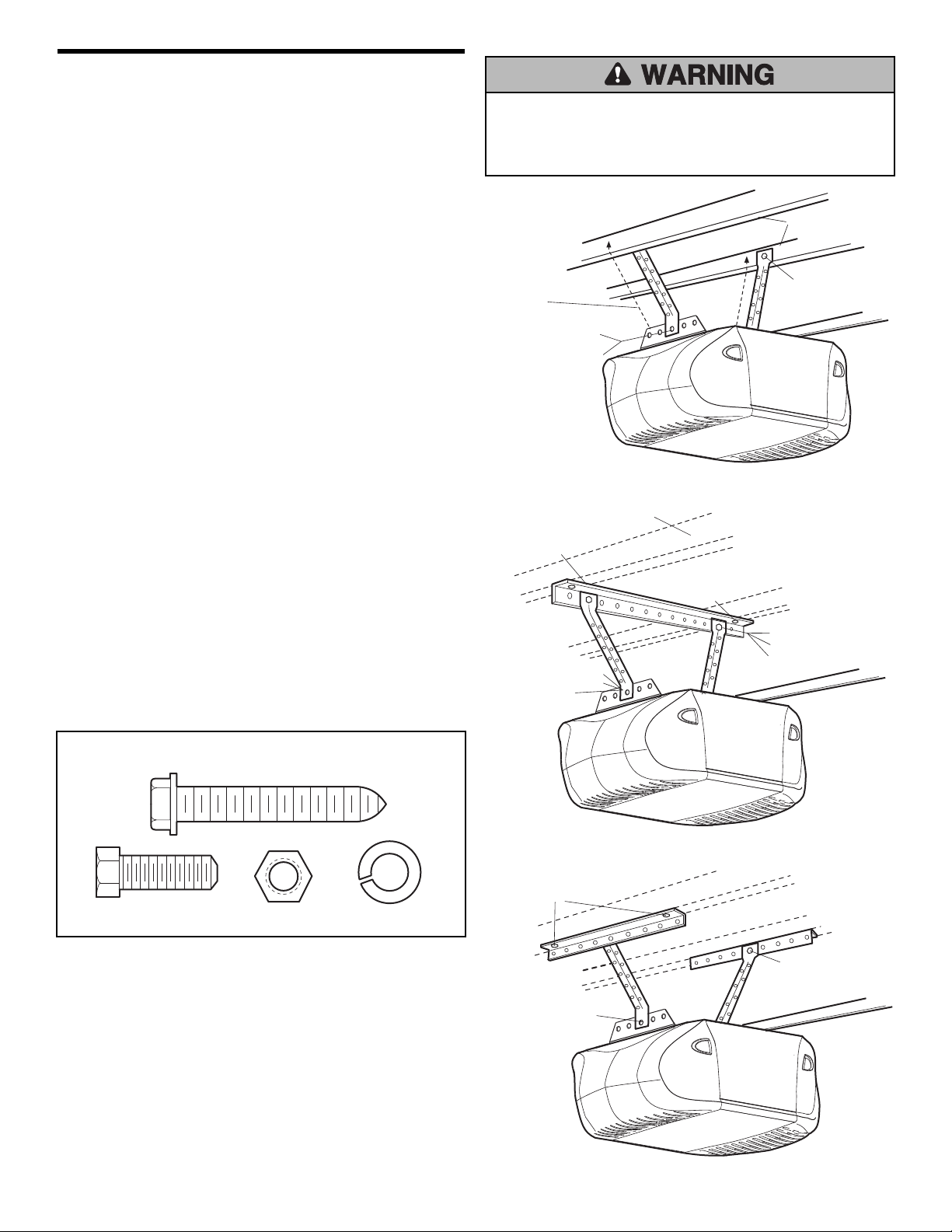

Hang the opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

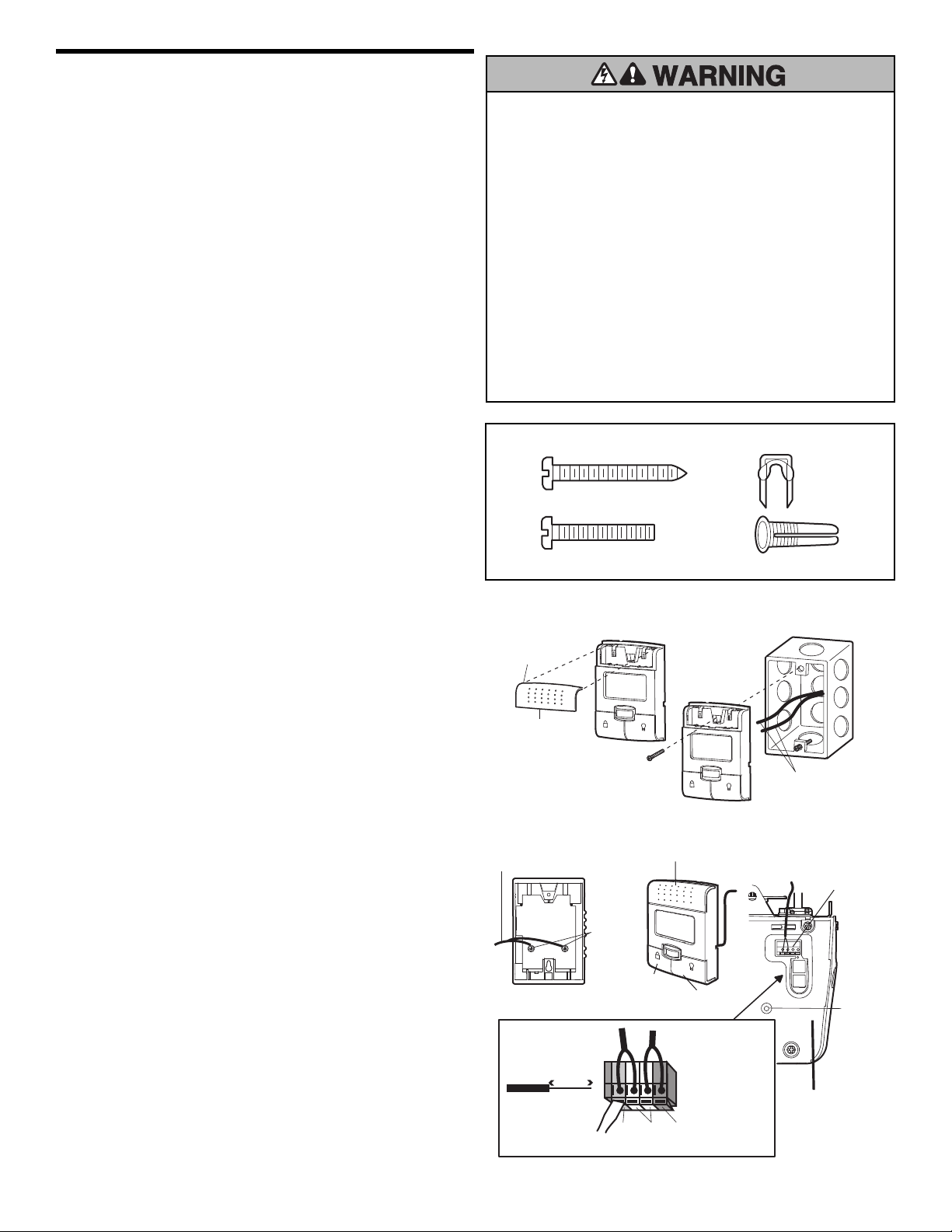

Install the Smart Control Panel

Install the Standby Power (Optional) . . . . . . . . . . . . . . . 17

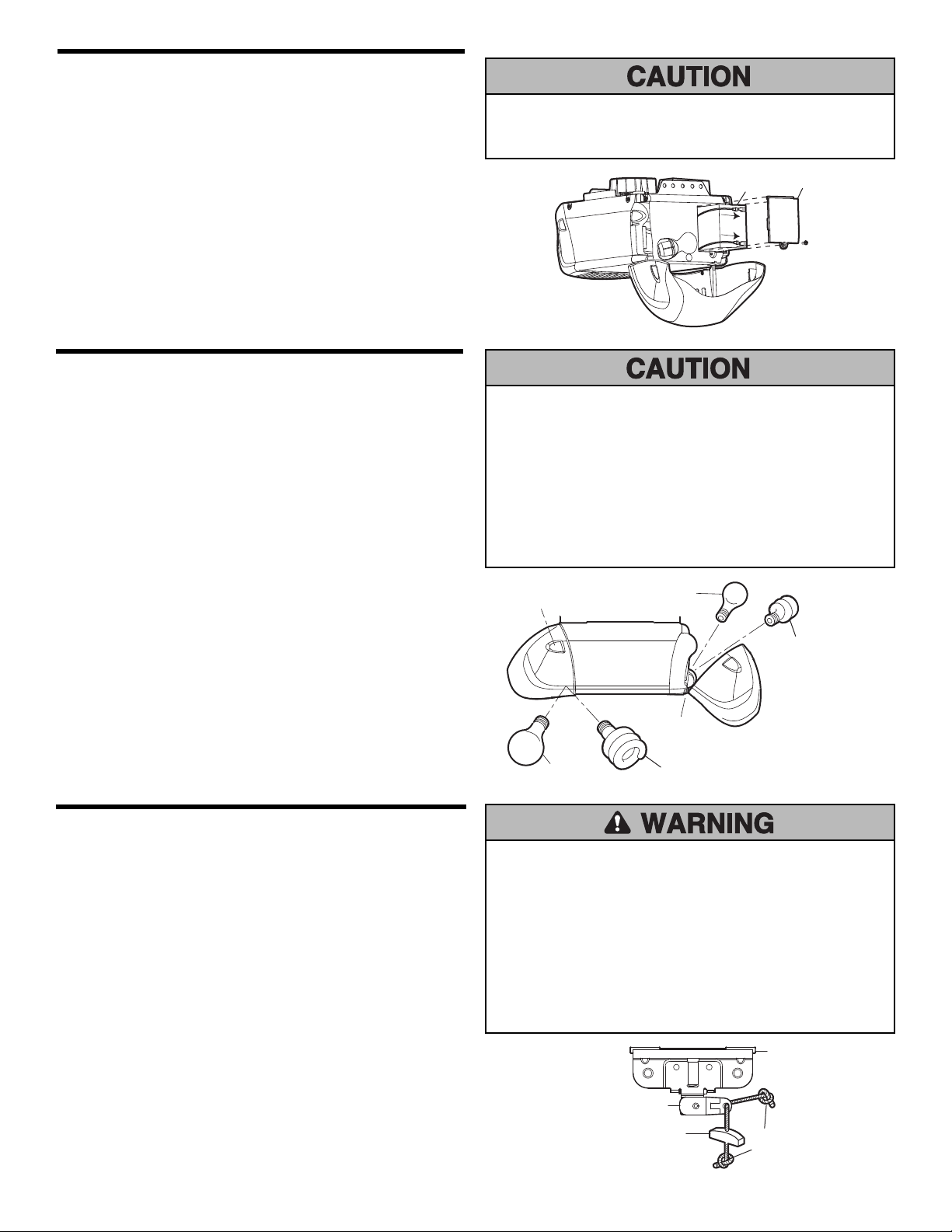

Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Attach the emergency release rope and handle . . . . . . 17

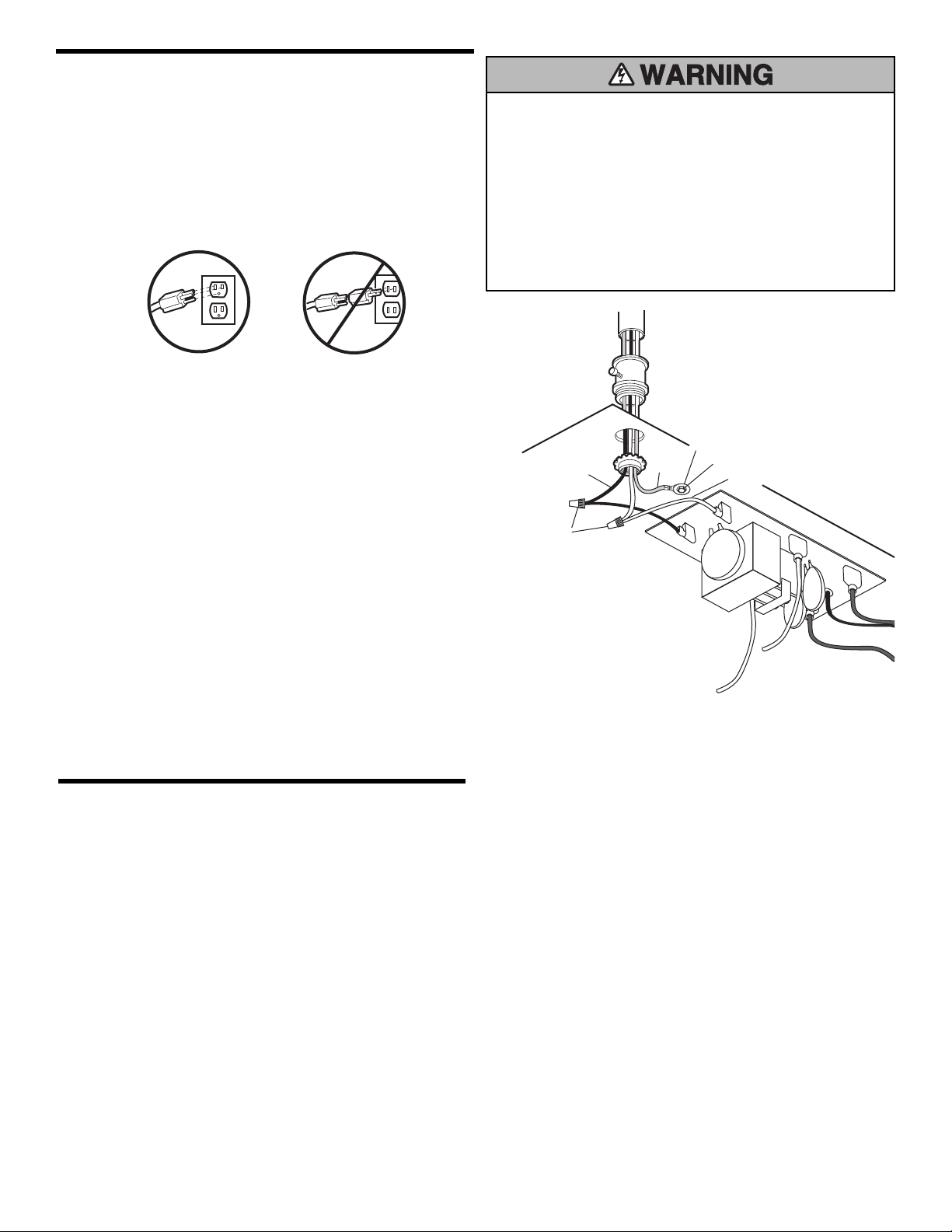

Electrical requirements. . . . . . . . . . . . . . . . . . . . . . . . . . 18

Complete safety reversing sensor installation . . . . . . . . 18

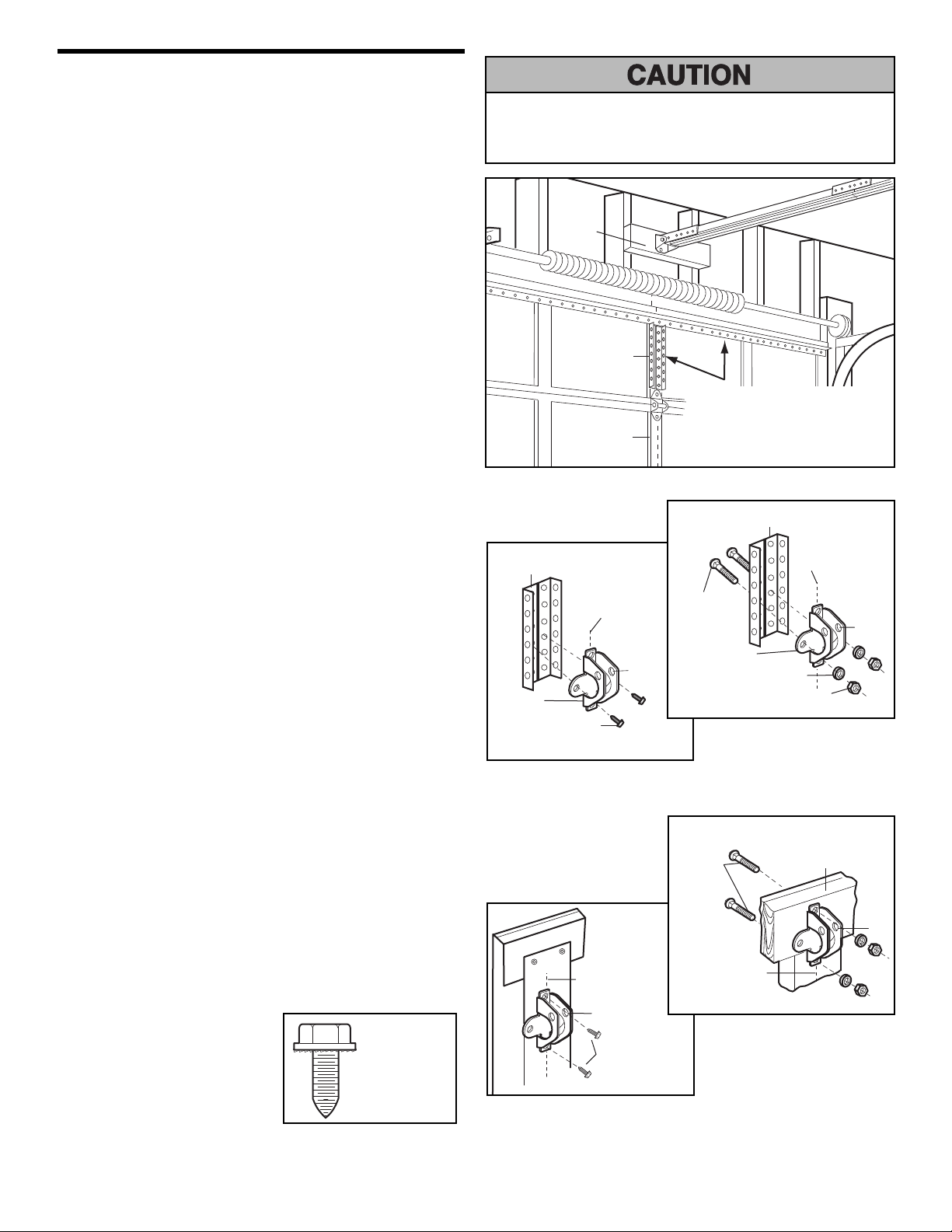

Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . . . . . 19

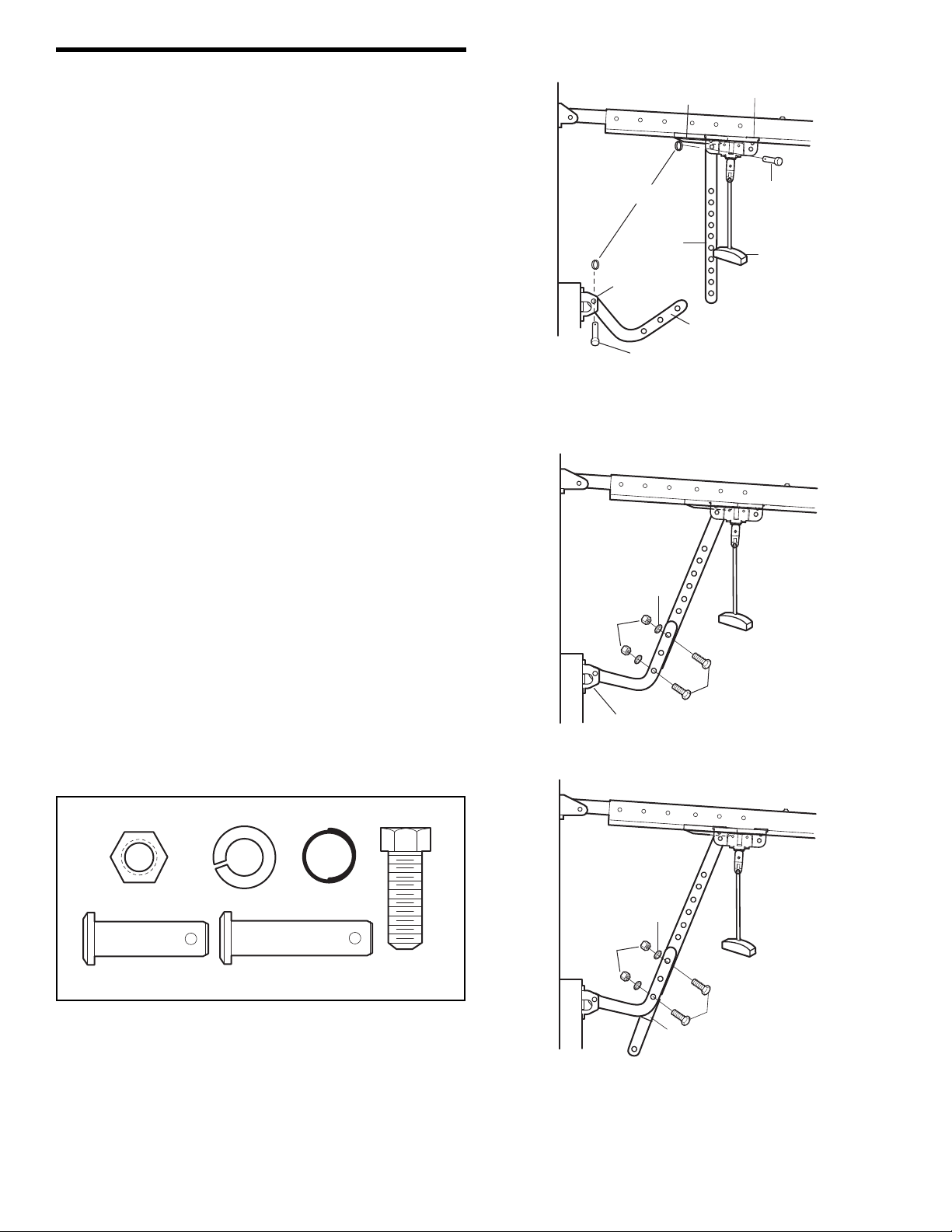

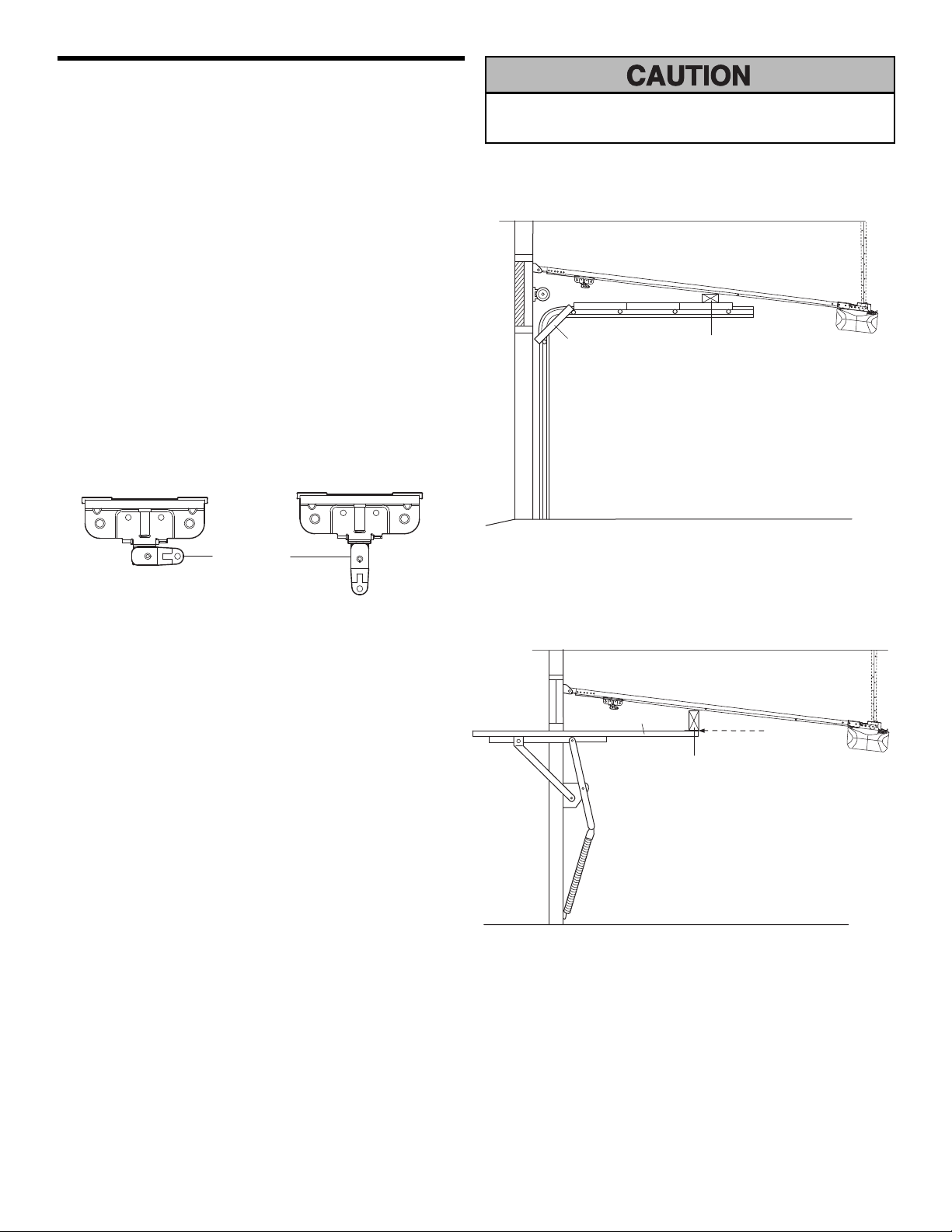

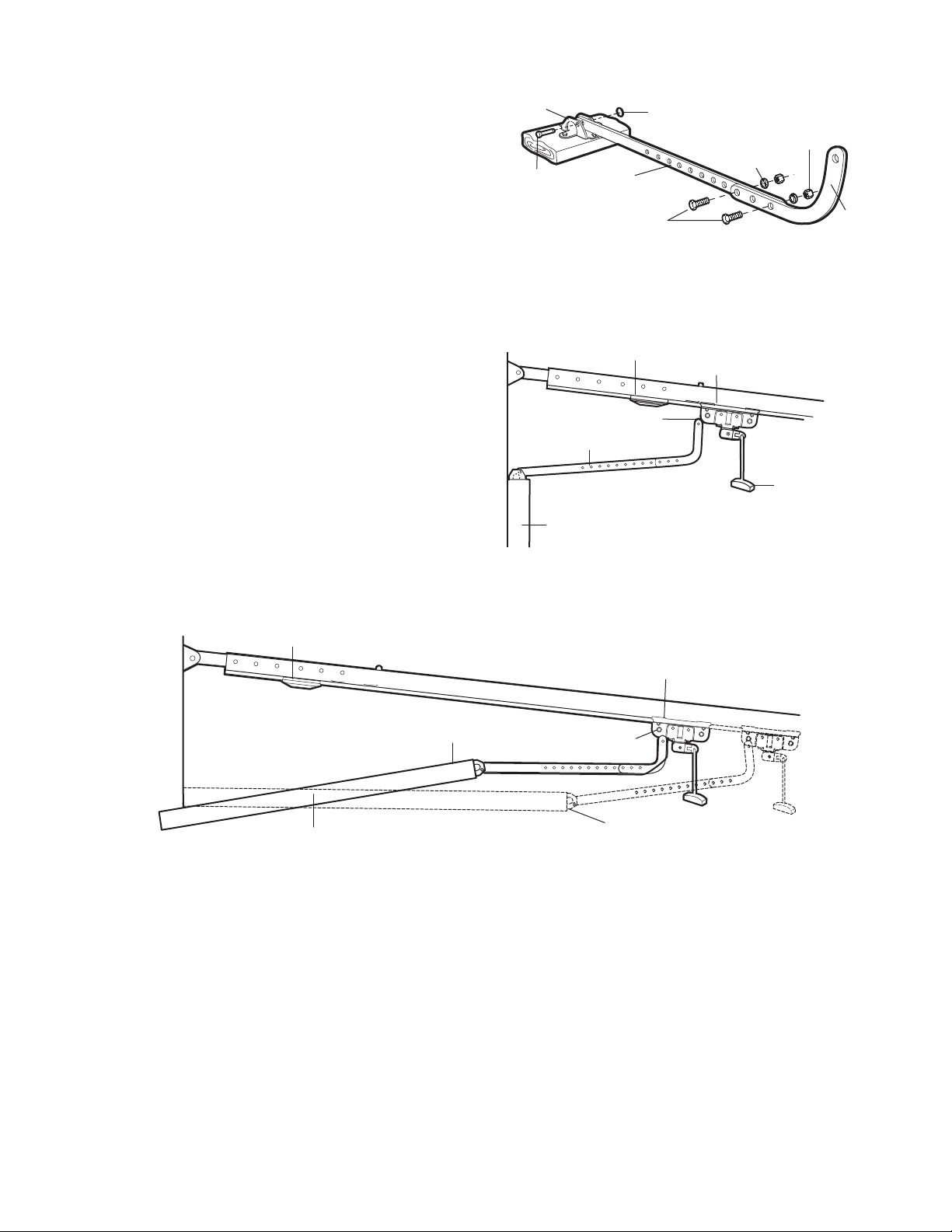

Connect the door arm to the trolley . . . . . . . . . . . . . 21-22

. . . . . . . . . . . . . . . . . . 11-13

. . . . . . . . . . . . . . . . . . . 16

Adjustment 23-25

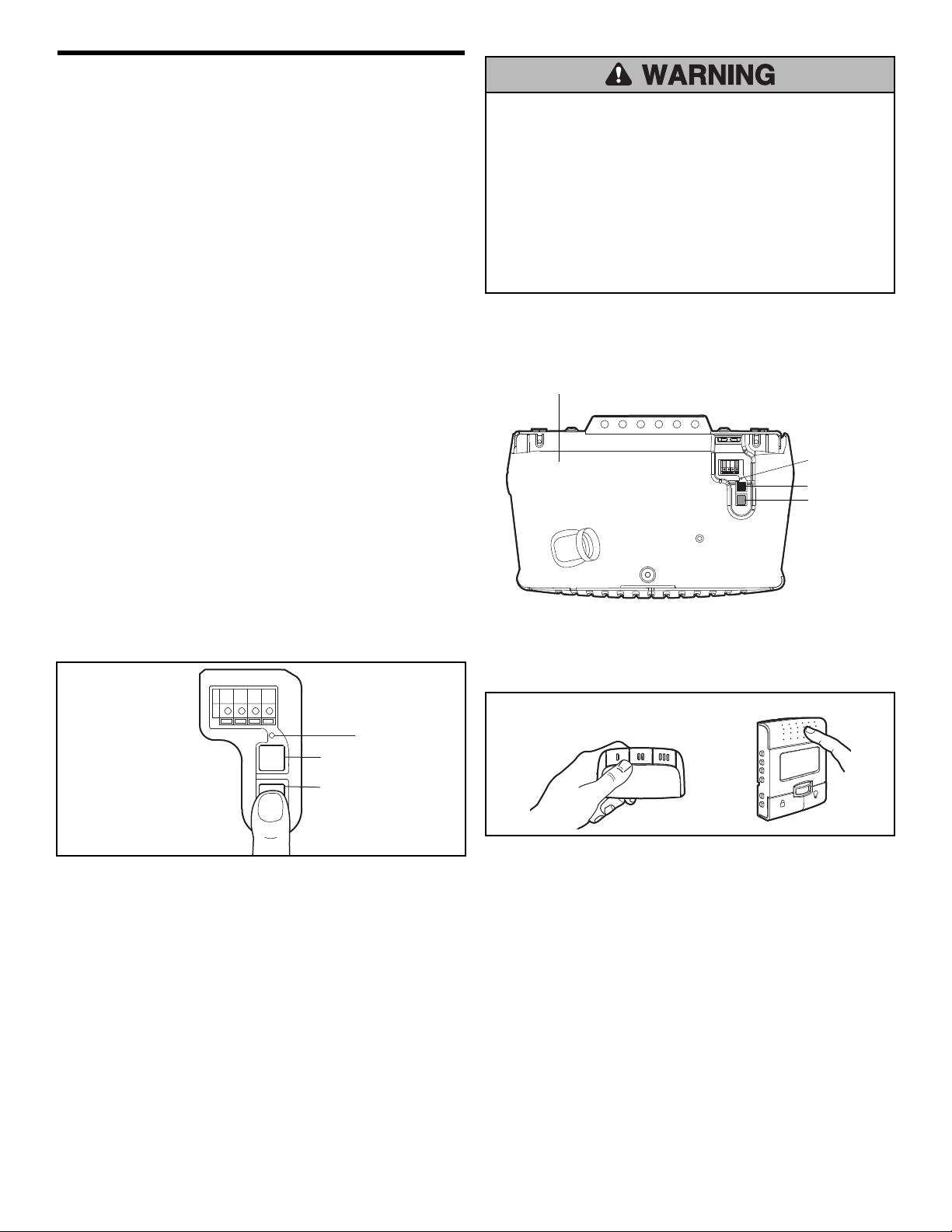

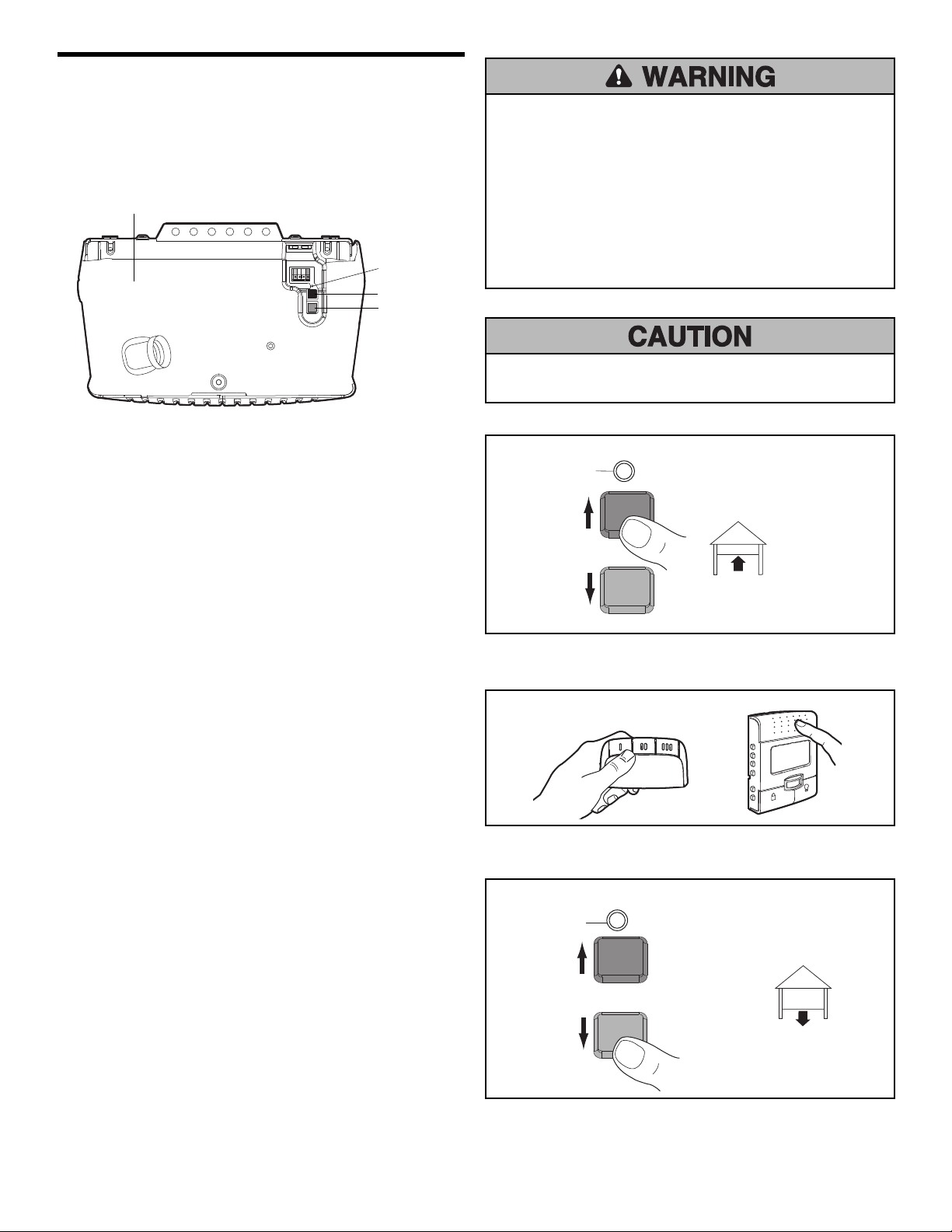

Program the travel limits . . . . . . . . . . . . . . . . . . . . . . . . 23

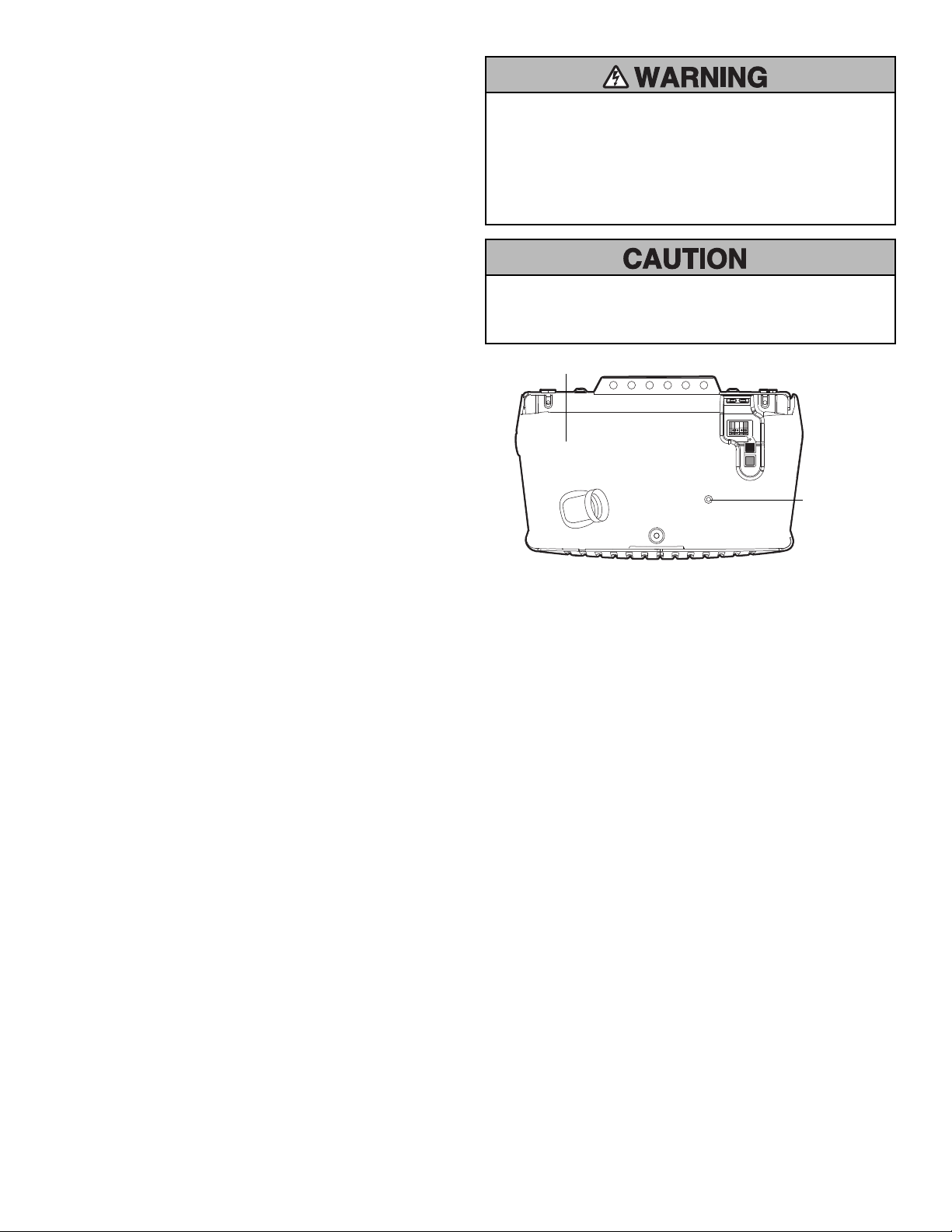

Set the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

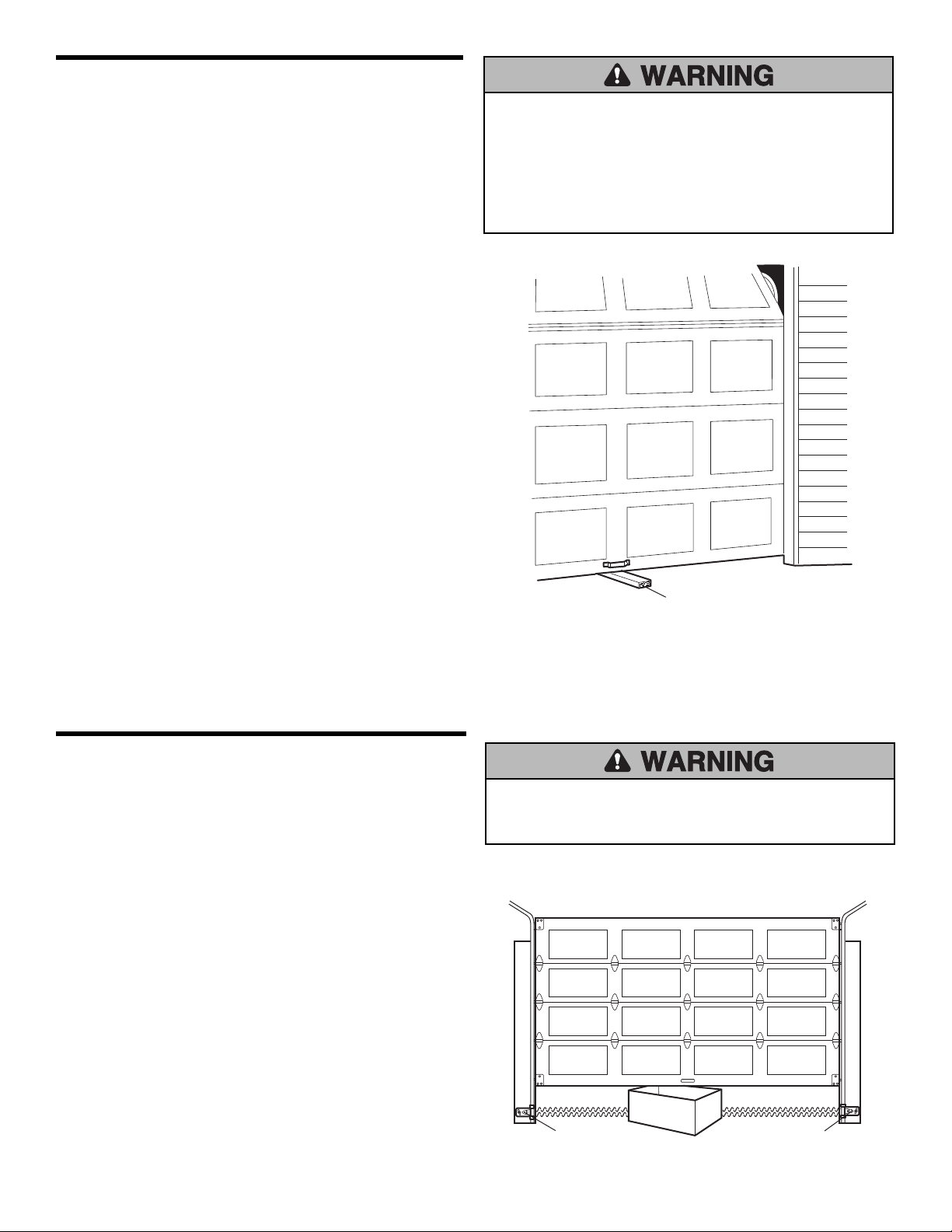

Test the safety reversal system . . . . . . . . . . . . . . . . . . . 25

Test the Protector System

. . . . . . . . . . . . . . . . . . . . . . 25

Operation 26-33

Operation safety instructions . . . . . . . . . . . . . . . . . . . . . 26

Using your garage door opener . . . . . . . . . . . . . . . . . . . 26

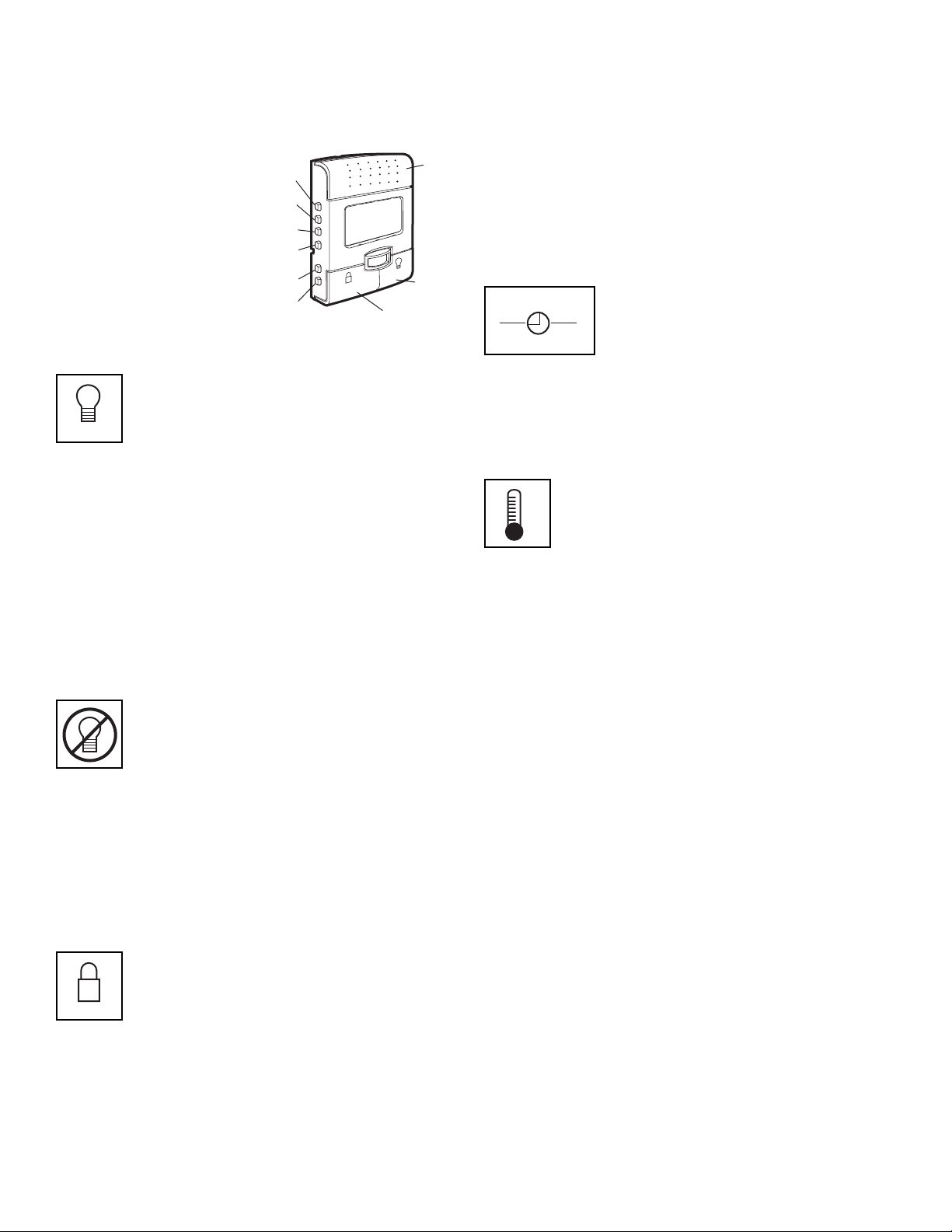

Using the Smart Control Panel

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . 28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

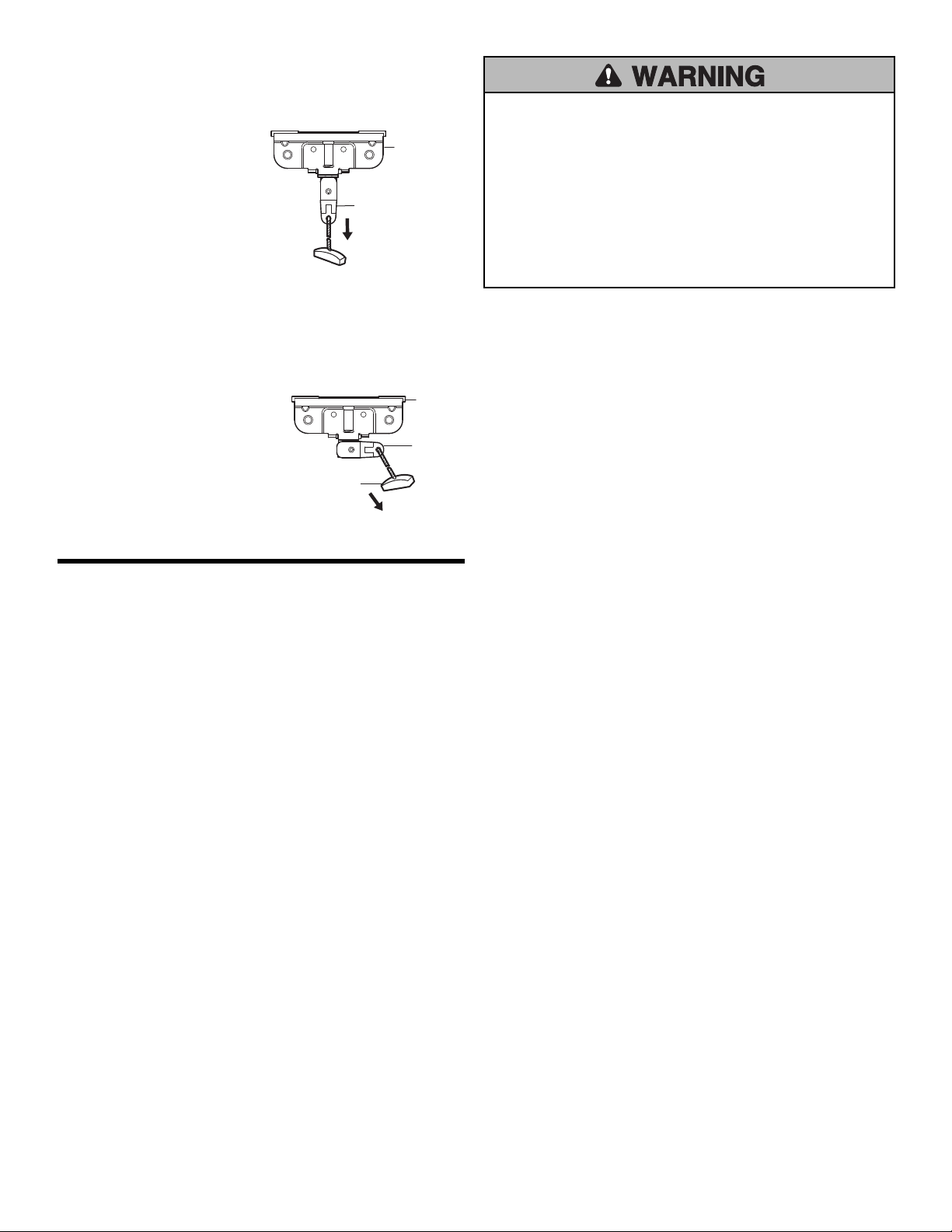

To open the door manually . . . . . . . . . . . . . . . . . . . . . . 28

Care of your garage door opener. . . . . . . . . . . . . . . . . . 28

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . 29

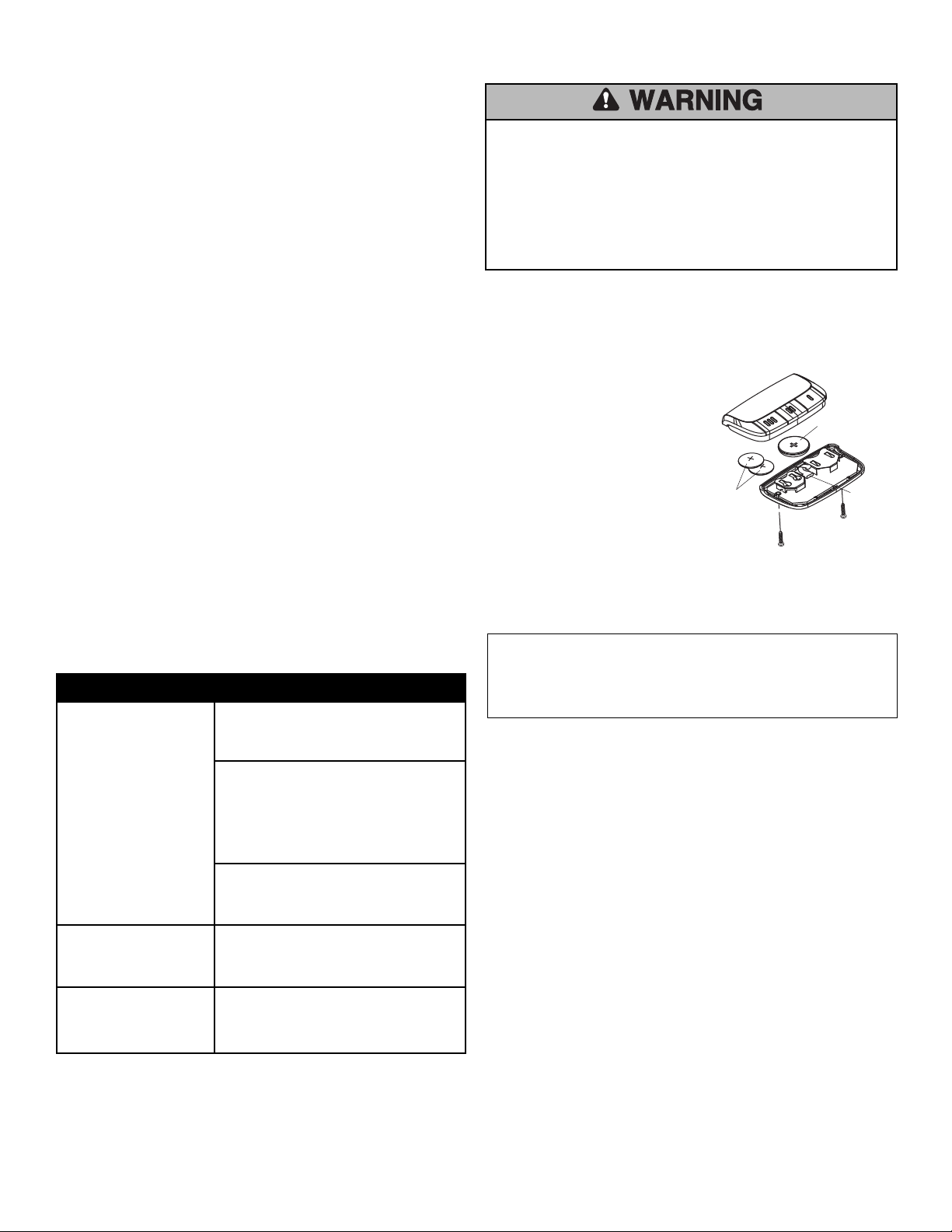

The remote control battery . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Standby Power (Optional) . . . . . . . . . . . . . . . . . . . . . . .30

Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

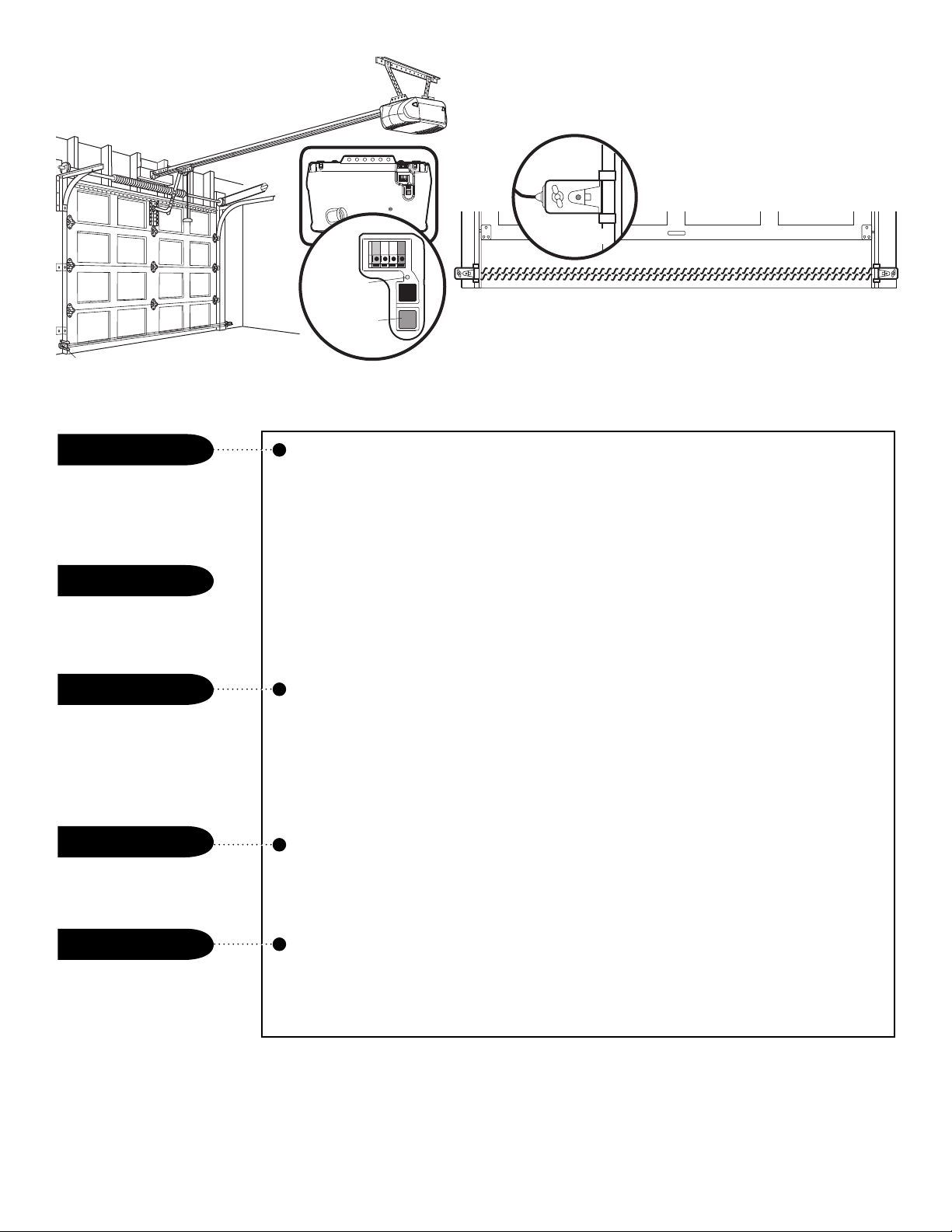

Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

. . . . . . . . . . . . . . . . . . . 27

Programming 34-35

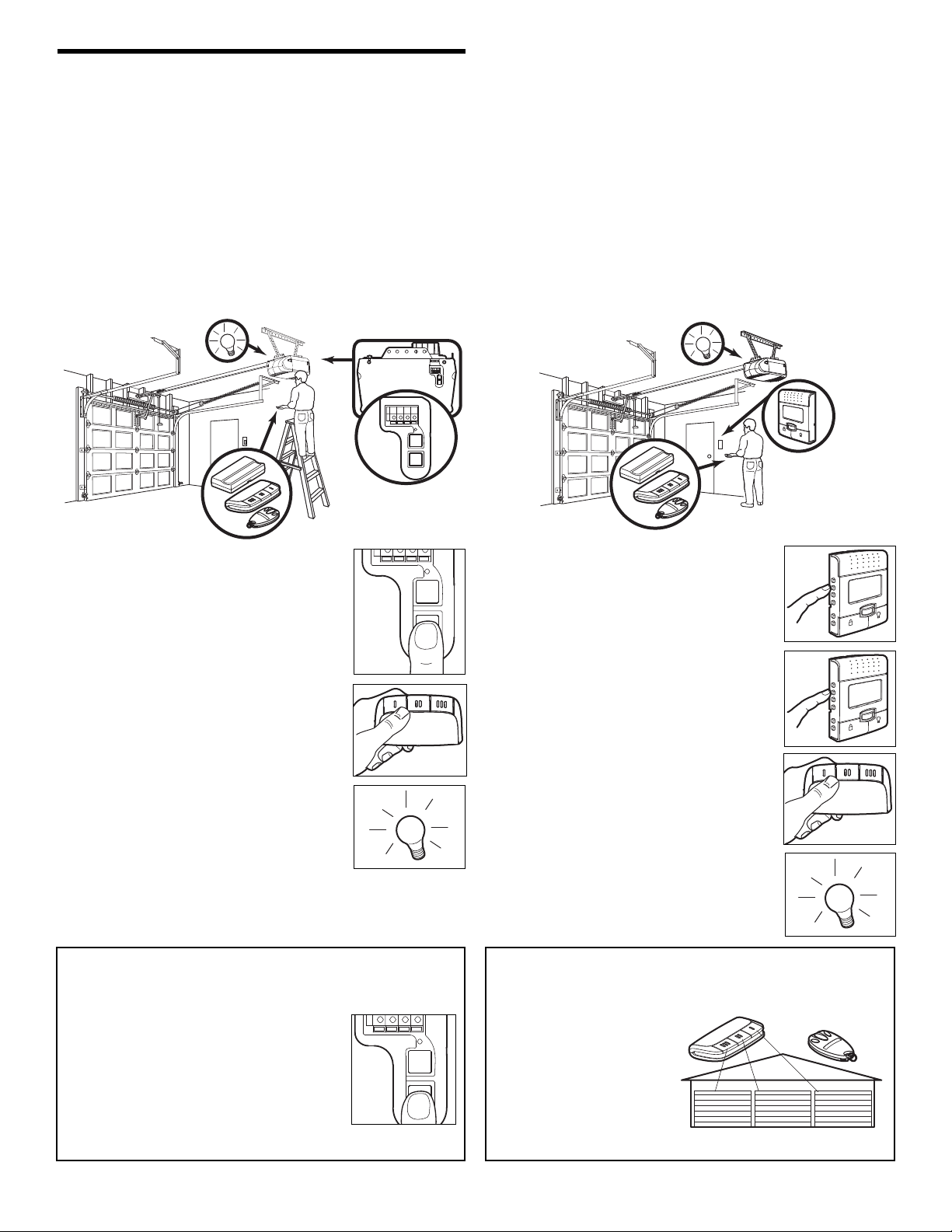

To add or reprogram a hand-held remote control . . . . . 34

To erase all codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

To add, reprogram or change

a Keyless Entry PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Repair Parts 36-37

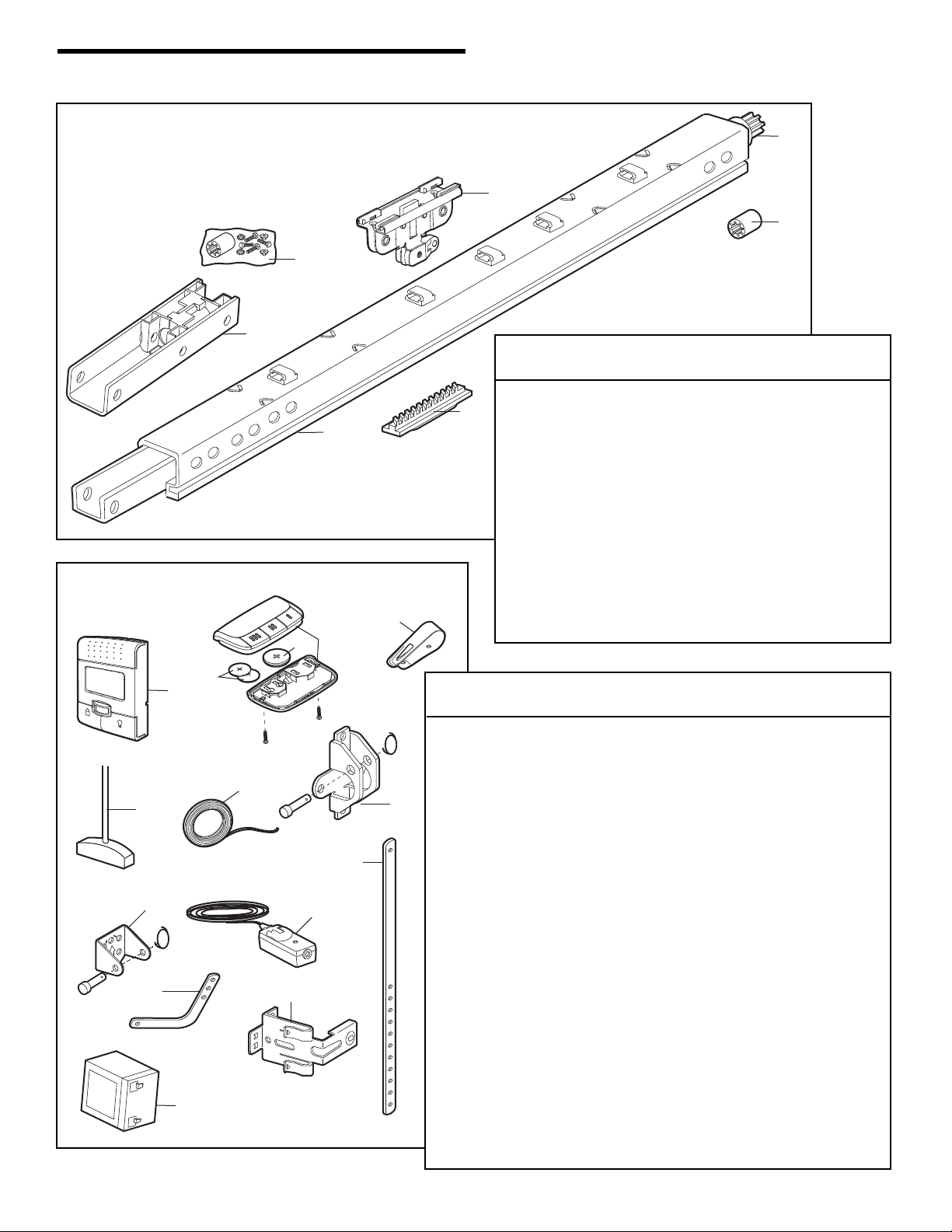

Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

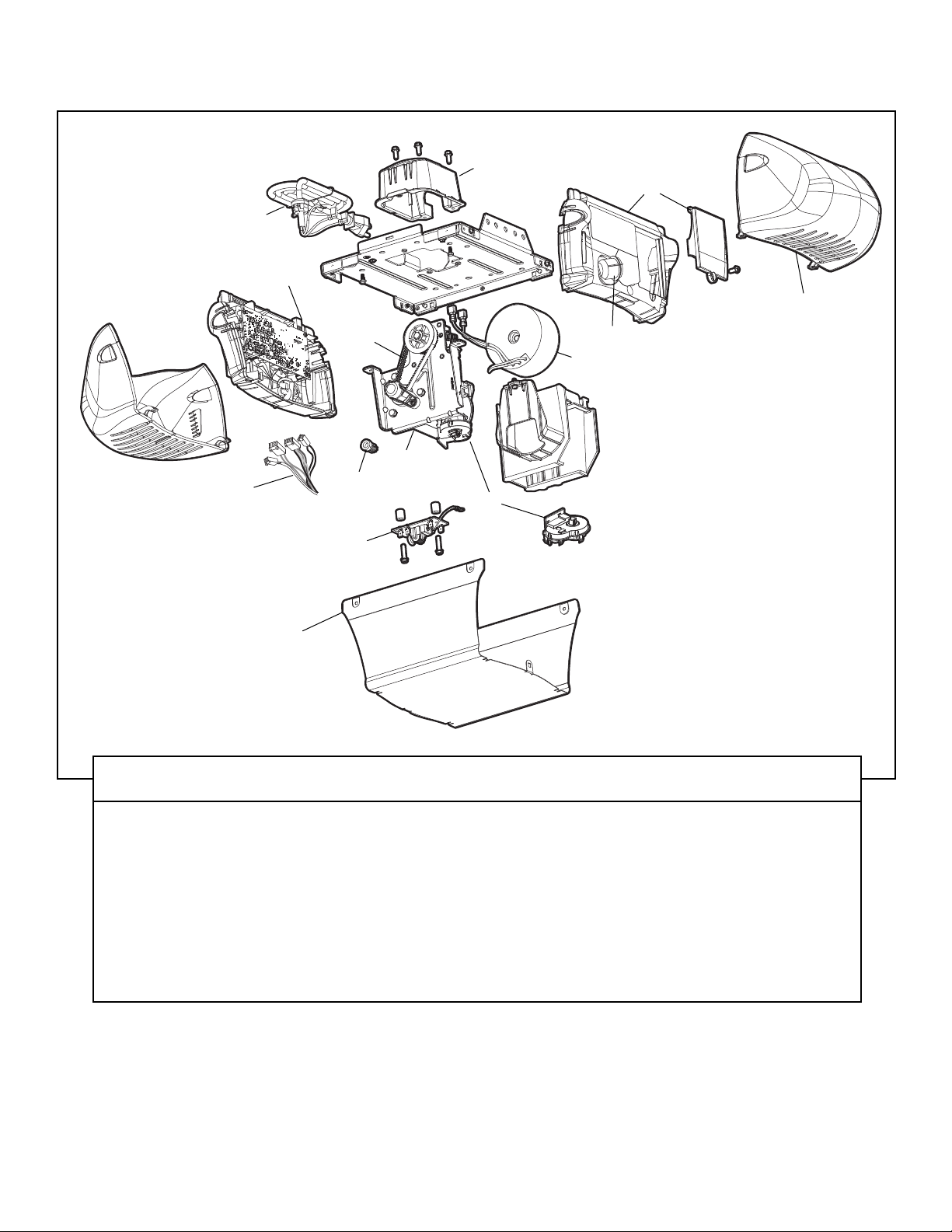

Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . . 37

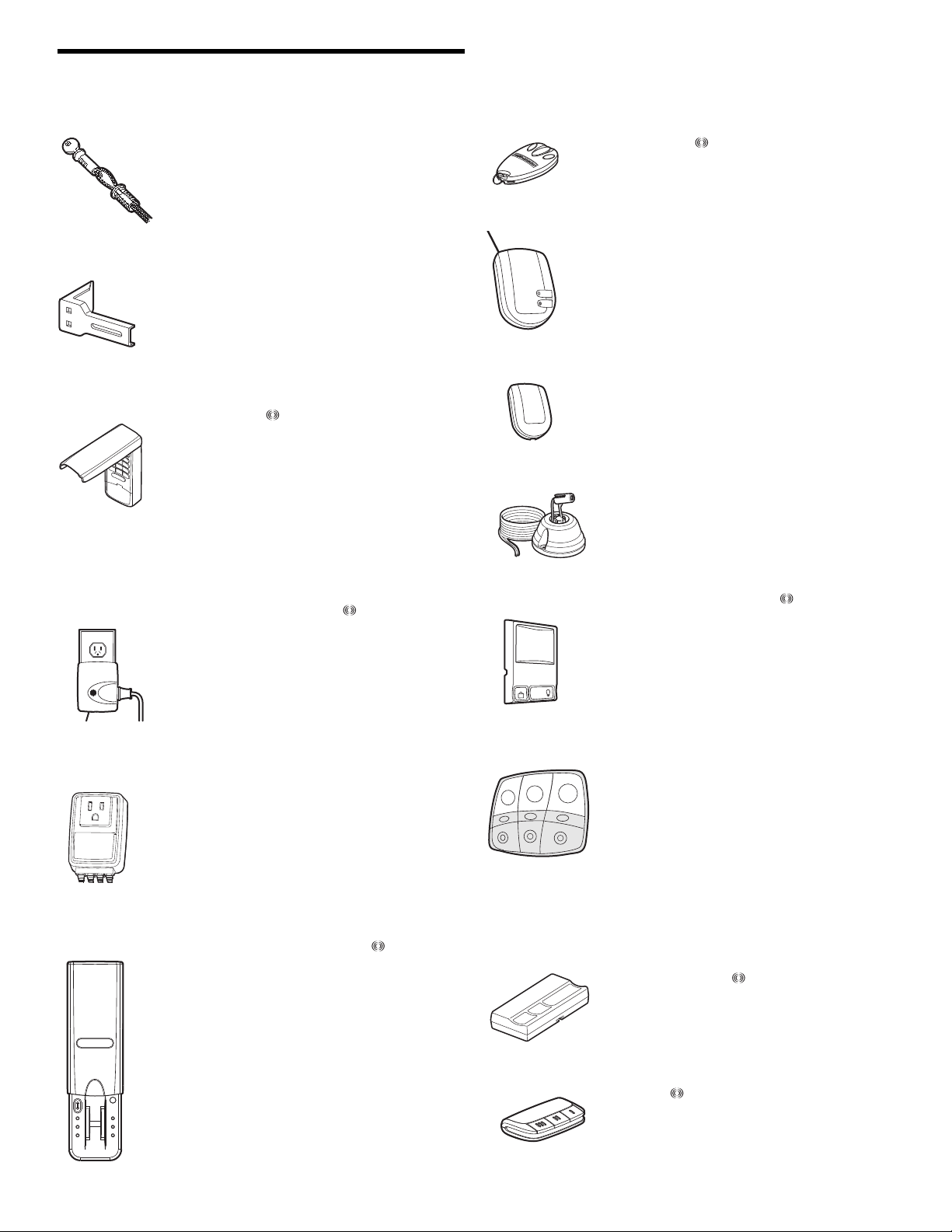

Accessories 38

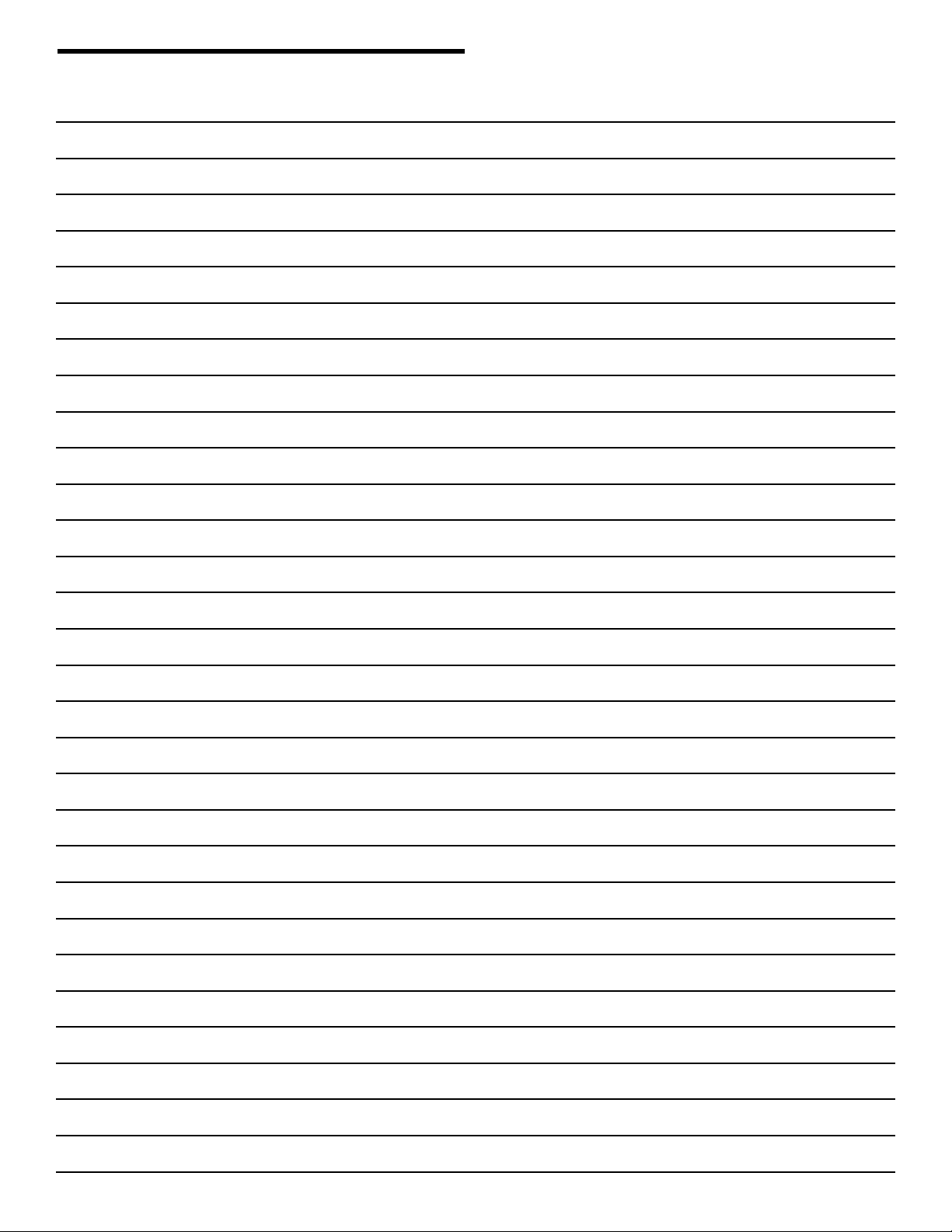

Notes 39

Repair Parts and Service 40

Warranty 40

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of

Mechanical

Electrical

serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

Page 3

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage

door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any binding or sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

Sectional Door

One-Piece Door

Carpenter's Level (Optional)

Drill

Tape Measure

3/16", 5/16" and 5/32" Drill Bits

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Stepladder

1/2" and 3/8" Sockets and Wrench

Screwdriver

Adjustable End Wrench

Page 4

Safety Reversing Sensor

Access Door

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Header Wall

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

SECTIONAL DOOR INSTALLATION

Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 19 for details.

Header Wall

Vertical Centerline of Garage Door

Safety Reversing Sensor

— — — — — — — —

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

FINISHED CEILING

Rail

Torsion Spring

Wallmounted Door Control

Safety Reversing Sensor

Extension Spring

Access Door

Support bracket & fastening hardware is required. See page 15.

Motor Unit

ONE-PIECE DOOR WITHOUT TRACK

Header Wall

Gap between floor

Safety Reversing Sensor

and bottom of door must not exceed 1/4" (6 mm).

FINISHED CEILING

Rail

Access Door

Safety Reversing Sensor

Support bracket & fastening hardware is required. See page 19.

Wall-mounted Door Control

15.

Motor Unit

ONE-PIECE DOOR WITH TRACK

Page 5

Straight Door Arm Section

Curved Door Arm Section

Safety Labels

and

Literature

Header Bracket

CEILING MOUNT ONLY

2 Conductor Bell Wire White & White/Red

Remote Control Visor Clip

Door Bracket

The Protector System

(2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye) with 2-Conductor White & White/Black Bell Wire attached

Safety Sensor Bracket (2)

Sprocket Coupling

Trolley

Rail

Motor Unit with 2 Light Lenses

Battery

(Optional)

SECURITY✚

3-Button Remote Control

LOCK

LIGHT

Carton Inventory

Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model purchased. If

Smart Control Panel

anything is missing, carefully check the packing material. Parts may be stuck in the foam. Hardware for installation is also listed below.

RAIL ASSEMBLY

Coupling Sleeve (1) Hex Bolt 1/4"-20 x 5/8" (4) Nut 1/4" - 20 (4)

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4) Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1) Nut 5/16"-18 (4)

Lock Washer 5/16" (4) Screw 6-32x1" (2) Self-Threading Screw 1/4"-14x5/8" (2) Insulated Staples (10) Ring Fastener (3) Drywall Anchors (2) Carriage Bolt 1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2) Spacers (2) Rope Handle

Page 6

ASSEMBLY STEP 1

Hex Bolt 1/4"-20x7/16"

Fasten the Rail to the Motor Unit

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

To aid in assembly and installation, replace the foam packing around the motor unit. Remove it after Installation Step 5.

• Working on a level surface, align the rail assembly with the motor unit, as shown.

• Slip the coupling over the rail sprocket.

• Slide the rail through the motor unit bracket until the coupling fits securely over the motor unit sprocket.

• Align the two bolt holes in the rail with those in the motor unit bracket. Insert four 1/4"-20x7/16" hex bolts. Tighten securely with a 3/8" socket wrench.

• Turn release arm down to disengage trolley.

• Slide the trolley onto and along the bottom of the rail. Align trolley with rack and turn release arm up to re-engage trolley. Be certain to install it facing

correctly: the trolley release arm must be horizontal (lock position), with its arrow pointed away from the motor unit.

HARDWARE SHOWN ACTUAL SIZE

Rail Assembly

Rail Sprocket

Hex Bolts 1/4-20x7/16"

Coupling

Motor Unit Bracket

Motor Unit Sprocket

Hex Bolts 1/4"-20x7/16"

Foam Packaging

Release arm

Rack

Trolley

To motor unit

Page 7

INSTALLATION

WARNING

WARNING WARNING

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.

4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above floor.

6. Mount emergency release handle 6 feet (1.83 m) above floor.

7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safety reverse test label in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

13. To avoid SERIOUS PERSONAL INJURY or DEATH from

electrocution, disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

Page 8

INSTALLATION STEP 1

Header Wall

Sectional door with curved track

Highest Point of Travel

Door

Track

3" (7.5 cm)

One-piece door with horizontal track

Door

Track

Header Wall

Highest Point of Travel

3" (7.5 cm)

Header Wall

Vertical Centerline of Garage Door

Level (optional)

2x4

Structural Supports

OPTIONAL CEILING MOUNT FOR HEADER BRACKET

Unfinished Ceiling

Door

Jamb Hardware

One-piece door without track: jamb hardware

8" (20 cm)

Highest Point of Travel

Door

Pivot

8" (20 cm)

One-piece door without track: pivot hardware

Highest Point of Travel

Header Wall

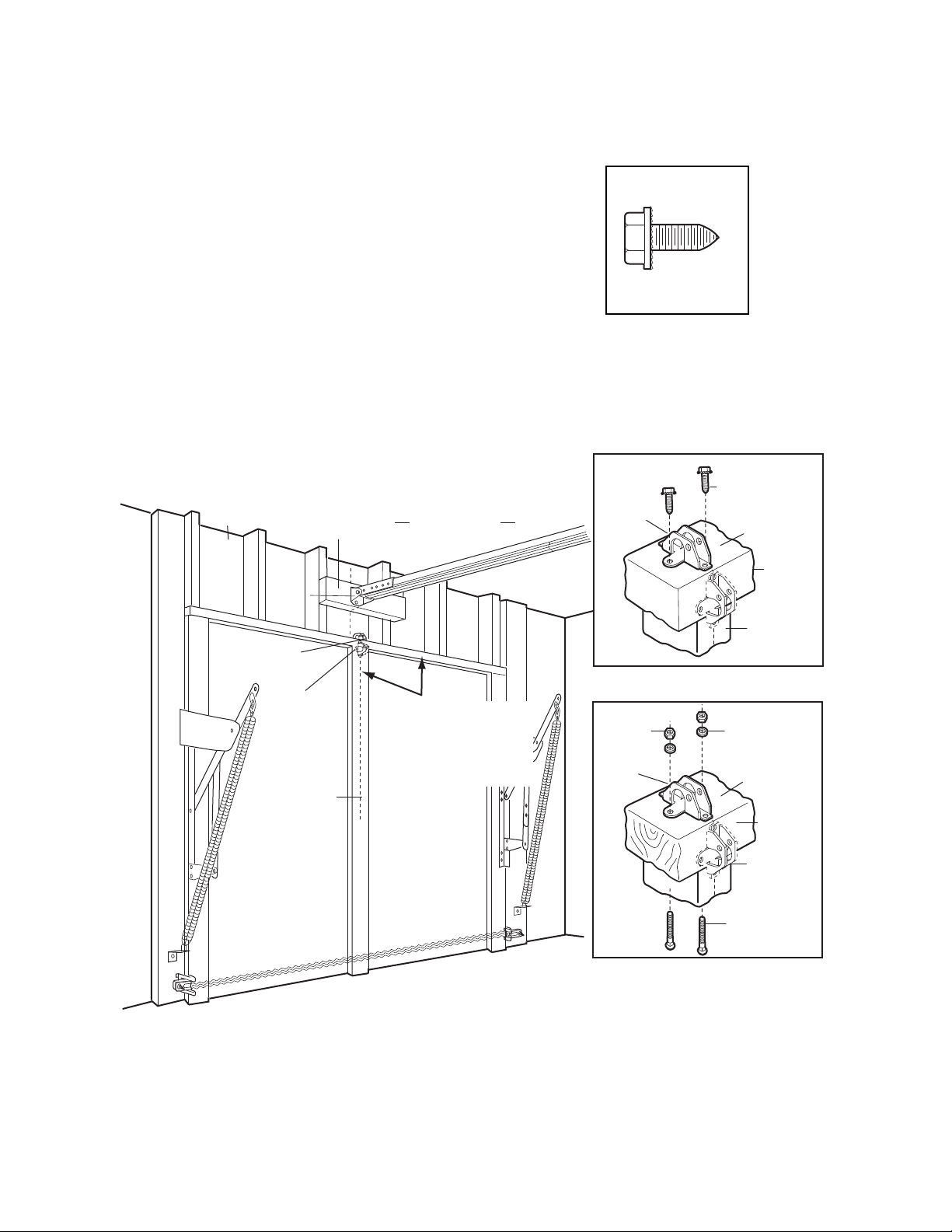

Determine the Header Bracket Location

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might not reverse when required.

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet

(1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 9) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).)

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 9.

3. Open your door to the highest point of travel as shown. Draw an inter secting horizontal line on the header wall above the high point:

• 3" (7.5 cm) above the high point for sectional door

and one-piece door with track.

• 8" (20 cm) above the high point for one-piece door

without track.

This height will provide travel clearance for the top edge

of the door.

NOTE: If the total number of inches exceeds the height

available in your garage, use the maximum height possible, or refer to page 9 for ceiling installation.

Page 9

INSTALLATION STEP 2

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

Lag Screws 5/16"-9x1-5/8"

Garage Door

Header Wall

– Finished Ceiling –

Header Bracket

6" (15 cm)

Maximum

Door Spring

Vertical Centerline of Garage Door

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do

not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

HARDWARE SHOWN ACTUAL SIZE

Lag Screw 5/16"-9 x 1-5/8"

2x4 Structural Support

Horizontal Line

Highest Point of Garage Door Travel

Wall Mounting Holes

CEILING MOUNT ONLY

Optional Wall Mounting Holes

Header Wall

Header Bracket

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

CEILING MOUNT ONL

Door Spring

Garage Door

Vertical Centerline of Garage Door

Lag Screws 5/16"-9x1-5/8"

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Page 10

Header Bracket

Rail Bracket

Opener Carton or

Temporary

Support

Header Wall

Garage Door

Rail

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Header Bracket

Spacers

Rail Bracket

Rail

INSTALLATION STEP 3

Attach the Rail to the Header Bracket

NOTE: (Optional) With some existing installations, you may re-use the old header bracket with the two plastic spacers included in the hardware bag. Place the spacers inside the bracket on each side of the rail, as illustrated.

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need

help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Clevis Pin 5/16"x2-3/4"

HARDWARE SHOWN ACTUAL SIZE

Ring Fastener

Spacer

Page 11

INSTALLATION STEP 4

Invisible Light Beam Protection Area

Safety Reversing Sensor 6" (15 cm) max. above floor

Install The Protector System

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam. The sending eye (with an amber indicator light) transmits an invisible light beam to the receiving eye (with a green indicator light). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to full open position, and the opener lights will flash 10 times.

The units must be installed inside the garage so that the sending and receiving eyes face each other across the door, no more than 6" (15 cm) above the floor. Either can be installed on the left or right of the door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track of sectional garage doors without additional hardware.

Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.

If it is necessary to mount the units on the wall, the brackets must be securely fastened to a solid surface such as the wall framing. Extension brackets (see accessories) are available if needed. If installing in masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door is closing.

Facing the door from inside the garage

Page 12

DOOR TRACK MOUNT (RIGHT SIDE)

Indicator Light

Lens

Lip

Safety Reversing Sensor Bracket

Door Track

FLOOR MOUNT (RIGHT SIDE)

WALL MOUNT (RIGHT SIDE)

Indicator Light

Safety Reversing Sensor Bracket

Lens

Extension Bracket (See Accessories)

Inside Garage Wall

(Provided with Extension Bracket)

Figure 1

Figure 2

Figure 3

Figure 4

WALL MOUNT (RIGHT SIDE)

Attach with Concrete Anchors (Not Provided)

Inside Garage

Wall

Safety Reversing Sensor Bracket

Lens

Indicator Light

Inside Garage Wall

Indicator Light

Safety Reversing Sensor Bracket

Lens

Lag Screws (Not Provided)

Fasten Wood Block to Wall with Lag Screws (Not Provided)

INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows:

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each door track, with the curved arms facing the door. Snap into place against the side of the track. It should lie flush, with the lip hugging the back edge of the track, as shown in Figure 1.

If your door track will not support the bracket securely, wall installation is recommended.

Wall installation (Figures 2 & 3):

• Place the bracket against the wall with curved arms facing the door. Be sure there is enough clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket (see Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on the wall at each side of the door, no higher than 6" (15 cm) above the floor.

• Attach brackets to wall with lag screws (not provided).

• If using extension brackets or wood blocks, adjust right and left assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (see Accessories) to elevate sensor brackets so the lenses will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies at the same distance out from the wall. Be sure all door hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

Page 13

Wing Nut 1/4"-20

Staples

Carriage Bolt 1/4"-20x1/2"

MOUNTING THE SAFETY SENSORS

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 5).

• Finger tighten the wing nuts.

Recommended Wire Routing

1. Using insulated staples, run the wires from both sensors to the rail at the door header (Figure 5A).

2. Run the wires through wire clips at the top of the rails.

NOTE: If your access door is near the garage door, you may choose to install the door control at this time and run the door control wire along the rail with the sensor wires.

3. Separate the white and white/black wires. Strip 7/16" (11 mm) of insulation from the end of the sensor wires. Twist like colored wires together. Connect the bell wire from safety reversing sensors to the quick-connect terminals: white wires to the white terminal and white/black wires to grey terminal (Figure 5B).

HARDWARE SHOWN ACTUAL SIZE

Figure 5A

Figure 5B

To release or insert wire, push in tab with screwdriver tip

Wire Clips

SAFETY REVERSING SENSORS CONNECTIONS

Quick-Connect Terminals

Left Side Panel

Strip wire 7/16"

7/16" (11 mm)

White Wire

Sensor Wire

White/Black Wire

White

Grey

Rail

Antenna

Safety Reversing Sensor

Cable

Invisible Light Beam Protection Area

Figure 5

Bracket

Wing Nut 1/4"-20

Lens

Carriage Bolt 1/4"-20x1/2"

Bell Wire

Page 14

INSTALLATION STEP 5

Trolley

Release Arm

ENGAGED

RELEASED

2x4 is used to determine the correct mounting height from ceiling.

Door

Top of Door

2x4 is used to determine the correct mounting height from ceiling.

Position the Opener

Follow instructions which apply to your door type as illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK

A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain disconnected until Installation Step 14 is completed.

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

ONE-PIECE DOOR WITHOUT TRACK

A 2x4 on its side is convenient for setting an ideal door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 on its side on the top section of the door beneath the rail.

• The top of the door should be level with the top of the motor unit. Do not position the opener more than 4" (10 cm) above this point.

Page 15

INSTALLATION STEP 6

Lag Screw 5/16"-18x1-7/8"

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Bracket (Not Provided)

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

— FINISHED CEILING —

Hidden Support

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

Structural Supports

Lag Screws 5/16"-18x1-7/8"

Measure Distance

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Hang the Opener

Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2 and Figure 3), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided.

1. Measure the distance from each side of the motor unit to the structural support.

2. Cut both pieces of the hanging bracket to required lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with 5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

NOTE: DO NOT connect power to opener at this time.

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.

Figure 1

Figure 2

HARDWARE SHOWN ACTUAL SIZE

Figure 3

Page 16

INSTALLATION STEP 7

Drywall Anchors

Insulated Staples

Screw 6ABx1-1/4" (standard installation)

Screw 6-32x1" (pre-wired)

Strip wire 7/16"

7/16" (11 mm)

Red GreyWhite

Quick-Connect Terminals

Antenna

To release or insert wire, push in tab with screwdriver tip

Door Control Connections

Safety Reversing Sensors Connections

Push Bar

Light Button

Lock Button

Door Control Terminal Screws

(BACK VIEW)

R 1

2-Conductor Bell Wire

LOCK

Battery Status LED

Install the Smart Control Panel

Locate door control within sight of door, at a minimum height of 5 feet (1.5 m) where small children cannot reach, away from moving parts of door and door hardware. If installing into drywall, drill 5/32" holes and use the anchors provided. For pre-wired installations (as in new home construction), it may be mounted to a single gang box (Figure 1).

NOTE: The functional temperature range of the door control is between -4° F (-20° C) and 122° F (50° C). Scroll speed of display is slower at lower temperatures although the door control remains fully functional.

CAUTION: Continuous exposure of the door control to temperatures below -22° F (-30° C) may damage the LCD screen.

SPECIAL NOTE: Only one Smart Control Panel® can be connected to each garage door opener. If additional door controls are desired to operate the same garage door opener, it is recommended to use model 378LM wireless door control as the secondary door control.

1. Separate the white and red/white wires. Strip 7/16" (11 mm) of insulation from one end of bell wire and connect to the two screw terminals on back of door control by color: white wire to the W (2) and white/red wire to the R (1) (Figure 2).

2. Remove push bar cover by gently prying at the lower/middle portion of the cover with a small flat-head screwdriver. Fasten with 6AB x 1-1/4" self-tapping screws (drywall installation) or 6-32 x 1" machine screws (into gang box) as follows:

• Install bottom screw, allowing 1/8" (3 mm) to protrude

above wall surface.

• Position bottom of door control on screw head and slide

down to secure. Adjust screw for snug fit.

• Drill and install top screw with care to avoid cracking

plastic housing. DO NOT overtighten.

• Replace cover by inserting top tabs first and then snap

cover in place.

3. (Standard installation only) Run bell wire up wall and across ceiling to opener. Use insulated staples to secure wire in several places. Do not pierce wire with a staple, creating a short or open circuit. If your access door is near the garage door, you may run this wire with the Safety Reversing Sensor wires along the top of the rail. See page 13.

4. Separate the white and red/white wires. Strip 7/16" (11 mm) of insulation from the end of the bell wires. Twist like colored wires together. Connect the bell wire from door control and safety reversing sensors to the quick-connect terminals: red/white wire to the red terminal, white wires to the white terminal and white/black wires to grey terminal.

NOTE: If you have any trouble with the operation of the buttons, loosen the top mounting screw.

5. Use tacks or staples to permanently attach entrapment

NOTE: DO NOT connect the power and operate the opener at this time; the trolley will travel to the full open position but will not return to the close position until the sensor beam is

warning label to wall near door control, and manual release/safety reverse test label in a prominent location on inside of garage door.

connected and properly aligned. See Step 12 on page 18.

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is not connected BEFORE installing door control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.

• NEVER permit children to operate or play with door control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.

HARDWARE SHOWN ACTUAL SIZE

Figure 1

REMOVE & REPLACE COVER

To Replace Insert Top Tabs First

Push Bar Cover

LOCK

Figure 2

LIGHT

LOCK

Figure 3

PRE-WIRED INSTALLATION

24 Volt Bell Wire

LIGHT

Page 17

Lens Hinge

100 Watt (Max) Standard Light Bulb

Release Tab

100 Watt (Max) Standard Light Bulb

Mini-Twist 26 Watt (100 W equivalent) (Max) Fluorescent Light Bulb

INSTALLATION STEP 8

Battery

Battery Cover

Trolley Release Arm

NOTICE

Overhand Knot

Emergency

Release Handle

Trolley

Install the Standby Power (Optional)

• Make sure motor unit is unplugged.

• Using a Phillips head screwdriver, remove the battery cover on the motor unit.

• Partially insert battery into motor unit with terminals facing out.

• Connect red (+) and black (-) wires from motor unit to corresponding terminals on battery.

• Replace battery cover.

INSTALLATION STEP 9

Install the Lights

• Press the release tabs on both sides of lens. Gentlyrotate lens back and downward until the lens hinge is in the fully open position. Do not remove the lens.

• Install a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• Reverse the procedure to close the lens.

• Use A19, standard neck garage door opener bulbs for replacement.

NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

To prevent possible OVERHEATING of the endpanel or light socket:

• Use ONLY A19 incandescent or mini-twist compact fluorescent light bulbs.

• DO NOT use incandescent bulbs larger than 100W.

• DO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).

• DO NOT use halogen bulbs.

• DO NOT use short neck or specialty light bulbs.

INSTALLATION STEP 10

Attach the Emergency Release Rope and Handle

• Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.83 m) above the floor. Secure with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

Page 18

INSTALLATION STEP 11

RIGHT

WRONG

Ground Tab

Green Ground Screw

Ground Wire

Black Wire

Wire Nuts

PERMANENT WIRING CONNECTION

White Wire

Electrical Requirements

To avoid installation difficulties, do not run the opener at this time.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a qualified electrician to install the proper outlet.

If permanent wiring is required by your local code, refer to the following procedure.

To make a permanent connection through the 7/8" hole in the top of the motor unit (according to local code):

• Remove the motor unit cover screws and set the cover aside.

• Remove the attached green ground terminal.

• Cut black and white wires and strip away 1/2" (1 cm) of insulation, 3" (7.5 cm) before spade terminals.

• Remove the power cord from opener.

• Install a conduit or flex cable adapter to the 7/8" hole.

• Run wires through conduit, cut to proper length and strip insulation.

• Attach with wire nuts provided. Attach the ground wire to the green ground screw. The opener must be grounded.

• Properly secure wire under plastic ties so that wire does not come in contact with moving parts.

• Reinstall the cover.

To avoid installation difficulties, do not run the opener at this time.

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Be sure power is not connected to the opener, and disconnect power to circuit BEFORE removing cover to establish permanent wiring connection.

• Garage door installation and wiring MUST be in compliance with ALL local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fit outlet. Be sure the opener is grounded.

INSTALLATION STEP 12

Complete Safety Reversing Sensor Installation

ALIGNING THE SAFETY REVERSING SENSORS

Plug in the opener. The indicator lights in both the sending and receiving eyes will glow steadily if wiring connections and alignment are correct.

The sending eye amber indicator light will glow regardless of alignment or obstruction. If the green indicator light in the receiving eye is off, dim, or flickering (and the invisible light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust the sensor vertically and/or horizontally until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at opener connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn’t:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will blink 10 times (if bulbs are not installed, 10 clicks can be heard). See page 11.

Page 19

Self-Threading Screw 1/4"-14x5/8"

Vertical Centerline of Garage Door

INSTALLATION STEP 13

Door Bracket

Vertical Centerline of Garage Door

Vertical Reinforcement

Self-Threading Screw 1/4"-14x5/8"

Door Bracket

Nut 5/16"-18

Bolt 5/16"-18x2" (Not Provided)

Lock Washer 5/16"

Vertical Reinforcement

Vertical Centerline of Garage Door

Self-Threading Screw 1/4"-14x5/8"

Vertical Centerline of Garage Door

Door Bracket Location

Header Bracket

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Inside Edge of Door or Reinforcement Board

Bolt 5/16"x2" (Not Provided)

Vertical Centerline of Garage Door

Fasten the Door Bracket

Follow instructions which apply to your door type as illustrated below and on the following page.

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 14.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws (Figure 2A).

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided) (Figure 2B).

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws (Figure 3).

Wood Doors:

• Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided) (Figure 4).

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket.

Contact your door manufacturer for reinforcement kit.

Header Bracket

Door Bracket Location

HORIZONTAL AND VERTICAL

Vertical Centerline of Garage Door

REINFORCEMENT IS NEEDE FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, ETC.). (NOT PROVIDED)

Figure 1

Figure 2B

Figure 2A

HARDWARE SHOWN ACTUAL SIZE

Figure 4

Figure 3

Page 20

ONE-PIECE DOORS

Self-Threading Screw 1/4"-14x5/8"

Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also.

• Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.

• Metal Doors: Drill 3/16" pilot holes and fasten the bracket with the 1/4"-14x5/8" self-threading screws provided.

• Wood Doors: Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2" lag screws (not provided) depending on your installation needs.

NOTE: The door bracket may be installed on the top edge of the door if required for your installation (refer to the dotted line optional placement drawing).

Header Wall

Header Bracket

Door Bracket

Optional Placement of Door Bracket

Vertical Centerline of Garage Door

2x4 Support

Finished Ceiling

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

HARDWARE SHOWN

ACTUAL SIZE

Door Bracket

Nut 5/16"-18

Door Bracket

Self-Threading Screw 1/4"-14x5/8"

Top of Door (Inside Garage)

Top Edge of Door

Optional Placement

METAL DOOR

Lock Washer 5/16"

Top of Door (Inside Garage)

Top Edge of Door

For a door with no exposed framing, or for the optional installation, use lag screws 5/16"x1-1/2" (Not Provided) to fasten door bracket.

Optional Placement

Carriage Bolt 5/16"x2" (Not Provided)

WOOD DOOR

Page 21

INSTALLATION STEP 14

Lock Washer 5/16"

Nut 5/16"-18

Ring Fastener

Hex Bolt 5/16"-18x7/8"

Clevis Pin 5/16"x1" (Trolley)

Clevis Pin 5/16"x1-1/4" (Door Bracket)

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on the following page.

Inner Trolley

Outer Trolley

SECTIONAL DOORS ONLY

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3.

Figure 1:

• Fasten straight door arm section to outer trolley with the 5/16"x1" clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same way, using the 5/16"x1-1/4" clevis pin.

Figure 2:

• Bring arm sections together. Find two pairs of holes that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

Figure 3, Hole alignment alternative:

• If holes in curved arm are above holes in straight arm, disconnect straight arm. Cut about 6" (15 cm) from the solid end. Reconnect to trolley with cut end down as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with bolts, lock washers and nuts.

Pull the emergency release handle toward the opener at a 45° angle so that the trolley release arm is horizontal. Proceed to Adjustment Step 1, page 23. Trolley will re-engage automatically when opener is operated.

Figure 1

Figure 2

Nuts 5/16"-18

Ring Fastener

Straight Door Arm

Door Bracket

Clevis Pin 5/16"x1-1/4"

Lock Washers 5/16"

Door Bracket

Clevis Pin 5/16"x1"

Emergency Release Handle

Curved Door Arm

Bolts 5/16"-18x7/8"

HARDWARE SHOWN ACTUAL SIZE

Figure 3

Nuts 5/16"-18

Lock Washers 5/16"

Cut this end

Bolts 5/16"-18x7/8"

Page 22

Outer Trolley

Door Arm Connector Hole

Open Door

Door with Backward Slant (Incorrect)

Correct Angle

Inner Trolley

Closed Door

Outer Trolley

Door Arm

Emergency Release Handle

Inner Trolley

Door Arm Connector Hole

ALL ONE-PIECE DOORS

Nuts 5/16"-18

Lock Washers 5/16"

Ring Fastener

Straight Arm

Bolts 5/16"-18x7/8

Door Bracket

Clevis Pin 5/16"x1-1/4"

Curved Door Arm

1. Assemble the Door Arm:

• Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap).

• Make sure the garage door is fully closed. Connect the straight door arm section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

• Pull the emergency release handle, disconnecting the outer trolley from the inner trolley by pulling straight down on the emergency release handle and sliding the outer trolley back. See Figure 5.

• Connect the curved door arm section to the trolley using the 5/16"x1-1/4" clevis pin and ring fastener.

• When setting the up limit on the following page, the door should not have a “backward” slant when fully open as illustrated below. A slight backward slant will cause unnecessary bucking and/or jerking operation as the door is being opened or closed from the fully open position (Figure 6).

NOTE: Proceed to the following page to Program the Travel Limits.

Figure 4

Figure 5

Figure 6

Page 23

ADJUSTMENT STEP 1

BLACK

PURPLE

Push and hold until the door is at desired UP position

Push either button to stop door at desired DOWN position

BLACK

PURPLE

LED

LOCK

LIGHT

Program the Travel Limits

Travel limits regulate the points at which the door will stop when moving up or down.

Figure 1

Side Panel

LED

Black Button Purple Button

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Adjust the position of the door by using the black and purple buttons. Black moves the door UP (open) and purple moves the door DOWN (close).

Setting the UP position:

1. Press and hold the black button until the LED starts flashing slowly, then release (Figure 2).

2. Push and hold the black button until the door reaches the desired UP (open) position.

NOTE: Make sure the door opens high enough for your vehicle.

3. Push the door control or programmed remote control. This sets the UP (open) limit and begins closing the door (Figure 3).

4. Immediately when the door begins to close, press and release either the black or purple button. This will stop the door.

Setting the DOWN position:

5. Push and hold the purple button until the door reaches the desired DOWN (closed) position.

6. Once the door is closed, if there appears to be too much pressure on the door, you may toggle the door back and forth using the black and purple buttons to reach the desired closed position.

7. Push the door control or programmed remote control. This sets the DOWN (close) limit and the door should open.

Proceed to Set the Force.

Figure 2

LED

Figure 3

Figure 4

Page 24

Black Button

Purple Button

LED

Push Purple button twice to enter unit into Force

Adjustment Mode

LOCK

LIGHT

ADJUSTMENT STEP 2

Set the Force

The force setting measures the amount of force required to open and close the door.

1. Push the purple button twice to enter into the Force Adjustment Mode. The LED will flash quickly.

2. Push the door control or programmed remote control. The door will close (DOWN).

3. Push the door control or programmed remote control again. The door will open (UP).

4. Push the door control or programmed remote control a third time to close the door (DOWN).

The LED will stop flashing when the force has been programmed.

The door must travel through a complete cycle, up and down, in order for the force to be set properly. If the garage door opener cannot open and close the door fully, inspect the door to ensure that it is balanced properly and is not sticking or binding.

If the door is not stopping exactly where you would like it, repeat Program the Travel Limits.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

Figure 1

Side Panel

LED

Black Button Purple Button

Figure 2

Figure 3

Page 25

Safety Reversing Sensor

1-1/2" (3.8 cm) board (or a 2x4 laid flat)

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction. The door must reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far enough in the down direction. Complete Adjustment Steps 1 and 2 Programming the Limits and Forces.

NOTE: On a sectional door, make sure limit adjustments

do not force the door arm beyond a straight up and down position. See Figure 3, page 21.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board (or 2x4 laid flat), remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

• If the opener continues to fail the Safety Reverse Test, call for a trained door systems technician.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on the floor.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

ADJUSTMENT STEP 4

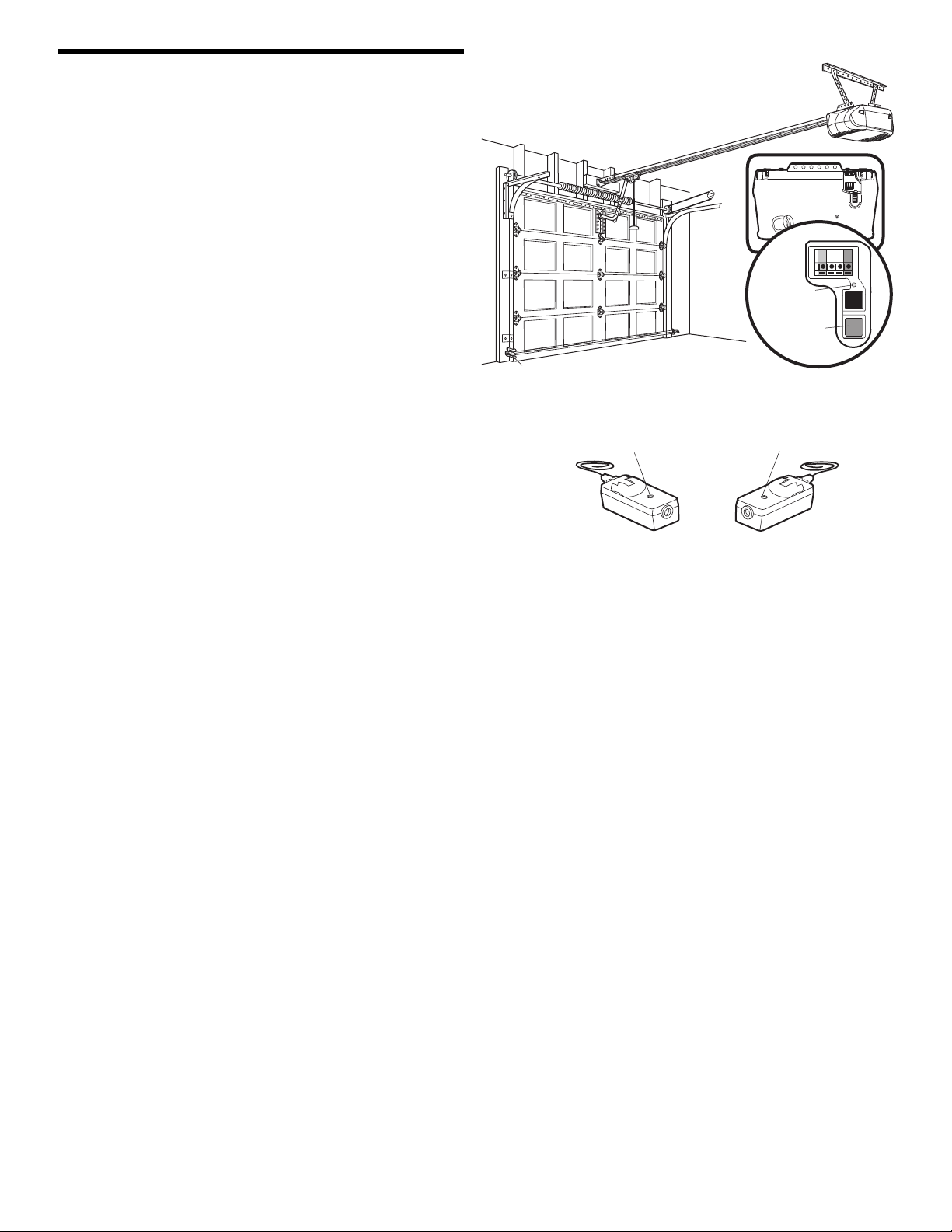

Test The Protector System (Safety Reversing Sensors)

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door. The door will not move more than 1" (2.5 cm), and the opener lights will flash.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6" (15 cm) above the floor), call for a trained door systems technician.

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

Page 26

OPERATION

WARNING

WARNING WARNING

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPEN DOOR.

6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal system MUST be tested.

11. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" high (3.8 cm) high object (or a 2x4 laid flat) on the floor.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 3). An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

13. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.

14. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

15.

SAVE THESE INSTRUCTIONS.

Using Your Garage Door Opener

Your Security✚® opener and hand-held remote control have been factory-set to a matching code which changes with each use, randomly accessing over 100 billion new codes. Your opener will operate with up to eight Security✚® remote controls and one Security✚® Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your opener with any of the following:

• The hand-held Remote Control: Hold the large push button down until the door starts to move.

• The wall-mounted Door Control: Hold the push button or bar down until the door starts to move.

• The Keyless Entry (See Accessories): If provided with your garage door opener, it must be programmed before use. See Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned):

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse. If the obstruction interrupts the sensor beam, the opener lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door won’t close from a hand-held remote. However, you can close the door with the Door Control, the Outside Keylock, or Keyless Entry, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

The opener lights will turn on under the following conditions: when the opener is initially plugged in; when power is restored after interruption; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Smart Control Panel or mini-twist compact fluorescent light bulbs. Bulb power is 100 watts maximum.

Security✚® light feature: Lights will also turn on when someone walks through the open garage door. With a Smart Control Panel®, this feature may be turned off as follows: With the opener lights off, press and hold the light button for 10 seconds, until the light goes on, then off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds until the light goes off, then on again.

is activated. Use ONLY A19 incandescent

Page 27

Using the Smart Control Panel

Motion Sensing

On/Off

Prog <Learn>

Hour

Minute

Language

Degrees (F/C)

Lock Button

Light Button

Push Bar

LOCK

LIGHT

LOCK

LIGHT

H M

THE SMART CONTROL PANEL

Press the push bar to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening.

This door control contains a motion sensing detector that will automatically turn on the light when it detects a person entering the garage.

Light feature

Press the Light button to turn the opener light on or off. It will not control the opener lights when

the door is in motion. If you turn it on and then activate the opener, the light will remain on for 4-1/2 minutes. Press again to turn it off sooner. The 4-1/2 minute interval can be changed to 1-1/2, 2-1/2, or 3-1/2 minutes as follows: Press and hold the Lock button until the light blinks (about 10 seconds). A single blink indicates that the timer is reset to 1-1/2 minutes. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes. Repeat again for a 3-1/2 minute interval, etc., up to a maximum of four blinks and 4-1/2 minutes.

When using the opener lights as working lights, we recommend that you first disable the motion sensor. See Automatic Light Feature, below.

(PROG) Learn Feature

The door control is equipped with a PROG <LEARN> button to assist in learning remote controls to the opener. Press the PROG <LEARN> button once to initiate LEARN mode and the display will show ‘Learn Remote Control Press Learn Button Again to Confirm’. Press the PROG <LEARN> button a second time and the display will show ‘Learn Mode - Press Remote Control Button to Learn Remote.’ Press the button of the remote control to be learned and the worklight will blink to confirm the remote control has been learned.

Hour & Minute Feature

Press or hold either of these side buttons to increment the hour or minute displayed on the LCD display.

(LANG) Language Feature

Press this side button to toggle between the three languages - English, French and Spanish.

Degrees F/C Feature

Press this side button to toggle the temperature units between Fahrenheit and Celsius.

Display Contrast Adjustment

Press and hold the light button then push the hour button to increase the contrast or the minute button to decrease the contrast.

feature works by detecting body heat. To disable this feature, push the motion sensing button on

the side of the door control. We recommend that you disable the motion sensor when

using the opener lights as working lights. Otherwise, they will turn off automatically if you are working beyond the sensors range.

Outdoor Key Switch and the Keyless Entry Accessories. To activate, press and hold the Lock button for 2 seconds. To turn off, press and hold the Lock button again for 2

seconds. The Lock feature will also turn off whenever the “learn” button on the motor unit panel is activated.

Motion Sensing (Automatic Light Feature):

The opener light will turn on automatically when

a person enters the garage. When a person

walks in front of the door control, the light will

come on for five minutes, then shut off. This

Lock feature

Designed to prevent operation of the door from

hand-held remote controls. However, the door

will open and close from the Door Control, the

Page 28

To Open the Door Manually

NOTICE

Trolley Release Arm (in Manual Disconnect Position)

Trolley

NOTICE

Emergency

Release Handle

(Pull at 45˚angle)

Trolley Release Arm

Trolley

DISCONNECT TROLLEY:

The door should be fully closed if possible. Pull down on the emergency release handle (so that the trolley release arm snaps into a vertical position) and lift the door manually.

The lockout feature prevents the trolley from reconnecting automatically, and the door

LOCKOUT POSITION (MANUAL DISCONNECT)

can be raised and lowered manually as often as necessary.

TO RE-CONNECT THE TROLLEY:

Pull the emergency release handle toward the opener at a 45° angle so that the trolley release arm is horizontal. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the door control or remote.

TO RECONNECT

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

If possible, use emergency release handle to disengage • trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

NEVER• use emergency release handle unless garage doorway is clear of persons and obstructions.

NEVER• use handle to pull door open or closed. If rope knot becomes untied, you could fall.

CARE OF YOUR OPENER

MAINTENANCE SCHEDULE

Once a Month

Manually operate door. If it is unbalanced or binding, call • a trained door systems technician.

Check to be sure door opens & closes fully. Adjust limits • and/or force if necessary. See pages 23 and 24.

Repeat the safety reverse test. Make any necessary • adjustments. See Adjustment Step 3.

Once a Year

Oil door rollers, bearings and hinges. The opener does • not require additional lubrication. Do not grease the door tracks.

Page 29

Using the Remote Control

LED and Opener Batteries

Proximity Battery

Spring Contact

NOTE: To activate the remote control functions, pull out the plastic pull tab protruding from the remote control housing.

This remote control is equipped with a proximity lighting feature. When moving a hand within close proximity to the remote control, the LED lights turn on for 3 seconds. Upon successful activation of a remote control button, the LED lights will blink rapidly.

Proximity Disable Feature

The remote control will turn off the proximity lighting feature if the proximity lighting is turned on 10 consecutive times without activation of a button. To re-enable the proximity lighting, simply press a button. This function conserves battery life.

To Control the Opener Lights

With 315 MHz Security✚ button can be programmed to operate the opener lights without opening the door.

1. With the door closed, press and hold the remote button that you want to control the light.

2. Press and hold the Light button on the Smart Control Panel®.

3. Press and hold the Lock button on the Smart Control Panel®.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button. The opener lights should turn on or off but the door should not move.

remote controls, a remote push

The Remote Control Battery

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2016 or 3V2450 coin batteries.

• DO NOT recharge, disassemble, heat above 100°C (212°F) or incinerate.

The 3V2016 lithium batteries for the opener and LED lights (marked “LED and Opener Battery”) should last 5 years. The 3V2450 lithium battery for the proximity lighting (marked “Proximity Battery”) should last 1-2 years.

To replace the batteries, remove the two screws and open the remote control housing. Push the battery out of the holder for removal. Insert replacement batteries positive side up. Dispose of old batteries properly.

Replace the batteries with only 3V2016 or 3V2450 coin cell batteries.

CAUTION: Do not bend spring contact. If bent the proximity sensor will not work.

Troubleshooting

PROBLEM SOLUTION

Check if proximity lighting is disabled by pressing a button.

Reduced proximity sensing (does not activate by touching top of remote control)

Dim LED lights

No rapid LED blinking after pressing a button

The Proximity Sensor may be oversensitized. Sit remote control undisturbed for 60 seconds on a non-metallic surface. This allows the sensor to recalibrate itself.

Replace 3V2450 battery with same type 3V2450 coin cell.

Replace two 3V2016 batteries with same type 3V2016 coin cells.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 30

Standby Power (Optional)

OPERATING INSTR UCTIONS

1. Test the installed battery with the motor unit.

To test the battery, disconnect the motor unit power cord from the electrical outlet.

• A solid orange LED indicates the battery is operating on battery power.

• A flashing orange LED with beep indicates the opener is operating on battery power and that the battery charge is low.

• To test the battery is functioning properly, open and close the garage door.

• Re-connect the motor unit power cord back into the electrical outlet.

• Verify that the green LED is flashing on the SPU (indicates that the battery is now charging).

• Test completed.

2. Charge the battery.

• Battery will take 24 to 48 hours to fully charge.

A fully charged battery supplies 12 Vdc to the motor unit for one to two days of normal operation during an electrical power outage. If the battery voltage drops too low, the batteries will disconnect and the motor unit will no longer operate under battery power.

After the electrical power has been restored, the battery will recharge within 48 hours. Under normal usage batteries will last 3 to 5 years.

To obtain maximum battery life and prevent damage, disconnect the battery when motor unit is unplugged for an extended period of time.

To reduce the risk of FIRE or INJURY to persons:

• Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

• Use ONLY LiftMaster part # 485LM for replacement battery.

• DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

Side Panel

Battery Status LED

NOTE: LED is most visible with worklight off.

GREEN LED:

All systems are normal.

• A solid LED light indicates the battery is fully charged.

• A flashing LED indicates the battery is being charged.

NOTE: Battery do not have to be fully charged to operate the motor unit.

NOTE: Door operation may be limited until battery is fully charged. The motor unit’s lights will not turn on during battery mode.

ORANGE LED:

The motor unit has lost power and is operating off of the battery.

• A solid LED with beep, sounding approximately every 2 seconds, indicates the motor unit is activating the door and is operating off of the battery.

• A flashing LED with beep, sounding every 30 seconds, indicates battery is low.

• Once the power is restored the battery will recharge. This is indicated by a flashing green LED.

RED LED:

• If a red LED remains on when the power is restored, and is accompanied by a beep sounding every 30 seconds, please call for service.

• To obtain maximum battery life and prevent damage, also disconnect the battery if you unplug the motor unit while on vacation or any other extended period of time.

Page 31

HAVING A PROBLEM?

Receiving Eye Safety Reversing Sensor (Green Indicator Light)

Sending Eye Safety Reversing Sensor (Amber Indicator Light)

Safety Reversing Sensor

Diagnostics Located On Motor Unit

“Learn” Button LED or Diagnostic LED

“Learn” Button

1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be

connected and aligned correctly before the garage door opener will move in the down direction.

• Verify the safety sensors are properly installed,

aligned and free of any obstructions. Refer to

Installation Step 4: Install The Protector System®.

• Check diagnostic LED for flashes on the motor unit

then refer to the Diagnostic Chart on the following page.

2. My remotes will not activate the door:

• Verify your Smart Control Panel® is not blinking. If it is

blinking, deactivate the Lock Mode following the instructions for Using the Smart Control Panel®.

• Reprogram remotes following the programming

instructions. Refer to Programming.

• If remote will still not activate your door, check

diagnostic LED for flashes on motor unit then refer to Diagnostic Chart on the following page.

3. My door reverses for no apparent reason: Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Manually check door for balance or any binding

problems.

• Refer to Adjustment Step 2, Setting the Force.

4. My door reverses for no apparent reason after fully closing and touching the floor: Repeat safety reverse

test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Refer to Adjustment Step 1, Program the Travel

Limits.

5. My lights will not turn off when door is open:

• The garage door opener is equipped with a security

light feature. This feature activates the light on when the safety sensor beam has been obstructed. Refer to Operation section; Using the Wall Mounted Door

Control, Light Feature.

6. If battery status LED is not lit properly:

• Check battery connections.

Page 32

Diagnostic Chart

Installed

Safety Reversing

Sensor

Safety Reversing Sensor

Diagnostics Located On Motor Unit

“Learn” Button LED or Diagnostic LED

“Learn” Button

Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below.

1 FLASH

Safety reversing sensors wire open (broken or disconnected).

2 FLASHES

Safety reversing sensors wire shorted or black/ white wire reversed.

3 FLASHES

Door control or wire shorted.

4 FLASHES

Safety reversing sensors slightly misaligned (dim or flashing LED).

Symptom: One or both of the Indicator lights on the safety reversing sensors do not glow steady.

• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white wires reversed), broken or disconnected wires, replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove sensors from brackets and shorten sensor wires to 1-2 ft (30-60 cm) from back each of sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety reversing sensors.

Symptom: LED is not lit on door control.

• Inspect door control/wires for a short (staple in wire), replace as needed.

• Disconnect wires at door control, touch wires together. If motor unit activates, replace door control.

• If motor unit does not activate, disconnect door control wires from motor unit. Momentarily short across red and white terminals with jumper wire. If motor unit activates, replace door control wires.

Symptom: Sending indicator light glows steadily, receiving indicator light is dim or flashing.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is firmly secured to wall and does not move.

5 FLASHES

Possible RPM sensor failure. Unplug to reset.

Symptom: RPM Sensor = Short travel 6-8" (15-20 cm).

• Unplug opener to reset. Try to operate motor unit, check diagnostic code.

• If it is still flashing 5 times and motor unit moves 6-8" (15-20 cm), replace RPM sensor.

Page 33

Smart Control Panel® Messages

The following messages are contained within the Smart Control Panel® and may appear during the operations of the opener:

Message

SAFETY SENSORS CHECK ALIGNMENT, BLOCKAGE OR MISWIRING. SEE OWNER’S MANUAL.

Message

SAFETY SENSORS MALFUNCTION. CHECK MISWIRING. SEE OWNER’S MANUAL.

Message

LEARN REMOTE CONTROL. PRESS LEARN BUTTON TO CONFIRM.

Meaning: This message will appear if the Safety Reversing Sensors are out of alignment, if they are blocked or if the wiring is disconnected. To clear message from door control do the following:

• Check to see that area is clear between the Safety Reversing Sensors.

• Check to see that the Safety Reversing Sensors are not misaligned.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is firmly secured to wall and does not move.

• Check to see that the Safety Reversing Sensors’ wires are connected to the motor unit.

• If message has not cleared after the above checks, refer to message #2.

Meaning: This message will appear if the Safety Reversing Sensors are miswired. To clear the message, do the following:

• Inspect the safety sensor wires for a short (staple in wire), correct wiring polarity (black/white wires reversed), replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove safety sensors from brackets and shorten sensor wires to 1-2 ft. (30-60 cm) from back of each sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety sensors.

Meaning: This message will appear when the Prog <LEARN> button has been pressed on the door control. Pressing the Prog <LEARN> button again will allow the user to program an additional remote control to the opener.

Message

LEARN MODE. PRESS REMOTE CONTROL BUTTON TO PROGRAM REMOTE.

Message

LOCK MODE. REMOTE CONTROL LOCKED OUT. PRESS LOCK BUTTON TO ENABLE REMOTE.

Message

ENGLISH, FRANÇAIS AND ESPAÑOL

Message

MOTION SENSING ON, MOTION SENSING OFF.

Meaning: This message will appear when the Prog <learn> button has been pressed a second time on the door control or anytime on the opener. The opener is ready to program another remote control by simply pressing the remote control button. Once the opener has ‘LEARNED’ the remote control, the worklight will blink one time.

Meaning: This message will appear when the ‘Lock’ button has been pressed and held for more than one second. This feature will disable the opener from receiving remote control signals. To exit ‘LOCK’ mode, press and hold the button for more than one second.

Meaning: This message will appear when the ‘Language’ button has been pressed. Pressing the button will toggle to the next language.

Meaning: This message will appear when the ‘MOTION SENSING’ button is pressed. The Motion Detector will toggle on or off with each press of the button.

Page 34

PROGRAMMING

LOCK

LIGHT

NOTICE: If this Security

✚

garage door opener is operated with a non-rolling code remote control, the technical measure in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code remote control to circumvent that technical measure.

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control. The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security✚® 315 MHz remote controls.

To Add and Reprogram an Additional Hand-held Remote Control

USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL

Press and release the “learn” button 1. on the motor unit. The learn indicator light will glow steadily for 30 seconds.

Within 30 seconds, press and hold 2. the button on the hand-held remote* that you wish to operate your garage door.

Release the button when the motor 3. unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote, first erase all codes:

Press and hold the “learn” button on motor unit until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use.

Press the PROG <Learn> button on 1. the Smart Control Panel®.

LIGHT

LOCK

Press the PROG <Learn> button 2. again to confirm Learn Mode.

LIGHT

LOCK

Press the button on the hand-held 3. remote* that you wish to operate your garage door.

When the motor unit lights blink, it 4. has learned the code. If light bulbs are not installed, two clicks will be heard.

*3-Button Remotes (315 MHz)

If provided with your garage door opener, the button with 1 light slot is factory programmed to operate it. Additional buttons on any Security✚® 3-button remote or mini-remote can be programmed to operate other Security✚® garage door openers.

Page 35

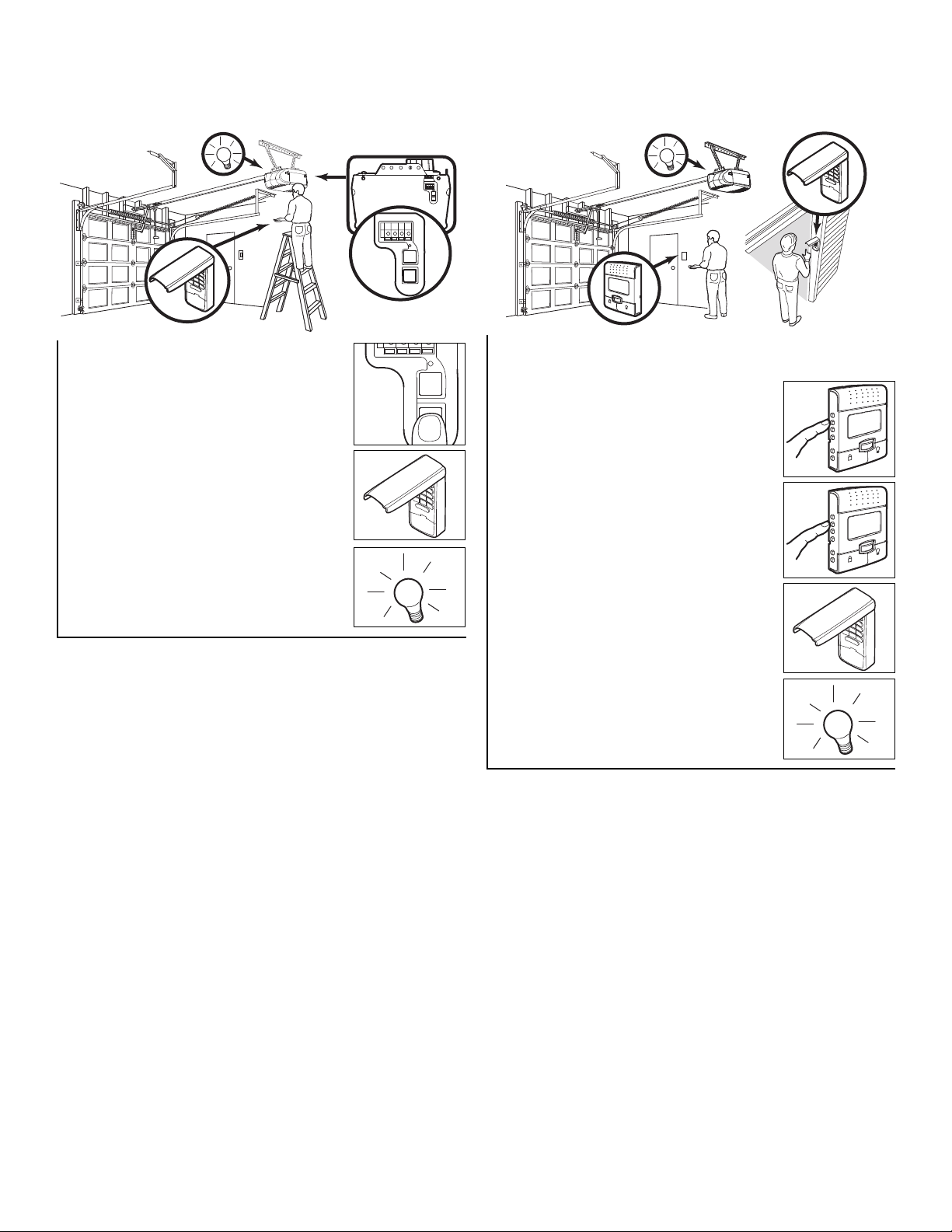

To Add, Reprogram or Change a Keyless Entry PIN

LOCK

LIGHT

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL

1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

NOTE: This method requires two people if the Keyless Entry is already mounted outside the garage.

1. Press the PROG <Learn> button on the Smart Control Panel®.

2. Within 30 seconds, enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold the enter

2. Press the PROG <Learn> button again to confirm Learn Mode.

button.

LIGHT

LOCK

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To change an existing, known PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter.

The motor unit lights will blink once when the PIN has been learned. Test by pressing the new PIN, then press Enter. The door should move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of accesses, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the

button.

LIGHT

LOCK

3. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then press enter.

4. When the motor unit lights blink, it has learned the code. If light bulbs are not installed, two clicks will be heard.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will

work, press the number of hours (up to 255), then press ✽.

3. To set the number of times this temporary PIN will

work, press the number of times (up to 255), then

press #. The opener light will blink once when the temporary PIN has been learned. Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening. To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

Page 36

REPAIR PARTS

Rail Assembly Parts

Installation Parts

KEY PART NO. NO. DESCRIPTION

1 41A6353 Hardware bag (includes sprocket coupling)

2 81C275 Rack 3 41A6262 Complete trolley assembly 4 3077SD Screw Drive one-piece rail

7 feet (2.1 m)

3088SD Screw Drive one-piece rail

8 feet (2.4 m) 5 41A4836 Drive sprocket kit 6 25C20 Coupling 7 41A6312 Rail End Bracket NOT SHOWN 28A143 Wire Clips

LOCK

NOTICE

CEILING MOUNT ONLY

LIGHT

KEY PART NO. NO. DESCRIPTION

1 398LM Smart Control Panel 2 373P 3-Button remote control 3 10A19 3V2016 Lithium battery: LED and opener 4 10A33 3V2450 Lithium battery: proximity switch

5 29C151 Remote control visor clip 6 41A2828 Emergency release rope and handle

assembly 7 41B4494-1 2-Conductor bell wire, white & white/red 8 41A5047 Door bracket w/clevis pin & fastener 9 41A4353 Header bracket w/clevis pin & fastener 10 41A5034 Safety sensor kit (receiving and sending

eyes) with 3 feet (.9 m) 2-conductor bell

wire 11 178B34 Straight door arm section 12 178B35 Curved door arm section 13 41A5266-1 Safety sensor brackets (2) 14 485LM Battery

NOT SHOWN

101D173 Push bar for door control 41A4675-7 Installation hardware bag

(includes hardware listed on page 5) 114A3741 Owner’s manual 114A3741SP Owner’s manual-Spanish

Page 37

Motor Unit Assembly Parts

KEY PART NO. NO. DESCRIPTION

1 41C588 Drive shaft cover 2 41B135 Line cord 3 41B6701 Filter 4 41A6790 Wire harness kit 5 41A6538 Motor with position sensor 6 41C6551 Positioning sensor 7 41B0024 Drive belt 8 41DS002-2 Logic board

KEY PART NO. NO. DESCRIPTION

9 41A6231 End panel 10 41C213 Transformer and Harness 11 31D504-20 Cover 12 41C22-1 Drive coupling hub 13 108D79 Light lens 14 175B88 Light socket

NOT SHOWN 485LM Battery kit 41DS002-2-390 Alternate frequency board

Page 38

ACCESSORIES

LOCK

LIGHT

LOSE

OPE

ENROLL

FAIL

RETRY

SEND

PASS

READY

ENROLL

1702LM Outside Quick Release:

Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley.

41A5281

Extension Brackets:

(Optional) For safety sensor installation onto the wall or floor.

377LM

Wireless Keyless Entry with Security✚

Enables homeowner to operate garage door opener from outside by entering a password on a specially designed keyboard. Also can add a temporary password for visitors or service persons. This temporary password can be limited to a programmable number of hours or entries.

370LM

915LM

916LM

975LM

3-Button Mini-Remote Control with Security✚

With key ring and fastening strip.

Garage Door Monitor:

Security for the largest door of your home!

Tells you if your garage door is open or closed. Monitors up to 4 garage doors by adding additional sensor modules.

Garage Door Monitor Sensor:

Additional accessory sensor for homes with multiple garage doors.

Laser Park Assist:

Laser enables homeowners to precisely park vehicles in the garage.

395LM Remote Light Control :

Enables homeowner to turn on a lamp, television or other appliance from their car with their garage door opener remote or from anywhere in their home with an additional LiftMaster Security✚® remote.

990LM

Surge Protector:

The Garage Door Opener Surge Protector is designed to protect LiftMaster

garage door openers against damage from lightning and power surges.

379LM-10

Fingerprint Keyless Entry :

The system uses biometric technology that enables an authorized user to gain access by scanning their fingerprint. The sensor strip on the unit makes a numeric template of the fingerprint that is unique to that user. The unit's memory can store up to ten fingerprints.

378LM

902LM/903LM

373LM

373P

Wireless Door Control :

Push bar, light feature and auxiliary button. Includes battery. For use as a secondary control panel, a wired in control panel is recommended for proper operation.

2 & 3 Door Multi-Function Wall Control:

Ideal for homes with up to three garage doors. Combine up to three controls into one wall control panel for a neat compact appearance. Enhanced functions include Lock Feature to lock out outside radio signals while you are away from home and turn opener lights on or off from the control panel.

3-Button Security✚® Remote Control :

Includes visor clip.

3-Button Security✚® Remote Control :

Includes visor clip.

Page 39

NOTES

Page 40

LIFTMASTER® SERVICE IS

HOW TO ORDER

ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS

AS NEAR AS YOUR TELEPHONE. SIMPLY DIAL

OUR TOLL FREE NUMBER:

1-800-528-9131

www.liftmaster.com

For professional installation, parts and service,

contact your local LIFTMASTER/CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

LIFTMASTER® FIVE-YEAR LIMITED WARRANTY

LIFETIME MOTOR LIMITED WARRANTY

REPAIR PARTS

Selling prices will be furnished on request or parts will

be shipped at prevailing prices and you will be billed

accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

Tucson, Arizona 85706

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of five years from the date of purchase, the motor is free from defect in materials and/or workmanship for the lifetime of the product. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE FIVE YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE MOTOR, WHICH ARE LIMITED IN DURATION TO THE LIFETIME LIMITED WARRANTY PERIOD FOR THE MOTOR, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Chamberlain 3840 User Manual

Owner’s Manual

TABLE OF CONTENTS

INTRODUCTION

Safety Symbol and Signal Word Review

Preparing your garage door

Tools needed

Planning

Carton Inventory

Fasten the Rail to the Motor Unit

INSTALLATION

Determine the Header Bracket Location

Install the Header Bracket

Attach the Rail to the Header Bracket

Position the Opener

Hang the Opener

Install the Standby Power (Optional)

Install the Lights

Attach the Emergency Release Rope and Handle

Electrical Requirements

Complete Safety Reversing Sensor Installation

Fasten the Door Bracket

Connect Door Arm to Trolley

Program the Travel Limits

Set the Force

Test the Safety Reversal System

OPERATION

Using Your Garage Door Opener

To Open the Door Manually

CARE OF YOUR OPENER

Using the Remote Control

The Remote Control Battery

Troubleshooting

Standby Power (Optional)

HAVING A PROBLEM?

Diagnostic Chart

Smart Control Panel® Messages

PROGRAMMING

To Add and Reprogram an Additional Hand-held Remote Control

*3-Button Remotes (315 MHz)

To Add, Reprogram or Change a Keyless Entry PIN

REPAIR PARTS

Rail Assembly Parts

Installation Parts

Motor Unit Assembly Parts

ACCESSORIES

NOTES
