Cerwin-Vega CVM-1022 User Manual

CVM-1022

PROFESSIONAL AUDIO MIXER (p. 2)

TABLE DE MIXAGE AUDIO PROFESSIONNELLE (p. 24)

MESA DE MEZCLAS PROFESIONAL (p. 48)

PROFESSIONELLEN AUDIO-MIXER (S. 72)

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UN-INSULATED DANGEROUS VOLTAGE WITHIN THE UNITS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

WARNING: THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE PRODUCT.

NOTE: THE HAND WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO SPECIFIC GUIDANCE AND INFORMATION REGARDING THE OPERATION OF THE UNIT, AND SHOULD BE READ FULLY BEFORE USING THE UNIT FOR THE FIRST TIME.

CAUTION: TO REDUCE THE RISKS OF FIRE OR ELECTRIC SHOCK DO NOT REMOVE ANY COVERS, OR OPEN THE UNIT. THERE ARE NO USER-SERVICABLE PARTS INSIDE. ALL SERVICING SHOULD BE REFERRED TO QUALIFIED SERVICE ENGINEERS.

WARNING: READ AND FOLLOW ALL THE SAFETY AND OPERATING INSTRUCTIONS BEFORE CONNECTING OR USING THIS UNIT. RETAIN THIS USER MANUAL FOR FUTURE REFERENCE. ALL WARNINGS ON THE UNIT AND ITS PACKAGING SHOULD BE READ AND FOLLOWED.

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

CAUTION: To reduce the risks of fire or electric shock do not expose this product to rain or moisture. Do not use this product near water; for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool. Unplug the unit from the wall outlet before cleaning. Never use thinner, cleaning fluids, solvents or chemically impregnated cloths. For cleaning always use a soft dry cloth. Unplug this product during lightning storms or when unused for long periods of time.

CAUTION: The unit should be installed so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet, that may impede the flow of air through its ventilation openings. The unit should be situated from heat sources such as radiators, heat registers, stoves or other devices (including amplifiers) that produce heat. No naked flame sources, such as lighted candles, should be placed on, or near the unit.

WARNING: Do not place this unit on an unstable surface, cart, stand or tripod, bracket or table. The unit may fall, causing serious injury to a child or adult and serious damage to the unit. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the unit. Any mounting of the device on a wall or ceiling should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

NOTE: Should the unit become damaged beyond repair, or reaches the end of its life, please consult the regulations regarding disposal of electronic products in your region.

NOTE: Cerwin-Vega cannot be held responsible for damage, and, or including data loss caused by improper use of the unit and or the applications provided for use with the unit.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT FULLY INSERT.

ENGLISH: The apparatus shall be connected to a Mains socket outlet with a protective earthing connection. GERMAN: Das Gerät ist eine Wandsteckdose mit einem Erdungsleiter angeschlossen werden. FRENCH: L’appareil doit être connecté à une prise secteur avec connexion à la terre. SPANISH: El aparato estará conectado a una toma de red eléctrica con una conexión a tierra. ITALIAN: L’apparecchio deve essere collegato a una presa di rete con una connessione a terra protettiva.

1. The unit and power supply should only be connected to a power supply outlet only of the voltage and frequency marked on its casing.

2. Protect the power cable from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

3. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult a qualified electrician for replacement of the obsolete outlet.

4. If the mains plug supplying this product incorporates a fuse then it should only be replaced with a fuse of identical or lower rupture value.

5. Never use a damaged or frayed power cable; this can introduce serious risk of exposing lethal voltages.

6. The power supply cable of the unit should be unplugged from the wall outlet when it is to be unused for a long period of time.

7. Only use attachments/accessories specified by the manufacturer.

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Upon completion of any servicing or repairs, request the assurance that only Factory Authorized Replacement Parts with the same characteristics as the original parts have been used, and that the routine safety checks have been performed to guarantee that the equipment is in safe operating condition.

REPLACEMENT WITH UNAUTHORIZED PARTS MAY RESULT IN FIRE, ELECTRIC SHOCK OR OTHER HAZARDS.

ATTENTION POUR …VITER LES CHOC ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUíAU FOND.

This unit should be serviced by qualified service personnel when: The power cord or the plug has been damaged Objects have fallen, or liquid has been spilled into the unit The unit has been exposed to rain or liquids of any kind The unit does not appear to operate normally or exhibits a marked change in performance The device has been dropped or the enclosure damaged.

REGULATORY CERTIFICATION

Cerwin-Vega declares under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards:

The Declarations of Conformity can be obtained from Gibson Europe BV - Kamerlingh Onnesweg, 2 - 4131 PK Vianen - The Netherlands Tel : +31 347 32 40 10 - Fax : +31 347 32 40 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

INTRODUCTION

UNPACKING & INSTALLATION

FEATURES

Thank you for your decision to purchase Cerwin-Vega’s new CV Mixer Series professional audio mixer! Engineered for superior sound reproduction, the CV Mixer Series line of professional audio mixers deliver top quality audio at an affordable price. The CV Mixer Series offer a standard of reliability and efficiency that makes them the perfect solution for every DJ, musician, and sound engineer. Welcome to a new level of professional quality sound performance!

Although it is neither complicated to install, nor difficult to operate your new mixer, a few minutes of your time are required to read this manual for a properly wired installation, and to become familiar with the unit’s features. Please take great care in unpacking the unit and do not discard the carton and other packing materials. They may be needed when moving the unit and are required if it ever becomes necessary to return the unit for service. Never place the unit near a radiator, in front of heating vents, in direct sunlight, in excessive humidity, or dusty locations to avoid damages and to guaranty a long reliable use. Connect the unit with the system components according to the description on the following pages.

 2 Mono and 4 Stereo line input with 4 XLR microphone inputs  Main L/R ¼” jack output  3-Band channel equalizer designed for ±15 dB (HF, LF) and ±12 dB (MF) control on input channel  Phantom power (+48V) switch for easy connection of condenser microphones that typically require an external

power supply

 Peak LED indicator to check on the signal input of each microphone channel  Gain (trim) level control with sensitivity markings for both microphone and line inputs  Low Cut (HPF) switch toggles the filter, with a cut-off frequency at 75Hz, to eliminate background microphone

rumble

 Aux and EFX controls to adjust the level of the signal sent to the respective bus  Pan control (mono channel) to position the signal across the master left and right bus  Balance control (stereo channel) to adjust the level between left and right signals  Tape in stereo RCA jacks for connection to a CD or MP3 player  Record out stereo RCA jacks for connection to an audio recorder  Level control for headphone and control room connections

FRONT PANEL CONTROLS – CHANNEL CONTROL SECTION

CONTROL

MAX.

BOOST/CUT

FREQUENCY

TYPE

HIGH

±15dB

12kHz

Shelving

MID

±12dB

2.5kHz

Peaking

LOW

±15dB

80Hz

Shelving

(1). PEAK LED INDICATOR This LED indicators lets you check the level of the signal input to the channel. The peak indicator lights when the input signal reaches 5dB below the channel’s clipping point. This indicator shows the level of the Post-EQ / pre-fader signal. If the PEAK indicator lights more than briefly on high-level transients, you should use the GAIN control to decrease the input sensitivity of the channel. If this does not work, reduce the output level of the connected source.

(2). GAIN CONTROL According to the level of the input signal, use this knob to adjust the input to an appropriate level. The best balance of S/N and dynamic range will be achieved if you adjust the GAIN control so that the peak indicator lights

occasionally. This control adjusts the channel’s mic input sensitivity between

-50dB and -6dB and the line input sensitivity between -30dB and +14dB. The mono/stereo combination input channels have a sensitivity of +20dB to

-20dB.

(3). HPF (High-Pass Filter, cut frequencies below 75Hz) This switch toggles the HPF on or off. To turn the HPF on, press the switch in ( ).

(4). 3 BAND EQUALIZER CONTROLS This is a 3-band equalizer with center frequencies, range and type as shown below. The frequency response is flat when all knobs are in the “0” position.

(5). AUX CONTROLS This knobs control the level of the signals sent to AUX bus. This control is placed before the channel volume; it will not be affected by the channel level volume.

(6). EFX CONTROLS This knobs control the level of the signals sent to EFX bus. The channel signals mixed by this bus have their overall level set by the EFX SEND Control to the EFX SEND jack on the front panel. Since this control is placed after the channel fader, the signal level will be affected by the channel fader setting.

FRONT PANEL CONTROLS – CHANNEL CONTROL SECTION (continued)

(7). PAN /BAL CONTROL

PAN (Mono Channel) This control pans the channel signal across the master L and R buses, thus determining the perceived position of the sound from that channel in the output stereo sound field. If a PAN control is set all the way to the left, for example, the sound from that channel will be heard from the left speaker system only. If it is set all the way to the right, the sound will be heard from the right speaker system only. Intermediate settings will cause the sound to appear at corresponding locations in the stereo sound field.

BALANCE (Stereo Channel) This control adjusts the balance or the L/R position of the stereo input signal. Turning the BALANCE control to the left of center moves the apparent source toward the MAIN L moves the source toward the MAIN R bus.

(8). CHANNEL LEVEL VOLUME This is the channels main level control. It determines the level of the signal that is sent from the channel to the master mixing and effect buses. It is the settings of the input channel faders that determine the mix, or the balance of sound levels between the instruments or other sources connected to the inputs. When a channel is not being used, its volume should be set at the minimum position to prevent the addition of unwanted noise to the main program signal.

FRONT PANEL CONTROLS – MAIN CONTROL SECTION

(1). PHANTOM POWER INDICATOR

This indicator lights when the phantom power switch is turned on.

(2). PHANTOM POWER SWITCH This switch toggles phantom power on or off. If you set the switch on, the mixer supplies power to all channels that provide XLR microphone input jacks. Set this switch on when using one or more condenser microphones.

WARNING, be sure the microphone you are using is compatible or will not be affected by phantom power. Failure to do so may result in equipment damage. Please see the notes below:

NOTE: When this switch is on, the mixer supplies DC +48V power to pins 2 and 3 of all XLR-type MIC INPUT jacks.

NOTE: Be sure to leave this switch off ( ) if you do not need phantom power.

NOTE: When the switch is pressed on ( ), be sure that only condenser microphones are connected to the XLR input jacks. Note, however, that the switch may be left on without problem when connecting to balanced dynamic microphones. Be sure the balanced dynamic microphone you are using is not affected by phantom power in any way before connection is made. The same applies with ribbon microphones.

NOTE: When the switch is pressed on ( ), do not use single-ended (unbalanced) microphones or instruments into the XLR input jacks. Do not plug

instrument outputs into the XLR input jack unless you know for certain it is safe to do so.

NOTE: To avoid damage to the speakers, be sure to turn off the amplifier (or powered speakers) before turning this switch on or off. We also recommend that you turn all controls (MAIN L/R, CTRL ROOM / HEADPHONE, etc) to minimum settings before operating the switch, to avoid risk of loud noises that could cause hearing loss or device damage.

(3). TAPE IN CONTROL This control adjusts the level of the playback signal that is inserted to the master mixing bus from the TAPE IN RCA jacks on the top panel.

(4). STEREO RETURN CONTROL Adjust the level of the mixed L/R signal sent from the RETURN jack (L (MONO) and R) to the Main L/R bus.

(5). CTRL ROOM /PHONES CONTROL Controls the level of the signal output to the HEADPHONE jack and the CONTROL ROOM L and R jacks.

(6). MAIN L/R MASTER VOLUME This volume adjusts the final level of the combined signals from all channels.

(7). OUTPUT LEVEL METER A vertical row of ten LED shows the continuous output level of MAIN OUTPUT L/R. This type of display is highly visible

under poor lighting conditions. The 0 LED means an output level of +4dB for +4dB output (that’s the rated level).

(8). POWER INDICATOR This indicator lights when the power switch is turned on.

FRONT PANEL CONTROLS – INPUT/OUTPUT CONNECTORS

(1). Channel Input Jacks MIC JACKS

A 3-pin XLR-type connector is used for balanced low impedance microphone inputs. (pin 1: sleeve, 2: hot, 3:cold)

BALANCED LINE IN JACKS A standard 1/4” phone jack is used for balanced or unbalanced line level signals. Examples of line level signals include most electronic keyboards, synthesizers, turn-tables (with appropriate pre-amps), tape decks and the line outputs from other mixers.

(2). CHANNEL INSERT I/O JACK These are input/output jacks located between the head-amplifier and the high pass filter. These jacks allow you to use graphic equalizers, compressors, noise filters, or other devices.

(3, 4). CHANNEL INPUT JACKS These are unbalanced stereo line input jacks. Two jack types are provided phone type and RCA pin type.

(5). TAPE IN JACKS These RCA pin jacks input a stereo sound source. Use these jacks when you want to connect a CD or DAT directly to the mixer for monitoring.

NOTE: You can adjust the signal level using the TAPE IN control in MAIN control section.

(6). REC OUT JACKS The REC OUT jacks send the pre-fader signal from the master bus for recording by the tape deck.

FRONT PANEL CONTROLS – INPUT/OUTPUT CONNECTORS (continued)

(7). SEND JACKS

* AUX: These are unbalanced phone jacks-type output jack. This jack output the signal form AUX bus, respectively. You use this jack, for example, to connect to an effector or to a cue box or other such monitoring system. * EFX: These are unbalanced phone jacks-type output jack that output the signal form the EFFECT bus. You use this jack, for example, to connect to an external effector

(8). RETURN L (MONO), R Jack These are unbalanced 1/4” phone-type line input jacks. The signal received by these jacks is sent to the MAIN bus and AUX bus. These jacks are typically used to receive a return signal from an external effect (reverb, delay, etc.)

NOTE: These jacks can also be used as an auxiliary stereo input. If you connect to the L (MONO) jack only, the mixer will recognize the signal as monaural and will propagate the identical signal on both L and R jacks

(9). MAIN L/R OUTPUT JACKS These jacks deliver stereo output of the mixer signal. You use these jacks, for example, to connect to the power amplifiers driving your main speakers. You also use these jacks when you wish to record the signal utilizing the level control applied by the main volume in the main Control section.

(10). CONTROL ROOM OUTPUT JACKS Use these stereo phone-type output jacks to connect to your monitor system.

NOTE: The main output signals also route to these jacks controlled by the CTRL ROOM / PHONES volume.

(11). HEADPHONE JACK Connect for headphones. This is stereo phone-type output jack (3-conductor TRS).

NOTE: The main output signals also route to these jacks controlled by the CTRL ROOM / PHONES volume.

REAR PANEL CONTROLS

POINTS TO REMEMBER

(1). AC ADAPTOR IN CONNECTOR

Connects to the included power adaptor. NOTE: Use only the adaptor included with this mixer. Use of a different adaptor may result in fire or electric shock.

(2). POWER SWITCH Use this switch to turn mixer power to ON.

- In all cases, use good quality twin screened audio cable. Check for instability at the output.

- Always connect both conductors at both ends, and ensure that the screen is only connected at one end.

- Do not disconnect the mains earth from each piece of equipment. This is needed to provide both safety and

screen returns to the system start point.

- Equipment which has balanced inputs and outputs may need to be electrically isolated from the equipment rack

and/or other equipment, to avoid earth loops.

It is important to remember that all equipment which is connected to the mains is a potential source of hum and interference and may radiate both electrostatic and electromagnetic radiation. In addition, the mains will also act as a carrier for many forms of RF interference generated by electric motors, air-conditioning units, thyristor light dimmers etc. Unless the earth system is clean, all attempts to improve hum noise levels will be futile. In extreme cases there will be no alternative but to provide a completely separate and independent ‘technical earth’ to replace the incoming ‘noisy earth’. However, always consults your local electricity supply authority to ensure that safety regulations are not being infringed.

CONNECTIONS

Table A (1/4” TRS)

Sleeve

Ring

Tip

Insert

Screen

Return

Send

Balanced Line

Ground

Cold (-)

Hot (+)

Unbalanced Line

Ground

n/a

Hot (+)

Headphones

Sleeve

Right

Left

Table B (XLR)

Pin 1

Pin 2

Pin 3

XLR

Shield/Ground

Cold (-)

Hot (+)

CONNECTIONS – CONNECTOR AND CABLE CONFIGURATIONS

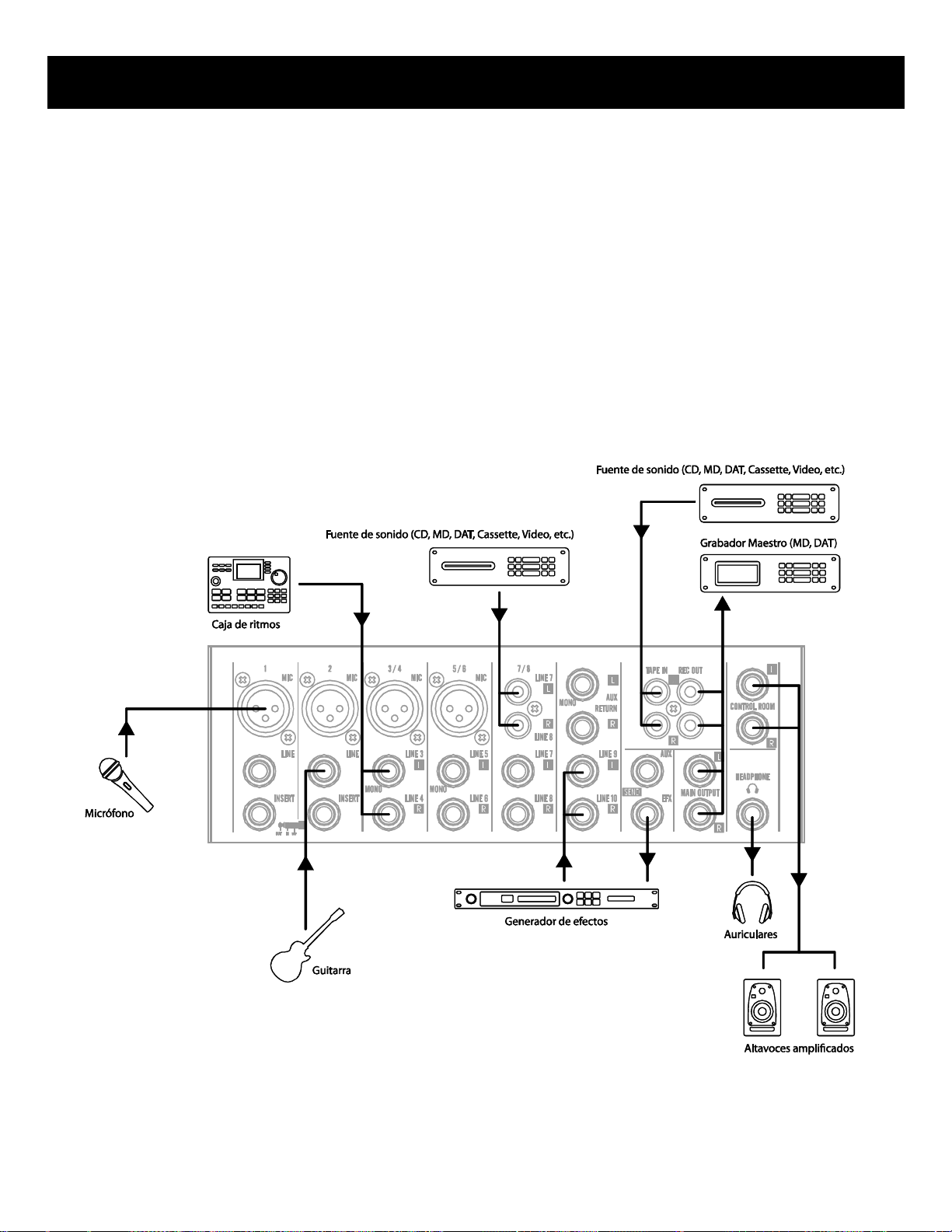

APPLICATIONS – HOME RECORDING

Setup Procedure

1. Before connecting to microphones and instruments, be sure that all devices are turned off. Also be sure that all

of the mixer’s channel fader and master control faders are set all the way down.

2. For each connection, connect one end of the cable to the relevant microphone or instrument and connect the

other end to the appropriate input jack on the mixer.

3. To avoid causing damage to the speaker, power up the devices in the following order: Peripheral devices ->

mixer -> power amps (or powered speakers)

NOTE: When shutting the system down, turn off the power in the opposite order: Power amps (powered speakers) -> mixer -> peripheral devices.

NOTE: Where an input channel provides both a MIC INPUT jack and a LINE INPUT jack, you may use either one of these jack but you may not use both at the same time. Please connect to only one of these jacks on each channel.

APPLICATIONS – LIVE PERFORMANCE

BLOCK DIAGRAM

GENERAL SPECIFICATIONS

Maximum Output Level (0.5% T.H.D. at 1kHz)

+20dB (MAIN L/R), +20dB (AUX, EFX, CTRL ROOM)

+20dB (INSERT) more than 100mW (HEADPHONES) @ 33Ω

T.H.D.

<0.1% @ +14dB 20Hz~20kHz (MAIN L/R, AUX SEND, EFX SEND, CTRL ROOM)

Frequency Response

20Hz~20kHz, +1/-2dB (MIX L/R, AUX SEND, EFX SEND, CTRL ROOM)

Hum and Noise (Average, 20kHz LPF Rs = 150Ω)

-127dB equivalent input noise, -95dB residual noise (MAIN L/R, AUX/EFX SEND, CTRL ROOM OUT), -88dB (MAIN L/R, AUX/EFX send, CTRL ROOM OUT) * Master fader at nominal level and all channel fader Minimum.

Maximum Voltage Gain

66dB MIC IN to MAIN L/R, 60dB MIC IN to AUX, 66dB MIC IN to EFX

76dB MIC IN to CONTROL ROOM L/R, 58.2dB MIC IN to REC L/R, 46dB LINE IN to MAIN L/R

46dB LINE IN to AUX, 46dB LINE IN to EFX

56dB LINE IN to CONTROL ROOM L/R, 36dB ST IN to MAIN L/R

6dB AUX RETURN IN to MAIN L/R, 16dB TAPE IN to MAIN L/R

Crosstalk (at 1kHz)

-70dB between input channels, -70dB between input/output channels

Gain Control (mono Input channel)

44dB Variable (-50dB ~ -6dB), (-30dB ~ +14dB)

Gain Control (mono/stereo combination Input channel)

40dB Variable (-20dB ~ +20dB)

Input Channel Equalization

HIGH: 12kHz shelving, MID: 2.5kHz peaking, LOW: 80Hz shelving * turnover/roll off frequencies: located 3dB below maximum boost/cut

LED Meters

10-segment LED x2 MAIN L/R

Channel Indicators

Peak: An indicator for each channel turns on when the pre-channel fader signal is 5dB below clipping.

Phantom Power

+48V DC

Power Source/Power Consumption

USA/Canada 120VAC / 60Hz / 25W

England/Australia 240VAC / 50Hz / 25W

Korea 220VAC / 60Hz / 25W

Europe 230VAC / 50Hz / 25W

Weight

2.8 kg (6.2 lbs)

Dimension (W x H x D)

249 x 75 x 290 mm (9.8 x 3.0 x 11.4 in)

*0dB=0.775Vrms, 0dBV=1VRMS

*Specifications and design subject to change without notice for improvements.

SPECIFICATIONS

Input Connector

Input Impedance

Nominal Impedance

Rated Input Level

Connector Type

CH Mic

4 kΩ

50 ~ 600 Ω

-50 dB

XLR 3-31 Type Balanced

CH Line

10 kΩ

600 Ω

-30 dB

Phone Jack (TRS)

T=Hot R=Cold S=GND

Stereo Input Mic

3 kΩ

600 Ω

-44 dB

XLR 3-31 Type Balanced

Stereo Input Line

5 kΩ

600 Ω

-20 dB

Unbalanced Phone Jack

Aux Return Insert

Input

10 kΩ

600 Ω

+4 dB

Unbalanced Phone Jack

Mono Channel Insert

Input

10 kΩ

600 Ω

0 dB

Phone Jack (TRS) T=Out

R=In S=GND

Tape In

10 kΩ

600 Ω

-10 dBV

RCA pin Jack

Output Connector

Output Impedance

Nominal Impedance

Rated Output Level

Connector Type

MAIN

75 Ω

10 kΩ

+4 dB

Unbalanced Phone Jack

CTRL Room Out

75 Ω

10 kΩ

+4 dB

Unbalanced Phone Jack

AUX/EFX Send

75 Ω

600 Ω

+4 dB

Unbalanced Phone Jack

Mono Channel Insert

Output

100 Ω

10 kΩ

0 dB

Phone Jack (TRS)

T=Out R=In S=GND

REC Out

600 Ω

10 kΩ

-10 dBV

RCA pin Jack

HEADPHONES Out

100 Ω

33 Ω

3mW

Stereo Phone Jack

INPUT

OUTPUT

*Specifications and design subject to change without notice for improvements.

WARRANTY

Thank you for choosing one of Gibson Pro Audio’s brands (Stanton, KRK, or Cerwin Vega!). Your satisfaction is extremely important to us. We proudly stand behind the quality of our work and appreciate that you put your trust in us. Registering your merchandise will help us guarantee that you are kept up to date on our latest advances.

To Register Merchandise Purchased from an Authorized Gibson Pro Audio Dealer in the U.S.: Please go to: http://www.gibson.com and register online. Or you may send your warranty card to: Gibson Customer Service 309 Plus Park Blvd. Nashville, TN 37217

If you have any questions you may contact customer service at: 1-800-4GIBSON (1-800-444-2766) e-mail: service@gibson.com

FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR TO REGISTER YOUR WARRANTY AND FOR HANDLING AND RESOLUTION OF ALL WARRANTY-RELATED ISSUES.

Gibson Pro Audio Warranty If at any time your Gibson Pro Audio product (which includes Stanton, KRK, or Cerwin Vega! brands) malfunctions as a result of faulty materials or workmanship, Gibson Pro Audio or one of Gibson Pro Audio’s Authorized Service Centers in the US will repair the defect(s) or replace the merchandise, as it deems appropriate at its sole discretion. Warranty Period (from date of Purchase as listed on the Bill of Sale):

Stanton One (1) year for all Stanton products.

KRK Three (3) years from all studio monitors. One (1) year all headphones, computer audio devices, including room correction devices.

Cerwin Vega! Five (5) years for all passive speaker systems. Three (3) years for all active speaker systems. Three (3) years for all mixers.

Gibson will warrant all replacement parts and repairs for ninety (90) days from the date of original shipment. In the unlikely event that your merchandise is destroyed, lost or damaged beyond repair while in the possession of

Gibson or one of Gibson Pro Audio’s Authorized Service Centers for repair, Gibson will replace that merchandise with

one of the same or most similar style of a value not in excess of the original purchase price of your merchandise. Any insurance covering the merchandise, including but not limited to collector's value insurance, must be carried by owner at owner's expense.

For the fastest and safest merchandise return, please use the original shipping carton and packaging materials. Gibson cannot be responsible for any damages incurred during the shipping process due to poor or inadequate packing.

WARRANTY (continued)

THIS WARRANTY IS EXTENDED TO THE ORIGINAL RETAIL PURCHASER ONLY AND MAY NOT BE TRANSFERRED OR ASSIGNED TO SUBSEQUENT OWNERS. IN ORDER TO VALIDATE YOUR WARRANTY, AND AS A CONDITION PRECEDENT TO WARRANTY COVERAGE HEREUNDER, YOU MUST REGISTER YOUR WARRANTY WITHIN FIFTEEN (15) DAYS FOLLOWING THE ORIGINAL DATE OF PURCHASE.YOUR PROOF OF PURCHASE OR SALES RECEIPT MUST ACCOMPANY ALL REQUESTS FOR WARRANTY COVERAGE.

This warranty is subject to the following limitations:

THIS WARRANTY DOES NOT COVER

1. Any merchandise that has been altered or modified in any way or upon which the serial number has been tampered with or altered.

2. Any merchandise whose warranty card has been altered or upon which false information has been given.

3. Any merchandise that has been damaged due to misuse, negligence, or improper operation.

4. Any merchandise that has been damaged by accident, flood, fire, lightening, or other acts of God.

5. Shipping damage of any kind.

6. Any merchandise that has been subjected to extremes of humidity or temperature.

7. Any merchandise that has been purchased from an unauthorized dealer, or upon which unauthorized repair or service has been performed.

GIBSON MAKES NO OTHER EXPRESS WARRANTY OF ANY KIND WHATSOEVER. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES SO THAT THE ABOVE MAY NOT APPLY TO YOU.

GIBSON SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER SIMILAR DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE MERCHANDISE, WHETHER IN CONTRACT OR IN TORT, EVEN IF GIBSON OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND GIBSON SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.

FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR THE HANDLING AND RESOLUTION OF ALL WARRANTY ISSUES. FOR THESE PURCHASES, THE ABOVE-DESCRIBED WARRANTY IS NOT APPLICABLE.

WARRANTY (continued)

How to Obtain Warranty Service

Warranty Service outside the United States: To initiate a warranty repair, please contact the Authorized Gibson Pro Audio distributor from whom you purchased your merchandise, and follow the distributor’s return/warranty policy.

Warranty Service for Merchandise Purchased from an Authorized Gibson Pro Audio Dealer in the U.S: In the event of malfunction of your Gibson Pro Audio merchandise, the Dealer or Owner must call Customer Service @ 1-800-4GIBSON (1-800-444-2766) and obtain a Return Authorization number from the customer service agent. No merchandise may be returned to Gibson without such prior Return Authorization, and the Return Authorization number must be written on the outside of the shipping package. The Customer Service agent will provide the address and additional shipping instructions. Owner must ship the merchandise, freight, and insurance pre-paid to the address provided by the customer service representative. Only Authorized Gibson Pro Audio Service Centers may perform warranty service and any service performed by unauthorized persons will void this warranty. Gibson disclaims liability for defects or damage caused by services performed by unauthorized persons or non-warranty service not performed by Gibson or an Authorized Gibson Pro Audio Service Center.

When contacting Gibson, you must include a complete written description of the malfunction of the merchandise. If non-warranty work is required or recommended, a quotation will be issued and must be approved by you before any non-warranty work is commenced. You should consider quotations obtained for non-warranty work immediately and advise the Authorized Gibson Pro Audio Service Center or Gibson of your wishes. You are not required to purchase non-warranty work in order to obtain service on materials covered by this warranty. Following its inspection of merchandise upon its arrival, Gibson or the Authorized Gibson Pro Audio Service Center will advise you or your dealer of the approximate date of completion. The repaired merchandise or part will be returned to you or your dealer, freight collect insured.

No representative or other person is authorized to assume for Gibson any liability except as stated in this warranty. This warranty gives you specific rights which vary from state to state or from country to country.

For further information, write: Customer Service Dept., Gibson Customer Service 309 Plus Park Blvd. Nashville, TN 37217 Or call: 1-800-4GIBSON

GLOSSARY

attenuate to reduce or make quieter. decrease the signal level

auxiliary (aux) send an output from the console to supplemental equipment that provide additional

capabilities. typically the feeds to the mix are implemented on rotary level controls. an aux return on the mixer is intended to connect to the output of the supplemental equipment.

balance the relative levels of the left and right channels of a stereo signal.

balanced a method of audio connection which ‘balances’ the wanted signal between two wires and a

screen which carries no signal. any interference is picked up equally by the two wires, which results in cancellation of the unwanted signal.

clipping the onset of severe distortion in the signal path, usually caused by the peak signal voltage being

limited by the circuit’s power supply voltage.

DAT Digital Audio Tape, a cassette-based digital recording format.

dB (decibel) a ratio of two voltages or signal levels, expressed by the equation dB=20Log10 (V1/V2). Adding

the suffix ‘u’ denotes the ratio is relative to 0.775V RMS.

DI (direct injection) the practice of connecting an electric musical instrument directly to the input

of the /DI Box mixing console, rather than to an amplifier and loudspeaker which is covered by a microphone feeding the console.

direct output a post fade line level output from the input channel, bypassing the summing amplifiers, typically

for sending to individual tape tracks during recording.

equalizer a device that allows the boosting or cutting of selected bands of frequencies in the signal path.

fader a linear control providing level adjustment.

feedback the `howling’ sound caused by bringing a microphone too close to a loudspeaker driven from its

amplified signal.

foldback a feed sent back to the artistes via loudspeakers or headphones to enable them to monitor the

sounds they are producing.

frequency response the variation in gain of a device with frequency.

gain the amount of amplification in level of the signal.

headroom the available signal range above the nominal level before clipping occurs.

highpass filter a filter that rejects low frequencies and passes only high frequencies. the cut-off frequency

determines the limit that frequencies are rejected or allowed to pass through.

impedance balancing a technique used on unbalanced outputs to minimize the effect of hum and interference when

connecting to external balanced inputs.

GLOSSARY (continued)

insert a break point in the signal path to allow the connection of external devices, for instance signal

processors or other mixers at line level signals. Nominal levels can be anywhere between -10dBu to +6dBu, usually coming from a low impedance source.

pan (pot) abbreviation of ‘panorama’: controls levels sent to left and right outputs.

peaking the point at which a signal rises to its maximum instantaneous level, before falling back down

again. It can also describe an equalizer response curve affecting only a band of frequencies, (like on a graphic equalizer), “peaking” at the centre of that band.

peak LED a visual indication of the signal peaking just before the onset of clipping.

PFL a function that allows the operator to monitor the pre-fade signal (pre-fade listen) in a channel

independently of the main mix.

phase a term used to describe the relationship of two audio signals. In-phase signals reinforce each

other, out-of-phase signals result in cancellation.

polarity a term used to describe the orientation of the positive and negative poles of an audio

connection. Normally connections are made with positive to positive, negative to negative. If this is reversed, the result will be out-of-phase signals (see ‘phase’ above).

post-fade the point in the signal path after the monitor or master fader and therefore affected by fader

position.

pre-fade the point in the signal path before the monitor or master fader position and therefore

unaffected by the fader position.

rolloff a fall in gain at the extremes of the frequency response.

shelving an equalizer response affecting all frequencies above or below the break frequency i.e. a

highpass or lowpass derived response.

spill acoustic interference from other sources.

transient a momentary rise in the signal level.

unbalanced a method of audio connection which uses a single wire and the cable screen as the

signal return. This method does not provide the noise immunity of a balanced input (see above).

+48V the phantom power supply, available at the channel mic inputs, for condenser

microphones and active DI boxes.

CVM-1022

TABLE DE MIXAGE AUDIO PROFESSIONNELLE

MESURES DE SECURITE IMPORTANTES

ATTENTION : LE SYMBOLE DE L’ÉCLAIR À L’INTÉRIEUR D’UN TRIANGLE ÉQUILATÉRAL, EST DESTINÉ À ALERTER L’UTILISATEUR DE LA PRÉSENCE DE PIÈCES SOUS TENSION NON ISOLÉES DANS LE PRODUIT, D’UNE MAGNITUDE POUVANT CONSTITUER UN RISQUE D’ÉLECTROCUTION.

AVERTISSEMENT : LE SYMBOLE DU POINT D’EXCLAMATION, DANS UN TRIANGLE ÉQUILATÉRAL, EST DESTINÉ À ALERTER L’UTILISATEUR QUE D’IMPORTANTS CONSEILS DE FONCTIONNEMENT ET DE MAINTENANCE (RÉPARATION) SONT FOURNIS DANS

LA DOCUMENTATION ACCOMPAGNANT LE PRODUIT.

REMARQUE : LE SYMBOLE D'UNE MAIN DANS UN TRIANGLE ÉQUILATÉRAL EST DESTINÉ À ALERTER L'UTILISATEUR DE LA PRÉSENCE D'INSTRUCTIONS ET D'INFORMATIONS SPECIFIQUES CONCERNANT L'UTILISATION DE L'APPAREIL QUI DOIVENTT ÊTRE LUES COMPLÈTEMENT AVANT D'UTILISER L'APPAREIL POUR LA PREMIÈRE FOIS.

ATTENTION : POUR RÉDUIRE LE RISQUE D’INCENDIE ET DE CHOC ÉLECTRIQUE, NE DÉPOSEZ AUCUN CAPOT ET N’OUVREZ PAS L’APPAREIL. AUCUN COMPOSANT À L’INTERIEUR NE PEUT ÊTRE RÉPARÉ PAR L’UTILISATEUR. TOUTE RÉPARATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN DE MAINTENANCE QUALIFIÉ.

AVERTISSEMENT : AVANT DE CONNECTER ET D’UTILISER L’APPAREIL, LISEZ ET RESPECTEZ TOUTES LES CONSIGNES DE SÉCURITÉ

ET LES INSTRUCTIONS D’UTILISATION. CONSERVEZ CE GUIDE D’UTILISATION POUR TOUTE RÉFÉRENCE ULTÉRIEURE. TOUS LES AVERTISSEMENTS SUR L’APPAREIL ET SON EMBALLAGE DOIVENT ÊTRE LUS ET RESPECTÉS.

AVERTISSEMENT : ce produit contient des agents chimiques susceptibles, selon l’état de Californie, de causer le cancer et/ou des déficiences congénitales ou d’autres anomalies liées à la reproduction.

ATTENTION : Pour réduire tout risque d’incendie ou d’électrocution, n’exposez pas ce produit à la pluie ou à l’humidité. N’utilisez ce produit près d’une source d’eau, telle que baignoire, bac de lavage, évier, cuve de lessivage, dans un sous-sol humide ou près d’une piscine. Débranchez toujours l’appareil de la prise secteur avant de le nettoyer. N’utilisez jamais de

diluant, liquides de nettoyage, solvants ou chiffons imprégnés de produits chimiques. Pour le nettoyage, utilisez toujours un

chiffon doux et sec. Débranchez cet appareil pendant les orages ou si vous n’allez pas l’utiliser pendant une longue période.

ATTENTION : L’unité doit être placée de sorte qu’elle ne gêne pas sa propre ventilation. Par exemple, elle ne devrait pas être placée sur un lit, un sofa, une couverture ou une surface semblable qui peut bloquer les fentes de ventilation ; ou placée dans

un endroit encastré, comme une bibliothèque ou une armoire qui peuvent empêcher la circulation d’air par les fentes d’aération. L’unité devrait être placée loin de toute source de chaleur telle que radiateurs, bouches de chauffage, cuisinières et

autres appareils (y compris des amplificateurs) qui produisent de la chaleur. Ne placez au dessus ou à côté de l’appareil aucune source de flamme nue, telle que des chandelles allumées.

AVERTISSEMENT : Évitez de placer l’appareil sur surface, chariot, support, trépied, étagère ou table instable. L’appareil pourrait tomber et causer de graves blessures à des enfants et adultes et endommager le produit même. Utilisez seulement chariot, support, trépied ou table recommandée par le fabricant ou vendue avec le produit. L’accrochage du produit à un mur ou au plafond doit respecter les instructions fournies par le fabricant et les accessoires montés doivent être ceux conseillés par le fabricant. Déplacez le chariot et l’appareil avec beaucoup de précaution. Les arrêts brutaux, les poussées trop fortes et les

surfaces irrégulières peuvent renverser l’ensemble. Utilisez seulement un chariot, socle, trépied, support ou table recommandée par le fabricant ou vendue avec l’appareil. Quand un chariot est utilisé, soyez prudent lorsque vous déplacez l’ensemble chariot/appareil pour éviter les blessures en cas de renversement.

REMARQUE : Si l’appareil est endommagé de manière irréparable ou atteint la fin de sa vie, suivez la règlementation locale concernant l’élimination des produits électroniques.

REMARQUE : Cerwin-Vega ne peut être tenue responsable des dommages et/ou perte de données causées par une mauvaise utilisation de l'appareil et/ou des applications fournies avec.

MESURES DE SECURITE IMPORTANTES

POUR EVITER LES CHOCS ÉLECTRIQUES, INTRODUISEZ LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSEZ JUSQU’AU FOND.

1. L’appareil ne doit être branché qu’à une alimentation électrique de tension et fréquence marquées sur le boîtier.

2. Évitez que le cordon ne soit piétiné ou pincé, surtout au niveau des fiches, prises de courant, et au point de leur sortie de l’appareil.

3. N’essayez pas de contourner la fonction de sécurité de la fiche polarisée ou de terre. Une fiche polarisée comporte deux lames dont l’une est plus large que l’autre. Une fiche de mise à la terre comporte deux lames et une troisième broche de mise à la terre, la lame large ou la broche de mise à la terre est destinée pour votre sécurité . Si vous ne parvenez pas à insérer entièrement la

fiche dans une prise de courant, contactez votre électricien qualifié pour qu’il remplace votre prise de courant obsolète.

4. Si la fiche d’alimentation de ce produit comprend un fusible, ce dernier ne doit être remplacé que par un fusible de valeur de rupture identique ou inférieure.

5. N’utilisez jamais un câble d’alimentation endommagé ou usé, cela peut présenter un risque grave d’exposer des tensions mortelles.

6. Débranchez l’appareil de la prise secteur s’il ne va pas être utilisé pendant une longue période.

7. Utilisez uniquement des pièces ou des accessoires recommandés par le fabricant.

NE TENTEZ PAS DE REPARER CET APPAREIL VOUS-MEME. EN CAS DE PROBLÈME, S’ADRESSER À UN PERSONNEL TECHNIQUE QUALIFIÉ.

Lors tout entretien ou réparation, assurez-vous que le technicien utilise les pièces de rechange agréées par le fabricant ou

qu’elles présentent les mêmes caractéristiques que les pièces d’origine, et demandez au technicien de procéder à un contrôle de sécurité pour s’assurer que le produit est en bon état de fonctionnement.

TOUTES LES SUBSTITUTIONS NON AUTORISEES PEUVENT RESULTER EN INCENDIE, CHOCS ELECTRIQUES OU AUTRES RISQUES.

ATTENTION POUR EVITER LES CHOC ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQ’AU FOND.

Cette unité doit être entretenue par un personnel qualifié dans les cas suivants :

Le cordon ou la prise d’alimentation a été endommagée Des objets ou un liquide a pénétré à l’intérieur de l’appareil L’unité a été exposée à la pluie ou à un liquide quelconque L’appareil semble ne pas fonctionner normalement ou sa performance s’est dégradée L’appareil est tombé ou le boîtier est endommagé.

CERTIFICATION RÉGLEMENTAIRE Cerwin-Vega déclare sous sa seule responsabilité que l'appareil, auquel se réfère cette déclaration, est conforme aux normes suivantes :

La déclaration de conformité peut être obtenue auprès du représentant agréé européen à l’adresse Gibson Europe BV - Kamerlingh

Onnesweg, 2 - 4131 PK Vianen - The Netherlands Tel : +31 347 32 40 10 - Fax : +31 347 32 40 15

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

INTRODUCTION

DEBALLAGE ET INSTALLATION

CARACTERISTIQUES

Nous tenons à vous remercier pour votre achat d’une table de mixage audio professionnelle de la nouvelle série CV de Cerwin-Vega ! Conçu pour une reproduction sonore de qualité, la série CV de tables de mixage audio professionnelles offre un son de haute qualité à un prix abordable. La série CV de tables de mixage offre un niveau de fiabilité et d'efficacité qui en fait la solution parfaite pour tous les DJ, musiciens et ingénieurs de son. Bienvenue à un nouveau niveau de performance sonore de qualité professionnelle !

Bien que votre nouvelle table de mixage ne soit ni compliquée à installer ni difficile à utiliser, nous vous recommandons

de consacrer quelques minutes de votre temps pour lire le présent manuel afin d’effectuer correctement le câblage nécessaire à l’installation et de vous familiariser avec les caractéristiques de l'appareil. Déballez l'appareil avec

précaution et veillez à conserver le carton et autres matériaux d'emballage. Ces derniers peuvent servir pour le déplacement de l'appareil et sont nécessaires pour expédier l'appareil pour réparation. Ne placez jamais l'appareil à proximité d'un radiateur, en face de bouches de chauffage, en plein soleil, dans un endroit d'humidité excessive ou poussiéreux afin d’éviter tout dommage et pour garantir une longue utilisation fiable. Connectez l'appareil aux composants du système selon la description fournie dans les pages suivantes.

 2 entrées ligne mono et 4 stéréo avec 4 entrées micro XLR  Connecteurs L/R (Gauche/Droite) ¼"  Egaliseur de canal 3 Bandes conçu pour ± 15 dB (HF, LF) et de ± 12 dB (MF) de contrôle sur le canal d'entrée  Interrupteur d'alimentation fantôme (+48 V) pour une connexion de microphones à condensateur qui

nécessitent généralement une alimentation externe

 Témoin de crête pour vérifier le signal d'entrée de chaque canal micro  Contrôle du niveau Gain (trim) avec des marques de sensibilité pour les entrées micro et ligne  Bouton coupe bas (HPF) permettant de basculer le filtre, avec une fréquence de coupure à 75Hz, pour éliminer

le ronflement de fond du micro

 Boutons Aux et EFX pour régler le niveau du signal envoyé au bus respectif  Bouton pan (mono canal) pour positionner le signal sur le bus maître de gauche et de droite  Bouton balance (canal stéréo) pour régler le niveau entre les signaux de gauche et de droite  Connecteurs d’entrée RCA stéréo pour la connexion d’un lecteur CD ou MP3  Connecteurs de sortie RCA stéréo pour la connexion d’un enregistreur audio  Contrôle de niveau pour casque et connexions de control room

BOUTONS DU PANNEAU AVANT - SECTION CONTROLE DE CANAL

Bouton

Coupure/

Renforcement

max.

FREQUENCE

TYPE

HAUT

±15dB

12kHz

Shelving

MOY

±12dB

2,5kHz

Peaking

BAS

±15dB

80Hz

Shelving

(1). TÉMOIN DE CRÊTE Ces témoins permettent de vérifier le niveau du signal d'entrée au canal.

Les témoins de crête s’allument lorsque le signal d'entrée atteint 5 dB en

dessous du point d'écrêtage du canal. Ces indicateurs montrent le niveau

du signal après l’égaliseur et avant le fader. Si les témoins de crête restent

allumés pendant les transitoires de haut niveau, vous devez diminuer la

sensibilité d'entrée du canal à l’aide du bouton GAIN. Si cela ne marche

pas, réduisez alors le niveau de sortie de la source connectée.

(2). CONTROLE DE GAIN Selon le niveau du signal d'entrée, utilisez ce bouton pour régler l'entrée sur un niveau approprié. Le meilleur équilibre du Rapport signal/bruit et de la gamme dynamique sera atteint si vous réglez le GAIN de manière que les témoins de crête ne s'allument que de temps en temps. Ce bouton permet de régler la sensibilité du canal d'entrée du micro entre

-50dB et -6dB et la sensibilité d'entrée ligne entre-30dB et +14 dB. Les canaux d'entrée mono/stéréo combinés ont une sensibilité de 20 dB à

-20dB.

(3). HPF (Filtre passe-haut, fréquences de coupure inférieure à 75Hz) Ce bouton permet d’activer/désactiver le HPF. Enfoncez le bouton ( ) pour activer le filtre HPF.

(4). BOUTONS DE L’ÉGALISEUR 3 BANDES Il s'agit d'un égaliseur 3 bandes avec fréquences, gamme et type moyens comme indiqué ci-dessous. La réponse en fréquence est nulle lorsque tous les boutons sont en position "0".

(5). BOUTONS AUX Ces boutons contrôlent le niveau des signaux envoyés au bus AUX (auxiliaire). Avant signifie non affecté par la position du fader du canal.

(6). BOUTONS EFX Ces boutons contrôlent le niveau des signaux envoyés au bus EFX. Les signaux du canal mélangés par ce bus ont leur niveau global fixé par le bouton EFX SEND vers le connecteur EFX SEND du panneau avant. Le signal du bus EFX est également introduit dans le processeur de signal numérique interne. Etant donné que ce bouton est placé après le fader du canal, le niveau du signal sera affecté par le réglage du fader du canal.

BOUTONS DU PANNEAU AVANT - SECTION CONTROLE DE CANAL (suite)

(7). BOUTON PAN/BAL

PAN (canal mono) Ce bouton effectue un panoramique du signal du canal à travers les bus maîtres L (gauche) et R (droite), déterminant ainsi la position du son perçu de ce canal dans le champ sonore de sortie stéréo. Si un bouton PAN est positionné à fond vers la gauche, par exemple, le son à partir de ce canal sera reproduit par le système d’enceintes gauche uniquement.

S’il est positionné à fond à droite, le son sera reproduit par le système d’enceintes de droite uniquement. Une position

intermédiaire fera apparaître le son à des endroits correspondants dans le champ sonore stéréo.

BALANCE (canaux stéréo) Ce bouton permet de régler la balance ou la position L (gauche)/R (droite) du signal stéréo d'entrée. Tourner le bouton BALANCE vers la gauche par rapport au centre fait déplacer de la source apparente vers MAIN MIX L (gauche), fait déplacer la source vers le bus MAIN MIX R (droite).

(8). FADER DE CANAL Il s'agit du contrôle du niveau principal des canaux. Il détermine le niveau du signal qui est envoyé depuis le canal vers le mixage principal et les bus d'effets. Ce sont les réglages des faders des canaux d'entrée qui déterminent le mixage, ou la

balance des niveaux sonores entre les instruments ou les autres sources connectées aux entrées. Lorsqu’un canal n'est

pas utilisé, son volume doit être réglé à la position minimale pour empêcher l'ajout de bruit indésirable au signal du programme principal.

+ 67 hidden pages

Cerwin-Vega CVM-1022 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
