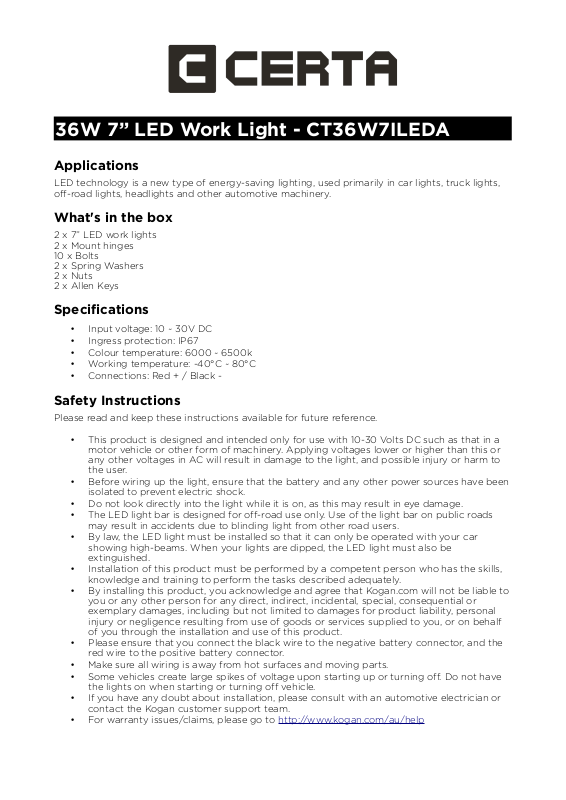

36W 7” LED Work Light - CT36W7ILEDA
Applications
LED technology is a new type of energy-saving lighting, used primarily in car lights, truck lights,
off-road lights, headlights and other automotive machinery.
What's in the box
2 x 7” LED work lights
2 x Mount hinges
10 x Bolts
2 x Spring Washers
2 x Nuts
2 x Allen Keys
Specifications
• Input voltage: 10 ~ 30V DC
• Ingress protection: IP67
• Colour temperature: 6000 ~ 6500k
• Working temperature: -40°C ~ 80°C
• Connections: Red + / Black -
Safety Instructions
Please read and keep these instructions available for future reference.
• This product is designed and intended only for use with 10-30 Volts DC such as that in a
motor vehicle or other form of machinery. Applying voltages lower or higher than this or
any other voltages in AC will result in damage to the light, and possible injury or harm to
the user.
• Before wiring up the light, ensure that the battery and any other power sources have been
isolated to prevent electric shock.
• Do not look directly into the light while it is on, as this may result in eye damage.
• The LED light bar is designed for off-road use only. Use of the light bar on public roads
may result in accidents due to blinding light from other road users.
• By law, the LED light must be installed so that it can only be operated with your car
showing high-beams. When your lights are dipped, the LED light must also be
extinguished.
• Installation of this product must be performed by a competent person who has the skills,
knowledge and training to perform the tasks described adequately.
• By installing this product, you acknowledge and agree that Kogan.com will not be liable to
you or any other person for any direct, indirect, incidental, special, consequential or
exemplary damages, including but not limited to damages for product liability, personal
injury or negligence resulting from use of goods or services supplied to you, or on behalf
of you through the installation and use of this product.
• Please ensure that you connect the black wire to the negative battery connector, and the
red wire to the positive battery connector.
• Make sure all wiring is away from hot surfaces and moving parts.
• Some vehicles create large spikes of voltage upon starting up or turning off. Do not have
the lights on when starting or turning off vehicle.
• If you have any doubt about installation, please consult with an automotive electrician or
contact the Kogan customer support team.
• For warranty issues/claims, please go to http://www.kogan.com/au/help
Mounting the LED light
1. Push the main mounting bolt through the hole in the base of the mount, then push the
spring washer onto the thread and loosely screw on the mounting nut. Do not tighten it at
this stage.
2. Slide the mount over the mounting point on the LED light, aligning the bolt holes in the
side with the long curved angle hole in the mount.
3. Insert the 4 small bolts and screw in until they are close to tight, but not yet fully screwed
in.
4. Remove the spring washer and mounting nut from the mounting bolt and insert the bolt
through the mounting area, then put the spring washer back on and fully tighten the
mounting nut.
5. Once you have mounted the unit in its final position, ensure that the LED lights are tilted at
the desired angle. Once the angle is set, tighten the 4 small bolts with the allen key.
