Centralite 3-Series, 3323 Product Data Sheet

Product Data Sheet

3-Series Micro Door Sensor

3323

Last Updated: April 2016

Product Overview

By detecting the opening and closing of doors and windows, the 3-Series Micro Door Sensor can wirelessly notify
users of arrivals and departures. The Micro Door Sensor consists of a base, mounted to the door or window
frame and a magnet to be mounted to the door or window. The 3-Series Micro Door Sensor is an affordable way
to add automation, security, and occupancy sensing to existing connected home systems.

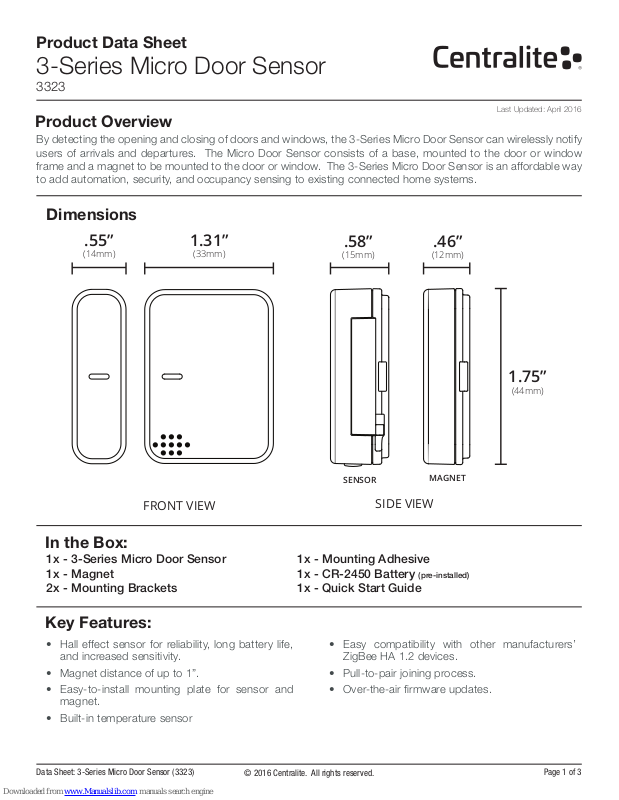

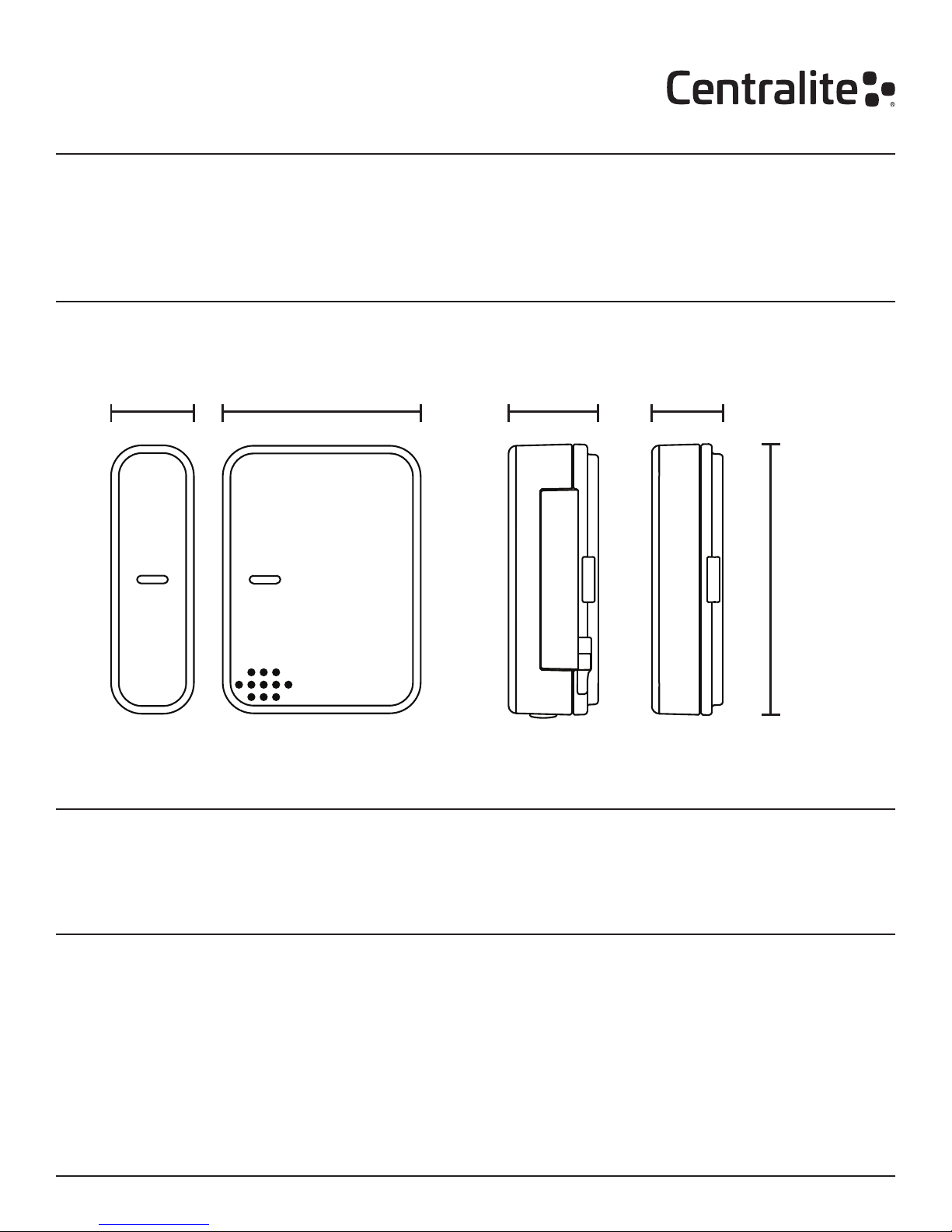

Dimensions

.55”

(14mm)

1.31”

(33mm)

FRONT VIEW

.58”

(15mm)

SENSOR

.46”

(12mm)

1.75”

(44mm)

MAGNET

SIDE VIEW

In the Box:

1x - 3-Series Micro Door Sensor
1x - Magnet
2x - Mounting Brackets

Key Features:

• Hall effect sensor for reliability, long battery life,
and increased sensitivity.

• Magnet distance of up to 1”.

• Easy-to-install mounting plate for sensor and
magnet.

• Built-in temperature sensor

Data Sheet: 3-Series Micro Door Sensor (3323) Page 1 of 3

1x - Mounting Adhesive
1x - CR-2450 Battery (pre-installed)
1x - Quick Start Guide

• Easy compatibility with other manufacturers’
ZigBee HA 1.2 devices.

• Pull-to-pair joining process.

• Over-the-air rmware updates.

© 2016 Centralite. All rights reserved.

Use Cases

• Receive alerts when doors/windows open or close
while you’re away.

• Trigger “welcome” or “goodbye” scenes.

Receive alerts when doors/windows open or close
while you’re away.

You can use the 3-Series Micro Door Sensor to notify
you when the kids get home from school or when a
repair man leaves.

Trigger “welcome” or “goodbye” scenes.

Your house can now welcome you home as you
return from work and conserve energy while you’re
away. Use the Micro Door Sensor in the morning by
having it put thermostats in deep setback and turning
off unnecessary lighting.

Special Features

Hall Effect Sensor

The 3-Series Micro Door Sensor features a Hall effect
sensor for increased sensitivity, reliability, and reduced
size. By eliminating the need for a reed switch, the
Hall effect sensor has no moving parts, increasing
reliability. This feature also increases the battery life of
the sensor.

Easy Mounting Options

The 3-Series Micro Door Sensor can be installed
using either adhesive strips or mounting screws (both
included). The easy-to-install mounting plate attaches
with a single screw and the sensor simply slides into
place on the mount.

• Trigger alarm when doors or windows unexpectedly
open.

• Automate lights in closets and small rooms

Trigger alarm when doors or windows unexpectedly
open.

While you’re away or at night while you’re asleep, you
want more than just notication of an entry/exit—you
want an alarm to be triggered. Pair with an alarm or
siren to alert your family and police to intruders as well
as deterring burglars from entering the home.

Automate lights in closets and small rooms

Place a Micro Door Sensor on closet and pantry doors
to trigger lights to automatically turn on and off. This
feature provides extra visibility and safety.

is needed to begin the joining process is to pull out
a small plastic tab from the bottom of the device.
There is nothing for the user to take apart or put back
together.

ZigBee Home Automation 1.2 Compatibility

The 3-Series Micro Door Sensor is fully ZigBee HA 1.2
certied and is guaranteed to function with all open,
ZigBee HA 1.2-certied hubs and devices.

Superior Range and Updatability

The Micro Door Sensor supports over-the-air updates
providing for seamless upgrades and feature additions
without the need for any user interaction.

Pull-to-Pair Join Process

All 3-Series sensors feature “pull-to-pair” joining. The
device ships with the battery pre-installed and all that

Getting Started Troubleshooting

Step 1: Open ZigBee Network for Joining

Using your controller or hub’s interface, enable the
ZigBee network for joining.

Step 2: Pull Tab from Side of Sensor

Pull the small plastic tab out from the side of the
sensor and it will immediately begin searching for a
network to join.

Step 2: Finish Joining at Hub (optional)

Some hubs and controllers require additional steps
such as naming or categorizing the device.

Data Sheet: 3-Series Micro Door Sensor (3323) Page 2 of 3

© 2016 Centralite. All rights reserved.

Step 1: Remove and Replace Battery from Device

Open the battery tray on the side of the device.
Remove battery and replace with a new CR-2450
battery. Reassemble and test operation.

Step 2: Factory Reset and Rejoin

Remove battery. Insert a paper clip into the reset
hole on the side of the device. While holding down
the reset button, reinsert battery to factory reset the
device. Repeat the “Getting Started” steps to rejoin
the ZigBee network.

Compatibility

The 3-Series Micro Door Sensor features out-of-the-box compatibility with any ZigBee HA 1.2-certied hub,
controller, bridge, or platform.

Technical Specications

Power

Rated: 3V
Battery: CR-2450 (1x)
Battery Life: Up to 2 years

Environmental

Operating Temperature: 0° to 40°C

Shipping / Storage

Temperature: -20° to 50°C
Humidity Range: 0 to 90% RH.
(non-condensing)

Approvals:

Wireless RF

Protocol: ZigBee HA 1.2
TX Strength: +8 dBm
RF Channels: 16
Range: 130+ ft. (40+ m) L.O.S.

Temp Accuracy: ±0.4 °C (max), –10 to 85 °C

Safety Warnings

NOTE:

For monitored security applications, the sensor should be installed by a certied security installation professional.

Standard WarrantySupport

Centralite offers both Tier-1 and Tier-2 support
structures to meet the needs of different customers.
For those customers that provide existing, in-house
support for systems, Centralite can serve as Tier­2 support specialists. For Centralite retail-branded
products, Centralite provides direct Tier-1 support for
all products.

Centralite offers a standard 12-month limited warranty
on the 3-Series Micro Door Sensor.

Additional mandatory warranty period in compliance
with local law product is being sold.

Contact Sales

For more information about sales or distribution,
please contact:

North America

Sean Bryant, VP Sales & Marketing
877-466-5483
[email protected]

Centralite Systems, Inc.
1000 Cody Road
Mobile, AL 36695

www.Centralite.com

Notice: Any content, factual information, or specications containing errors in this document are solely inadvertent and will be corrected

upon discovery. Specications for unreleased/planned products are subject to change.

Data Sheet: 3-Series Micro Door Sensor (3323) Page 3 of 3
