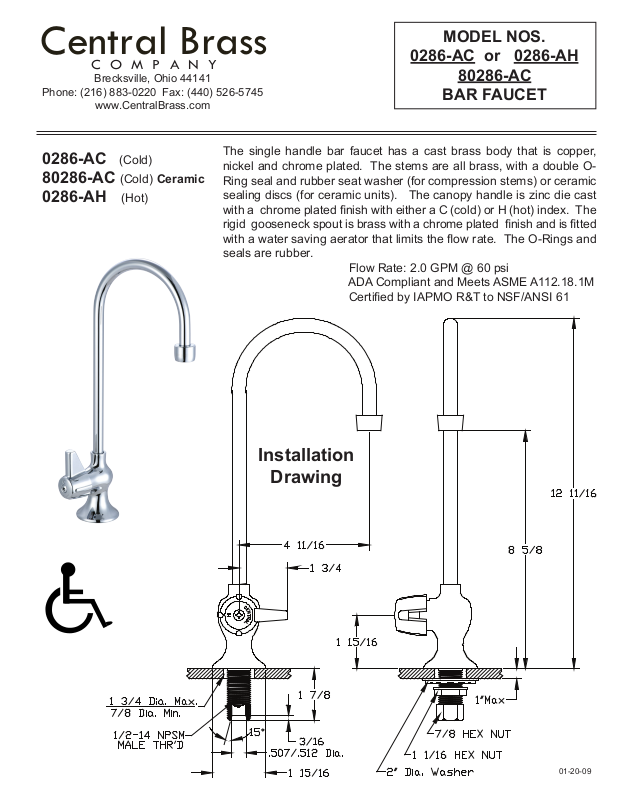

CENTRAL BRASS 80286AH User Manual
MODEL NOS.
Central Brass
C O M P A N Y
0286-AC or 0286-AH
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
0286-AC (Cold)
80286-AC (Cold) Ceramic
0286-AH (Hot)
The single handle bar faucet has a cast brass body that is copper,
nickel and chrome plated. The stems are all brass, with a double ORing seal and rubber seat washer (for compression stems) or ceramic
sealing discs (for ceramic units). The canopy handle is zinc die cast
with a chrome plated nish with either a C (cold) or H (hot) index. The
rigid gooseneck spout is brass with a chrome plated nish and is tted
with a water saving aerator that limits the ow rate. The O-Rings and
seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
80286-AC
BAR FAUCET
Installation
Drawing
01-20-09
MODEL NOS.
Central Brass
C O M P A N Y
0286-AC or 0286-AH
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Parts
Breakdown
80286-AC
BAR FAUCET
# Part # Description
1 107-F Brass Phillips Head Screw
2 523-C Handle Indexed “C”
2 523-H Handle Indexed “H”
3 453-EWC Brass Left Thread O-Ring Bonnet
4 1038-453 O-Ring
5 453-FL Brass Left Thread O-Ring Stem
6 901-WNN Seat Washer
7 104 Brass Seat Washer Screw
8 1028-Y Nylon Gasket
9 263-BC Bronze Seat
10 2904-286 Brass Faucet Body
11 PF-157-HA Brass Rigid Gooseneck Spout
12 166-UA Aerator Adapter
13 30-M Female Aerator
14 54 Steel Crowfoot Washer
15 7133-AZ Zinc Dichromate Locknut
16 4015-BAR Brass Coupling Nut
17 SU-453-EL Left Thread O-Ring Stem Assembly
(for C sufx item
17 SU-453-ER Right Thread O-Ring Stem Assembly
(For C sufx item)
17 SU-352-C Left Thread Ceramic Stem Cartridge
(for C sufx item - not shown)
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
01-20-09
