CENTRAL BRASS 80048-TA4 User Manual

MODEL NO. 80048-TA4

Central Brass

C O M P A N Y

SINK FIXTURE

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

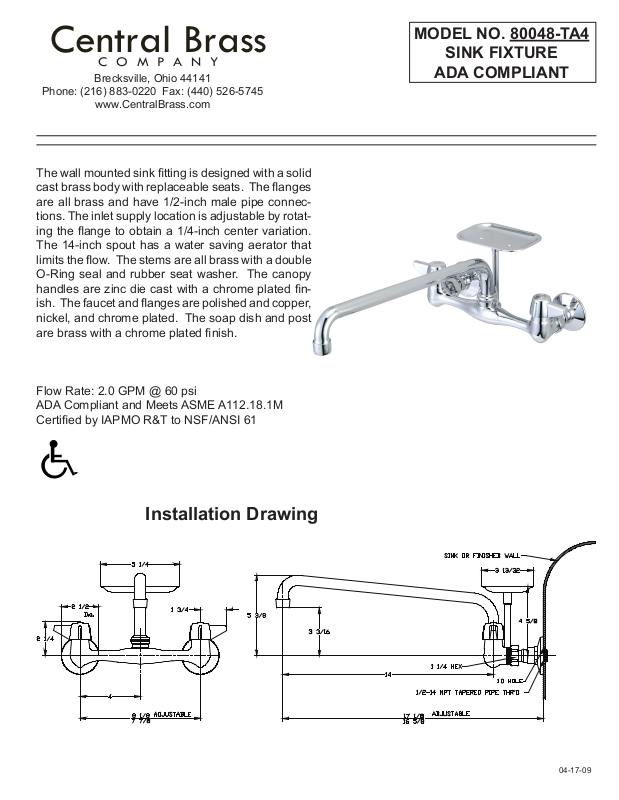

The wall mounted sink tting is designed with a solid
cast brass body with replaceable seats. The anges

are all brass and have 1/2-inch male pipe connec­tions. The inlet supply location is adjustable by rotat-

ing the ange to obtain a 1/4-inch center variation.
The 14-inch spout has a water saving aerator that
limits the ow. The stems are all brass with a double
O-Ring seal and rubber seat washer. The canopy
handles are zinc die cast with a chrome plated n­ish. The faucet and anges are polished and copper,

nickel, and chrome plated. The soap dish and post

are brass with a chrome plated nish.

ADA COMPLIANT

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

Installation Drawing

04-17-09

MODEL NO. 80048-TA4

Central Brass

C O M P A N Y

SINK FIXTURE

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

# Part # Description

1 2831-CP Brass Farucet Body

2 1028-Y Nylon Gasket

3 184-A Celcon Retainer

4 183-A Rubber Seal

5 182 Ceramic Disc - Lower

6 181 Ceramic Disc - Upper

7 352-S Brass Stem

8 180 Celcon Washer

9 1038-E14 O-Ring

10 352-B Brass Bonnet

11 352-SS Brass Stop

12 352-CR Crescent Ring

ADA COMPLIANT

Parts Breakdown

# Part # Description

13 523-C Handle Indexed “C”

13 523-H Handle Indexed “H”

14 107-F Brass Phillips Head Screw

15 1038-KN O-Ring

16 166-FN Stainless Steel Snap Ring

17 PF-782-DES Brass Spout Nut

18 PF-363-MA Brass Swivel Spout

19 30-M Female Aerator

20 1146 Flange

21 PF-2843-49 Brass Hex Spout Nut

22 2846 Brass Shank

23 940-TRN Washer

24 SU-352-L Left Thread Stem Assembly

24 SU-352-R Right Thread Stem Assembly

25 SU-2846 Brass Flange Assembly

26 PF-285-F Brass Soap Dish Post

27 SU-259-A Brass Soap Dish

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the

Replacement Parts page for the authorized replacement parts

that are available for this item.

04-17-09
