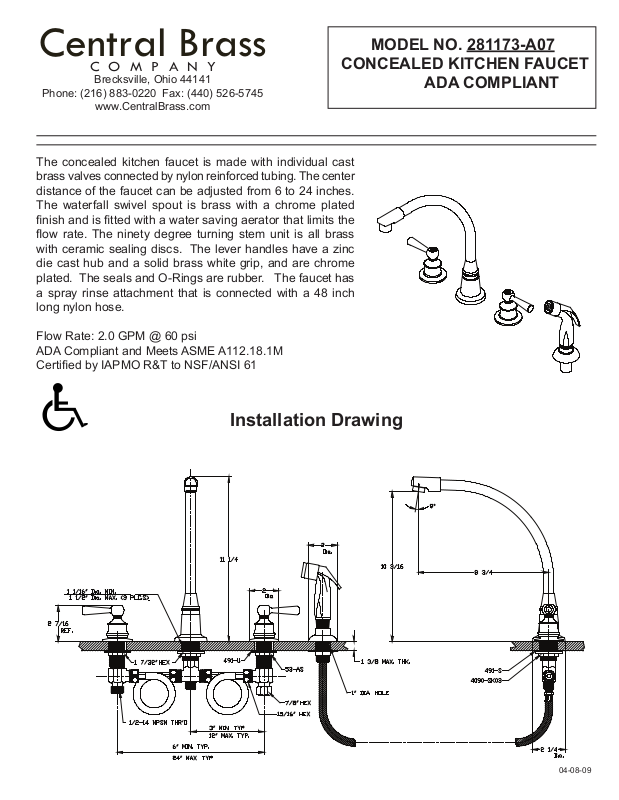

CENTRAL BRASS 281173-A07 User Manual

Central Brass

C O M P A N Y

CONCEALED KITCHEN FAUCET

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The concealed kitchen faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The center
distance of the faucet can be adjusted from 6 to 24 inches.
The waterfall swivel spout is brass with a chrome plated

nish and is tted with a water saving aerator that limits the
ow rate. The ninety degree turning stem unit is all brass

with ceramic sealing discs. The lever handles have a zinc
die cast hub and a solid brass white grip, and are chrome
plated. The seals and O-Rings are rubber. The faucet has
a spray rinse attachment that is connected with a 48 inch
long nylon hose.

ADA COMPLIANT

MODEL NO. 281173-A07

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M

Certied by IAPMO R&T to NSF/ANSI 61

Installation Drawing

04-08-09

Brecksville, Ohio 44141

Central Brass

C O M P A N Y

Phone: [phone] Fax: [phone]

www.CentralBrass.com

MODEL NO. 281173-A07

CONCEALED KITCHEN FAUCET

ADA COMPLIANT

# Part # Description

1 4015-BAR Brass Coupling Nut

2 2970-S Brass Corner Valve Body

3 53-AS Locknut

4 491-U Fiber Gasket

5 PF-350-E Brass Seat

6 1028-Y Nylon Gasket

7 184-A Celcon Retainer

Parts Breakdown

# Part # Description

8 183-A Rubber Seal

9 182 Ceramic Disc - Lower

10 181 Ceramic Disc - Upper

11 352-S Brass Stem

12 180 Celcon Washer

13 1038-E14 O-Ring

14 352-B Brass Bonnet

15 352-SS Brass Stop

16 352-CR Crescent Ring

17 524-B Escutcheon

18 512-HUB-02 Handle Hub

19 SU-512-G-15 White Handle With O-Ring

20 1038-HDL O-Ring

21 107-F15/8 Brass Phillips Head Screw

22 312-10N Flexible Hose Connector

23 2971-A Brass Center Tee

24 4090-SK03 Brass Locknut

25 491-1172 Fiber Gasket

26 PF-166-L Brass Diverter Tube Extension - RC

27 166-D Lower Diverter

27 166-E Upper Diverter

29 1012-N Escutcheon

30 1038-KN O-Ring

31 PF-741-DO Brass Spout Adapter

32 PF-782-JES Brass Spout Nut

33 PF-357-JHR Brass Spout

34 30-L Male Aerator

35 PF-1550-J Brass Spout End Adapter

36 SU-2987-DA Hose Guide

37 166-A Hose & Spray

38 SU-352-L Left Thread Stem Assembly

38 SU-352-R Right Thread Stem Assembly

The parts listed in the parts breakdown
above may not be offered separately
as replacement parts. Please review
the Replacement Parts page for the
authorized replacement parts that are
available for this item.

04-08-09
