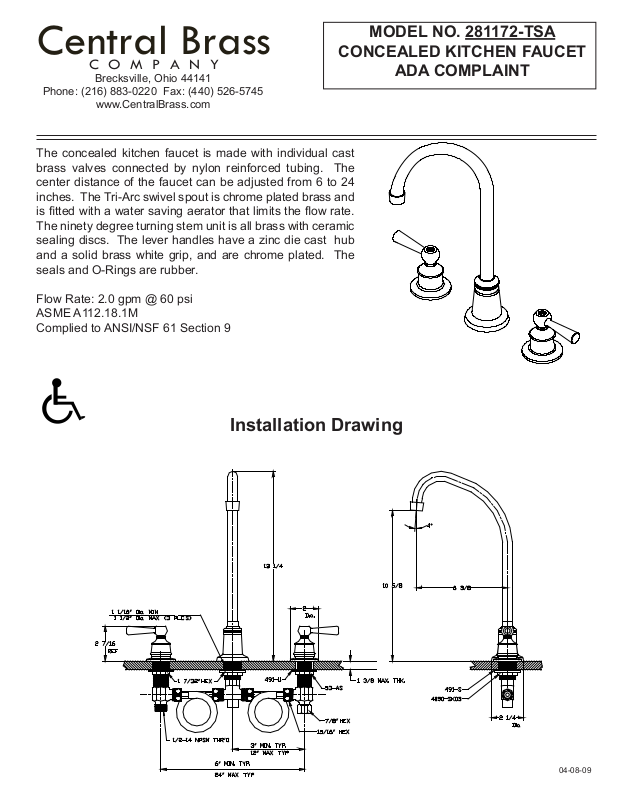

CENTRAL BRASS 281172-TSA User Manual

MODEL NO. 281172-TSA

Central Brass

C O M P A N Y

CONCEALED KITCHEN FAUCET

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The concealed kitchen faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The Tri-Arc swivel spout is chrome plated brass and

is tted with a water saving aerator that limits the ow rate.

The ninety degree turning stem unit is all brass with ceramic
sealing discs. The lever handles have a zinc die cast hub
and a solid brass white grip, and are chrome plated. The
seals and O-Rings are rubber.

Flow Rate: 2.0 gpm @ 60 psi
ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9

ADA COMPLAINT

Installation Drawing

04-08-09

MODEL NO. 281172-TSA

Central Brass

C O M P A N Y

CONCEALED KITCHEN FAUCET

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

Parts Breakdown

ADA COMPLAINT

# Part # Description

1 4015-BAR Brass Coupling Nut

2 2970-S Brass Corner Valve Body

3 53-AS Locknut

4 491-U Fiber Gasket

5 PF-350-E Brass Seat

6 1028-Y Nylon Gasket

7 184-A Celcon Retainer

8 183-A Rubber Seal

9 182 Ceramic Disc - Lower

10 181 Ceramic Disc - Upper

11 352-S Brass Stem

12 180 Celcon Washer

13 1038-E14 O-Ring

14 352-B Brass Bonnet

15 352-SS Brass Stop

16 352-CR Crescent Ring

17 524-B Escutcheon

18 512-HUB-02 Handle Hub

19 SU-512-G-15 White Handle With O-Ring

20 1038-HDL O-Ring

21 107-F15/8 Brass Phillips Head Screw

22 312-10N Flexible Hose Connector

23 2971 Brass Center Tee

24 4090-SK03 Brass Locknut

25 491-1172 Fiber Gasket

26 1012-N Escutcheon

27 1038-KN O-Ring

28 PF-741-DO Brass Spout Adapter

29 PF-782-DES Brass Spout Nut

30 PF-357-TRL Brass Spout

31 PF-166-U Brass Spout End Adapter

32 30-M Female Aerator

33 SU-352-L Left Thread Stem Assembly

33 SU-352-R Right Thread Stem Assembly

The parts listed in the parts breakdown
above may not be offered separately as
replacement parts. Please review the Re­placement Parts page for the authorized
replacement parts that are available for
this item.

04-08-09
