MODEL NO. 281137-DA
CENTERSET LAVATORY FITTING
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The lavatory centerset is designed with a solid cast brass
body with shanks located on four inch centers for supply
connections and mounting. The ninety degree turning stem
units are all brass with ceramic sealing discs. The lever
handles have a zinc die cast hub and a solid brass white grip.
The handles have a polished chrome plated nish. The faucet
body is polished and copper, nickel, and chrome plated. The
faucet is tted with a water saving aerator that limits the ow
rate. The O-Rings and seals are rubber. The pop-up drain
is brass with a chrome plated nish. The stopper and guide
assembly can be easily removed for cleaning.
ADA COMPLIANT
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61

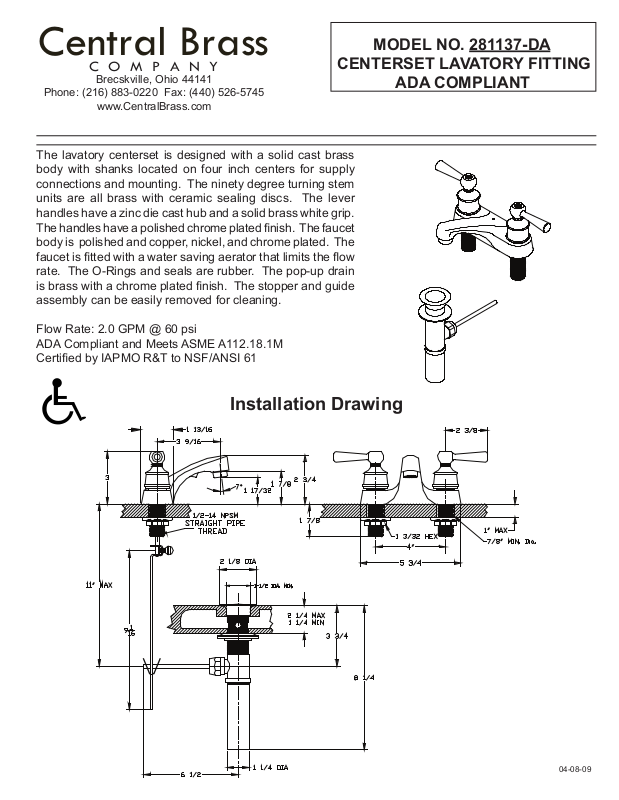

Installation Drawing
04-08-09
Brecskville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
MODEL NO. 281137-DA
CENTERSET LAVATORY FITTING
ADA COMPLIANT
Parts Breakdown
# Part # Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 54 Steel Crowfoot Washer
4 2143-1137 Brass Faucet Body
5 1028-Y Nylon Gasket
6 184-A Celcon Retainer
7 183-A Rubber Seal
8 182 Ceramic Disc - Lower
9 181 Ceramic Disc - Upper
10 352-S Brass Stem
11 180 Celcon Washer
12 1038-E14 O-Ring
13 352-B Brass Bonnet
# Part # Description
14 352-SS Brass Stop
15 352-CR Crescent Ring
16 512-HUB-02 Handle Hub
17 SU-512-G-15 White Handle With O-Ring
18 1038-HDL O-Ring
19 107-F15/8 Brass Phillips Head Screw
20 30-L Male Aerator
21 SU-352-L Left Thread Stem Assembly
21 SU-352-R Right Thread Stem Assembly
22 SU-195-BT9 Brass Pull Rod
23 113-PTS Steel Screw
24 PF-195 Steel Bracket
25 195-CT Stainless Steel Clip
26 SU-195-SAT Chrome Plated Brass Lever Rod
27 192-NBB Brass Nut
28 409-PT Celcon Packing
29 707-T Brass Tailpiece - 17 Guage
30 2148-T1109 Brass Pop-Up Tee Body
31 2058-ST1109 Zinc Locknut
32 51-D1109 Steel Washer
33 994-1109 Rubber Washer
34 2056-SPT1109 Brass Flange
35 G-2115-TP Stopper & Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
04-08-09
