CENTRAL BRASS 201125- DA User Manual

MODEL NO. 201125-DA

Central Brass

C O M P A N Y

WIDESPREAD FAUCET

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

The widespread lavatory faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The stems are all brass with a double O-Ring seal and
acrilonitrile seat washer. The lever handles have a zinc die
cast hub and a solid brass grip. The handles have a polished

chrome plated nish. The brass spout has a chrome plated
nish and is tted with a water saving aerator that limits the
ow rate. The O-Rings and seals are rubber. The pop up drain
is brass with a chrome plated nish. The stopper and guide

assembly can be easily removed for cleaning.

Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9

ADA COMPLIANT

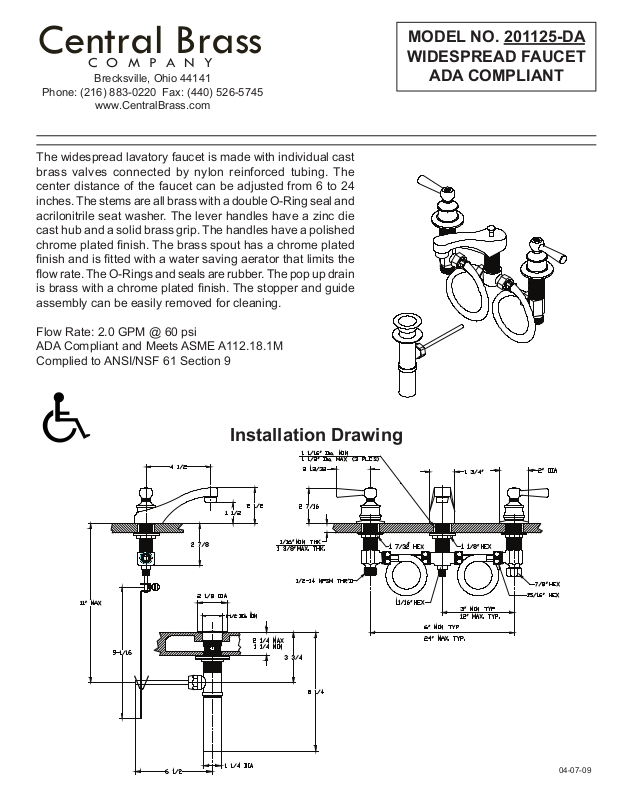

Installation Drawing

04-07-09

MODEL NO. 201125-DA

Central Brass

C O M P A N Y

WIDESPREAD FAUCET

Brecksville, Ohio 44141

Phone: [phone] Fax: [phone]

www.CentralBrass.com

# Part # Description

1 4015-BAR Brass Coupling Nut

2 2970-S Brass Corner Valve Body

3 53-AS Locknut

4 491-U Fiber Gasket

5 PF-263-D Brass Seat

6 1028-Y Nylon Gasket

7 104 Brass Seat Washer Screw

8 901-WNN Seat Washer

9 453-FL Brass Left Thread O-Ring Stem

9 453-FR Brass Right Thread O-Ring Stem

10 1038-453 O-Ring

11 453-EWC Brass Left Thread O-Ring Bonnet

11 453-EWH Brass Right Thread O-Ring Bonnet

12 524-B Escutcheon

ADA COMPLIANT

# Part # Description

13 512-HUB-02 Handle Hub

14 SU-512-G-15 White Handle With O-Ring

15 1038-HDL O-Ring

16 107-F15/8 Brass Phillips Head Screw

17 168-B Brass Hex Nut

18 28-A Brass Washer

19 954-AN Slip Joint Washer

20 312-10N Flexible Hose Connector

21 2003 Brass Center Tee

22 427-WS Rubber Gasket

23 53-CZ Locknut

24 52-S Steel Washer

25 PF-725-GH Brass Spout Tube

26 2090-CP Cast Brass Spout

27 30-L Male Aerator

28 SU-453-EL Left Thread O-Ring Stem Assembly

28 SU-453-ER Right Thread O-Ring Stem Assembly

29 SU-195-BT Brass Pull Rod

30 113-PTS Steel Screw

31 PF-195 Steel Bracket

32 195-CT Stainless Steel Clip

33 SU-195-SAT Chrome Plated Brass Lever Rod

34 192-NBB Brass Nut

35 409-PT Celcon Packing

36 707-T Brass Tailpiece - 17 Gauge

37 2148-T1109 Brass Pop-Up Tee Body

38 2058-ST1109 Zinc Locknut

39 51-D1109 Steel Washer

40 994-1109 Rubber Washer

41 2056-SPT1109 Brass Flange

42 SU-2113-TT Stoper & Guide

Parts Breakdown

The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.

04-07-09
