Cel-Fi GO M is optimized for mobile applications
such as trucks, boats, and RVs. It features
the IntelliBoost
™
technology which allows it to
automatically adjust to the fast changing cellular
network conditions as you move. ONLY when
the signal is poor, will the Intelliboost maximizes
gain while boosting thus preventing any potential
degradation of existing cellular service.
IN THE BOX
Power Supply
Main Unit
IN THE MOBILE KIT
External Magnetic Mount
(Mag Mount) Antenna
(used as the donor)
Interior Patch
Server Antenna
Included in the Mobile Kit (MK) version:
For more information, visit: www.cel-.com
Cel-Fi GO M
Quick Start Guide
Smart Signal Booster
™
Cel-Fi GO M: Smart Signal Booster
2
Basic Functionality

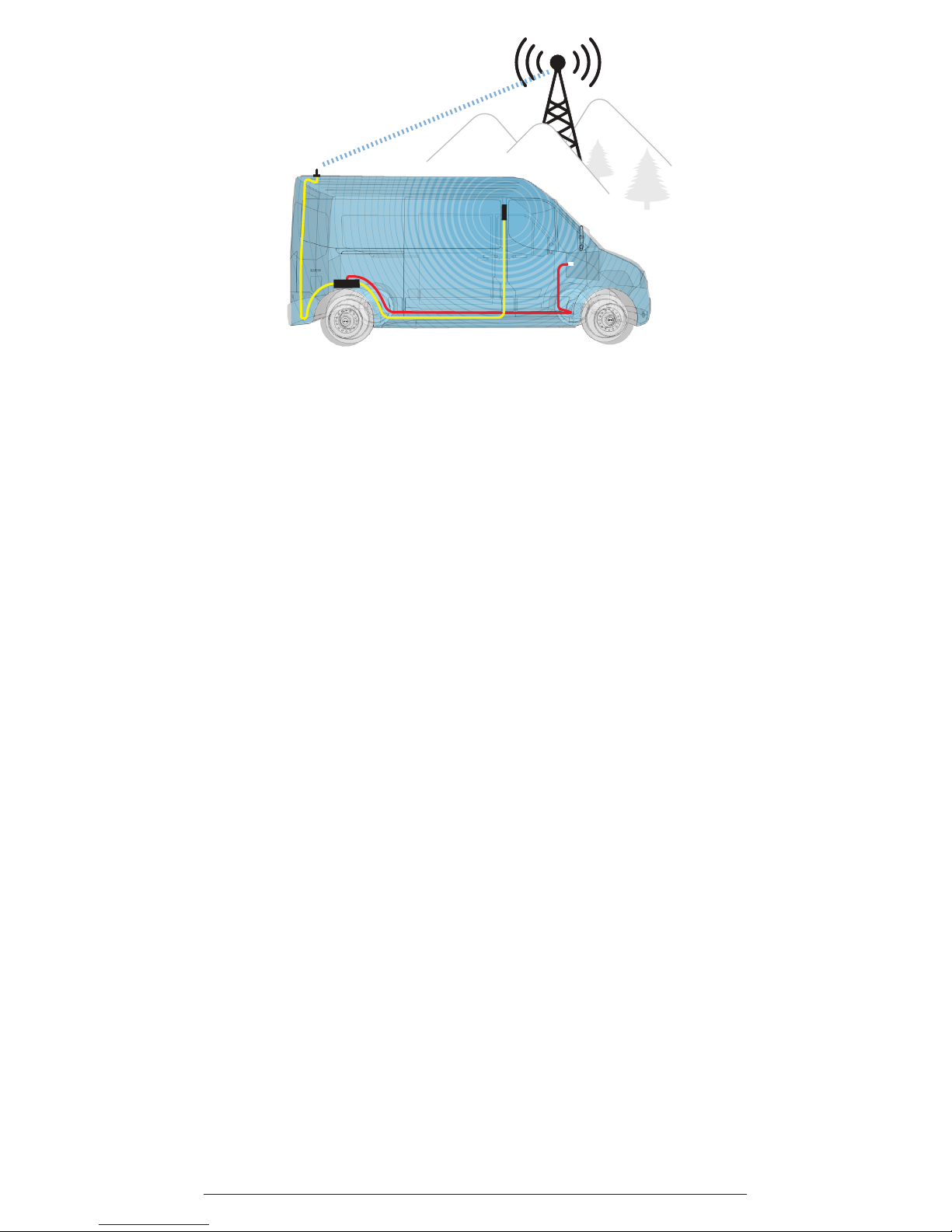

The Cel-Fi GO M connects to an external Donor Antenna to draw in
a cellular signal from the macro network. The Cel-Fi GO M Smart
Signal Booster nds the appropriate cellular signal, per the product’s
conguration, improves the signal, and amplies it. Improved service
is provided to the user via the Server Antenna.
NOTE: A Stationary version (“GO X”) of the product is available. Go to
cel-.com for details.
Cel-Fi WAVE Mobile App
The Cel-Fi WAVE app provides a User Interface to Cel-Fi systems.
The app’s dashboard shows the system “Boost” value. A numeric
representation mapped to the amount of Signal Gain the system
is providing. Higher is better, with nine (9) being the highest value.
Cel-Fi WAVE and Cel-Fi GO M
Your Cel-Fi GO M will automatically select the strongest cellular
signal to boost. However, you may manually congure the system
preferences using Cel-Fi WAVE. Connect to Cel-Fi GO M with a
bluetooth enabled mobile device, and manage the boost settings.
NEMA 4 Rating
The Cel-Fi GO M is NEMA 4 rated, and can be used both indoors
and outdoors.
The NEMA 4 rating provides the following advantages:
• A degree of protection against ingress of solid foreign objects
(falling dirt and windblown dust)
• A degree of protection from the ingress of water (rain, sleet, snow,
splashing water, and hose directed water)
• Equipment will be undamaged by the external formation of ice
on the enclosure
