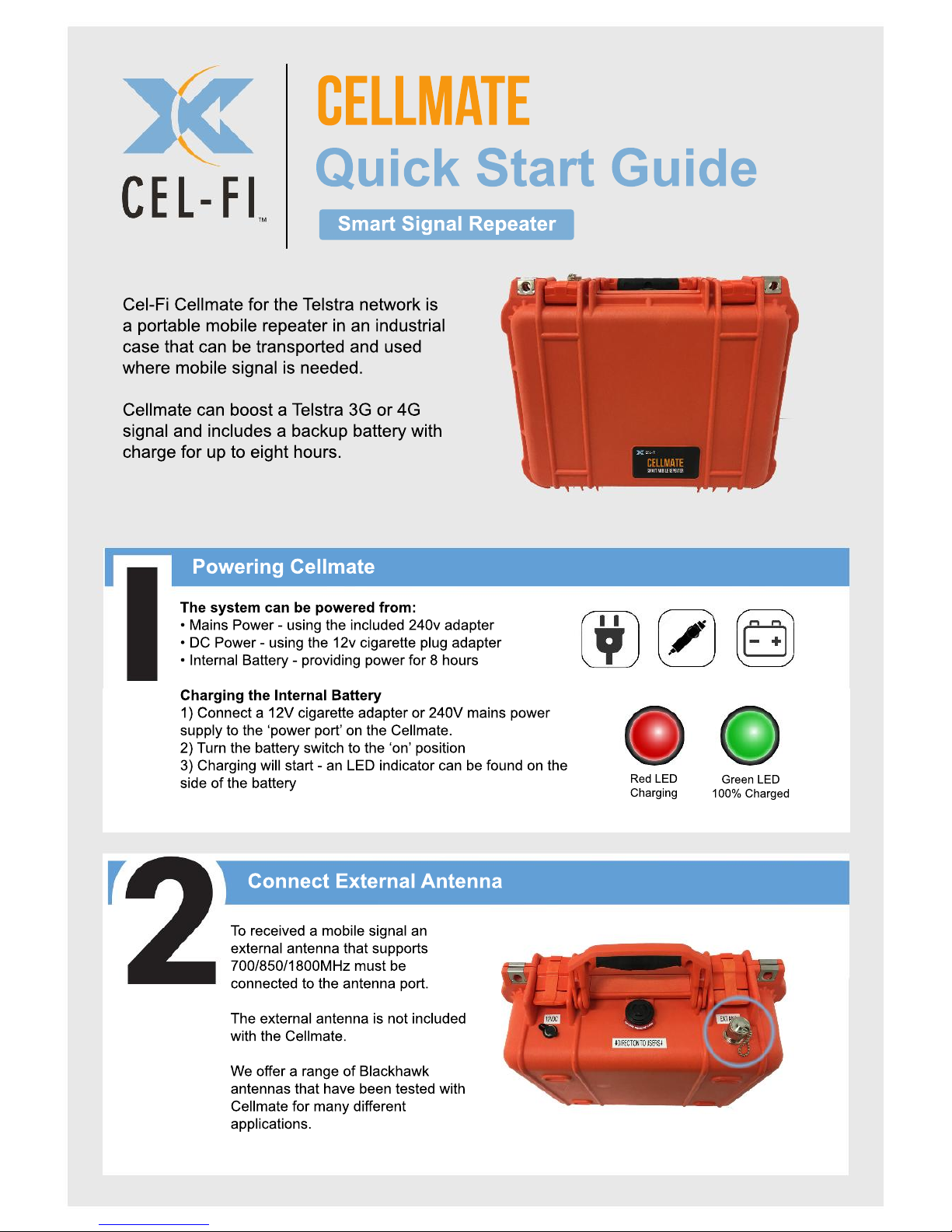

cellmate
Quick Start Guide
Smart Signal Repeater
Cel-Fi Cellmate for the Telstra network is
a portable mobile repeater in an industrial
case that can be transported and used
where mobile signal is needed.
Cellmate can boost a Telstra 3G or 4G
signal and includes a backup battery with
charge for up to eight hours.
Powering Cellmate
Connect External Antenna
The system can be powered from:
• Mains Power - using the included 240v adapter
• DC Power - using the 12v cigarette plug adapter
• Internal Battery - providing power for 8 hours
Charging the Internal Battery
1) Connect a 12V cigarette adapter or 240V mains power 1) Connect a 12V cigarette adapter or 240V mains power
supply to the ‘power port’ on the Cellmate.
2) Turn the battery switch to the ‘on’ position
3) Charging will start - an LED indicator can be found on the
side of the battery
Red LED
Charging
Green LED
100% Charged
To received a mobile signal an
external antenna that supports
700/850/1800MHz must be
connected to the antenna port.
The external antenna is not included
with the Cellmate.
WWe offer a range of Blackhawk
antennas that have been tested with
Cellmate for many different
applications.
