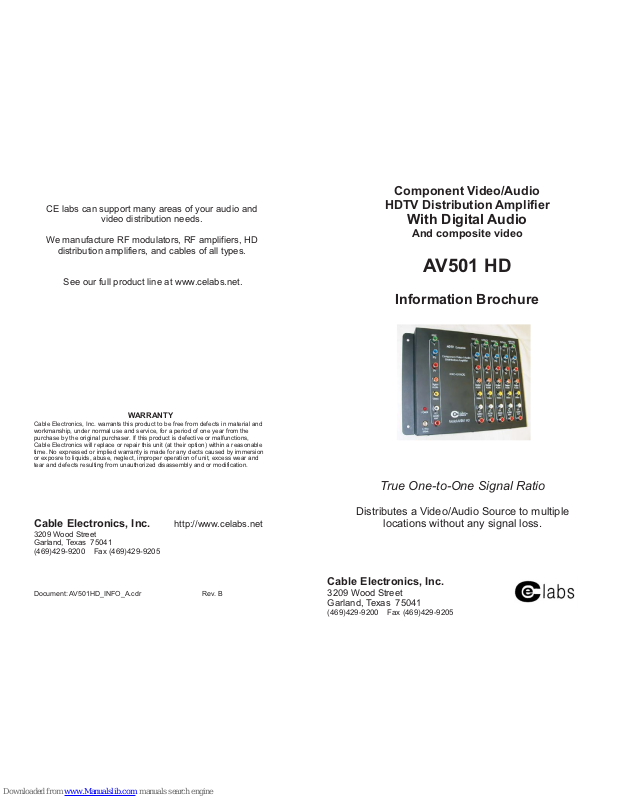

CE Labs AV501 HD Brochure

WARRANTY

Cable Electronics, Inc. warrants this product to be free from defects in material and
workmanship, under normal use and service, for a period of one year from the
purchase by the original purchaser. If this product is defective or malfunctions,
Cable Electronics will replace or repair this unit (at their option) within a reasonable
time. No expressed or implied warranty is made for any dects caused by immersion
or exposre to liquids, abuse, neglect, improper operation of unit, excess wear and
tear and defects resulting from unauthorized disassembly and or modification.

Cable Electronics, Inc. http://www.celabs.net

3209 Wood Street
Garland, Texas 75041
[phone] Fax [phone]

Document: AV501HD_INFO_A.cdr Rev. B

CE labs can support many areas of your audio and

video distribution needs.

We manufacture RF modulators, RF amplifiers, HD

distribution amplifiers, and cables of all types.

See our full product line at www.celabs.net.

Component Video/Audio

HDTV Distribution Amplifier

With Digital Audio

Information Brochure

And composite video

AV501 HD

True One-to-One Signal Ratio

Distributes a Video/Audio Source to multiple

locations without any signal loss.

Cable Electronics, Inc.

3209 Wood Street
Garland, Texas 75041

[phone] Fax [phone]

IN

OUT

IN

OUT

Installation / Operation Instructions

Unpack the amplifier and power supply from the box. Place
the amplifier in a dry location, usually behind the shelf
where the monitors are located.

The unit has integrated mounting brackets that are pre­drilled in case the user wishes to screw the unit to the shelf
().

Connect the source device outputs to the appropriate input
jacks on the AV501HD. Connect cabling from the AV501HD
outputs to the desired display or recording device. The fifth
output may be used as normal or connect to the next
distribution amplifier to create more outputs.

Insert the power supply connector into the power jack of
the AV501HD. Plug the wall transformer into a 120Vac
outlet. The power LED should be on and the unit is ready to
use.

screws supplied by user

Monitor 1

Monitor 2

Source

AV501 HD

The AV501HD has one set of inputs and five sets of outputs.
The unit allows any Audio/Video source, with Y, Cb, Cr, or Y, Pb, Pr
Outputs (component), to distribute Audio and Video to five different
locations without any signal loss. The amplifier also supports composite
video and digital audio. Note: the fifth output may be used to daisy chain
several units together as is typically done in store displays.

Nominal Input level: 1 Volt peak to peak
Gain: 1 Volt into 75 ohms (2 Volts Unterminated)
Input Impedance: 75 ohms
Output Impedance: 75 ohms
Isolation port to port: 32 dB
Isolation out to input: 60 dB
Return loss: 18 dB
Video bandwidth: > 75 Mhz (HDTV requires 37MHz min.)

Nominal Input level: 1 Volt peak to peak
Gain: Unity (one to one)
Input impedance: 22k ohm
Output impedance: 1k ohm
THD: 0.05%
Frequency Response: 20Hz to 100kHz
Channel Separation: >75dB
Port to Port Isolation: 60dB
Out to Input Isolation: 60dB
Signal to Noise: 100dB@2Voltsout

Supports Standard SPDIF digital audio.
Unity gain when terminated into 75 ohms (2X gain high imp.).
Greater than 50 MHz of bandwidth to ensure minimal degradation.

Requirement: External 9 to 10 Volt AC @ 500mA with a ( 2.1mm center)
Coaxial connector. Power Supply is included.

SPECFICATIONS

VIDEO (All Channels including Component and Composite)

AUDIO

Analog:

Digital:

POWER
