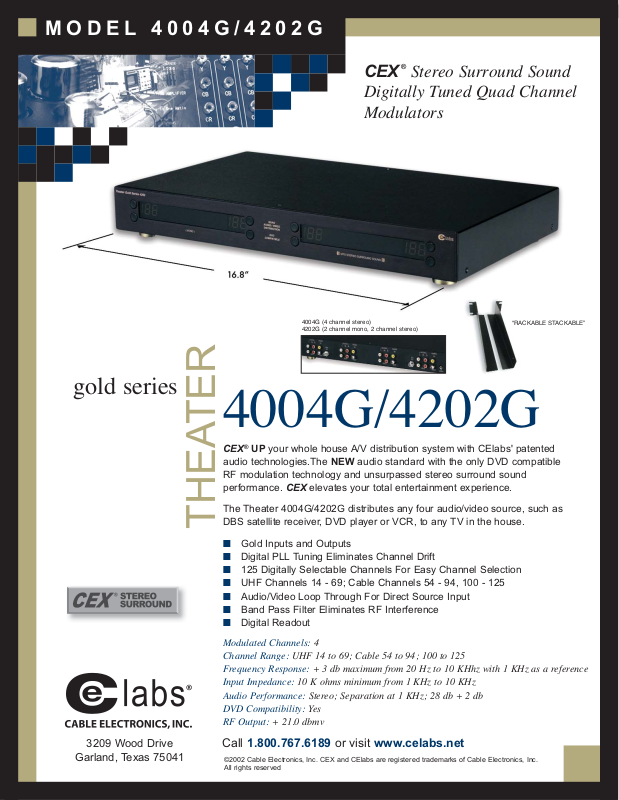

M O D E L 4 0 0 4 G / 4 2 0 2 G
CEX® Stereo Surround Sound
Digitally Tuned Quad Channel
Modulators
gold series
THEATER
4004G |
(4 channel stereo) |
“RACKABLE STACKABLE” |
4202G |
(2 channel mono, 2 channel stereo) |
|
|
|
|
|
|
|
4004G/4202G
CEX® UP your whole house A/V distribution system with CElabs' patented audio technologies.The NEW audio standard with the only DVD compatible RF modulation technology and unsurpassed stereo surround sound performance. CEX elevates your total entertainment experience.
The Theater 4004G/4202G distributes any four audio/video source, such as DBS satellite receiver, DVD player or VCR, to any TV in the house.
3209 Wood Drive
Garland, Texas 75041
■Gold Inputs and Outputs
■Digital PLL Tuning Eliminates Channel Drift
■125 Digitally Selectable Channels For Easy Channel Selection
■UHF Channels 14 - 69; Cable Channels 54 - 94, 100 - 125
■Audio/Video Loop Through For Direct Source Input
■Band Pass Filter Eliminates RF Interference
■Digital Readout
Modulated Channels: 4
Channel Range: UHF 14 to 69; Cable 54 to 94; 100 to 125
Frequency Response: + 3 db maximum from 20 Hz to 10 KHhz with 1 KHz as a reference Input Impedance: 10 K ohms minimum from 1 KHz to 10 KHz
Audio Performance: Stereo; Separation at 1 KHz; 28 db + 2 db DVD Compatibility: Yes
RF Output: + 21.0 dbmv
Call 1.800.767.6189 or visit www.celabs.net
©2002 Cable Electronics, Inc. CEX and CElabs are registered trademarks of Cable Electronics, Inc. All rights reserved
