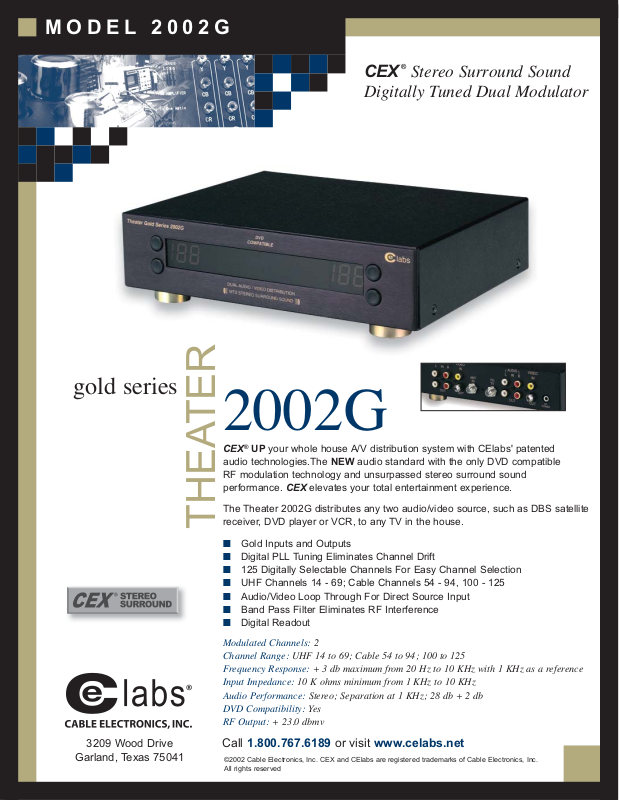

CE Labs 2002-G Brochure

MODEL 2002G

CEX®Stereo Surround Sound

Digitally Tuned Dual Modulator

gold series

THEATER

2002G

CEX®UP your whole house A/V distribution system with CElabs' patented
audio technologies.The NEW audio standard with the only DVD compatible
RF modulation technology and unsurpassed stereo surround sound
performance. CEX elevates your total entertainment experience.

The Theater 2002G distributes any two audio/video source, such as DBS satellite
receiver, DVD player or VCR, to any TV in the house.

I Gold Inputs and Outputs
I Digital PLL Tuning Eliminates Channel Drift
I 125 Digitally Selectable Channels For Easy Channel Selection
I UHF Channels 14 - 69; Cable Channels 54 - 94, 100 - 125
I Audio/Video Loop Through For Direct Source Input
I Band Pass Filter Eliminates RF Interference
I Digital Readout

Modulated Channels: 2
Channel Range: UHF 14 to 69; Cable 54 to 94; 100 to 125
Frequency Response: + 3 db maximum from 20 Hz to 10 KHz with 1 KHz as a reference
Input Impedance: 10 K ohms minimum from 1 KHz to 10 KHz
Audio Performance: Stereo; Separation at 1 KHz; 28 db + 2 db
DVD Compatibility: Ye s
RF Output: + 23.0 dbmv

Call 1.800.767.6189 or visit www.celabs.net

3209 Wood Drive

Garland, Texas 75041

©2002 Cable Electronics, Inc. CEX and CElabs are registered trademarks of Cable Electronics, Inc.
All rights reserved
