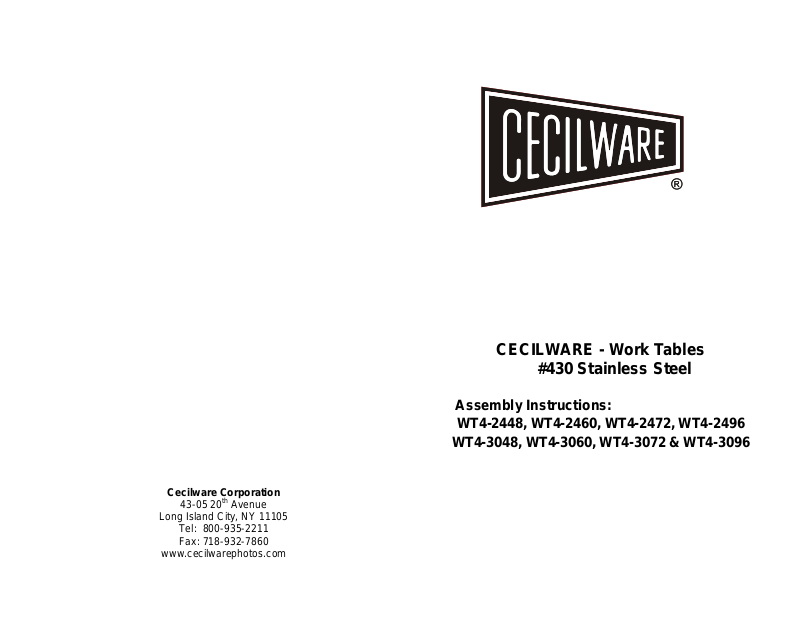

Cecilware WT4-2448 Installation Manual

Cecilware Corporation

43-05 20

Long Island City, NY 11105

Tel: [phone]
Fax: [phone]

www.cecilwarephotos.com

th

Avenue

#430 Stainless Steel

Assembly Instructions:

CECILWARE - Work Tables

WT4-2448, WT4-2460, WT4-2472, WT4-2496

WT4-3048, WT4-3060, WT4-3072 & WT4-3096

Parts List- See Section 1

a. 1 Stainless Steel Table Top
b. 4 Galvanized Legs (6 Legs for WT4-2496 and WT4-3096）
c. 1 Galvanized Shelf
d. 12 Stainless Steel Set Screws（18 Screws for WT4-2496 and
WT4-3096）
e. 1 Allen Key

Assembly – See Section 2

• Carefully remove all of the parts from the carton.

• Place table top face down on level surface.

• Insert each leg through each of the sockets on the table top.

• Lower the galvanized under shelf over assembled table legs through

holes provided on shelf. Position the shelf at the marked line which is
6” from the bottom of legs). Use the set screws to fix the shelf to legs.

• Use set screws to fix legs to table top.

• Adjust the legs so that they are level and firmly located in each socket.

Tighten all screws on table top and the corner of galvanized under
shelf.

• Turn the table over and set it upright. If there is any movement in the
table, the feet can be used to make adjustment and level the table
ready for use.

• Before using the table, we recommend that you clean it thoroughly
using a cleaning agent recommended for stainless steel, ensuring all
cleaning agents and moisture are removed from the table top before
use.

Care of the Table

• Clean the table regularly as required, using a cleaning agent
recommended for stainless steel and galvanized surfaces.

• Always clean off any cleaning solution residue, as failure to do so may
cause discolouring and marks to develop.

• Never leave any surface with water or damp areas, as this may cause
discolouration.

Warning

• Whilst Cecilware attempts to remove all sharp edges, care must be
taken when cleaning or handling the table to prevent the risk of injury
from exposed metal edges.

• Do not overload the table causing the top or shelf to bend.

Cecilware Corporation

43-05 20

th

Avenue

Long Island City, NY 11105

Tel: [phone]
Fax: [phone]
