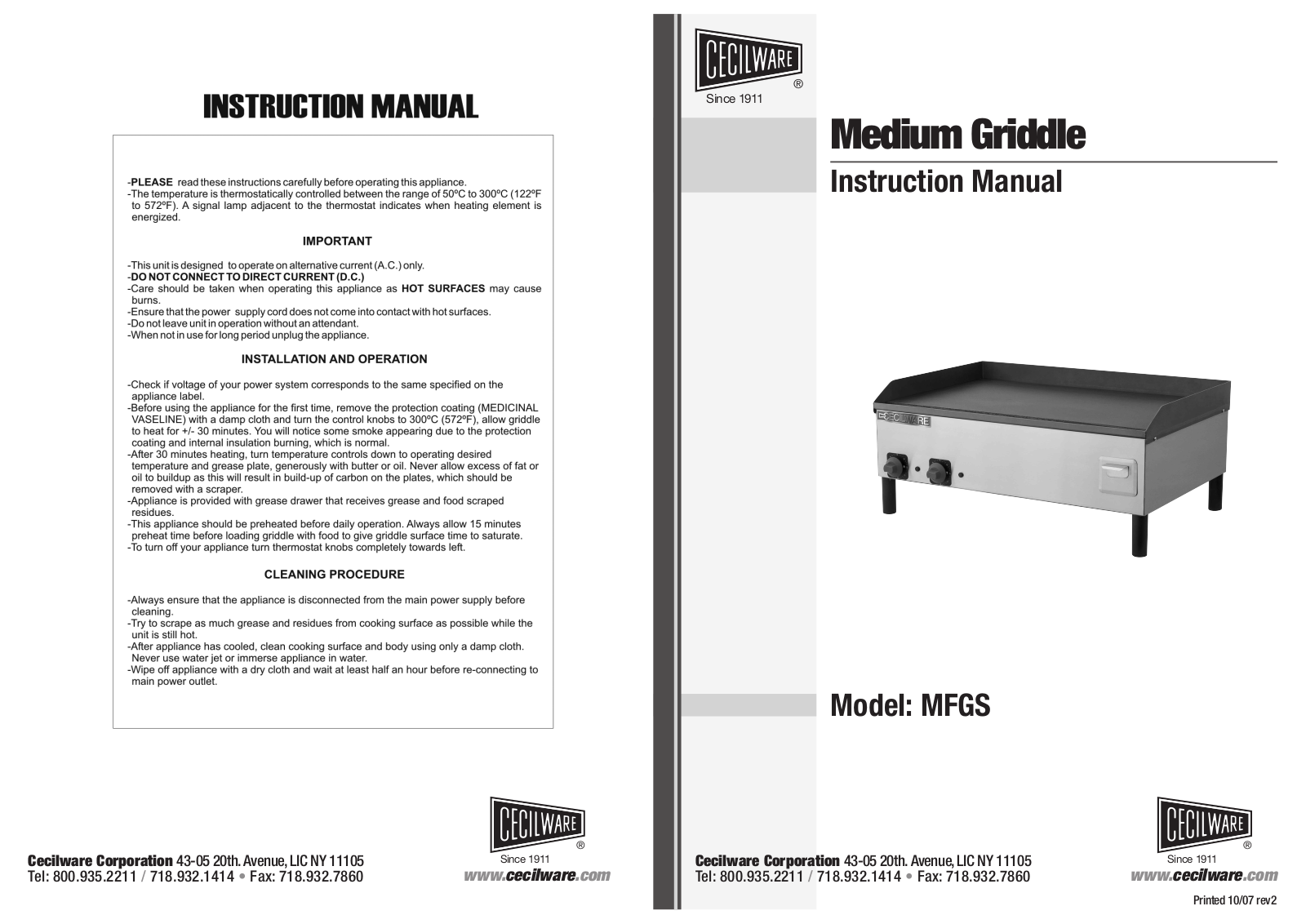

Cecilware MFGS Installation Manual
Since 1911
®
Medium Griddle
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: MFGS
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2

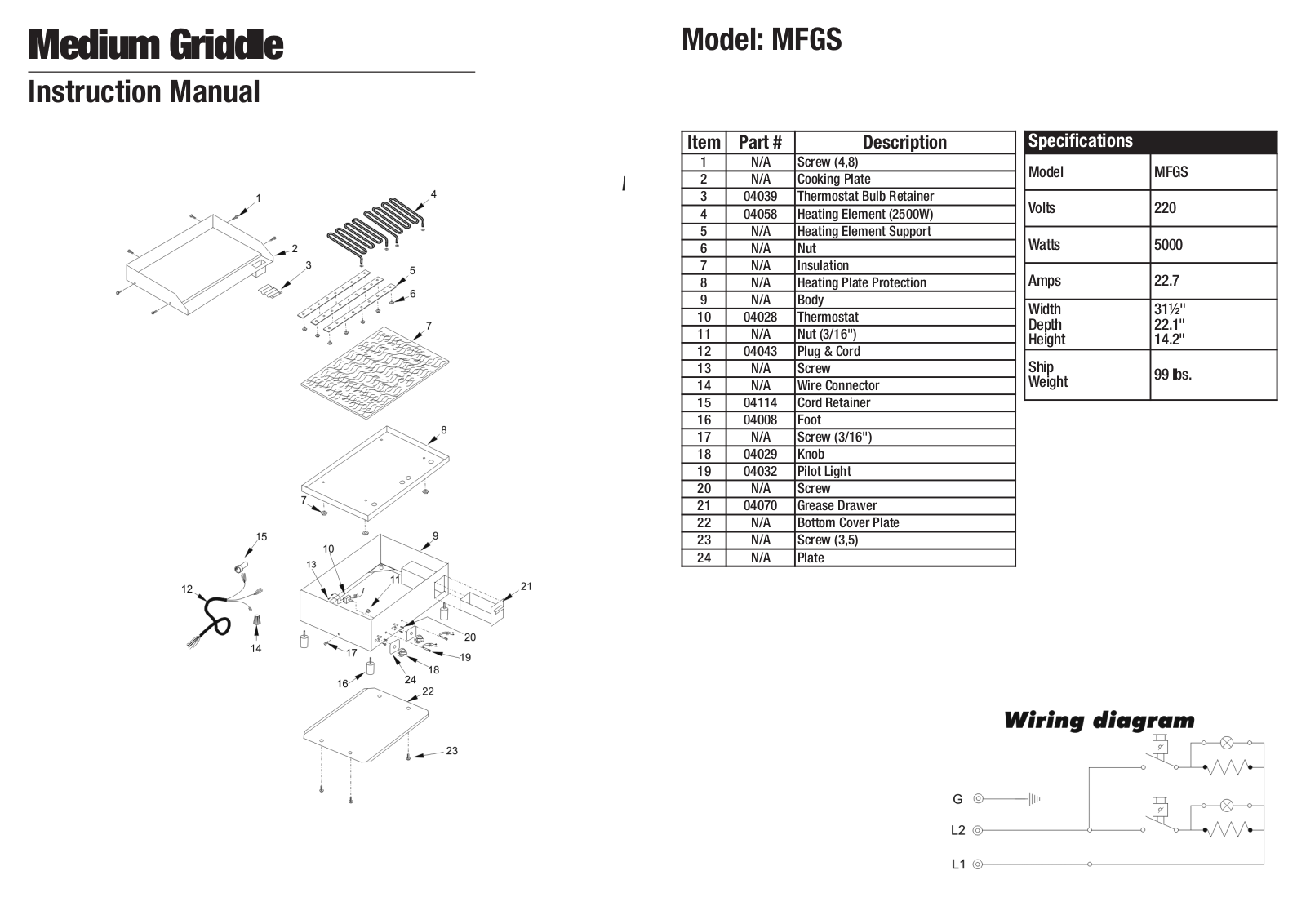

Medium Griddle
Instruction Manual
Model: MFGS
Item Part # Description
1 N/A Screw (4,8)
2 N/A Cooking Plate
3 04039 Thermostat Bulb Retainer
4 04058 Heating Element (2500W)
5 N/A Heating Element Support
6 N/A Nut
7 N/A Insulation
8 N/A Heating Plate Protection
9 N/A Body
10 04028 Thermostat
11 N/A Nut (3/16")
12 04043 Plug & Cord
13 N/A Screw
14 N/A Wire Connector
15 04114 Cord Retainer
16 04008 Foot
17 N/A Screw (3/16")
18 04029 Knob
19 04032 Pilot Light
20 N/A Screw
21 04070 Grease Drawer
22 N/A Bottom Cover Plate
23 N/A Screw (3,5)
24 N/A Plate
Specifications
Model MFGS
Volts 220
Watts 5000
Amps 22.7
Width
Depth
Height
Ship
Weight
31½"
22.1"
14.2"
99 lbs.
