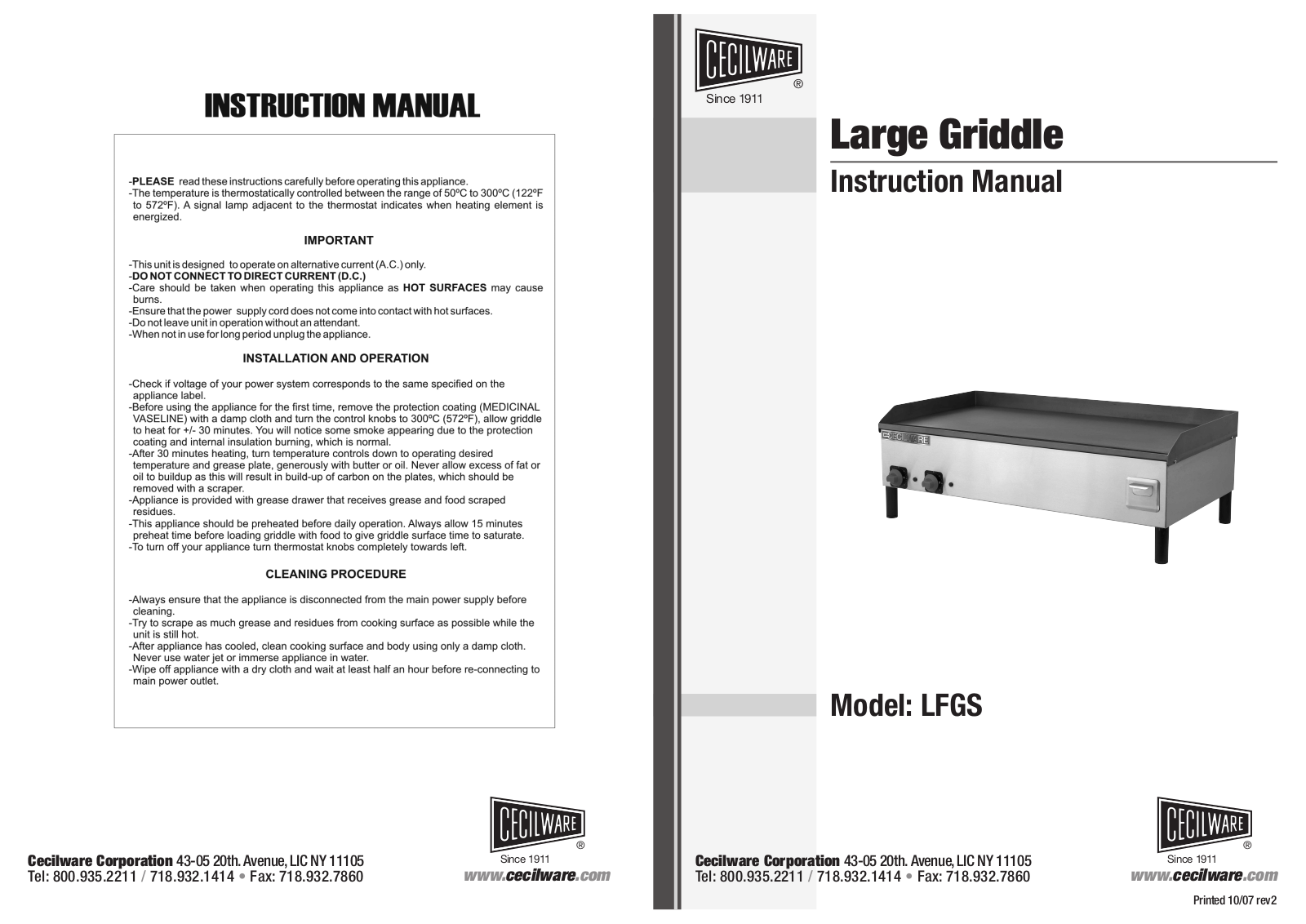

Cecilware LFGS Installation Manual
Since 1911
®
Large Griddle
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: LFGS
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2
Large Griddle
Instruction Manual
Model: LFGS

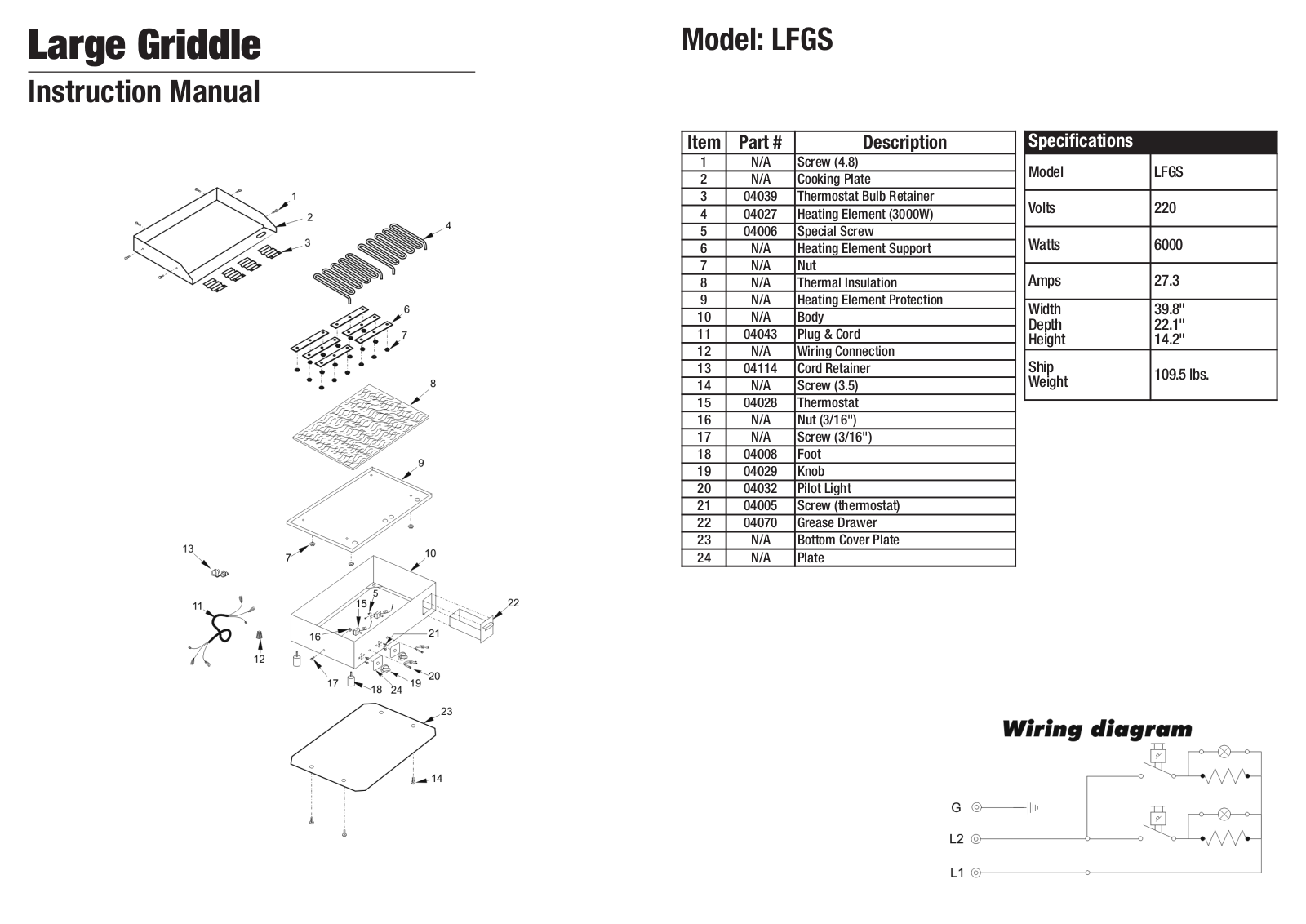

Item Part # Description
1 N/A Screw (4.8)
2 N/A Cooking Plate
3 04039 Thermostat Bulb Retainer
4 04027 Heating Element (3000W)
5 04006 Special Screw
6 N/A Heating Element Support
7 N/A Nut
8 N/A Thermal Insulation
9 N/A Heating Element Protection
10 N/A Body
11 04043 Plug & Cord
12 N/A Wiring Connection
13 04114 Cord Retainer
14 N/A Screw (3.5)
15 04028 Thermostat
16 N/A Nut (3/16")
17 N/A Screw (3/16")
18 04008 Foot
19 04029 Knob
20 04032 Pilot Light
21 04005 Screw (thermostat)
22 04070 Grease Drawer
23 N/A Bottom Cover Plate
24 N/A Plate
Specifications
Model LFGS
Volts 220
Watts 6000
Amps 27.3
Width
Depth
Height
Ship
Weight
39.8"
22.1"
14.2"
109.5 lbs.
